Source 1 AC018X1222A User manual

Unitary Products Group
www.Source1Parts.com

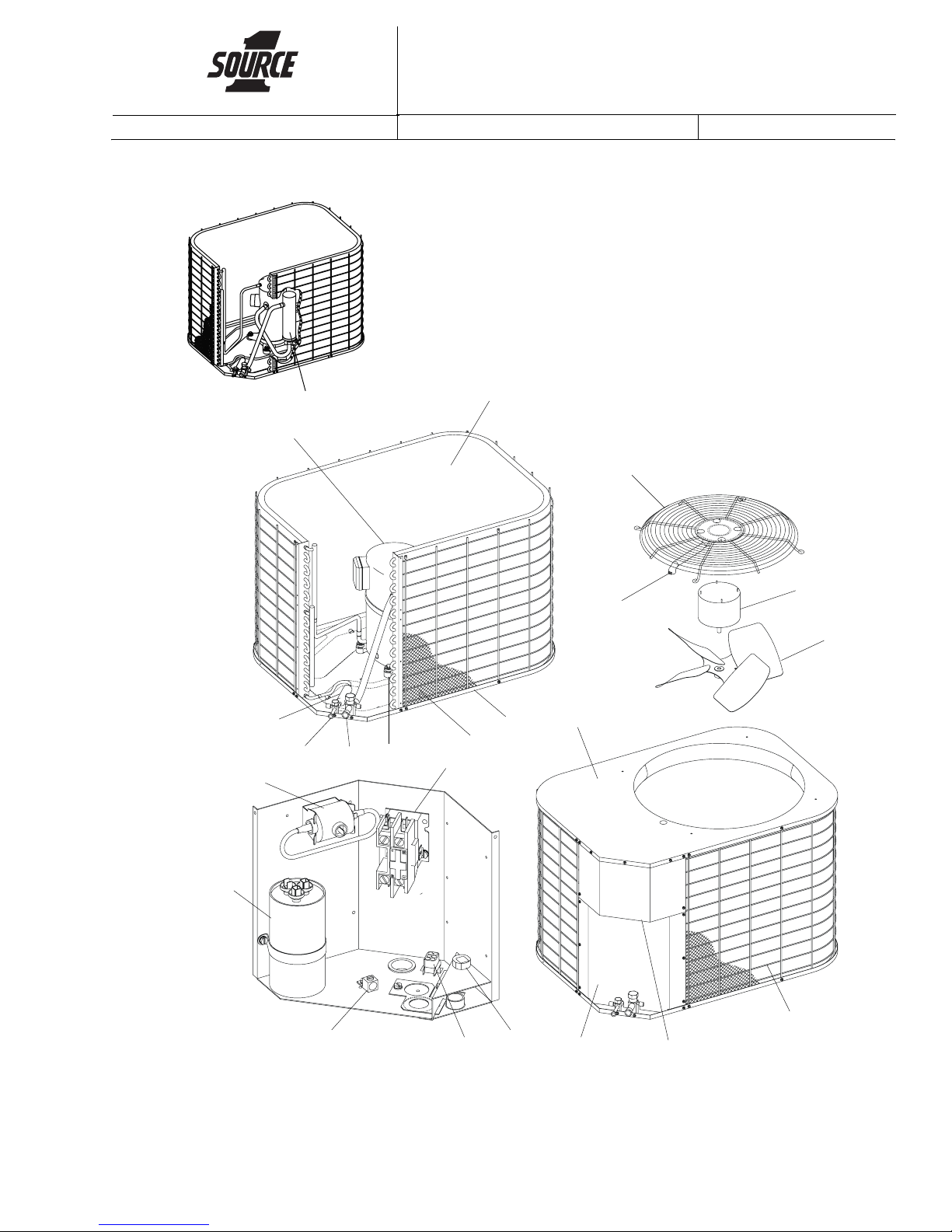

AC SERIES - 12 SEER - X3
SPLIT AIR CONDITIONER
HVAC SERVICE PARTS Supersedes:035-15826-002 Rev. H (0603) 035-15826-002 Rev. I (0903)
1 of 4
7
6
1
2
3
4
5
14
23
8
13
12 11
9
10
16 19 20
15
18
17
25
AC018X1222A
AC024X1222A
AC030X1222A
AC036X1222A
AC042X1221A
AC048X1222A
AC060X1222A
AC060X1223A
&B
042B only
28

Unitary Products Group
2 of 4 035-15826-002 Rev. I (0903)
Models 18, 24, 30, and 36
ITEM DESCRIPTION AC018X1222A AC024X1222A AC030X1222A AC036X1222A
1 Fan Guard 026-35511-018 026-35511-018 026-35511-022 026-35511-022
2 Wireway 028-13215-000 028-13215-000 028-13216-000 028-13216-000
3 Fan Motor 024-26067-010 024-26067-010 024-26029-000 024-27596-000
4 Fan Blade 18” Diameter
Fan Blade 22” Diameter
026-34091-000
---
026-34091-000
---
---
026-34097-000
---
026-34593-000
5 Top 2218-1021/A 2218-1021/A 2260-1021/A 2260-1021/A
6 Outdoor Coil Assembly 373-19800-003 373-19800-003 373-19800-004 373-19800-004
7 Compressor 015-03426-004 015-02748-004 015-03432-004 015-03424-001
8 Compressor Mount (Pkg. of 4) 9435-1081 9435-1081 9435-1081 9435-1081
9 Dual Capacitor (30/5 MFD)
Dual Capacitor (35/5 MFD)
Dual Capacitor (45/5 MFD)
024-24778-000
---
---
024-24778-000
---
---
---
024-23998-000
---
---
---
024-25895-000
10 Contactor (30 amp) 024-27531-000 024-27531-000 024-27531-000 024-27531-000
11 Base Valve 3/4” 025-31900-000 025-31900-000 025-31900-000 025-31900-000
12 Base Valve 3/8” 025-31899-000 025-31899-000 025-31899-000 025-31899-000
13 Filter Drier 029-22156-000 029-22156-000 029-22156-000 029-22156-000
14 Base Pan 2218-1011 2218-1011 2260-1011 2260-1011
15 Control Box Cover 2218-1151/A 2218-1151/A 2218-1151/A 2218-1151/A
16 Ground Lug 025-21798-000 025-21798-000 025-21798-000 025-21798-000
17 Coil Guard 373-20091-009 373-20091-009 373-20091-010 373-20091-010 <
18 Blockoff Plate 2242-1081/B 2242-1081/B 2248-1081/B 2248-1081/B
19 6 Position Plug 025-33306-006 025-33306-006 025-33306-006 025-33306-006
20 Strain Relief 025-09687-000 025-09687-000 025-09687-000 025-09687-000
21
22
23 Coil Guard, Plastic Mesh 028-14727-000 028-14727-000 028-14728-000 028-14728-000
24
25 Start Device, Solid State --- --- --- ---
26
27* Kit, Motor Mounting (Acorn Nuts) 363-90117-000 363-90117-000 363-90117-000 363-90117-000
NOTE: *Not Shown
New replacement parts shown in bold face type at the first printing of parts list dated 9/03.
Major components and suggested stocking items are shown with shaded item number.
“<“ Across from row indicates a change in that row.
--- Not applicable to specified model.

Unitary Products Group
035-15826-002 Rev. I (0903) 3 of 4
Models 42, 48, and 60
ITEM DESCRIPTION AC042X1221A AC042X1221B AC048X1222A AC060X1222A AC060X1223A
1 Fan Guard 026-35511-022 026-35511-022 026-35511-022 026-35511-022 026-35511-022
2 Wireway 028-13216-000 028-13216-000 028-13216-000 028-13216-000 028-13216-000
3 Fan Motor 024-27596-000 024-27596-000 024-27596-000 024-27596-000 024-27596-000
4 Fan Blade 22” Diameter 026-34593-000 026-34593-000 026-34593-000 026-34094-000 026-34094-000
5 Top 2260-1021/A 2260-1021/A 2260-1021/A 2260-1021/A 2260-1021/A
6 Outdoor Coil Assembly 373-19800-005 373-19800-005 373-19800-019 373-19800-020 373-19800-006
7 Compressor 015-03132-004 015-03132-004 015-03297-004 015-02968-004 015-02620-004
8 Compressor Mount (Pkg. of 4)
Compressor Mount (4 req’d.)
---
028-12355-000
---
028-12355-000
9435-1081
---
---
028-12355-000
---
028-10581-000 <
9 Dual Capacitor (40/5 MFD)
Dual Capacitor (45/5 MFD)
Dual Capacitor (80/5 MFD)
024-25894-000
---
---
024-25894-000
---
---
---
024-25895-000
---
---
---
024-26037-000
---
---
024-26037-000
10 Contactor (30 amp)
Contactor (40 amp)
024-27531-000
---
024-27531-000
---
024-27531-000
---
---
024-25837-000
---
024-25837-000
11 Base Valve 7/8” 025-31901-000 025-31901-000 025-31901-000 025-31901-000 025-31901-000
12 Base Valve 3/8” 025-31899-000 025-31899-000 025-31899-000 025-31899-000 025-31899-000
13 Filter Drier 029-22157-000 029-22157-000 029-22157-000 029-22157-000 029-22157-000
14 Base Pan 2260-1011 2260-1011 2260-1011 2260-1011 2260-1011
15 Control Box Cover 2218-1151/A 2218-1151/A 2218-1151/A 2218-1151/A 2218-1151/A
16 Ground Lug 025-21798-000 025-21798-000 025-21798-000 025-21798-000 025-21798-000
17 Coil Guard 373-20091-011 373-20091-011 373-200091-012 373-20091-013 373-20091-013 <
18 Blockoff Plate 2260-1081/B 2260-1081/B 3948-1081/B 2660-1081/B 2660-1081/B
19 6 Position Plug 025-33306-006 025-33306-006 025-33306-006 025-33306-006 025-33306-006
20 Strain Relief 025-09687-000 025-09687-000 025-09687-000 025-09687-000 025-09687-000
21
22
23 Coil Guard, Plastic Mesh 028-14730-000 028-14730-000 028-14731-000 028-14733-000 028-14733-000
24
25 Start Device, Solid State --- --- 024-20867-002 --- ---
26* Blanket, Compressor --- --- 010-06662-000 --- --- <
27* Kit, Motor Mounting (Acorn Nuts) 363-90117-000 363-90117-000 363-90117-000 363-90117-000 363-90117-000
28 Tank, Accumulator --- 026-34090-0000 --- --- ---
NOTE: *Not Shown
New replacement parts shown in bold face type at the first printing of parts list dated 9/03.
Major components and suggested stocking items are shown with shaded item number.
“<“ Across from row indicates a change in that row.
--- Not applicable to specified model.

Subject to change without notice. Printed in U.S.A. 035-15826-002 Rev. I (0903)
Copyright © by York International Corp. 2003. All rights reserved. Supersedes: 035-15826-002 Rev. H (0603)
Unitary 5005 Norman
Products York OK
Group Drive 73069
4 of 4
TO ORDER AUTHORIZED FACTORY REPLACEMENT PARTS - Contact your Source1 HVAC Parts Distributor or visit our
website at www.Source1Parts.com for a Distributor and Dealer listing.
Field Installed Accessories - Non-Electrical
Part Number Description Used With
026-32621-000 Compressor Blanket Kit 018, 024, 036
026-34627-001 Compressor Blanket Kit 030
026-34627-002 Compressor Blanket Kit 042
Field Installed Accessories - Electrical
Part Number Description Used With
2ET07700224 Thermostat, Programmable, Electronic Cool/Heat
2ET07700324 Thermostat, Programmable, Electronic Cool/Heat
2HU06700124 Dehumidification Control NVS Models
2LA06700224 Low Ambient Kit All Model
2PS06701606 Refrigerant Safety Kit All Model
2SA06702306 Hard Start Kit 018
2SA06706206 Hard Start Kit 024
2SA06703706 Hard Start Kit 030
2SA06702006 Hard Start Kit 036
2SA06714206 Hard Start Kit 042
2SA06702406 Hard Start Kit 048
2SA06706006 Hard Start Kit 060
2TB08700124 Subbase, - 1 Cool 2TH13700424
2TB17700324 Subbase, - 1 Cool - 1 Heat 2TH13700424
2TD06700124 Thermostat, Outdoor Provides Addtional Staging
2TH07700124 Thermostat, Manual 1 Heat - 1 Cool Cool/ Heat
2TH13700424 Thermostat, Manual Heat Only
