Sanyo CH0971 Operating manual

IMPORTANT
These air conditioners employ new
refrigerant R410A.
Pay special attention when
servicing the unit.
TECHNICAL & SERVICE MANUAL
KHS0971 + CH0971
KHS1271 + CH1271
DC INVERTER SPLIT SYSTEM AIR CONDITIONER
Indoor Unit
Destination: North America
Outdoor Model No.
CH0971
CH1271
Product Code No.
1 852 330 21
1 852 330 22
Outdoor Unit
KHS0971
KHS1271
CH0971
CH1271
REFERENCE NO. SM700647-06
Indoor Model No.
KHS0971
KHS1271
Product Code No.
1 852 099 79
1 852 099 80
FILE NO.

When Wiring
ELECTRICAL SHOCK CAN CAUSE
SEVERE PERSONAL INJURY OR DEATH.
ONLY A QUALIFIED, EXPERIENCED
ELECTRICIAN SHOULD ATTEMPT TO
WIRE THIS SYSTEM.
SPECIAL PRECAUTIONS
This symbol refers to a hazard or
unsafe practice which can result
in severe personal injury or death.
This symbol refers to a hazard
or unsafe practice which can
result in personal injury or
product or property damage.
CAUTION
CAUTION
WARNING
WARNING
Important!
Please Read Before Starting
This air conditioning system meets strict safety and operating
standards. As the installer or service person, it is an
important part of your job to install or service the system so it
operates safely and efficiently.
For safe installation and trouble-free operation, you must:
Carefully read this instruction booklet before beginning.
Follow each installation or repair step exactly as shown.
Observe all local, state, and national electrical codes.
Pay close attention to all warning and caution notices given
in this manual.
If Necessary, Get Help
These instructions are all you need for most installation
sites and maintenance conditions. If you require help for
a special problem, contact our sales/service outlet or
your certified dealer for additional instructions.
In Case of Improper Installation
The manufacturer shall in no way be responsible for
improper installation or maintenance service, including
failure to follow the instructions in this document.
Do not supply power to the unit until all wiring and tubing
are completed or reconnected and checked.
Highly dangerous electrical voltages are used in this
system. Carefully refer to the wiring diagram and these
instructions when wiring. Improper connections and
inadequate grounding can cause accidental injury or death.
Ground the unit following local electrical codes.
Connect all wiring tightly. Loose wiring may cause
overheating at connection points and a possible fire
hazard.
When Transporting
Be careful when picking up and moving the indoor and
outdoor units. Get a partner to help, and bend your knees
when lifting to reduce strain on your back. Sharp edges or thin
aluminum fins on the air conditioner can cut your fingers.
When Installing
In a Ceiling or Wall
Make sure the ceiling/wall is strong enough to hold the unit’s
weight. It may be necessary to construct a strong wood or
metal frame to provide added support.
In a Room
Properly insulate any tubing run inside a room to prevent
"sweating" that can cause dripping and water damage to walls
and floors.
In Moist or Uneven Locations
Use a raised concrete pad or concrete blocks to provide a
solid, level foundation for the outdoor unit. This prevents
water damage and abnormal vibration.
In an Area with High Winds
Securely anchor the outdoor unit down with bolts and a metal
frame. Provide a suitable air baffle.
In a Snowy Area (for Heat Pump-type Systems)
Install the outdoor unit on a raised platform that is higher than
drifting snow. Provide snow vents.
When Connecting Refrigerant Tubing
Use the flare method for connecting tubing.
Apply refrigerant lubricant to the matching surfaces of the
flare and union tubes before connecting them, then tighten
the nut with a torque wrench for a leak-free connection.
Check carefully for leaks before starting the test run.
When Servicing
Turn the power off at the main power box (mains) before
opening the unit to check or repair electrical parts and
wiring.
Keep your fingers and clothing away from any moving parts.
Clean up the site after you finish, remembering to check
that no metal scraps or bits of wiring have been left inside
the unit being serviced.
Others
Ventilate any enclosed areas when installing or testing the
refrigeration system. Escaped refrigerant gas, on contact
with fire or heat, can produce dangerously toxic gas.
Confirm upon completing installation that no refrigerant gas
is leaking. If escaped gas comes in contact with a stove,
gas water heater, electric room heater or other heat source,
it can produce dangerously toxic gas.
•
•
•
•
•
•
•
•
•
•
•
•
2

Table of Contents
1. OPERATING RANGE
2. SPECIFICATIONS
2-1.Unit Specifications
2-2.Major Component Specifications
2-3.Other Component Specifications

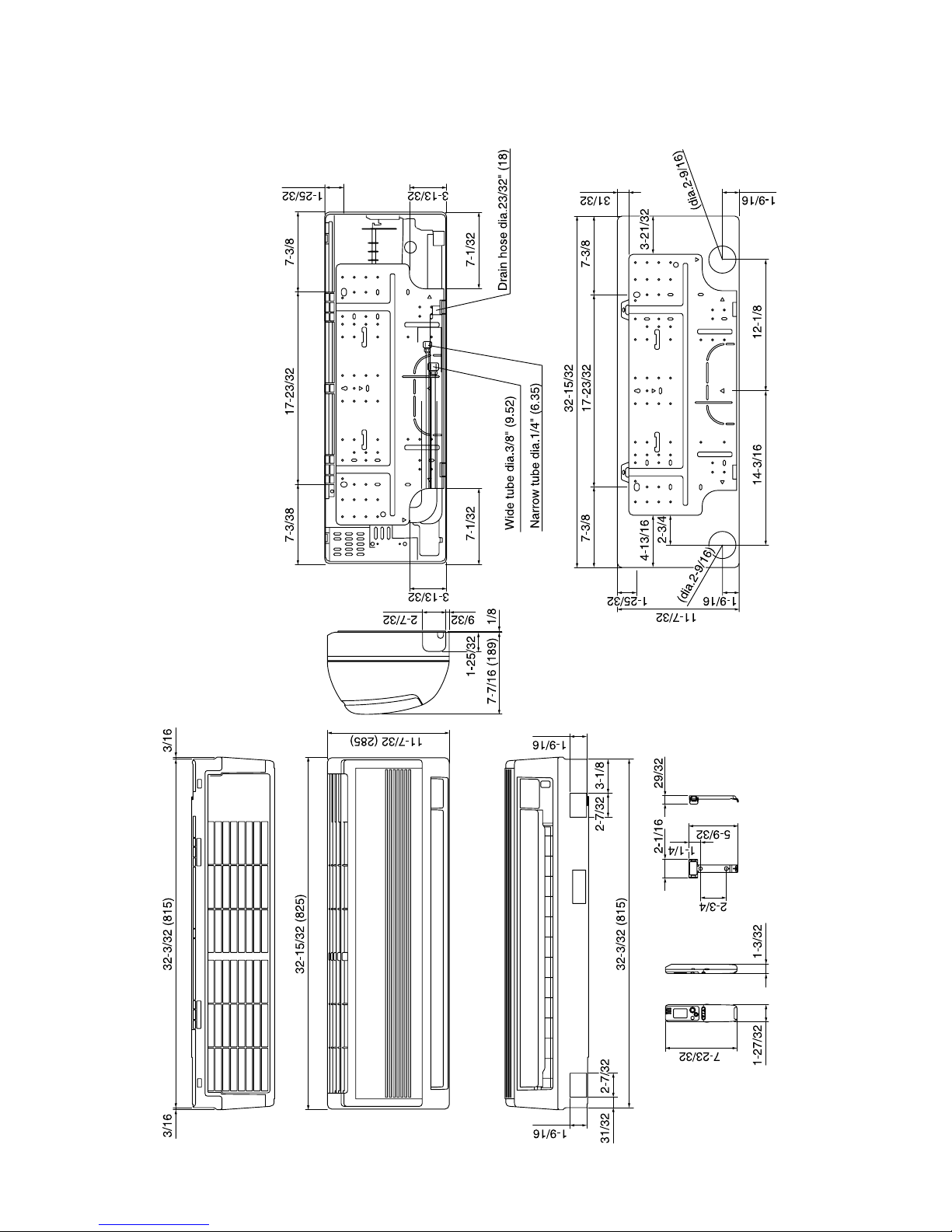

3. DIMENSIONAL DATA
4. REFRIGERANT FLOW DIAGRAM
4-1.Refrigerant Flow Diagram
5. PERFORMANCE DATA

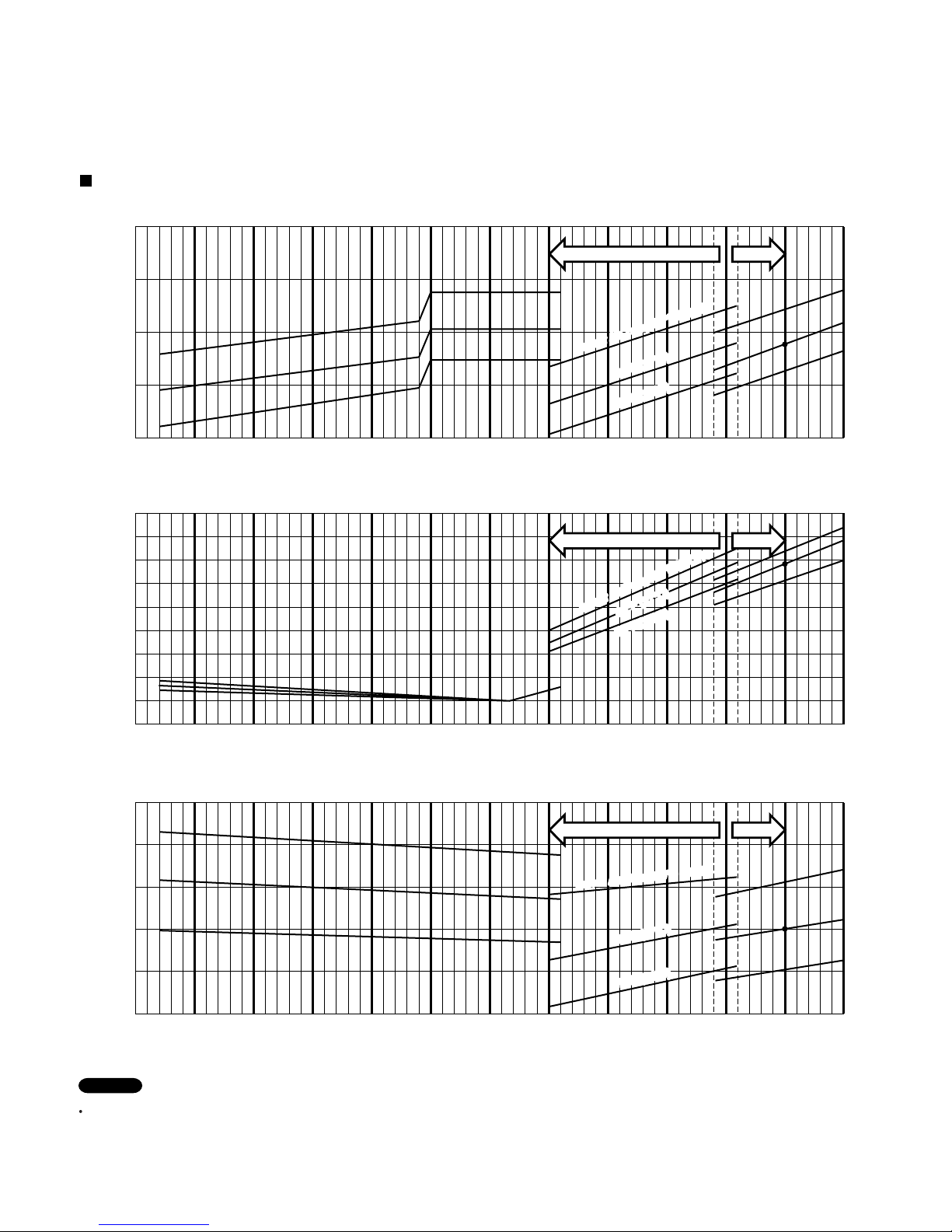

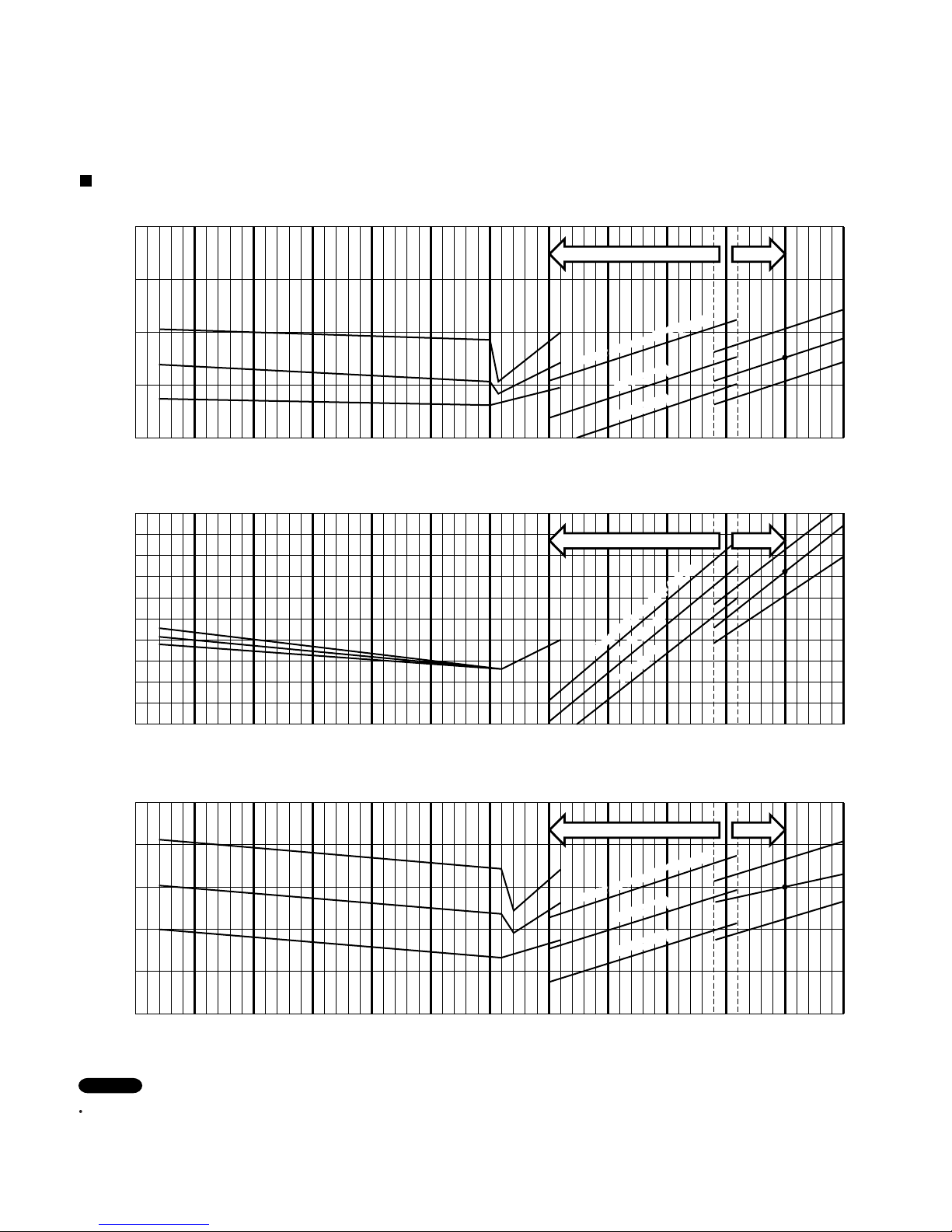

5-1.Temperature Charts
5-2.Cooling Capactiy
5-3.Cooling Capactiy (Low Ambient)
5-4.Heating Capactiy
5-5.Air Throw Distance Charts
6. ELECTRICAL DATA
6-1. Electrical Characteristics
6-2. Electric Wiring Diagrams
7. MAINTENANCE
7-1.Address Setting of the Remote Control Unit
7-2.Disconnecting and Connecting Positive Connector for Outdoor Unit
8. FUNCTIONS
8-1.Operation Functions
8-2.Protective Functions
9. TROUBLESHOOTING
9-1.Precautions before Performing Inspection or Repair
9-2.Method of Self-Diagnostics
9-3.Checking the Indoor and Outdoor Units
9-4.Trouble Diagnosis of Fan Motor
9-5.Noise Malfunction and Electromagnetic Interference
5
6
8
12
13
15
16
20
22
24
26
28
29
31
32
33
35
37
37
39
43
44
...................................................................................................................
.............................................................................................................
.......................................................................................
.......................................................................................
.....................................................................................................................
...................................................................................................
............................................................................................................
................................................................................................................
.........................................................................................
................................................................................................................
.................................................................................................
....................................................................................................
....................................................................................................
.......................................................................
..................................
...........................................................................................................
...........................................................................................................
...........................................................
.................................................................................................
..............................................................................
...........................................................................................
..........................................................
Page
3

10. CHECKING ELECTRICAL COMPONENTS
10-1.Measurement of Insulation Resistance
10-2.Checking Continuity of Fuse on PCB Ass'y
11. REFRIGERANT R410A:
SPECIAL PRECAUTIONS WHEN SERVICING UNIT
11-1.Characteristics of New Refrigerant R410A
11-2.Checklist before Servicing
11-3.Tools Specifically for R410A
11-4.Tubing Installation Procedures
11-5.In Case of Compressor Malfunction
11-6.In Case Refrigerant is Leaking
11-7.Charging Additional Refrigerant
11-8.Retro-Fitting Existing Systems
APPENDIX A INSTRUCTION MANUAL
APPENDIX B INSTALLATION INSTRUCTIONS
45
46
47
48
49
49
50
52
53
53
A-1
A-2
...............................................................................
.........................................................................
.........................................................................
...................................................................................................
................................................................................................
............................................................................................
....................................................................................
............................................................................................
..........................................................................................
............................................................................................
..........................................................................................
.............................................................................
Page
4

95 °F D.B. / 71 °F W.B.
67 °F D.B. / 57 °F W.B.
80 °F D.B. / 67 °F W.B.
_
D.B. /
_
W.B.
1. OPERATING RANGE
Maximum
Minimum
Maximum
Minimum
115 °F D.B.
0 °F D.B.
75 °F D.B. / 65 °F W.B.
0 °F D.B.
Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp.
Cooling
Heating
5

2. SPECIFICATIONS
2-1. Unit Specifications
Indoor Unit KHS0971
Outdoor Unit CH0971
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Remarks: Rating conditions are:
Cooling: Indoor air temperature 80°F D.B. / 67°F W.B.
Outdoor air temperature 95°F D.B. / 75°F W.B.
Heating: Indoor air temperature 70°F D.B.
Outdoor air temperature 47°F D.B. / 43°F W.B.
Vertical
dB-A
dB-A
Indoor : Hi/Me/Lo/Qt*
Outdoor : Hi
Air Filter
Compressor
Refrigerant / Amount charged at shipment Ibs (g)
Refrigerant Control
( 3,000 to 12,200 )
( 0.9 to 3.6 )
7.6
720
( 2.5 to 7.6 )
( 250 to 720 )
10.3
995
( 2.6 to 10.3 )
( 250 to 995 )
9,000
2.65
12,200
3.6
( 3,000 to 9,000 )
( 0.9 to 2.65 )
Shipping Volume
Cooling Heating
7,650
1,350
Net
Shipping
Package Dimensions
Weight
Height ×Width ×Depth
Height ×Width ×Depth
Ibs (kg)
Ibs (kg)
cu.ft (m3)
(mm)
inch
(mm)
115V Single-Phase 60Hz
inch
-
-
104 to 126
Dimensions & Weight
(*Qt = Quiet mode)
Refrigerant Tubing Connections
Unit Dimensions
Operation Sound
Electrical Rating
Sensible Capacity
Latent Capacity
WPower Input
V
A
Available Voltage Range
Running Amperes
Refrigerant Tube Kit / Accessories
Narrow tube
Wide tube
Refrigerant inch (mm)
Tube Diameter inch (mm)
19.8
24.3
2.82
(9.0)
(11.0)
(0.08)
75.0
81.6
6.35
(34.0)
(37.0)
(0.18)
23-5/8 ×33-11/16 ×14-1/4
(600 ×856 ×362)
(285 ×825 ×189) (548 ×720 ×265)
10-1/32 ×35-7/16 ×13-25/32
(255 ×900 ×350)
Outdoor UnitIndoor Unit
11-7/32 ×32-15/32 ×7-7/16 21-9/16 ×28-11/32 ×10-7/16
1/4 (6.35)
3/8 (9.52)
ft (m)Max. allowable tubing length at shipment
Flare Type
25 (7.5)
34 / 31 / 28 / 2334 / 31 / 28 / 23
4746
R410A / 2.09 (950)
Electric Expansion Valve
Washable, Anti-Mold
DC Rotary (Inverter)
Manual
Auto
Timer
Indoor / OutdoorFan Speeds
24-Hour ON or OFF Timer, 1-Hour OFF Timer
Auto and 3 steps / Auto (Hi, Me, Lo)
Airflow Direction (Indoor) Horizontal
Controls / Temperature Control
Control Unit
Microprocessor / I.C. Thermister
Wireless Remote Control Unit
Features
HSPF
Compressor Locked Rotor Amperes
BTU/Wh
Optional / Air Clean Filter
BTU/h
Performance
- 8.5
%Power Factor 83 84
A20
Voltage Rating
BTU/h
kW
Total Capacity
BTU/h
SEER BTU/Wh 16 -
282 (480) 312 (530)Air Circulation (High) ft3/min (m3/h)
3.4 -Moisture Removal (High) Pints/h
COP W/W - 3.62
EER BTU/h/W 12.5 -
Fuse or Circuit Breaker Capacity A20
6

Indoor Unit KHS1271
Outdoor Unit CH1271
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Remarks: Rating conditions are:
Cooling: Indoor air temperature 80°F D.B. / 67°F W.B.
Outdoor air temperature 95°F D.B. / 75°F W.B.
Heating: Indoor air temperature 70°F D.B.
Outdoor air temperature 47°F D.B. / 43°F W.B.
Vertical
dB-A
dB-A
Indoor : Hi/Me/Lo/Qt*
Outdoor : Hi
Air Filter
Compressor
Refrigerant / Amount charged at shipment Ibs (g)
Refrigerant Control
( 3,000 to 14,300 )
( 0.9 to 4.2 )
10.9
1,090
( 2.5 to 10.9 )
( 250 to 1,090 )
11.7
1,165
( 2.5 to 11.7 )
( 250 to 1,165 )
11,900
3.5
14,300
4.2
( 3,000 to 11,900 )
( 0.9 to 3.5 )
Shipping Volume
Cooling Heating
9,100
2,800
Net
Shipping
Package Dimensions
Weight
Height ×Width ×Depth
Height ×Width ×Depth
Ibs (kg)
Ibs (kg)
cu.ft (m3)
(mm)
inch
(mm)
115V Single-Phase 60Hz
inch
-
-
104 to 126
Dimensions & Weight
(*Qt = Quiet mode)
Refrigerant Tubing Connections
Unit Dimensions
Operation Sound
Electrical Rating
Sensible Capacity
Latent Capacity
WPower Input
V
A
Available Voltage Range
Running Amperes
Refrigerant Tube Kit / Accessories
Narrow tube
Wide tube
Refrigerant inch (mm)
Tube Diameter inch (mm)
19.8
24.3
2.82
(9.0)
(11.0)
(0.08)
77.2
83.8
6.35
(35.0)
(38.0)
(0.18)
23-5/8 ×33-11/16 ×14-1/4
(600 ×856 ×362)
(285 ×825 ×189) (548 ×720 ×265)
10-1/32 ×35-7/16 ×13-25/32
(255 ×900 ×350)
Outdoor UnitIndoor Unit
11-7/32 ×32-15/32 ×7-7/16 21-9/16 ×28-11/32 ×10-7/16
1/4 (6.35)
3/8 (9.52)
ft (m)Max. allowable tubing length at shipment
Flare Type
25 (7.5)
34 / 31 / 29 / 2536 / 33 / 29 / 25
4947
R410A / 2.43 (1,100)
Electric Expansion Valve
Washable, Anti-Mold
DC Rotary (Inverter)
Manual
Auto
Timer
Indoor / OutdoorFan Speeds
24-Hour ON or OFF Timer, 1-Hour OFF Timer
Auto and 3 steps / Auto (Hi, Me, Lo)
Airflow Direction (Indoor) Horizontal
Controls / Temperature Control
Control Unit
Microprocessor / I.C. Thermister
Wireless Remote Control Unit
Features
HSPF
Compressor Locked Rotor Amperes
BTU/Wh
Optional / Air Clean Filter
BTU/h
Performance
- 9.3
%Power Factor 87 87
A20
Voltage Rating
BTU/h
kW
Total Capacity
BTU/h
SEER BTU/Wh 17 -
294 (500) 312 (530)Air Circulation (High) ft3/min (m3/h)
4.26 -Moisture Removal (High) Pints/h
COP W/W - 3.61
EER BTU/h/W 10.9 -
Fuse or Circuit Breaker Capacity A20
7

Indoor Unit KHS0971
MP24Z3
Flap Motor
Type Stepping Motor
Rating
Model
Coil Resistance Ohm
(Ambient Temp. 77 °F (25 °C))
Each Pair of Terminal : 400 +/- 7%
DC 12V
Aluminum Plate Fin / Copper Tube
2
19.5
2.02 (0.188)Face Area
Coil
Rows
Fins per inch
Heat Exchanger Coil
ft2(m2)
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
-
Control PCB
Control Circuit Fuse
Controls
Part No.
Microprocessor
250V 3A
CB-KHS0971
1 ... D3-11/16 / L24-31/32 (D94/L634)
RCS-4HVPIS4U
Cross-Flow
AC Motor
IBH-884-076 ... 1
4
BRN-WHT : 57.9
RED-WHT : 55.2
16
1,200 / 1,250
Thermal Fuse
266 (130)
4.5
250
Fan
Remote Control Unit
Q'ty ... Dia. and Length
Type
inch (mm)
Fan Motor
Nominal Output
Coil Resistance
Rough Measure RPM (Cool / Heat)
Type
Model ... Q'ty
No. of Poles
Safety Device
Type
Operating Temp.
Close °F (°C)
Open °F (°C)
(Ambient Temp. 68 °F (20 °C))
Run Capacitor Micro F
VAC
W
Ohm
2-2. Major Component Specifications
2-2-1. Indoor Unit
8

Indoor Unit KHS1271
MP24Z3
Flap Motor
Type Stepping Motor
Rating
Model
Coil Resistance Ohm
(Ambient Temp. 77 °F (25 °C))
Each Pair of Terminal : 400 +/- 7%
DC 12V
Aluminum Plate Fin / Copper Tube
2
19.5
2.02 (0.188)Face Area
Coil
Rows
Fins per inch
Heat Exchanger Coil
ft2(m2)
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
-
Control PCB
Control Circuit Fuse
Controls
Part No.
Microprocessor
250V 3A
CB-KHS1271
1 ... D3-11/16 / L24-31/32 (D94/L634)
RCS-4HVPIS4U
Cross-Flow
AC Motor
IBH-884-076 ... 1
4
BRN-WHT : 57.9
RED-WHT : 55.2
16
1,250 / 1,250
Thermal Fuse
266 (130)
4.5
250
Fan
Remote Control Unit
Q'ty ... Dia. and Length
Type
inch (mm)
Fan Motor
Nominal Output
Coil Resistance
Rough Measure RPM (Cool / Heat)
Type
Model ... Q'ty
No. of Poles
Safety Device
Type
Operating Temp.
Close °F (°C)
Open °F (°C)
(Ambient Temp. 68 °F (20 °C))
Run Capacitor Micro F
VAC
W
Ohm
9

Outdoor Unit CH0971
2-2-2. Outdoor Unit
Control PCB
Control Circuit Fuse
Controls
Part No.
Microprocessor
125V 25A
CB-CH0971
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Pints (cc)
WHT - BLU :
BLU - RED :
RED - WHT :
77.5
77.5
77.5
Micro F
VAC
External Finish Acrylic baked-on enamel finish
FV50S ... 0.68 (320)
-
-
Internal Controller
Yes
Aluminum Plate Fin / Copper Tube
2
18.1
Face Area ft2(m2)3.10 (0.288)
Coil
Rows
Fins per inch
Heat Exchanger Coil
DAJ12-55J71-CU ... 1
Compressor Oil ... Amount
8
50
750 / 680
Ohm
DC Motor
Type
Compressor Model / Nominal Output
Compressor
Coil Resistance (Ambient Temp. 68 °F (20 °C)) Ohm
DC Rotary (Inverter)
G4C090LU1ER / 900W
U - V :
V - W :
W - U :
0.81
0.81
0.81
CT (Peak current cut-off control)
Compressor Discharge Temp. Control
Operation cut-off control in abnormal ambient Temp.
Safety Device
Micro F
VAC
Run Capacitor
Crankcase Heater
Yes
Yes
Yes
Overload Relay CS-7L115 Model
Operation Temp. Open : 239 °F (115 °C), Close : 203 °F (95 °C)
-
-
115V 20W
1 ... D15-3/4 (D400)
Fan
Propeller
Q'ty ... Dia. inch (mm)
Type
Type
Over- Current Protection
(Ambient Temp. 68 °F (20 °C))
Fan Motor
Nominal Output
Coil Resistance
Safety Device
Rough Measure RPM (Cool / Heat)
Run Capacitor
Type
Model ... Q'ty
No. of Poles
W
10

Outdoor Unit CH1271
Control PCB
Control Circuit Fuse
Controls
Part No.
Microprocessor
125V 25A
CB-CH1271
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Pints (cc)
WHT - BLU :
BLU - RED :
RED - WHT :
77.5
77.5
77.5
Micro F
VAC
External Finish Acrylic baked-on enamel finish
FV50S ... 0.68 (320)
-
-
Internal Controller
Yes
Aluminum Plate Fin / Copper Tube
2
18.1
Face Area ft2(m2)3.95 (0.367)
Coil
Rows
Fins per inch
Heat Exchanger Coil
DAJ12-55J71-CU ... 1
Compressor Oil ... Amount
8
50
750 / 750
Ohm
DC Motor
Type
Compressor Model / Nominal Output
Compressor
Coil Resistance (Ambient Temp. 68 °F (20 °C)) Ohm
DC Rotary (Inverter)
G4C090LU1ER / 900W
U - V :
V - W :
W - U :
0.81
0.81
0.81
CT (Peak current cut-off control)
Compressor Discharge Temp. Control
Operation cut-off control in abnormal ambient Temp.
Safety Device
Micro F
VAC
Run Capacitor
Crankcase Heater
Yes
Yes
Yes
Overload Relay CS-7L115
Model
Operation Temp. Open : 239 °F (115 °C), Close : 203 °F (95 °C)
-
-
115V 20W
1 ... D15-3/4 (D400)
Fan
Propeller
Q'ty ... Dia. inch (mm)
Type
Type
Over- Current Protection
(Ambient Temp. 68 °F (20 °C))
Fan Motor
Nominal Output
Coil Resistance
Safety Device
Rough Measure RPM (Cool / Heat)
Run Capacitor
Type
Model ... Q'ty
No. of Poles
W
11

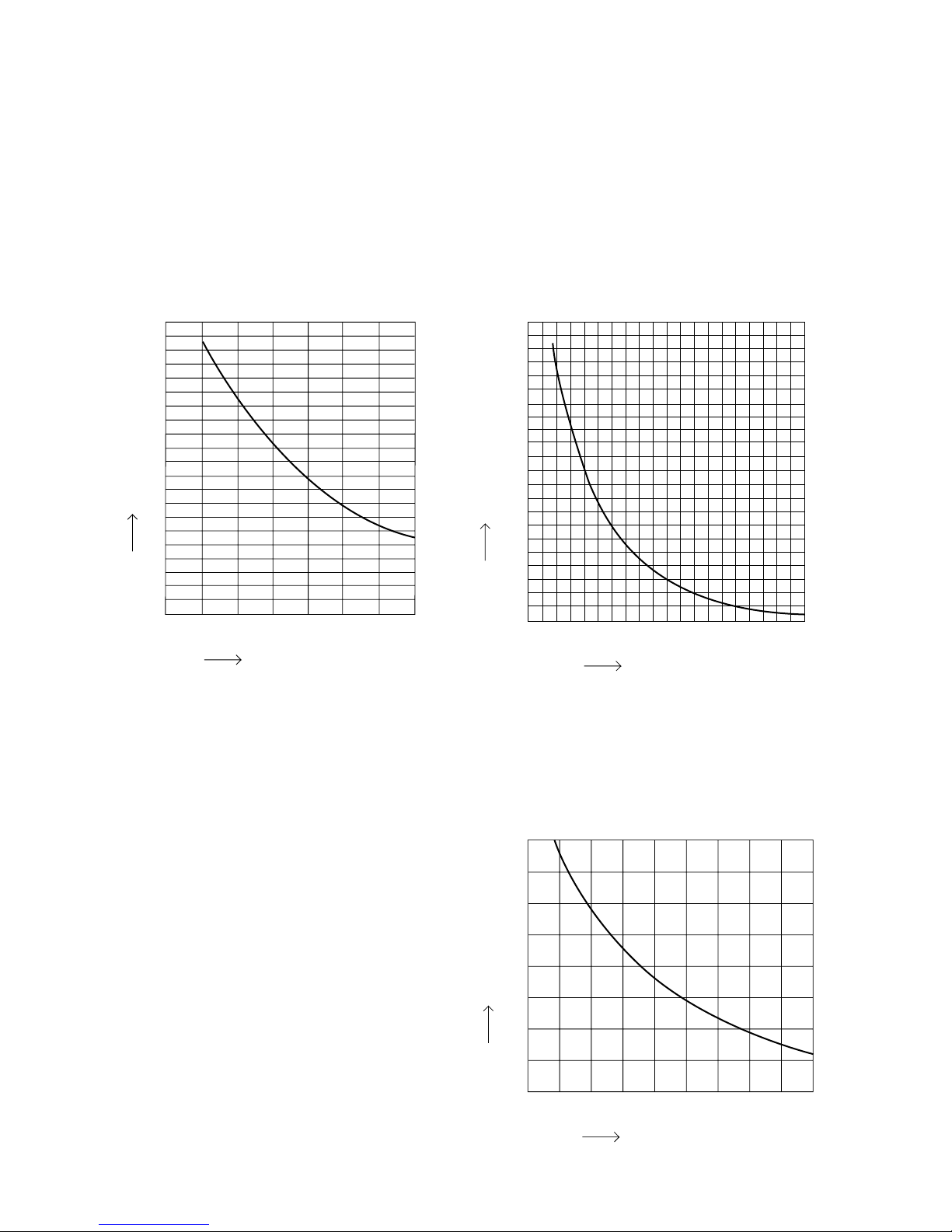

2-3. Other Component Specifications
Indoor UnitKHS0971
KHS1271
Outdoor UnitCH0971
CH1271
032 50 68 86 104 122 140 158 176 194
(0) (10) (20) (30) (40) (50) (60) (70) (80) (90)
40
60
80
100
120
140
160
180
200
20
50
1
0
2
3
4
5
6
7
8
9
10
59 68 77 86 95 104
(10) (15) (20) (25) (30) (35) (40)
• Indoor air temp sensor
(Model:PTM-D51H-S3 TH2)
• Indoor heat exchanger sensor
(Model:PTM-D51H-S3 TH1)
• Compressor temp sensor
(Model:DTN-TKS274Y TH2)
Resistance (k ohm)
Resistance (k ohm)
Temperature °F (°C)
• Outdoor air temp sensor
(Model:DTN-TKS269B)
• Outdoor heat exchanger sensor
(Model:DTN-TKS274Y TH1)
40
35
30
25
20
15
10
5
0
- 4514 23 32 41 50 59 68
(
- 20)( - 15)( - 10) ( - 5) (0) (5) (10) (15) (20)
Resistance (k ohm)
Temperature °F (°C)
Temperature °F (°C)
12

3. DIMENSIONAL DATA
Indoor Unit KHS0971
KHS1271
Unit: inch(mm)
13

10-13/16
3-19/32
ID:23/32
4-ID:15/16
21-3/16
6-3/32
4-9/32 2-5/32
Narrow tube service valve
dia.1/4" (6.35)
Wide tube service valve
dia.3/8" (9.52)
3-19/32
15/32
10-7/16 (265)
11-13/32
12-7/16
Outdoor UnitCH0971
CH1271
Unit: inch(mm)
28-11/32 (720) 2-1/8
21-9/16 (548)
5/8
14

Compressor
Accumulator
Wide tube
service
valve
Wide tube
Narrow
tube
service
valve
Narrow tube
Heat exchanger
Heat exchanger
Muffler
Capillary
tube for
split flow
Cooling cycle
(Defrosting cycle)
Heating cycle
Indoor unit Outdoor unit
Electric
expansion
valve
Strainer
M
Muffler
O.D.
3/8"
(9.52 mm)
O.D.
1/4"
(6.35 mm)
4-way
valve
High pressure
switch
H.P.
4. REFRIGERANT FLOW DIAGRAM
4-1. Refrigerant Flow Diagram
Indoor UnitKHS0971
KHS1271
Outdoor UnitCH0971
CH1271
Insulation of Refrigerant Tubing
Because capillary tubing is used in the outdoor unit, both the
wide and narrow tubes of this air conditioner become cold. To
prevent heat loss and wet floors due to dripping of
condensation, both tubes must be well insulated with a
proper insulation material. The thickness of the insulation
should be a min. 5/16"(8 mm).
After a tube has been insulated,
never try to bend it into a narrow
curve because it can cause the tube
to break or crack.
Wide tube
Thickness:
Min. 5/16"(8 mm)
Insulation
Narrow tube
Thickness:
Min. 5/16"(8 mm)
IMPORTANT
CAUTION
15

5. PERFORMANCE DATA
5-1. Temperature Charts
Indoor UnitKHS0971Outdoor UnitCH0971
Cooling Characteristics (RH : 46%, Indoor fan speed : High fan) (60Hz, 115V)
(1) Low pressure performance chart
(2) Operating current performance chart
(3) Indoor discharge air performance chart
-4
(-20)
5
(-15)
14
(-10)
23
(-5)
32
(0)
41
(5)
50
(10)
59
(15)
68
(20)
77
(25)
86
(30)
95
(35)
104
(40)
60.8 (16)
64.4 (18)
57.2 (14)
53.6 (12)
50.0 (10)
46.4 (8)
Outdoor inlet air D.B. temp.°F(°C)
Outdoor inlet air D.B. temp.°F(°C)
Outdoor inlet air D.B. temp.°F(°C)
Operating current (A)
Indoor discharge air temperature °F(°C)
8
9
6
5
7
4
145
(1.0)
159
(1.1)
173
(1.2)
131
(0.9)
117
(0.8)
Low pressure at wide tube service valve
psig(MPaG)
Check each performance value in test-run mode. Electrical performance values represent a combined indoor/outdoor value.
NOTE
Hi FanLo fan
-4
(-20)
5
(-15)
14
(-10)
23
(-5)
32
(0)
41
(5)
50
(10)
59
(15)
68
(20)
77
(25)
86
(30)
95
(35)
104
(40)
80
°F (
27
°C)
75°F (24
°C)
Indoor Air Temp.86°F (30°C)
80
°F (
27
°C)
75°F (24
°C)
Indoor Air Temp.86°F (30°C)
-4
(-20)
5
(-15)
14
(-10)
23
(-5)
32
(0)
41
(5)
50
(10)
59
(15)
68
(20)
77
(25)
86
(30)
95
(35)
104
(40)
Hi FanLo fan
Hi FanLo fan
80
°F (
27
°C)
75°F (24°C)
Indoor Air Temp.86°F (30°C)
80
°F (
27
°C)
75°F (24°C)
Indoor Air Temp.86°F (30°C)
80
°F (
27
°C)
75°F (24
°C)
Indoor Air Temp.86°F (30°C)
80
°F (
27
°C)
75°F (24
°C)
Indoor Air Temp.86°F (30°C)
16

Indoor UnitKHS0971Outdoor UnitCH0971
Heating Characteristics (RH : 46%, Indoor fan speed : High fan) (60Hz, 115V)
23
(
- 5)
32
(0)
41
(5)
50
(10)
59
(15)
68
(20)
77
(25)
8
7
13
14
11
12
9
10
23
(
- 5)
32
(0)
41
(5)
50
(10)
59
(15)
68
(20)
77
(25)
140(60)
131(55)
122(50)
113(45)
104(40)
95(35)
86(30)
77(25)
Outdoor inlet air D.B. temp.°F(°C)
Outdoor inlet air D.B. temp.°F(°C)
Operating current (A)Indoor discharge air temperature °F(°C)
23
(
- 5)
32
(0)
41
(5)
50
(10)
59
(15)
68
(20)
77
(25)
Outdoor inlet air D.B. temp.°F(°C)
493
(3.4)
421
(2.9)
348
(2.4)
276
(1.9)
High pressure at wide tube service valve
psig(MPaG)
70°F(21°C)
63
°F(
17°C)
Indoor Air Temp.73°F(23°C)
70°F(21
°C)
63
°F(
17
°C)
Indoor Air Temp.73°F(23°C)
70°F(21
°C)
63
°F(
17
°C)
Indoor Air Temp.73°F(23°C)
Check each performance value in test-run mode. Electrical performance values represent a combined indoor/outdoor value.
Overload prevention operates to protect the air conditioner when outdoor ambient temperature becomes extremely high in
heating mode. (Refer to "8-2. Overload prevention during heating.")
NOTE
(1) High pressure performance chart
(2) Operating current performance chart
(3) Indoor discharge air performance chart
17

Indoor UnitKHS1271Outdoor UnitCH1271
Cooling Characteristics (RH : 46%, Indoor fan speed : High fan) (60Hz, 115V)
(1) Low pressure performance chart
(2) Operating current performance chart
(3) Indoor discharge air performance chart
-4
(-20)
5
(-15)
14
(-10)
23
(-5)
32
(0)
41
(5)
50
(10)
59
(15)
68
(20)
77
(25)
86
(30)
95
(35)
104
(40)
60.8 (16)
64.4 (18)
57.2 (14)
53.6 (12)
50.0 (10)
46.4 (8)
Outdoor inlet air D.B. temp.°F(°C)
Outdoor inlet air D.B. temp.°F(°C)
Outdoor inlet air D.B. temp.°F(°C)
Operating current (A)
Indoor discharge air temperature °F(°C)
12
8
6
10
11
13
7
5
9
4
145
(1.0)
159
(1.1)
173
(1.2)
131
(0.9)
117
(0.8)
Low pressure at wide tube service valve
psig(MPaG)
Hi FanLo fan
-4
(-20)
5
(-15)
14
(-10)
23
(-5)
32
(0)
41
(5)
50
(10)
59
(15)
68
(20)
77
(25)
86
(30)
95
(35)
104
(40)
80
°F (
27
°C)
75°F (24
°C)
Indoor Air Temp.86°F (30°C)
-4
(-20)
5
(-15)
14
(-10)
23
(-5)
32
(0)
41
(5)
50
(10)
59
(15)
68
(20)
77
(25)
86
(30)
95
(35)
104
(40)
Hi FanLo fan
Hi FanLo fan
80°F (27°C)
75°F (24°C)
Indoor Air Temp.86°F (30°C)
80
°F (
27
°C)
75°F (24
°C)
Indoor Air Temp.86°F (30°C)
Check each performance value in test-run mode. Electrical performance values represent a combined indoor/outdoor value.
NOTE
18

High pressure at wide tube service valve
psig(MPaG)
Operating current (A)
10
12
14
15
9
8
11
13
276
(1.9)
348
(2.4)
421
(2.9)
493
(3.4)
70°F(21°C)
63
°F(
17
°C)
Indoor Air Temp.73°F(23°C)
Indoor Air Temp.73
°F(
23
°C)
63°F(17°C)
70°F(21°C)
63°F17
°C
Indoor Air Temp.73°F(23°C)
70
°F(
21
°C)
23
(
- 5)
32
(0)
41
(5)
50
(10)
59
(15)
68
(20)
77
(25)
23
(
- 5)
32
(0)
41
(5)
50
(10)
59
(15)
68
(20)
77
(25)
140(60)
131(55)
122(50)
113(45)
104(40)
95(35)
86(30)
77(25)
Outdoor inlet air D.B. temp. °F(°C)
Outdoor inlet air D.B. temp. °F(°C)
Indoor discharge air temperature °F(°C)
23
(
- 5)
32
(0)
41
(5)
50
(10)
59
(15)
68
(20)
77
(25)
Outdoor inlet air D.B. temp. °F(°C)
Indoor UnitKHS1271Outdoor UnitCH1271
Heating Characteristics (RH : 46%, Indoor fan speed : High fan) (60Hz, 115V)
Check each performance value in test-run mode. Electrical performance values represent a combined indoor/outdoor value.
Overload prevention operates to protect the air conditioner when outdoor ambient temperature becomes extremely high in
heating mode. (Refer to "8-2. Overload prevention during heating.")
NOTE
(1) High pressure performance chart
(2) Operating current performance chart
(3) Indoor discharge air performance chart
19

Indoor Unit:KHS0971
Outdoor Unit:CH0971
Power Supply:115V Single Phase 60Hz
< Cooling Capacity >
5-2. Cooling Capacity
TC : Total Cooling Capacity (BTU/h) SHC : Sensible Heat Capacity (BTU/h)
1. Rating conditions (#) : Indoor Unit Entering Air Temp. 80 °F (26.7 °C) D.B. / 67 °F (19.4 °C) W.B.
: Outdoor Ambient Temp. 95 °F (35 °C) D.B.
2.
3. Above data represents the value when the operation frequency of a compressor is fixed.
Above data does not take Freeze Prevention Protection during cooling operation into account.
For this reason, the value may vary from the actual cooling characteristics.
NOTE
RATING CAPACITY: 9,000 BTU/h AIR FLOW RATE: 282 CFM
INDOOR OUTDOOR
ENT. TEMP. oF (oC) AMBIENT TEMP. oF (oC)
W.B. D.B. 65 75 85 95 105 115
(18.3) (23.9) (29.4) (35.0) (40.6) (46.1)
TC 9,080 8,800 8,500 8,260 7,890 6,400
72 (22.2) SHC 6,870 6,760 6,590 6,480 6,320 5,610
59 76 (24.4) SHC 7,860 7,690 7,580 7,470 7,250 6,400
(15.0) 80 (26.7) SHC 8,840 8,730 8,500 8,260 7,890 6,400
84 (28.9) SHC 9,080 8,800 8,500 8,260 7,890 6,400
88 (31.1) SHC 9,080 8,800 8,500 8,260 7,890 6,400
TC 9,440 9,160 8,860 8,630 8,250 6,580
72 (22.2) SHC 5,770 5,610 5,500 5,390 5,220 4,510
63 76 (24.4) SHC 6,700 6,590 6,430 6,370 6,160 5,500
(17.2) 80 (26.7) SHC 7,690 7,580 7,470 7,360 7,200 6,480
84 (28.9) SHC 8,680 8,570 8,400 8,300 8,130 6,580
88 (31.1) SHC 9,440 9,160 8,860 8,630 8,250 6,580
TC 9,790 9,520 9,220 # 9,000 8,620 6,740
72 (22.2) SHC 4,620 4,450 4,350 4,290 4,130 3,410
67 76 (24.4) SHC 5,550 5,440 5,330 5,220 5,060 4,350
(19.4) 80 (26.7) SHC 6,540 6,430 6,320 6,210 6,100 5,330
84 (28.9) SHC 7,530 7,420 7,310 7,200 7,030 6,320
88 (31.1) SHC 8,460 8,350 8,240 8,190 8,020 6,740
TC 10,120 9,860 9,560 9,360 8,980 6,890
72 (22.2) SHC 3,360 3,250 3,140 3,080 2,920 2,210
71 76 (24.4) SHC 4,350 4,240 4,130 4,020 3,910 3,190
(21.7) 80 (26.7) SHC 5,330 5,220 5,110 5,060 4,890 4,180
84 (28.9) SHC 6,270 6,210 6,100 5,990 5,880 5,110
88 (31.1) SHC 7,250 7,140 7,030 6,980 6,810 6,100
TC 10,400 10,140 9,840 9,680 9,300 7,010
75 76 (24.4) SHC 3,140 3,030 2,920 2,860 2,750 2,040
(23.9) 80 (26.7) SHC 4,130 4,070 3,960 3,910 3,800 3,030
84 (28.9) SHC 5,110 5,000 4,890 4,840 4,730 4,020
88 (31.1) SHC 6,050 5,990 5,880 5,830 5,720 4,950
20
