INSTALLATION AND OPERATING
INSTRUCTIONS
SWIMMING POOL AND SPA HEATER D-2
Catalog No. 6000.57.1C Effective: 10-26-06 Replaces: 07-25-06 P/N 241243 Rev. 2
WARNING: If these instructions are not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This manual should be maintained in legible condition and kept adjacent to the heater or in a safe place for future
reference.
D-2 POWER VENT
206A, 207A, 266A, 267A, 336A, 337A, 406A, 407A
(ELECTRONIC IGNITION MODELS ONLY)

RECEIVING EQUIPMENT
On receipt of your equipment, it is suggested that you visually check for external damage to the carton.
If the carton is damaged, it is suggested that a note be made on the Bill of Lading when signing for equipment.
Remove the complete assembly from the carton. If it is damaged, report the damage to the carrier immediate-
ly. Be sure that you receive the number of packages indicated on the Bill of Lading. Claims for shortages and
damages must be filed with the carrier by consignee.
Purchased parts are subject to replacement only under the manufacturer’s warranty. Debits for defec-
tive replacement parts will not be accepted and defective parts will be replaced in kind only per our standard war-
ranties.
When ordering parts, you must specify the kit number. When ordering under warranty conditions, you
must also specify the date of installation.
The manufacturer recommends that this manual be reviewed thoroughly before installing the D-2 Power
Vent. If there are any questions which this manual does not answer, please contact you local Representative.
THIS MANUAL SHOULD BE MAINTAINED IN LEGIBLE CONDITION AND KEPT ADJACENT TO THE UNIT.
(1) D-2 POWER VENT
(1) COLLAR ADAPTER
(1) 7/8” PLASTIC GROMMET
(1) ADJ. 90° ELBOW W/ SCREEN
(1) INSTALLATION AND OPERATING INSTRUCTIONS
(P/N 241243)
The D-2 Power Vent is tested and certified to the latest edition of the American National Standard ANSI
Z21.56 standard for pool heaters.
The D-2 Power Vent is a fan-assisted combustion system designed for application to heater models 206
thru 407. When installed as directed, the unit is capable of operating in applications such as through-the-wall
venting and reduced horizontal and vertical vent pipe sizes in new and existing installations.
The D-2 Power Vent includes a blower with a 120/240 volt 60Hz 1.95/1.0A 3200 RPM motor and a
plenum, complete with a draft proving switch and a motor relay.
HEATER
MODELS FACTORY- WIRED D-2 POWER VENT PART NO.
206/207 - 266/267 240 VAC 009832
336/337 - 406/407 240 VAC 009833
206/207 - 266/267 120 VAC 010744
336/337 - 406/407 120 VAC 010745
GENERAL SPECIFICATIONS
2
D-2 Power Vent
Elbow with Screen
Collar Adapter
Comes separated
(assembles together)

3
INSTALLATION REQUIREMENTS
Failure to install, maintain and/or operate the Power Vent in accordance with manufacturer’s instructions
may result in conditions which can produce bodily injury and property damage.
The equipment must be installed by a qualified installer in accordance with all local codes, or, in the
absence of local codes, with the latest edition of the National Fuel Gas Code, ANSI Z223.1/NFPA 54 and the
National Electrical Code, ANSI/NFPA 70. In Canada, installations must conform to CAN/CSA B149.1 and to the
latest Canadian Electrical Code Part 1.
Disconnect power supply when making wiring connections or when working around the fan blade and
motor. Failure to do so may result in severe personal injury and equipment damage.
Make certain the power source is adequate for the fan motor requirements. Do not add the Power Vent
to a circuit where the total load is unknown.
DIMENSIONS
DIMENSIONAL DATA
Model A B
206/207
266/267 12.31 4.31
336/337
406/407 18.31 7.31

4
INSTALLATION
1. Start off by disconnecting main power to the heater.
2. Remove the front door from the heater. See Fig 1.
3. If this is a retro-fit application, remove existing “Pagoda Top” and discard. See Fig. 2. If equipped with a
drafthood, refer to drafthood installation manual for removal process.
4. Remove the (6) Phillips screws that hold the jacket top to the heater. See Fig. 3.
5. Lift the rear end of the jacket top while inserting the collar adapter. See Fig. 4 & 5.
Note: Brackets are positioned underneath the collar adapter to capture the smaller model, See Fig. 6. Also
note the orientation of the adapter on the heater as shown in Fig. 7.
Access
Screws
Pagoda Top
(3) on
other side
Fig 1 Fig 2 Fig 3
Fig 4 Fig 5
Fig 6
Brackets used only on
206/207/336/337 models to
hold collar adapter in place

5
INSTALLATION (Continued)
6. Lower the jacket top back onto the heater and reinstall the (6) Phillips screws. See Fig. 3.
7. If installing on a model 266, 267, 406 or 407 heater, skip step 8.
8. Turn the Power Vent upside down. Using a 5/16” nut driver, relocate the mounting brackets as shown in Fig. 8.
9. Place the Power Vent on top of the heater. See Fig. 9.
10. Move the Power Vent, so that the collar adapter slips into the Power Vent. See Fig. 10.
11. Push in all four bracket tabs, so the Power Vent locks into position. See Fig. 11.
12. Using a 5/16” nut driver, remove the transformer cover located on the right side of the heater.
See Fig. 12.
Rear of
Heater
Fig 7 Fig 8 Fig 9
Fig 10 Fig 11 Fig 12
Front of
Heater
Tab Tab Access
Screw
Before
After

6
INSTALLATION (Continued)
13. Install the right side outdoor conduit through the top 7/8” hole located on the right side of the heater.
See. Fig. 13. Note: You must first remove the 7/8” plug on the heater to install the hard conduit.
14. Wire the heater power lines along with the D-2 Power Vent power lines to the supply power per the wiring
diagram. (See page 15 or 16.)
15. Reinstall the transformer cover. See Fig. 12.
16. Install the left side outdoor conduit through the top 7/8” hole located on the left side of the heater. See
Fig. 14. Note: You must first remove the 7/8” plug on the heater to install the conduit.
17. Remove the (4) Phillips screws that hold the control panel to the heater and lower the control panel. See
Fig. 15.
18. Remove and replace the 7/8” plug with the provided 7/8” grommet (located on the left side of the control
panel). See Fig. 16.
Power
Vent
Power
Supply
Fig 13 Fig 14
Fig 15 Fig 16
Access
Screw
Access
Screw
7/8”
Supplied
Grommet

7
INSTALLATION (Continued)
19. Route the 24 VAC harness through the 7/8” grommet, See Fig. 17.
20. Continue to route the harness down through any available grommet hole. See Fig. 18.
21. Wire the harness along with the installed gas valve harness per the wiring diagram.
22. Reinstall the (4) Phillips screws that hold the control panel to the heater. See Fig. 15.
23. Place the front door back onto the heater. Refer to Fig. 1.
VENTING
The D-2 Power Vent operates with a positive vent static pressure and with a vent gas temperature that prevents
excessive condensate production in the vent, and as such, is a CATEGORY III appliance.
The total length of horizontal run shall not exceed an equivalent length of 100 ft including the termination cap.
For all cases, each 90° elbow reduces the maximum horizontal vent run by 10 ft and each 45° elbow reduces
the run by 5 ft. The vent must be installed properly to prevent the flue gas leakage within the heater. The vent
pipe must be suitable for use with Category III Appliances which have flue gas temperatures of less than 400°F.
Care must be taken during the assembly to ensure that all joints are properly sealed.
For appliances installed in extremely cold climates, it is recommended that:
a) The vent be installed with a slight upward slope of not more than 1/4” per foot of horizontal run to the
vent terminal. In this case, an approved condensation trap must be installed per applicable codes.
b) The vent be insulated through the length of the horizontal run.
The exit terminal of the D-2 Power Vent shall not be less than 7 ft above grade where located adjacent to pub-
lic walkways. It must also be at least 3 ft above any forced air inlet located within a 10 ft radius.
Fig 17 Fig 18

8

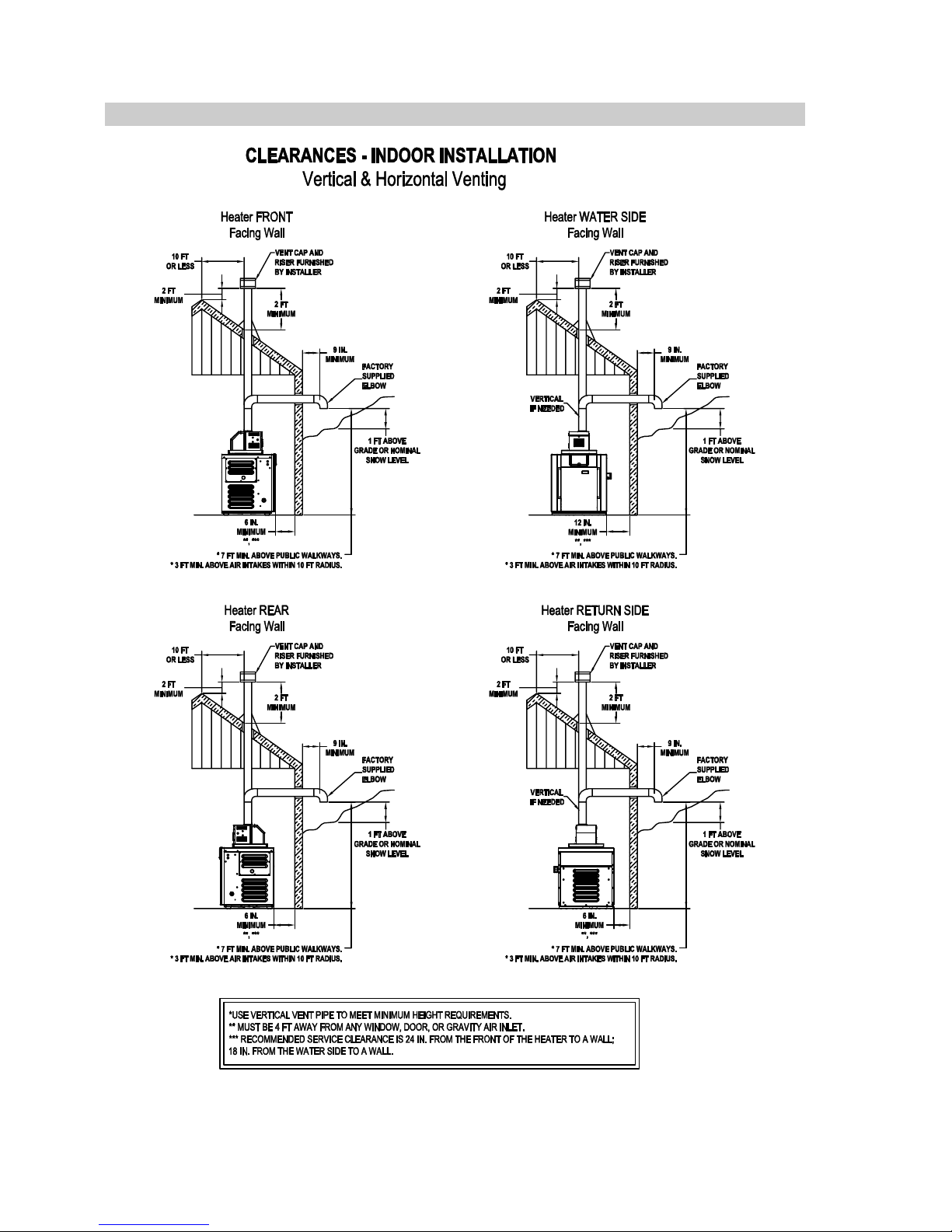

VENTING (Continued)

9

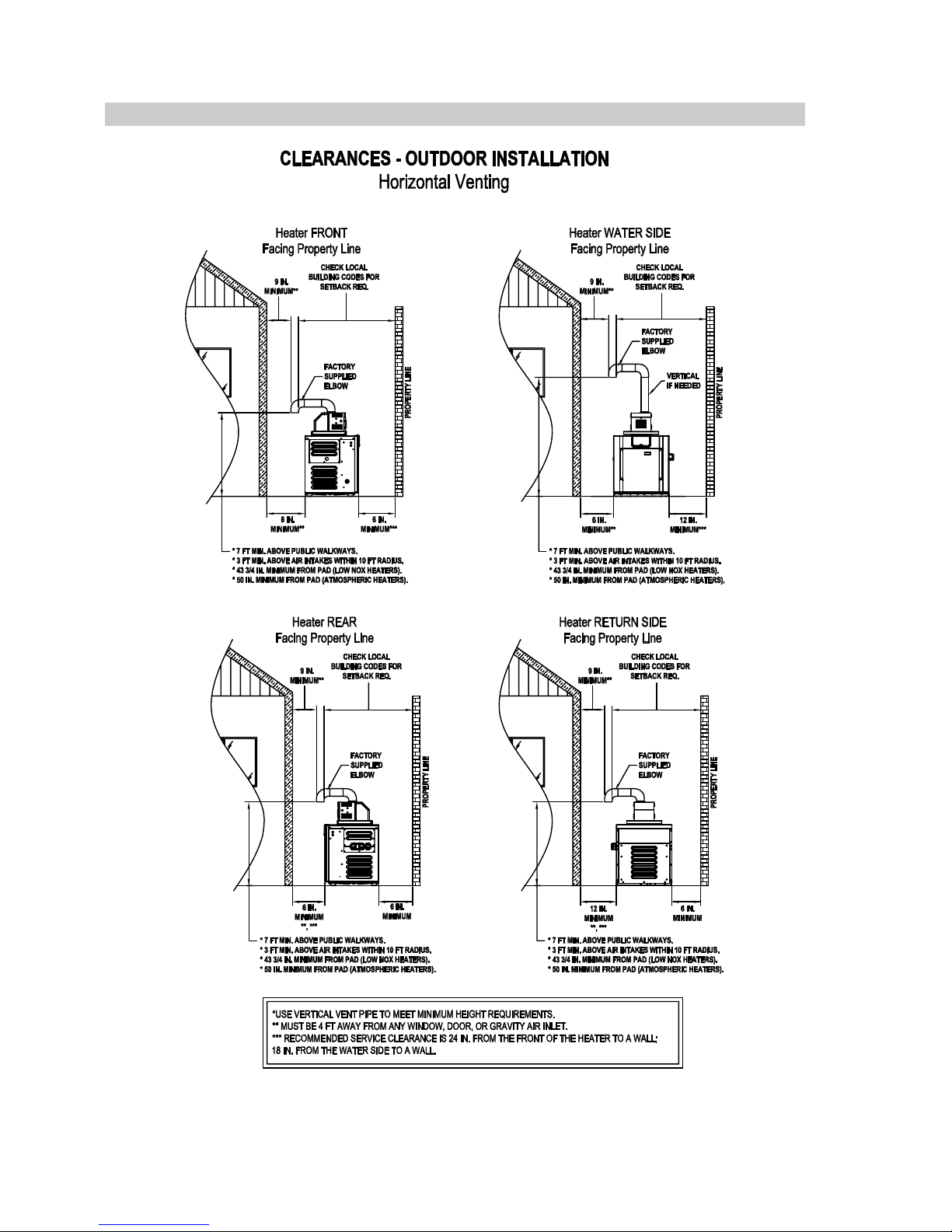

VENTING (Continued)

10
VENTING (Continued)

11
VENTING (Continued)

12
SEQUENCE OF OPERATION
On call for heat, the PC board will go through its safety chain (water pressure switch, high limit 1 & 2,
roll-out, etc.). When the safety chain is closed, the IID pilot will begin to spark and the pilot gas valve will open.
A flame will be lit at the pilot assembly. When an acceptable signal is sent back to the PC board, proving the
rectification, the D-2 Power Vent blower will start. When the blower comes up to speed, a draft proving switch
will close to allow the main gas valve on the heater to open. Note: On Low NOx units, the main gas valve &
combustion blower will turn on simultaneously. A heater with a D-2 Power Vent will continue to operate until call
for heat is satisfied.
DRAFT-PROVING SWITCH
The draft-proving switch ensures that the blower is operating. Once the D-2 Power Vent is wired to the
heater, the switch does not allow the PC board to open the main gas valve, unless it is closed.
WIRING
The D-2 Power Vent includes a wire harness which provides quick connections with the respective con-
trols in the appliance control box. The harness is of sufficient length to fit the unit for which it is sized.
Reference the connection diagrams on pages 13 & 14 or the wiring diagrams on pages 15 & 16 for actu-
al connections.
RELAY
AIR
PRESSURE
SWITCH
GAS VALVE
Y/BK
Y/BK Y/BK
V/BK
V/BK
V/W
V/BK V/W

13

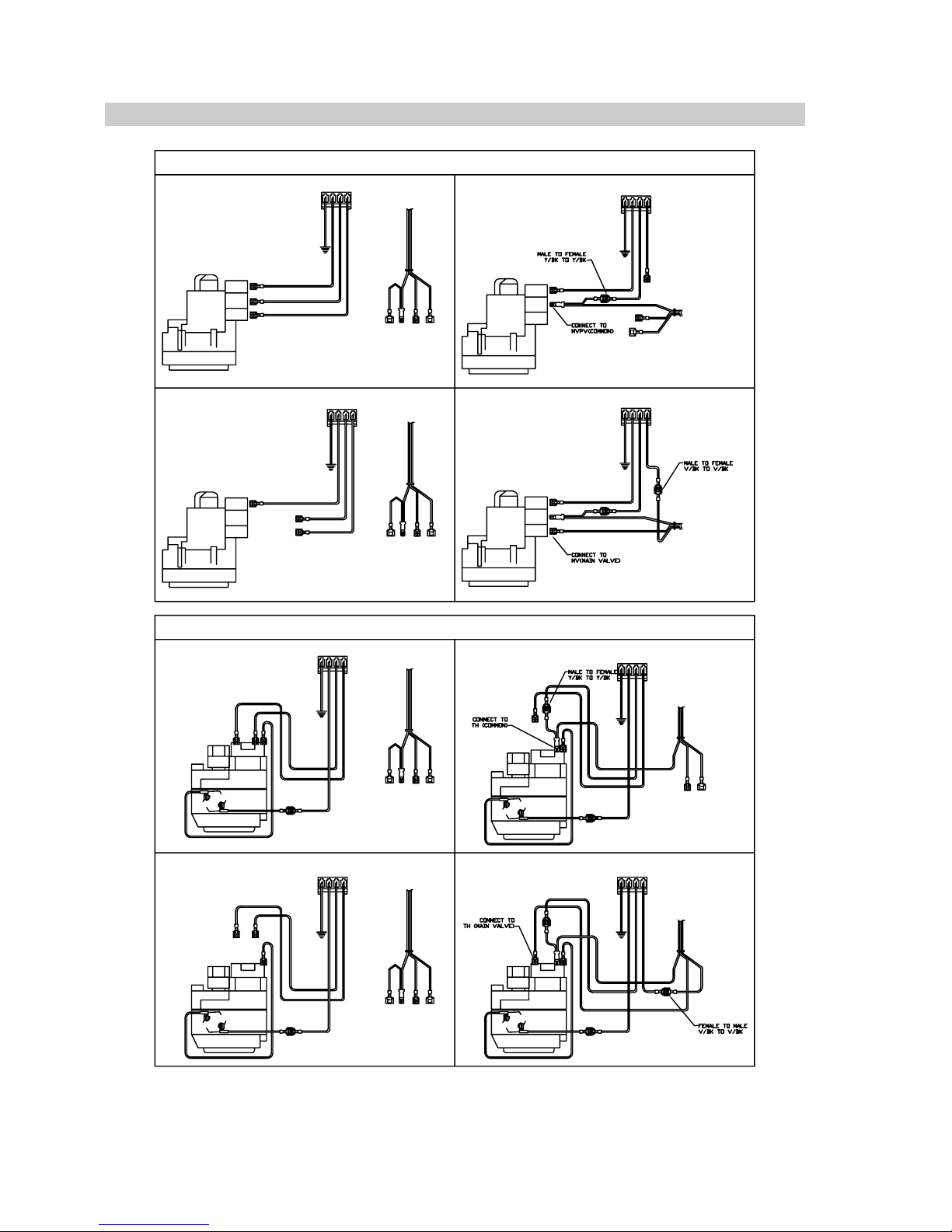

WIRING (Continued)
STEP 1: VERIFY CURRENT CONNECTIONS
AS SHOWN BELOW.
P/PV
C/
M/MV
MV
PV
R/BK
Y/BK Y/BK
V/BK V/BK
V/BK
Y/BK
G/BK
P4
1
RELAY D-2 POWER VENT
Y/BK
HONEYWELL
VALVE
Y/BK
V/W
V/BK
HONEYWELL
VALVE
PV
MV
M/MV
C/
P/PV
STEP 2: DISCONNECT BOTH TERMINALS MVPV & MV
AS SHOWN BELOW. D-2 POWER VENT
V/BK
V/W
Y/BK Y/BK
R/BK
Y/BK
V/BK
V/BK
Y/BK
G/BK
Y/BK
V/BK
RELAY
P4
1
P/PV
C/
M/MV
MV
PV
HONEYWELL
VALVE
RELAY
STEP 3: CONNECT THE RETURN LINES, FEMALE SPADES TO MALE SPADES
AS SHOWN BELOW.
Y/BK
V/BK
G/BK
1
P4
R/BK
Y/BK
V/BK
V/BK
V/W
Y/BK
Y/BK
Y/BK
V/BK
D-2 POWER VENT
STEP 4: CONNECT THE MAIN VALVE LINES, FEMALE SPADES TO MALE SPADES
AS SHOWN BELOW.
HONEYWELL
VALVE
PV
MV
M/MV
C/
P/PV
D-2 POWER VENT
P4
1
RELAY
Y/BK
V/BK
R/BK
Y/BK
V/BK
G/BK
Y/BK
V/BK
V/BK
Y/BK
Y/BK
V/W
MODELS 207, 267, 337, 407 EQUIPPED WITH HONEYWELL GAS VALVE
+
GROUND
ON VALVE
TH TR
D
D
INVENSYS/
ROBERTSHAW
VALV E
MODELS 207, 267, 337, 407 EQUIPPED WITH INVENSYS/ROBERTSHAW GAS VALVE
STEP 4: CONNECT THE MAIN VALVE LINES, FEMALE SPADES TO MALE SPADES
AS SHOWN BELOW.
STEP 3: CONNECT THE RETURN LINES, FEMALE SPADES TO MALE SPADES
AS SHOWN BELOW.
Y/BK Y/BK
V/W
V/BK
D-2 POWER VENT
STEP 2: DISCONNECT BOTH TERMINALS TH & TR ON HARNESSES
AS SHOWN BELOW.
V/BK
V/W
Y/BK Y/BK
D-2 POWER VENT
RELAY
1
P4
G/BK
STEP 1: VERIFY CURRENT CONNECTIONS
AS SHOWN BELOW.
R/BK
V/BK
Y/BK
Y/BK
V/BK
R/BK
Y/BK
Y/BK
V/BK
R/BK
V/BK
Y/BK
G/BK
P4
1
V/BK
Y/BK
Y/BK
Y/BK
V/BK
R/BK
RELAY
INVENSYS/
ROBERTSHAW
VALV E
D
D
TRTH
+
1
P4
G/BK
Y/BK
V/BK
R/BK
D-2 POWER VENT
V/BK
V/W
+
TH TR
D
D
INVENSYS/
ROBERTSHAW
VALV E
RELAY
R/BK
V/BK
Y/BK
Y/BK
V/BK
Y/BK
Y/BK
Y/BK
Y/BK
Y/BK
Y/BK
V/BK
Y/BK
Y/BK
V/BK
R/BK
RELAY
INVENSYS/
ROBERTSHAW
VALV E
D
D
TRTH
+
V/W
V/BK
D-2 POWER VENT
R/BK
Y/BK
G/BK
P4
1
V/BK
V/W

14
WIRING (Continued)
MODELS 206, 266, 336, 406 EQUIPPED WITH HONEYWELL GAS VALVE
V/W
V/BK
V/BK
G/BK
R/BK
1
P4
D-2 POWER VENT
P/PV
C/
M/MV
MV
PV
HONEYWELL
VALVE
STEP 4: CONNECT THE MAIN VALVE LINE, FEMALE SPADE TO MALE SPADE
AS SHOWN BELOW.
D-2 POWER VENT
V/BK
Y/BK
V/W
V/BK
R/BK
P4
1
G/BK
STEP 3: CONNECT THE RETURN LINE, FEMALE SPADE TO MALE SPADE
AS SHOWN BELOW.
HONEYWELL
VALVE
PV
MV
M/MV
C/
P/PV
1
P4
G/BK
Y/BK Y/BK
V/W
V/BK
D-2 POWER VENT
STEP 2: DISCONNECT BOTH TERMINALS MVPV & MV FROM VALVE
AS SHOWN BELOW.
P/PV
C/
M/MV
MV
PV
HONEYWELL
VALVE
V/BK
V/W
Y/BK
HONEYWELL
VALVE
Y/BK
D-2 POWER VENT
1
P4
G/BK
V/BK
Y/BK
R/BK
PV
MV
M/MV
C/
P/PV
STEP 1: VERIFY CURRENT CONNECTIONS
AS SHOWN BELOW.
R/BK
Y/BK
V/BK
Y/BK
Y/BK
Y/BK
Y/BK
Y/BK
Y/BK
Y/BK
R/BK
V/BK
Y/BK
R/BK
STEP 1: VERIFY CURRENT CONNECTIONS
AS SHOWN BELOW.
G/BK
P4
1D-2 POWER VENT
Y/BK Y/BK
V/W
V/BK
STEP 2: DISCONNECT BOTH TERMINALS TH & TR
AS SHOWN BELOW.
STEP 3: CONNECT THE RETURN LINE, FEMALE SPADE TO MALE SPADE
AS SHOWN BELOW.
STEP 4: CONNECT THE MAIN VALVE LINE, FEMALE SPADE TO MALE SPADE
AS SHOWN BELOW.
MODELS 206, 266, 336, 406 EQUIPPED WITH INVENSYS/ROBERTSHAW GAS VALVE
INVENSYS/
ROBERTSHAW
VALV E
D
D
TRTH
+
V/BK
V/W
Y/BK Y/BK
D-2 POWER VENT
1
P4
G/BK
+
TH TR
D
D
INVENSYS/
ROBERTSHAW
VALV E
R/BK
Y/BK
V/BK
R/BK
Y/BK
Y/BK
R/BK
V/BK
Y/BK
R/BK
INVENSYS/
ROBERTSHAW
VALV E
D
D
TRTH
+
G/BK
P4
1
D-2 POWER VENT
V/W
V/BK
Y/BK
Y/BKY/BK
Y/BK
V/BK
V/W
D-2 POWER VENT
1
G/BK
+
TH TR
D
D
INVENSYS/
ROBERTSHAW
VALV E
R/BK
Y/BK
R/BK
Y/BK
P4
V/W
V/BK

15
WIRING DIAGRAM – MODELS 207A, 267A, 337A, 407A
POWER VENT
D-2
D-2
BLOWER
POWER VENT
GAS VALVE HONEYWELL
1
1
+
-

16
WIRING DIAGRAM – MODELS 206A, 266A, 336A, 406A
POWER VENT
D-2 D-2
BLOWER
POWER VENT
+
-
1
1
TH TR

17
REPLACEMENT PARTS
NOTE: To supply you with the correct part, it is impor-
tant that you supply the heater model number, serial
number and type of gas when applicable.
Any part returned for replacement under standard
company warranties must be properly tagged with a
return parts tag, completely filled in with the heater
serial number, model number, etc., and shipped to the
Company freight prepaid.
If determined defective by the Company and within
warranty, a like part or equal substitution will be
returned, freight collect. Credit will not be issued.
MANUFACTURER:
2151 EASTMAN AVENUE
OXNARD, CA 93030

18
ILLUSTRATED PARTS LIST
15
Call Out Description 206/207 266/267 336/366 406/407
1 DPDT Relay 008784F 008784F 008784F 008784F
F651800F651800F651800F651800rewolB2
3 N.O. Air Pressure Switch 008062F 008062F 008135F 008135F
4 4"-90° Elbow w/Screen 010827F 010827F 010827F 010827F
5 Combustion Flue Box 008682F 008682F 008683F 008683F
6 Base Assembly 010821F 010821F 010822F 010822F
7 Flue Collar 008686F 008686F 008686F 008686F
8 Flue Adapter 010823F 010823F 010824F 010824F
9 4" Flange 008689F 008689F 008689F 008689F
10 Blower Adapter 008690F 008690F 008690F 008690F
11 Control Cover 008691F 008691F 008691F 008691F
12 Control Swaybrace 008692F 008692F 008692F 008692F
13 Silicone Hose 008693F 008693F 008693F 008693F
14 Front Panel 008694F 008694F 008694F 008694F
