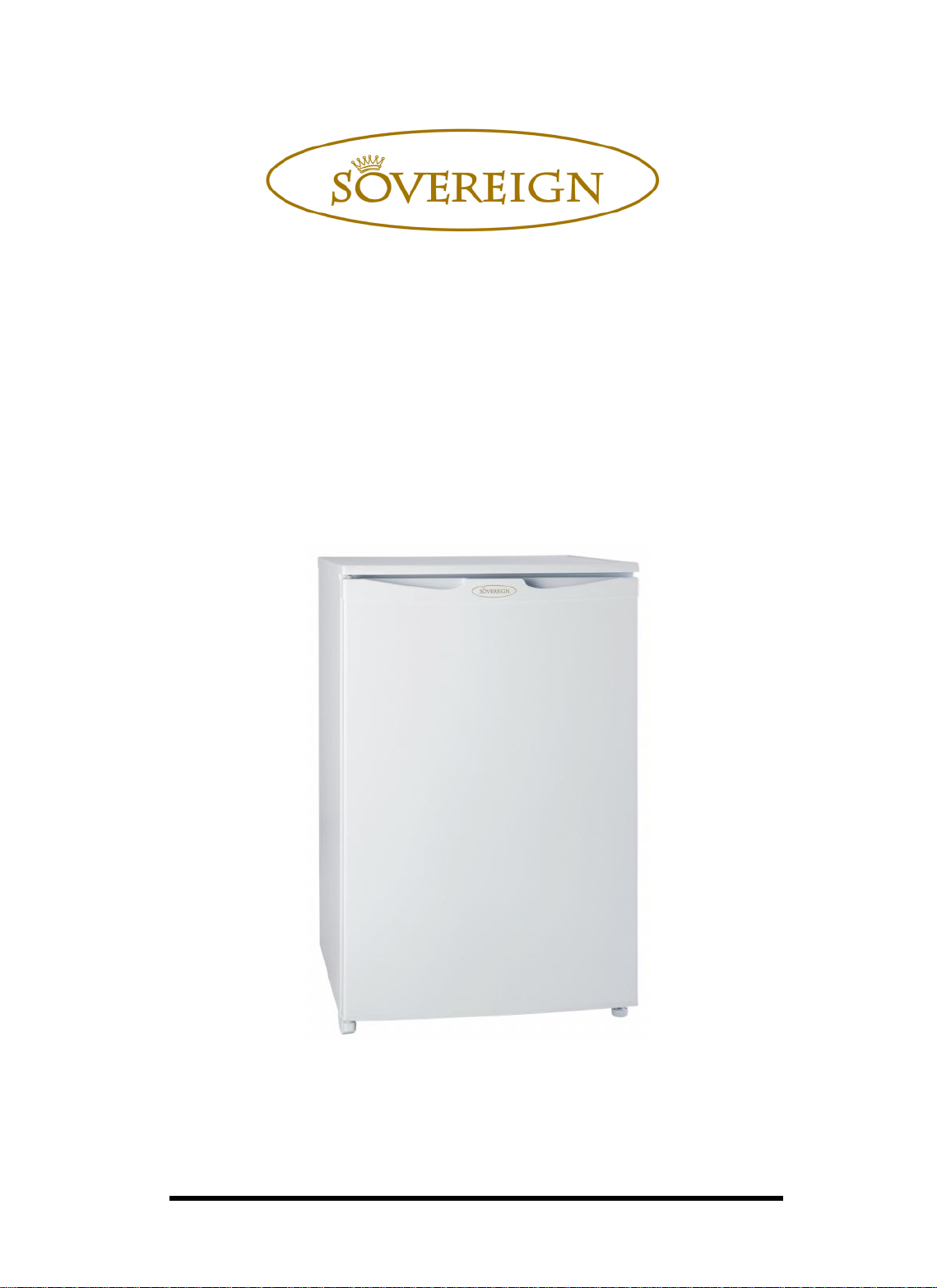

Sovereign SR700F User manual

Installation and Operating Instructions
MODEL SR700F
UNDER COUNTER FRIDGE
Please read these instructions carefully before attempting to install or use this appliance.
It is advisable to keep these instructions in a safe place for future reference.

1
Introduction
Thank you for choosing this Sovereign appliance. It has been
designed to give years of trouble-free use provided it is installed
and maintained correctly.
Please read these instructions carefully before installing or using
your appliance. It is advisable to keep your purchase and installation
receipts with these instructions in a safe place for future reference.
Included is some important safety information in addition to
guidelines and recommendations that will enable you to take full
advantage of all the functions available.
This quality appliance has been tested and certified to meet all
applicable UK electrical and safety standards.
This appliance must be installed and connected in accordance
with current regulations by a qualified electrician.
After unpacking the appliance ensure that there is no visible
damage. If the appliance has been damaged during transit, do not
use it, contact your retailer immediately.

2
Guarantee
This appliance is guaranteed for one year from date of purchase.
Keep your purchase receipt with these instructions.
To fulfill the conditions of the guarantee this appliance must have
been correctly installed by a qualified person and operated in
accordance with these instructions. The appliance is intended for
domestic use only.
If the appliance fails to work properly during the first year period
contact the Sovereign Service Help line on 01527-573010.
The appliance will be repaired or replaced (at the manufacturer’s
discretion) at no cost to you. If the guarantee has elapsed, you
will be given a quotation for any repairs or parts required.
The model and serial number together with details of your sales
receipt must be quoted when contacting the Help line.
For Assistance or Service please contact the
Sovereign Service Help line on 01527-573010

3
Description of the Appliance
1. Freezer Box (Star Rating: 2))
2. Thermostat Control & Interior Light Unit
3. Interior Glass Shelf (x1)
4. Door Storage – Specific Areas for Bottles & Dairy Products
5. Salad Crisper Box with Glass Shelf
6. Adjustable Foot
Please note that your appliance may be supplied with the door left
hand or right hand hinged. To reverse the door please refer to
section 4.5.
1.
2.
4.
6.
3.
5.

4
CONTENTS:
Section 1. Installation
Section 2. Safety Advice
Section 3. Operating the Appliance
Section 4. Maintenance

5
Section 1. I n s ta lla tion
IMPORTANT! This appliance must be left to stand in an upright position
for at least 4 hours before being switched on for the first time.
Remove all packaging and securing tape from the appliance.
Wash the interior of the appliance with luke warm water containing a
small amount of bicarbonate soda (5ml to 0.5 litres of water).
Position the appliance in a dry atmosphere and out of direct sunlight.
Do not position next to a cooker or other sources of heat, i.e. radiator.
A clearance of 50mm should be left above the appliance. If this cannot
be achieved you should ensure a clearance of 25mm is maintained on
each side of the appliance.
Ensure that the appliance is positioned on a firm flat floor.
This appliance must be level. Adjust the level by screwing the adjustable
feet up or down (use your fingers or a suitable spanner).
Ensure that the appliance is upright and both feet are in firm contact with
the floor so that the cabinet is stable.
Connect the plug to an adjacent 13amp socket outlet and ensure that the
appliance is not standing on the supply cable.
Section 2. Safety Advice
Please read this booklet thoroughly before installing and switching on the
appliance. The manufacturer accepts no responsibility for incorrect
installation and usage.
If this appliance is to replace an old refrigerator or freezer with a lock, as
a safety measure break or remove the lock before disposal.
Your old appliances contain insulation gases and refrigerant that must be
disposed of correctly. Please ensure that the refrigerant circuit is not
damaged before the appliance is taken away for correct disposal in line
with current legislation. If there is any doubt contact your Local Authority
for instructions.
This appliance may contain the refrigerant isobutene (R600a). This is a
natural gas with a high level of environmental compatibility; however,
caution is required as isobutene is a flammable gas. It is essential to ensure
that refrigerant tubes are not damaged during transportation and the
installation of the appliance. In the event that the refrigerant circuit is
damaged, avoid naked flames or sources of ignition and ventilate the room
in which the appliance is situated.

6
Do not damage the refrigerant circuit.
Do not allow children to play with the appliance. Children must never
play in or around the appliance.
If using an adaptor, this must be used in accordance with the
manufacturers instructions and ensure that the electrical circuit is not
overloaded as this could cause overheating.
Do not twist or bend the cables, and keep them away from hot surfaces.
Do not plug ın or unplug this appliance with wet hands.
Following installation make sure that the power cable is not trapped
underneath the appliance.
Section 3. Operating the Appliance
3.1. Switching on the Appliance
Allow the appliance to stand for 4 hours after installation.
Plug in the appliance and switch on at the mains supply.
Set the thermostat control to the required setting as detailed in the
Temperature Control section (3.2.).
Leave the appliance for approximately 4 hours for the correct
temperature to be reached.
3.2. Temperature Control
The temperature selector knob is located inside the fridge (see Description of
the Appliance).
Setting “0”: Unit Off
Setting “1”: Unit On – Warmest Temperature
Setting “3”: Normal Operation (adequate for most situations)
Setting “5”: Coldest Temperature
Important!
During high ambient temperatures e.g. on hot summer days, it may be
necessary to set the thermostat to the coldest setting (position 5). This may
cause the compressor to run continuously in order to maintain a low
temperature in the cabinet.

7
3.3. Ice Box
Your appliance is fitted with a two star ice-box that will maintain a temperature
in the region of –12 degrees. This ice-box is intended for the storage of certain
frozen foods for a maximum of 1 month. You should check the storage label of
any pre-frozen food you intend to store and follow the producers instructions.
The ice-box can also be used for the freezing and storage of small amounts of
ice.
Please note: You cannot use this ice-box to freeze any fresh food item.
3.4. Normal Operating Sounds
You may hear faint gurgling or bubbling sounds when the refrigerant is pumped
to the cooling system and through the coils or tubing at the rear of the
appliance. When the compressor is in operation you may hear a slight whirring
sound or pulsating noise. The thermostat controls the operation of the
compressor, and you may hear a slight click as it cycles in and out.
3.5. Energy Saving Advice
Do not install the appliance close to sources of heat, such as a cooker,
dishwasher or radiator. Locate the appliance in a cool well-ventilated room and
make sure that the air vents are clear.
Try to avoid keeping the door open for long time, warm air will enter the cabinet,
and may cause a build up of ice as well as affecting the energy consumption.
Ensure there are no obstructions preventing the door from closing properly
3.6. In the Event of a Power Failure
If there is a power failure, keep the door closed. When the power has been
restored the appliance will start to operate but it may take some time to achieve
the pre-set operating temperature. Check the condition of your stored food
items.

8
Section 4. Maintenance
Before any maintenance or cleaning work is carried out, DISCONNECT the
appliance from the ELECTRICITY supply.
4.1. Internal Cleaning
Cleaning of the interior can only be carried out when the appliance has been
switched off and de-frosted.
Clean the interior and accessories with warm water and bicarbonate of soda
(5ml to 0.5 litre of water). Rinse and dry thoroughly. Do not use detergents,
abrasive powders, highly perfumed cleaning products, wax polishes or cleaning
products containing bleach or alcohol.
4.2. External Cleaning
Wash the outer cabinet with warm soapy water. Do NOT use abrasive
products. There may be sharp edges on the underside of the product, so care
should be taken when cleaning. Once or twice a year dust the rear of the
appliance and the compressor at the back of the appliance, with a brush or
vacuum cleaner, as an accumulation of dust will affect the performance of the
appliance and cause increased energy consumption.
4.3. Defrosting
If ice build up inside the appliance exceeds 3-5mm, switch off the appliance and
leave the door open and allow the ice to melt. Do not use sharp objects to
scrape the ice away. Clean and dry the interior, close the door and turn on the
power to the appliance. When the power has been restored the appliance will
start to operate but it may take some time to achieve the pre-set operating
temperature.
4.4. When the appliance is not in use
When the appliance is not in use for long periods, remove the contents,
disconnect from the electricity supply and clean the appliance, leaving the door
ajar until you wish to use the appliance again.

9
4.5. Changing the Interior Light Bulb
Switch off the power supply to the appliance.
Gently squeeze and remove the interior light perspex cover.
Unscrew and remove the bulb.
Replace the bulb with a suitable replacement (Max 15W).
Refit the cover and switch the appliance back on.
4.6. Reversing the Door
The door opening can be reversed from “right hand hinged” to “left hand hinged”
or vice versa.
Warning!
When reversing the door, the appliance must not be connected to the mains.
Remove the plug from the mains beforehand.
Remove the two Phillips screws securing the bottom door hinge
Remove the door
Remove and re-fit the levelling foot to the opposite side
Remove the blanking plug from the hinge-pin hole
Remove the top hinge pin and hinge sleeve and re-fit to the opposite
side. Repeat this process for the bottom door hinge.
Remove the blanking screws from the holes into which the hinge is to be
repositioned
Refit the hinge assembly and ensure that it is tight.
Refit the blanking plug.
Now ensure that the door opens freely and seals tightly when closed.

10
4.6. What to do if something goes wrong
Before contacting our service help line, check the following points:
There is no power to the appliance:
Check there is not a power cut
Check there is power to the electric socket/appliance
Check the fuse in the plug (Must be 13 amp)
Check that the thermostat is set to “1” or above (see section 3.2.)
The compressor runs continuously:
Is the door closed correctly?
Have large quantities of food recently been added to the appliance? – if
yes, allow the interior temperature to recover
Has the appliance door been opened frequently? – if yes, allow the
interior temperature to recover
Check that the Temperature Control has not been set to maximum
There is excessive frost/ice build up:
Ensure that the door has been closed correctly
Ensure that the door seal is clean and sealing correctly
Check that the Temperature Control has not been set to maximum
Noise:
Refer to Normal Operating Sounds, section 3.4.
Ensure that the appliance has been installed correctly (see section 1.)
If after the above checks there is still a fault contact the Sovereign Service Help
line on 01527- 573010.
In-guarantee customers should ensure that the above checks have been made
as the engineer will make a charge if the fault is not the result of a mechanical
or electrical breakdown. The model and serial number together with details of
your sales receipt must be quoted when booking an in-guarantee service call.

11
I nsu r ance
!
The m a nu fact ur e r's gu a ra n te e do e s not c o ve r lo s s of
!
fridge
/
freezer content
.
Any claim for loss, damage, costs or expenses of an indirect or consequential
nature including any economic loss or damage to foodstuffs or any other goods
is excluded. We recommend that you inspect your fridge regularly to check that
it is working correctly, losses can result from deterioration following breakdown
or accidental failure of the appliance, fuses, plugs or public electricity supply,
these can be covered by your standard home insurance or might require extra
cover. Check with your insurance provider.
Important Note:
Th is app liance is m arke d accord ing to th e E uropea n direct ive 2002 /96 /EC
on W ast e E lect rica l an d E lectron ic E qu ip m en t (WEEE ). By ensu ring th is
produc t is dispose d of co rrect ly, you will he lp prev en t potent ial negat ive
consequence s for th e environ m en t an d hu m an hea lth , which cou ld
othe rwi se be cause d by inapprop riate w ast e hand ling of th is product .
The sym bol on the product, or on the docu m ents acco m pa nying the product, the
Crossed Out W heelie Bin, indicates that this appliance m ay not be treated as
household wast e. Instead it shall be handed ov er to the applicable collection
point for the rec ycling of elect rical and electronic equip m ent.
Disposal must be ca rried out in accordance with local environ m ental
regulations for waste disposal. For m ore detailed in form ation
about treat m ent, rec ov ery and rec ycling of this product, please
contact your local autho rity, your household waste disposal se rvice
or the retailer whe re you purchased the product.
W e con tinuou sly try to im prove ou r produ cts for the bene fit of ou r custom ers.
For this rea son we re serve the righ t to m ake change s to any produ ct at any tim e,
withou t no tic e
Issue: 01/18 -10 -07
