SPACE AGE ELECTRONICS SSU-WP-2000 User manual

SSU-WP-2000
WEATHERPROOF ENCLOSURE FOR
SMOKE DETECTORS
1. Remove paper backing from mounting template from
detector kit and affix to the air duct at desired
location.
2. Using the template as a guide, drill or punch (2) 1-1/4”
dia. holes in the air duct, for the sampling
tube/exhaust tube.
3. Position the SSU-WP-2000 enclosure in such a way
that the holes (on the template and SSU-WP-2000) are
lined up with each other.
4. Mark the (4) SSU-WP-2000 air duct mounting holes.
Then drill (4) 3/32” (2.5mm) pilot holes as marked.
5. Secure SSU-WP-2000 enclosure to the duct with (4)
#12 x 3/4” sheet metal screws (SSU-WP-2000 kit).
6. Fit the duct smoke detector into the 1-1/4” holes on
the air duct.
7. Secure the duct detector with (2) sheet metal screws
(from detector kit) to the SSU-WP-2000 enclosure.
8. Connect sampling tube/exhaust tube to the duct
detector (position the sampling tube in such a way
that air flows into the intake holes).
PRODUCT SPECIFICATIONS
USE: SL series duct smoke detectors
System Sensor DNR duct smoke detector
CONDUIT KNOCKOUTS: On bottom: 3 convertible 0.875”
MATERIAL: 16ga CRS white painted finish
FRONT ACCESS: Removable Cover with two screws
HARDWARE: Enclosure mounting screws and ground screw kit included
PROTECTION RATING: Type 1 and Type 3R –UL 50 and CSA
Outdoor: Internal equipment protected from falling rain, etc: undamaged by ice formation
ENVIRONMENTAL: See appropriate duct smoke detector specifications
APPROVALS: UL: BGUZ.E257104
CUL: BGUX7.E257104
MOUNTING
SPACE AGE ELECTRONICS 1SAE.COM 800-486-1723 EC0151 REV. A
CAUTION: DE-ENERGIZE ALL POWER BEFORE INSTALLATION OR SERVICE

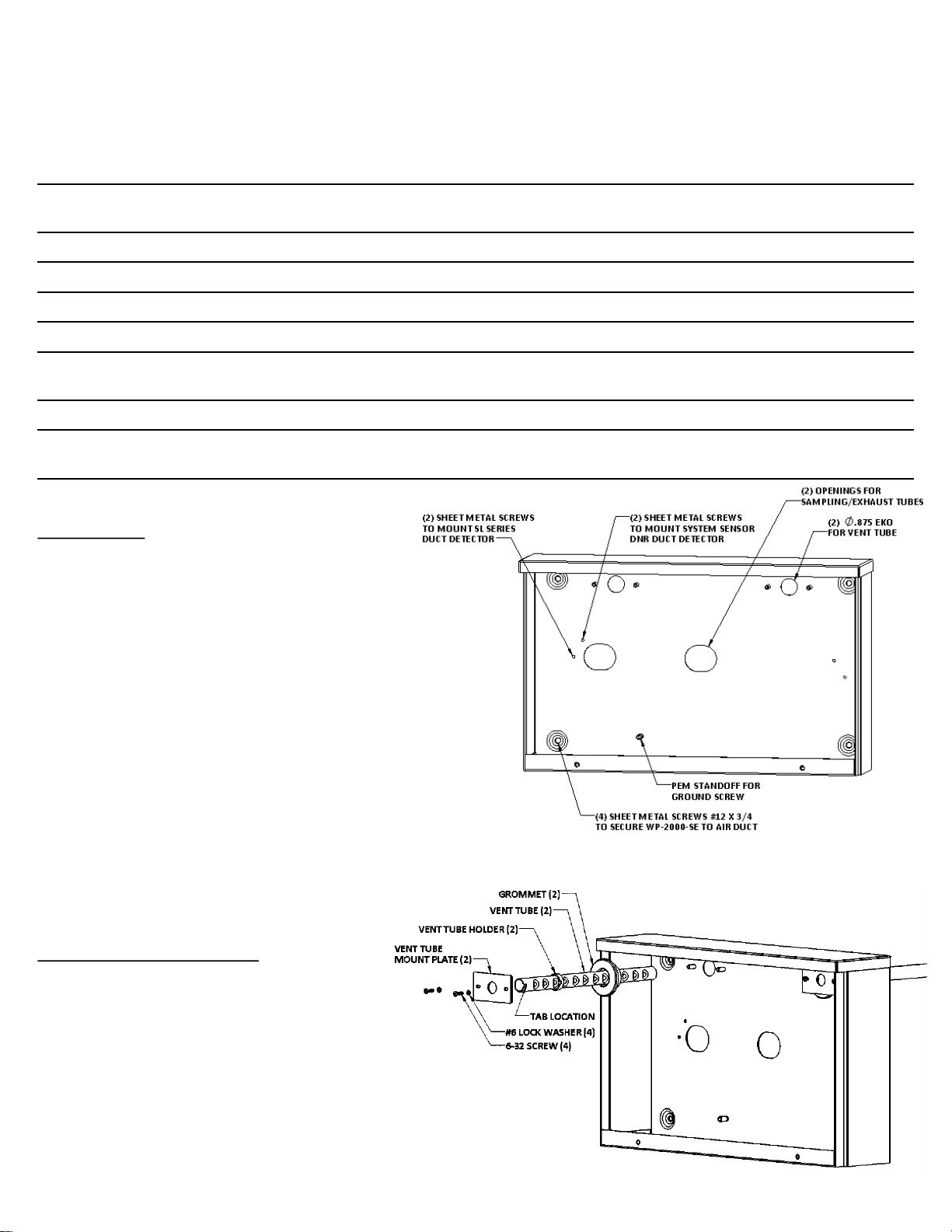

SSU-WP-2000-SE
SEVERE WEATHERPROOF ENCLOSURE
FOR SMOKE DETECTORS
1. Remove paper backing from mounting template from
detector kit and affix to the air duct at desired location.
2. Using the template as a guide, drill or punch (2) 1-1/4” dia.
holes in the air duct, for the sampling tube/exhaust tube.
3. Position the SSU-WP-2000-SE enclosure in such a way that
the holes (on the template and SSU-WP-2000-SE) are lined
up with each other.
4. Mark the (4) SSU-WP-2000-SE air duct mounting holes.
Then drill (4) 3/32” (2.5mm) pilot holes as marked.
5. Secure SSU-WP-2000-SE enclosure to the duct with (4) #12
x 3/4” sheet metal screws (SSU-WP-2000-SE kit).
6. Fit the duct smoke detector into the 1-1/4” holes on the air
duct.
7. Secure the duct detector with sheet metal screws (from
detector kit) to the SSU-WP-2000-SE enclosure.
8. Connect sampling tube/exhaust tube to the duct detector
(position the sampling tube in such a way that air flows into
the intake holes).
PRODUCT SPECIFICATIONS
USE: SL Series duct smoke detectors
System Sensor DNR duct smoke detector
CONDUIT KNOCKOUTS: On bottom: 3 convertible 0.875”
MATERIAL: 16ga SST white painted finish
FRONT ACCESS: Removable Cover with two screws
HARDWARE: Enclosure mounting screws, ground screw kit, and tube vent kit included
PROTECTION RATING: Type 1 and Type 3R –UL 50 and CSA
Outdoor: Internal equipment protected from falling rain, etc: undamaged by ice formation
ENVIRONMENTAL: See appropriate duct smoke detector specifications
APPROVALS: UL: BGUZ.E257104
CUL: BGUX7.E257104
MOUNTING
CAUTION: DE-ENERGIZE ALL POWER BEFORE INSTALLATION OR SERVICE
INSTALLING VENT TUBES
1. Punch out (2) .875” knockouts.
2. Feed vent tube (side without tab) through vent tube
holder and larger side of grommet, as shown, until vent
tube is flush with grommet. (make sure vent tube tab lines
up with slot on vent tube holder)
3. Feed same side through open knockout.
4. Use mount plate, (2) #6 lock washers, and (2) 6-32 screws
to hold vent tube in place, make sure tube vent is up
against mount plate, and tab of vent tube is pointing
inwards before tightening.
SPACE AGE ELECTRONICS 1SAE.COM 800-486-1723 EC0151 REV. A
