SpaEquip BE1660QBTF User manual

Installation Guide
PRODUCT #:
BE1660QBTF
ITEM:
Shampoo Bulkhead Upper and
Lower Units
BRAND:
Belvedere
SOURCE FOR PURCHASE:
SpaEquip, Inc.
211 Wappo Ave., Calistoga, CA 94515
p: 707.737.1100
f: 707.737.1150
www.spaequip.com
LIST PRICE (USD):
FEATURES:
Shampoo Bulkhead Upper and lower units. Consists of 1660UTF and 1660LTF. Wall mounted cabinets. Unfinished on
right sides, order 1664QATF end panels to finish. Upper cabinet with sliding doors. Lower cabinet. Predrilled holes for
Belvedere bowl. Order bowl separately. Bottle well 18" w x 6 3/4 d x 6 h. Accent strip may be specified as trim.
Oversized item - ships by Truck
SPECIFICATIONS:
Dimensions: 45" W x 12" D x 78" H
Electrical: None
Suggested Outlet: None
Plumbing: See specs for shampoo bowl
Notes: None
Warranty: 1 Year
Certifications: N/A
Country of Origin: United States
Installed By: Client's Contractor
www.spaequip.com p: 707.737.1100 Page 1 of 5
Product Code: BE1660QBTF
www.spaequip.com
P:707.737.1100 F:707.737.1150
Page 1 of 5

Belvedere USA Corporation
A Wholly Owned Subsidiary of Wella Corporation
One Belvedere Boulevard, Belvidere, Illinois 61008
Printed in U.S.A. 4000749 Rev. 1-01

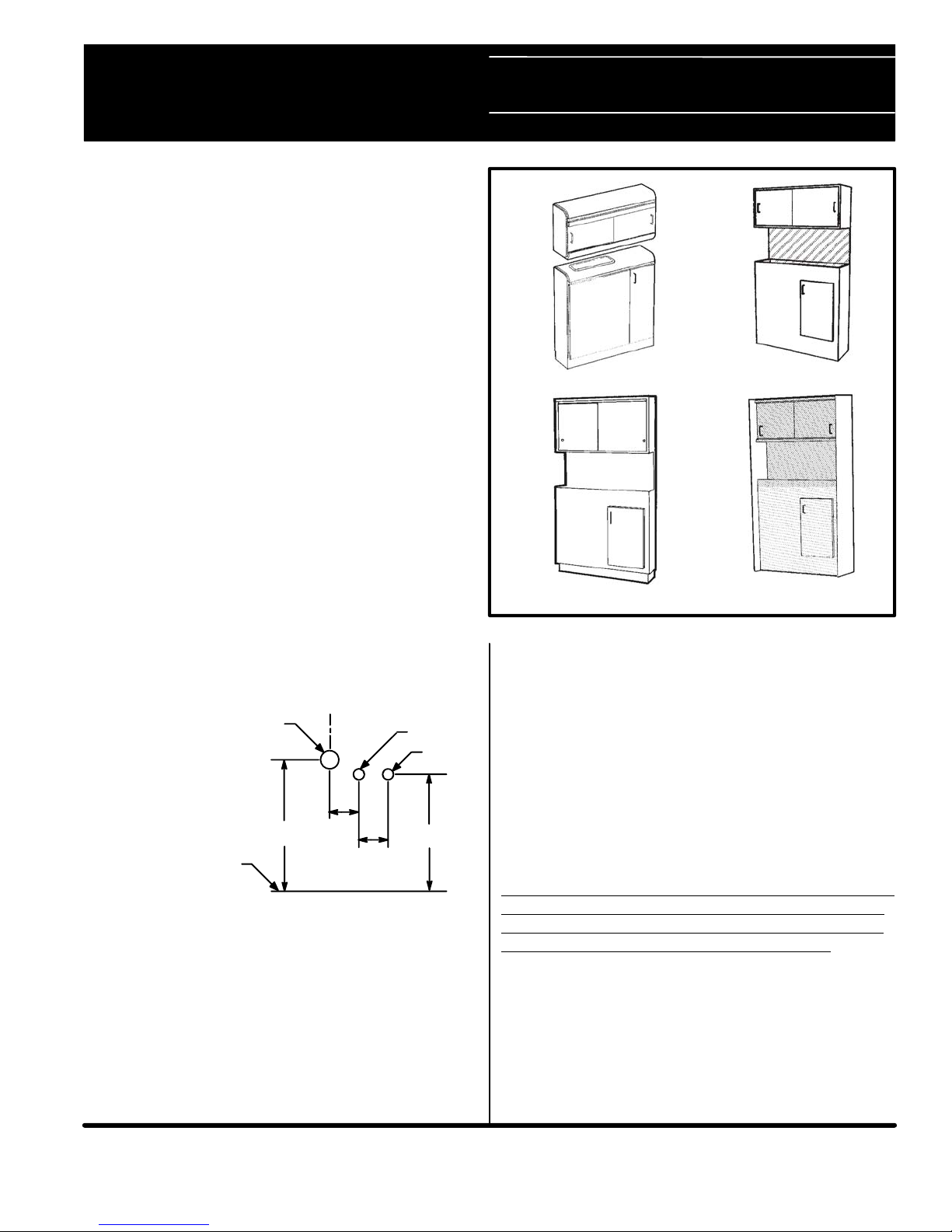

BULKHEAD INSTALLATION AND
PLUMBING INSTRUCTIONS
CAUTION: Cabinetry is heavy. Use care in
lifting, moving and handling.
IMPORTANT NOTES:
A. It is the responsibility of the owner and/or the
installers to confirm that the installation meets
local codes regarding plumbing, materials,
venting, etc.
B. Read through these instructions carefully before
beginning work. Because we cannot anticipate
all types of wall and floor constructions, you
must obtain some fasteners for the installation
locally.
1. Determine the final location for the bulkhead.
For corner installations where the left end is
against the wall, allow at least 14 inches from
the baseboard to the center line of the bowl, to
provide for the shampoo chair base.
)RU URXJK LQ SOXPELQJ VHH LOOXVWUDWLRQ y$y
Check with local plumbing codes for approval.
ILLUSTRATION
y$y
y y
y
Floor
Drain Hot
Cold
C
L
y
WARNING: Once the shipping cleats have been
removed from the lower cabinet, it is unstable and
must be supported. Damage to the cabinet or
personal injury may result if the cabinet falls.
2. To remove the skid and shipping cleats from the
lower cabinets, remove the screws attaching the
cleats to the inside of the end panels.
3. Locate and cut holes for the plumbing waste
and supply stubs in the front panel of the lower
cabinet. Measure carefully. Use a hole saw or jig
saw. Apply tape to the laminate face to avoid
scratching. Care taken at this step will ensure a
neat, professional installation.
4. Secure 2 x 4 studs (cleats), one to the floor and
one to the wall with suitable fasteners. Position
the lower cabinet over plumbing stubs and cleats.
Secure the lower cabinet to both the floor and
wall. Use fasteners (obtain locally) suitable for
your wall and floor construction.
WARNING: The cabinet may not support the weight
of the bowl and load if it is not permanently secured
to both the wall and the floor. Personal injury could
result if the cabinet pulls away from the wall.
5. If bulkhead units are ganged together, both the
upper and lower end panels of adjoining units
must be secured together with suitable fasteners.
The bulkhead is now ready for bowl installation
and final plumbing.
Shampoo
Bulkheads
BELVEDERE BULKHEADS: COSMOS,
LTD., MODULAR, SAVANNAH
SAVANNAH
MODULAR
COSMOS LTD.
Page 1 of 4
www.spaequip.com p: 707.737.1100 Page 2 of 5
Product Code: BE1660QBTF
www.spaequip.com
P:707.737.1100 F:707.737.1150
Page 2 of 5

BULKHEAD PLUMBING LAYOUTS
1660QB COSMOS SL61-42QC LTD. SL61-48QB LTD.
%RZO FHQWHUOLQH y
to Bowl centerline
of adjacent Bulkheads
137/16 319/16
453/4
123/4291/4
42
153/4321/4
48
%RZO FHQWHUOLQH y
to Bowl centerline
of adjacent Bulkheads
%RZO FHQWHUOLQH y
to Bowl centerline
of adjacent Bulkheads
Page 2 of 4
www.spaequip.com p: 707.737.1100 Page 3 of 5
Product Code: BE1660QBTF
www.spaequip.com
P:707.737.1100 F:707.737.1150
Page 3 of 5

0460-40QC MODULAR SV60-42QC SAVANNAH SV60-48QC SAVANNAH
%RZO FHQWHUOLQH y
to Bowl centerline
of adjacent Bulkheads
%RZO FHQWHUOLQH y
to Bowl centerline
of adjacent Bulkheads
%RZO FHQWHUOLQH y
to Bowl centerline
of adjacent Bulkheads
123/4 271/4
40
123/4291/4
42
153/4321/4
48
Page 3 of 4
www.spaequip.com p: 707.737.1100 Page 4 of 5
Product Code: BE1660QBTF
www.spaequip.com
P:707.737.1100 F:707.737.1150
Page 4 of 5

CABINET INSTALLATION INSTRUCTIONS
! CAUTION !
Damage or personal injury may result if you do not use proper fasteners for your wall construction.
To determine the type of fastener to purchase when installing cabinets or mirror clips, use the following
information.
Because wall constructions vary, Belvedere USA Corporation does not provide wall anchors for installation.
Be sure that you select suitable fasteners appropriate to your particular wall construction. If your wall
construction is different from the following types, consult a contractor for recommended suitable fasteners.
CONCRETE WALL:
Recommend using expansion anchors. Size to be determined
by interior wall structure and weight of unit.
GYPSUM WALL:
Recommend using expansion anchors or toggle bolts. Size to be
determined by interior wall structure and weight of unit.
Gypsum does not have sufficient strength to support a cabinet.
Cabinets must be secured to the interior wall structure.
WOOD WALL OR CABINET:
Recommend using wood screws. Size to be determined by interior
wall structure or cabinet panel and weight of unit.
Page 4 of 4
