SPARKLE 417/8385 User manual

MADE IN
BRITAIN
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Important - Please read these instructions fully before starting assembly
Dimensions
Width - 70.3cm
Depth - 51.6cm
Height - 182.3cm
Sparkle - 2 Door Robe
Assembly Instructions - Please keep for future reference
Issue 3 - 02/10/15
ALR3194
417/8385
414/1343
413/3052
Issue 2 - 11/09/15 - Note added on the Fittings page to say use Hinges and Hinge Plates from the same bag.
Issue 3 - 02/10/15 - Updated the Panels page to include the latest note about the protective film

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 46kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
overbalance protector kit
supplied or, an alternative fixing
method of your choice.
• Dispose of all packaging
carefully and responsibly.
Rule

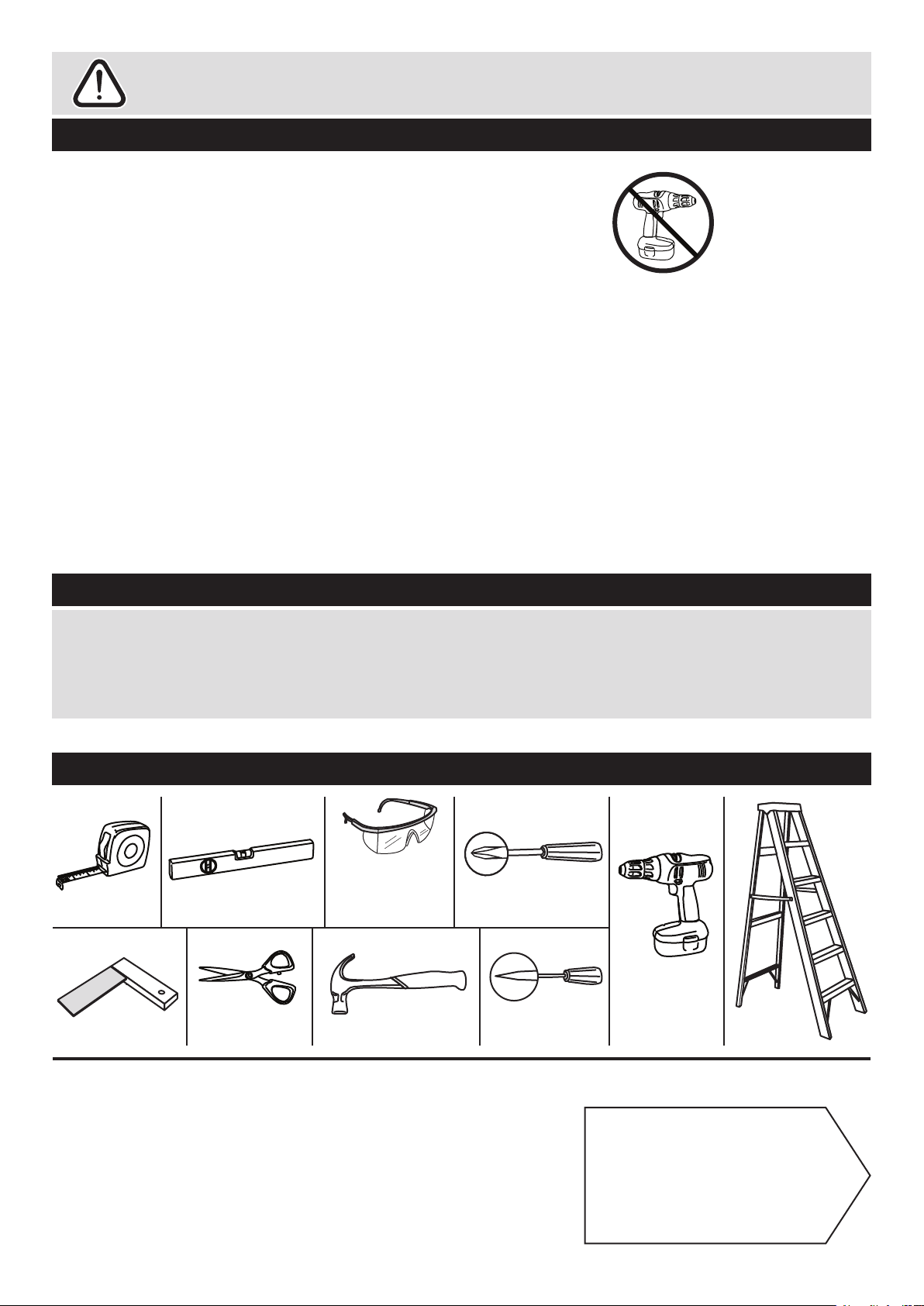

Tools required
Rule
ScissorsSquare
Spirit
level
Hammer Bradawl
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Step
ladder
Electric drill
(only use
when drilling
into walls)

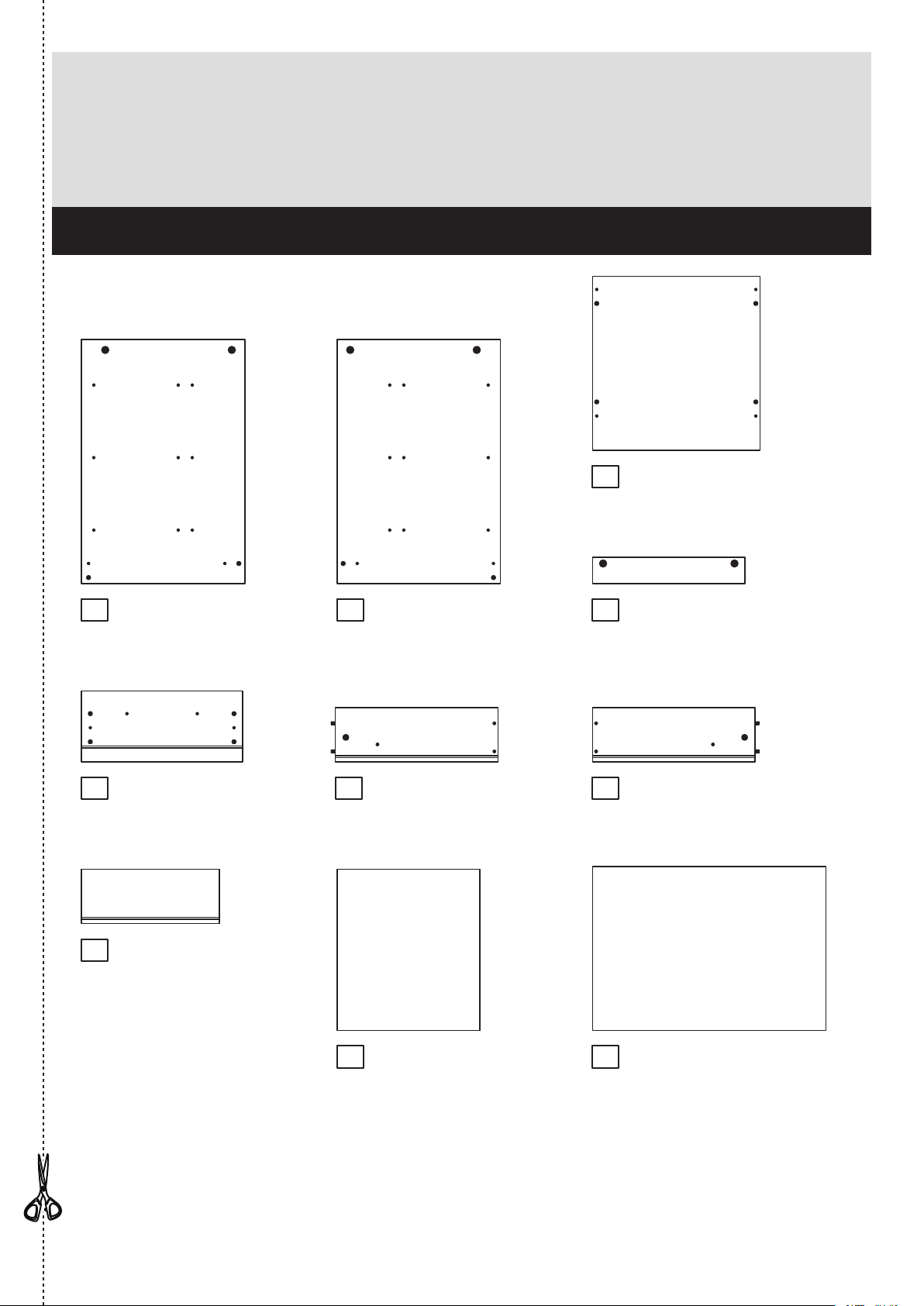

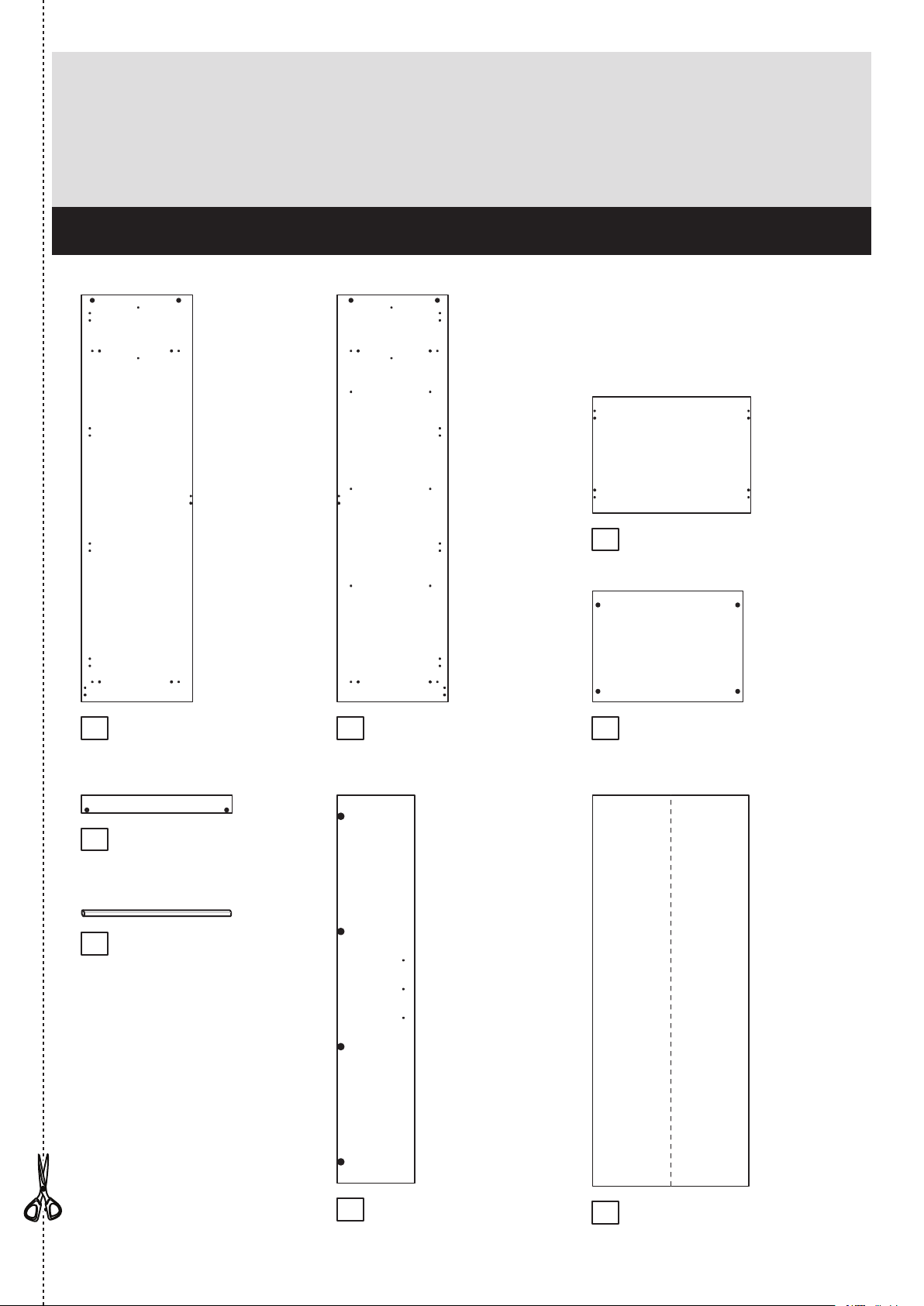

Components - Panels
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Please check you have all the panels listed below When applicable, remove any
protective film before use
2
12 4
80%
7
Left Side (DF3837)
(180.8 x 49.4cm)
Rail (DF3840)
(66.9 x 8cm) x 2
Horizontal (DF3841)
(66.9 x 49.2cm) x 2
Right Side (DF3838)
(180.8 x 49.4cm)
3Top (DF3839)
(70.3 x 51.6cm)
Door (DF3842)
(172.4 x 34.5cm) x 2
Back (X1738-695)
(173.8 x 69.5cm)
5
8
Hanging Rail (FHR663)
(66.3cm long)
6

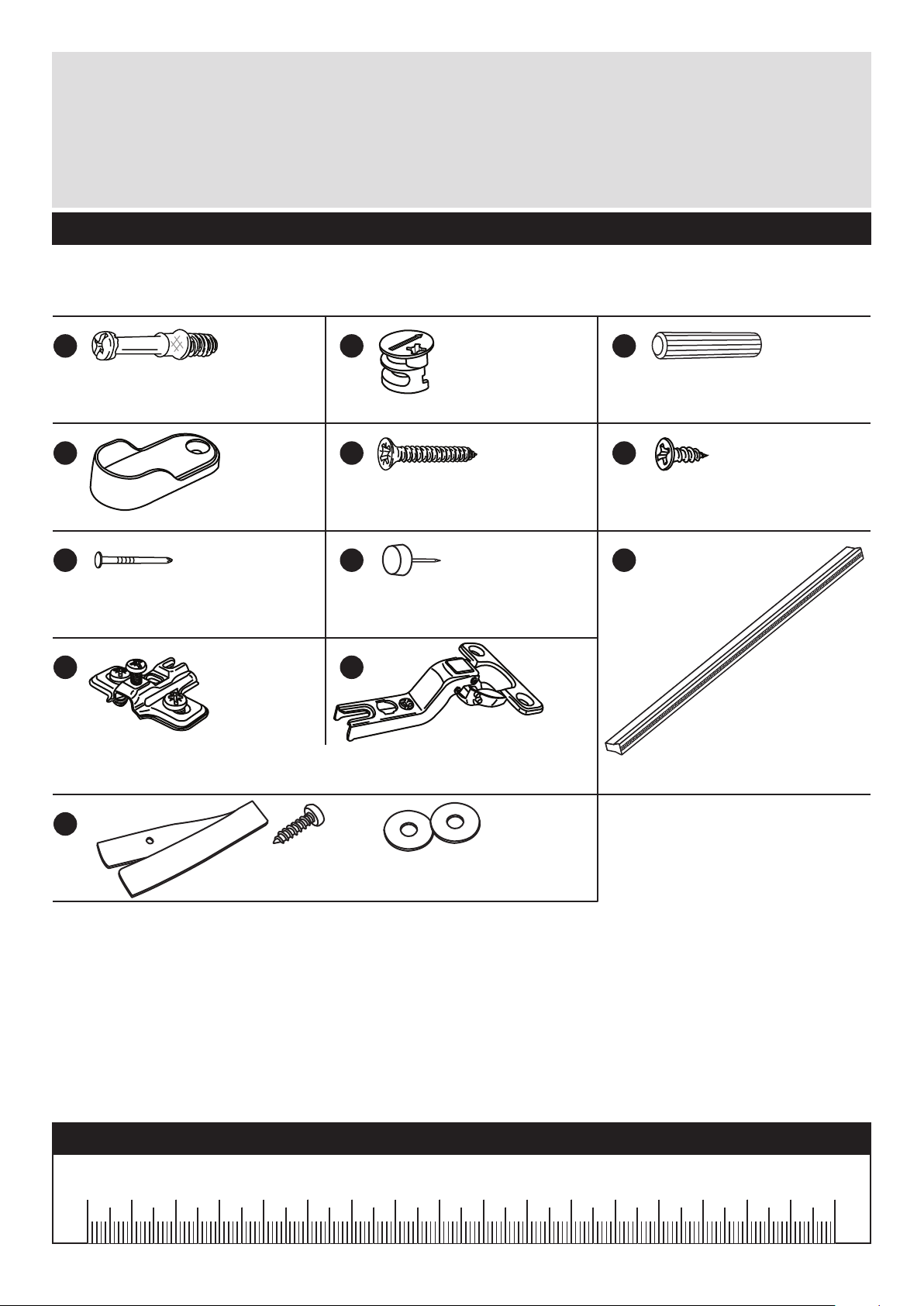

Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.

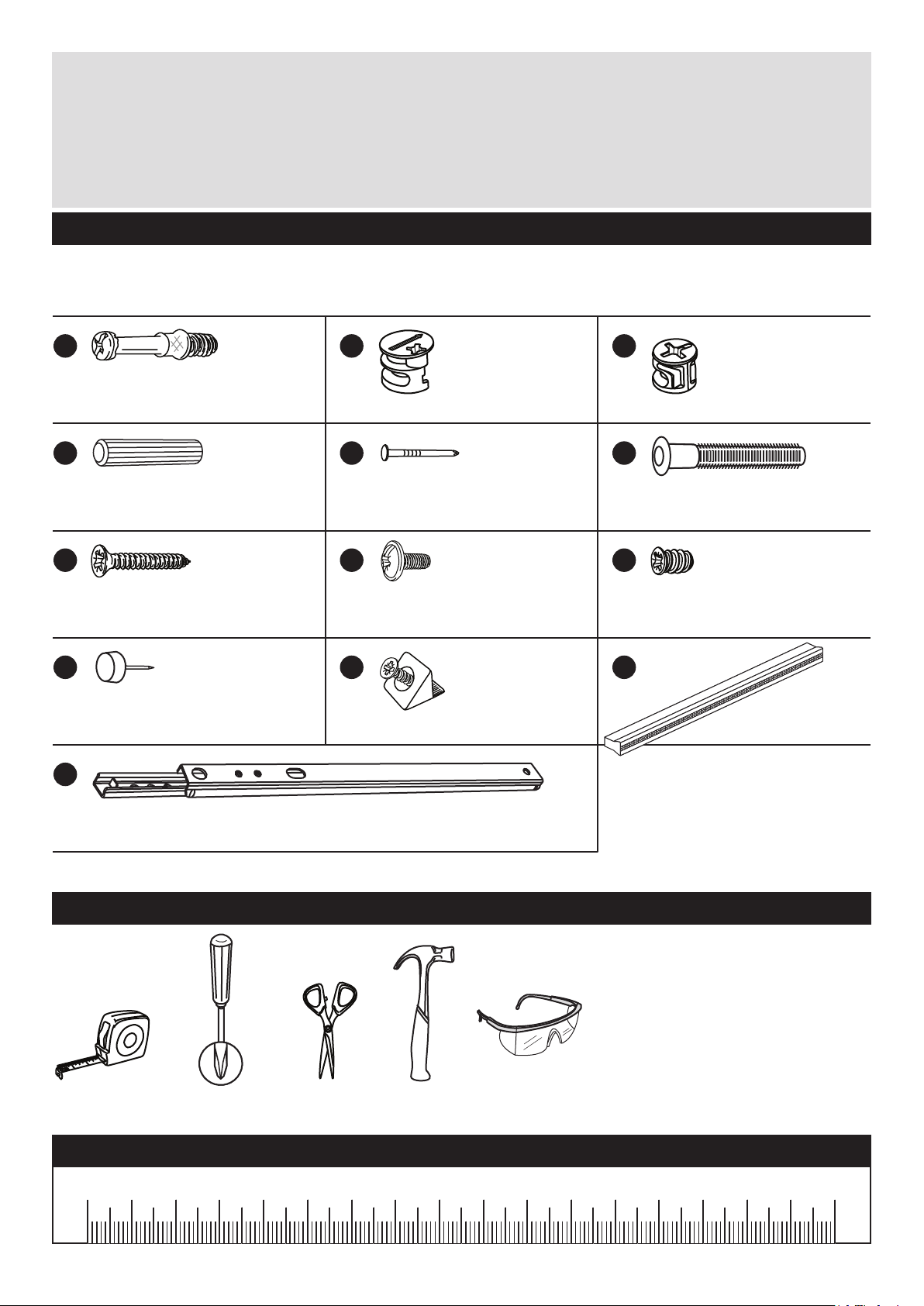

Components - Fittings
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
3
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
A B
D E F
G H
C
J K
Large locking
nut (F900) x 16
Metal dowel (F901) x 16 Wooden dowel (F22) x 16
L
Rail Holder
(F891) x 2 13mm Screw (F63) x 20
Hinge plate
(F523) x 8
Strap Screw Washer x 2
Overbalance protector kit (F269) x 1
Nail (F51) x 30 Plastic Nail (F91) x 4
Hinge (F522) x 8
I
25mm Screw (F50) x 6
Handle (F569) x 2
Important: Always pair up the hinges with the hinge
plates from the same bag. DO NOT mix them up.
*** ***

Finished
front edge
Finished
front edge
C
C
Assembly Instructions
4

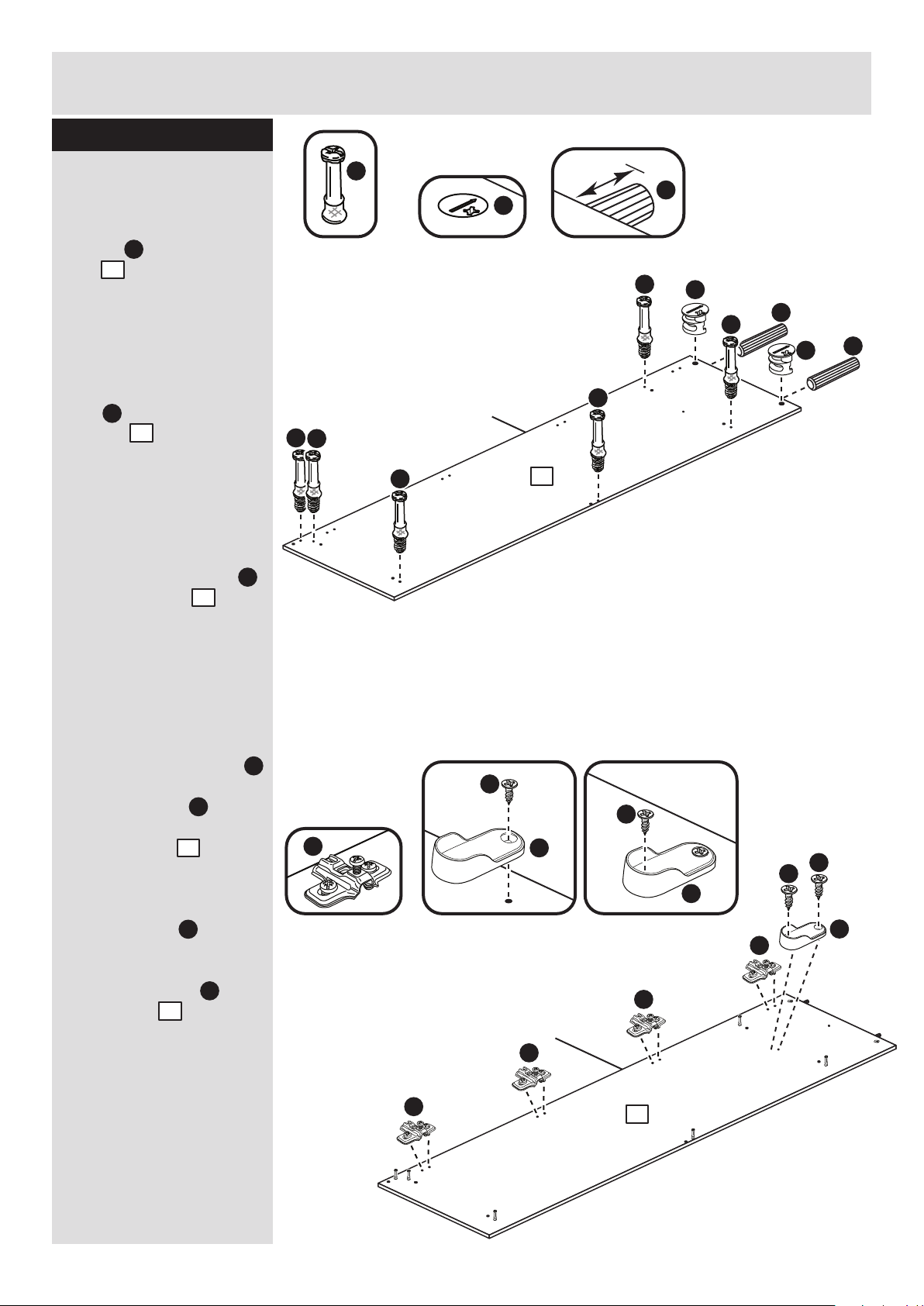

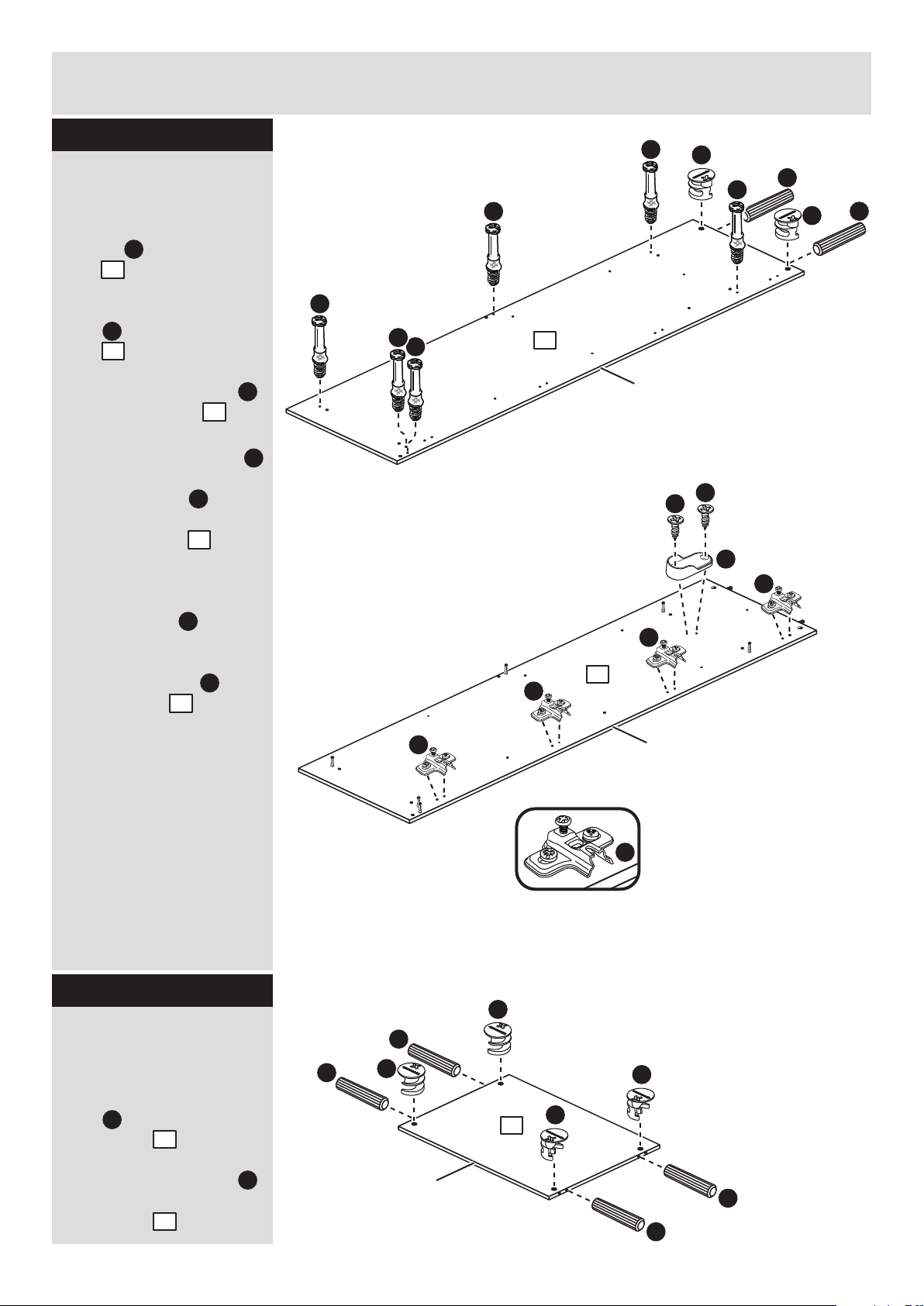

Prepare the left side
a: Screw 6 metal
dowels into the left
side .
Note: Tighten the metal
dowels up fully against
the panels.
Insert 2 large locking
nuts into the
left side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Tap 2 wooden dowels
into the left side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
b: To fit the rail holder
screw through the top
hole with screw and
into the mark hole drilled
in the left side . Make
sure that it is fitted
straight, in line with the
panel edges and then fit
another screw using
the lower hole.
Fit 4 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
A
1
1
C
1
Step 1
A
F
D
F
D
F
F
D
10mm
C
A
A
A
AA
A
B
B
B
J
J
J
J
J
B
D
F
1
F
J
1
1
1
b:
a:

Prepare the 2
horizontals
Insert 4 large locking
nuts into each of the
horizontals .
Tap 4 wooden dowels
into each of the
horizontals .
A
C
Assembly Instructions
5
Step 2
A
A
A
A
A
A
C
B
B
J
J
J
J
J
F
F
D
Finished
front edge
Finished
front edge
Prepare the right side
a: Screw 6 metal
dowels into the right
side .
Insert 2 large locking
nuts into the right
side .
Tap 2 wooden dowels
into the right side .
b: To fit the rail holder
screw through the top
hole with screw and
into the mark hole drilled
in the right side .
Make sure that it is fitted
straight, in line with the
panel edges and then fit
another screw using
the lower hole.
Fit 4 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
A
2
2
C
2
B
4
C
4
B
D
F
2
F
J
2
2
2
b:
a:
B
B
B
B
A
A
A
Step 3
x 2
4
Finished
front edge

A
Assembly Instructions
6
Step 4
A
B

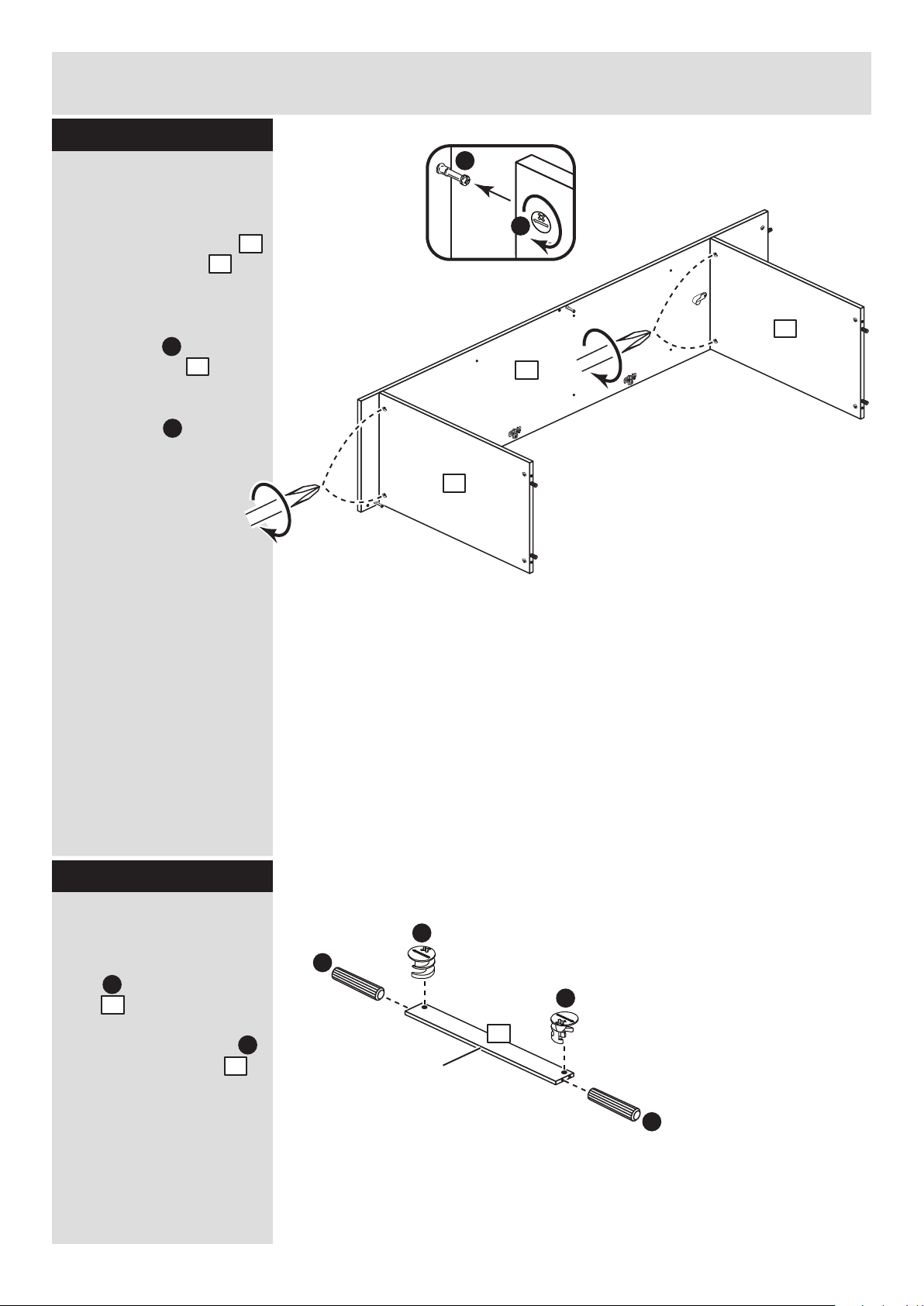

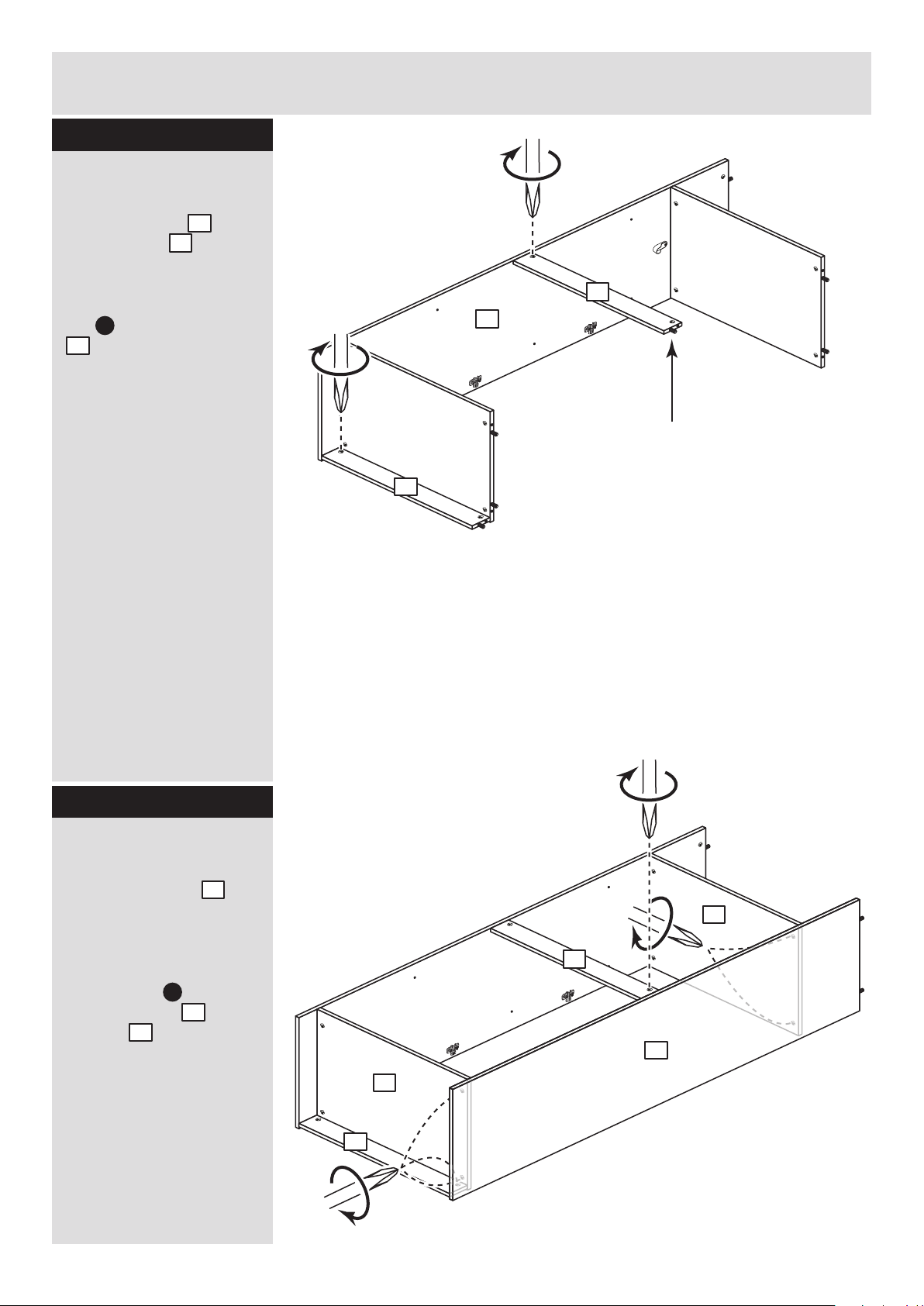

Fit the 2 horizontals
to the right side
Push the 2 horizontals
onto the right side .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each horizontal .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
2
4
B
B
42
4
4
Prepare the 2 rails
Insert 2 large locking
nuts into each of the
rails .
Tap 2 wooden dowels
into each of the rails .
5
C
5
B
Step 5
x 2
Finished
front edge
B
B
A
5

Assembly Instructions
7
Step 6
Step 7
2
Fit the 2 rails
Push the 2 rails onto
the right side .
Use a screwdriver to
tighten the large locking
nut fitted to each rail
. .
2
5
B
5
5
5
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 6 large
locking nuts fitted to
the horizontals and
the rails .
1
B
5
4
5
5
4
1
Note: Support this rail
until the left side has been
fitted in the next step.
4

Finished
front edge
Assembly Instructions
8
Step 8
Step 9

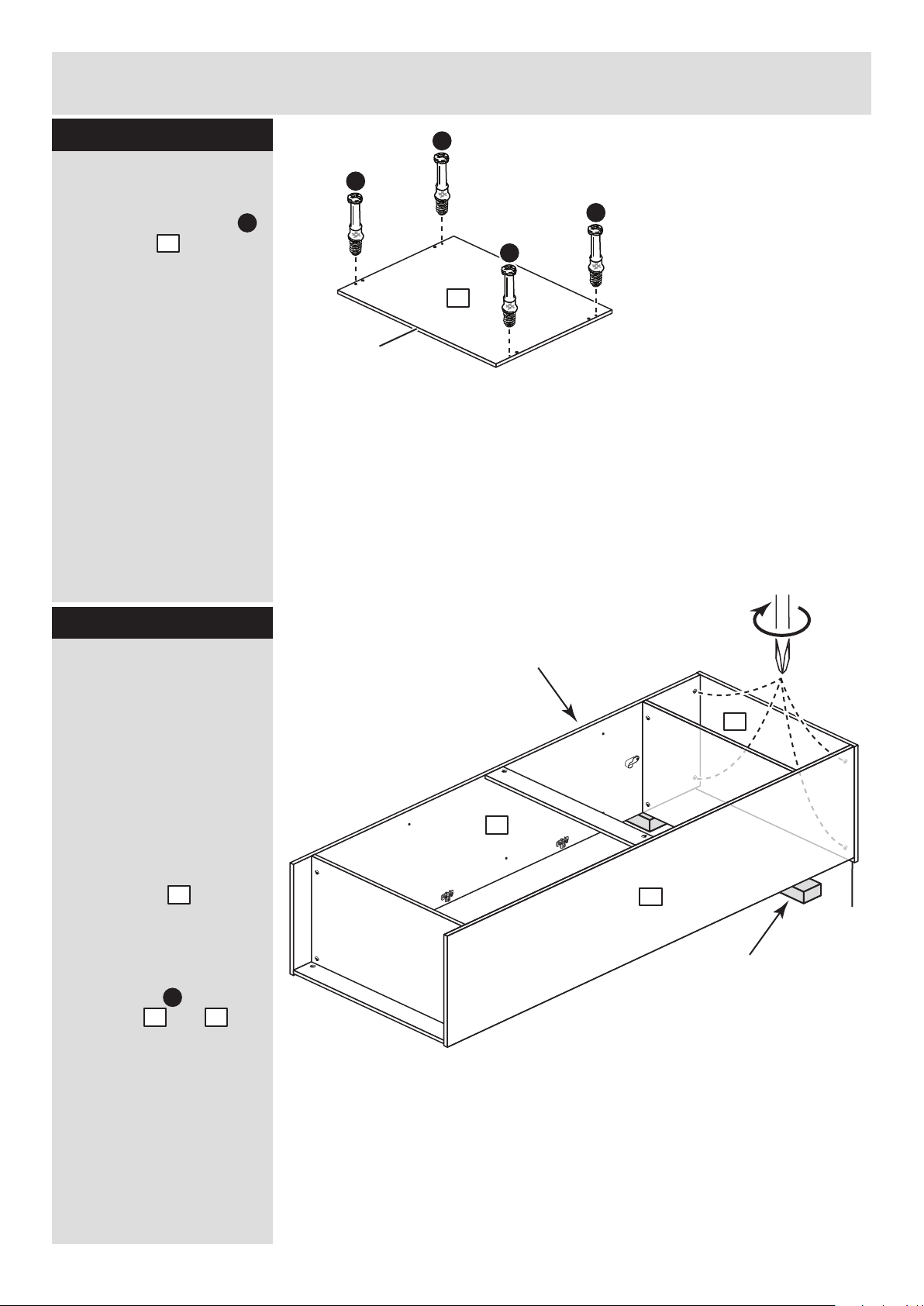

Prepare the top
Screw 6 metal dowels
into the top .
A
3
A
A
A
A
Finished
front edge
3
3
Fit the top
Note: To make it easier
to fit the top and base
panels, place
polystyrene blocks from
the packaging
underneath the side
panels to raise the
assembly.
Push the top onto
the assembly.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
each side and .
3
B
1 2
1
2
Polystyrene
block
Polystyrene
block

yy
yy
xx
Assembly Instructions
9
Step 10
b:
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should be
spaced about 150mm
apart.
Stand the unit up for
the next step.
8
G
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
8
xx
G
8
Step 11
Fit the 4 plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
Carefully stand the
unit up for the next
step.
H
1
2
H
H
H
H
1
2
Warning: The
unit is heavy.
Lift with care.

Assembly Instructions
10
Step 12
6
6
D

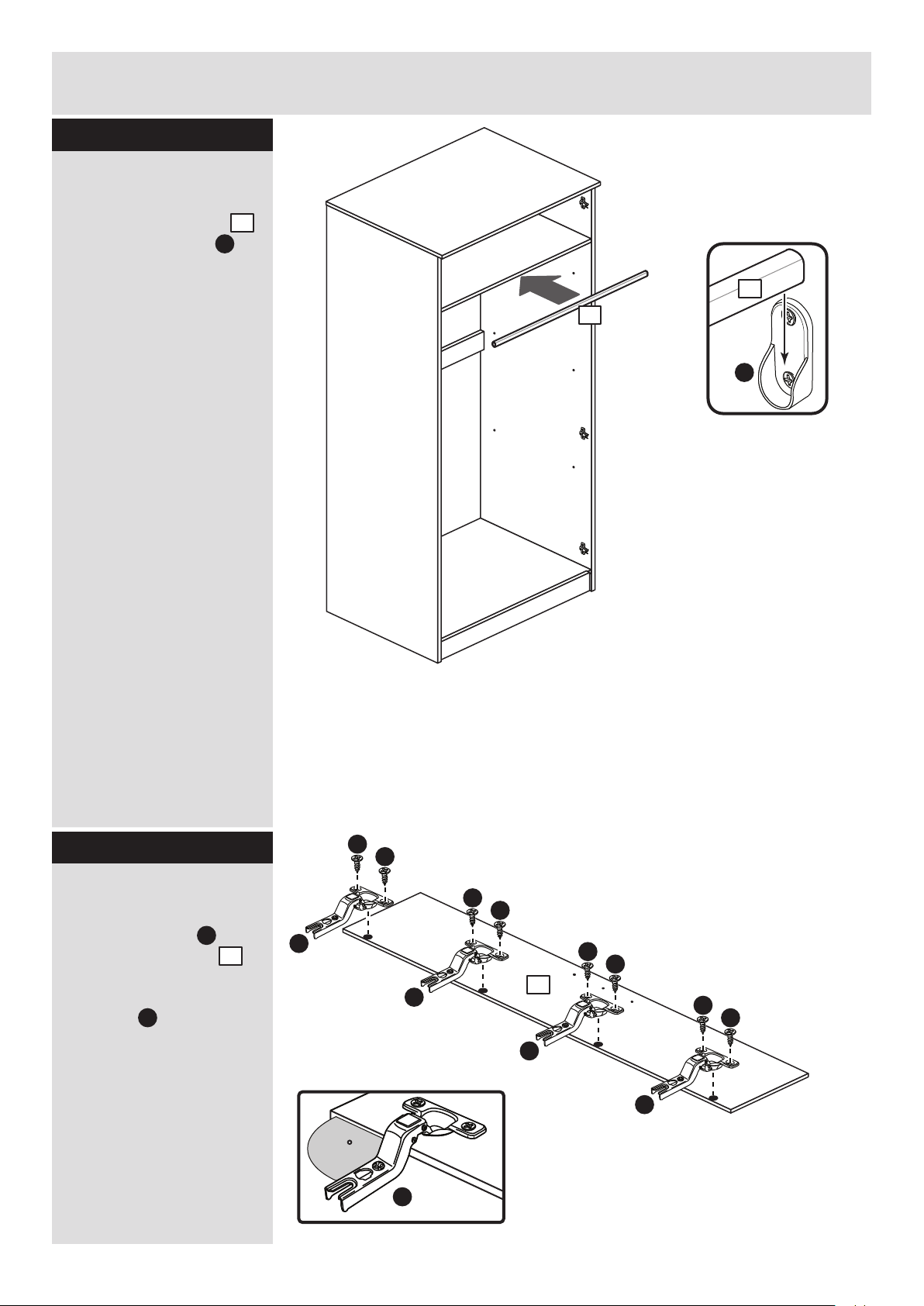

Fit the hanging rail
Push the hanging rail
into the rail holders
fitted to the side panels.
6
D
Step 13
Prepare the 2 doors
Push fit 4 hinges into
each of the 2 doors .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
F
K
7
90
K
x 2
K
F
F
K
F
F
K
F
F
K
F
F
7

Assembly Instructions
11
Step 14

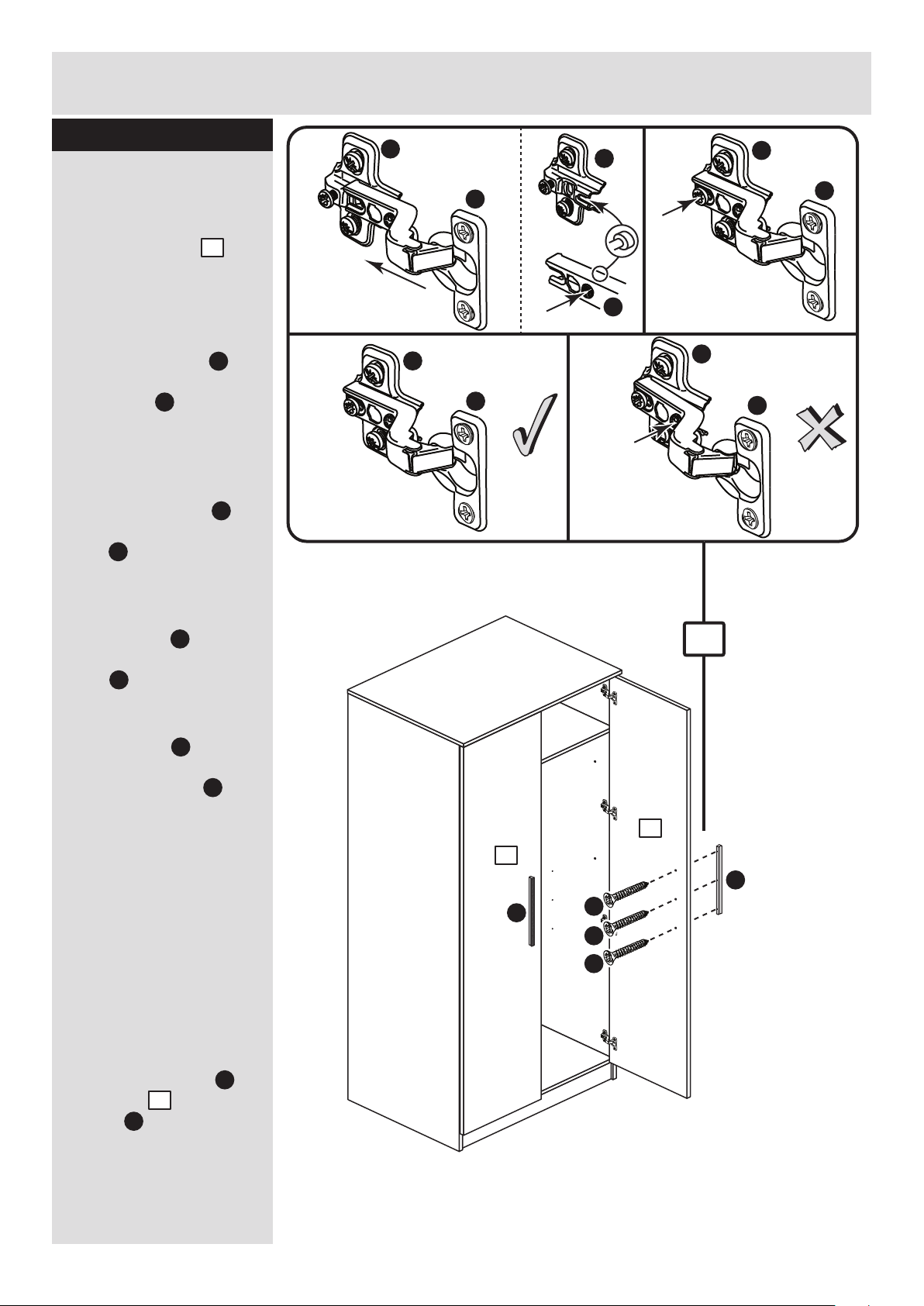

Fit doors and handles
Note: The easiest way to
attach each door is
to fit the top hinge first,
then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each door using 3
screws .
K
K
K
J
J
J
K
J
I
E
7
7
a: b:
c: d:
J
K
J
J
B
J
K
K
K
A
K
J
B
e:
E
I
E
E
7
7
I

Assembly Instructions
12
Step 15
b:
c:
d:
a:
Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C

Assembly Instructions
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
13
Step 16
Fit the overbalance
protector
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by fitting of the
overbalance protector kit
. to the unit, or an
alternative fixing method
of your choice.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Assembly is complete
L
L
WALL
Wall fixing
(not supplied)
Screw
(not supplied)
Washer
Strap
L
Strap
Washer
Screw
TOP OF UNIT
L

ALR3194

MADE IN
BRITAIN
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Important - Please read these instructions fully before starting assembly
Dimensions
Width - 38.1cm
Depth - 39.6cm
Height - 57.1cm
Sparkle - 3 Drawer Bedside
Assembly Instructions - Please keep for future reference
Issue 2 - 02/10/15
ALR3197
411/3436
418/1035
428/7094
Issue 2 - 02/10/15 - Updated the Panels page to include the latest note about the protective film

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 14kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

Components - Panels
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Please check you have all the panels listed below When applicable, remove any
protective film before use
2
12
3
80%
5 6
Left Side (DF3853)
(55.6 x 37.2cm)
Rail (DF3807)
(34.7 x 6cm) x 2
Right Side (DF3854)
(55.6 x 37.2cm)
Top (DF3806)
(38.1 x 39.6cm)
Drawer Front (DF3808)
(36.7 x 16.2cm) x 3
Drawer Back (W314-124)
(31.4 x 12.4cm) x 3
Drawer Base (T325-367)
(32.5 x 36.7cm) x 3
Back (X531-373)
(53.1 x 37.3cm)
Left Drawer Side (W370-124LH)
(37 x 12.4cm) x 3
Right Drawer Side (W370-124RH)
(37 x 12.4cm) x 3
7
4
8
9 10

Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Components - Fittings
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Tools required
3
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
A B
D E F
G H I
L
Small locking
nut (F3) x 6
C
Nail (F51) x 14
M
J
9mm Screw (F74) x 6
K
9mm Screw (F73) x 12
Drawer runner (F1004) x 6
Knock-in Peg (F171GY) x 12
Large locking
nut (F900) x 8
Metal dowel (F901) x 14
Wooden dowel (F22) x 8
Wedgefix (F639) x 6
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Handle (F437) x 3
25mm Screw (F50) x 6
Plastic Nail (F91) x 4
