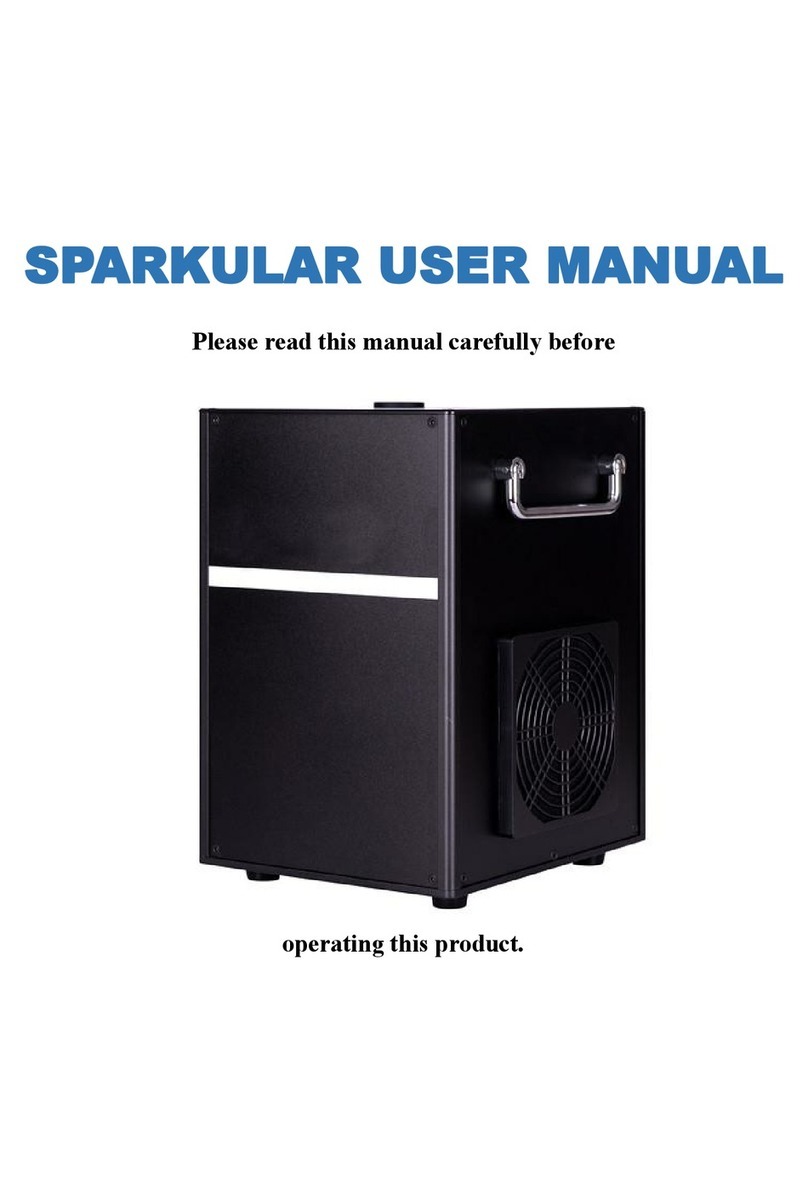

Sparkular BT01 User manual

SYDNEY FIREWORKS AND PYROTECHNICS PTY LTD.
User Manual
June 31, 2016

•Sparkular(BT01/BT02)
Description of Products
BT01/BT02 is a revolutionary special effect system. It uses a newly designed delivery control system for
a fountain style special effect and uses DMX communication and is compatible with other control
equipment.
Sparkular Part No.: BT01/BT02
Parameters:
Dimension: 200×215×285mm
Weight: 8kg
Input: 220Vac(BT01) or 110Vac(BT02), 50/60Hz
Work Power: 400w
Work Temp. : -20℃~ 50 ℃
Casing: ABS+PC
Fireworks Height: 1.0m ~ 5.0m
Fireworks angle to ground: 45°~90°
Lifetime: > 5 years
Interface type：double DMX input interfaces, double AC power interfaces
•Instructions
The Sparkular system has two main components. The Sparkular head BT02 and the Host Control
Console ZK6200. The BT02 has all safety features built into the smart feedback protocol that is
readable on the Sparkular machine as well as the Host control console.*Please note that if the
K6200 or the Pro controller is not used and another DMX console is used the read out function
for the console will not be able to be used.
The following descriptions will help to learn the operation and function of the working of both
the Sparkular head and the host controller.
•Brief introduction of the functions
•The Controlling Signal of International Standard: DMX 512
•Fixture uses Two Channels (Channel 1 controls effect & height 2 controls the Pre-Heat and Safety
feature).
•Adjustable Effect Height.
•Continuous feedback Protection for Overheating, redundant safeties for heat protection.
•Due to the onboard data transmission and logic integration of the operating system the Host
Controller supplies a continuous readout while the system is on.

DMX512 Signal Link:
Using DMX512 signal controlling mode and the controlling signals among each equipment are connected
in parallel, so it’s better to use shielded twisted paired cables when connecting many equipment together.
Each equipment is connected together through the DMX signal sockets (XLR connector) Input and
output, and the three pin XLRXL plug terminals connecting the equipment must be corresponding to each
other. When connecting to the device signals, it’s suggested to terminate the DMX signal so as to avoid
decaying the signal strength caused by the signal reflection. DMX signal terminator is a resistance of 102
ohms/1w connecting the number two and three pins on the XLR plug, the resistance is connected to the
output socket of the last device.
The definition of Three Pin XLRXL Plug: 1 Signal Ground line; 2 Signal-; 3 Signal+
Note:
•After the equipment starts up, it first needs to warm up. When the READY sign lights up, it indicates that
the equipment is ready. You can operate the effect machine.
•No foreign material (flammable) is allowed to cover the surface of the equipment, so as not to affect its
cooling or impede the operation of the fountain. Do not place anything on sides or top that would impede
cooling.
Operation Panel:
a. LCD information display area, showing action menu and operating status of the equipment.
b. LED Displaying Area：

READY: Flashing shows that the system is preparing, Solid Light shows that the system can
operate.
DMX: Flashing shows that the DMX signal is connected, no display shows that there is none
connected.
FAULT: Sign will light up when any error is detected.
HEAT : Sign will light up when the system is heating.
a. Control Button Area：
MENU: entering into the menu select
DOWN: parameter reduction
UP: parameter increase
ENTER: confirm and save all parameters
a. Interface and Plugging Area：
POWER IN: 110VAC Power Voltage Input
POWER OUT: 110VAC Power Voltage Switching Output
DMX IN: DMX Communication Signal Input
DMX OUT: DMX Communication Signal Switching Output
a. Radio Frequency Identification Area：
The Product Identification card/emblem attached to the spark granules determines the parameter
and type of the product that is identified through swiping the card.
Please note that the card enables the unit for 15-25 minutes of operation (which is the amount of
time each batch will last). The card supplied only works once and is unusable after it has been
swiped.
Interface
•Main Interface：
•Displays DMX Address.
•Displays the present temperature of the inner core.
•Displays the error information when it happens.
Error Information
Illustration
E0 System IC
Systematic error
E1 Moto Protect
Over current protection of the motor
E2 Temp. Sensor
Temperature sensor is not connected
E3 P Temp. Over
The equipment stops due to the over-temperature of the chassis
E4 Time Remain
The Sparkular Grain materials are about to run out

E5 KTemp. Over
The equipment stops due to over-temperature of the mechanism
The Interface of Setting：
Press MENU, you can enter into the interface of setting, and press MENU, you can enter into
different options until return to the main interface.
Option
Scope
Illustration
Set DMX Address
1-512
Set DMX Address
Fountain Height
1-10
Manually adjust the height of Sparkular
•Advanced Interface：
Press MENU for 3 seconds, you can enter into the Advanced Interface. Press MENU, you can enter
into different options, and press MENU for 3 seconds, you can return to the main interface.
Option
Scope
Illustration
LCD Backlight
On/Off
LCD Backlight Open/Off
Fountain Height 1
2-100
Adjust 1 notch consumption of consumable materials *
Fountain Height 2
2-100
Adjust 2 notch consumption of consumable materials*
Fountain Height 3
2-100
Adjust 3 notch consumption of consumable materials*
Fountain Height 4
2-100
Adjust 4 notch consumption of consumable materials*
Fountain Height 5
2-100
Adjust 5 notch consumption of consumable materials*
Fountain Height 6
2-100
Adjust 6 notch consumption of consumable materials *
Fountain Height 7
2-100
Adjust 7 notch consumption of consumable materials*
Fountain Height 8
2-100
Adjust 8 notch consumption of consumable materials*
Fountain Height 9
2-100
Adjust 9 notch consumption of consumable materials*
Fountain Height 10
2-100
Adjust 10 notch consumption of consumable materials*
Mode Selection
Factory Mode/
User Mode
Used for the factory to test the equipment
Default Parameter
The parameters of the equipment can be restored to the
factory settings through pressing Enter
•Each notch can have a density of the Grains that will be feed on that notch 10-100*

DMX Channel Mode
The system occupies only two channels.
Channel Value
Function
0-9
Fountain Off
10-19
Fountain Height 1
20-29
Fountain Height 2
30-39
Fountain Height 4
40-49
Fountain Height 5
50-59
Fountain Height 6
60-69
Fountain Height 7
70-79
Fountain Height 8
80-89
Fountain Height 9
90-99
Fountain Height 9
100-150
Fountain Height 10
Second Channel
Function
220-235
Clear Material
230-235
EMERGENCY STOP
240-245
Pre-heat Off
250-255
Pre-heat On
Host Controller (ZK6200)
•Description of Hardware
•ZK6200 Host Controller is an intelligent system specially designed for the multi-effects and
remote control of Sparkular machine, so as to create the simulation and demonstration of
Pyrotechnic Gerb effects. Diversified port configuration is suitable for control of technical
performances. The audio trigger and timing code trigger can be used to control the
synchronous function of music. LAN ports can be used to extend the communication among
multi host controllers.

Host Controller Part No.: ZK6200
Parameters:
Dimension: 390×300×110mm
Weight: 3.3kg
Input: 110-240Vac, 50/60Hz
Work power: 5w
Work Temp. : -20℃~ 70 ℃
Ports: Two CAN communication ports, USB port, 2 media ports(trigger by
music), 2 MIDI ports(trigger by music), 2 DMX512 output ports, Ethernet
Support max.1000m communication cable
3400mAH battery
Lifetime: > 5 years
•Host Controller Introduction
a) International standard DMX512 signal output
b) Support 18 units sparkular at the same time (standard –18 UNITS Pro Controller - 54 units).
c) Five kinds of standard dynamic modes: Synchronization, Center to Ends, Ends to Center, Left
to right，Right To Left, Special Effects and one kind of user-defined special effect mode,
supports 8 files and each file supports 36000 lines at maximum (special effects last for 30
minutes)
d) There are multiple optional trigger sources. Hand, Music or Midi Inputs.
e) Support simulation function and LED display.
f) Monitoring function. System can pass back operation shows on screen status of sparkular
(temperature, alarm, messages and so on).
g) Emergency stop function.
