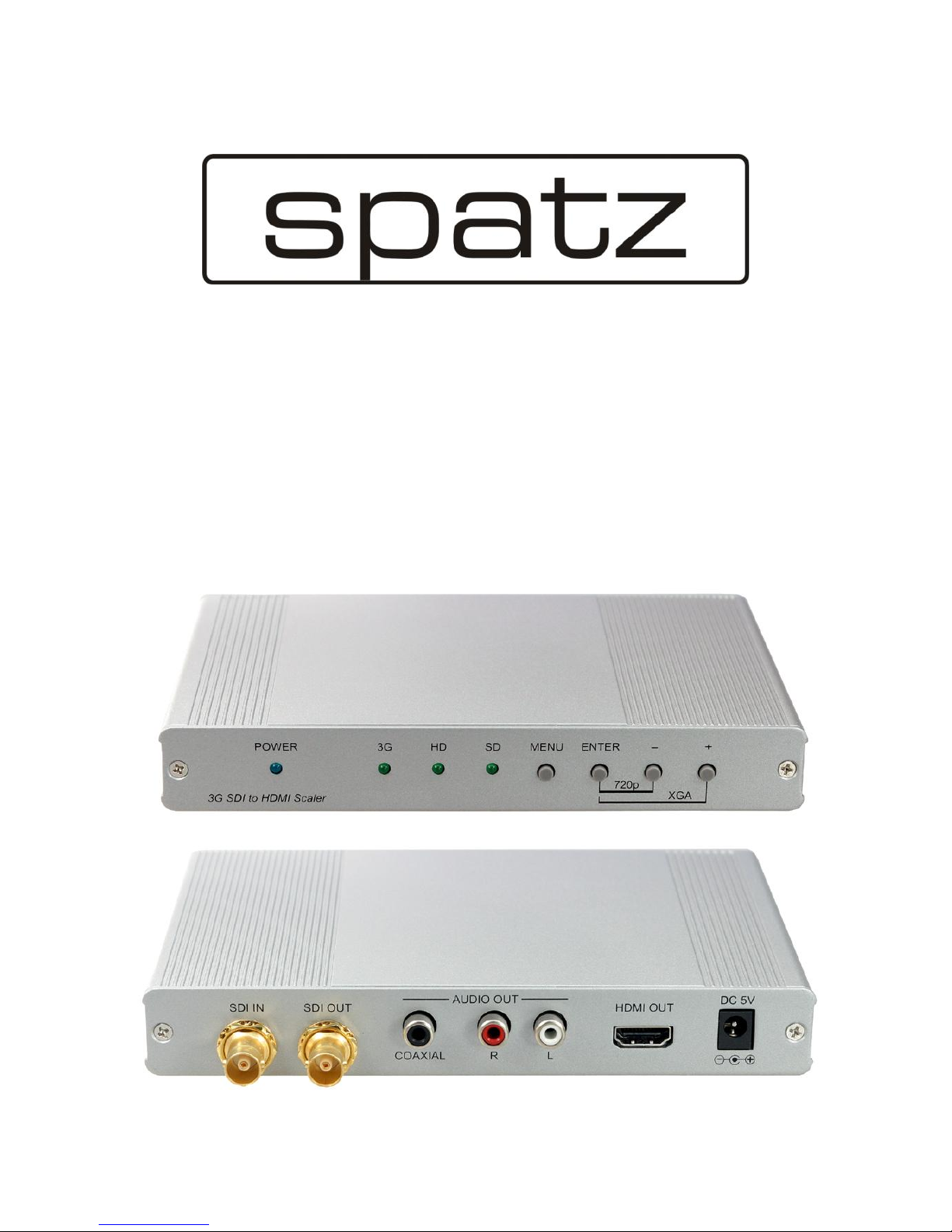

Spatz SDISCALE User manual

SDISCALE
3G-SDI SDI to HDMI Scaler
Operation Manual

Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. SPATZ assumes no responsibility for any
infringements of patents or other rights of third parties which may
result from its use.
SPATZ assumes no responsibility for any inaccuracies that may be
contained in this document. SPATZ also makes
no commitment to update or to keep current the information
contained in this document.
SPATZ reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer file, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
SPATZ.
© Copyright 2011 by SPATZ. All Rights Reserved. Version 1.0
APRIL 2011
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
fire, electrical shock and injury to persons.
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide ventilation.
Revision History
Version No Date Summary of Change
VR0 20110325 Preliminary Release

Table of Contents
1. Introduction.................................................................................. 1
2. Applications................................................................................. 1
3. Package Contents ...................................................................... 1
4. System Requirements.................................................................. 1
5. Features........................................................................................1
6. Specifications .............................................................................. 2
7. Operation Controls and Functions............................................. 3
7.1 Front Panel.................................................................... 3
7.2 Rear Panel .................................................................... 3
8. OSD Menu and Function List....................................................... 4
9. Connection and Installation ...................................................... 8

1
1. Introduction
The SDI to HDMI Scaler with Audio allows SD, HD and 3G-SDI signals to be
display on HDMI/SDI displays while ensuring high bit rates of 2.970 Gbit/s gives
you fast signal transmission without signal loss. For professional this means that it
is now easier to distribute and extend your SDI signal while giving you the ability
to display your work on HDMI displays. Further, the design of coaxial and L/R
audio output allows user to output audio with both digital and analog format
and the loop-through 3G-SDI design also benefit user to enjoy both SDI and
HDMI display synchronously.
2. Applications
•Broadcast video signal to HDMI/SDI display
•Broadcast video signal extension
•3G SDI signal conversion into HDMI signal
3. Package Contents
•SDI to HDMI Scaler with Audio
•5V/2.6A DC power adaptor
•Operation Manual
4. System Requirements
Input source equipment such as SNG camera or any SDI signal with connection
cables and output to LCD TV or SDI monitor with connection cables.
5. Features
•Operation at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and
270Mb/s
•Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M,
SMPTE 259M
•Equalized and re-clocked loop output
•Alternative audio output to coaxial and analog 2CH
•Integrated audio de-embedded for max 8 channels of 48kHz audio
•Auto video mode detection (3G/SD/HD)
•Conversion from SMPTE 425M level B to Level A for 1080p 50/59.94/60 4:2:2
10-bit
•SDI loop-through for long distance
•Convert SDI HD timing to PC timing

2
6. Specifications
SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C
SDI Transmition Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s
Frequency Bandwidth 165MHz/link
Input Port 1 x BNC (SD/HD/3G-SDI)
Output Port 1 x BNC (SD/HD/3G-SDI),
1 x HDMI, 1 x Coaxial, 1 x L/R (RCA)
SDI Supports SD: 480i, 576i
HD: 720p 50/60, 1080i 50/60, 1080p 24/25/30
3G: 1080p 50/60
Power Supply 5V DC/ 2.6A (US/EU standards, CE/FCC/UL certi fi ed)
ESD Protection Human body model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
SDI Cable Distance 3G up to 100M (BELDEN 1694A)
HD up to 200M (BELDEN 1694A)
SD up to 300M (BELDEN 1694A)
Dimension (mm) 180(W) x 142(D) x 25(H)
Weight (g) 460
Chassis Material Aluminum
Silkscreen Color Gray
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
elative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (W) 4

3
7. Operation Controls and Functions

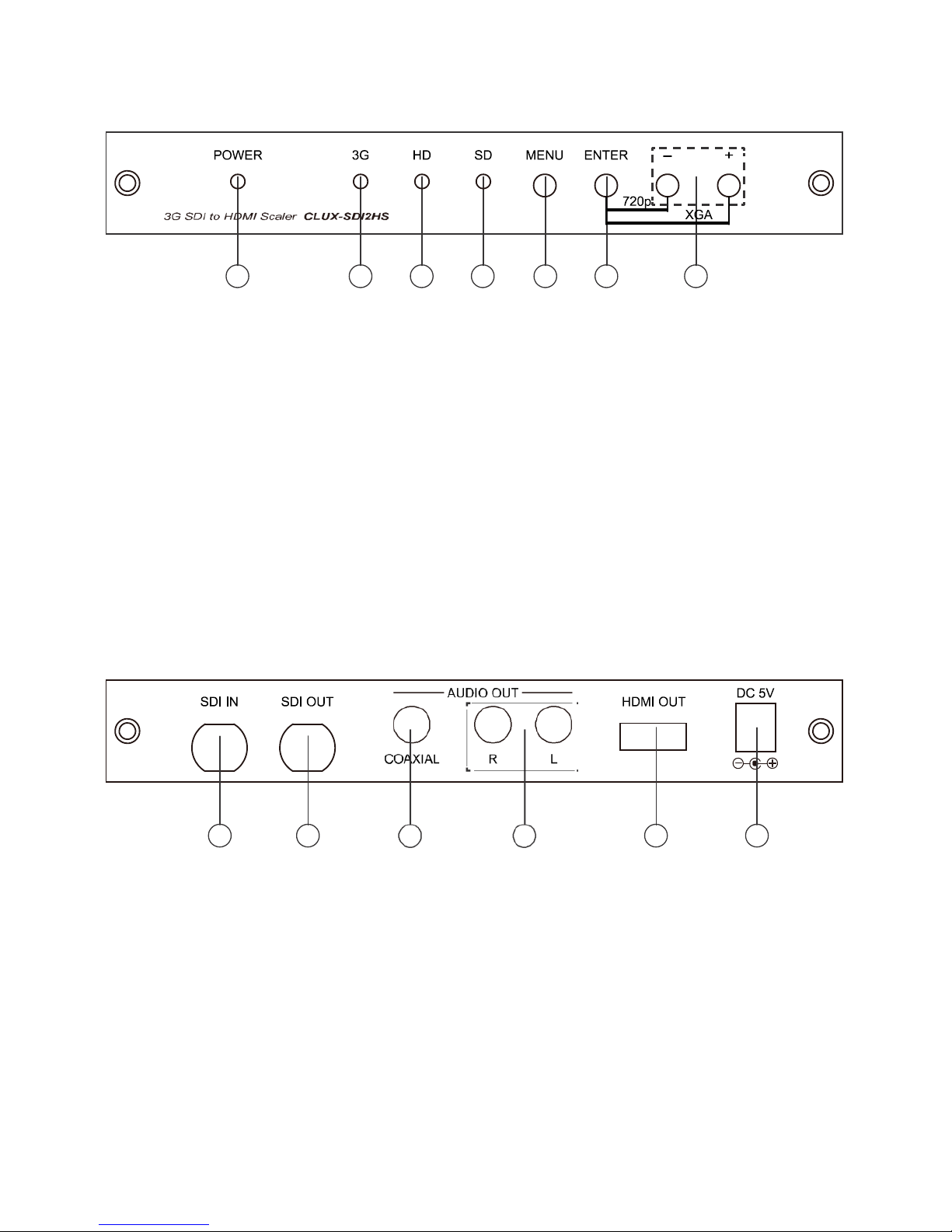

7.1 Front Panel
1 2 3 4 5 6 7
1 . Power LED: This blue LED will illuminate when the device is connected with power
supply.
2. 3G LED: This green LED illuminate when the input SDI signal is with 3G
format.
3. HD LED: This green LED illuminate when the input SDI signal is with HD
format.
4. SD LED: This green LED illuminate when the input SDI signal is with SD
format.
5. MENU: Press this button to enter/exit the OSD menu.
6. ENTER: Press this button to confirm your selection. Press both ENTER and
–buttons together to switch output timing to 720p instantly and press with
+ buttons together to switch output timing to XGA.
7. -/+: Press these buttons to move up or down the OSD selections.
7.2 Rear Panel
1 2 3 4 5 6
1 . SDI IN: This slot is where you connect the SDI source output for SDI signal sending to
be display on screen.
2. SDI OUT: This slot is where you connect the SDI display with SDI cable for input
source display.
3. AUDIO OUT COAXIAL: This slot is where you connect the amplifier with coaxial
cable and from amplifier to speaker
4. AUDIO OUT R/L: These slots are where you connect the speaker or amplifier
with RCA jack for audio signal display.
5. HDMI Out: This slot is where you connect the HDMI / DVI display with HDMI
or HDMI to DVI cable.
6. DC 5V: Plug the 5V DC power supply into the unit and connect the
adaptor to AC wall outlet. Blue LED will illuminate when the power is ON.

4
8. OSD Menu and Function List
1st Layer
2nd Layer
3rd Layer
Display
Output
NATIVE
800 x 600 @60
1024 x 768 @60
1280 x 768 @60
1360 x 768 @60
1280 x 800 @60
1280 x 1024 @60
1440 x 900 @60
1400 x 1050 @60
1680 x 1050 @60
1600 x 1200 @60
1920 x 1200 @60
720 x 480p @60
1280 x 720p @60
1920 x 1080p @60
720 x 576p @50
1280 x 720p @50
1920 x 1080p @50
1920 x 1080i @60
1920 x 1080i @50
Size
Full
Over Scan
under 1
Under 2
Letter Box
Pan Scan
Exit

5
Color
Contrast
0~255 (105)
Brrightness
0~192 (96)
R
0~255 (128)
G
0~255 (128)
B
0~255 (128)
R Offset
0~63 (32)
G Offset
0~63 (32)
B Offset
0~63 (32)
Exit
SDI Audio
Group 1
Group 2
Group 3
Group 4
Auto
Off
Factory Reset
Yes
Information
Input Timing, Output Timing & Version

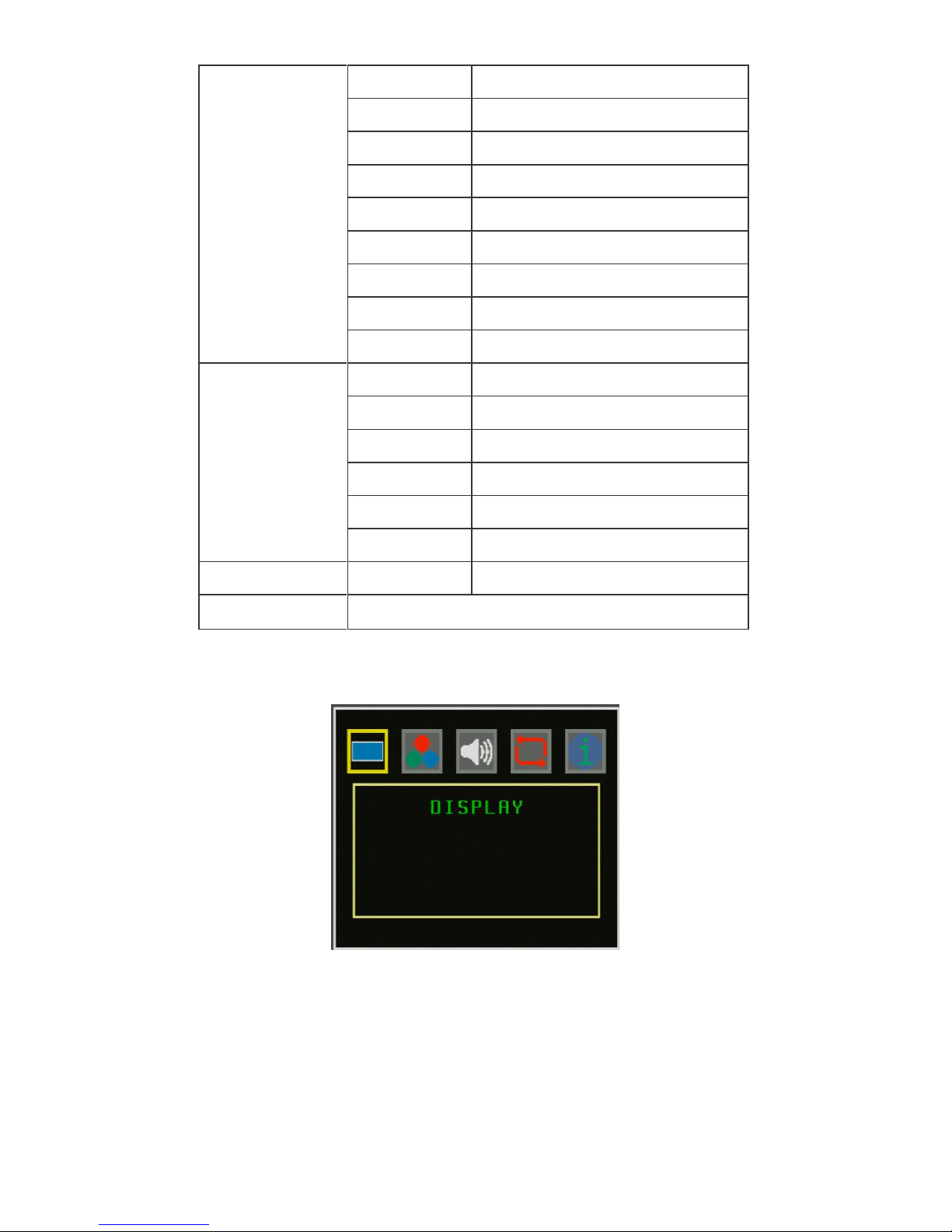

1. Display
Output Timings: There are total 20 timings available for user’s selec-
tion.
Size: Adjust the display’s screen size from full, over scan, under scan,
letter box or Pan scan to fit the different timing’s display and make
the viewing become more pleasure.

6

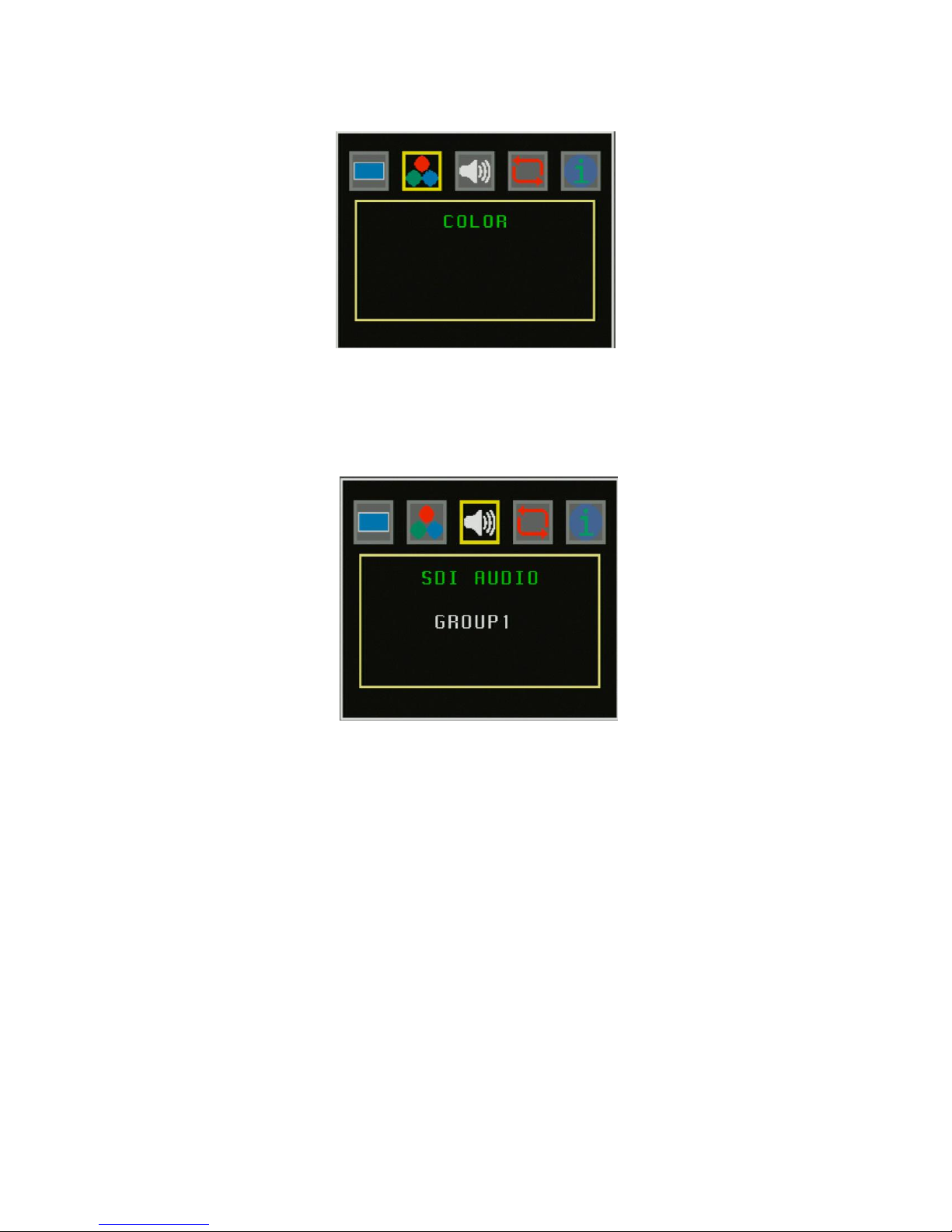

2. Color
Adjust screen color RGB’s Contrast and or Brightness.
3. SDI Audio
Select SDI audio output from 4 different group and each group contents
2CH or from auto which contain up to 7.1Ch follow by input source signal.
If no audio output is require the audio can also be mute by selecting off.

7

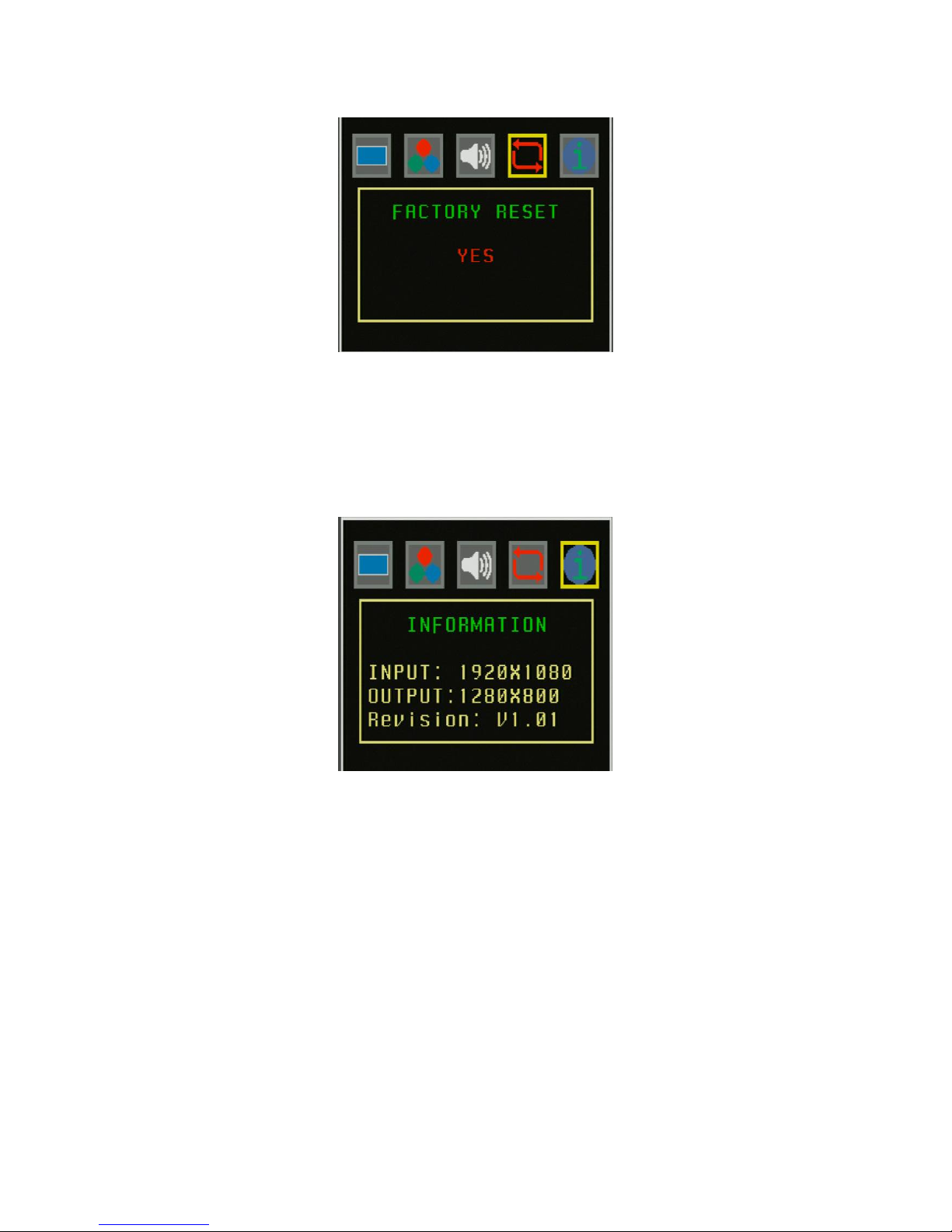

4. Factory Reset
Select YES to return to the factory setting. Factory setting on display is at
1280 x 720p @60Hz with full size screen, Color setting are as the bracket in
the OSD chart and SDI audio is on auto.
5. Information
Displaying both input source and output display timing with software firm -
ware version.

8
9. Connection and Installation
SNG
SDI Monitor AMP
or
LCD TV or Monitor
