Spear & Jackson EP600 User manual
INSTRUCTION
MANUAL
Important
- Please read these instructions thoroughly before operating or maintaining your electric Grip Saw.
GRIP SAW
600W
EP600
These instructions contain important information that will help you get the best from
your electric Grip Saw, protecting your power tool investment.
AFTERSALES SERVICE
01904 727505
MON-FRI 9am-5pm SAT/SUN 11am-4pm
www.spearandjackson-power.com
2 3
AFTER SALES SUPPORT 01904 727505 www.spearandjackson-power.com
www.spearandjackson-power.com AFTER SALES SUPPORT 01904 727505
CONTENTSTHANK YOU!
Safety Information 04
Description of symbols 04
General safety 05
Personal safety 05
Electrical safety 06
Operational safety 06
Maintenance 08
Intended use 08
Box Content / Parts 09
Assembly 10
Preparation 11
Operation 14
Starting and stopping 14
Operating the grip saw 14
Cutting tips 15
Maintenance 17
Cleaning 17

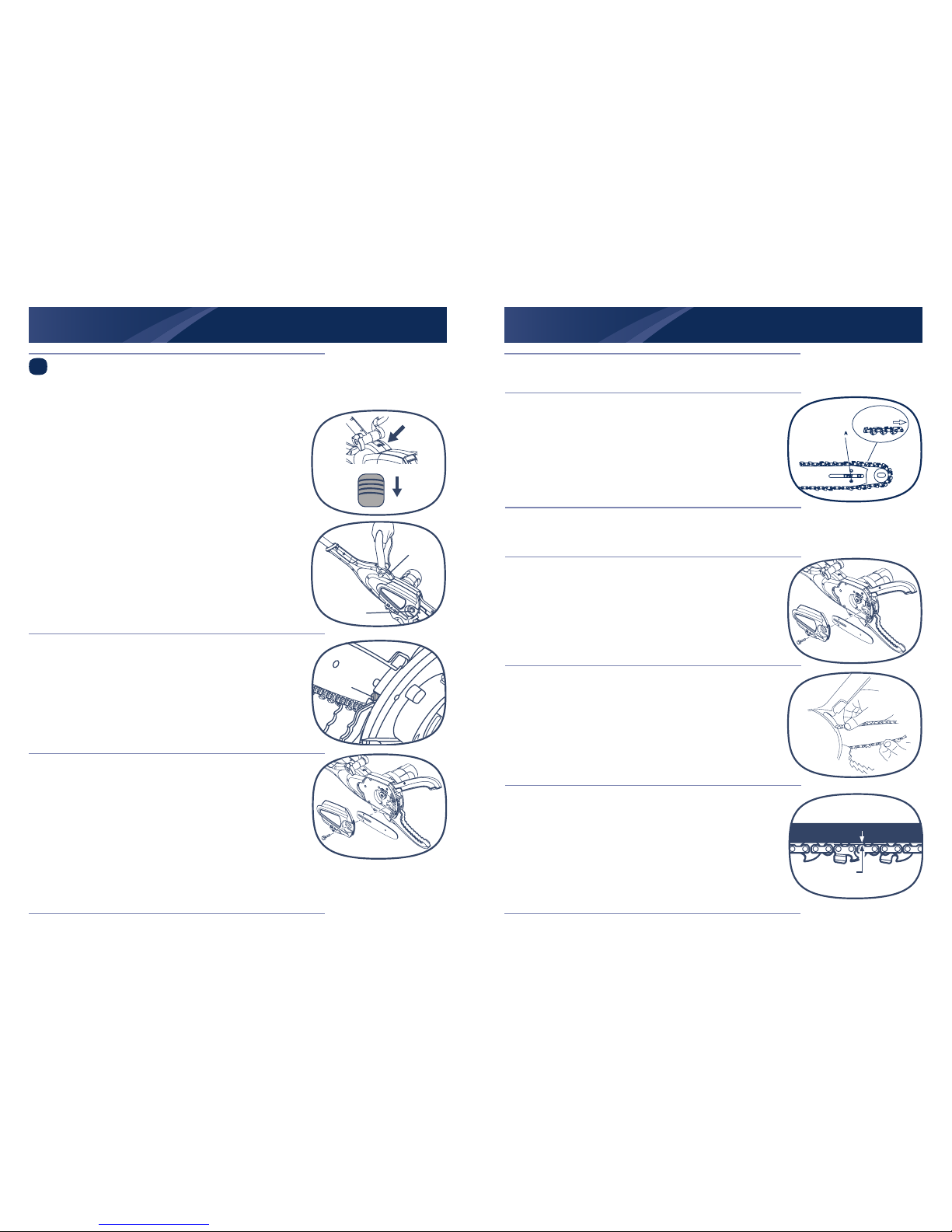

Replace the chain 18
Cleaning the guide bar and lubricating the sprocket nose 20
Check the chain bar 20
Storing 21
Transport 21
UK plug 22
Disposal 22
Technical Data 23
Troubleshooting 24
Guarantee 26
Dear Customer,
Thank you for choosing a Spear and Jackson electric grip saw. Spear and
Jackson was founded in 1760 in the city of Sheffield, which is world famous for
the production of steel, cutlery and garden and hand tools.
Through continuous innovation and the use of new technologies and materials,
Spear and Jackson has gained an enviable reputation as a supplier of reliable,
high performance and high quality products designed to make your work in the
garden as easy and enjoyable as possible.
We are so condent in the quality of our products we provide a free 3 year guarantee
on our registered garden power tools. Simply register your product within 28
days of purchase via www.spearandjackson-power.com to extend the standard
manufacturer’s warranty with an additional 12 months. After registering your product,
your garden power tool will be covered for parts and labour for 3 years from the date
of purchase, subject to the terms of the guarantee. If you do not wish to register
your product within 28 days, your product is guaranteed for 2 years after date of
purchase. For warranty purposes, always keep your proof of purchase safe.
We want you to get the best out of your products. Our easy-to-read instruction
manual guides you with best practice use and maintenance tips. You can also visit
www.spearandjackson-power.com for online help, general tips and useful videos
about your garden product. However if you prefer to speak to one of technicians
please call 01904 727505, Mon-Fri 9am-5pm and Sat-Sun 11am-4pm, we can
solve the majority of questions directly over the phone.
We hope you enjoy your product and look forward to your feedback.
FREE 3 YEAR GUARANTEE
7 DAYS A WEEK TECHNICAL SUPPORT
AFTER SALES SUPPORT 01904 727505 www.spearandjackson-power.com
www.spearandjackson-power.com AFTER SALES SUPPORT 01904 727505
Please read these instructions thoroughly before operating or maintaining your machine
54
SAFETY INFORMATION
The following warning symbols appear throughout
this manual and indicate the appropriate
safety measures you should take when operating and maintaining the electric pruner.
Remove the plug from the main
immediately if cable is damaged
or cut.
Hold the chain saw with both
hands.
Guaranteed sound power level
The product complies with the
applicable European directives and
an evaluation method of conformity
for these directives was done.
Length of the chain bar
Double insulation
Recycle unwanted materials
instead of disposing of the mas
waste. All tools, hoses and
packaging should be sorted, taken
to the local recycling centre and
disposed of in an environmentally
safe way.
WARNING!
This is a warning symbol. This
symbol is used throughout the
user guide whenever there is a
risk of personal injury. Ensure
that these warnings are read and
understood at all times.
To reduce the risk of injury,
user must read and understand
operator’s manual before using this
product.
Wear hearing protection
Wear eye protection
Wear protective gloves
Wear non-slip safety footwear
when using this equipment.
Do not expose and operate the
tool in rain.
DESCRIPTION OF SYMBOLS
SAFETY INFORMATION
100
Please read these instructions thoroughly before operating or maintaining your machine
IMPORTANT!
Read these instructions carefully. Be familiar
with the controls and the proper use of
the equipment. Always ensure anyone
intending to operate this electric grip saw
is fully conversant with the content of this
assembly manual prior to assembling,
maintaining or operating the grip saw.
Keep this operating and maintenance
manual in a safe place for future reference.
Never allow children or people unfamiliar
with these instructions to use the electric
grip saw. Local regulations can restrict the
age of the operator.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Do not touch the saw chain.
WARNING!
Use the appropriate tool. Do not force small
tools or attachments to do the job of a
heavy duty tool.
Use personal protective equipment (PPE).
Always wear eye protection and ear
protection. Protective equipment such
as dust mask, grip saw trousers, non-
skid safety shoes, hard hat, or hearing
protection used for appropriate conditions
will reduce personal injuries.
Dress appropriately and keep long hair out
of the way.
Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A momentary
lapse of concentration while operating
power tools may result in serious personal
injury.
Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Never carry power tools with your finger on
the switch.
Keep all parts of the body away from the
cutting saw chain. Make sure the product
is unplugged for the power source when
clearing jammed material. A momentary
lapse of concentration while operating the
grip saw may result in serious personal
injury.
Do not overreach and do not cut over
shoulder height. Keep proper footing and
balance at all times. This enables better
control of the power tool in unexpected
situations.
GENERAL SAFETY
PERSONAL SAFETY
200mm
AFTER SALES SUPPORT 01904 727505 www.spearandjackson-power.com www.spearandjackson-power.com AFTER SALES SUPPORT 01904 727505
76
SAFETY INFORMATION SAFETY INFORMATION
Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce the risk of
an electric shock.
Avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your
body is earthed or grounded.
Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged
or entangled cords increase the risk of
electric shock.
When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use
reduces the risk of an electric shock.
If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD with a tripping current
of 30mA or less) protected supply. Use
of an RCD reduces the risk of an electric
shock.
Keep work areas clean. DO NOT start
cutting until you have a clear work area,
secure footing, and a planned retreat path
from falling trees or branches. Cluttered or
dark areas invite accidents.
Consider work area environment. Do not
expose your tool to high humidity or rain.
Do not use your tool in damp and wet
conditions. Keep the work area well lit.
Keep all bystanders, children, and pets at
least 50 feet away. The operator or user
is responsible for accidents or hazards
occurring to other people or the property.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the
dust or fumes.
Be certain the parts are fully tightened
before operating the tool. Check it
periodically for tightness during use to
avoid serious injury.
Risk of cut. Do not touch or try to stop the
cutting saw chain when it is moving.
Disconnect the plug from the mains when
not in use or when servicing or cleaning.
Check for damaged parts. Before further
use, carefully check the tool for damage.
Check for alignment of moving parts,
binding of moving parts, breakage of parts,
mounting and any other condition that may
affect its operation.
Do not use the tool if any parts are
damaged or defective. Have any damaged
or defective parts repaired or replaced by
an authorized service agent. Never attempt
any repairs yourself.
ELECTRICAL SAFETY OPERATIONAL SAFETY
Grip the tool securely. Always hold the tool
securely in both hands while working.
Keep the handle dry, clean and free from
oil and grease. Slippery handles do not
allow for safe handling and control of the
tool in unexpected situations.
Keep the cable away from the cutting area.
During operation, the cable may be hidden
in shrubs and can be accidentally cut by
the saw chain.
Do not overload the tool. Only work in the
performance range stated. Do not use
tools that do not have sufficient power
for heavy jobs. Do not use the tool for
any use other than that intended by the
manufacturer.
Do not operate a grip saw while climbing in
a tree. Operation of a grip saw while up in
a tree may result in personal injury.
Always keep proper footing and operate
the grip saw only when standing on a
fixed, secure and level surface. Slippery
or unstable surfaces such as ladders may
cause a loss of balance or control of the
grip saw.
When cutting a limb that is under tension,
be alert for spring back. When the tension
in the wood fibers is released, the spring
loaded limb may strike the operator and/or
throw the grip saw out of control.
Use extreme caution when cutting brush
and saplings. The slender material may
catch the saw chain and be whipped
towards you or pull you off balance.
Follow instructions for lubricating, chain
tensioning and changing accessories.
Incorrectly tensioned or lubricated chain
may either break or increase the chance
for kickback.
Cut wood only. Do not use grip saw for
purposes not intended. For example; do
not use the grip saw for cutting plastic,
masonry or non-wood building materials.
Use of the grip saw for operations different
than intended could result in a hazardous
situation.
Maintain a firm grip with thumbs and
fingers surrounding the grip saw handles.
Do not let go of the grip saw.
Kickback may occur when the nose or
tip of the guide bar touches an object or
when the wood closes in and pinches
the saw chain in the cut. Tip contact, in
some cases, may cause a sudden reverse
reaction, kicking the guide bar rapidly back
to towards the operator.
Either of these reactions may cause you
to lose control of the saw which could
result in serious personal injury. Do not
rely exclusively upon the safety devices
built into your saw. As a grip saw user, you
should take several steps to keep your
cutting jobs free from accident or injury.
Carry the grip saw by the front handle with
the grip saw switched off and away from
your body. When transporting or storing
the grip saw, with the jaws closed.
Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from the power
source before making any adjustments,
changing accessories, or storing power
Please read these instructions thoroughly before operating or maintaining your machine Please read these instructions thoroughly before operating or maintaining your machine
8 9
AFTER SALES SUPPORT 01904 727505 www.spearandjackson-power.com www.spearandjackson-power.com AFTER SALES SUPPORT 01904 727505
BOX CONTENT
Rear handle
Cord retainer
Front handle
Upper jaw
Lower jaw
Lower jaw lock button
Lock-out button
Switch trigger
Oil cap
Oil indicator
Saw blade
Cable
Wrench+ screwdriver
Front handle knob
Front handle bolt
1 9
2 10
3 11
4 12
5 13
6 14
7
PARTS
If there are any parts missing, please call the customer helpline on 01904 727505
tools. Such preventive safety measures
reduce the risk of starting the power tool
accidentally.
Cut the wood in correct direction.
The first-time user should, as a minimum,
practice cutting logs on a saw-horse or
cradle.
Before using the grip saw, be sure to check
the chain and bar tension. Do not use the
grip saw if the chain and bar are loose. Also
confirm that no abnormalities are present
by first test running the tool.
Maintain tools with care. Keep tools clean
and in good condition for better and safer
performance. Follow the instructions for
maintenance and changing accessories.
Keep handles and switches dry, clean and
free from oil and grease.
Be careful in handling the tool. Keep the
blades sharp and clean to improve its
working safety and effectiveness. Follow
the manufacturer’s sharpening and
maintenance instructions for the saw chain.
Decreasing the depth gauge height can
lead to increased kickback.
Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
Only use replacement bars and chains
specified by the manufacturer. Use only
suitable bar (080SDEA041) and chain
(91P033X).
Have your tool repaired by an authorized
service agent. This tool is manufactured
in accordance with the relevant safety
regulations. To avoid danger, electrical
appliances must only be repaired by
qualified technicians.
The product is designed for domestic
purpose sawing in residential gardens
only. The saw is not designed for any
other types of application (e.g. cutting of
brickwork, plastic or food). Observe the
technical data for the maximum cutting
capacity. Do not work exceeding the stated
maximum capacity.
Attachments must be used according to
the respective functions and in accordance
with this instruction manual.
The grip saw is designed exclusively for
sawing wood. You may only fell trees if
you have received the appropriate training.
The manufacturer cannot be held liable for
damage caused by improper or incorrect
usage.
Please note that our equipment has not
been designed for use in commercial, trade
or industrial applications. The warranty
will be void if the machine is used in
commercial, trade or industrial businesses
or for the equivalent purposes.
MAINTENANCE
INTENDED USE
SAFETY INFORMATION
PLEASE NOTE: THIS PRODUCTS REQUIRES CHAIN LUBRICATION OIL,
AVAILABLE IN MOST DIY STORES.
Please read these instructions thoroughly before operating or maintaining your machine
8
15
11
2
3
4
5
67
8
9
10
11
13
12
15
14
Table of contents
