Speck BluVacCompact VI-55-BVC Series User manual

Types
Operating Manual
VI-55-…-BVC
VI-130-…-BVC
Applies for frequency converter FCP 106
Supplement to the original operating manual
1096.1451 (BluSystems Operating Panel, EN)
BluVacCompact Vacuum Units
English translation of the original
operating manual
It is imperative to read the operating
manual prior to commissioning!
This document as well as all documents
included in the appendix is not subject
to any update service!
Subject to technical changes.
Documentation
Speck Pumpen Vakuumtechnik
GmbH
Regensburger Ring 6 –8, 91154 Roth
PO Box 1453, 91142 Roth
Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.speck.de
EN
Issue:
11/2017
New issue
Doc./ Item No.:
1096.0233

Operating Manual
2 1096.0233 | BluVacCompact Vacuum Units 11/2017
Index
1Important basic information............................................3
1.1 Target groups .........................................................4
1.2 Applicable documents.............................................4
1.3 Warnings and symbols............................................4
1.4 Terminology............................................................5
2Safety................................................................................6
2.1 Intended use...........................................................6
2.2 Potential misuse .....................................................6
2.3 General safety instructions......................................6
2.3.1 Product safety.........................................................6
2.3.2 Obligations of the operator......................................6
2.3.3 Obligations of the staff ............................................7
2.4 Residual risks .........................................................7
2.5 Special risks............................................................7
2.5.1 Dangerous media to be pumped.............................7
3Design and functioning ...................................................8
3.1 Marking...................................................................8
3.1.1 Nameplate..............................................................8
3.1.2 Vacuum unit code...................................................8
3.1.3 Versions..................................................................8
3.2 General description.................................................8
3.2.1 Software versions ...................................................9
3.3 Design and functional principle ...............................9
3.3.1 BluVacCompact vacuum unit..................................9
3.3.2 Liquid ring vacuum pump........................................9
3.4 Shaft sealings.........................................................9
3.4.1 Shaft sealings.........................................................9
4Transport, storage and disposal...................................10
4.1 Transport..............................................................10
4.1.1 Unpacking and inspection on delivery...................10
4.1.2 Transport with lifting gear......................................10
4.2 Storage.................................................................10
4.3 Return to manufacturer.........................................10
4.4 Disposal................................................................10
5Set-up and connection...................................................11
5.1 Preparing set-up...................................................11
5.1.1 Checking ambient conditions ................................11
5.1.2 Minimum clearances for heat dissipation...............11
5.1.3 Preparing installation site......................................11
5.1.4 Set-up options.......................................................11
5.2 Planning pipe system............................................11
5.2.1 Dimensioning supports and connections...............11
5.2.2 Specifying nominal diameters ...............................11
5.2.3 Specifying pipe lengths.........................................11
5.2.4 Changes in cross-section and direction.................11
5.2.5 Safety and control devices....................................11
5.3 Connecting pipes..................................................12
5.3.1 Providing for clean piping......................................12
5.3.2 Installing suction pipe............................................12
5.3.3 Installing pressure pipe.........................................12
5.3.4 Installing operating liquid pipe...............................12
5.3.5 Stress-free pipe connection ..................................12
5.4 Electrical connection.............................................12
6Operation........................................................................14
6.1 Preparations for commissioning............................14
6.1.1 Identifying type......................................................14
6.1.2 Checking shut-down period...................................14
6.1.3 Filling....................................................................14
6.2 Commissioning.....................................................14
6.2.1 Switch-on..............................................................14
6.2.2 Switch-off..............................................................14
6.3 Setting fresh liquid flow rate ..................................15
6.3.1 Continuous-flow cooling (design with solenoid
valve)....................................................................15
6.3.2 Continuous-flow cooling (design with electro-
pneumatic valve)...................................................15
6.3.3 Continuous-flow cooling with process water (design
without valve)........................................................15
6.3.4 Open circulation cooling with control liquid supply
(design without valve)............................................15
6.4 Decommissioning..................................................15
6.5 Re-commissioning.................................................16
7Maintenance and servicing............................................17
7.1 Monitoring.............................................................17
7.2 Monitoring and cleaning sensors...........................17
7.2.1 Monitoring sensors................................................18
7.2.2 Cleaning sensors ..................................................18
7.3 Rinsing off contaminations ....................................18
7.3.1 Minor fine-grained contamination ..........................18
7.3.2 Cleaning separator................................................18
7.4 Prevention of corrosion and deposits.....................18
7.5 Disassembly..........................................................18
7.5.1 Return to manufacturer .........................................19
7.5.2 Spare parts ...........................................................19
7.5.3 Vacuum unit repairs ..............................................19
7.5.4 Disassembly of VI-55/130-BVC.............................19
7.6 Assembly ..............................................................19
7.6.1 Preparations for assembly.....................................19
7.6.2 Assembly of VI-55/130-BVC..................................20
8Troubleshooting.............................................................21
9Technical data ................................................................25
9.1 Operating limits.....................................................25
9.1.1 Switching frequency..............................................25
9.2 General technical data ..........................................25
9.2.1 Weight...................................................................25
9.2.2 Sound level...........................................................25
9.2.3 Drive power...........................................................25
9.2.4 Power output and power consumption of frequency
converter...............................................................25
9.2.5 Operating liquid.....................................................26
9.2.6 Medium to be pumped...........................................26
9.2.7 Operating connections ..........................................26
9.2.8 Mechanical seal ....................................................26
9.2.9 Ambient conditions................................................26
9.2.10 Min. clearances for heat dissipation.......................26
9.3 Tightening torques.................................................27
9.3.1 Sensor ..................................................................27
9.3.2 Screws and nuts....................................................27
9.3.3 Screws in cast-iron casings...................................27
9.3.4 Screw plugs ..........................................................27
9.3.5 Cylindrical pipe nipples..........................................27
9.3.6 Conical pipe fittings...............................................27
9.4 Test pressure for pressure test..............................27
9.5 Accessories...........................................................27
10 Appendix.........................................................................28
10.1 Dimensional drawing and connections...................28
10.2 Cross-sectional drawings ......................................29
10.3 Certificate of conformity.........................................30
10.4 EC declaration of conformity..................................31

Operating Manual
11/2017 1096.0233 | BluVacCompact Vacuum Units 3
1 Important basic information
This operating manual forms part of the technical documentation of the system in accordance with the EC machinery directive.
This operating manual complies with machinery directive 2006/42/EC of the European Parliament and the Council on the approximation
of the laws, regulations and administrative provisions of the Member States relating to machinery, Appendix I, Paragraph 1.7.4.
This operating manual is addressed to the person in charge of
the plant, who is obliged to provide it to the staff responsible for
system set-up, connection, operation and maintenance.
He must ensure that all information included in the operating
manual and the enclosed documents have been read and un-
derstood.
The operating manual must be kept at a designated and easily
accessible place and consulted at the slightest doubt.
The manufacturer does not accept liability for damage to per-
sons, animals, objects or the system itself incurred by improper
use, non-observance or incomplete observance of the safety
precautions included in this operating manual or by modifications
to the system or use of improper spare parts.
This operating manual is the exclusive copyright of
Speck Pumpen Vakuumtechnik GmbH
Regensburger Ring 6 –8, 91154 Roth / Germany
PO Box 1453, 91142 Roth / Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.speck.de
or its legal successor.
Duplication or transfer of this operating manual to third parties
requires written approval of the manufacturer. This also applies
to the duplication or transfer of excerpts of this operating manual
and to the transfer of this operating manual in digital form.
This manual
•forms part of the vacuum unit,
•applies to all series mentioned herein,
•describes safe and proper operation during all operational
phases,
•must be stowed safely throughout the entire service life of
the machine,
•must be handed over to future owners of the machine
Scope of supply
•BluVacCompact vacuum unit
•Operating manual
•BluSystems operating panel (optional)
Technical support address
Speck Pumpen Vakuumtechnik GmbH
Regensburger Ring 6 –8, 91154 Roth / Germany
PO Box 1453, 91142 Roth / Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.speck.de
Warranty and liability
Basically, the “General Conditions of Sale and Delivery” of
Speck Pumpen Vakuumtechnik GmbH apply.
They were provided to the operator at the time of contract con-
clusion at the latest.
Warranty and liability claims arising from personal injury and
material damage are excluded if one of the following conditions
applies:
•improper use of the vacuum unit
•improper mounting, commissioning, operation and mainte-
nance of the vacuum unit
•operation of the vacuum unit despite defective safety devic-
es
•non-observance of the notes in the operating manual
•unauthorized constructional changes to the vacuum unit
•inadequate maintenance, repair and servicing measures
•catastrophic events caused by foreign bodies or acts of
God

Operating Manual
4 1096.0233 | BluVacCompact Vacuum Units 11/2017
1.1 Target groups
Target group
Task
Operator
►Keep this manual available at the location of the system,
also for later consultation.
►Advise staff to read and observe this manual and the pro-
vided documents, particularly the safety precautions and
warnings.
►Observe additional provisions and regulations related to the
system.
Qualified staff, assembler
►Read, observe and adhere to this operating manual and all
applicable documents, particularly the safety precautions
and warnings.
Tab. 1 Target groups and their tasks
1.2 Applicable documents
Document
Purpose
Declaration of conformity
Conformity with standards
Tab. 2 Applicable documents
1.3 Warnings and symbols
Warning
Security level
Consequences of non-observance
DANGER
imminently hazardous situation
death, severe personal injuries
WARNING
potentially hazardous situation
death, severe personal injuries
CAUTION
potentially dangerous situation
minor personal injuries
CAUTION
potentially dangerous situation
material damage
Tab. 3 Warnings and consequences of non-observance
Symbol
Meaning
Safety sign
►Observe all measures marked with the safety sign
to avoid personal injuries or death.
Safety sign
►Observe all measures marked with the safety sign
to avoid personal injuries or death by electric shock.
►
Instruction for action
1., 2., …
Multi-step instruction for action

Pre-requisite

Cross-reference

Information, note
Tab. 4 Symbols and meaning

Operating Manual
11/2017 1096.0233 | BluVacCompact Vacuum Units 5
1.4 Terminology
Term
Meaning
Pump
Pump without drive, components or accessories
Aggregate
Complete machine including pump, drive
Vacuum unit
Pump aggregate with additional integrated components and accessories
Cartridge insert
Vacuum unit without separator (BluVacCompact Insert see Tab.7)
Separator
Device for separating gaseous from liquid media
Controller
Device for the control of one or more BluSystems vacuum units:
BluLine vacuum units
BluVac vacuum units
BluVacCompact and BluVacDezentral vacuum units
These controllers are available:
BluSystems operating panel
BluSystems PLC panel
BluSystems PLC interface
Frequency converter (FC)
Electrical supply unit with adjustable alternating voltage
Pipe
Pipes may consist of
- conventional pipe
- flexible pipe (corrugated pipe)
- vacuum-proof hoses
Flow sensor
Device for monitoring the flow rate of the fresh liquid and the functionality of the sole-
noid valve
Solenoid valve
Device for limiting and controlling the fresh liquid supply
Electro-pneumatic valve
Device for limiting and regulating the fresh liquid flow (requires additional pressurised
air during installation)
Operating liquid
Liquid required by the vacuum pump to form a liquid ring. Some of the operating liquid
is discharged together with the gas during operation.
Fresh liquid
Liquid supplied to the vacuum unit during operation
•to compensate for the portion of operating liquid being discharged from the vacu-
um pump together with the gas.
•to cool down the operating liquid.
Tab. 5 Terminology and meaning

Operating Manual
6 1096.0233 | BluVacCompact Vacuum Units 11/2017
2 Safety
The manufacturer does not accept liability for damage
resulting from non-observance of the overall documenta-
tion.
2.1 Intended use
•Observe all provisions included in the operating manual.
•Observe all safety instructions.
•Comply with inspection and maintenance intervals.
•Use the vacuum unit exclusively for delivery of the permis-
sible media to be pumped
(General technical data, page 25).
•Operate the vacuum unit with permissible operating liquid
only (General technical data, page 25).
•Prevent dry running:
Ensure that the vacuum unit is only operated with suf-
ficient operating liquid, never without operating liquid.
•Prevent cavitation:
Comply with the temperature limits of the operating liq-
uid and the medium to be pumped.
Observe the limit values for inlet pressure and pres-
sure difference.
Do not operate the aggregate when the fitting in the
suction pipe is closed.
•Prevent overheating:
Do not operate the vacuum unit when the fittings are
closed.
•Prevent motor damage:
Observe the maximum flow rate for delivery of liquids.
Observe the switching frequency of the aggregate.
The motor protection switch must not be set to a value
above nominal current.
•Any use other than the intended use must be agreed with
the manufacturer.
2.2 Potential misuse
•Observe the operating limits of the vacuum unit concerning
temperature, pressure, speed, density and viscosity
(Operating limits, page 25).
•The higher the density of the operating liquid, the higher the
motor power consumption. Observe the permissible density
to protect the aggregate against overload.
•When delivering solid laden liquids, observe the solid con-
tent limit values (General technical data, page 25).
•Do not combine multiple limit values
(Operating limits, page 25).
•Prevent sudden pressure changes of the gas to be extract-
ed.
•Prevent sudden temperature changes of the gas to be
extracted or the operating liquid.
•Do not use in rooms where explosive gases may be present
unless the vacuum units have been expressly intended for
such purpose.
•Do not extract, deliver or compact explosive, inflammable,
aggressive or toxic media unless the vacuum units have
been expressly intended for such purpose.
•Unauthorized opening of the vacuum unit results in the
forfeiture of any and all claims for defects.
2.3 General safety instructions
The following provisions must be observed prior to execut-
ing any works.
2.3.1 Product safety
The vacuum unit has been designed in accordance with state-of-
the-art technology and the generally acknowledged rules on
safety.
Yet, operation of this vacuum unit may present a threat to the life
or physical health of the user or third parties and impair the
vacuum unit and other property.
•Only operate the vacuum unit in a technically flawless
condition and in accordance with the provisions, safety pre-
cautions and warnings included in this operating manual.
•Keep this operating manual as well as all supplied docu-
ments complete and legible and ensure that they can be
accessed by staff at all times.
•Refrain from any operating methods, which may put staff or
uninvolved third parties at risk.
•In case of defects having safety implications:
shut down the vacuum unit immediately and consult the
person in charge to rectify the defect.
•In addition to the overall documentation, all legal or other
safety and accident prevention regulations as well as all
applicable standards and guidelines of the respective coun-
try of operation must be observed.
2.3.2 Obligations of the operator
2.3.2.1 Safety-conscious working
•Only operate the vacuum unit in a technically flawless
condition and in accordance with the provisions, safety pre-
cautions and warnings included in this operating manual.
•Ensure and verify compliance with:
intended use
legal or other safety and accident prevention regula-
tions
safety regulations applying to handling hazardous sub-
stances
applicable standards and guidelines of the respective
country of operation
•Provide for protective equipment.
2.3.2.2 Staff qualification
•Ensure that staff involved in the operation of the vacuum
unit has read and understood this operating manual and all
applicable documents, particularly all safety, maintenance
and servicing information, prior to starting work.
•Define clear roles and responsibilities and arrange for staff
monitoring.
•All works must only be carried out by technically qualified
staff:
assembly, servicing, maintenance works
works on electrical equipment
•Staff undergoing training must only work on the vacuum
unit under the supervision of technically qualified staff.

Operating Manual
11/2017 1096.0233 | BluVacCompact Vacuum Units 7
2.3.2.3 Safety devices
•Provide for the following safety devices and ensure their
proper functioning:
for hot, cold and moving parts: on-site protection
against contact with the vacuum unit
when electrostatic charging is likely to occur: provide
for grounding
2.3.2.4 Warranty
•Während der Gewährleistung vor Umbau-, Instandset-
zungsarbeiten oder Veränderungen die Zustimmung des
Herstellers einholen.
•Use original parts or parts approved by the manufacturer
only.
2.3.3 Obligations of the staff
•Notes attached to the vacuum unit must be observed and
kept legible, e.g. arrows indicating the direction of rotation
of the pumps, symbols indicating fluid connections.
•Guards for protection against contact with hot, cold and
moving parts must not be removed during operation.
•If required, use protective equipment.
•Do not expose parts of the body to the vacuum.
•Works on the vacuum unit must only be carried out at
standstill.
•Prior to carrying out any assembly or maintenance works,
de-energize the vacuum unit and protect it against restart.
•Having completed all works on the vacuum unit, duly re-
assemble the safety devices..
2.4 Residual risks
WARNING
Long and loose hair may become entangled in the protec-
tive covers of the motor.
►Wear a hairnet!
Risk of injuries caused by flying objects, which were insert-
ed in the openings of the motor fan cover!
►Do not insert any objects!
Risk of burns/scalds when getting in contact with hot sur-
faces or hot media!
►Do not touch!
►Wear protective gloves!
Risk of injuries caused by operating liquid escaping from a
defective mechanical seal!
►Shut down the pump!
►Repair the pump!
2.5 Special risks
2.5.1 Dangerous media to be pumped
•When dealing with dangerous media to be pumped (e.g.
hot, inflammable, explosive, toxic, hazardous to health), ob-
serve the safety regulations applying to handling hazardous
substances.
•Use protective equipment when carrying out any works on
the vacuum unit.

Operating Manual
8 1096.0233 | BluVacCompact Vacuum Units 11/2017
3 Design and functioning
3.1 Marking

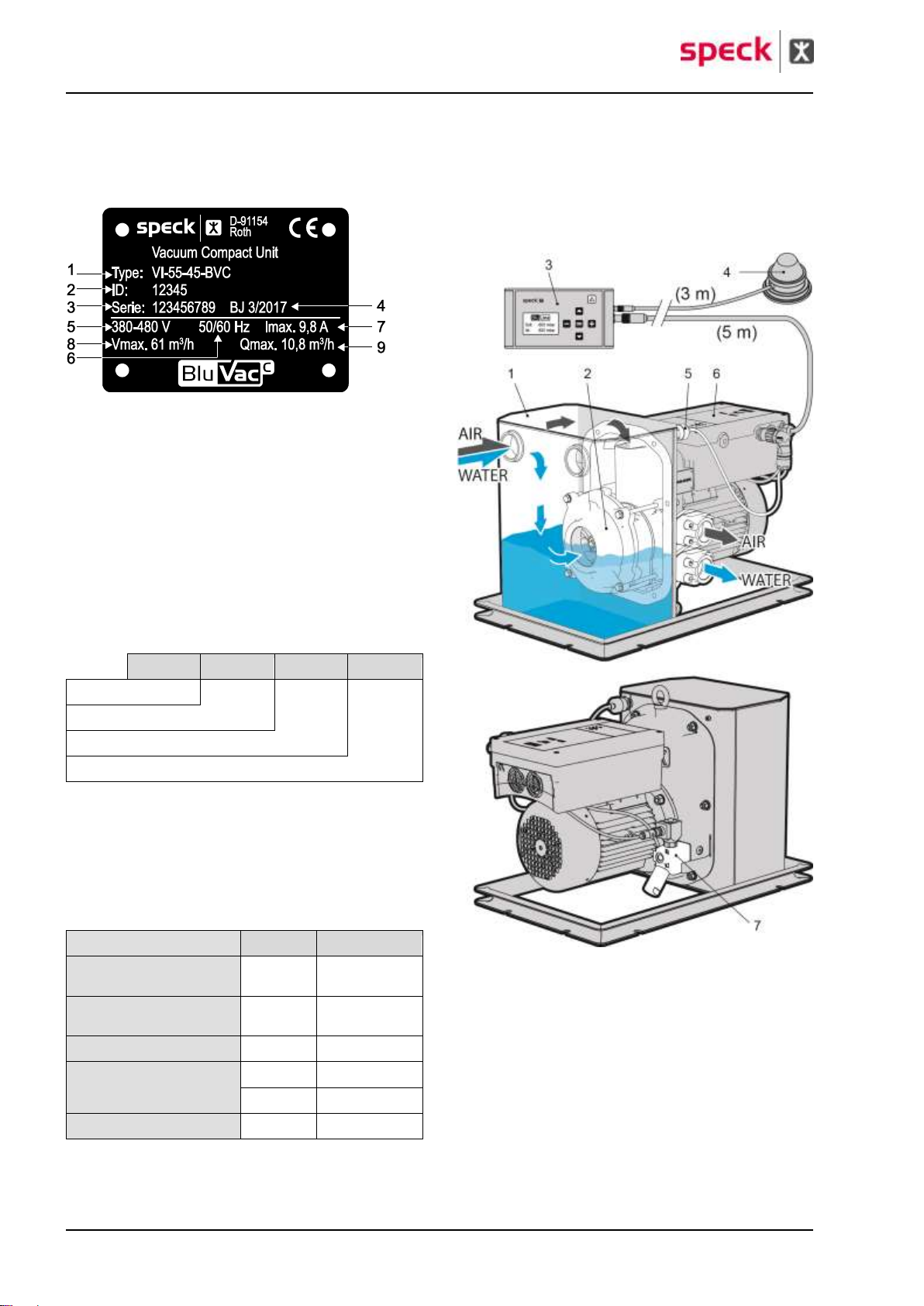

3.1.1 Nameplate
1 Type designation
2 Item identification number (vacuum unit)
3 Serial number
4 Year of manufacture
5 Supply voltage (± 10% for FC)
6 Utility line frequency for FC
7 Typical input current (at 60 sec. maximum load)
of the vacuum unit
8 Maximum suction volume of the vacuum pump
9 Maximum flow rate of the water discharge pump
Fig. 1 Nameplate (example)
3.1.2 Vacuum unit code
VI
-55
-45
-BVC
1
2
3
4
1 Type (type of the employed vacuum pump)
2 Size (size of the employed vacuum pump)
3 Material design
4 Version
Tab. 6 Vacuum unit code (example)
3.1.3 Versions
Code
BVC-I
BVC
Designation
BluVacC-
Insert
BluVacCompact
Vacuum pump / water-
pump with FC


Pressure level sensor


Operating panel


Mechanical seal casing


Separator
–

Tab. 7 Versions
3.2 General description
BluVacCompact vacuum units produce a demand-matched
vacuum while simultaneously delivering large amounts of liquid.
The integrated separator (1) allows for the separation of the
drawn-in air-water-mixture. The default vacuum or the filling level
in the separator is regulated by means of a type VI (2) frequen-
cy-controlled liquid ring vacuum pump combined with a dis-
charge pump.
1 Separator
2 Bifunctional pump
(liquid ring vacuum pump VI with discharge pump
3 BluSystems operating panel
4 Alarm light with cable (optional)
5 Pressure sensor (pressure level)
6 FCP 106 frequency converter (FU)
7 Fresh water supply
- self-priming (no valve)
- solenoid valve
- electro-pneumatic valve
Fig. 2 Description BluVacCompact vacuum unit

Operating Manual
11/2017 1096.0233 | BluVacCompact Vacuum Units 9
The vacuum unit is controlled by the BluSystems control panel
(3), which also allows various system statuses and process
variables to be displayed. The optional alarm light (4) displays
malfunctions.
The pressure sensor (5) continuously records the pressure level
in the tank. Based on these measuring data, the frequency
converter (6) automatically regulates the pressure level by
adapting the motor frequency. The filling level in the tank is
regulated by the special hydraulic design of the discharge pump
without sensors. The optional valve (7) is to switch the fresh
liquid needed by the vacuum pump on or off.
The BluVacCompact vacuum unit is available in three different
designs for fresh water supply:
•With solenoid valve
•With electro-pneumatic angle seat valve
•Self-priming/no valve
The demand-matched generation of vacuum by BluVacCompact
vacuum units results in considerable power savings for
processes without leakage air addition.
3.2.1 Software versions
For vacuum units with FCP 106 frequency converter the follow-
ing software versions apply:
•With usage of a BluSystems operating panel:
BluSystems operating panel software version ≥ 4.00
•With usage pf a PLC controller:
BluSystems-PLC software ≥ 3.00
3.3 Design and functional principle
3.3.1 BluVacCompact vacuum unit

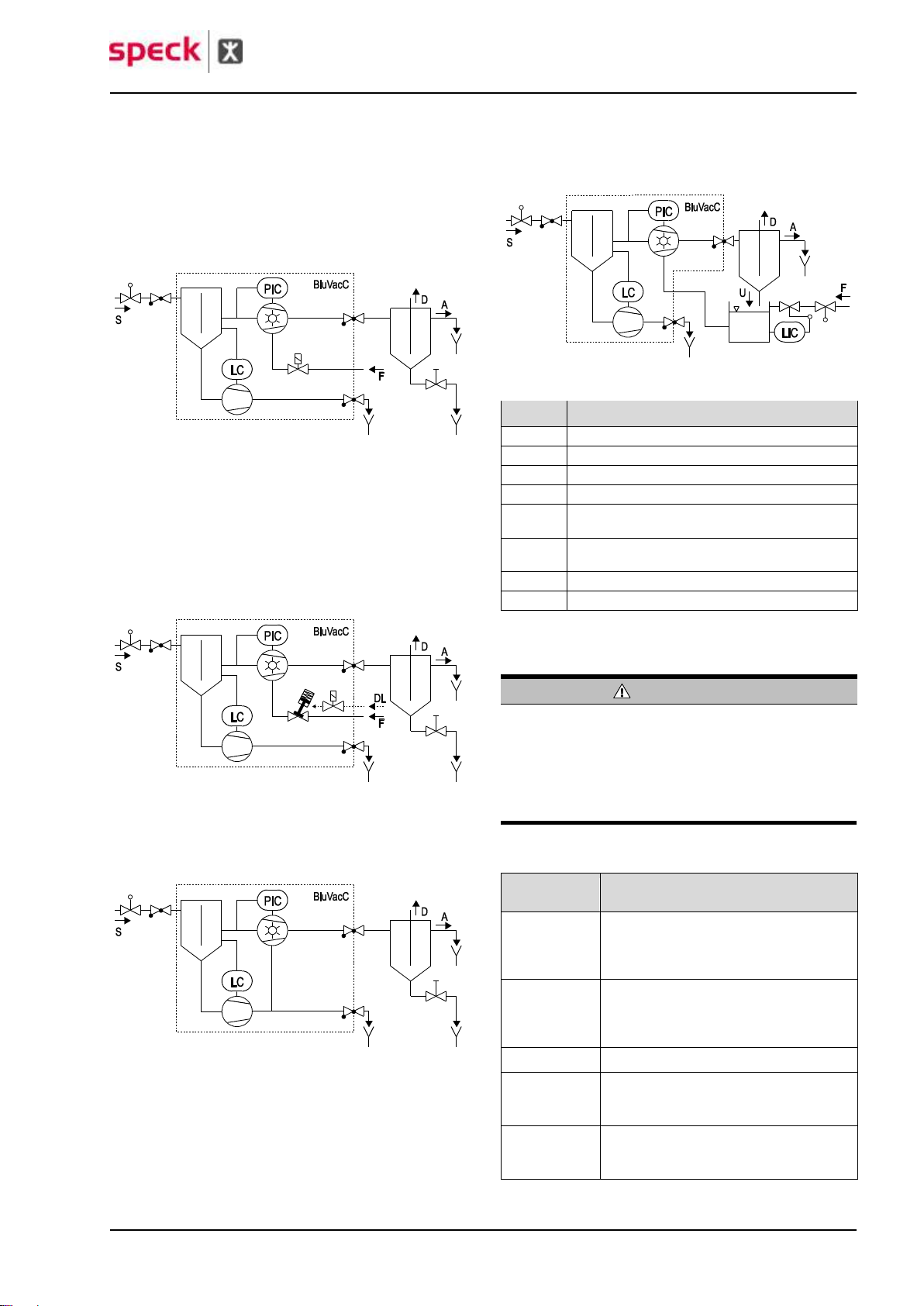

Fig. 3 Functional scheme of the BluVacCompact vacuum unit
Pos.
Fresh water supply
A
with solenoid valve
B
with electro-pneumatic angle-seat valve
C
self-priming/no valve
Tab. 8 Regulating the fresh water supply
Pos.
Meaning
L
Air
W
Water
DL
Pressurised air
F
Fresh liquid
PIC
Pressure display and pressure control
(Pressure Indicate Control)
LC
Level control
(Level Control)
Tab. 9 Key
3.3.2 Liquid ring vacuum pump
The vacuum pump VI is operated in accordance with the liquid
ring principle. The impeller is positioned off-centre in the cylindri-
cal pump casing. It transfers the drive power to a liquid ring,
which forms concentrically to the casing when the vacuum pump
is started.
The gaseous medium remaining in the casing is distributed
around the impeller due to the lower density in the hub area. As
the impeller is positioned off-centre to the casing, the available
space for the gas between the surface of the liquid and the hub
becomes crescent-shaped.
This way, the remaining space for the gas between the vanes
expands and shrinks during each rotation.
1 Suction opening
2 Pressure opening
3 Liquid ring
Fig. 4 Functional principle of liquid ring vacuum pumps
The arrangement of suction and pressure openings in the inter
casing allows for the suction, compression and discharge of gas.
The liquid both serves the sealing between the individual impel-
ler chambers and the absorption of heat produced during com-
pression.
The vacuum pump must be permanently supplied with fresh
liquid during operation as some portion of the liquid continuously
escapes from the pump together with the gas. The discharged
operating liquid is purged from the pressure connection of the
vacuum pump.
3.4 Shaft sealings
3.4.1 Shaft sealings
Mechanical seals may slightly leak for functional reasons.
•Single mechanical seals, unbalanced, dependent on the
direction of rotation, EN 12756 (standard).
The mechanical seal of the vacuum pump is contained in a
mechanical seal casing.

Operating Manual
10 1096.0233 | BluVacCompact Vacuum Units 11/2017
4 Transport, storage and dis-
posal
The accident prevention regulations have to be observed
prior to following transport and handling regulations.
4.1 Transport
Observe weight data (Weight, page 25)
4.1.1 Unpacking and inspection on delivery
1. Unpack the vacuum unit on delivery and inspect it for
transport damage.
2. Report any transport damage to the manufacturer immedi-
ately.
3. Dispose of packaging material according to local regula-
tions.
4.1.2 Transport with lifting gear
DANGER
Risk of death or contusions from falling goods to be trans-
ported!
►Select lifting gear in accordance with the total weight to be
transported.
►Transport the vacuum unit in horizontal position only.
►Never suspend the pump/aggregate to the free shaft end or
the ring lug of the motor.
►Attach the lifting gear in accordance with the following
figures.
►Do not stand under suspended loads.
Fig. 5 Attaching lifting gear to the aggregate
►Lift the vacuum unit accordingly.
4.2 Storage
CAUTION
Risk of material damage caused by improper storage!
►Store the vacuum unit accordingly.
1. Close all openings with blank flanges, plugs or plastic co-
vers.
2. Make sure the storage room meets the following conditions:
dry
frost-free
vibration-free
protected
constant humidity
3. Turn the pump shafts once per month.
4. Make sure the pump shafts and bearings change their
rotational position in this process.
4.3 Return to manufacturer
1. Decontaminate the pump.
2. Attach transportation and sealing covers.
3. Always send a certificate of conformity to the manufacturer.
Copy certificate of conformity page 30.
4.4 Disposal
WARNING
Risk of intoxication and environmental damage caused by
media to be pumped!
►Prior to disposing the vacuum unit:
Collect escaping media to be pumped and dispose of
separately in accordance with local regulations.
Neutralize residues of media to be pumped in the vac-
uum unit.
Disassemble plastic parts and dispose of in accord-
ance with local regulations.
►Assign an authorized company to dispose of the vacuum
unit to prevent the risk of environmental damage!

Operating Manual
11/2017 1096.0233 | BluVacCompact Vacuum Units 11
5 Set-up and connection
CAUTION
Risk of material damage caused by contamination!
►Do not remove transport locks until immediately before
setting up the vacuum unit.
►Do not remove covers, transport and sealing caps until
immediately before connection of the pipes to the vacuum
unit.
5.1 Preparing set-up
5.1.1 Checking ambient conditions
►Make sure the required ambient conditions are maintained
(Ambient conditions, page 26).
►For set-up at an altitude of > 1000 m above sea level,
consult the manufacturer.
5.1.2 Minimum clearances for heat dissipation
Observe the minimum clearances
(Minimum clearances for heat dissipation, page 26)
5.1.3 Preparing installation site
►Make sure the installation site meets the following condi-
tions:
the vacuum unit is freely accessible from all sides
sufficient space for installing/disassembling the pipes
as well as for maintenance and repair works, particu-
larly for installation/disassembly of the vacuum unit, is
provided for
the vacuum unit is not exposed to external vibrations
(bearing damage)
frost protection
5.1.4 Set-up options
Installation position: horizontal, suction and pressure con-
nection are oriented horizontally to the left and right
Auxiliary means, tools, material:
wrench

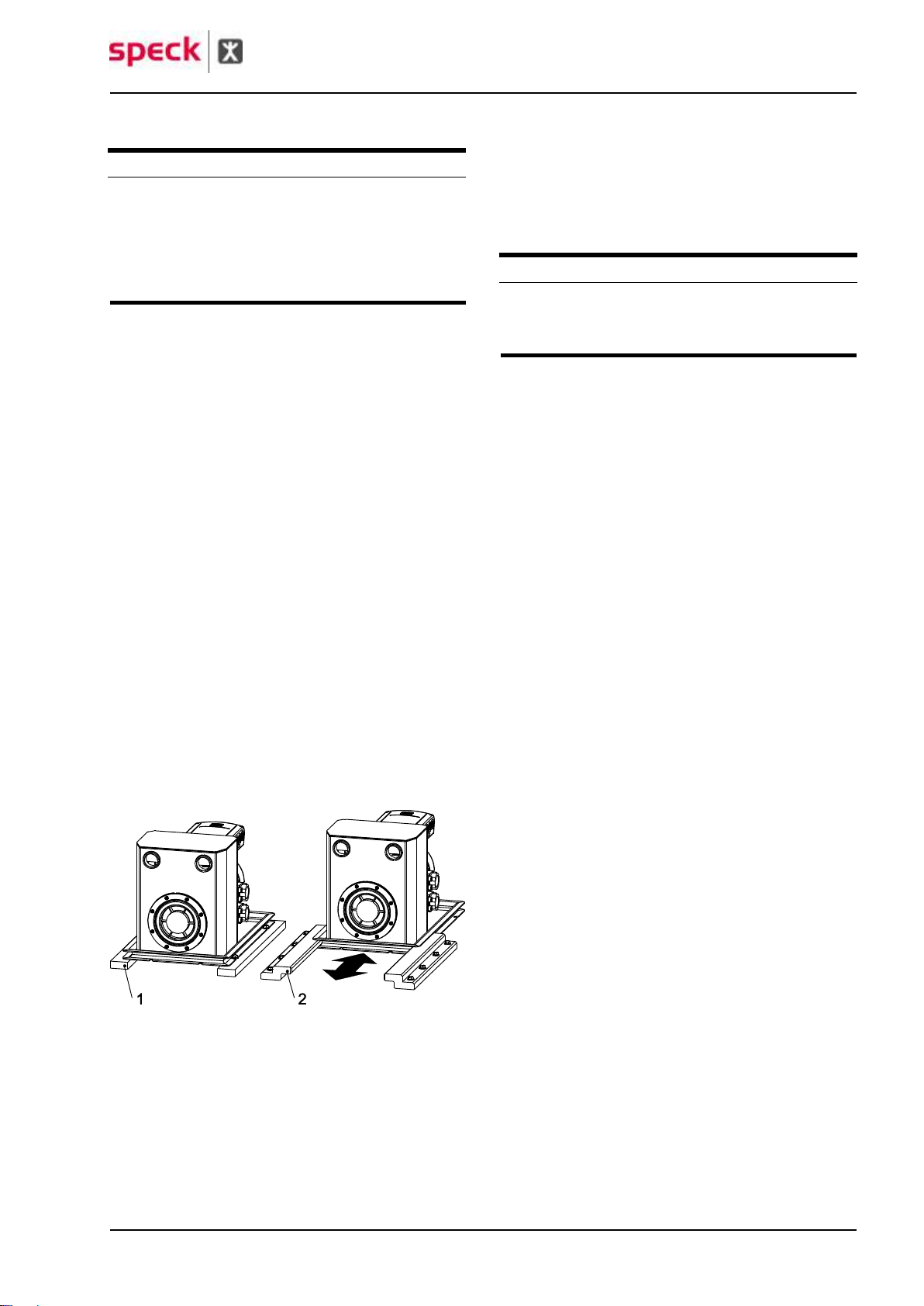

1 Frame
2 Rails
Fig. 6 Set-up/installation
5.1.4.1 Set-up on level surface/frame
1. Lift the aggregate (Transport with lifting gear, page 10).
2. Position the aggregate on the surface/frame (1).
3. Screw the aggregate to the surface/frame (1) in a stress-
free manner.
5.1.4.2 With rail guide
1. Lift the aggregate (Transport with lifting gear, page 10).
2. Adjust the aggregate to the rail height.
3. Carefully insert the aggregate into the rails (2).
5.2 Planning pipe system
5.2.1 Dimensioning supports and connections
CAUTION
Risk of material damage if the pipes apply excessive forces
and torques to the vacuum unit!
►Make sure the permissible values are complied with.
1. Calculate the piping forces and observe all operating condi-
tions:
cold/warm
empty/filled
depressurized/pressurized
position changes
2. Make sure the pipe supports have permanent low-friction
properties and do not seize up due to corrosion.
3. If required, provide for pipe compensators.
5.2.2 Specifying nominal diameters
Size of suction/pressure connections
(Operating connections, page 26)
►Keep the flow resistance in the pipes as low as possible.
1. Nominal suction pipe diameter ≥ nominal suction connec-
tion diameter.
2. Nominal pressure pipe diameter ≥ nominal pressure con-
nection diameter.
5.2.3 Specifying pipe lengths
1. Dimension the suction, pressure and fresh liquid pipes as
short as possible.
2. Increase the pipe cross-sections when using long suction,
pressure and fresh liquid pipes.
The pressure pipe of the vacuum pump must not rise more
than 0.3 m vertically or diagonally upwards.
5.2.4 Changes in cross-section and direction
1. Avoid radii of curvature of less than 1.5 times the nominal
pipe diameter.
2. Avoid sudden changes of cross-section and direction along
the piping.
5.2.5 Safety and control devices
5.2.5.1 Avoiding contamination
1. Integrate filters in the suction pipe.
2. Install a differential pressure gauge with contact manometer
to monitor the contamination process.

Operating Manual
12 1096.0233 | BluVacCompact Vacuum Units 11/2017
5.2.5.2 Fresh liquid connection
Position of fresh liquid connection UF
Dimensional drawing, page 28
CAUTION
Risk of material damage caused by dry-running (vacuum
pump)!
►Ensure that the solenoid valve/electro-pneumatic valve is
suitable for the fresh liquid pressure.
►Solids in the fresh liquid can disrupt the function of the
solenoid valve and the optional flow sensor. Use clean
fresh liquid or install a filter (300 μm mesh size) in the fresh
liquid line.
►Ensure that the solenoid valve/electro-pneumatic valve
switches properly.
When operating with pressurised water
►Ensure that the fresh liquid pressure is between
2 and 6 bar and the air pressure is between 3.5 and 8 bar.
5.2.5.3 Avoiding backflow
►Install a ball check valve between the suction pipe and the
suction connection of the pump to prevent operating liquid
from flowing back into the suction pipe after shutdown of
the vacuum unit.
5.2.5.4 Isolating and shutting off pipes
For maintenance and repair works
►Provide for shut-off devices in the suction, pressure and
fresh liquid pipes.
5.2.5.5 Provisions for measuring operating conditions
1. For pressure measuring: provide for manometers in the
suction and pressure pipe.
2. Provide for a power sensor at the motor side.
5.3 Connecting pipes
5.3.1 Providing for clean piping
CAUTION
Risk of material damage caused by contamination of the
vacuum unit!
►Make sure the inside of the vacuum unit is kept free of
contamination.
1. Clean all piping parts and fittings prior to assembly.
2. Make sure no flange seals project inwards.
3. Make sure no sealing material (sealing tape, adhesive)
projects inwards.
4. Remove any blank flanges, plugs, protective foils and/or
protective paint from the flanges.
5.3.2 Installing suction pipe
1. Remove transport and sealing caps from the vacuum unit.
2. Avoid air pockets: Lay out the pipes with a continuous slope
down to the vacuum unit.
3. Make sure no seals project inwards.
4. Make sure no sealing material (sealing tape, adhesive)
projects inwards.
5.3.3 Installing pressure pipe
1. Remove transport and sealing caps from the vacuum unit.
2. Install the pressure pipe.
3. The pressure pipe of the vacuum pump must not rise more
than 0.3 m vertically or diagonally upwards.
4. Avoid air pockets: Lay out the pipes with a continuous slope
from the vacuum unit.
5. Make sure no seals project inwards.
6. Make sure no sealing material (sealing tape, adhesive)
projects inwards.
5.3.4 Installing operating liquid pipe
1. Remove transport and sealing caps from the vacuum unit.
2. Make sure no seals project inwards.
3. Make sure no sealing material (sealing tape, adhesive)
projects inwards.
5.3.5 Stress-free pipe connection
►Provide for stress-free pipe connections.
5.4 Electrical connection
RISK OF ELECTRIC SHOCK
Risk of death from electric shock!
►Qualified electricians must carry out any electrical works
only.
►Observe the IEC 60364 standard.
►Pumps/aggregates with frequency converters: Getting in
contact with live parts - even after disconnection from the
power supply - may result in fatal injuries. Wait for at least 4
minutes after the unit has been disconnected from the pow-
er supply.
CAUTION
Risk of material damage to the frequency converter due to
insufficient electricity grid!
Inadmissible electromagnetic disturbances such as har-
monics, voltage dips, phase unbalances etc. may result in a
reduced lifetime or total failure of the vacuum unit!
►For operation of this frequency-controlled vacuum unit
observe the voltage characteristics of electricity supplied by
public electricity networks according to EN 50160.
►Observe the applicable limit values (compatibility levels) for
low-frequency conducted disturbances and signalling in
public low-voltage power supply systems according to
EN 61000-2-2 or EN 61000-2-4.

Operating Manual
11/2017 1096.0233 | BluVacCompact Vacuum Units 13
CAUTION
Only if the separator is filled with water
Risk from immediate water discharge!
If the filling level is above the suction nozzle, water is dis-
charged and the filling level continuously regulated.
After a vacuum unit is switched on, the filling level control
in the separator is active if the quick-start mode has been
selected!
►Make sure that neither persons nor machines are put at risk
by the water discharge.
DANGER
Risk of death from rotating parts!
►Only operate the vacuum unit with all covers (fan hood)
installed.
Electrical connection of the operating panel
(Operating manual of the BluSystems operating panel)
Observe the data on the BluVacCompact nameplate.
Versions with solenoid valve:
The neutral conductor must be connected.
1. Electricity is connected via the cable supplied (alternating
current connection including grounding and neutral wire).
2. Exclude any risk associated with electric power.
3. Install an Emergency-Stop button.

Operating Manual
14 1096.0233 | BluVacCompact Vacuum Units 11/2017
6 Operation
6.1 Preparations for commissioning
6.1.1 Identifying type
►Identify the vacuum unit type (Nameplate, page 8).
Types vary, e.g. with regard to material, suction capacity,
type of shaft sealing, auxiliary operating systems.
6.1.2 Checking shut-down period
►Shutdown periods > 1 year: contact the manufacturer and
ask for required measures.
►Shutdown periods < 1 year: take all steps as required for
commissioning (Commissioning, page 14).
6.1.3 Filling
Version without valve technology only
1. Fill the aggregate with operating liquid maximally up to the
middle of the shaft (Operating liquid, page 26).
2. Open the suction-side fitting.
3. Open the pressure-side fitting.
4. Make sure all ports and connections are tight.
6.2 Commissioning
6.2.1 Switch-on
Vacuum unit correctly set up and connected
All connections stress-free and sealed
If available: auxiliary operating systems ready for operation
All safety devices installed and checked for proper function-
ing
DANGER
Risk of injuries caused by running vacuum unit!
►Do not get in contact with the running vacuum unit.
►Do not carry out any works while the vacuum unit is in
operation.
RISK OF ELECTRIC SHOCK
Risk of death from electric shock!
►Qualified electricians must carry out any electrical works
only.
►Observe the IEC 60364 standard.
►Pumps/aggregates with frequency converters: Getting in
contact with live parts - even after disconnection from the
power supply - may result in fatal injuries. Wait for at least
4 minutes after the unit has been disconnected from the
power supply.
WARNING
Risk of injuries caused by vacuum or harmful media to be
pumped and operating liquid!
►Use protective equipment when carrying out any works on
the vacuum unit.
CAUTION
Risk of cavitation when throttling down the suction flow!
Risk of cavitation when the fitting in the suction pipe is
closed!
►Completely open the suction-side fitting and do not use it
for controlling the flow rate.
►Open the pressure-side fitting.
CAUTION
Risk of material damage caused by a closed pressure pipe!
►Do not operate the vacuum unit when the pressure-side
fitting is closed.
►Observe the max. permissible operating limits
(Operating limits, page 25).
max. permissible pressure difference
max. permissible compression pressure
max. permissible operating liquid temperature
max. permissible operating liquid viscosity
max. permissible operating liquid density
max. permissible temperature of the medium to be
pumped
1. Open the pressure-side fitting.
2. Open the fitting for pressurised air feed.
3. Open the fitting at the fresh liquid side Open the fitting at
the fresh liquid side.
4. Open the suction-side fitting.
5. Connect the operating panel and start the vacuum unit
(Operating manual of the BluSystems operating panel).
6. Make sure the vacuum unit runs smoothly.
7. Check the vacuum unit and connections for tightness.
8. Check the electro-pneumatic valve/solenoid valve for prop-
er functioning (acoustic check).
6.2.2 Switch-off
WARNUNG
Risk of injuries caused by vacuum or harmful media to be
pumped / operating liquid!
►Use protective equipment when carrying out any works on
the vacuum unit.
1. Close the fitting at the fresh liquid side.
2. Stop vacuum unit operation by means of the operating
panel.
3. Make sure that the electro-pneumatic valve closes.
4. Check all connecting screws and tighten them if required
(only after initial commissioning).

Operating Manual
11/2017 1096.0233 | BluVacCompact Vacuum Units 15
6.3 Setting fresh liquid flow rate
6.3.1 Continuous-flow cooling
(design with solenoid valve)
►Switch on the vacuum unit.
►Set the pressure in the fresh liquid pipe within the range
between min. 2 bar and max. 6 bar gauge pressure.
Fig. 7 Continuous-flow cooling (solenoid valve)
6.3.2 Continuous-flow cooling
(design with electro-pneumatic valve)
►Switch on the vacuum unit.
►Set the pressure in the fresh liquid pipe within the range
between min. 2 bar and max. 6 bar gauge pressure.
Fig. 8 Continuous-flow cooling (electro-pneumatic valve)
6.3.3 Continuous-flow cooling with process
water (design without valve)
Fig. 9 Continuous-flow cooling with process water (without
valve)
6.3.4 Open circulation cooling with control
liquid supply (design without valve)
►Observe the permissible operating liquid temperature
(Operating liquid, page 25).
Fig. 10 Open circulation cooling with controlled liquid supply
Pos.
Meaning
A
Overflow
D
Pressure connection
DL
Pressurised air
F
Fresh liquid
LC
Level control
(Level Control)
PIC
Pressure display and pressure control
(Pressure Indicate Control)
U
Circulation liquid
S
Suction connection
Tab. 10 Legend of symbols
6.4 Decommissioning
WARNING
Risk of injuries caused by vacuum or harmful media to be
pumped and operating liquid!
►Use protective equipment when carrying out any works on
the vacuum unit.
►Reliably collect escaping media to be pumped and dispose
of in an environmentally friendly way.
►Implement the following measures when taking the
pump/aggregate out of operation:
Vacuum pump
is
Measure
shut down while
remaining ready
for operation
►Shortly operate (approx. 5 minutes) the
vacuum unit at intervals of at least one
month but not exceeding 3 months (
Commissioning, page 14)
shut down for a
longer period of
time
►Implement measures in accordance with
the condition of the operating liquid (
Table 12 Measures depending on the
behaviour of the operating liquid).
drained
►Close all fittings.
disassembled
►Disconnect the motor from the power
supply and secure it against unauthor-
ized switch-on.
stored
►Observe the measures to be imple-
mented for storage (Storage, page
10)
Tab. 11 Measures to be taken when putting the pump out of
operation

Operating Manual
16 1096.0233 | BluVacCompact Vacuum Units 11/2017
Operat-
ing
liquid
Duration of shut-down
(process-dependent)
Short
Short
Water
►Drain vacuum
unit and separa-
tor.
►Drain vacuum unit
and separator.
Other
media
-
►Drain vacuum unit
and separator.
Tab. 12 Measures depending on the behaviour of the operating
liquid
6.5 Re-commissioning
Shutdown periods > 1 year:
1. Prepare commissioning
(Preparations for commissioning, page 14).
2. Perform commissioning procedures
(Commissioning, page 14).
3. Monitor the vacuum unit following commissioning
(Monitoring, page 17).

Operating Manual
11/2017 1096.0233 | BluVacCompact Vacuum Units 17
7 Maintenance and servicing
A qualified service team provides support for assembly and
repair works. Provide a certificate documenting the safety
of the media to be pumped (DIN safety data sheet or certifi-
cate of conformity) when ordering this service
(Certificate of conformity, page 30).
7.1 Monitoring
Inspection intervals depend on the operational strain on the
vacuum unit.
RISK OF ELECTRIC SHOCK
Risk of death from electric shock!
►Qualified electricians must carry out any electrical works
only.
►Observe the IEC 60364 standard.
►Pumps/aggregates with frequency converters: Getting in
contact with live parts - even after disconnection from the
power supply - may result in fatal injuries. Wait for at least
4 minutes after disconnection from the power supply.
DANGER
Risk of injuries caused by running vacuum unit!
►Do not get in contact with the running vacuum unit.
►Do not carry out any works while the vacuum unit is in
operation.
WARNING
Risk of injuries caused by vacuum and harmful media to be
pumped and operating liquid!
►Use protective equipment when carrying out any works on
the vacuum unit.
CAUTION
Risk of material damage caused by dry-running (vacuum
pump)!
►Ensure that the fresh liquid pressure is between
2 and 6 bar and the air pressure is between 3.5 and 8 bar.
►Ensure that the solenoid valve/electro-pneumatic valve
switches properly.
4. Check at appropriate intervals:
deposits on the pumps, the aggregate and separator
compliance with the fresh liquid flow rate
compliance with the operating liquid temperature
compliance with the max. permissible compression
pressure
compliance with the limit values applicable to the de-
livery of liquids
power consumption of the drives
contamination of the drives
contamination of the filters (if available)
proper functioning of the electro-pneumatic
valve/solenoid valve in the fresh liquid connection
running noise of the rolling bearings (motors)
normal operating conditions unchanged
adequate operating water pressure
adequate air pressure
5. For trouble-free operation, ensure the following:
no dry running
no leaks
no cavitation
open gate valves at the suction side
free and clean filters
no unusual running noise or vibrations
no impermissible leaks at the shaft sealing
proper functioning of the auxiliary operating systems (if
available)
6. Check shaft sealing:
Mechanical seals are maintenance-free sealing systems.
In case of leaks: Have the mechanical seal (with auxil-
iary seals) replaced by service staff or the manufactur-
er. Have auxiliary operating systems (if available)
checked for proper functioning.
7.2 Monitoring and cleaning sensors
Position of the sensors
Cross-sectional drawings, page 29
CAUTION
Material damage to sensors!
Sensors are sensitive components. The failure of sensors
can cause further material damage to the vacuum unit!
►Do not subject the sensors to any shocks or impacts.
►Do not touch the membranes.
►Do not blow with pressurised air (e.g. for cleaning).
►Do not crush (e.g. with pipe wrench).
►Use spanners to loosen.
►Tighten sensors with max. 20 Nm (hand-tight).
►Check sensors every 2 - 3 months (visual inspection).
►Replace damaged sensors.
1 Pressure medium
2 Internal membrane
3 Pressure connection
Fig. 11 Structure of sensors

Operating Manual
18 1096.0233 | BluVacCompact Vacuum Units 11/2017
7.2.1 Monitoring sensors
The function of sensors is impaired by dirt and limescale. Sen-
sors with impaired function have a direct effect on the regulation
of the complete aggregate.
►Check sensors every 2 - 3 months (visual inspection).
1. Remove sensor plug.
2. Dismantle sensor with spanner.
3. Check sensor for dirt or limescale.
7.2.2 Cleaning sensors
1. Remove sensor plug.
2. Disassemble sensor with spanner.
3. If necessary, suck out impurities in the pressure connection
with a slight underpressure.
4. Place the sensor in limescale remover with the thread
pointing down (immersion depth max. up to head of screw).
5. Leave the limescale remover to work.
6. Remove the sensor from the limescale remover and rinse
with a weak water jet.
7. Fit sensor by hand (max. 20 Nm).
8. Plug on sensor plug.
7.3 Rinsing off contaminations
DANGER
Risk of injuries caused by hot, harmful or environmentally
hazardous media to be pumped!
►Do not rinse when delivering harmful or environmentally
hazardous media with the vacuum unit.
►Use protective equipment when carrying out any works on
the vacuum unit.
7.3.1 Minor fine-grained contamination
7.3.1.1 Rinsing the separator
1. Disconnect the vacuum unit from the power supply.
2. Fill clean water via the suction side into the separator.
3. Remove the screw plug Ue1 (Dimensional drawing,
page 28).
4. Collect escaping contamination and dispose of in an envi-
ronmentally compatible way.
5. Screw in the screw plug.
7.3.1.2 Water discharge pump
1. Connect the vacuum unit to the power supply.
2. Fill the separator with clean water via the suction side until
the suction mouth is completely filled up.
3. Stop the water supply to the separator.
4. Start the vacuum unit with the control panel.
5. Collect escaping contamination and dispose of in an envi-
ronmentally compatible way.
6. Stop the vacuum unit again with the control panel.
7.3.1.3 Vacuum pump
1. Start the vacuum unit by means of the operating panel.
2. Collect contamination and escaping operating liquid on the
pressure side and dispose of in an environmentally compat-
ible way.
3. Stop the vacuum unit with the control panel.
4. Interrupt the fresh liquid intake at the electro-pneumatic
valve/solenoid valve.
5. Remove the screw plug Ue.
6. Briefly start the vacuum unit with the control panel.
7. Collect contamination and escaping operating liquid at the
opening of the screw plug and dispose of in an environmen-
tally compatible way.
8. Stop the vacuum unit with the control panel.
9. Screw in screw plug Ue.
10. Restore operating liquid/pressurised water intake for opera-
tion.
7.3.2 Cleaning separator
1. Disconnect the vacuum unit from the power supply.
2. Remove the screw plug Ue1 (Dimensional drawing,
page 28).
3. Completely drain the separator.
4. Collect contamination and escaping operating liquid and
dispose of in an environmentally compatible way.
5. Remove the pressure sensors (838) from the mechanical
seal casing (Cross-sectional drawings, page 29).
6. Clean the separator through the inspection opening UR
using an industrial vacuum cleaner or a high-pressure
cleaner.
7. Install the pressure sensors (838) in the mechanical seal
casing (Cross-sectional drawings, page 28).
7.4 Prevention of corrosion and de-
posits
When using water as operating liquid, the vacuum unit has to be
protected against corrosion and deposits. Within this context,
certain water quality standards must be met.
Operating liquid, page 26
When using operating liquids other than water, please contact
the manufacturer.
7.5 Disassembly
DANGER
Risk of injuries caused by running vacuum unit!
►Do not get in contact with the running vacuum unit.
►Do not carry out any works while the vacuum unit is in
operation.
►Prior to carrying out any assembly or maintenance works,
de-energize the vacuum unit and protect it against restart.
RISK OF ELECTRIC SHOCK
Risk of death from electric shock!
►Qualified electricians must carry out any electrical works
only.
►Observe the IEC 60364 standard.
►Pumps/aggregates with frequency converters: Getting in
contact with live parts - even after disconnection from the
power supply - may result in fatal injuries. Wait for at least 4
minutes after disconnection from the power supply.

Operating Manual
11/2017 1096.0233 | BluVacCompact Vacuum Units 19
WARNING
Risk of injuries caused by vacuum and harmful media to be
pumped and operating liquid!
►Use protective equipment when carrying out any works on
the vacuum unit.
►Make sure the pump/aggregate is depressurized.
►After having drained the pump, reliably collect operating
liquid and media to be pumped and dispose of in an envi-
ronmentally compatible way.
7.5.1 Return to manufacturer
Profibus parameters set by the customer will be reset to
factory settings for the purpose of maintenance or conver-
sion.
Vacuum unit shut down
Vacuum unit depressurized
Vacuum unit completely drained
Electrical connections isolated and motor secured against
re-start
Auxiliary operating systems shut down, depressurised and
drained (if available)
Connecting pipes removed
Manometer lines, manometer and fixtures removed
1. Loosen the fixing screw.
2. Lift the vacuum unit out of the system
(Transport, page 10).
3. Decontaminate the vacuum unit.
4. Attach transport and sealing caps.
5. In any case, send a certificate of conformity to the manufac-
turer (www.speck.de/en/downloads/certificates/) or copy
page 30.
7.5.2 Spare parts
Spare parts are available from your supplier or the manu-
facturer.
The following data are required for spare part orders:
Serial number of the vacuum unit
(Nameplate, page 8)
Type of the vacuum unit
(Nameplate, page 8)
Item number of the spare part
(Cross-sectional drawing, page 28)
Designation of the spare part
(Cross-sectional drawing, page 28)
Number of spare parts
7.5.3 Vacuum unit repairs
1. The following must be observed during assembly:
Worn parts must be replaced by original spare parts.
Remove the old seals and insert new ones in a distor-
tion-proof manner.
Observe the specified tightening torques
(Tightening torques, page 26).
2. Clean all parts.
3. Install the vacuum unit into the system
(Set-up and connection, page 11).
7.5.4 Disassembly of VI-55/130-BVC
Cross-sectional drawings VI-55/130-BVC page 29.
The vacuum unit has been removed from the system and is
stored in a clean and level assembly area.
7.5.4.1 Separating cartridge insert from separator
1. Loosen and remove the hexagon nuts (920).
2. Remove the washers (550) and the washer springs (932).
3. Pull the separator with the flat gasket (400) off the shaft
seal casing (441).
7.5.4.2 Disassembly of vacuum pump and discharge
pump
1. Disassembly of casing cover (161)
Loosen and remove the hexagon socket head screws
(914).
Take off the casing cover (161).
2. Disassembly of impeller (230)
Remove the impeller screw (914).
Pull the impeller (230) off the motor shaft.
Remove the fitting key (940) from the motor shaft.
3. Disassembly of pump casing (101)
Pull the radial shaft sealing (421) off the motor shaft.
Remove the pump casing (101).
4. Disassembly of impeller (230.1)
Pull the impeller (230.1) off the motor shaft.
Remove the fitting key (940.1) from the motor shaft.
5. Disassembly of inter casing (137)
Remove the inter casing (137) from the shaft seal cas-
ing (441).
6. Disassembly of valve flaps (746)
Remove the valve flaps (746) from the shaft seal cas-
ing (441).
7. Remove the mechanical seal (047)
Pull the lock ring (932) off the motor shaft.
Pull the pressure ring (550) off the motor shaft.
Pull the rotating unit of the mechanical seal (047) off
the motor shaft.
Pull the stationary unit of the mechanical seal (047) off
the shaft sealing casing (441).
7.5.4.3 Removing outer cable harness
1. Loosen the fixation screw on the cable (824) of the solenoid
valve plug and remove the plug.
2. Loosen the screw connections on all circular plug-in con-
nectors of the cable harness and carefully unplug them.
7.6 Assembly
7.6.1 Preparations for assembly
CAUTION
Improper assembly results in vacuum unit damage!
►Assemble the vacuum unit in accordance with the principal
rules of mechanical engineering.
►Use original spare parts only.
►For assembly of the vacuum unit, consult the corresponding
cross-sectional drawing.
►Assemble the vacuum unit in a clean and level assembly
area.

Operating Manual
20 1096.0233 | BluVacCompact Vacuum Units 11/2017
The following must be observed during assembly:
Replace the seals.
Install only clean parts.
Install only inspected and flawless parts.
Keep the sliding surfaces of the mechanical seal free
of dirt and grease.
Observe the specified tightening torques
(Tightening torques, page 26).
Please verify that the spring of the mechanical seal (047) is
always right-handed (refer to Fig.12).
1 Rotating unit
2 Stationary unit
3 Right-handed spring, (view towards sealing ring)
Fig. 12 Mechanical seal of anti-clockwise rotating shaft
(view towards motor)
7.6.2 Assembly of VI-55/130-BVC
Cross-sectional drawing VI-55/130-BVC page 29
All parts are in a clean and level assembly area.
7.6.2.1 Assembly of vacuum pump and discharge pump
1. Installation of stationary unit of the mechanical seal (047)
Moisten the auxiliary seal of the stationary unit with
lubricant (alcohol, water).
Insert the stationary unit via the motor shaft into the
shaft seal casing (441).
Use a force-fitting mandrel (plastic) to press the sta-
tionary unit into the mechanical seal seat in the shaft
seal casing (441).
2. Installation of the rotating unit of the mechanical seal (047)
Moisten the auxiliary seal of the rotating unit with lubri-
cant (grease containing PTFE).
Slide the rotating unit onto the impeller hub (230.1) by
a screwing movement in the sense of winding of the
spring.
Slide the washer (550) onto the motor shaft.
Sliede the locking ring (932) onto the motor shaft and
centre it in the shaft groove.
3. Installation of valve flaps (746)
Align the valve flaps (746) in the shaft seal casing
(441) to the grooved pins and insert them.
4. Installation of inter casing (137)
Align the inter casing (137) to the grooved pins and the
dowel pins in the shaft seal casing (441) and insert it.
5. Installation of impeller (230.1)
Insert the fitting key (940.1) in the motor shaft.
Push the impeller (230.1) onto the motor shaft with the
cover plate facing upwards.
6. Installation of pump casing (101)
Align the pump casing (101) to the dowel pins and the
inter casing (137).
Push the pump casing (101) flush to the inter casing
(137).
Push the rotary shaft seal (421) over the motor shaft
until it lies against the groove of the pump casing
(101).
7. Installation of impeller (230)
Insert the fitting key (940) into the motor shaft.
Push the impeller (230) onto the motor shaft with the
suction inlet facing upwards.
Screw the impeller screw (914) to the washer at the
impeller (230) and slightly tighten it.
8. Installation of casing cover (161)
Align the casing cover (161) to the dowel pins and
push until flush with the pump casing (101).
Insert the hexagon socket head screws (914) in the
holes on the casing cover (161) and screw diagonally.
Check whether the motor shaft on the fan propeller can
be fully turned by hand.
7.6.2.2 Installing cartridge insert to separator
1. Position the flat gasket (400.1) on the sealing surface of the
separator.
2. Align the shaft seal casing (441) and position it at the sepa-
rator.
3. Put on the washers (550.1) and the washer springs (932).
4. Screw-fix the hexagon nuts (920).
7.6.2.3 Installing outer cable harness
1. Plug in the cable (824) of the solenoid valve plug and tight-
en the fixation screw.
2. Align the circular plug-in connectors to the coding lug and
insert them carefully.
3. Manually tighten the screw connections of the circular plug-
in connectors.
