Speedwolf VAJRA80 User manual

Calibration VAJRA80
---Calibration Compass,CalibrationAccel and Calibration Radio
SHENZHEN SPEEDWOLF TECHNOLOGY CO.LTD
WWW.SPEEDWOLF.NET

VAJRA80 Rotorcraft User's manual
2/ 21
Contents
I. Disclaimer .........................................................................................................................................3
II. Install softwar ................................................................................................................................. 4
III. Why do the calibration?...........................................................................................................6
IV. The Connectivity Software ....................................................................................................7
V. Calibration Compass..................................................................................................................12
VI. Calibration Accel.......................................................................................................................14
VII. Calibration Controller .............................................................................................................17

VAJRA80 Rotorcraft User's manual
3/ 21
I. Disclaimer
Dear users,
Thank you so much for choosing our VAJRA80.Our company do not assume all the loss from
the situations as below, so please carefully read the disclaimer before the flight to avoid
bring you some troubles.
1. All the loss resulting from using the aircraft in no-fly zone or danger area.
2. All the loss resulting from misoperation , misjudgment or beyond visible range during flight, etc.
3. All the loss resulting from appearing operational errors on purpose.
4. All the loss resulting from unauthorized disassembling, modification or installation has been performed.
5. All the loss resulting from appearing some situation that are not suitable for using this products, such as
distraction, a cluttered mind and fuzzy thinking, etc.
6. All the loss resulting from the enforced use while the aircraft is in some special conditions (inflowing any
fluid, the machine with serious damage, after power warning, etc ).
7. All the loss resulting from the accident caused by being close to the crowd or navigational hazard.
8. All the loss resulting from the crash caused by the wrong operation that does not follow the instructions
or the critical low-battery error due to excessive battery discharge in a single flight time.
9. All the loss resulting from some reason being not suitable for flight, such as bad weather conditions
(thunderstorm day, greasy weather, heavy wind, etc) or the environment with strong electromagnetic
interference.
10.All the loss resulting from the incorrect use for the battery or the charger is not provided by our company.
11.All the loss resulting from beyond our scope of responsibility.
12.This statement shall be explained by Shenzhen Speedwolf Technology Co.,Ltd.
This product is only suitable for adults over the age of 18.
Regard as accepting this statement for any users who areusing
these products.
RERURN CONTENTS

VAJRA80 Rotorcraft User's manual
4/ 21
II. Install software
This software does not need to install,directly use it after decompressing files,please follow the steps below to operate.

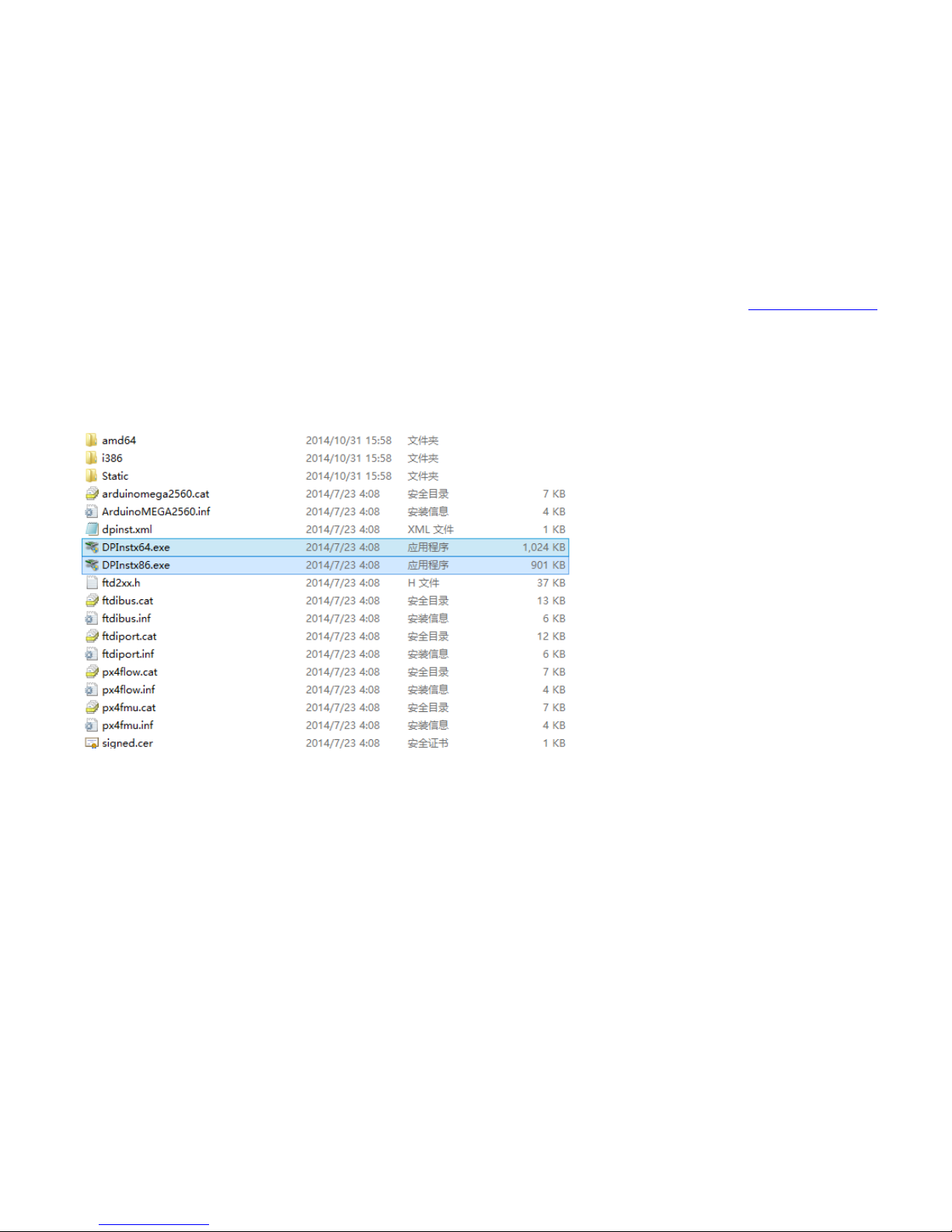

(1)Install the driver that is included in "Drivers".
(PS:checking the operating system is 32-bit or 64-bit,if it is,please install DPInstx86.exe;if it is 64-bit,please install DPInstx64.exe.)
(2)Install "NET framework","dotnetfx45_full_x86_x64" is the installation file for 32-bit operating system (please download
the file for 64-bit on the Internet.),or use this link:http://www.microsoft.com/zh-cn/download/details.aspx?id=30653.
RERURN CONTENTS

VAJRA80 Rotorcraft User's manual
5/ 21
(3)Decompress the files "speedwolf.rar" , then find "speedwolf.exe" in the folder "speedwolf".,and direcly double-click to
open ‘speedwolf.exe’
RERURN CONTENTS

VAJRA80 Rotorcraft User's manual
6/ 21
III. Why do the calibration?
1. All VAJRA 80 have already been conducted a comprehensive accurate calibration, the aircraft can adapt all regions; if there is no
the following conditions, please do not calibrate. Meanwhile, under the guidance of calibration from our technicians, please have a
comprehensive test in an unmanned, open, safe zone after calibration.
2.When VAJRA80 improper operation or collision resulting in serious wrestling machine, it may lead to flight instability, there are
situations such as flight tilt, tilt takeoff seriously (Calibration Accel), control VAJRA80 forward, back, left and right movement , the
apparent direction of a deviation.( Calibrate Compass OR Calibration Controller)
3.VAJRA80 appears circling when it is hovering(Calibration Compass）)
4.The direction of VAJRA 80 is error during the automatic return, or occurs circling after returning, instead of the automatic
landing.( Calibration Compass）
5.Heavily skewed when the drone takeoff (Calibration Accel,Calibration Controller）
6.Move around when controlling VAJRA80(Calibration Controller）
7.Rising or falling, or sideways drift when the GPS position joystick in middle is set to hover.(Calibration Controller OR Calibration
Accel）
RERURN CONTENTS

VAJRA80 Rotorcraft User's manual
7/ 21
IV. The Connectivity Software
1. Please find USB interface in plane's tail.
RERURN CONTENTS

VAJRA80 Rotorcraft User's manual
8/ 21
2.Connect computer use USB Extension cord. .
3.Follow steps 1 to find the "speedwolf.exe" in speedwolf folder, double-click to open the software as follows:

VAJRA80 Rotorcraft User's manual
9/ 21
4.Select the port
RERURN CONTENTS

VAJRA80 Rotorcraft User's manual
10 / 21
5.Click "Connect" pop-up connection status dialog box that displays "Done" If successful in loading external data, otherwise check
the line if there are problems.
RERURN CONTENTS

VAJRA80 Rotorcraft User's manual
11 / 21
6. Select "Calibration" option
RERURN CONTENTS

VAJRA80 Rotorcraft User's manual
12 / 21
V. Calibration Compass
RERURN CONTENTS

VAJRA80 Rotorcraft User's manual
13 / 21

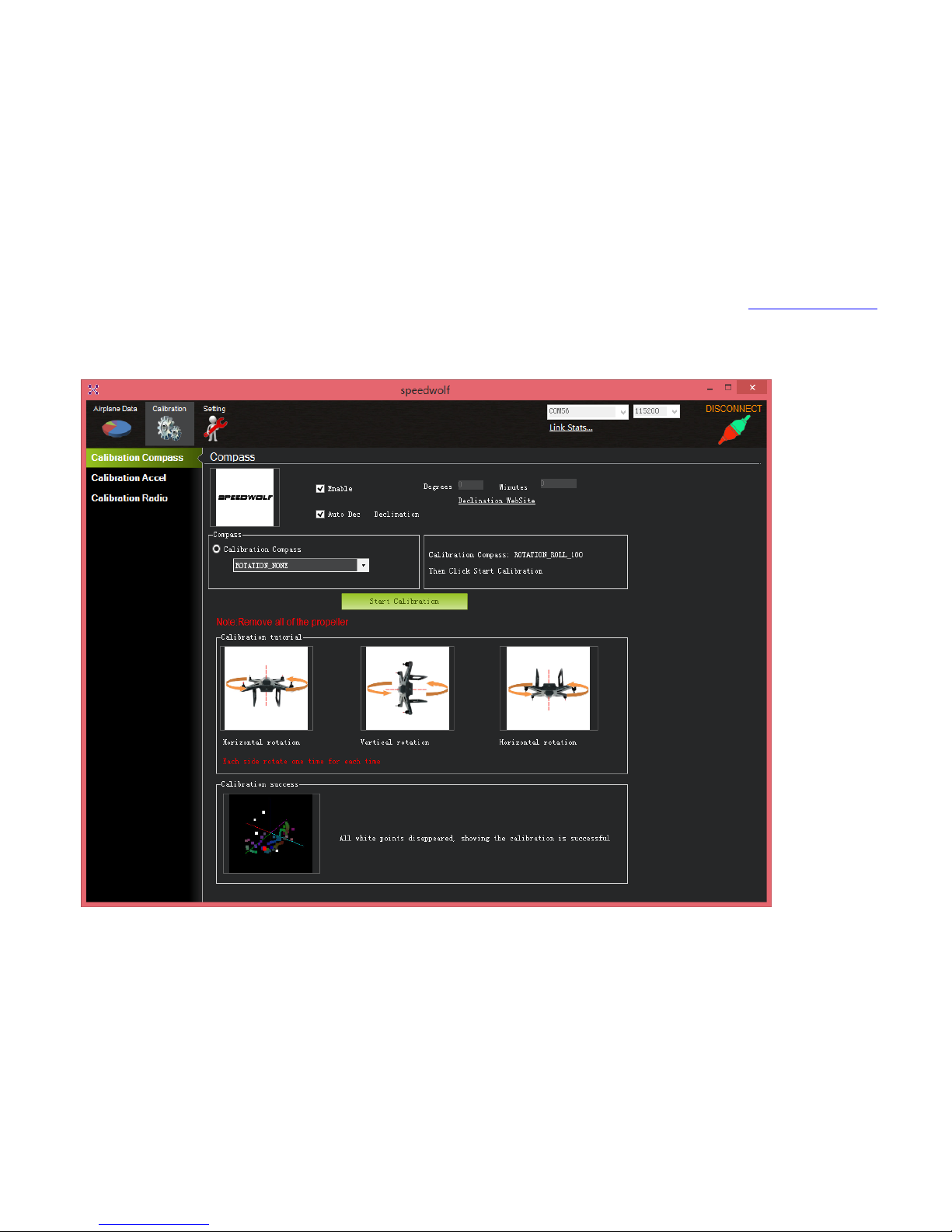

1.Select Calibration compass, then in the right click "Start Calibration" to start the calibration.
2.According to the figure, each direction needs to be rotated 360 °; if the figure white dots disappear that means success.
RERURN CONTENTS

VAJRA80 Rotorcraft User's manual
14 / 21
VI. Calibration Accel
RERURN CONTENTS

VAJRA80 Rotorcraft User's manual
15 / 21

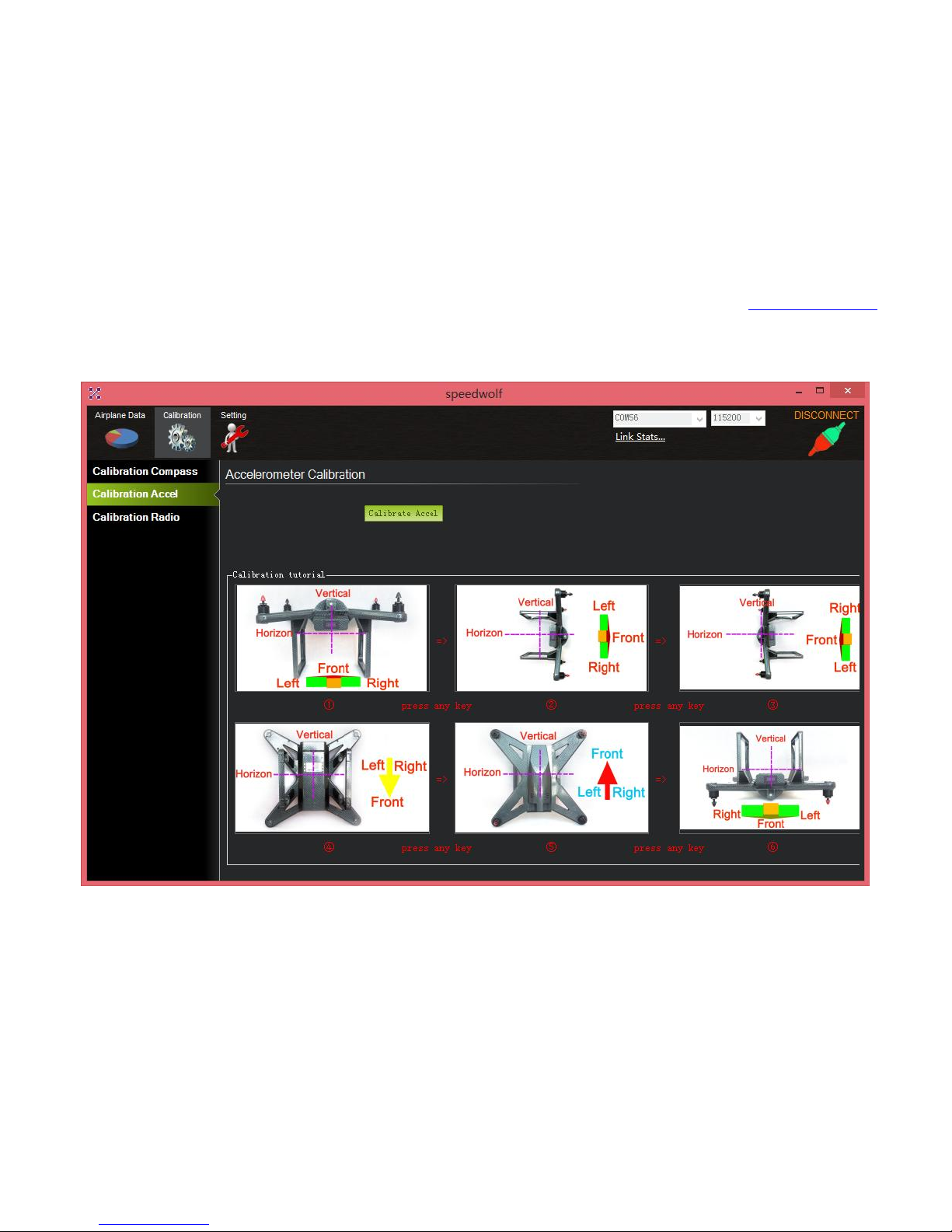

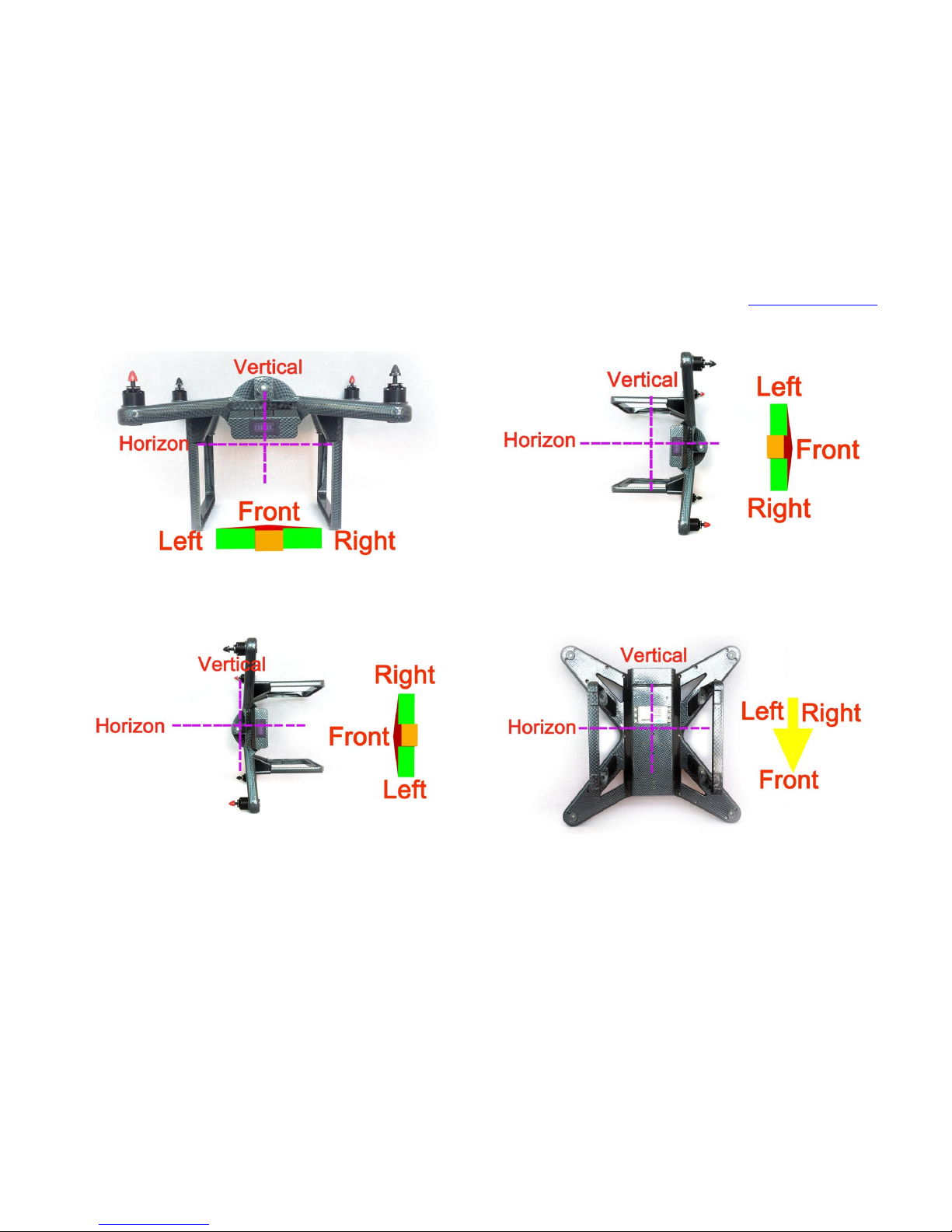

1.Select “Calibration Accel”, according to the order of the drawing to make the calibration.
①Press any key ②
③Press any key ④
RERURN CONTENTS

VAJRA80 Rotorcraft User's manual
16 / 21
⑤Press any key ⑥
RERURN CONTENTS

VAJRA80 Rotorcraft User's manual
17 / 21
VII. Calibration Controller
RERURN CONTENTS

VAJRA80 Rotorcraft User's manual
18 / 21

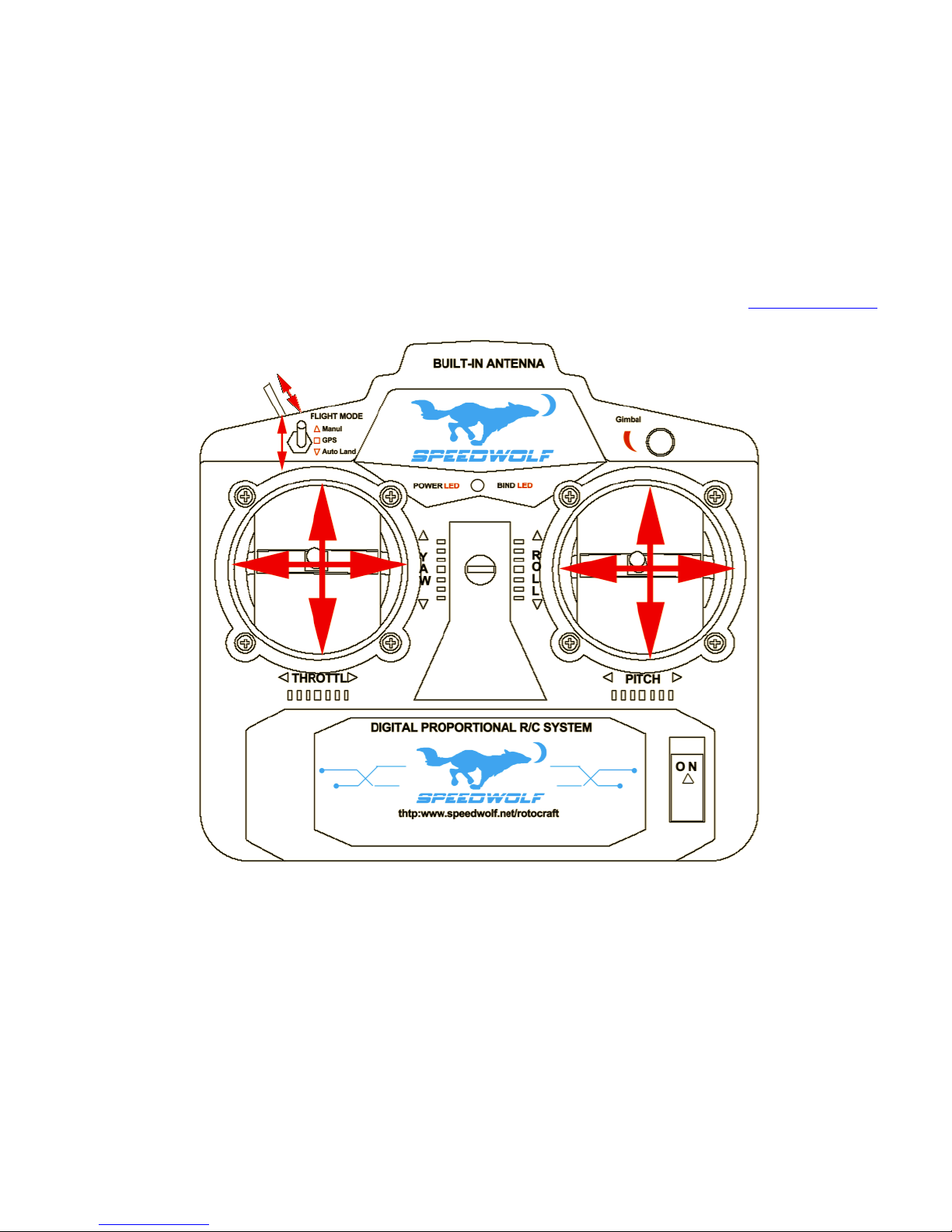

The two rockers shown and two DIP switch is in the end according to the direction of the arrow.
RERURN CONTENTS

VAJRA80 Rotorcraft User's manual
19 / 21
RERURN CONTENTS

VAJRA80 Rotorcraft User's manual
20 / 21
Click "OK" to finish calibrate.
RERURN CONTENTS
