SperryMarine VisionMaster FT Series User manual

Part Number: 65900011-2 Printed in England December 2006
Revision: A
Ship’s Manual
Northrop Grumman Sperry Marine B.V.
118 Burlington Road, New Malden, Surrey, KT3 4NR England
Tel: [phone] Fax: [phone]

P REAMBLE

I NTENTIONALLY L EFT B LANK

VisionMaster Ship’s Manual Warnings and Cautions
65900011 Preamble–iii
Warnings and Cautions
Radar and other forms of RF radiation can cause Cardiac Pacemakers to malfunction. If you
use a Cardiac Pacemaker and suspect a malfunction, leave the vicinity of the radar system
immediately and seek medical advice.
Most countries accept that there is no significant radiation hazard at RF power density levels
of up to 10 mW/cm2.
WARNING! – LETHAL VOLTAGE HAZARD
Lethal voltages may be exposed when access covers are removed.
Some capacitors take several minutes to discharge their stored
voltages after the equipment is switched OFF: this is a lethal voltage
hazard. Always set the supply switch-fuse to OFF and remove the
fuses before removing the access covers of the equipment.
WARNING! – HEALTH HAZARD
When cleaning the inside of the equipment, take care not to inhale
dust. The dust is a temporary health hazard, depending on individual
allergies.
WARNING! – RADIATION HAZARD
Keep outside the hazard zone around an antenna or open waveguide
radiating power. Refer to the table below for hazard zones. When you
need to work on the Scanner Unit, make sure the radar is switched
OFF, and that both the Mains Isolator and the Scanner Control Unit
are turned to the OFF position.
Never look directly into an open waveguide.
Table 1: Hazard Zones
Antenna Length 10 mW/cm2 1 mW/cm2
1.2m X-band 1.7m 17m
1.8m X-band 1.05m 10.5m
2.4m X-band 0.75m 7.5m
2.7m S-band 0.73m 7.3m
3.7m S-band 0.55m 5.5m
WARNING! – ELECTROSTATIC SENSITIVE DEVICES (ESSDS)
The equipment contains ESSDs. Take care not to damage these
devices by discharge of electrostatic voltages.

I NTENTIONALLY L EFT B LANK

VisionMaster Ship’s Manual Revision Record
65900011 Preamble–v
Revision Record
Table 2: Revision Record
Revision No Issue Date Date
Incorporated Incorporated By
Issue 1 November 2006

I NTENTIONALLY L EFT B LANK

VisionMaster Ship’s Manual Modules and Assemblies
65900011 Preamble–vii
Modules and Assemblies

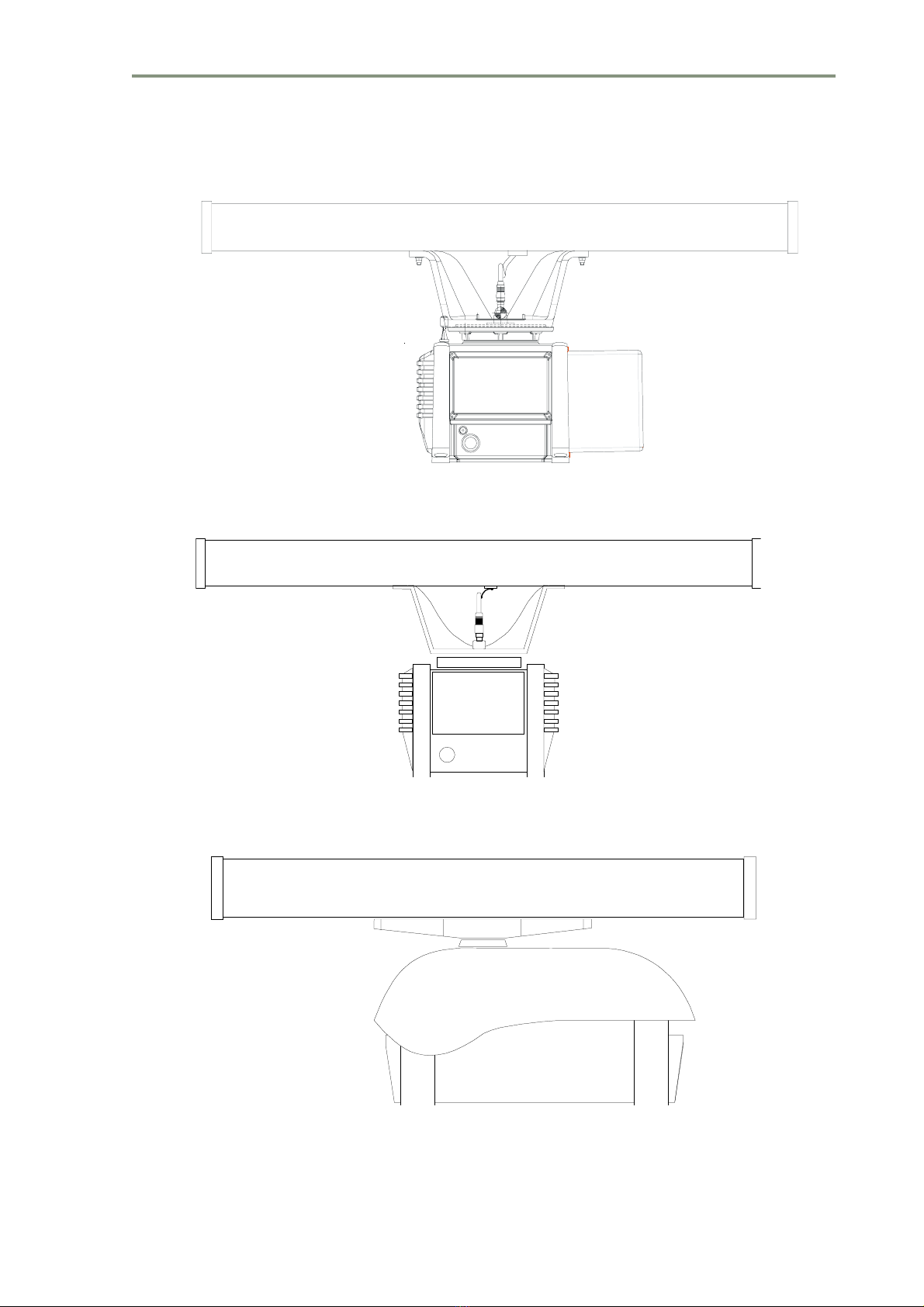

VisionMaster - S-band Scanner Unit (with integral Transceiver)
VisionMaster - S-band Scanner Unit (for use with bulkhead Transceiver)
VisionMaster - X-band Scanner Unit (with integral or bulkhead Transceiver)

Modules and Assemblies VisionMaster Ship’s Manual
Preamble–viii 65900011
VisionMaster - S-Band Bulkhead Transceiver
VisionMaster - X-Band Bulkhead Transceiver

VisionMaster Ship’s Manual Modules and Assemblies
65900011 Preamble–ix

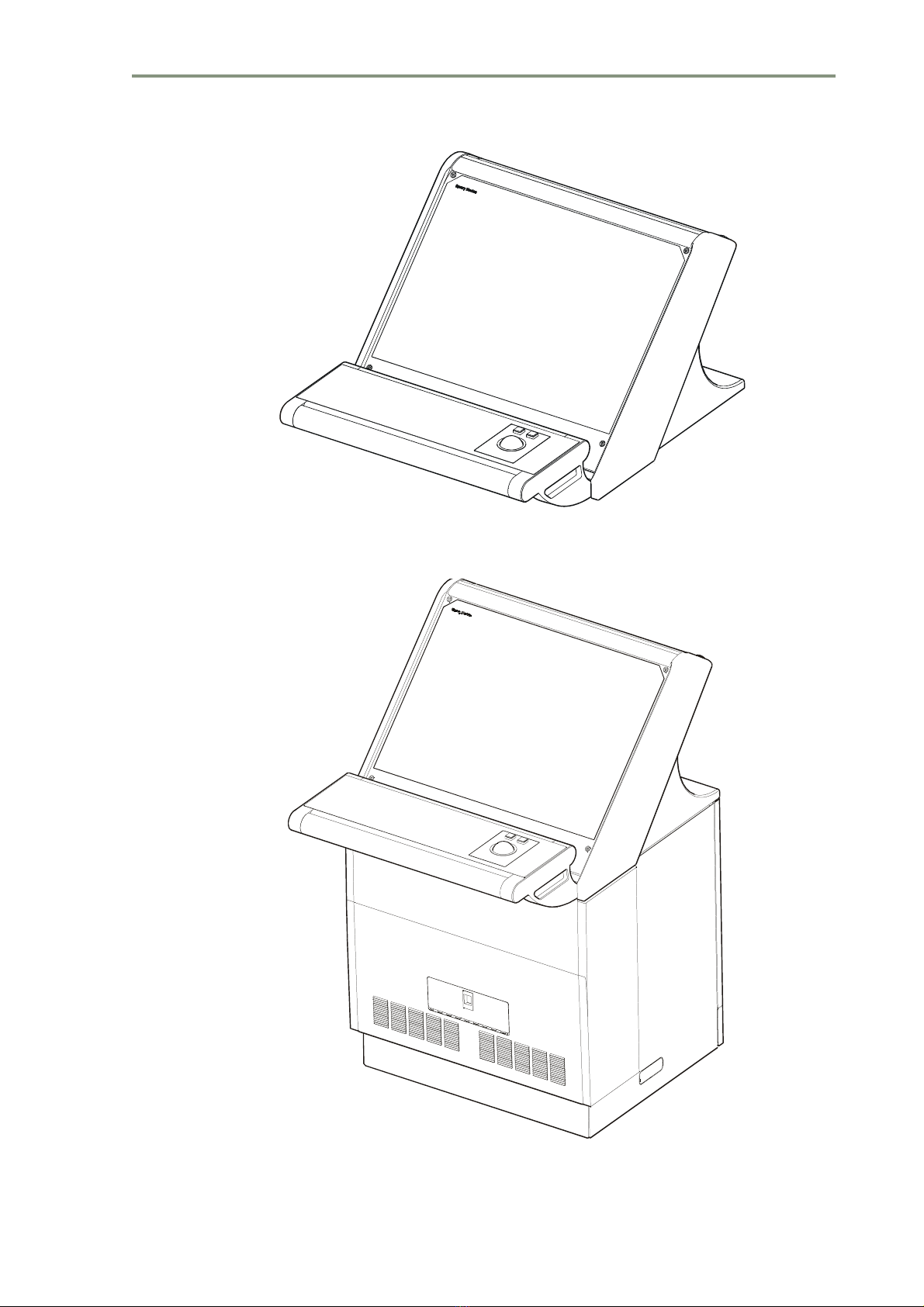

VisionMaster - 340 Table Mounted Console
VisionMaster - 340 Pedestal Console

Modules and Assemblies VisionMaster Ship’s Manual
Preamble–x 65900011

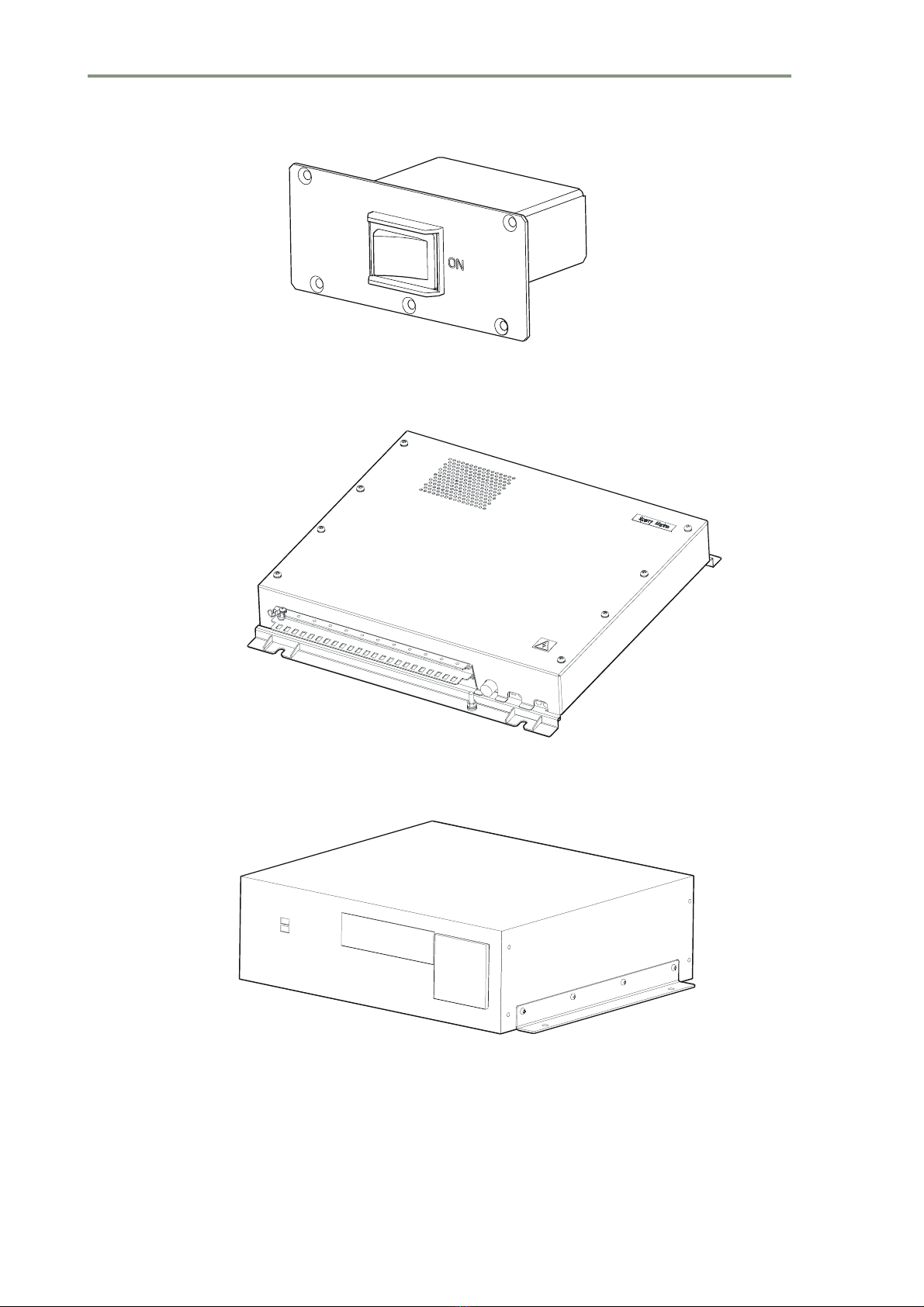

On/Off Switch
PCI/O Unit
Processor Unit

VisionMaster Ship’s Manual Modules and Assemblies
65900011 Preamble–xi

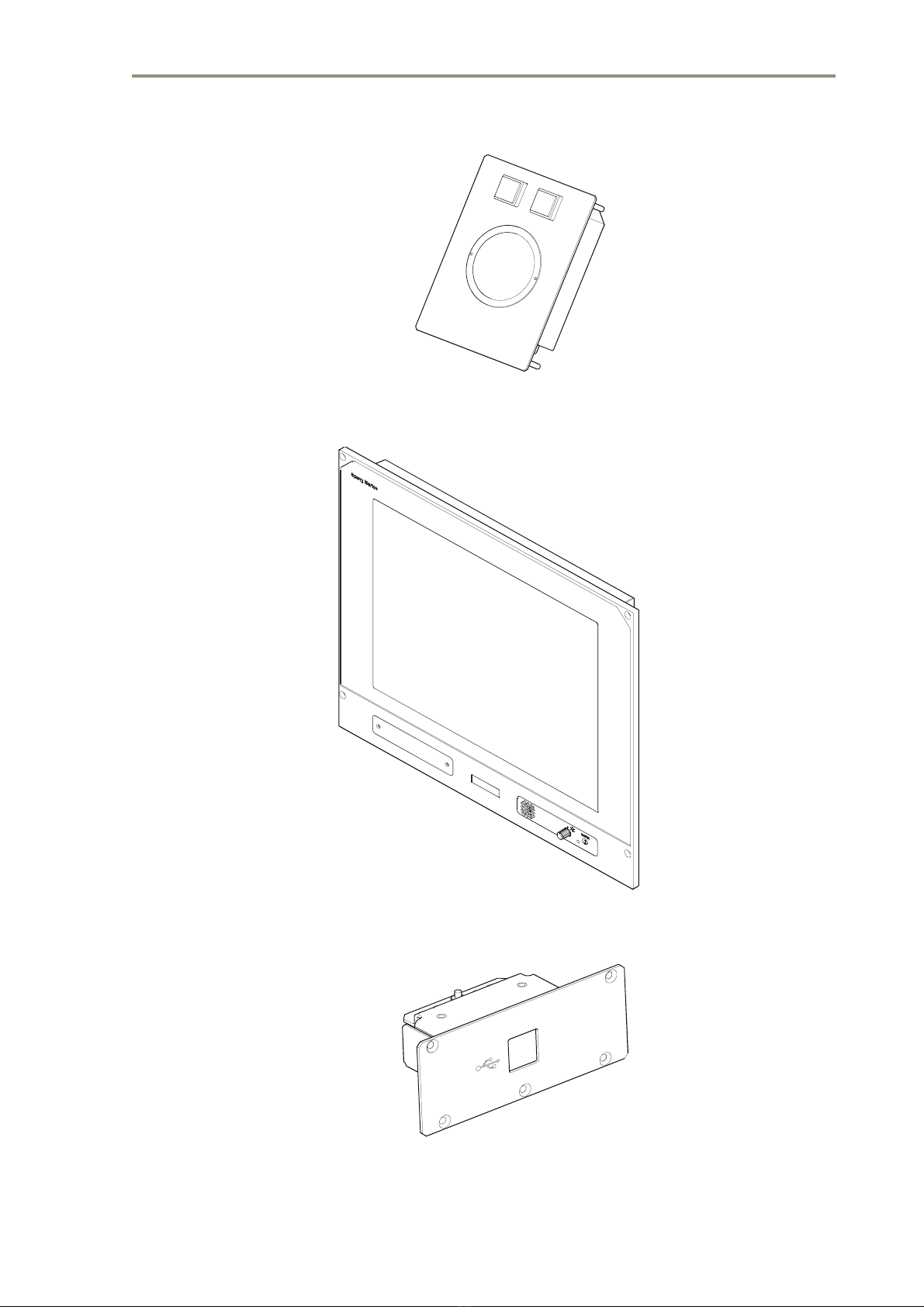

Trackball
Flat Panel Monitor
USB Connector

Preface VisionMaster Ship’s Manual
Preamble–xii 65900011
Preface
HOW TO USE THIS MANUAL
This manual is intended for use by the installation and service engineer. The structure
and design of the manual should help you to quickly find the information that you need.
Consistent presentation techniques are used throughout the manual. For ease of use,
the manual is divided into the following chapters:
•Chapter 1 - Technical Specification. Includes a full specification of the
VisionMaster FT Radar Series, both operational and technical.
•Chapter 2 - System Identification. Details the system’s identity labels and unit
type numbers.
•Chapter 3 - Installation. Includes descriptions of cable types and system
component installations, including installation diagrams and inter-unit cabling
information.
•Chapter 4 - Configuration. Details the configuration procedures for the
VisionMaster FT system using the configuration tool.
•Chapter 5 - Diagnostics and Commissioning. Describes the diagnostics and
commissioning functions in the VisionMaster FT System menu.
•Chapter 6 - Chart Installation. Describes the use of the Sperry Chart Installer
utility. Appendix A details C-MAP eToken registration; Appendix B comprises the
SevenCs Chart Handler User Guide.
•Chapter 7 - Fault Reporting and First Line Servicing. Describes the
procedures for fault reporting and details all first line servicing permitted.
•Chapter 8 - Routine Maintenance. Describes the procedures for routine
maintenance.
•Chapter 9 - Modifications. Used for recording system and equipment
modifications after release of publication.
•Chapter 10 - Interswitch Units. Describes 2-way and 6-way Interswitch units.
•Chapter 11 - Additional Features. Details the special options for transceivers
and turning units, covering the specification, installation, commissioning and
servicing.
NOTICE
Northrop Grumman Sperry Marine B.V. have a policy of continuous development. This may lead to the
equipment described in this manual being at variance with equipment manufactured after its
publication.
The document may not be reproduced either in part or in whole without the permission of
Northrop Grumman Sperry Marine B.V.

VisionMaster Ship’s Manual Related Documents
65900011 Preamble–xiii
Related Documents
Other publications in the VisionMaster FT series are listed in Table 3 below:
Table 3: Related Documents
Document Title Document Number
ECDIS Bridge Card 65900008
ARPA Radar/Chart Radar Bridge Card 65900009
ARPA Radar/Chart Radar User’s Guide 65900010
ECDIS User’s Guide 65900012

NGSM Software Licence Agreement VisionMaster Ship’s Manual
Preamble–xiv 65900011
NGSM Software Licence Agreement
When you receive your equipment, it will include factory installed software, the use of which is
subject to the following Licence Agreement below.
* * * IMPORTANT * * *
READ THE LICENCE TERMS PRINTED BELOW BEFORE USING THE EQUIPMENT. USE
OF THE EQUIPMENT INDICATES YOUR
ACCEPTANCE OF THE TERMS OF THE LICENCE AGREEMENT.
LICENCE AGREEMENT
This legal document is an agreement between you (“the Customer”) and Northrop Grumman
Sperry Marine B.V. (“the Company”).
BY USING THE VISIONMASTER FT HARDWARE PRODUCT SYSTEM UPON WHICH THE
COMPANY HAS INSTALLED THE SOFTWARE THE CUSTOMER IS AGREEING TO
BECOME BOUND BY THE TERMS OF THIS AGREEMENT.
FAILURE TO COMPLY WITH THIS AGREEMENT WILL INVALIDATE THE WARRANTY OF
THE VISIONMASTER FT PRODUCT SYSTEM UPON WHICH THE COMPANY HAS
INSTALLED THE SOFTWARE (“THE SOFTWARE”) AND MAY RESULT IN LEGAL
PROCEEDINGS BEING TAKEN AGAINST THE CUSTOMER.
THIS LICENCE AGREEMENT SHALL BE GOVERNED CONSTRUED AND SHALL TAKE
EFFECT IN ACCORDANCE WITH THE LAWS OF ENGLAND AND SHALL BE SUBJECT
TO THE EXCLUSIVE JURISDICTION OF THE ENGLISH COURTS TO WHICH THE
CUSTOMER AND THE COMPANY BY AGREEMENT IRREVOCABLY SUBMIT.
THE CUSTOMER IS AUTHORISED TO USE THE SOFTWARE ON THE VISIONMASTER
FT HARDWARE PRODUCT SYSTEM UPON WHICH IT WAS INSTALLED BY THE
COMPANY. THE SOFTWARE MAY NOT BE COPIED OR TRANSFERRED FOR USE ON
ANY VISIONMASTER FT HARDWARE PRODUCT SYSTEM OTHER THAN THAT ON
WHICH IT WAS INSTALLED BY THE COMPANY.
The software is supplied to the Customer. The Company grants the Customer a world-wide
royalty-free licence to use the Software provided that:
1. The Customer shall only operate the Software in conjunction with the VisionMaster FT
hardware product system upon which it was installed by the company. No other use is
authorised, and in particular the Customer may not transfer use of the Software to any
other VisionMaster FT hardware product system owned or used by the Customer.
2. The Customer shall not reverse assemble, modify or decompile the Software except only to
the extent expressly permitted by the provisions of the Copyright, Designs and Patents Act
1988.
3. The Customer shall not make copies of the Software.

VisionMaster Ship’s Manual NGSM Software Licence Agreement
65900011 Preamble–xv
4. The Customer shall not have any title to or ownership of the Software or copyright or any
other intellectual property right in the Software, but shall have ownership of the physical
media.
5. The Customer acknowledges that the Software may in part have been developed by any
third party software supplier(s) named in the copyright notice(s) included with the Software
and agrees where this is the case that the third party supplier(s) (or the Company on behalf
of the third party supplier) shall be entitled to enforce the provisions of this Agreement to
the extent reasonably necessary to protect its interest as owner of such third party
software.
6. The Customer shall not rectify or have rectified any defect in the Software. The Customer
shall give the Company full details in writing of any serious defect and the Company shall
use reasonable endeavours to issue any correction necessary to rectify the defect as soon
as reasonably practicable thereafter, at no cost to the Customer.
7. The Customer shall not sublicense the Software to third parties or supply transfer or assign
the Software to third parties.
8. The Software may be enhanced or corrected from time to time by the Company or by any
such third party software supplier referred to above. All such corrections and
enhancements shall be subject to the restrictions set out in this Licence Agreement. Any
such enhancements shall be supplied at the Company's current rates prevailing at the date
of invoice.
9. The Company may revoke the licence granted to the Customer if the Customer shall go
into receivership liquidation, administration, or any other insolvency process, or shall fail to
comply with any of these conditions provided that (in the case of any breach capable of
remedy) the Customer has been requested by notice in writing to cure the failure and has
failed to do so within thirty (30) days of such notice.
10.The Customer shall ensure the security of the Software and shall not disclose the Software
or any parts thereof to any third party not approved beforehand by the Company. Insofar as
it is necessary to disclose the Software or aspects thereof to employees or to third parties
dealing with Customer in relation to matters for which the Software is used, such disclosure
is permitted only to the extent necessary for such purpose and only to the employee or
other persons who require to know the same.

Third Party Software Licence Agreements VisionMaster Ship’s Manual
Preamble–xvi 65900011
Third Party Software Licence Agreements
The use of the Visionmaster FT software is subject to the Northrop Grumman Sperry
Marine (NGSM) software license agreement and other third party license terms.
Included in this chapter are the following third party software license agreements:
• NSpring Framework for .NET
• OpenNETCF.org Shared Source License
• Microsoft OEM License Agreement for Embedded Systems
Copies of all other third party software license agreements from sources other than
NGSM are available upon request.

VisionMaster Ship’s Manual Third Party Software Licence Agreements
65900011 Preamble–xvii
NSpring Framework for .NET
Copyright (c) 2003, Jeffrey Varszegi
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are
permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of
conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.
3. Neither the name of the NSpring project nor the names of its contributors may be
used to endorse or promote products derived from this software without specific
prior written permission from the copyright owner.
4. No product derived from this software may be called "NSpring", nor may "NSpring"
appear in the name of such a product, without specific prior written permission from
the copyright owner.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED
AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.

Third Party Software Licence Agreements VisionMaster Ship’s Manual
Preamble–xviii 65900011
OpenNETCF.org Shared Source License
This license governs use of the accompanying software (“Software”), and your use of
the Software constitutes acceptance of this license.
You may use the Software for any commercial or noncommercial purpose, including
distributing derivative works.
In return, we simply require that you agree:
1. Not to remove any copyright or other notices from the Software.
2. That if you distribute the Software in source code form you do so only under this
license (i.e. you must include a complete copy of this license with your distribution)
3. That if you distribute the Software in object form, you do so only in conjunction with
and as a part of a software application product developed by you that adds
significant and primary functionality to the Software.
4. That you will (a) not use OpenNETCF.org’s name, logo, or trademarks in
association with distribution of the Software or derivative works unless otherwise
permitted in writing; (b) display your own valid copyright notice which must be
sufficient to protect OpenNETCF.org’s copyright in the Software; and (c) indemnify,
hold harmless, and defend OpenNETCF.org from and against any claims or
lawsuits, including attorneys’ fees, that arise or result from the use or distribution of
your modifications to the Software and any additional software you distribute along
with the Software
5. That if you have modified the Software or created derivative works, and you
distribute such modifications or derivative works, you will cause the modified files to
carry prominent notices so that recipients know that they are not receiving the
original Software. Such notices must state: (a) that you have changed the Software;
and (b) the date of any changes.
6. That the Software comes "as is", with no warranties. None whatsoever. This means
no express, implied or statutory warranty, including without limitation, warranties of
merchantability or fitness for a particular purpose or any warranty of title or non-
infringement. Also, you must pass this disclaimer on whenever you distribute the
Software or derivative works.
7. That neither OpenNETCF.org nor any contributor to the Software will be liable for
any of those types of damages known as indirect, special, consequential, or
incidental related to the Software or this license, to the maximum extent the law
permits, no matter what legal theory it’s based on. Also, you must pass this
limitation of liability on whenever you distribute the Software or derivative works.
8. That if you sue anyone over patents that you think may apply to the Software for a
person's use of the Software, your license to the Software ends automatically.
