INSTALLATION MANUAL
www.spitzerlighting.com 702 Interchange Blvd., Newark, DE 19711 • Toll Free: 844-312-4574 Specication is subject to change without notice 1/2
LED WALL SCONCE
WS15W3K
SAFETY INFORMATION
SAFETY INFORMATION
PACKAGE CONTENTS
DIMMING COMPATIBLE CONTROLS
CAUTION:
PRE-INSTALLATION
PLEASE READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE ATTEMPTING TO ASSEMBLE,
OPERATE OR INSTALL THE PRODUCT.
• Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse or switching off
circuit breaker.
• Be careful not to damage or cut the wire insulation (covering) during xture installation. Do not permit wires to contact any
surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury or death from
electric shock.
• LED electronics can be damaged by electro static discharge (ESD) shock. Before installation, discharge yourself by touching a
grounded bare metal surface to remove this hazard. To avoid damage, do not touch the LED module.
• All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
• Contact your municipal building department to learn about your local codes, permits and/or inspections.
• RISK OF FIRE – most dwellings built before 1985 have supply wire rated for 140°F/60ºC.Consult a qualied electrician before
installation.
• Do not connect this xture to an electrical system that does not provide a means for equipment grounding. Never use a xture
in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means, do not attempt to
install this xture. Contact a qualied, licensed electrician for information with regards to proper grounding methods as required
by the local electrical code in your area.
• If a dimmer control switch is used with this xture, obtain professional advice to determine the correct type and electrical rating
required.

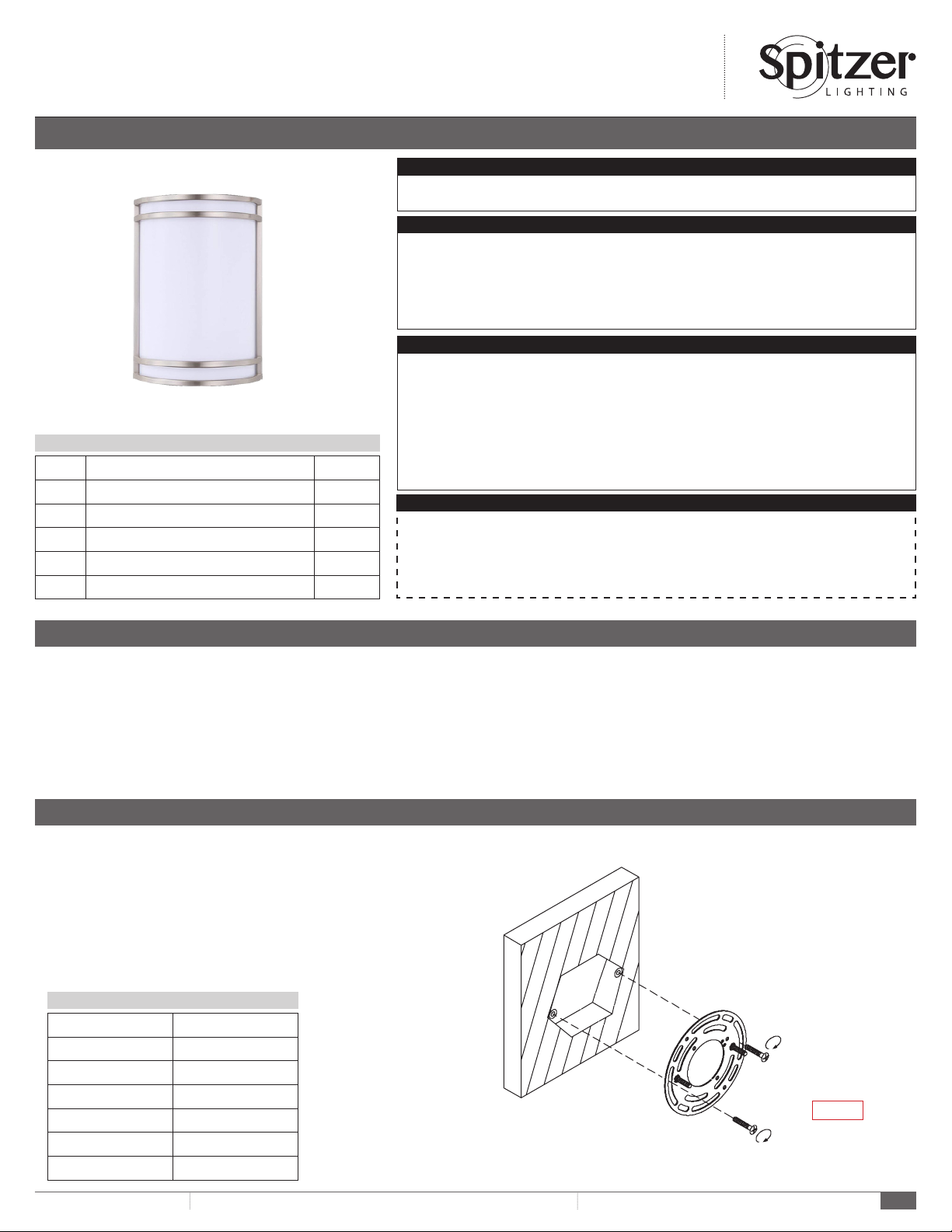

STEP 1
Use 2 pieces of umbrella head screws in the accessory bag to x the
installation plate onto the junction box;
• BEFORE BEGINNING ASSEMBLY, INSTALLATION OR OPERATION OF PRODUCT, MAKE SURE ALL PARTS ARE PRESENT.
COMPARE PARTS WITH PACKAGE CONTENTS LIST AND DIAGRAM ON PREVIOUS PAGE. IF ANY PART IS MISSING OR
DAMAGED, DO NOT ATTEMPT TO ASSEMBLE, INSTALL OR OPERATE THE PRODUCT. CONTACT CUSTOMER SERVICE FOR
REPLACEMENT PARTS.
• TOOLS REQUIRED FOR ASSEMBLY (NOT INCLUDED): SCREWDRIVER, PHILLIPS SCREWDRIVER, PLIERS, ELECTRICAL TAPE,
WIRE CUTTERS, SAFETY GLASSES, LADDER, WIRE STRIPPER.
• NON-REPLACEABLE LED’S.
• IF YOU ARE NOT FAMILIAR WITH THE STATE AND LOCAL CODES, IT IS RECOMMENDED THAT YOU CONSULT WITH A QUALIFIED ELECTRICIAN.
• SUITABLE FOR DAMP LOCATION, USE INDOORS ONLY.
• CAUTION: LED’S EMITS BRIGHT LIGHT. AVOID LOOKING DIRECTLY INTO THE LIGHT SOURCE FOR LONG PERIODS TO AVOID EYE DAMAGE.
• DIMMABLE (SOLD SEPARATELY).
• 120V FOR RESIDENTIAL USE.
INSTALLATION
ASSEMBLY INSTRUCTIONS
PART DESCRIPTION QTY
-- LED Wall Sconce Fixture 1
AMounting bracket 1
BMounting Screws 2
COutlet box screws 2
DWire nuts 3
LUTRON LEVITON
SCL-153P IPM10-1LZ
TGCL-153P
DV-603P
PD-6WCL
MACL-153M
AY-600P
( TO AVOID RISK OF ELECTRIC SHOCK, MAKE SURE TO TURN OFF MAIN POWER SWITCH PRIOR TO INSTALLATION OR MAINTENANCE)
STEP 1

INSTALLATION MANUAL
www.spitzerlighting.com 702 Interchange Blvd., Newark, DE 19711 • Toll Free: 844-312-4574 Specication is subject to change without notice
LED WALL SCONCE
WS15W3K
2/2
CAUTION: Before attempting to clean the xture, disconnect the
power to the xture by turning the breaker off or removing the fuse
from the fuse box. This LED light xture is made from quality materials
that will last many years with minimum care and maintenance. You
may want to clean the xture with a soft cloth periodically.
To maintain the best appearance of the xture, do not use cleaners
with chemicals, solvents or harsh abrasivers. Do not use liquid
cleaner on the LEDs, LED driver, or wiring inside the light xture.
TROUBLE SHOOTINGCARE AND MAINTENANCE
READ ALL INSTRUCTIONS. SAVE THESE INSTRUCTIONS
PROBLEM POSSIBLE CAUSE SOLUTION
Light will not come on A. Fixture not properly
connected.
B. Light bulbs not working.
C. Fixture not receiving power.
A. Check wires to ensure proper
connections.
B. Check to make sure breaker is on
and test another working electrical
device to make sure it is receiving
power.
Cable does not connect. Correct end of cable not
matched with correct end of
light.
Check markings on cable and light to
ensure proper pairing.
STEP 2
ELECTRICAL CONNECTIONS
Complete the wiring to the power source
and ground using minimum rated wire,
connectors in the accessory bag.Put the
electrical connections in the junction box.
A. Connect the black wire from the xture to
the voltage supply wire;
B. Connect the white wire from the xture to
the neutral supply wire;
C. Connect the ground wire from the xture
to the ground wire.
STEP 3
Use nuts to lock the xture onto the installation
plate.
STEP 4
Insert the glass diffuser inside the
xture.
INSTALLATION ( CONTINUATION)
STEP 2 STEP 4STEP 3
L
NN
G
G
L
