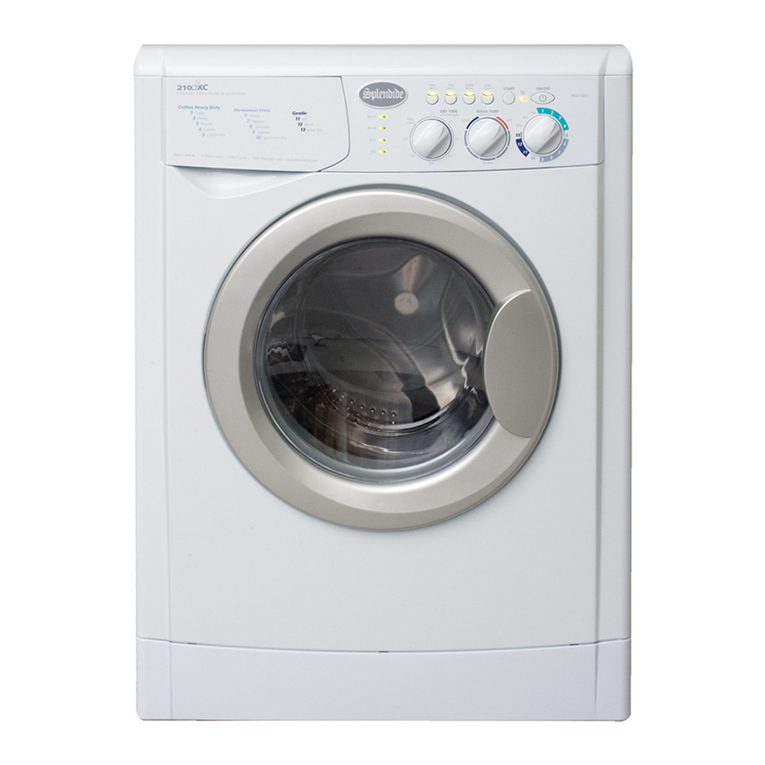

Splendide 2100XC User manual

Before setting the controls, always make sure,
WASH-TO-DRY AUTOMATICALLY
WASH
Select the wash cycle using the Cycle Selector;
select the wash water temperature using the WASH TEMP knob;
if desired, press any available OPTION button(s);
•
•
•
DRY
select the length of drying time using the DRY TIME knob;•
press START.
You will hear a ‘click’ when the Child Door Lock engages and the cycle will start.
When the wash cycle ends, the appropriate dry cycle will begin automatically.
•
WASH ONLY
WASH
Select the wash cycle,
temperature and any wash
options (see WASH above);
•
DRY
set the DRY TIME knob to
the OFF position ;
•
press the START button.
When the wash cycle ends, the
machine will stop.
•
DRY ONLY
DRY
Set the Cycle selector to
position 5, 10, or 13;
select the length of
drying time using the
DRY TIME knob;
•
•
press the START button.
When the dry cycle ends, the
machine will stop.
•
the drum is loaded correctly (see left);
the door is closed;
the ON/OFF button has been pressed,
so power is ON;
•
•
•
laundry aids have been added to
the Dispenser Drawer (see left);
the DOOR LOCK LED (D) is
flashing.
•
•
NOTE: To CANCEL a cycle and clear the controls, press and hold the START button.
Cycle Selector
DRY TIME
Cycle
Status
LED’s
ON/OFF
WASH TEMP
User Quick Guide
WASH
Fabric Type Maximum Load
Cottons 2 to 15 lbs.
Synthetics 2 to 9 lbs.
Delicates 2 to 8 lbs.
Wools 2 to 3 lbs.
DRY
Fabric Type Maximum Load*
ALL TYPES 8 to 11 lbs.
* MAX LOAD on the DRY TIME knob is
meant only for very full/11lb-loads
and will run for 180 minutes.
LOAD SIZES
For best results, DO NOT load the drum
more than 1/2 to 2/3 full when DRYING.
Bleach
(with bin)
PreWash Detergent
(without bin)
1 to 2 TBSP
Powder
Detergent
(or liquid
equiv.)
1 to 2 TBSP
Liquid
Fabric
Softener
CHILD DOOR LOCK
Your washer-dryer is equipped with a
Child Door Lock. For your child’s safety,
the door stays locked for the duration of
the WASH
and DRY cycles. However,
the ‘Add-An-Item’ feature allows you to
unlock the door when needed.
NOTE: The ‘Add-An-Item’ feature is not
available whenever it is unsafe to open
the door (i.e. during high spins, if water
level is to high, etc.)
DRYING RESULTS
Your washer-dryer operates on 110V and
has a 1300W dryer. It will take longer to dry
than a traditional dryer (which operates on
220V, 5000W). However, you can increase
the efficiency of the dryer by following
these tips:
Try to keep the door closed during the
dry cycle. This conserves energy by
trapping heat,
use a LOW SUDSING DETERGENT.
use FABRIC SOFTENER or a detergent
with built-in softeners,
DO NOT OVERLOAD the drum,
DO NOT OVERDRY your laundry.
•
•
•
•
•
‘Add-An-Item’
Unlock
Press the ON/OFF button;
You will hear 2 ‘clicks’ when
the door unlocks. It is now
safe to open the door.
•
Resume
Close the door;
press the ON/OFF button
to resume the cycle.
•
•
IMPORTANT: Never attempt to open the door
when the Door Lock LED (D) is LIT SOLID.
OPTION Buttons START
Dispenser Drawer
PHONE: [phone] (503.655.2563) FAX: [phone] WEB: www.splendide.com

WHERE’S THE LINT FILTER?
Your washer-dryer is so gentle on
fabrics, that very little lint is produced.
It passes safely through a special,
‘self-cleaning’ pump system and then
out the drain and/or dryer vent of
your washer-dryer. There’s no filter
for you to clean!
However, if your washer-dryer
is vented (Model 2100XC),
it’s
recommended that you occasionally,
go outside and check the dryer vent
for proper airflow. Assure that the
vent and ducting are lint-free.
IMPORTANT! DO NOT DISCARD!
Keep this page with your owners manual for future reference
DOING LAUNDRY IN A COMBO
Don’t let laundry pile up. Keep up with
laundry by doing a small load every
day or two. Make it part of your routine
to throw a load in after your workout or
before you go to bed and let your Splen-
dide do the rest!
Because your washer-dryer is front-
loading and operates on 110V, cycle
times may be longer than what you’re
used to: 40 to 80 minutes to wash. 90 to
110 minutes to dry.
Your washer-dryer is extremely efficient.
You might not be able to see water in
the drum during wash. This is normal.
Once set, the Dry Time, Water Temp,
and Cycle knobs WILL NOT move.
The ‘Status LED’s’ will let you know the
progress of your cycle.
Always use fabric softener for
WASH-TO-DRY LOADS. Using softener
assures that the laundry falls easily from
the drum after high spin and tumbles
freely during the dry cycle.
•
•
•
•
•
To winterize your
washer-dryer,
WINTERIZE
With washer-dryer power
OFF, pour ½ quart of RV-type
antifreeze into washer drum;
Close door. Advance
Cycle
Selector
to ‘Spin’;
Press ON/OFF button, then
press START. let the washer-
dryer run for 1 to 2 minutes;
Press ON/OFF button to turn
power OFF.
1.
2.
3.
4.
END
Unplug washer-dryer
from electrical outlet (or
disconnect power);
Turn water supply faucets
OFF. Disconnect inlet hoses
from faucets;
Drain remaining water from
the hoses. FINISHED.
5.
6.
7.
To use your
washer-dryer again,
WINTERIZE
Reconnect water inlet hoses
to corresponding HOT/COLD
faucets. Turn faucets ON.
NOTE: Check water inlet hoses
and pump periodically (see
Users Guide);
Plug washer-dryer into
appropriate electrical outlet
(see Users Guide) - OR
reconnect power supply;
With washer-dryer power OFF,
pour 1/2 TBSP. of powder
detergent (or liquid equiv.)
into
compartment ‘2’ inside
Dispenser Drawer ;
Advance
Cycle Selector to
position ‘9’;
Press ON/OFF button, then
press START.
1.
2.
3.
4.
5.
END
Allow machine to run through
the complete cycle to clean
out any remaining antifreeze.
FINISHED.
6.
SPECIAL WINTERIZATION INSTRUCTIONS FOR RV/MARINE INSTALLATIONS :
Optional Winterization
instructions
If you’re currently pumping
antifreeze through your fresh water
system, you can follow these steps
to winterize your washer-dryer:
Winterization Option
With machine power OFF, turn
WASH TEMP knob to ‘HOT’;
Advance
Cycle Selector to
position ‘3’;
Press ON/OFF button, then
press START. Let machine fill
until the drum turns (could take
up to 1 to 2 minutes);
Press ON/OFF button to turn
power OFF;
Advance
Cycle Selector to
‘Spin’;
Press ON/OFF button, then
press START.
1.
2.
3.
4.
5.
6.
END
After letting antifreeze drain
completely from drum, press
the ON/OFF button to turn
power OFF. FINISHED.
7.
FOR BEST RESULTS,
NEVER OVERLOAD THE DRUM.
NEVER EXCEED the recommended
detergent and softener amounts.
USE FABRIC SOFTENER, or a
detergent with built-in softeners.
NEVER OVERDRY LAUNDRY. Moisture
is what makes fabrics soft and fluffy.
Use ‘Cotton Heavy Duty’ cycles ONLY for
heavy cottons (towels, jeans, etc.)
For items that may wrinkle, use ‘LOW
SPIN’ in wash and/or ‘LOW HEAT’ with
‘Synthetics Dry.’
For mixed loads, remove items that may
wrinkle while still damp (dress shirts,
etc.) Hand press and hang them. Then,
continue drying the rest of the load
(underwear, towels, etc.)
After washing, shake out LARGE ITEMS
(pants, sheets, etc.) Loosely fold them
and place them back in the drum. Then
dry them. This will improve drying times
and reduce fabric wrinkling.
•
•
•
•
•
•
•
•
COMBO WASHER-DRYER LAUNDRY TIPS
ABOUT VENTLESS DRYING
If your washer-dryer is ventless,
(Model 7100XC)
, when you remove
items after the self-condensing
drying process, they may feel slightly
damp. THIS IS NORMAL. Simply
shake items out to allow any steam
to dissipate (a few seconds) before
folding or hanging them as you
usually would.
NOTE: Splendide’s
self-condensing drying process
will not add heat or humidity to the
surrounding area.
