Splendide C6200CEE User manual

Data Sheet Includes Information On
Splendide
Product Model Number
WDC6200CEE - (LD)
Comb-o-matic 6200 Laundry Center
Installation Location:
· Unit may be installed in recessed area,
closet, or alcove.
· Air Space Requirements: 0" on sides and
1" in front and back (from the case).
Additional installation spacing needs to be
considered for easy installation, servicing,
and compliance with state and federal
codes.
· Floor must support at least 280 lbs. and be
a solid, level surface.
· When locating in a towable trailer or
watercraft, position the machine over
the axles or mid-ship where movement is
at a minimum. Block unit in to prevent
extreme movement.
Electrical Requirements:
· Machine Voltage/Amperage: 120V, 13 Amp,
60 Hz.
· Connection: 3-prong plug with 6' cord is
provided with unit.
· Circuit/Protector: 3-wire single phase, 120V,
60Hz, AC, on separate 15 Amp circuit.
Standpipe Drain System/ Sink Draining
Requirements:
· Needs a 1 ¼" (3.2 cm) minimum diameter
standpipe with the minimum carry-away
capacity of 7 gallons (26 liters) per minute.
Top of standpipe must be at least 25" (62
cm) high and no higher than 34" (86 cm)
from the bottom of the washer.
· Outlet end of drain hose (provided with the
unit) must be at least 20" above bottom of
washer. An air break must be available at
the standpipe to avoid siphoning.
· Faucet Adapter Kit #154187104A is
available to allow for direct faucet
connection. See complete installation
instruction on drain hose draining directly
into sink, connection to dishwasher Wye
fitting, and disposer/drain connection in
owners manual.
· Optional Drain-A-Way™ Pans are
available. Pan #PI-24 for cabinet or under-
counter installations. Pan #P-24 for free-
standing installations. Both are designed to
be drain plumbed.
NO DRYER VENT REQUIREMENTS ON
THIS MACHINE:
· This machine incorporates an internal
condenser for drying. All humidity stays
within the unit and is drained as water. No
heated or air conditioned air is exhausted
outside, so no vent is needed. This not
only conserves energy, but also avoids
problems with the delicate air balance
requirements in large multifamily
complexes.
Never reuse data sheets. Data sheets are subject to change without notice. Never use data sheets for final installation criteria. Complete
installation instructions are available upon request and in the owner's manual that comes with the unit.
23-7/16"
Water Inlets
Electrical Cord Location
6' cord length
HC
Control Panel
depending on
positioning of
leveling legs
Drain Outlet
6"
Plastic
U-Clamp
Flexible
Drain Hose
(5' length)

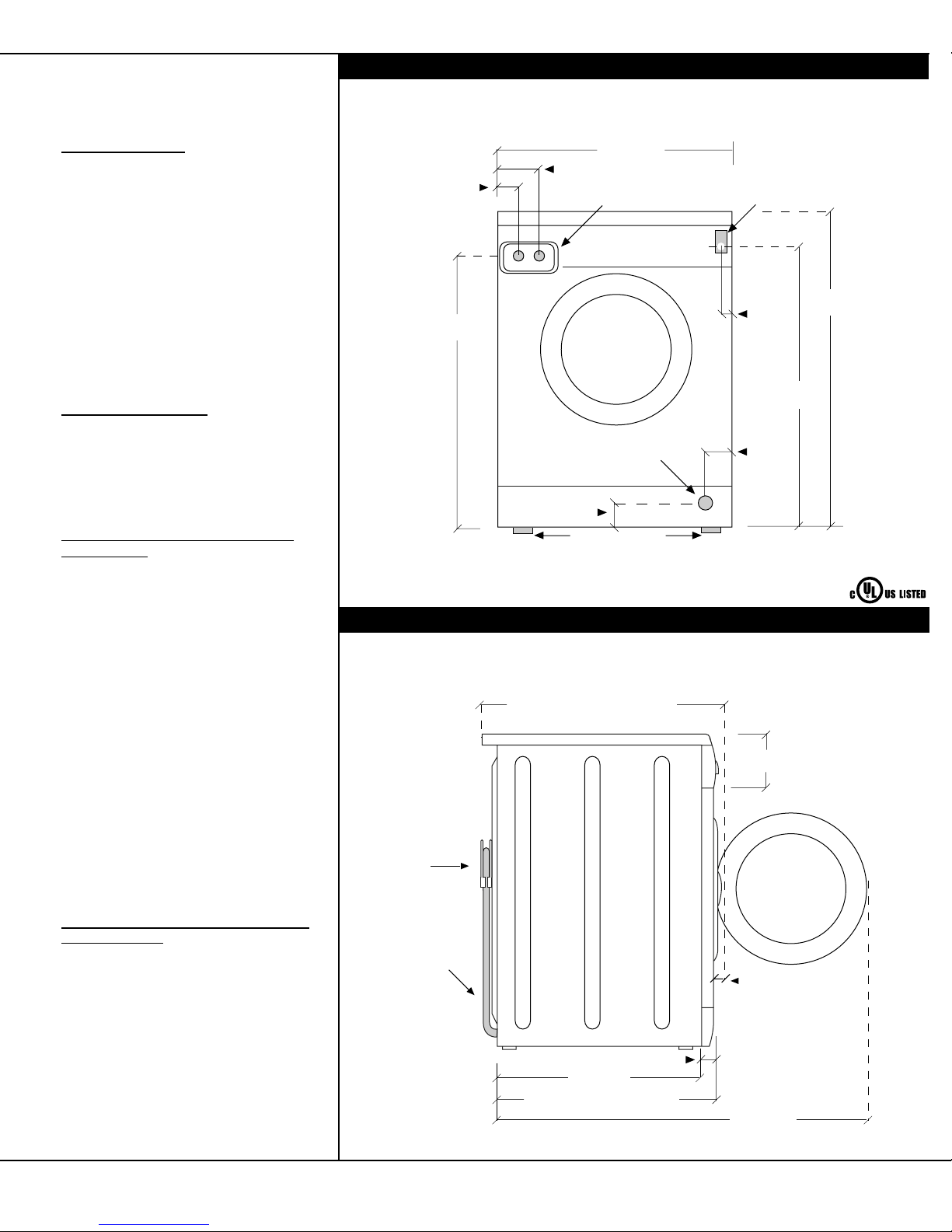

Side View (not to scale)
NOTE: Electrical Cord Location, Drain Outlet, and Water Inlets are located on the rear of the unit
Front Leveling
Legs
21-3/16" total case depth
22-7/8" total depth including
top overhang and door handle
NOTE: 24" minimum width entry doors and hallways recommended for ease of installation.
11/16"
34-11/16"
21-1/16"
2-1/4"
4-3/4"
1-3/8"
29-3/4"
2-1/2"
29-1/2"
2-1/2"
33-1/8" to 33-1/2"
Front View (not to scale)
1-1/2"
