Data Sheet Includes Information On
Splendide
Product Model Number
WD2000S (406+)
Splendide 2000 S Laundry Center
Installation Location:
· Unit may be installed in recessed area,
closet, or alcove.
· Air Space Requirements: 0" on sides and
1" in front and back (from the case). Ad-
ditional installation spacing needs to be
considered for easy installation, servicing,
and compliance with state and federal
codes.
· Floor must support at least 280 lbs. and be
a solid, level surface.
· When locating in a towable trailer or
watercraft, position the machine over the
axles or midship where movement is at a
minimum. Block unit in to prevent extreme
movement.
Electrical Requirements:
· Machine Voltage/Amperage: 120V, 13 Amp,
60 Hz.
· Connection: 3-prong plug with 6' cord is
provided with unit.
· Circuit/Protector: 3-wire single phase, 120V,
60Hz, AC, on separate 15-ampere circuit.
Standpipe Drain System/ Sink Draining
Requirements:
· Needs a 1 ¼" (3.2 cm) minimum diameter
standpipe with the minimum carry-away
capacity of 7 gallons (26 liters) per minute.
Top of standpipe must be at least 25" (62
cm) high and no higher than 34" (86 cm)
from the bottom of the washer.
· Outlet end of drain hose (provided with the
unit) must be at least 20" above bottom of
washer. An air break must be available at
the standpipe to avoid siphoning.
· Faucet Adapter Kit #154187104A is
available to allow for direct faucet
connection. See complete installation
instruction on drain hose draining directly
into sink, connection to dishwasher Wye
fitting, and disposer/drain connection in
owners manual.
· Optional Drain-A-Way™ Pans are
available. Pan #PI-22 for cabinet or under-
counter installations. Pan #P-24 for
freestanding installations. Both are designed
to be drain plumbed.
Exhaust Requirements:
· DO NOT exhaust dryer into a chimney,
furnace, cold air duct, attic, crawl space, or
another duct used for venting
· If cabinet door is installed, a minimum of 8
sq. inches should be provided. Louvered
doors with equivalent air openings are
acceptable. Allow clearance behind the
door(s) to avoid rubbing between back of
cabinet door(s) and front of unit control
panel. Additional clearances for wall, door
and floor moldings may be required.
· Rigid or flexible metallic duct required (NOT
INCLUDED). Ducting must slope downwards
and away from the machine.
Never reuse data sheets. Data sheets are subject to change without notice. Never use data sheets for final installation criteria. Complete
installation instructions are available upon request and in the owner's manual that comes with the unit.

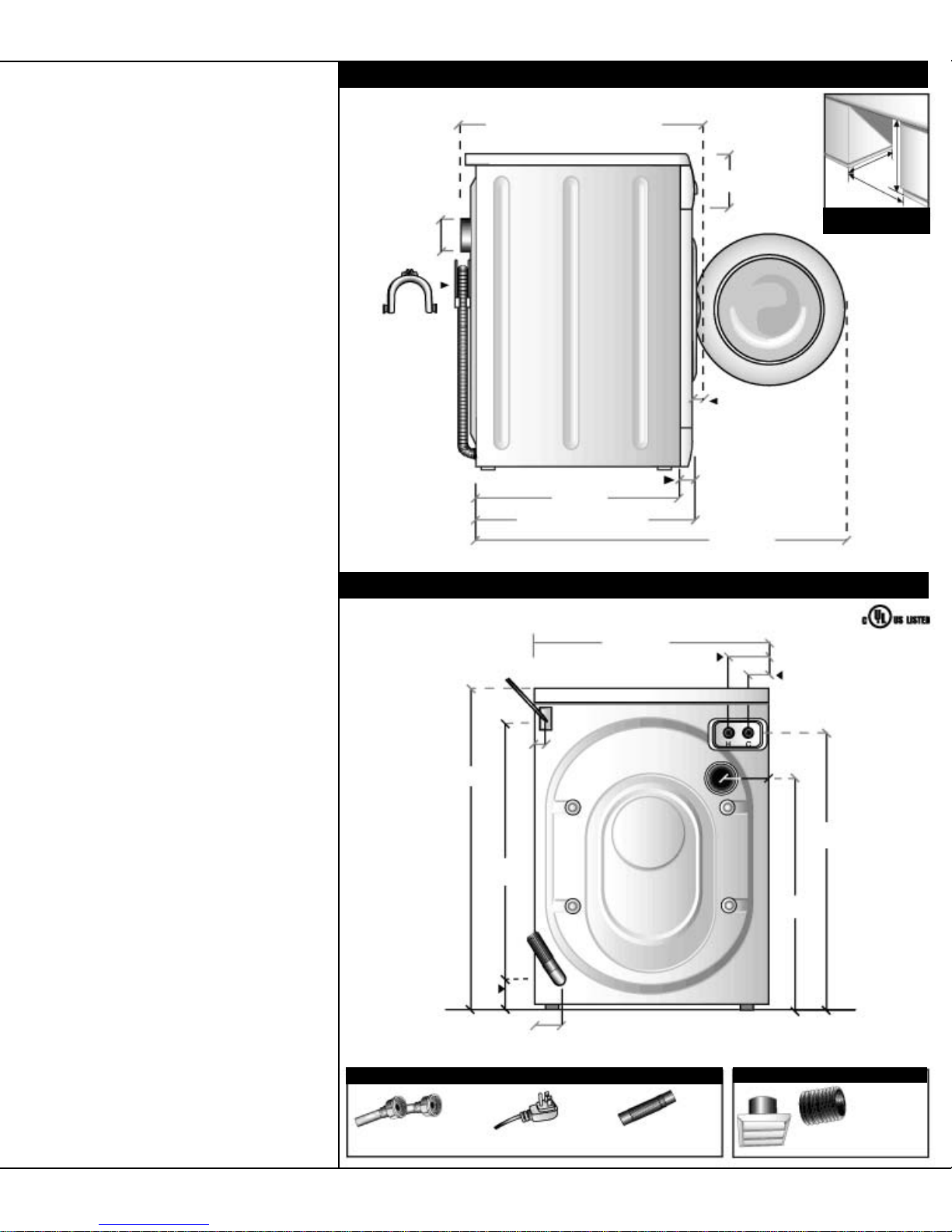

Rear View (not to scale)
Side View (not to scale)
33 1/2"
Minimum Installation
Clearances
237/16"
Water Inlets
(Depending on
positioning of
leveling legs)
221/2"
21/4"
43/4"
13/8"
291/2"
21/2"
291/4"
21/2"
331/8" to 331/2"4"
Vent Adapter
Drain Hose
Electrical
Connection
23
7
/
16
"
23
3
/
16
"
6"
4"
Vent Adapter
20" total case depth*
223/16"total depth including
vent adapter and door handle
11/16"
337/16"
181/2"11/2"
Drain Hose
2 Water Inlet Hoses
Included Sold Separately
Electrical Connection
(6' cord length) Flexible Drain Hose
(5' length)
Outside Dryer Vent
Cover and Flexible
Metallic Duct
Splendide Custom Vent Kits
VI-422, VI-D401 (A-AC)
U-Clamp
