Spotwave SpotCell 163 SpotCell 167 User manual

®
SpotCell 100 Series User Manual
SpotCell 100, 111, 112, 141, 142, 163, & 167

Technical Support
SpotCellTM serial numbers must be available to authorize technical support and/or to establish a
return authorization for defective units. The serial numbers are located on the back of the Coverage
Unit (CU) and the Donor Unit (DU), as well as on the box in which they were delivered. Additional
support information may be obtained by accessing the Spotwave Wireless Inc. website at
www.spotwave.com. To contact support by telephone, call your local Spotwave vendor; or if you
are
unable to reach your vendor, contact Spotwave Wireless at 1-877-610-9586 .
Important Safety Information
Warning! For your safety, beware of power lines and ensure appropriate safety measures are
maintained at all times during the installation of the SpotCell equipment. If equipment not shipped
with the SpotCell system is to be used during installation or mounting, follow all equipment
manufacturer’s instructions in proper use to ensure injury is avoided.
The DU and CU of the SpotCell are low power transmitters. As with a cell phone antenna, avoid
unneccessary contact with the front of the units when they units are operating. Mount the units in a
location where people will not approach within 1 meter of the front of the DU and 20 centimeters in
front of the CU.
When deploying the extended coverage antenna, there must be a minimum separation of 10 cm
between the main CU and the extended coverage antenna with the antennas facing in opposite
directions. The extended coverage antenna should be mounted in locations where people will not
approach within 20 cm in front of the antenna
This manual outlines installation instructions and the appendix offers practical safety tips (see
Appendix E entitled ‘Safety Hints’).
If you are not sure about a safe installation, do not attempt to install it yourself. Call a professional
installer for help.
LIMITED WARRANTY AND LIMITATION OF LIABILITY:
1. What is Covered and for How Long? Spotwave Wireless Inc. ("Spotwave") warrants to the original Purchaser that the Spotwave SpotCell System (the
"System") is free from defects in material and workmanship under normal use and service for a period of 12 months from the date of shipment from Spotwave
(the "Limited Warranty Period").
2. What is not covered? This Limited Warranty is conditioned upon proper use of the System by the Purchaser. This Limited Warranty does not cover (and
will become null and void in the event of): (a) defects or damage resulting from accident, misuse, abuse, neglect, unusual physical, electrical or
electromechanical stress, modification of the System or any part thereof, or cosmetic damage; (b) removal, alteration or defacing of the serial number or other
identifying marks on the System; (c) all plastic surfaces and other externally exposed components that are scratched or damaged due to normal use; (d)
malfunctions resulting from the use of the System in conjunction with accessories, products or (ancillary) or peripheral equipment not provided by Spotwave;
or (e) defects or damage from unauthorized or improper testing, operation, maintenance, installation, servicing or adjustment of the System. Any repairs or
replacements provided by Spotwave outside of the Limited Warranty Period (including repairs to or replacement after the end of the Warranty Period), or in
excess of the services provided during the Limited Warranty Period, will subject to Spotwave's then prevailing rates.
3. What are Spotwave's Obligations and how do you make a claim? During the Limited Warranty Period, Spotwave will repair or replace, at Spotwave's sole
option, without charge to Purchaser, any defective component of the System, provided that the System is returned promptly upon discovery of the defect
and during the Limited Warranty Period. To obtain service, Systems must be returned to an authorized service facility in the original packaging or packaging
adequate for shipping, accompanied by Purchaser's sales receipt or comparable substitute proof of sale showing the date of purchase and the serial number
of the System. A valid RMA is required prior to any return.
To locate your nearest authorized service facility, call Spotwave Customer Service at 1-877-610-9586. Spotwave may, at Spotwave's sole option, use rebuilt,
reconditioned, or new parts or components when repairing any System or replace a System with a rebuilt, reconditioned or new System. Repaired Systems

LIMITED WARRANTY AND LIMITATION OF LIABILITY:
ii SpotCell® 100 Series
will be warranted for a period equal to the remainder of the original Limited Warranty Period for the original System or for 90 days,
whichever is longer. All replaced parts, components, boards or equipment shall become the property of Spotwave. If Spotwave
determines that any System is not covered by this Limited Warranty, Purchaser must pay the costs for all parts, shipping, and labor charges
for the repair or return of such System.
4. What are the Limits on Spotwave's Liability? EXCEPT FOR THE WARRANTY IN PARAGRAPH 1, THE SYSTEMS AND ANY
ASSOCIATED SERVICES ARE PROVIDED BY SPOTWAVE ON AS 'AS IS' BASIS AND THERE ARE NO OTHER REPRESENTATIONS,
WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, WRITTEN OR ORAL, ARISING BY STATUTE, OPERATION OF LAW, COURSE
OF DEALING, USAGE OF TRADE OR OTHERWISE, REGARDING THEM OR ANY OTHER PRODUCT OR SERVICE PROVIDED
HEREUNDER OR IN CONNECTION HEREWITH BY SPOTWAVE. SPOTWAVE DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS
OF DURABILITY, MERCHANT ABILITY, MERCHANTABLE QUALITY, SATISFACTORY QUALITY, NON-INFRINGEMENT OR FITNESS FOR
A PARTICULAR PURPOSE. SPOTWAVE DOES NOT REPRESENT OR WARRANT THAT THE SYSTEMS WILL MEET ANY OR ALL OF
PURCHASERS' PARTICULAR REQUIREMENTS, THAT THE SYSTEMS WILL OPERATE ERROR-FREE OR UNINTERRUPTED OR THAT
ALL ERRORS OR DEFECTS IN THE SYSTEMS CAN BE FOUND TO BE CORRECTED. System performance is dependant upon the
performance and availability of services or technology provided by third parties and Spotwave is not responsible for service continuity and
reliability, reception, or other performance related limitations associated with use of the Systems. NO AGREEMENTS VARYING OR
EXTENDING THE TERMS OF THIS LIMITED WARRANTY WILL BE BINDING ON SPOTWAVE UNLESS IN WRITING AND SIGNED BY AN
AUTHORIZED SIGNING OFFICER OF SPOTWAVE THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE
ORIGINAL PURCHASER OF THE SYSTEM. SPOTWAVE'S MAXIMUM AGGREGATE LIABILITY TO PURCHASER SHALL NOT EXCEED
THE AMOUNTS PAID BY PURCHASER FOR THE SYSTEM GIVING RISE TO THE CLAIM. SPOTWAVE SHALL NOT BE LIABLE FOR ANY
SPECIAL, INCIDENTAL, CONSEQUENTIAL, INDIRECT OR SIMILAR DAMAGES, LOSS OF USE, DATA OR PROFITS, DAMAGES TO
PURCHASER'S PROPERTY, OR INJURY TO PURCHASER OR OTHERS ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE
ANY SYSTEM, WHETHER OR NOT SUCH DAMAGE ARISES OUT OF CONTRACT OR TORT (INCLUDING WITHOUT LIMITATION,
NEGLIGENCE) OR CLAIMS BY A THIRD PARTY, EVEN IF SPOTWAVE HAS BEEN ADVISED OF SUCH DAMAGES OR THEY ARE
FORESEEABLE
5. This Limited Warranty allocates risk between Purchaser and Spotwave, and the Spotwave System pricing reflects this allocation of risk
and the limitations of liability contained in this Limited Warranty. The agents, employees, distributors, dealers or representative of Spotwave
are not authorized to make modifications to this Limited Warranty, or make additional warranties binding on Spotwave. Accordingly,
additional statements such as advertising or presentations, whether oral or written, do not constitute warranties by Spotwave and should
not be relied upon.
OWNERSHIP AND RISK OF LOSS:
6. Who Owns the rights in the System? The System is protected by Canadian, US and international copyright law and other intellectual
property protection laws and treaties. Purchaser acknowledges that Spotwave and its licensors are the owner of all intellectual property,
including, without limitation, patents and copyright,
relating to the System and the trademarks used in association with the System. Purchaser agrees that it will not (and will not attempt to)
modify, prepare derivative works of, reverse engineer, decompile, disassemble, or other attempt to derive the source code of any software
contained within the System.
7. Who bears the Risk of Loss? Risk of loss for the System passes to Purchaser upon the delivery to Purchaser or to a carrier for
shipment, which ever is earlier. Title to the Systems (excluding any software) will pass upon payment in full for the Systems. Title to any
software shall always remain with Spotwave or its licensors. As security for payment, Purchaser grants to Spotwave a purchase money
security interest in the Systems (together with any proceeds, including insurance proceeds) and agrees that a copy of this letter of
agreement or any other appropriate document may be registered as required to perfect the security interest granted. Systems may be
resold by Purchaser in normal course of business, but until paid for in full, Purchaser will not pledge or otherwise encumber the Systems.
Purchaser agrees to immediately report to Spotwave, any seizure or attachment of the Systems by creditors; (ii) any petition in bankruptcy,
insolvency, receivership or similar proceedings filed by, or against Purchaser; or (iii) any arrangement, composition or similar agreement for
the benefit of creditors. Systems held for Purchaser by Spotwave are at Purchaser's sole risk and expense.
OTHER TERMS:
8. What terms govern our relationship? These terms and any software license or warranty documentation accompanying the Systems
constitute the complete and exclusive statement of the terms and conditions between us regarding the Systems and cannot be altered,
amended or modified except in writing executed by Spotwave. This letter of agreement and any disputes arising hereunder shall be
governed by and interpreted in accordance with the laws of the Province of Ontario, Canada. The United Nations Convention on Contracts
for the International Sale of Goods and any legislation implementing such Convention, if otherwise applicable is expressly excluded. Any
terms and conditions of any purchase order or other instrument issued by Purchaser which are in addition to or inconsistent with the terms
and conditions of this letter of agreement shall not be binding and shall not apply, even if accepted by Spotwave.
MANUAL DISCLAIMER
Product specifications, pricing, packaging, technical support and information ("Specifications") and all claims, features, representations,
and/or comparisons provided are correct to the best of our knowledge of the date of publication, but may contain errors or omissions and
are subject to change without notice.
INFORMATION IS PROVIDED BY SPOTWAVE WIRELESS INC. ON AN "AS IS" BASIS, WITHOUT ANY OTHER WARRANTIES OR
CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABLE QUALITY,
SATISFACTORY QUALITY, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR THOSE ARISING BY LAW, STATUTE,
USAGE OF TRADE, COURSE OF DEALING OR OTHERWISE. THE ENTIRE RISK AS TO THE RESULTS OF THE INFORMATION
PROVIDED IS ASSUMED BY YOU. WE SHALL HAVE NO LIABILITY TO YOU OR ANY OTHER PERSON OR ENTITY FOR ANY INDIRECT,
INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING, BUT NOT LIMITED TO, LOSS OF REVENUE OR
PROFIT, LOST OR DAMAGED DATA OR OTHER COMMERCIAL OR ECONOMIC LOSS, EVEN IF WE HAVE BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES, OR THEY ARE FORESEEABLE. WE ARE ALSO NOT RESPONSIBLE FOR CLAIMS BY A THIRD
PARTY. OUR MAXIMUM AGGREGATE LIABILITY TO YOU AND THAT OF OUR DEALERS AND SUPPLIERS SHALL NOT EXCEED
FOURTY DOLLARS. SOME STATES/COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. All product, font and company
names are trademarks or registered trademarks of their respective owners.

SpotCell 100 Series iii
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Packing List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Positioning the DU . . . . . . . . . . . . . . . . . . . . . . . . 6
Choosing a location for the SpotCell CU . . . . . . . 11
Positioning the CU . . . . . . . . . . . . . . . . . . . . . . .12
Auxiliary Antenna . . . . . . . . . . . . . . . . . . . . . . . . . 12
Mounting the DU and CU . . . . . . . . . . . . . . . . . . . . . 13
Running Cable Through Walls . . . . . . . . . . . . . . .13
Mounting the DU . . . . . . . . . . . . . . . . . . . . . . . . . 13
DU Outdoor Mounting . . . . . . . . . . . . . . . . . . . . . 15
DU indoor mounting . . . . . . . . . . . . . . . . . . . . . . 18
Mounting the CU . . . . . . . . . . . . . . . . . . . . . . . . . 18
Display Information . . . . . . . . . . . . . . . . . . . . . . . . . . 21
DU LED Color . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
CU LED Color . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Trouble-Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
SpotCell 100 System Specifications . . . . . . . . . . . . . 29
SpotCell 111/112 System Specifications . . . . . . . . . 33
SpotCell 163 System Specifications . . . . . . . . . . . . . 37
SpotCell 167 System Specifications . . . . . . . . . . . . . 41
SpotCell 141/142 System Specifications . . . . . . . . . 45
Safety Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Table of Contents

iv SpotCell 100 Series

Spotwave Wireless Inc. 1
1 – Introduction
1.1 This Manual
The contents of this manual complements the Quick Install Guide. It provides specific
details that may be referred to if necessary during installation of a SpotCell™100 Series
adaptive coverage system.
1.2 No Special Knowledge
Installation of a SpotCell solution does not require any specialized technical knowledge.
The SpotCell coverage system can be installed by any person(s) with the ability to use a
screwdriver, and in some situations may require the use of a ladder, drill, and additional
related tools.
1.3 Product Overview
The purpose of the SpotCell system is to enable personal wireless communications in
specific locations within a wireless service area where cell phones do not work, or work
poorly, for example inside a building, or at the cell boundary.
The SpotCell system receives signals from one or more wireless base stations and re-
transmits the signal to areas where cell phones do not work or work poorly due to
obstructions or the remoteness of the location.

INTRODUCTION
2SpotCell® 100 Series

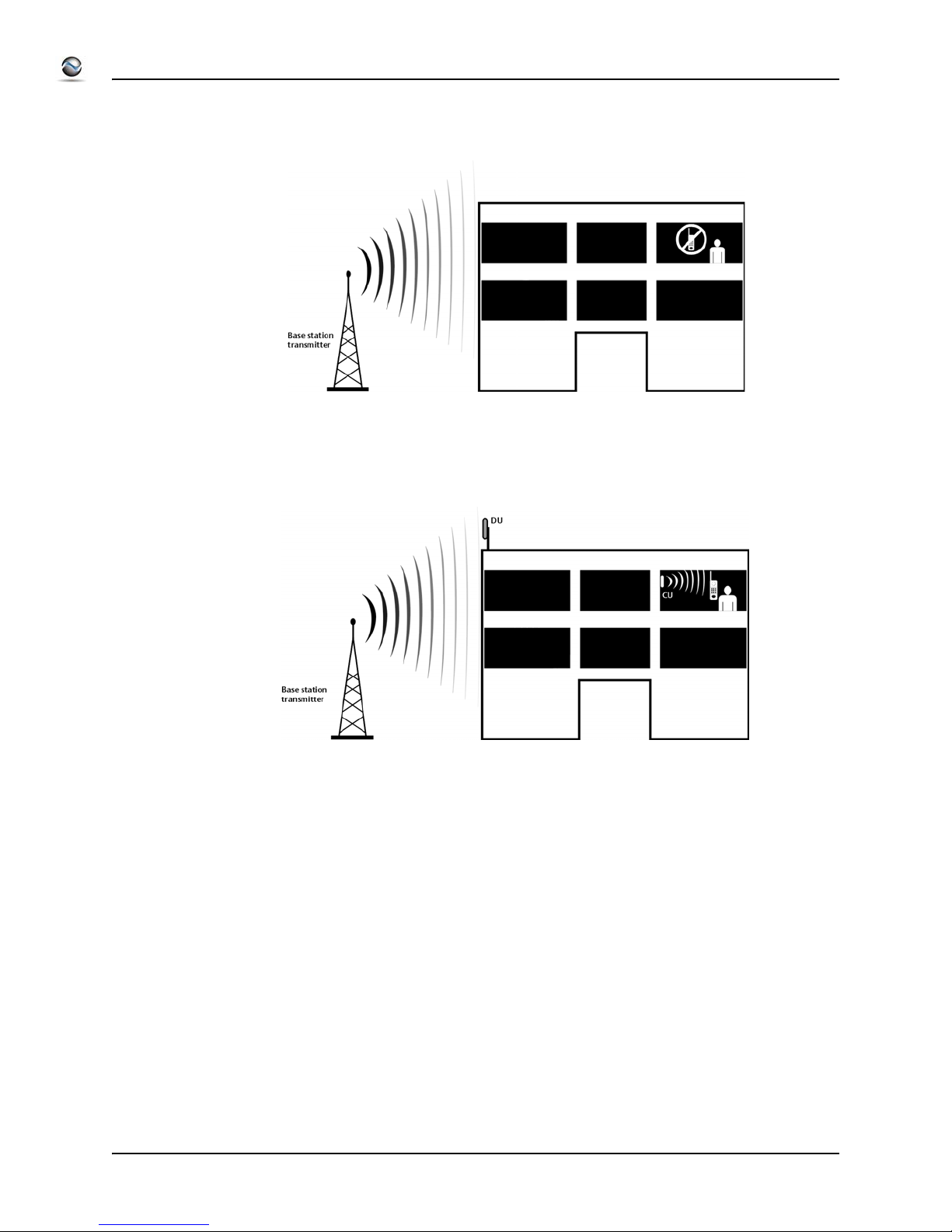

Figure 1.1: Base station signal does not reach wireless subscriber
Figure 1.2: SpotCell improves wireless communications
The SpotCell™ 100 Series adaptive coverage system provides band-selective, on-
frequency, in-building coverage in the cellular, PCS or SMR bands. It uses proprietary,
patent-pending, adaptive techniques that allow a SpotCell solution to be installed and
operated without engineering intervention or support.
The SpotCell solution is generally format specific - AMPS, CDMA/1xRTT/1xEVDO,
TDMA/GSM/GPRS/EDGE, and iDEN formats. When ordering a SpotCell solution be
sure to specify the format, frequency band and sub-band. For PCS band equipment it is
helpful if the start and stop frequencies for the operational sub-band are provided.

Spotwave Wireless Inc. 3
2 – Getting Started
2.1 Packing List
The SpotCell solution is shipped in a single box containing:
Donor Unit (DU) - this is the outward facing part of the system.
Coverage Unit (CU) - this is the indoor part of the system.
Power Adapter - to be plugged into an electrical outlet, and connected to the CU.
Cable - used to connect the CU and DU together.
Mounting Kit
SpotCell 141/142 : The SpotCell 141 and SpotCell 142 Dual Band systems include a
second DU and extra cables to connect the two DUs.
Figure 2.1: Components of the SpotCell package
DU
CU
Power
Adapter
Cable

GETTING STARTED
4SpotCell® 100 Series
Note: Parts are provided for the majority of installation options, but do not cover all
possibilities. You may need to purchase additional hardware specific to your mounting
environment before you begin the installation. A tripod and mast would be typical
additional equipment purchased for mounting the SpotCell DU on a rooftop.
Figure 2.2: Components of SpotCell 141/142 Dual Band package
2.2 Unpacking
Physically inspect the box for shipping damage before unpacking the SpotCell System.
1. Remove the SpotCell components from the box.
2. Remove all packing material from the Donor Unit (DU) and the Coverage Unit (CU).
Save the packaging in case the SpotCell System is ever stored or shipped to
SpotWave for service.
3. Check the contents of the package to make sure you have received everything
ordered and verify that the mounting kit contains all the listed parts.
4. Check the DU and CU for shipping damage. Pay particular attention to the unit’s
outer shell casing.
CU
DUs
Cables

Spotwave Wireless Inc. 5
3 – Installation
3.1 Preparation
The following are general considerations and preparations that should be looked at
before installing the SpotCell system.
3.1.1 Signal Strength
The SpotCell system brings signals from an area of adequate coverage to an area with
poor or non-existent coverage. It is the DU which captures a good signal, and the CU
that provides the signal to the area with poor cell phone coverage. The DU can be
mounted inside or outside, as long as it is in an area where your cell phone works.
Generally, the better your cell phone works at the location the DU is mounted, the better
the system will perform.
3.1.2 DU Height
In fringe areas, locating the DU as high as possible will provide optimal performance.
3.1.3 Avoid obstructions
General placement of the DU and CU must be in unobstructed areas. For example, the
CU should not be placed on a wall behind any type of furniture (behind items such as
metal filing cabinets would be a particularly poor location). Similarly for the DU, the front
of the unit should not be directly facing any type of metal structures, which are often
found on building rooftops.
3.1.4 Proximity to power source
The indoor unit (CU) must be located within 20 feet (6 meters) of a power source.

INSTALLATION
6SpotCell® 100 Series
3.1.5 Distance between DU and CU
Although you should separate the DU and CU as much as possible, there are only 82
feet (25 meters) of cable (see following note) provided to connect the two units. Make
sure the general location of the two units is within this limit. The standard cable is quad-
shield RG-6. Use only Spotwave Wireless supplied cable.
Note:
1. For greater DU to CU separations RG-11 quad shield cable can be ordered.
This extends the DU to CU distance to 164 feet (50 meters).
2. Plenum rated RG-6 and RG-11 cable may be ordered.
Plenum cable is needed for installations in return air ceilings, floor to floor riser use
and elevator shafts.
3.1.6 Orientation of DU relative to CU
If possible face the DU and CU in opposite directions, and back to back while
maintaining maximum separation. While not a requirement, some installations will
perform better if the units are positioned in this manner. This is generally more important
for an inside mounted DU than one mounted outside on a roof or an external wall.
3.1.7 Barrier between DU and CU
The greater the physical obstruction between the DU and CU, the better the
performance. Dense obstructions such as brick, concrete or metal walls are better than
wooden or plaster walls.
3.2 Positioning the DU
The DU is the outward facing unit. It is the unit that picks up the signal from and
communicates with the service providers basestation network.
It may not be possible to install the DU indoors when installing the SpotCell solution in
remote areas. An effort should be made to install the DU outdoors and the DU should be
installed as high as possible when the installation is in a remote area.
Use your mobile phone handset to identify the inside location where the strongest signal
is received, or the outside roof or external wall location where the strongest signal is.

INSTALLATION
SpotCell® 100 Series 7
3.2.1 Installing the DU
The following outlines the procedure for locating a DU inside a building, on a rooftop,
and on the outside surface of an external wall.
1. Position the DU (but do not mount it) as close to the final desired mounting location
as possible. It is helpful to have the CU near the DU. The CU does not have to be in
its final location at this time.
2. For dual band systems (SC141/142):
a) Connect a 6 foot (2 meter) RG6 cable to the CU.
b) Connect the other end of the RG6 cable to the RG11 cable using the provided
adapter.
c) Connect the RG11 cable to the upper connector on the PCS DU
Figure 3.1: Connecting SC141/142 CU to PCS DU
Indoors Outside on a Roof Outside on an External
Wall
While not a requirement, it is highly
recommended the DU be installed
facing a windowawhen installed
indoors.
a. Tinted windows may contain metallic particles which can degrade the radio signal more than
the adjacent exterior wall.
The CU does not have to be in its final
position at this time, but it should not be
brought outdoors if it is raining, below
freezing or above 105 Fo (40 Co).

INSTALLATION
8SpotCell® 100 Series

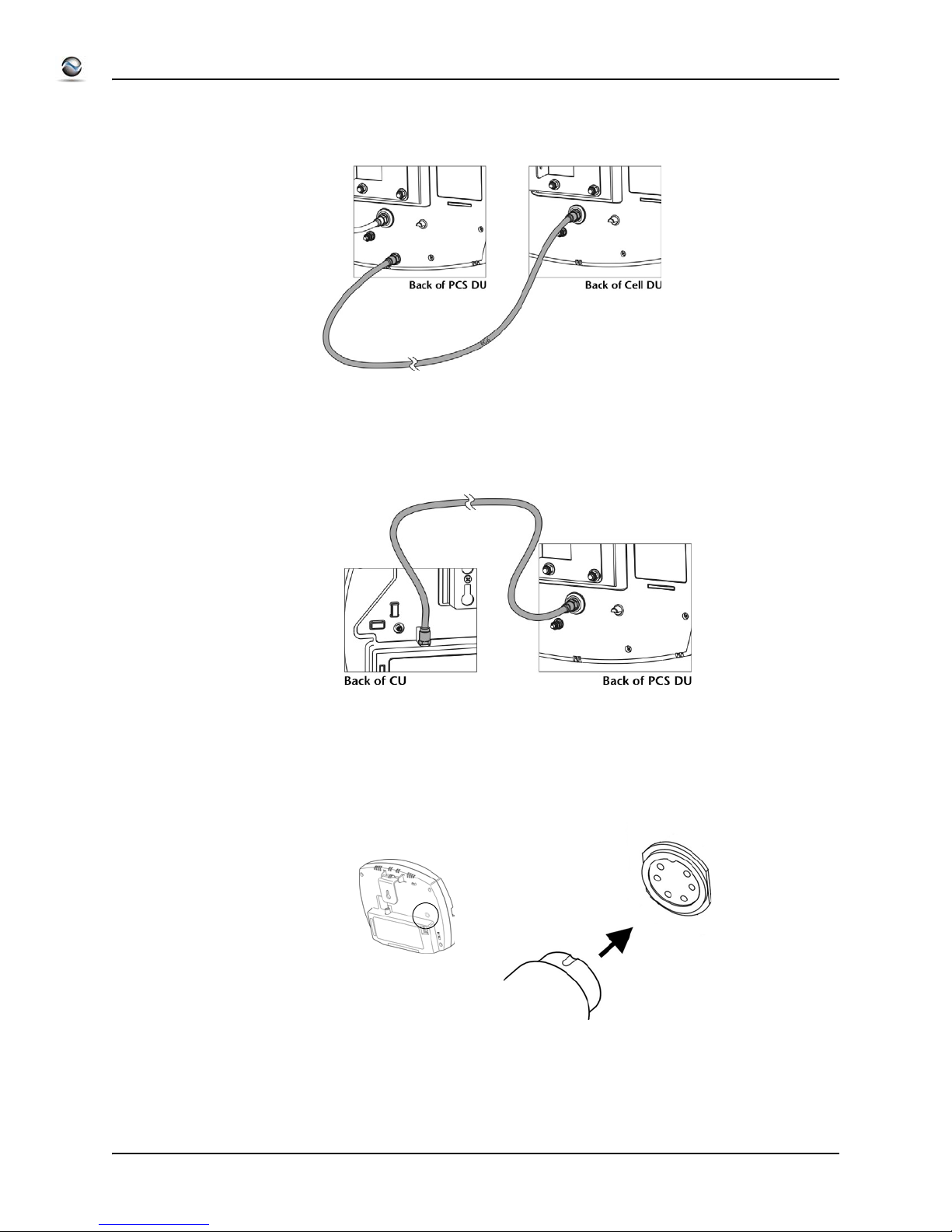

d) Use the remaining RG6 cable to connect the PCS DU to the Cell DU.

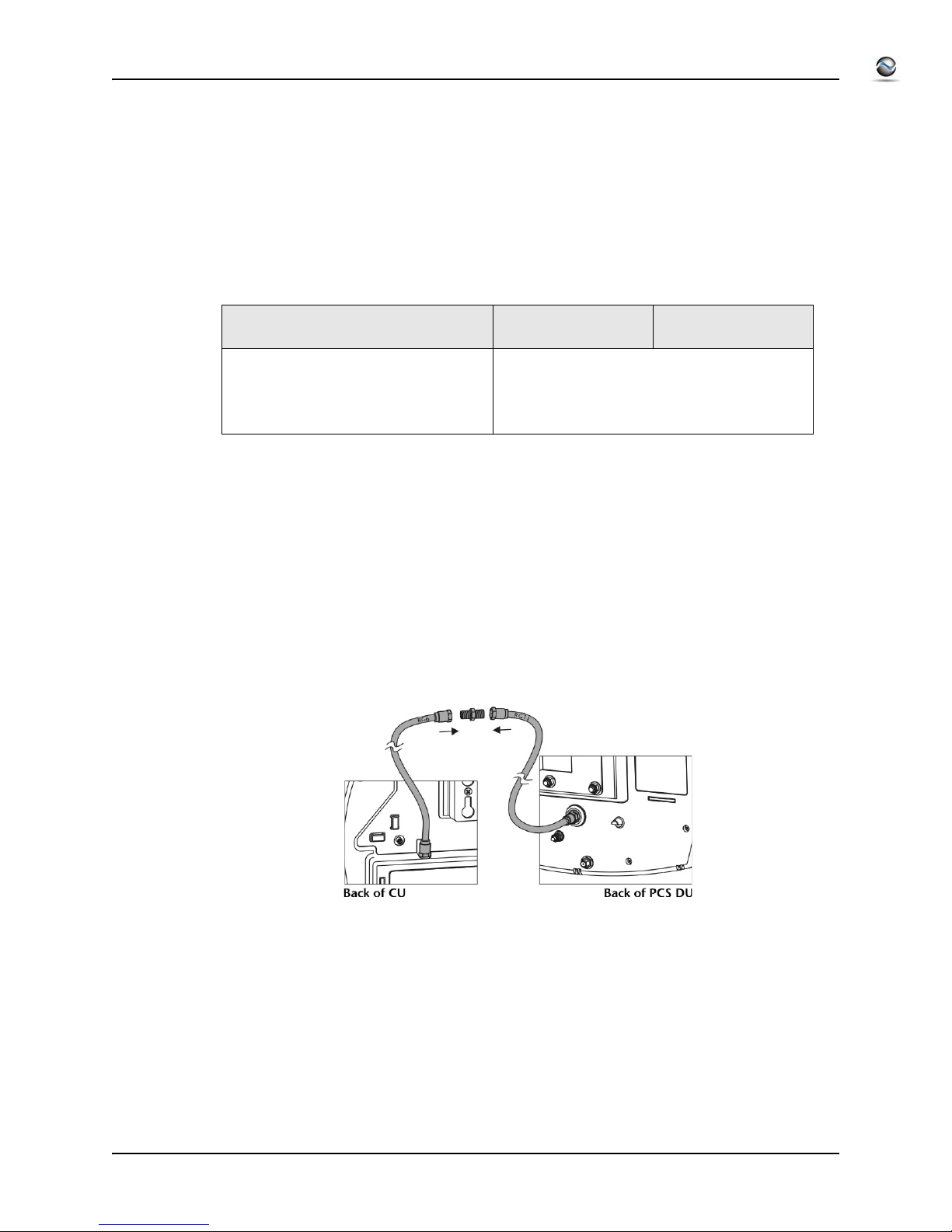

Figure 3.2: Connecting SC141/142 PCS DU to Cell DU
For all other (non dual band) systems:
a) Connect the DU and CU with the enclosed cable.
Figure 3.3: Connecting CU to DU
3. Tighten all cable connections to the DUs and CU with a wrench (a 1/4 of a turn
tighter than finger tight) to ensure moisture does not penetrate.
4. Connect the power supply as shown below.
Figure 3.4: Connecting power supply to CU

INSTALLATION
SpotCell® 100 Series 9
Note: Only use the power supply provided with the SpotCell system. Connecting a power supply
from another SpotCell system may damage the unit and cause it to fail.
5. Ensure the mode switch on the CU is in the ‘Install’ (1) position.
For dual band systems (SC141/SC142) set the band select switch to 800 MHZ.

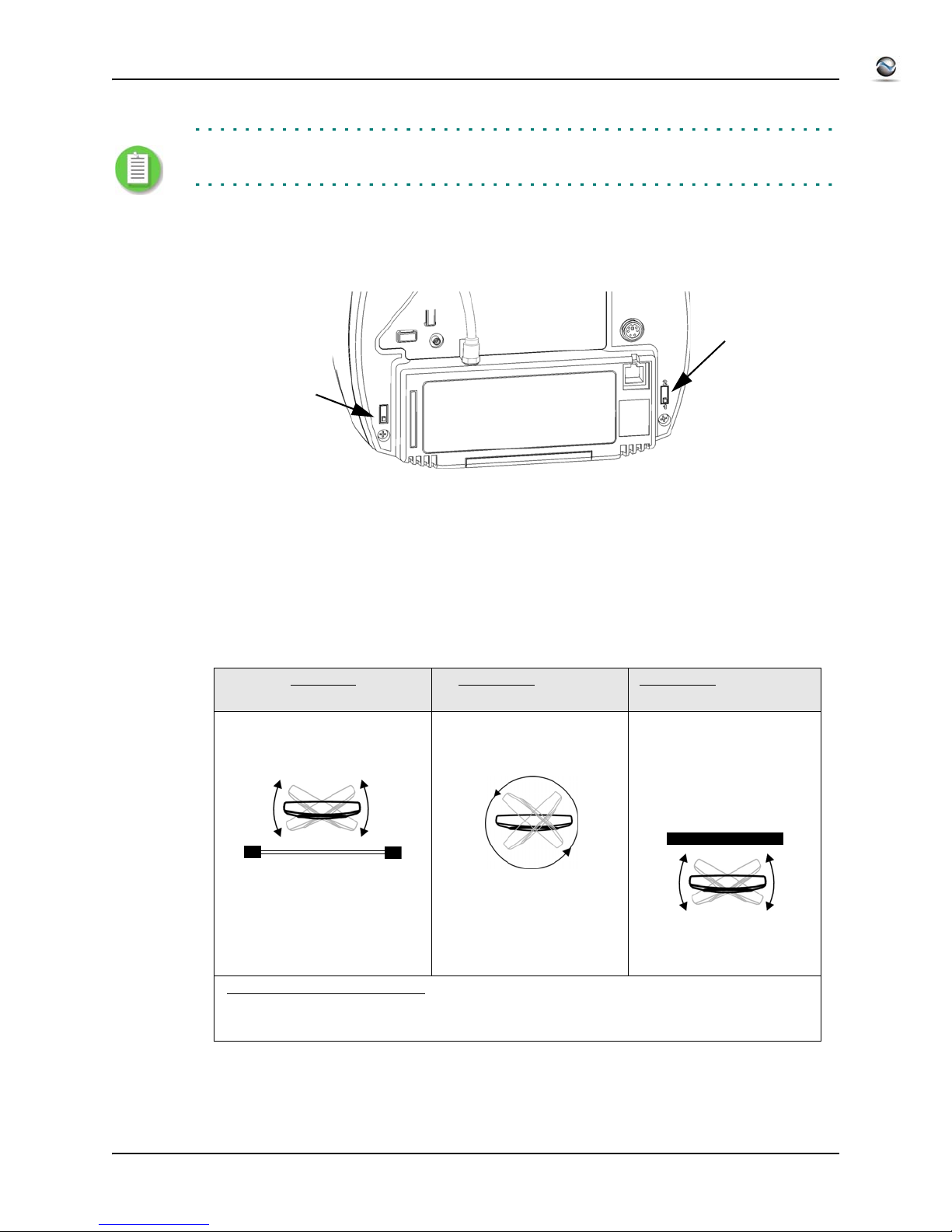

Figure 3.5: CU witch locations
6. Plug the power supply adapter into a wall socket.
7. Alignment Step 1 . Hold the DU upright and pointing away from you. If installing a dual band system
(SC141/142), ensure you are holding the 800 MHZ DU.
Ignore the color of the LED on the back of the DU, while:
Indoor DU Outdoor DU On a Roof Outdoor DU on an External
Wall
Rotating the DU left to right
with the DU facing to the
outside through the window.
If not in front of a window,
rotate the DU in a complete
360° circle
(see roof location
diagram)
.
Rotating the DU in a
complete 360° circle.
Rotating the DU left to
right with the DU facing
away from the exterior
wall.
163 iDEN & 167 Product Only. For the 163 & 167 products, the LED on the DU flashes.
When rotating the DU from time to time the flashing will stop and the LED turns OFF,
when this occurs momentarily pause the rotation then resume when flashing restarts.
mode
switch
band
select
switch
Window or
Exterior Wall
Exterior Wall

INSTALLATION
10 SpotCell® 100 Series
8. Alignment Step 2. Repeat the above rotation a second time. This time monitor the
color of the LED. The LED color is an indication of the signal strength the DU is
receiving from the wireless basestation tower.
Stop the rotation each time the LED is green and note the direction the DU is facing
when it is GREEN (the LED may turn green once or multiple times). The GREEN
direction is the direction the DU must face when installed for best system
performance.
When multiple GREEN locations are present mount the DU facing the direction
where the LED was green for the longest period of time during this second rotation.
9. For dual band systems (SC141/142) set the band select switch to 1900 MHZ and,
with the 1900 MHZ DU, repeat steps 7 and 8 to align the second DU.
10. It is recommended that various outside roof and exterior wall locations, and locations
within the building be tested to identify the best DU location. The LCD display on the
DU will help you identify the location where the signal strength is strongest. The LCD
display on the CU indicates the signal strength that the DU is receiving. figure 3.6
shows 5 bars of signal strength. Five bars is maximum.

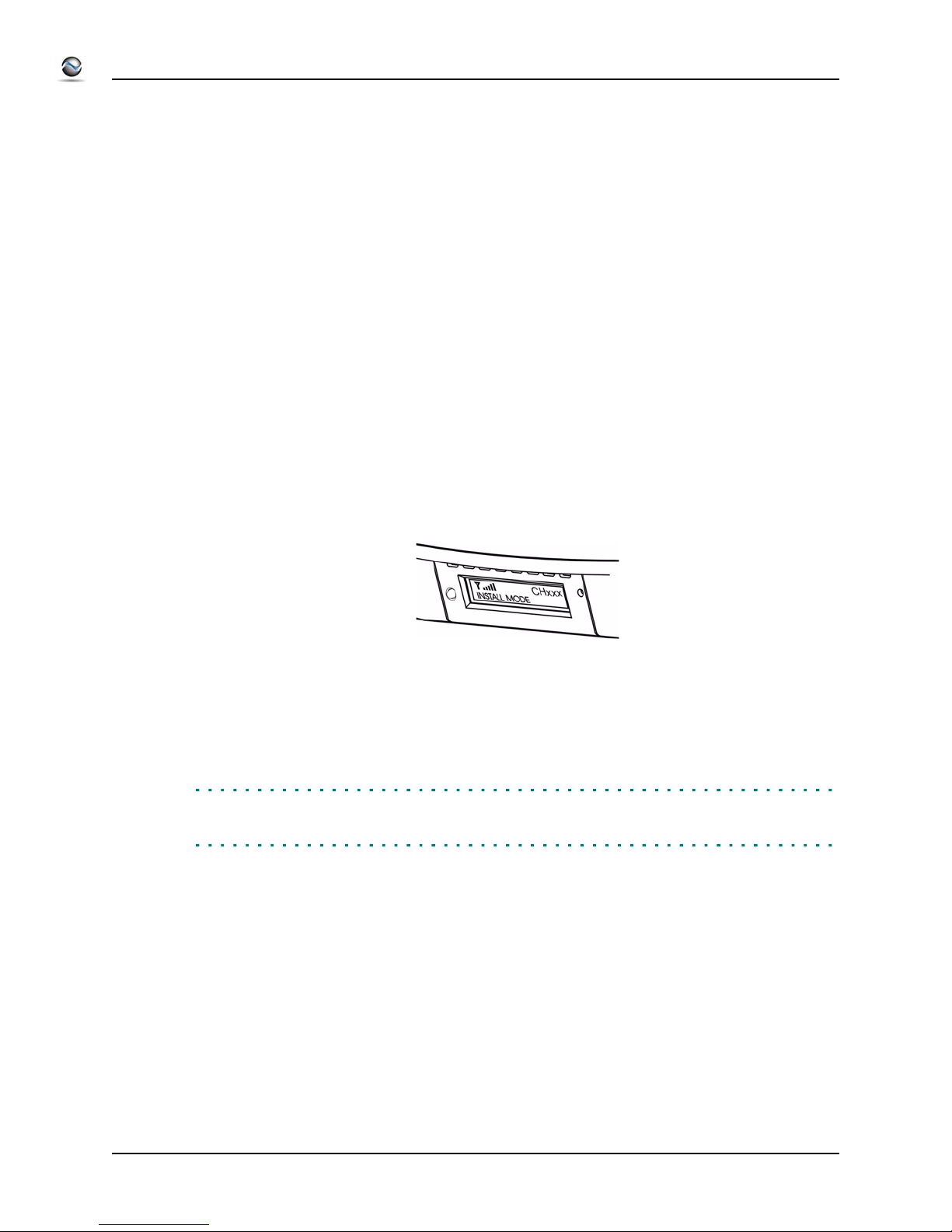

Figure 3.6: Displayed signal strength
Mount the DU in the location that has the highest indicated signal level. Then aim the
DU in the direction that provides the highest indicated signal level on the CU LCD
display.
Note: On the upper floors of tall buildings, it may be necessary to tilt the DU down to get the
strongest signal.
11. Proceed to Chapter for mounting instructions once the DU location has been
optimized.

INSTALLATION
SpotCell® 100 Series 11
3.3 Choosing a location for the SpotCell CU
The CU location is optimized, after the DU location and orientation has been optimized
and the DU has been mounted.
Generally, the CU should be mounted in a location as far as possible from the DU, while
being within the area where you require improved coverage.
If mounted on a ceiling, the unit should be facing downward, and in the center of the
area requiring coverage. When mounted facing down (horizontal) the coverage pattern is
circular for an open are with minimum obstructing walls. When mounting the CU
horizontally place it in the centre of the area needing improved coverage.
SC141/142 Note: The dual band CU should only be mounted vertically.

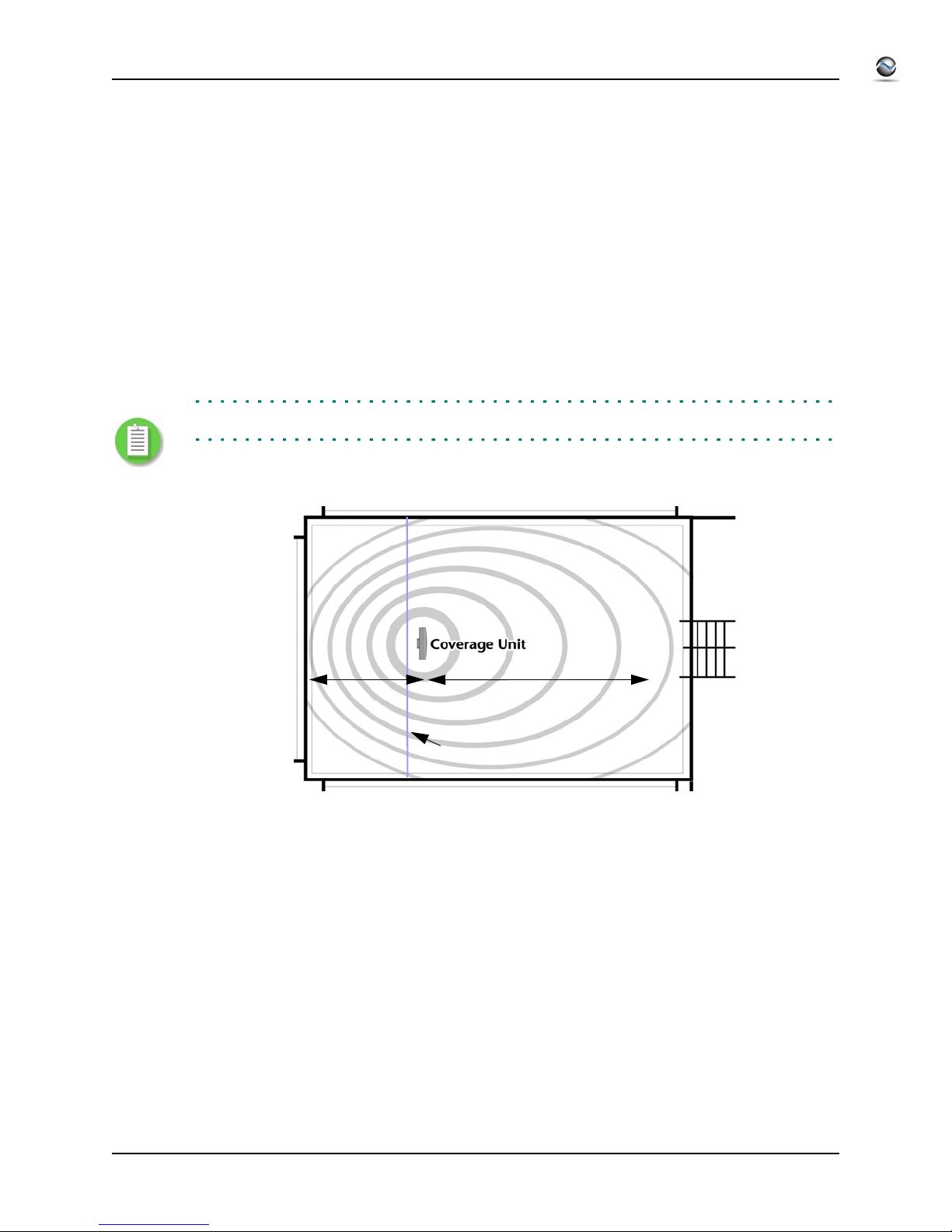

Figure 3.7: CU position and signal coverage
If mounted vertically on a wall, facing away from the wall the coverage pattern for an
open area with minimum obstructing walls is as shown in figure 3.7.
When mounting the CU vertically the unit should be positioned in the middle of the area
to be covered side-to-side, and off-centered front-to-back, as shown in figure 3.7. The
coverage area to the front is about twice that to the back of the CU if the wall it is
mounted on is a typical interior drywall partition wall, and not one constructed of a dense
material such as concrete. The unit should be mounted as high on the wall as possible.
Alternatively the CU can be mounted vertically by suspending it from the t-bars of a
suspended ceiling. T-bar clips are commercially available that permit this.
1/3 2/3
Interior Wall

INSTALLATION
12 SpotCell® 100 Series
3.4 Positioning the CU
1. Ensure that the DU position has been optimized and has been mounted in place.
2. Move the mode switch on the CU from ‘Install’ to ‘Active’.
3. Hold the CU in the position it is to be mounted. Ideally the display on the CU will
show 5 bars for coverage area.
If it is not showing 5 bars for coverage area and there are alternate mounting
locations, move the CU to the alternate locations and check the display. Place the
CU in the location showing maximum number of bars.
Note: Each time the CU is moved, wait approximately 25 seconds for the coverage area bars
( ) to stabilize.
4. If the number of bars is not changing, which is very possible, choose a CU mounting
location that is convenient for the area requiring coverage.
5. Refer to Chapter for mounting instructions.

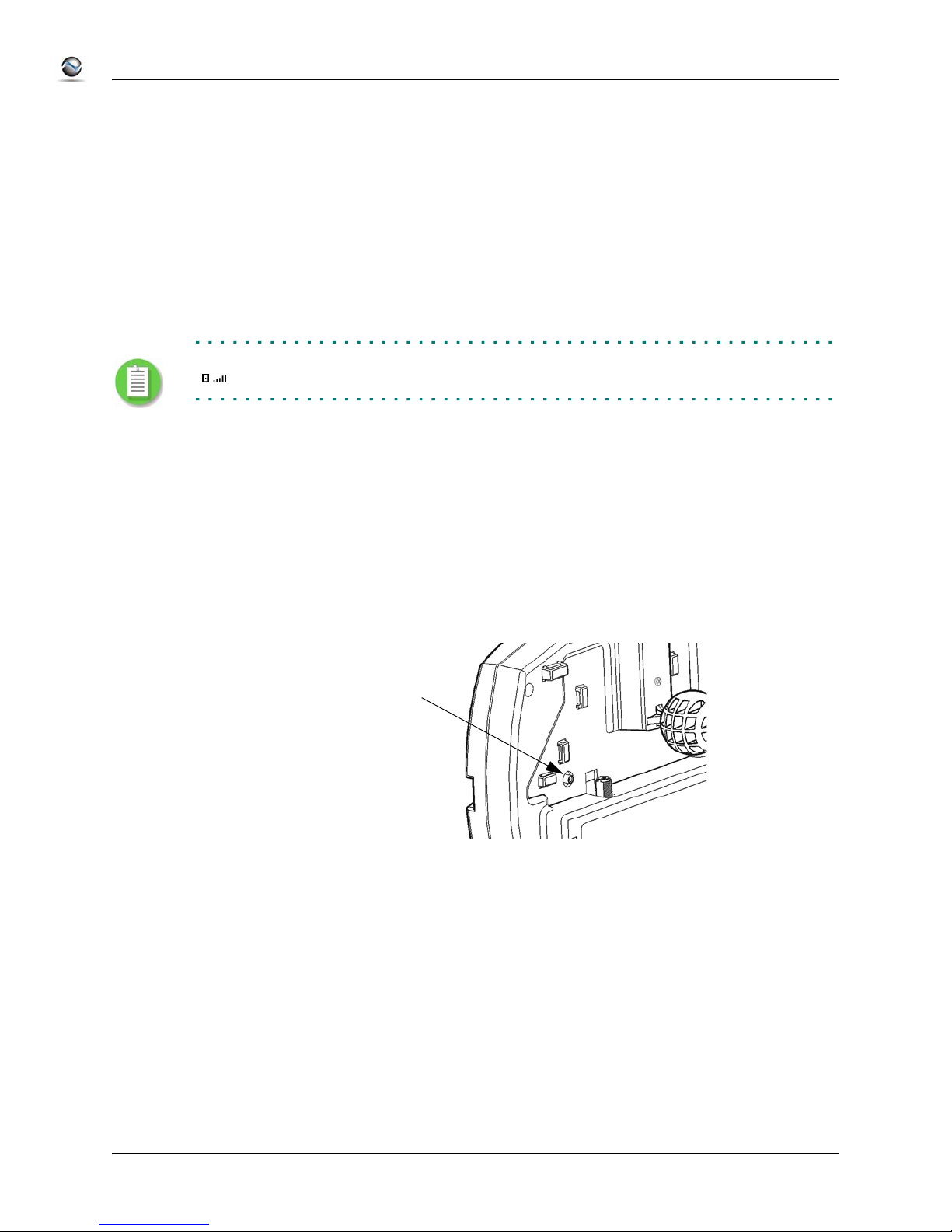

3.5 Auxiliary Antenna
The SpotCell Coverage Extension kit (purchased separately) can extend coverage into
hard to reach places that are blocked by obstructions such as dense walls or shadowed
by elevator shafts or ductwork.
Instructions for connecting and mounting the auxiliary antenna are included in the
Coverage Extension (CE) kit. A CE will provide coverage for an area about 25% of that
provided by the CU.
Auxiliary
antenna
connection

Spotwave Wireless Inc. 13
4 – Mounting the DU and CU
4.1 Running Cable Through Walls
If it is necessary to run a cable through a wall, use a masonry or wood drill bit to drill a
3/4-inch diameter hole.
After passing the cable through, use the putty in the installation kit to fill the hole around
the cable.
4.2 Mounting the DU
The DU (or two DUs for dual band SC141/142 systems) may be indoor or outdoor
mounted. Based on the direction the DU will point, consider possible mounting
locations.
All necessary hardware required for mounting on internal or external walls, or on pipes is
included in the mounting kit.
The illustrations on the following pages show some of the possible mounting options.
4.2.1 Wall Mount

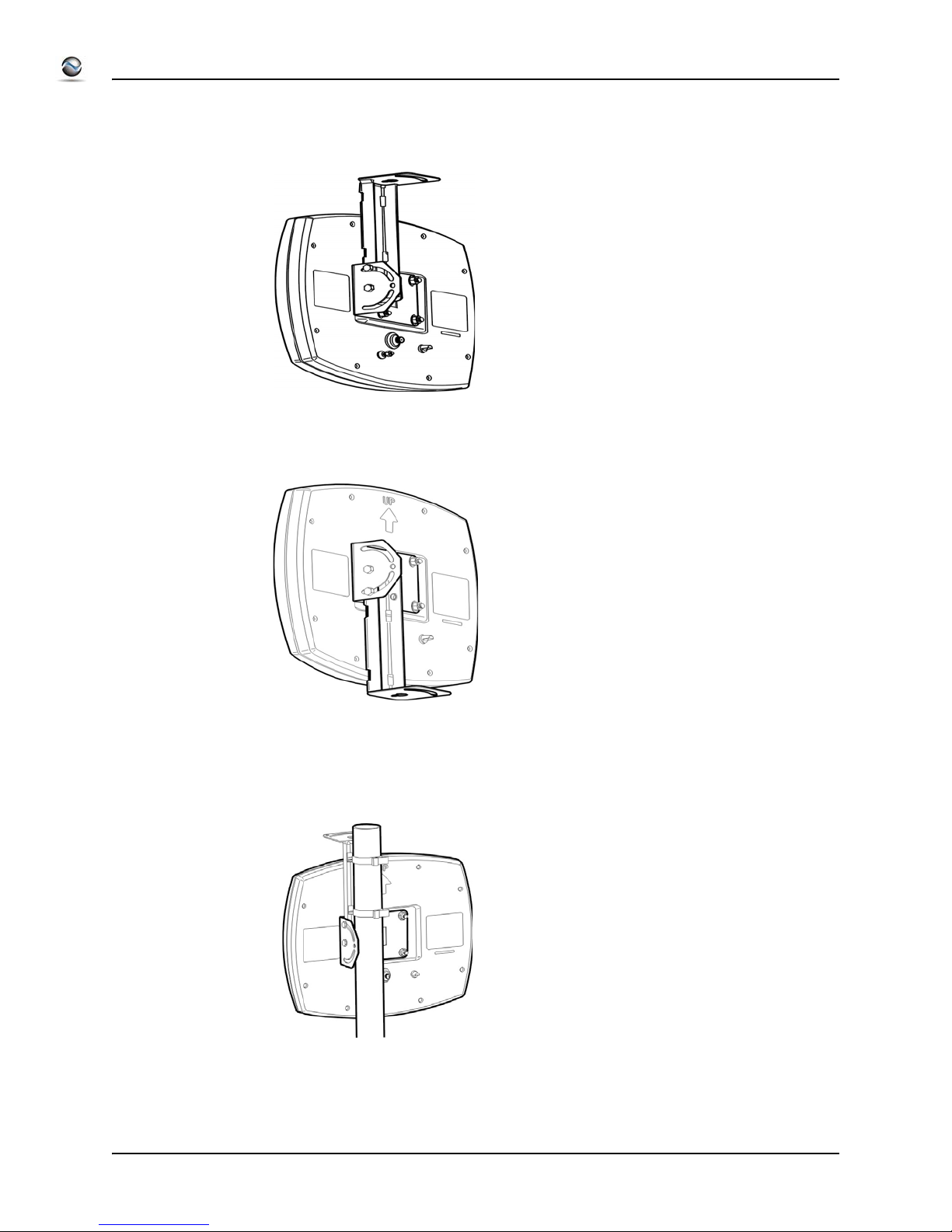

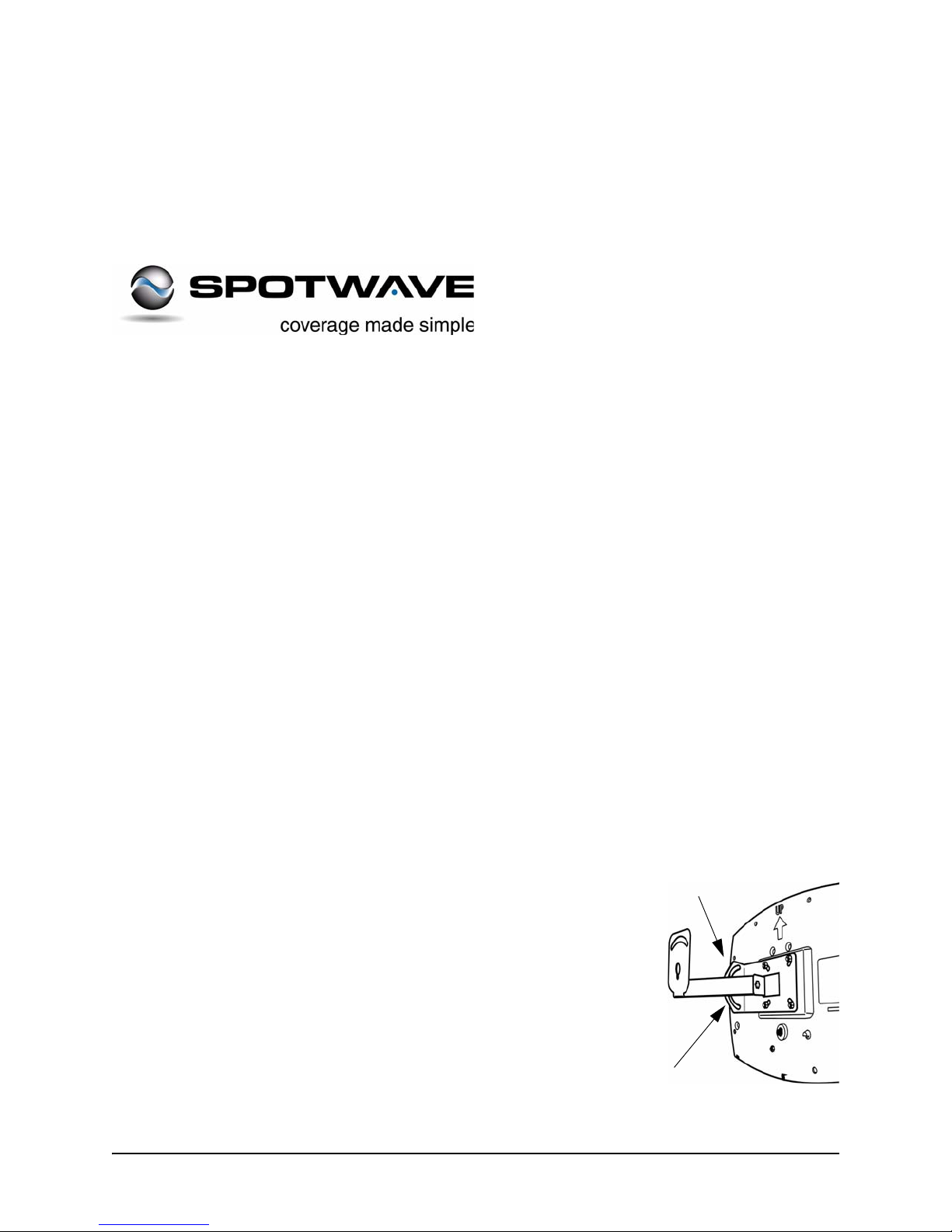

Figure 4.1: Wall Mount
The mounting shown in Figure 4.1: allows for no
significant left or right rotation, but provides a wide
range of down-tilt when the lower circular slot on the
angle backplate is used, a wide range of up-tilt when the
upper circular slot is used, but no up-tilt or down-tilt
when the center hole on the backplate is used (the
center hole is hidden from view in Figure 4.1:).
Lower circular slot
Upper circular slot

MOUNTING THE DU AND CU
14 SpotCell® 100 Series
4.2.2 Overhead Mount
Figure 4.2: Overhead Mount
The mounting shown in Figure 4.2: provides
left to right rotation, and a wide range of
down-tilt using the upper circular slot or a
small amount of up-tilt and down-tilt when the
bottom circular slot is used.
4.2.3 Horizontal Surface Mount
Figure 4.3: Horizontal Surface Mount
The mounting shown in Figure 4.3: allows for
left to right rotation and a wide range of
upward tilt using the lower circular slot, or a
small amount of down tilt and down tilt when
the upper circular slot is used.
4.2.4 Pipe Mount
Figure 4.4: Pipe Mount
Use hose clamps to mount the unit to a 2-in to
5-in pipe.
The mounting shown in Figure 4.4: allows for
complete left to right rotation with a limited
range of up-tilt or down-tilt.
If the hose clamp bracket is reversed to extend
down then the up-tilt range will increase if the
DU is mounted at the top of the pipe, but the
down-tilt range is unchanged.
