HiBoost Mini F08GI-5S-BTW User manual

Boost Your
Bars
User Manual
Mini
Zoom
F08GI-5S-BTW
F08GI-5S-Pro

Table of Contents
Package Content ..............................................................................2
Introduction .....................................................................................3
How Signal Boosters Work...............................................................4
Pre-Installation Instructions.............................................................5
Installation – Signal Supervisor App ................................................6
Installation – Manual Method .........................................................7
FCC and IC Statements...................................................................16

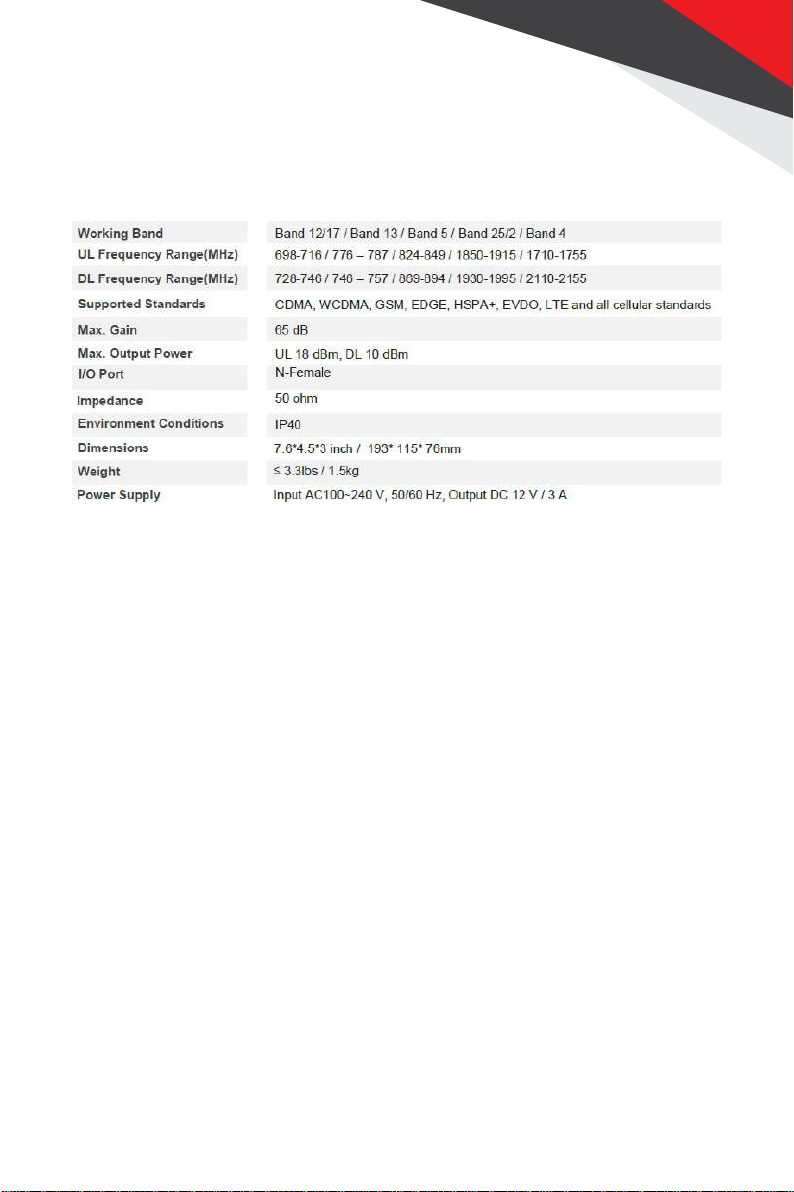

Technical Specifications.................................................................17
Return and Warranty Policies........................................................18

2
Package Content
Product Image
Product Name
Mini Zoom
Model Number
F08GI-5S- BTW F08GI-5S-PRO
Coverage Size
500-2,000 Sq. Ft. 800-3000 Sq. Ft.
Indoor Cable 30 Ft. Low-Loss HiBoost 200
Cable
30 Ft. Low-Loss HiBoost
200 Cable
Outdoor Cable
30 Ft. Low-Loss HiBoost 200
Cable
50 Ft. Low-Loss HiBoost
200 Cable
Indoor Antenna
Indoor Wide-Band Directional
Panel Antenna
Indoor Wide-Band
Directional Panel Antenna
Outdoor
Antenna
Outdoor Wide-Band
Directional Panel Antenna
Outdoor Wide-Band
Directional Antenna
Warning: Un-authorized antennas, cables, and/or coupling devices are
prohibited by new FCC rules. Please contact FCC for details: 1(888)-CALL-FCC

3
Introduction
Thanks again for purchasing a HiBoost cell phone signal booster. Our cell phone
boosters are precision-engineered products that improve cellular reception
inside of homes and office by amplifying incoming and outgoing cellular signal.
HiBoost’s exclusive cloud-based Signal Supervisor mobile application allow
users to monitor the live status of HiBoost cell phone signal boosters remotely
from a mobile device anywhere at any time.
If there are any issues while installing a HiBoost cell phone signal booster,
please contact the HiBoost technical support team through the following
options:
24/7 Online Support: Create a ticket or chat via Signal Supervisor App
Phone: [phone] (M-F from 9 am – 5 pm)
Email: [e-mail]
Website: www.hiboost.com

4

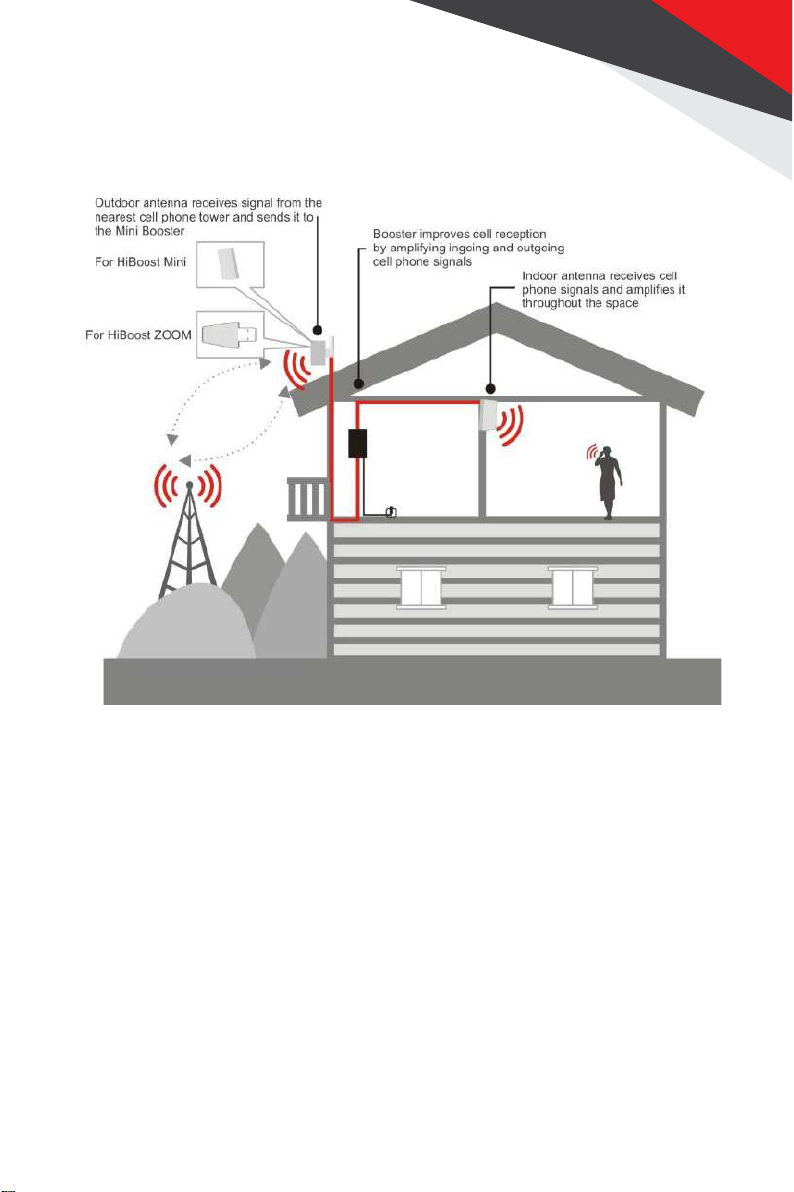

How Signal Boosters Work

5
Pre-Installation Instructions
The cell phone booster and the antennas must be strategically placed in order
to perform and provide maximum coverage.
The HiBoost Signal Supervisor app will allow users to communicate to the signal
booster via Bluetooth or WiFi. Once registered, the user can remotely monitor
the signal booster’s performance.
Note: Signal Supervisor enabled boosters must have access to a Bluetooth
enabled device in order to connect to the booster.
Professional Installation Tips:
•For a fast and optimized installation, it is strongly recommended that
users install HiBoost products using the Signal Supervisor mobile
application
•Completely read the user manual and gather all necessary tools,
material and accessories before installing the booster
•A “soft installation” is recommended before permanently mounting
any equipment – this technique will simplify the installation process by
allowing users to identify any potential installation issues beforehand
•The Signal Supervisor App integrates a tool that will help users locate
the best location for the outdoor antenna – ensure that there is at
least 20 ft of vertical separation between both antennas
•It is important to have a strong and stable WiFi connection to the
booster

6
Installation – Signal Supervisor App
Before installing the Signal Supervisor App, please have the booster unit that is
powered on and nearby.
Note: Turn on the Bluetooth feature enabled before attempting to register the
booster to the mobile device.
Step 1: Download the Signal Supervisor App
•The application is available for download through Apple’s App Store or
Google Play
Step 2: Create a New Account and Log-in
•Launch the app on your mobile device
•Select the HiBoost Server
•Log-in with an existing account create a new one
Step 3: Register the Booster by adding a device on the home menu
Go to My Devices > Add a Device
Step 4: Follow the step-by-step Quick Installation Guide after registering the
booster.
You can also access the guide by following:
Go to My Devices > Select the Booster > Device Details > Quick Install Guide
Note: Bluetooth connections are limited to a range of only 30 feet.
If there are any issues installing the booster, please contact our technical
support team via the Online Support Chat.

7
Installation – Manual Method
Before beginning the installation, it is important that users survey and plan the
layout of the cell phone signal booster system. Please review the following
instructions before attempting to install this system.
In this set up, the user will need to use the outdoor antenna to find the
strongest source of nearby cellular signal (generally in the direction of the
nearest cell phone tower). This will optimize the system by helping user install
the booster and antennas in the best position and direction.
A. Finding the Strongest Outdoor Signal
B. Install the Booster
C. Finalize the Installation
Part A) Outdoor Antenna Installation
There is not an antenna mast included in this kit. If you have question about how to
install outdoor antenna, please call our support team at [phone]. Below are
installation instructions on how to install the mounting bracket.
If you buy HiBoost Mini, please follow the steps below to install the outdoor antenna
with the mounting hardware included in the kit.

8

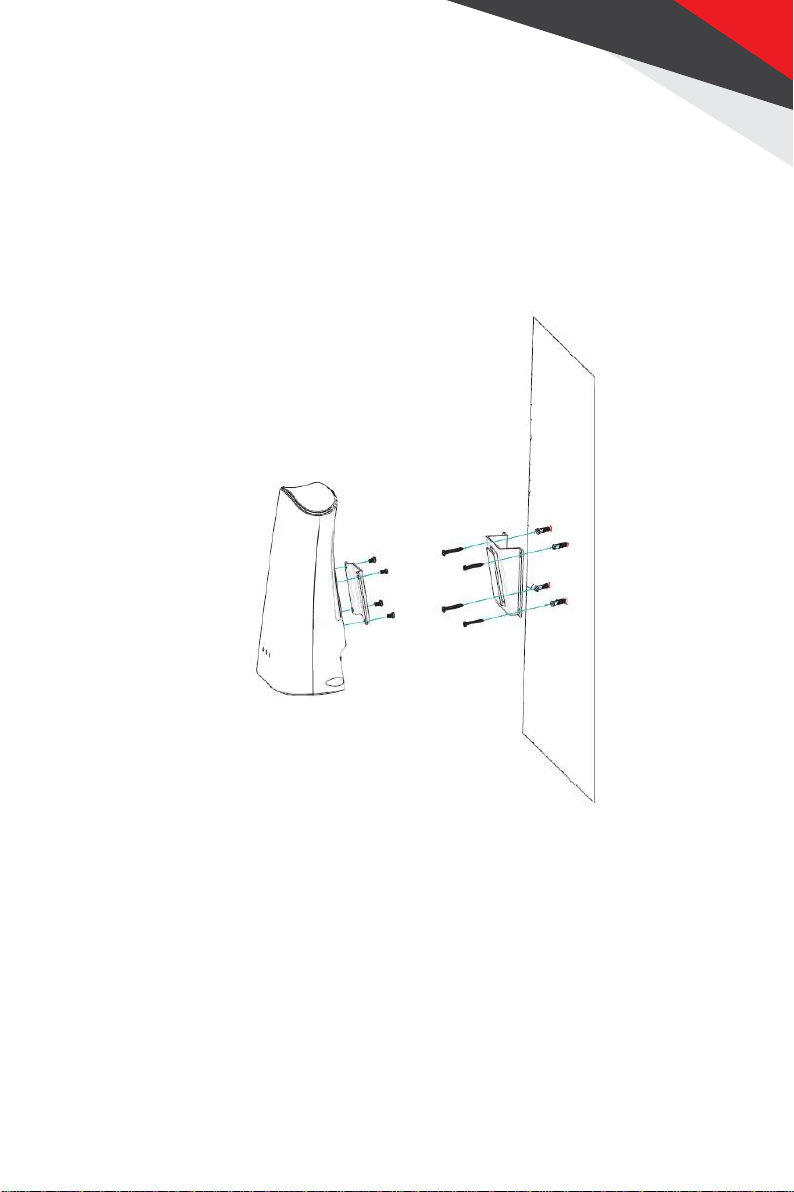

If you buy HiBoost Zoom, please follow the steps below to install the outdoor antenna
with the mounting hardware included in the kit.
Part B) Indoor Antenna Installation
While determining where to install the indoor panel antenna, please ensure
that there is at least 20 ft of vertical separation between the outdoor and
indoor antenna. To avoid any oscillation issues, it is recommended that the
outdoor antenna is pointed away from the indoor antenna.

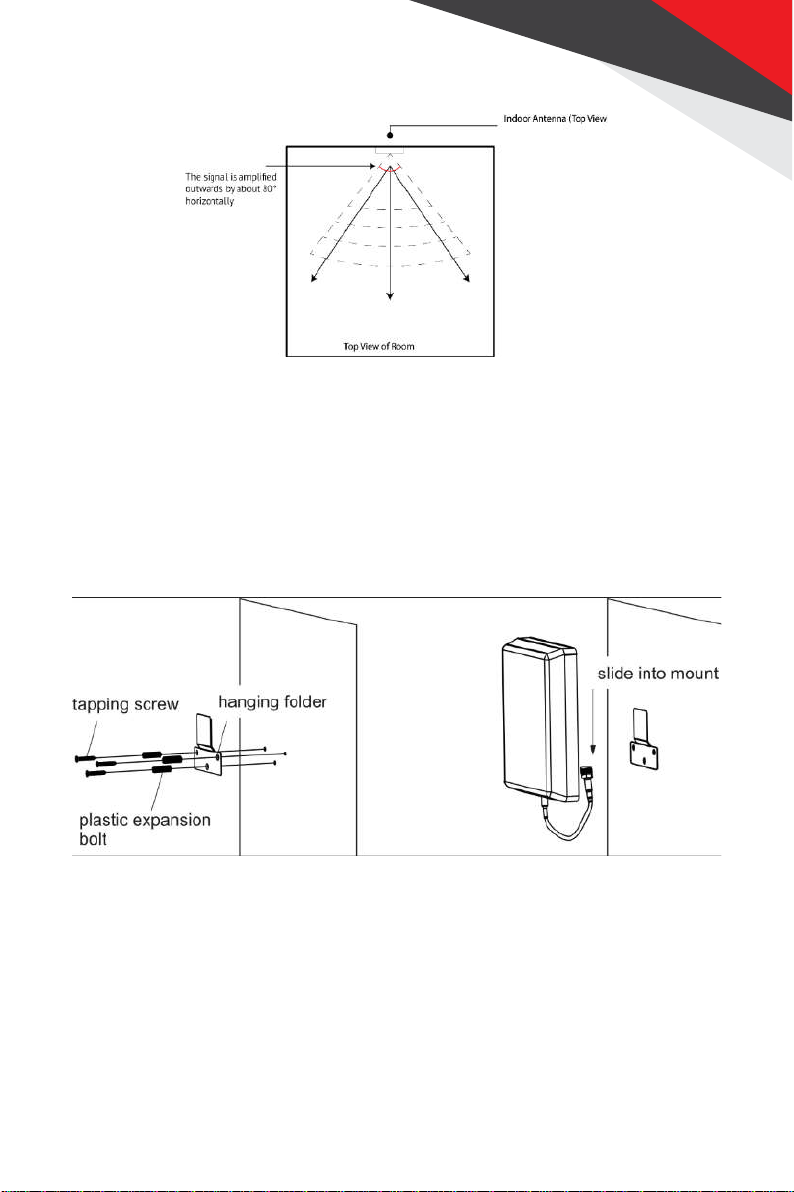

The panel antenna included in this kit will be mounted to the wall. It has a
coverage area that is a sector with a tilted angle. The signal is amplified
outwards from the front of the indoor antenna at a horizontal angel of 80-
degrees. The height between the floor and the indoor antenna can vary.

9
Follow the steps below to install the indoor antenna.
1. Connect the indoor antenna to the booster using the coaxial cable.
2. Push the cable firmly into the jack on both the antenna and the
booster, then turn the connector sleeve clockwise until the connectors
are tight.
3. Find a location to mount the indoor panel antenna and permanently
mount the indoor antenna panel antenna with the hardware provided
in the kit.
Note: It is important that the indoor and outdoor antennas are pointed away
from each other.

10
The outdoor signal strength will affect performance. It is important that users
install the outdoor antenna in the right position on a mast that is mounted
outside from the roof, balcony or ground.
It may help to visit an online resource such as www.cellmapper.net,
www.cellrecption.com or www.antennasearch.com
1. Once the best location is located, use the hardware provided in the kit
to mount the outdoor antenna on a mast pointing towards the nearest
cell phone tower.
2. Connect the outdoor antenna transmission cable to the coaxial cable
provided in the kit, then connect the coaxial cable to the outdoor port
on the booster.
Note:
•It is easier to optimize the outdoor antenna installation using the
Signal Supervisor app since it can determine real-time signal
measurements using the outdoor antenna and signal booster.
•Find the best location for the outdoor antenna by using a cell phone to
monitor the number of signal bars being received while slowly moving
around to different locations.
•It is recommended that users perform multiple tests while moving
around to different locations- refresh the signal bar readings by
turning off and on airplane mode on the cell phone.
•It is important to gain height above nearby obstructions (such as trees,
buildings, etc.) while mounting the outdoor antenna on mast.

11
Part C) Finalize the Booster Installation
Finalize the booster installation by following the steps below:
1. Users can mount or place the signal booster in a dry and cool area that
is easily accessible for maintenance as below (it should be located near
a power outlet).
Booster Installation diagram for HiBooster Mini and Zoom:
2. Loosely run the coaxial cable from the indoor and outdoor antenna to
the signal booster and secure all connections in the correct port

12
Professional tips
• Be careful while routing and bending cable – protect the connector
by wrapping and securing a towel around the end of the cable
• Keep horizontal cables straight and secure with zip-ties every 3-5 feet
• Keep vertical cables straight and secure with zip-ties every 6-8 feet
• Avoid water damage by using the waterproof tape provided in the kit
on the connector attached to the outdoor antenna transmission cable
• Be careful and avoid damaging the pins in the center of the
connectors while attaching cables
3. Carefully plug in the power supply to the booster port marked ‘DC
12V’
Note: For safety purposes, it is recommended to use a 1,000 Joule surge
protector between the booster’s power supply and AC power outlet
4. Check to see if all LED indicators are green and that all the following
parameters are met:
 There are at least 20 feet worth of vertical separation in between
the indoor and outdoor antennas
 The front of the outdoor antenna is NOT facing towards the front
of the indoor antenna
 All coaxial cable connections to the antennas and booster are
properly connected

13
Troubleshooting Guide
Eliminate ISO LED Indicator Quick Flashing Blue, Quick Flashing Red problems:
1. Adjust the outdoor antenna direction, keep it away from the indoor
antenna – restart the booster
2. Increase the vertical or horizontal distance between the outdoor
antenna and the indoor antenna – restart booster
3. Use metal or wall barriers to increase the isolation between the indoor
and outdoor antennas – restart booster
4. Change the indoor antenna type to an antenna with a more directional
antenna pattern – orient the indoor antenna and the outdoor antenna
so they are not pointing at each other
The ISO issues are solved when the ISO LED is “Blue” or “Slow Flashing Blue”.
If the signal has not been improved, please check below:
•A weak downlink signal leads to the low output signal level –
change the direction or position of the outdoor antenna (check
downlink gain levels using the Signal Supervisor app)
•Try replacing the outdoor antenna with a higher gain antenna to
increase the amount of signal being received
•Check to see if it is necessary to adjust the position of the indoor
antenna – barriers such as walls can block the signal indoors
•Ensure that there are at least 20 feet of vertical separation
between the indoor and outdoor antenna
•Ensure that the indoor and outdoor antennas are facing away
from each other
•Check the booster to make sure the output power is maximized –
the user may need to replace the booster with a more powerful
one if the amount of outdoor signal available is limited

14
Other Troubleshooting Issues
You may reference the chart below to identify the current status of your
booster:
LED STATUS
INDICATORS
Alarm (ISO) LED
SOLID BLUE BELOW FULL OUTPUT POWER
SLOW FLASHING BLUE FULL OUTPUT POWER
QUICK FLASHING BLUE OUTPUT POWER IS TOO HIGH
QUICK FLASHING RED BOOSTER SHUT DOWN -
EXCESSIVE DOWNLINK SIGNAL
Bluetooth LED
SLOW FLASHING BLUE BLUETOOTH DISCONNECTED
QUICK FLASHING BLUE BLUETOOTH CONNECTED
Wi-Fi LED
SOLID BLUE WIFI DISCONNECTED
SLOW FLASHING BLUE WIFI CONNECTED
If you have any issues installing your HiBoost Booster, please contact
our technical support team.
24/7 Online Support: Create a ticket or chat via Signal Supervisor App
Phone: [phone] (M-F from 9 am – 5 pm)
Email: [e-mail]
Website: www.hiboost.com

15

16
FCC and IC Statements
FCC RF EXPOSURE STATEMENT
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instruction for satisfying RF exposure
compliance. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
IC RF EXPOSURE STATEMENT
The device is compliance with RF exposure limits. The minimum distance from body to use the
device is 20 CM.
Le présent appareil est conforme aux conformité ou aux limites d’intensité de champ RF. La
distance minimale du corps à utiliser le dispositif est de 20 CM.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
•Re-orient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
•Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by HiBoost could void the user’s authority to
operate the equipment. For a complete list of antennas and cables approved for use with these
boosters see Authorized Kitting Options
FCC 27.50(d)(4) Statement: Fixed, mobile, and portable (handheld) stations operating in the 1710-
1755 MHz band are limited to 1-watt EIRP. Fixed stations operating in the 1710-1755 MHz band are
limited to a maximum antenna height of 10 meters above ground.
FURTHER INFORMATION ON SIGNAL BOOSTER END-USE REGISTRATION
The following links are the currently active contacts for booster registration with U.S. wireless
providers:

17
https://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp
https://www.sprint.com/legal/fcc_boosters.html
https://www.verizonwireless.com/solutions-and-services/accessories/register-signal-booster/
https://support.t-mobile.com/docs/DOC-9827
https://securec45.securewebsession.com/attsignalbooster.com/
IC Statement: This device complies with Innovation, Science and Economic Development Canada
ICES-003 Compliance Label: CAN ICES-3 (B)/ NMB-3(B). Le présent appareil est conforme
Innovation, science et développement économique Canada ICES-003 Étiquette de conformité: CAN
ICES-3 (B) / NMB-3 (B).
Please follow the link to access the CPC-2-1-05:
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html

18
Technical Specifications
Mini and Zoom Specifications
Return and Warranty Policies
30-Day Money-Back Guarantee: If for any reason the performance of any
product is not acceptable, the product may be returned to the reseller within
30-days with proof of purchase. Please contact the HiBoost customer support.
3-Year Warranty: HiBoost signal boosters and kits are warranted for 3 years.
HiBoost will repair or replace the unit and will cover the cost of delivery for
consumers located within the continental U.S and Canada.
Customers can choose to return the signal boosters and kits directly to the
manufacturer at the purchaser’s expense with a dated proof of purchase and a
Returned Material Authorization (RMA) number supplied by HiBoost. RMA
numbers may be obtained by contacting customer support at 972-870- 5666 or
support @hiboostusa.com

19
This warranty does not apply to any signal boosters or kits determined by
HiBoost to have been subjected to tampering, misuse, abuse, neglect, or
mishandling that alters or damages physical or electronic properties.
HiBoost is not liable for any Signal Supervisor application network connectivity
issues. The cell phone signal booster relies on a strong, continuous and reliable
connection to the internet in order to communicate with the cell phone
application. For all Signal Supervisor Application related issues, please check
your network strength and call our technical support.
All HiBoost products that are packaged with other HiBoost accessory products
are intended for resale and used as a single integrated system. Such product
kits are required to be sold to the end-users or subsequent reseller as
packaged.
