OWNER’S MANUAL
MI-AA190AG/AGH
AA190AG/AGH SERIES
AIR MOTOR-DRIVEN TANK WASHER
Spraying Systems Co.®
Experts in Spray Technology

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
2
TABLE OF CONTENTS
FORWARD...................................................................................................................................................3
INTRODUCTION ..........................................................................................................................................3
SPECIFICATIONS AND OPERATING CONDITIONS...........................................................................................3
DATA SHEETS
AIR MOTOR DRIVEN TANK WASHER FEATURES AND ORDERING – DS 190AG....................................................4
AIR MOTOR DRIVEN TANK WASHER FEATURES AND ORDERING – DS 190AGH..................................................5
TANK WASHER DIMENSIONAL DATA AND FLOW RATE DATA – DS 190AG-1......................................................6
HIGH PRESSURE TANK WASHER DIMENSIONAL DATA AND FLOW RATE DATA – DS 190AGH-1 ............................7
DRIVE ASSEMBLY PERFORMANCE AND DIMENSIONAL DATA – DS 46340 ...........................................................8
SAFETY PRECAUTIONS .................................................................................................................................9
INSTALLATION
CONNECTIONS..........................................................................................................................................9
MOUNTING .............................................................................................................................................. 9
LIQUID INLET CONNECTION .................................................................................................................... 10
MECHANICAL CLEARANCES...................................................................................................................... 10
GROUNDING .......................................................................................................................................... 10
HIGH IMPACT SPRAYS............................................................................................................................... 10
AIR MOTOR LUBRICATION ....................................................................................................................... 11
AUTOMATIC LURICATION ........................................................................................................................ 11
OPERATION............................................................................................................................................... 11
MAINTENANCE
REMOVAL / REPLACEMENT OF SPRAY NOZZLES ......................................................................................... 12
REMOVAL / REPLACEMENT OF NOZZLE HUB BUSHINGS .............................................................................. 12
REMOVAL OF AIR MOTOR DRIVE .............................................................................................................. 12
REMOVAL / REPLACEMENT OF AIR MOTOR DRIVE COUPLING ..................................................................... 12
REMOVAL OF UPPER SHAFT SEAL AND LOWER BUSHING RETAINER.............................................................. 12
REASSEMBLY OF UNIT ............................................................................................................................. 13
REPLACEMENT OF AIR MOTOR DRIVE ....................................................................................................... 13
PARTS LISTS

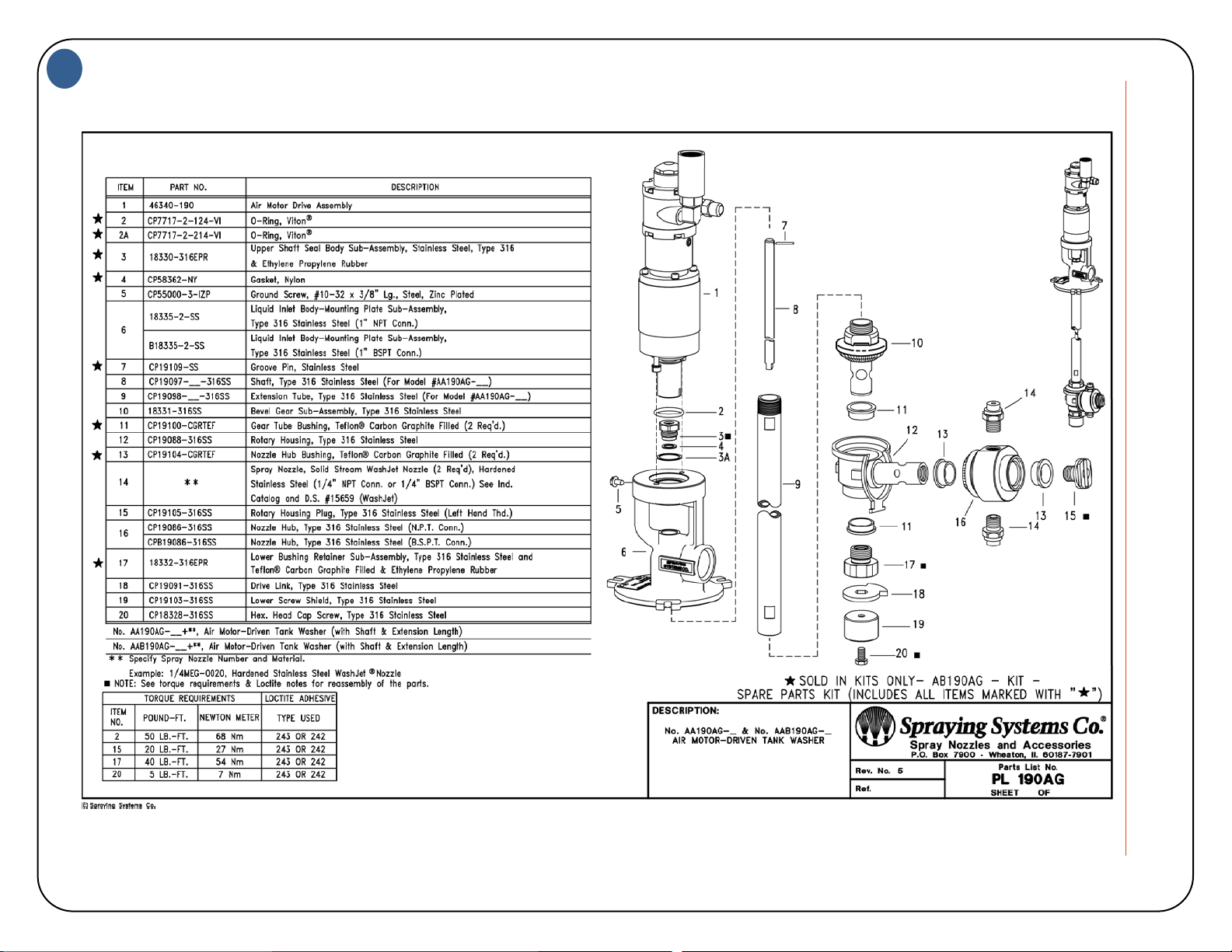

AIR MOTOR DRIVEN TANK WASHER – PL 190AG.......................................................................................... 14
HIGH PRESSURE AIR MOTOR DRIVEN TANK WASHER FEATURES AND ORDERING – PL 190AGH ........................ 15
AIR MOTOR DRIVE ASSEMBLY – PL 46340 .................................................................................................... 16
LUBRICATOR ASSEMBLY – PL21030............................................................................................................. 17
WARRANTY............................................................................................................................................... 18
MAINTENANCE RECORD ............................................................................................................................ 18
DECLARATION OF CONFORMITY ............................................................................................................... 19
IMPORTANT: PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLING OR OPERATING UNIT.
SAVE FOR FUTURE REFERENCE
PROPRIETARY NOTICE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS THE EXCLUSIVE PROPERTY OF SPRAYING
SYSTEM CO.
REPRODUCTION IN WHOLE OR PART IS PROHIBITED WITHOUT PRIOR CONSENT OF SPRAYING
SYSTEMS CO.
•

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
3
FORWARD
The equipment and/or parts described in this document were manufactured and assembled with quality and
high reliability, which have become synonymous with the name spraying systems co. The description and
specifications contained herein were effective on the revision date of this mi. Spraying systems co. Reserves
the right to alter or modify any unit specification on spraying systems co. Product without notice or obligation.
INTRODUCTION
This tank washer meets the requirements set forth in EC directive 2006/42/EC. The latest motor
manufacturer’s operation & maintenance manual is included with this tank washer as a separate manual since
important safety precautions pertaining to the installation and operation of the motor itself are included.
SPECIFICATIONS & OPERATING CONDITIONS
• Liquid Pressure: 500 psi (35 bar) max for AA190AG
1000 psi (69 bar) max for AA190AGH
• Flow Rates: up to 20 gpm (76 l/m)
• Pressure Drop at Max. Flow: 40 psi (2.8 bar)
• Liquid Temperature: 200 degrees f (93 degrees c) max.
• Air Pressure to Motor: 10 psi (0.69 bar) max.
• Ambient Temperature: 104 degrees f (40 degrees c) max.
• Tank Diameter:
For AA190AG 25 feet (7.6 m) max recommended
For AA190AGH 34 feet (10.4 m) max recommended
• Spray head and nozzles fit through a 3 ¾” (95 mm) dia. opening
Tanks over the specified diameters could possibly be cleaned adequately depending on the maximum tank
dimension, cleaning solutions being used, temperatures, spray pressures, flow rates and the material being
cleaned from the tank.
The tank washer may be used with plain water or with a variety of chemicals (compatible with 316 SS,
ethylene propylene rubber, and carbon graphite filled Teflon®). However, if chemicals are used, review
MSDS sheets and chemical compatibility with material used to construct this product. Also, the unit should
be flushed with clean water at the end of the day before the unit is stored. A liquid line strainer ahead of the
unit is recommended to remove large particles which may damage the unit.
•

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
4
DATA SHEETS
NOTE: CERTAIN ATMOSPHERES WITHIN THE TANK BEING CLEANED COULD BECOME
EXPLOSIVE, SUCH AS DUST PARTICLES IN A FLOUR SILO, OR FUMES IN PAINT MIXING TANKS. FOR THIS REASON, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE OBSERVED.
•
/
(
14"
(355 .6 mm]
APPROX.
AIR
MOTOR DRIVE
......
ASSEMBLY
THE AA190AG-_ AIR MO T OR-DR I VEN TANK WASHER PROJECTS CLEANI NG SOLUTION IN CONCENTRATED HI GH
IMPACT, SOLID STREI\M SPRAYS .. .WI TH ROTATING MOTION THAT COVERS ALL INTERNAL SURFACES OF THE TANKS.
SLOW, CONTROLLED RO TAT ION AL SPEEDS OF THE ROTATING HOUSING AND NOZZLE TURRET PROVIDE A
THO RO UG H CLEANING ACTION ON T HE TANK SU RFACE.
AIR INLET CONN.
1
/4" N PT (M)
OR 1/4" BSPT (M)
NOTE : LUBR I CATOR ASSEMB LY (SUPPLIED
WITH UNIT) IS REQU IR ED FOR
AIR SUPPLY LI NE.
LIQU ID IN LE T CONN.
NPT (F) or 1" BSPT (F)
~ MOUN TI NG FLANGE
FEATURES:
e CAN BE PERMANEN T LY INSTALLED OR USED AS A PORTABLE UN IT.
e NOZZLE TURRET WITH 2 SOLI D STREAM NOZZLES IS GEAR DR I VE N TO GIVE
FULL COVERAGE OF IN TER N AL TANK SURFACES.
e ENTIR E DRIV IN G UN IT IS MOUNTED OUTSIDE OF THE TANK.
e FOR TA NK DIAMETERS UP TO APPRO XI MATE LY 25 FT . (7.6 m).
e FOR SPEC I FICAT IO NS AND ADDITIONAL IN FOR MA TI ON, SEE DATA SHEET
190AG- 1
AND CATA L OG 15 .
e MA X IM UM PRESS UR E 500 PSI (35 bar)
-+---------- ~ (SEE DA TA SHEET 190A G- 1) WI
TH CAPACITITES UP TO 20 GPM ( 75 I/min.)
EXTENSION
LENGTH
l 77-'7-.-...,..,.."(""\"'" J
,, _r
I ' - I
No.
43047-3 16SS BALL
JO I NT ASSEMBLY
(
SEE DATA SHEET 43 047)
---·---------- '\ ✓ - , . .\ ;\,, )- ----------------- , ,
/1'.:f- _ -< \\ '1
3 1/4"
(83 mm]
. /I \\ .
p -~ i
I
"-...._ 30" - - - 30" / :
I
ROTATING HOUSING-
RO TAT I NG NOZZLE TURRET
WITH SO LI O STREAM
WASHJET• NOZZLES (2 REQ'D)
HARDENED STA INLESS STEEL
1
/4" NP T(F) OR 1/4 " BSPT(F)
(SEE
IN DUS TR I AL CATALOG
AND DA TA SHEET 15659 )
i-- -- -i-- - 3" (76 .2 mm]
I
I
e CE CERTIFIED UNIT.
HOW TO ORDER EXAMPLE:
AAB 1 90AG- :i + B 1/ !,MEG-ml3D
DESCRIPTION:
ll LSPECIFY NOZZLE SI
ZE & MATERIAL
(SEE D.S. 190AG- 1)
ADD " 8" TO T HE PAR T NO . FOR
FOR
BSPT CONN ECTIONS
SPEC I FY EX TENSIO N LENG TH
ADD "B" TO T HE PART NO . FOR
FOR BSPT C ONNEC TI ONS
No. AA1110AG-_ & No. AAB190AG- _
AIR MOTOR-DRIVEN TANK WASHER
,4'l SprayingSystemsCo:
't!J' Spray Nozzles and Accessories
P.O. Bo• 7900 -Wl>oaton. II. 00187-7901
R•v. No . 2 Data
Shnl No.
190AG
Ref. SHEET
OF
©lilm1nt -·~

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
5
14"
(355 .6 mm)
APPROX.
THE AA 190AGH- _ HI GH PRESSURE AIR MOTOR-DRI VEN TANK WASHER PROJECTS CLEANING SOLUTION IN CONCENTRATED
HIGH IMPACT, SOLID STREAM SPRAYS
... WITH ROTATI NG MOTION THAT COVERS ALL INTERNAL SURFACES or THE TAN KS.
SLOW, CONTROLLED
ROTA TIONAL SPEEDS or T HE ROTATING HOUSING AND NOZZLE T URRET PROV I DE A
THOROUGH CLEANING
AC TI ON ON THE TAN K SURFACE.
AIR MOTOR DRIVE
'-
ASSEMBLY
AIR INLET CONN.
1/
4" NPT (M)
OR 1/ 4" BSPT (M)
NOTE: LUBRICATOR ASSEMBLY (SUPPLIED
WI
TH UNIT) IS REQUIRED FOR
AIR SUPPLY LINE.
LIQUID INLET CONN.
1" NPT (F) or 1" BSPT (F)
':I'"-- - -- MOUNTING FLANGE
\_ ----i--iu-ii--~ (SEE DATA SHEET 190AG -1 )
---- -l_ - - J- --- -
/~ ~ / ~~
I ~ / \
I - I
I I
FEATURES:
e CAN BE PERMANENT LY INSTALLED OR USED AS A PORTABLE UNIT.
e NOZZLE TURRET WITH 2 SOLID ST REAM NOZZLES IS GEAR DRIVEN TO GI VE
FULL COVERAGE or INTERNAL TANK SURFACES.
• ENTIRE DRIVING
UN IT IS MOUNTED OUTSIDE or THE TANK.
e FOR TANK DIAMETERS UP TO APPRO XI MATELY 34 FT . (10.4 m).
e FOR SPECIFICATIONS AND ADDITIONAL INFORMATION, SEE DATA SHEET
190AGH-1 AND CATALOG 15.
e FOR USE AT PRESSURES UP TO 1000 PSI (69 bar)
AND CAPACITIES or UP TO 20 GPM (75 I/ m i n) .
e CE CERTIFIED UNIT
HOW TO ORDER EXAMPLE:
AAt,190AGH- fi + B 1/l.iv1E(;-nn: ~n
l l LSPECIFY NOZZLE SIZE & MATERIAL
(SEE D.S.
190AGH-1)
ADD " B" TO THE PART NO . FOR
FOR BSPT CONNECTIONS
SPECIFY EXTENSION LENGTH
EXTENSION I I
ADD "B" TO T HE PART NO . FOR
FOR
BSPT CONNECTIONS
LENGTH I I
3 1/4"
(83 mm)
I I
i A ROTATING HOUSING i
I I I / I
-------r- ROTATING NOZZLE TURRET
WITH SOLID ST REAM
WASHJE T® NOZZLES (2 REQ'D)
HARDENED STAINLESS STEEL
1/
4" NPT(F) OR 1/ 4" BSPT(F)
(SEE INDUSTRIAL CATALOG
AND DATA SHEET
15659)
t-- ----+--- 3" [76.2 mm]
DESCRIPTION:
No . AA190AGH-_ & No. AAB190AGH-_
HIGH PRESSURE
AIR MOTOR-DRIVEN TANK WASHER A SprayingSystemsCo:
'tIJ/ Spray Nozzles and Accessories
P.O . Box 7900 -Wheaton, II. 80187-7901
Rev. No. 2 Data
Sheet No.
190AGH
Ref. SHEET
OF
© Sp roy ln g Syste ms Co •
•

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
6
•
9/32" (7.1
120°
TYPICAL
1/2"
(12.7 mm)
2 1/4 "
(57.2 mm)
1" NPT (BSPT) INLET
5" (127 mm) DIA .
1- --- BOLT CIRCLE
MOTOR END VIEW OF INLET BODY MOUNTING FLANGE
SPECIFICATIONS
e MAXIMUM PRESSURE - 500 PSI (35 bar).
e MAXIMUM RECOMMENDED FLOW - 20 GPM {76 I/min) .
e MAXIMUM LIQUID TEMPERATURE - 200"F {93"C).
e PRESSURE LOSS - 40 PS I (2.8 bar) AT 20 GPM (76 I/min).
e SPRAY HEAD FITS THROUGH A 3 3/ 4" (95 mm) DIAMETER HOLE.
© Spraying
Sy11t•m• Co .
FLOW RATE DATA
U.S. UNITS METRIC UNITS
TOTAL FLOW FOR 2 NOZZLES TOTAL FLOW FOR 2 NOZZLES
NOZZLE (EQUAL CAPACITY)
GALLONS PER MINUTE (EQUAL CAPACITY) LITERS PER MINUTE
SIZE LIQUID INLET
PRESSURE {PSI) LIQUID INLET PRESSURE {bar)
100 200 300 400 500 7 15 20 30 35
1/4MEG-001 0 3.1 4
.4 5.4 6.3 7.0 11.8 17 .3 20 24 26
1/4MEG-0015
47
f; f;
R 1 q 4 1n"
17 Q ?f; . ,;n
,;7
411
1/ 4MEG-0020
6.2 8.8 10.8 12.4 13.9 24 35 40 49 53
1/ 4MEG-0025
7.7 10 .9 13 .3 15 .4 17 .2 29 43 50 61 66
1/ 4MEG-0030
9.1 12.9
15 .8 18 .2
20.4 35 51 59 72
78
1/ 4MEG-0035
10 .5 14 .8 18 .1 20 .9 40 59 68 83
1/ 4MEG-0040
11.8 16.7 20 .4 45 66 76
1/ 4MEG-0050
14.2 20.1 54 79
1/ 4MEG-0060
16.4 63
1/ 4MEG-0070
18.3 70
1/ 4MEG-0080
19 .9 76
NOTE : FLOW RATES TABULATED ABOVE INCLUDE EFFECT
OF PRESSURE DROP THROUGH UN IT.
DESCRIPTION:
LOW AND MOUNTING SPECIFICATIONS FOR
No. AA190AG-_ & No . AAB190AG-_
AIR MOTOR-DRIVEN TANK WASHER
,ta. SprayingSystemsCo:
~ Spray Nozzles and Accessories
P. O. Box 7900 -Wheaton, II . 60187-7901
Rev. No. 2 Data Sheet
No.
190AG-1
Ref. SHEET
OF

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
7
9/32" (7.1
1/2"
(12 .7 mm)
2 1/4"
{57 .2 mm)
1" NPT {BSPT) INLET
5" {127 mm) DIA .
,____ BOLT CIRCLE
120°
TYPICAL
MOTOR END VIEW OF INLET BODY MOUNTING FLANGE
SPECIFICATIONS
e MAXIMUM PRESSURE - 1000 PSI (69 bar).
e MAXIMUM RECOMMENDED FLOW - 20 GPM (76 I/min).
e MAXIMUM LIQUID TEMPERATURE - 2oo·F (93·c).
e PRESSURE LOSS - 40 PSI (2.8 bar) AT 20 GPM (76 I/min).
e SPRAY HEAD FITS THROUGH A 3 3/ 4" (95 mm) DIAMETER HOLE.
©Spraying Systems Co •
•
FLOW RATE DATA
U.S. UNITS
TOTAL FLOW OF 2 NOZZLES (EQUAL CAPACITY)
GALLONS PER MINUTE
NOZZLE
INLET PRESSURE (PSI)
SIZE
100 200 300 400 500 600 700 800 900 1000
1 4MEG-0010 3.1
4.4 5.4 6.3 7.0 7.6 8.2 a.a 9.3 9.8
1 4MEG-0015 4.7
6.6 8.1 9.4 10.5 11.5 12 .4 13.3 14 .1 14 .9
1 4MEG-0018
5.6 7.9 9.7 11.2 12.5 13.7 14 .8 15.8 16.8 17.7
1 4MEG-0020 6.2
a.a 10.8 12.4 13 .9 15.2 16.4 17.5 18.6 19.6
1 4MEG-0025 7.7 10.9 13.3
15.4 17.2 18 .8 20.3 -- -- --
1 4MEG-nn3n 9.1
12.9 1~.R 18.? 20.4 -- -- -- -- --
1I 4MEG-0035 10.5 14 .8 18.1 20.9 -- -- -- -- -- --
1 4MEG-0040 11.8 16.7
20.4
-- -- -- -- -- -- --
1 4MEG-0050
14 .2 20.1 -- -- -- -- -- -- -- --
1 4MEG-0060
16 .4 -- -- -- -- -- -- -- -- --
1 4MEG-0070 18.3
-- -- -- -- -- -- -- -- --
1 4MEG-0080 19.9
-- -- -- -- -- -- -- -- --
METRIC UNITS
TOTAL FLOW OF 2 NOZZLES (EQUAL CAPACITY)
LITERS PER MINUTE
NOZZLE INLET PRESSURE (bar)
SIZE
7 15 20 30 35 40 50 55 60 70
1/4MEG-0010
11 .8 17.3 20 24 26 29 32 34 35 38
1/ 4MEG-0015 17.9 26 30 37 40 43 48 50 52 57
1 4MEG-0020
24 35 40 49 53 57 63 66 69 75
1 4MEG-0025 29
43 50 61 66 70 78 -- -- --
1 4MEG-0030 35
51 59 72 78
-- -- -- -- --
1 4MEG-0035 40 59 68
83 --
--
-- -- --
--
1 4MEG-0040 45 66
76
-- -- -- -- -- -- --
1 4MEG-0050
54 79
--
--
-- --
--
--
--
--
1 4MEG-0060 63
-- -- -- -- -- -- -- -- --
1 4MEG-0070 70
-- -- -- -- -- -- -- -- --
1I 4MEG-OORO
76 -- -- -- -- -- -- -- -- --
NOTE : f'LOW RATES TABULATED ABOVE INCLUDE Ef'f'ECT Of' PRESSURE DROP THROUGH UNIT.
DESCRIPTION:
FLOW RA TE & MOUNTING SPECIFICATIONS FOR
No. AA190AGH-- & No. AAB190AGH--
HIGH PRESSURE
AIR MOTOR-DRIVEN TANK WASHER A SprayingSystems Co:
~ Spray Nozzles and Accessories
P.O. Box 7900 -Wheaton, II. 60187-7901
Rev.
No. 3 Data Sheet
No.
190AGH-1
Ref. SHEET OF

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
8
•
l!S3 41/64"
AIR MOTOR
REQUIRES SAE #10 [
92
·6 mm] r
AUTOMOTIVE ENGINE APPROX
AIR MUFFLER
OIL
FOR LUBRICATION
(SEE
DS21030) ~--- -+--+ ---
9 31/64"
[241 mm]
APPROX.
090/190 TANK ASHER
ADAPTER
INLET
BODY
FOR 090 OR 190
AIR AIR
PRESSURE
AT MOTOR
CONSUMPTION
PSI
bar
SCFM
I/min
5 0.34 1.4 39.6
7 0.48 2.0 56.6
10 0.68 3.1 87.7
APPROX
SPEED
RPM
3.2
6.0
8.2
AIR INLET CONN.
1/4" NPT (M)
GEAR REDUCER
PERMANENTLY LUBRICATED
APPROX
TIME FOR
ONE COMPLETE
CYCLE
IN MINUTES
090 190
10 11
5.5
6.0
4.0 5.0
PARTS LIST
PL46340
APPROX. WEIGHT
6.25 lbs [2.8 kg]
REVOLUTIONS
REQUIRED
FOR 1
COMPLETE CYCLE
090 190
31 35
SEE DATASHEET 46340-290 FOR PERFORMANCE DATA OF THIS MOTOR ON A 290 TANKWASHER.
DESCRIPTION:
No. 46340- _ _ _ AIR DRIVEN
MOTOR ASSEMBLY
FOR
090 OR 190
AIR MOTOR-DRIVEN
TANK WASHERS
© Spraying System• Co .
A SprayingSystems CO.
~ Spray Nozzles and Accessories
P.O. Box 7900 -Wheaton, II. 60187-7901
Rev. No. 5 Data Sheet
No.
48340
Ref. SHEET OF

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
9
SAFETY PRECAUTIONS
YOUR SAFETY AND THE SAFETY OF OTHERS IS EXTREMELY IMPORTANT.
WE HAVE PROVIDED IMPORTANT SAFETY MESSAGES IN THIS MANUAL FOR YOUR PRODUCT.
ALWAYS READ AND OBEY ALL SAFETY MESSAGES.
THIS IS THE SAFETY ALERT SYMBOL. THIS SYMBOL ALERTS YOU TO HAZARDS THAT
CAN KILL OR HARM YOU AS WELL AS OTHERS. THE SAFETY ALERT SYMBOL AND THE
WORDS “DANGER” AND “WARNING” WILL PRECEDE ALL SAFETY MESSAGES. READ THE
FOLLOWING WORDS AND WHAT THEY SIGNIFY:
DANGER
YOU MAY BE KILLED OR SERIOUSLY INJURED IF YOU DON’T FOLLOW THESE INSTRUCTIONS.
WARNING
YOU MAY BE SERIOUSLY INJURED IF YOU DON’T FOLLOW THESE INSTRUCTIONS.
ALL SAFETY MESSAGES WILL IDENTIFY THE HAZARD, TELL YOU HOW TO REDUCE THE CHANCE
OF INJURY AND TELL YOU WHAT CAN HAPPEN IF THE SAFETY INSTRUCTIONS ARE NOT
FOLLOWED.
INSTALLATION
Qualified personnel must perform all work required to assemble, install, operate, maintain and repair this
equipment. Improper installation and operation can result in severe personal injury and/or damage to
property. Correct installation is your responsibility.
WARNING
Install proper guards as needed. Follow basic lifting guides when transporting or handling this product. Failure
to follow this instruction can result in back injury, burns or other serious injury.
CONNECTIONS
Connect the air muffler (shipped loose) to the air motor exhaust connection. The exhaust connection is the
threaded connection on the left as you face the motor openings. Connect the lubricator sub-assembly to the
air inlet connection of the air motor. The inlet connection is the threaded connection on the right as you face
the motor openings. Attach a compressed air line to the quick connect fitting of the pressure regulator and
verify that the nozzle hub rotates clockwise when viewed from the nozzle hub end by applying air pressure to
the motor. Connect the liquid line to the inlet connection of the liquid inlet body.
MOUNTING
Bolt or clamp the unit to the tank to be cleaned as dictated by the mounting flange provided.
Adjustable flanges allow easy positioning of the tank wash unit to various spray depths for maximum
cleaning effectiveness.
•

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
10
LIQUID INLET CONNECTION
Proper installation requires liquid supply line (pipe, hose, etc.) Meet or exceed maximum working pressure.
Use of PTFE pipe tape or other appropriate sealant compatible with your process fluids is highly
recommended for leak free connections.
DANGER
Failure to install the tank washer with insufficient connections could result in leaks and/or explosion. If you do
not follow these instructions, you may be killed or seriously injured.
MECHANICAL CLEARANCES
Proper installation requires that sufficient clearance be maintained between the rotary housing and nozzles of
the tank wash unit and any internal baffles or the walls of the tank being cleaned.
DANGER
It is your responsibility to ensure that there is no possibility of the moving parts coming in contact with fixed
objects. Failure to install the tank washer with sufficient clearances could result in the generation of sparks
with a resultant explosion or fire. If you do not follow these instructions, you may be killed or seriously injured.
GROUNDING
A ground screw is provided on the liquid inlet body marked with a ground symbol. A ground wire should be
clamped under the screw head and connected to earth ground via an approved grounding method. Likewise,
a ground wire should be affixed to the tank and terminated at an earth ground.
DANGER
It is not sufficient to ground only the tank washer or the tank itself because the electrical continuity between
the tank wash unit and tank cannot be guaranteed. A separate ground connection from both the tank wash
unit and the tank itself should be made. Failure to follow this instruction can result in buildup of static charge
between the tank and the tank washer parts which could cause a sudden discharge of current with a resultant
explosion or fire.
YOU MAY BE KILLED OR SERIOUSLY INJURED IF YOU DO NOT FOLLOW THESE INSTRUCTIONS.
HIGH IMPACT SPRAYS
This tank washer may be equipped with solid stream nozzles which concentrate the flow energy into a small
area for maximum impact and cleaning efficiency. Operation at high pressure increases their effectiveness
but also creates a hazard if the proper precautions are not followed.
WARNING
INJURY HAZARD FROM HIGH IMPACT SPRAYS. High impact sprays can cause severe injury. The liquid
pressure to the tank washer should never be turned on while the unit is outside the tank. FAILURE TO
FOLLOW THIS INSTRUCTION CAN RESULT IN FLUID PENETRATION THROUGH CLOTHING AND
INTO THE HUMAN SKIN CAUSING SEVERE INJURY, POSSIBLY RESULTING IN AMPUTATION OR
DEATH. If any part of the body comes in contact with the spray stream, immediately consult a physician.
•

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
11
AIR MOTOR LUBRICATION
Use a detergent sae #10 automotive engine oil. Consult with your local supplier of lubricants or contact your
local Spraying Systems Co. Sales office.
AUTOMATIC LUBRICATION
Inline air lubricator should be adjusted to feed 1 drop of oil per minute. Do not over-feed oil as contamination
of exhaust air may result.
NOTE: THE AIR SOURCE MUST BE WATER-FREE AND PROPERLY LUBRICATED TO PREVENT
RUST AND EXCESSIVE FRICTION FROM WEARING OUT THE MOTOR PREMATURELY. IF THE AIR
MOTOR IS TAKEN CARE OF PROPERLY IT SHOULD LAST MANY CLEANING CYCLES BEFORE
REPAIR OR REPLACEMENT IS NECESSARY.
OPERATION
IT IS YOUR RESPONSIBLY TO OPERATE THIS PRODUCT AT RECOMMENDED SPEEDS, LOADS AND
TEMPERATURES.
Run the unit within the specified pressures and flow rates for the liquid and air motor to ensure safety. To
maintain proper operations do not run the unit dry, always keep liquid flow on before stopping the air motor.
WARNING
Do not use combustible gases to drive the air motor. Sound level from motor may exceed 85db(a). Check
compatibility of service fluid with materials used to construct this product. Use a pressure gauge to monitor
liquid pressure (see 190AG-1 for flow rate data). Ensure that the pumping system has monitor controls and
emergency shut off system in case of pressure spike which can cause harm to this product. Failure to follow
this instruction can result in burns, eye injury or other serious injury.
DANGER
Spraying Systems Co. strongly recommends the use of appropriate safety equipment when working with
potentially hazardous chemicals. see your chemical’s MSDS sheet for all safety measures relating to your
chemical.
This equipment includes but is not limited to:
protective hat
safety glasses or face shield
chemical-resistant gloves and apron
long sleeve shirt and long pants
ALWAYS REMEMBER TO CAREFULLY READ THE CHEMICAL MANUFACTURER’S LABEL AND
FOLLOW ALL DIRECTIONS.
•

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
12
MAINTENANCE
IT IS YOUR RESPONSIBILITY TO REGULARLY INSPECT AND MAKE NECESSARY REPAIRS TO THIS
PRODUCT IN ORDER TO MAINTAIN PROPER OPERATION. IT IS RECOMMENDED THAT THE
BUSHINGS AND SEALS BE INSPECTED EVERY 1000 HOURS OF OPERATION OR SOONER IF
EXCESSIVE LEAKAGE OF THE SEALS OCCURS.
REMOVAL AND REPLACEMENT OF SPRAY NOZZLES (ITEM 14 ON PARTS LIST DRAWING PL 190AG)
MAKE SURE THE UNIT IS COMPLETELY DISCONNECTED FROM THE AIR SOURCE BEFORE
ATTEMPTING TO SERVICE NOZZLES.
1. Unscrew spray nozzles (14) from nozzle hub (16) and inspect for plugging and wear.
2. If a nozzle is plugged or partially plugged, clean out the orifice and inlet area with a wooden
toothpick or other relatively soft probe. Screwdrivers, wire or other hard metal items should not be
used since they may scratch and severely damage the orifice.
A. If the nozzles need replacement, obtain new nozzles.
3. Replace spray nozzles (14) in nozzle hub (16) by tightly screwing them in.
REMOVAL AND REPLACEMENT OF NOZZLE HUB BUSHINGS (ITEM 13 ON PARTS LIST PL 190AG)
1. Unscrew (clockwise-left hand thread) rotary housing plug (15), and slide nozzle hub bushings (13) and
nozzle hub (16) off the rotary housing (12).
2. Remove any foreign material from nozzle hub gear teeth.
3. To replace parts, slide one nozzle hub bushing (13) over the tube of rotary housing (12) up to the
shoulder.
4. Insert second nozzle hub bushing (13) into nozzle hub (16) and push nozzle hub onto rotary housing
tube.
5. Apply Loctite 243 or 242 to threads of rotary housing plug (15) and screw (counterclockwise) into
rotary housing (12) until it seats firmly.
6. Torque to 20 lb-ft (27 nm).
REMOVAL OF #46340 AIR MOTOR DRIVE (SEE PARTS LIST DRAWING PL 46340)
1. First make sure the unit is completely disconnected from the air source.
2. Using a 4 mm Allen Wrench, unscrew and remove both 5 mm socket head cap screws (1) and
respective spring washers (2).
3. You should now be able to lift the air motor drive completely off the aluminum adapter (3), leaving the
aluminum adapter attached to the 190 inlet casting.
REMOVAL/REPLACEMENT OF AIR MOTOR DRIVE COUPLING (ITEM 8 ON PARTS LIST PL 46340)
1. If it is necessary to remove the coupling (8) from the gear motor sub-assembly (14) shaft, tap the
coupling with a rubber or plastic mallot until it releases from the shaft.
2. To reassemble, align the keyway on the coupling (8) with the key (9) on the gear motor sub-assembly
(14) shaft and lightly tap the coupling (8) until it bottoms on the shaft.
NOTE: The coupling (8) on the gear motor sub-assembly (14) shaft has a press fit so the coupling (8)
does not inadvertently come apart during removal or installation of the gear motor sub-assembly.
REMOVAL OF THE UPPER SHAFT SEAL BODY SUB-ASSEMBLY (2) AND LOWER BUSHING RETAINER
SUB-ASSEMBLY (17) ON PARTS LIST PL 190AG)
1. If it has not already been done, the air motor sub-assembly should be removed as described in the
removal of #46340 air motor drive section above.
2. Next, tap out the groove pin (7), unscrew the upper shaft seal body sub-assembly (2) and slide off the
shaft (8).
3. Remove gasket (4) from shaft (8).
•

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
13
4. Now unscrew the 5/16” hex head cap screw (20), remove the lower screw shield (19) and drive link (18).
5. Unscrew the lower bushing retainer sub-assembly (17) and slide off the shaft (8).
6. Pull the rotary housing (12) and gear tube bushings (11) off the bevel gear sub-assembly (10).
7. Inspect o-rings inside the upper shaft seal body sub-assembly (2) and seals inside lower bushing
retainer sub-assembly (17).
8. If damaged or worn, replace with new sub-assemblies.
9. Remove any foreign material from gear teeth of the beveled gear sub-assembly (10) before reassembly.
REASSEMBLY OF THE UNIT (SEE PARTS LIST PL 190AG)
1. Install one new gear tube bushing (11) into the lower end of the rotary housing (12) and one new gear
tube bushing (11) onto the bevel gear sub-assembly (10) up to shoulder.
2. Slide the rotary housing (12) and gear tube bushing (11) back onto the bevel gear assembly (10)
making sure the gear teeth on the nozzle hub (16) and bevel gear sub-assembly (10) mesh properly.
3. Reassemble lower bushing retainer sub-assembly (17) onto shaft (8) by slowly rotating it as you slide it
onto the shaft. This procedure will help prevent damage to the shaft seals inside.
4. Torque lower bushing retainer sub-assembly (17) to 40 lb-ft (54 nm).
5. Replace the drive link (18) and lower screw shield (19).
6. The bottom of the shaft should pass through the drive link so it is about flush with the bottom of the
drive link.
7. Apply Loctite 243 or 242 to threads of hex head cap screw (20) and thread into shaft (8).
8. Holding the rotary housing (12), torque hex head cap screw(20) to 5 lb-ft (7 nm).
9. Install gasket (4) onto shaft (8) at the upper end of the shaft.
10. Apply Loctite 243 or 242 to threads of the upper shaft seal body sub-assembly (2) and reassemble
onto shaft (8) by slowly rotating it you slide it onto the shaft.
11. This procedure will help prevent damage to the shaft seals inside.
12. Torque upper shaft seal body sub-assembly (2) to 50 lb-ft (68 nm).
13. Complete the reassembly by installing the groove pin (7) into shaft (8).
REPLACEMENT OF #46340 AIR MOTOR DRIVE (SEE PARTS LIST DRAWING PL 46340)
1. If it is not already attached, align the keyway on the coupling (8) with the key (9) on the gear motor
sub-assembly (14) shaft and lightly tap the coupling (8) until it bottoms on the shaft.
2. Insert the coupling (8) through the hole in the top of the 190 inlet casting.
3. The slot on the coupling (8) should be aligned and indexed over the groove pin and drive shaft on the
190 assembly.
4. The air motor drive assembly can now be rotated until the through holes on the aluminum adapter (3)
align with the m5 female threaded inlet holes on the air motor drive assembly.
5. Using a 4 mm hex Allen Wrench, secure the gear motor sub-assembly (14) to the aluminum adapter
(3) using two m5 bolts (1) and spring lock washers(2). Before re-installing in a tank, connect an
air line to the air motor drive to make sure the unit works properly.
•

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
14
PART LISTS
•
*
*
*
*
*
*
*
*
IT[M
PART NO. DESCRIPTION
1
46340 - 190
Air Motor Dr iY e Assembly
2 CP7717-2-124-VI 0-Ring,
Vilon
111
2A
CP7717-2-214-VI 0-R ing, Vitoncii
3 1 8330-316EPR
Upper Shott Sea l Body Sub-Assembly , Sta i nless Stool , T ype 316
& Ethy len e Propylene Rubber
4
CP58362-NY Gaskel, Ny l on
5
CP 55000-3- IZP Ground Screw , /10-32 x 3/B" Lg., Steel, Zi nc Plated
1 8335 - 2 -S S llquld
Inlet Body-Mount l ng Plate Sub-Assembly,
6
Type 316 Stain l ess Stee l (1" NPT Conn.)
818335 -2- SS
L iquld lnlel Body-Mount in g Plale Sub-Assembly,
Type 316 Stain l ess Stee l ( 1" BSPT Conn .)
7 CP 19109- SS Groove Pi n, Stainless Sleel
8 CP19097-_-3i6SS Shaft, Ty pe 316 Stainless Ste,I (for Model IAA190AG-_)
9
CP19098- -316S5 E
xt ens ion Tu be , Type 316 Stoinless Stee l (for Model #AA190AG-
)
10
1833 1 -316SS Bevel Gear Sub-Assembly , Type 316 Stainless Stee l
11 CPl 9100-CGRTEr
Goar Tube Bushing, Teflon® Carbon Graph i te Filled (2 Req 'd.)
12 CP19088-316SS
Rotary H ousing, T ype 316 Sta i nless Steol
13
CP19104-CGRTEr
Nozzle Hub Bus hi ng, T eflon® Corbon Grophile filled (2 Req'd .)
Spray Honie, Solid Stream WashJet Nozzle (2 Req'd), Har dened
14
**
Stainl ess St ee l (t/4" NPT Conn . or 1/4" BSPT Conn.) S.e In d.
Catalog and D.S. #1 5659 (WoshJe t)
15 CP19105 - 316SS
Rotary H ousino Plue, Type 316 Sta i nless S te el (Left Hand Thd .)
16
CP19086-316SS Nonie Hub, Type 316 Sta i nl,., Stee l (N.P.T. Conn.)
CPB19086-316SS Nozzle Hub , Type 316 Sta i nless S teel (B.S .P .T. Conn.)
17
1 8332-316EPR
lower Bushing Retalner Sub -A ssembly, T ype 316 Sta i nless Steel and
Teflon® Carbon Graphite fill ed & Elhylene P ropylene Rub b er
18
CP19091-316SS
D riv e li nk, Type 316 Stain l ess Stee l
19
CP 19103 - 316SS Lower Screw Shield , Type 316 Stainless Stee l
20
CP 18328-316SS
Hex. Head Cop Screw, T ype 316 Stainless Steel
No . AA l 90AC-_+n, Air Moto r -D ri ven Tank Washer (w tt h Shafi & E xt ension Length)
No . AAB190AG- _ +n, Air Motor-Dr iven T ank Wosher (with Shaft & E,tenslon L ength)
** Spacify Spray Non ie Number and Material.
E,amp l e: 1 /4MEG - 0020, Hardened Sta i nless Steel 1/l'ashJe1 "'Nozz le
• NOTE: See torque requirements & Loctite notes for reassembly of t he pa rt s.
TORQUE REQUIREMENTS LOCTIT E ADHESIVE
ITEM
POUND - FT.
NEWTON ~ETER
TYPE USED
NO.
2
50 LB.-fT.
68 Nm 243 OR 242
15
20 LB.-fT.
27 Nm 243 OR 242
17
40 LB.-fT.
54 Nm 243 OR 242
20
5 LB .- fT. 7
Nm 243 OR 242
1ia am1 na tmrm "'
- 1
I I
(@- 2
,~,
I I
: +- 3•
,- t--- 4
~--3A
! 1
DESCRIPTION:
r---,
I
I ]
.l,.
- 8
0
D
-9
D
'
I
r--- -,
I
, -1 0
14
9- 11 ~ /
~~m004
~ I I I
c::,i_ 16 jl 13 15 •
~-11 i;g;i-1 4
A- ,7•
~-1 8
Cj- 19
L ____ _J
,~ 20 •
* SOLD IN KITS ONLY- AB190AG - KIT
SPARE PARTS KIT (I NC L UDES ALL ITEMS MARKED WITH "*"
No . AA190AG-_ & No. AAB190~G-_
AIR MOTOR-DRIVEN TANK W~SHER
,.. SprayingSystemsCo:
't!J/ Spray Nozz le s and Accessories
P .O. Box 71100 • Wheaton, ti . 80187-71101
Rev. No . 5
Part• Ll•t No .
PL 190AG
Fief. SHEET
OF

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
15
*
*
*
*
*
*
*
*
ITEM PART NO. DESCRIPTION
1 4634()-190 Air Motor Drive Assembly
18330 - 316EPR
Upper Shoff Seal Body Sub-Assembly, Stainless SleeI Type 316 &
3 Ethylene Propylene
Rubber
2 CP7717-2-124-VI 0-Ring, Vilone
2 CPTT\7-2-214-VI 0-Ring, Vlfon*
4
CP58362 - NY
Goskel, Nylon
5 CP55000-3-IZP
Grounding Screw, #10-32 X 3/8" L g., Steel, Zinc Plated
18335-2-SS Liquid Inlet
Body-Mounting Pl ate Sub-Assemb ly,
6 Type .316
Sloln less Steel ( 1" NPT Conn.}
B18335-2-SS L
iquid Inlet Body-Mounting Pl ate Sub-Assemb ly,
Type
316 Sloin less Sleel (1" BSP T Conn.)
7
CP19109-SS Groove Pln, Stainless Steel
B
CP19097 - - 3165S Sholl, Type 316 Stainless Steel (For Model #AA190AGH-)
9 CP19098- _ -316SS
Extension Tube, Type 316 Sla inless Slee l (For Model #AA190AGH-_ )
10
1833 1 -316SS
Bevel Gear Sub-Assemb ly, Type 316 Stainless Steel
11
CP19100-CGRTEF Gear Tube Bushing , Teflon® Carbon Grophile Filled
12
CP19088-316SS
Rotary Housing, Type 316 Stainless Steel
13
CP1910-4 - CGRTEF
Nozzle Hub Bushinci, Teflon® Carbon Graphite Filled (2 Reci'd.)
Spray Nozzle,
So l id Stream WoshJel Nozzle (2 Req'd), Hardened
u
**
Stainless Steel (1/4" NPT Conn. or 1/4" BSP T Conn.) See Ind.
Catalog
and D.S . Il l 5659 (WoshJet}
15
CP19105-316SS Rotary Housing Plug, Type 316 Stainless Steel (Left Hand Thd.)
CP19086-SS
Nozzle Hub, Type 316 Stainless Steel (N.P.T. Conn.)
16 Nozzle Hub, Type
316 Stainless Steel (B.S.P.T. Conn.) CPB19086-SS
17
18332-316EPR
Lower Bushing Reloiner Sub-Assembly, Type .316 Stainless
Steel, T
ef lon® Carbon Graphite Filled & Ethylene Propylene Rubber
18
CP19091 - 31 6SS
Drive Link, Type 316 Stainless Steel
19
CP19103-3 1 6$$ L ower Screw Shield, Type 316 Stainless Steel
20 CP18328-3 1 6SS Hex. Head Cop Screw, Type 316 Stainless Steel
No. AA190AGH-
__ +*", Air Motor-Driven Tonk Wosher {with Shoff & Extensi on Length)
No . AA8190AGH- +**, Air Motor-Driven Tonk Wosher (with Shaft & Extension Length)
** Sn.:trifv S.n.-nv Nn77ht N1u · nhiAr" t'lnt'i t.Antor'1nl .
Example: 1 /4MEG-0020, Hardened Slolnless Steel WashJet,. Nozzle
• NO TE: See Torque Requ i remenls And Loctite Noles For Reassembly Of The Ports
TORQUE REOU I RE"4ENTS
LOCTITE ADHESIVE
ITEl.4
POUNO-n.
NEWTON ~HER
TYPE USED
NO.
3
50 LB . -n. 68 Nm 243 OR 2-42
15
20 LB .- n. 27 Nm 243 OR 242
17
40 LB . -n. 54 Nm 243 OR 242
20
5 LB . -n.
7 Nm 243 OR 242
ID i..-.mo &lltoll ~ •
•
- 1
I I
~ - 2
,~ ,
I L__3 •
I I
:- f--- 4
~- 2A
r---,
I
0
•
•
7
I
-8
-9
L ______ J
'-----
r----,
I
I
t -10
3
@/ 14
I rm I
o a(O ~ (O
I
8-11
A-17 •
~ -18
EJ - 19
1-20 •
16 1 -14
15 •
4
*SOLD IN KITS ONLY- AB19OAG - KI T -
DESCRIPTION:
NO. M190AGH- & No . MB190AGH -
AIR MOTOR-DRIVEN
TANK WASHER
"* "
.. SprayingSystemsCo:
'{!JI Spray Nozzles and Accessories
P.O . Box 7900 - Wh •• lon, II. IS0187 -7901
Rev. No. 5
Perts Llet No.
PL 19 0AGH
Rel. SHEET
OF

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
16
• Muffler
to be
L'L / / / f 1; ' f _
~-t-EJ-- '
8 \
13-
12
---- -8---
/ I
2
ITEM PART NO .
DESCRIPTION
1 CP46766-20-316SS
Metric Socket Head Cap Screw, MS x 0.8 x 20 mm LG .
Type 316 Stainless Steel (2 REQ ' D)
2 CP46352-5-316SS Metric Spring Washer, 5 mm, Stainless Steel Type 316 (2 REQ'D)
3 CP7717-2-214-VI 0-Ring,
VITON®
4 CP7717-2 -124-VI 0- Ring, VITON""
5
CP46343-316SS Coupling, 316 Stainless Steel {For Model /IAA090AG-- OR AA190AG--)
6
CP46349-4-IBO Metric Key, 5 mm Thick ,
Steel
7 CP46342 Gear Motor
8
CP46344-8-IBO
Metric Set Screw, Cup Point, MB x 1.25 x 8 mm LG .
Alloy Stee l, Black Oxide Coaling (2 REQ ' D)
9
CP46347-I Motor Pinion, Steel
10
CP46346-4-IBO
Metric Set Screw, Cup Point, M4 x .7 x 4 mm LG .
Alloy Steel, Black Oxide Coating
11
46351
Gear Motor Sub-Assembly {Consists Of The Following Items 6, 7, 8, 9 & 10)
12
46350
Air Motor , Gast 1UP-NRV-10 & Air Motor Muffler, Gast AF350 , CE Certified
13 CP38674-7 90' Street Elbow, 1/8 NPT {M) x 1/8 NPT {F), Brass
14
CP26396-1
Hex Pipe Nipple, 1/ 4 NPT (M) x 1 /8 NPT (M), Brass
No . 46340-190 Air Motor Assembly {For Mode l /IAA090AG-- or AA 190AG--)
© Spraying Systems Co.
I
8
INCLUDED TOOLS:
3/16" Hex Allen Wrench For Item 5 { 1/ 4-20 Socket Head Cap Screw)
2 mm Hex Allen Wrench For Item 13 {M4 Set Screw)
4 mm Hex Allen Wrench For Item 1 {MS Socket Head Cap Screw) & Item 11 {MB Set Screw).
DESCRIPTION:
No . 46340-190
Air Motor-Driven Assembly
For 090 & 190
Tank Washers
6' sr.:~~~£0:
P.O. Box 7900 - Wheaton, II. 60187-7901
Rev. No . 4 Parts List
No.
PL 46340-190
Rel . SHEET
OF

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
17
@Spra,fn1 s,.tlim• Co.
•
ITEM PART NO. DESCRIPTION
1 CP22023 Coupler,
Brass
2
CP22024-I Coupler Nipple, Staal
3 CP22025 F'illar / Regulator
4 26383-1/4-100 Gauge
5 CP7998-7/8
CloH Nipple, Brass
6 CP22027 Lubricator
No. 21030 Lubricator Assembly
DESCRIPTION:
No . 21030 WBRICATOR
ASSEMBLY
8s£~~~£0:
P.O. Box 71100 -Wheaton, II. 80187-7800
Rev. No.
P•rla U.I Nu.
PL 21030
Ref, SHEET
OF

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
18
SPRAYING SYSTEM CO. WARRANTY
Seller warrants that its products will conform to and perform in accordance with the products’ specifications.
Seller warrants that the products do not infringe upon any copyright, patent or trademark. The foregoing
warranties are in lieu of all other warranties, expressed or implied, including, but not limited to, those concerning
merchantability and fitness for a particular purpose.
Because of the difficulty of ascertaining and measuring damages hereunder, it is agreed that, except for claims
for bodily injury, seller’s liability to the buyer or any third party, for any losses or damages, whether direct or
otherwise, arising out of the purchase of product from seller by buyer shall not exceed the total amount billed
and billable to the buyer for the product hereunder. In no event will seller be liable for any loss of profits or other
special or consequential damages, even if seller has been advised of the possibility of such damages.
MAINTENANCE RECORD
DATE PROCEDURE PERFORMED
•

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
19
January 18, 2010
Wheaton, Illinois, USA
EC DECLARATION OF CONFORMITY
We,
North Avenue and Schmale Road, P.O. Box 7900,
Wheaton, IL 60187-7901
Tel: 1.800.95.SPRAY Intl. Tel: [phone]
Fax: 1.888.95.SPRAY Intl. Fax: [phone]
Visit our Website at http://www.spray.com for local representatives
in accordance with the following directive(s):
2006/42/EC The machinery directive
hereby declare that:
Equipment Tank Cleaning Devices
Model number AA190AG, AA190AGH
is in conformity with the applicable requirements of the following documents:
Ref. no. Title Edition/date
EN 982 Safety requirements for fluid power systems and their 1996
components – hydraulics
EN12100-1 Safety of machinery – Basic concepts, general principles for 2003
design: Part 1: Basic terminology, methodology
EN12100-2 Safety of machinery – Basic concepts, general principles for 2003
design: Part 2: Technical principles
EN ISO 14121-1 Safety of machinery – Risk assessment Part 1: Principles 2007
ASME- B31.1 ASME Boiler and Pressure Vessel Code 2001
I hereby declare that the equipment named above has been designed to comply with the relevant sections of the
above referenced specifications. The unit complies with all applicable Essential Requirements of the Directives.
Signed by:
Robert J. Adams, P.E.
Director of Engineering-Industrial Division
Spraying Systems Co.
Spraying Systems Co.®
Experts in Spray Technology
•

AA190AG/AGH Series Air Motor-Driven Tank Washer | 08/01/2011 | REV. 5
20
North Avenue and Schmale Road, P.O. Box 7900,
Wheaton, IL 60187-7901
Tel: 1.800.95.SPRAY Intl. Tel: [phone]
Fax: 1.888.95.SPRAY Intl. Fax: [phone]
Visit our Website at http://www.spray.com
Spraying Systems Co.®
Experts in Spray Technology
Spray
Nozz l es
Spray
, con l ro 'II
Spray
Ana l ys:i s
Spray
I IFabrication
