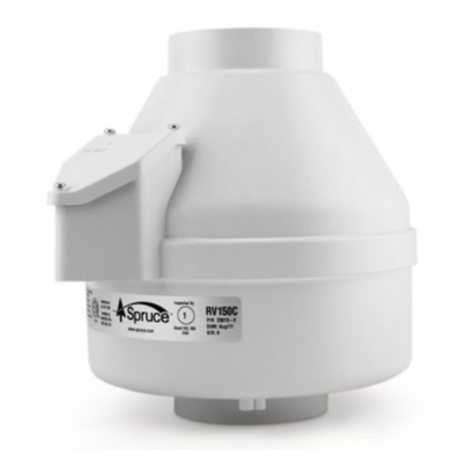

Spruce DynaVent RV Series User manual

RV125
RV150
RV200
G

RV Series Commercial/Residential
Ventilation Fan Installation Instructions
Please Read And Save These Instructions.
DO NOT CONNECT POWER SUPPLY UNTIL FAN IS COMPLETELY INSTALLED.
MAKE SURE ELECTRICAL SERVICE TO FAN IS LOCKED IN "OFF" POSITION.
DISCONNECT POWER BEFORE SERVICING FAN.
1. WARNING! Do not use fan in hazardous environments where fan electrical system
could provide ignition to combustible of flammable materials.
2. WARNING! Do not use fan to pump explosive or corrosive gases.
3. WARNING! Check voltage at the fan to insure it corresponds with nameplate.
4. WARNING! Normal operation of this device may affect the combustion airflow
needed for safe operation of fuel burning equipment. Check for possible backdraft
conditions on all combustion devices after installation.
5. NOTICE! There are no user serviceable parts located inside the fan unit.
Do NOT attempt to open. Return unit to the factory for service.
6. All wiring must be in accordance with local and national electrical codes

INSTALLATION INSTRUCTIONS IN009 Rev G
RV125C p/n 23014-2, 28042-1
RV150C p/n 23013-2, 28041-1
RV200C p/n 23016-2, 28049-1
1.0 Mounting
The RV Series fan may be mounted at and angle without affecting performance
although the vertical mounting position shown in Fig. 1 is highly recommended. If the
vertical mounting position is not possible, care should be taken to avoid creating a low
spot in the fan/duct system where condensation might accumulate in the fan housing
as shown in Fig. 2. In situations where horizontal mounting is desired and
condensation is likely to occur (bathroom ventilation in cold climates) this problem
might be avoided by mounting the fan 30 degrees beyond horizontal as shown in Fig. 3.
2.0 Ducting
Any type of ducting is acceptable, however, flexible nonmetallic ducting is
recommended for easy installation and quieter operation. Insulated flexible ducting is
highly recommended in cold climates to prevent the warm bathroom air from forming
condensation in the ducting where it is exposed to colder attic air. The outlet of the fan
should always be ducted to the outside. Avoid venting the outlet of the fan directly into
an attic area. The excess moisture from the bathroom can cause damage to building
structure and any items stored in the attic. Multiple venting points may be connected
together using a "T" or "Y" fitting. Straight smooth runs of ducting will present the least
resistance and maximize system performance.
For quietest performance, the fan should be mounted further away from the inlet duct,
near the outside vent. A minimum distance of 10 feet is recommended between the fan
or T/Y of a multi-intake system and intake grille(s).
3.0 Backdraft Dampers
Backdraft dampers allow airflow in only one direction preventing cold/hot drafts from
entering the vented area and minimize possible condensation and icing within the
system while the fan is not operating. Backdraft dampers are highly recommended at
each intake grille for bathroom ventilation in all cold climate installations.
4.0 Electrical Wiring
Electrical connection to the fan should be performed by a qualified person in
accordance with all local, state and national electrical codes. A Ground Fault
Interrupter (GFI) circuit is not required in most installations, check your local codes.
5.0 Applications
Suitable for general ventilation, bathroom venting, fresh air supply, duct boosting,
building pressurization, etc. Not suitable for dryer duct venting or kitchen range
hood venting.

6.0 Installation
Step 1: Install (3) rubber grommets into Mounting Bracket
(P/N 25007-1, included) to provide vibration isolation. Attach the
fan to the mounting bracket with (3) #10 self-tapping screws,
provided. Avoid over tightening screws.
Step 2: Select location for fan mounting. A location 2/3
along the ducting, a minimum of 10 feet away from the inlet vent
to the fan or the Y/T of a multi-intake system will provide the
quietest operation. Fan should be mounted vertically to prevent
moisture from accumulating in the fan housing. Attach bracket to
mounting structure with the 1 1/4” screws provided.
Step 3: Connect ductwork between fan inlet and area to be
vented through inlet grille. Flexible, nonmetallic ducting is
recommended for quietest operation and easiest installation.
Insulated flexible ducting is highly recommended for bathroom
ventilation in all cold climate installations.
Step 4: Connect inlet grille(s). An optional backdraft
damper may be installed in the inlet grille to prevent cold air from
backing into the inlet and also prevent condensation from forming
inside the ductwork. Backdraft dampers are highly recommended
at each intake grille for bathroom ventilation in all cold climate
installations.
Step 5: Connect outlet of fan to outside vent. The outside vent
may go through the roof, sidewall or soffit as desired. Flexible,
nonmetallic ducting is recommended for quietest operation and
easiest installation. Insulated flexible ducting is highly
recommended for bathroom ventilation in all cold climate
installations.
Step 6: Make electrical connection to fan. Observe the proper
wiring connections:
RV Series Wire AC Connection
Black
White
Green
AC Hot
AC Common
Ground

RV SERIES PRODUCT SPECIFICATIONS
The following chart shows fan performance for the RV Series Commercial/Residential
Fan:
Typical CFM Vs Static Suction " WC Max Static
0" .2" .5" .75" 1.0" 1.5" 2.0" 2.5" Pressure
RV125 116 110 98 88 72 44 4 - 2.08”WC
RV150 150 140 119 100 76 26 - - 1.77”WC
RV200 185 170 144 123 87 1 - - 1.51”WC
Power Consumption @ 120 VAC , 60Hz (1.4 Amp Maximum)
RV125 48 - 68 watts
RV150 48 - 65 watts
RV200 49 - 65 watts
Size:
Weight: 6 lbs.
Mounting: Mounting bracket included.
Recommended ducting: 4”, 5” or 6” Flexible Ducting.
Storage temperature range: 32 - 100 degrees F.
Normal operating temperature range: -20 - 120 degrees F.
Maximum inlet air temperature: 90 degrees F continuous.
Class B Insulation
Continuous Duty
3000 RPM
Thermally protected
Rated for Indoor or Outdoor use
Rated for Residential and Commercial use
Fan Model “A” Dim Duct Size
RV125 3.9” 4”
RV150 3.9” 4”
RV200 5.9” 6”

IMPORTANT INSTRUCTIONS TO INSTALLER
Inspect the RV Series Fan for shipping damage within 15 days of receipt. Notify Spuce of any damages
immediately. Spruce is not responsible for damages incurred during shipping. However, for your benefit,
Spruce does insure shipments.
There are no user serviceable parts inside the fan. Do not attempt to open. Return unit to factory for
service.
Install the RV Series Fan in accordance with all state and local building codes and state regulations.
Rev. 07/07 G
WARRANTY
Subject to any applicable consumer protection legislation, Spruce Environmental Technologies, Inc. (“Spruce”) warrants that
the RV/RB/DB/RL Series Fan (the “Fan”) will be free from defects in materials and workmanship for a period of five (5) years
from the date of manufacture (the “Warranty Term”).
Warranty claims made during the first thirty days after installation:
Spruce will replace any Fan which fails due to defects in materials or workmanship. The Fan may be returned (at owner’s
cost) to either the point of purchase or the Spruce factory. The point of purchase may require proof of purchase or a bill of
sales for replacement.
Warranty claims made after the first thirty days after installation through the end of the Warranty Term:
Spruce will (at its option) either recondition or replace any Fan which fails due to defects in materials or workmanship. The
Fan must be returned (at owner’s cost) to the Spruce factory.
This Warranty is contingent on installation of the Fan in accordance with the instructions provided. This Warranty does not
apply where any repairs or alterations have been made or attempted by others, or if the unit has been abused or misused.
Warranty does not include damage in shipment unless the damage is due to the negligence of Spruce.
Spruce is not responsible for installation, removal or delivery costs associated with this Warranty.
EXCEPT AS STATED ABOVE, THE RV/RB/DB/RL SERIES FANS ARE PROVIDED WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION,
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL SPRUCE BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES ARISING OUT OF, OR RELATING TO, THE FAN OR THE
PERFORMANCE THEREOF. SPRUCE’S AGGREGATE LIABILITY HEREUNDER SHALL NOT IN ANY
EVENT EXCEED THE AMOUNT OF THE PURCHASE PRICE OF SAID PRODUCT. THE SOLE AND
EXCLUSIVE REMEDY UNDER THIS WARRANTY SHALL BE THE REPAIR OR REPLACEMENT OF THE
PRODUCT, TO THE EXTENT THE SAME DOES NOT MEET WITH SPRUCE’S WARRANTY AS
PROVIDED ABOVE.
For service under this Warranty, contact Spruce for a Return Material Authorization (RMA) number and shipping
information. No returns can be accepted without an RMA. If factory return is required, the customer assumes all
shipping cost to and from factory.
Spruce Environmental Technologies, Inc.
3 Saber Way
Ward Hill, MA 01835
TEL. [phone]
FAX [phone]
Record the following information for your records:
Serial No.
Purchase Date
