SPT WA-1240E User manual

WA-1240E: 12,000 BTU Cooling only
WA-I240H: 12,000 BTU Cooling and Heating
WA-I420E: 14,000 BTU Cooling onMy
WA-1420H: 14,000 BTU Cooling and Heating

CONTENTS
SOCmABLE REMARK
Sociable remark .................................................................................................................................. 2
SAFETY PRECAUTIONS
Safety rules ....................................................................................................................................... 3
Operating condition ........................................................................................................................... 3
Electrical information ......................................................................................................................... 4
mDENTIFmCATmON OF PARTS
Accessories ....................................................................................................................................... 4
Names of parts ................................................................................................................................... 5
AmR CONDmTIONER FEATURES
Electronic control operating instructions ........................................................................................... 6
iNSTALLATiON iNSTRUCTiONS
Location ............................................................................................................................................ 9
Window kit installation ...................................................................................................................... 9
Exhaust hose installation ................................................................................................................ 12
Though-the=wall connection .............................................................................................................. 12

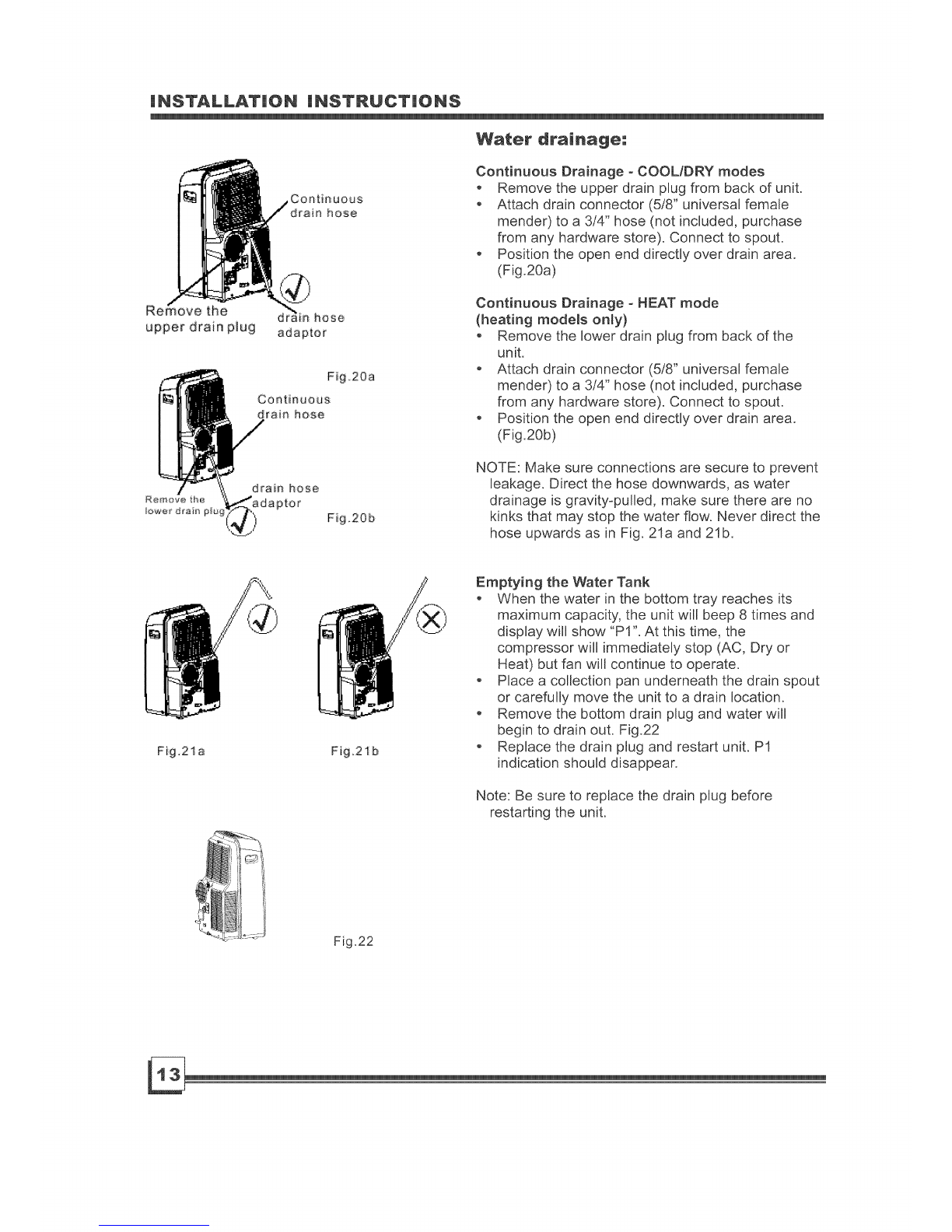

Water drainage ................................................................................................................................ 13

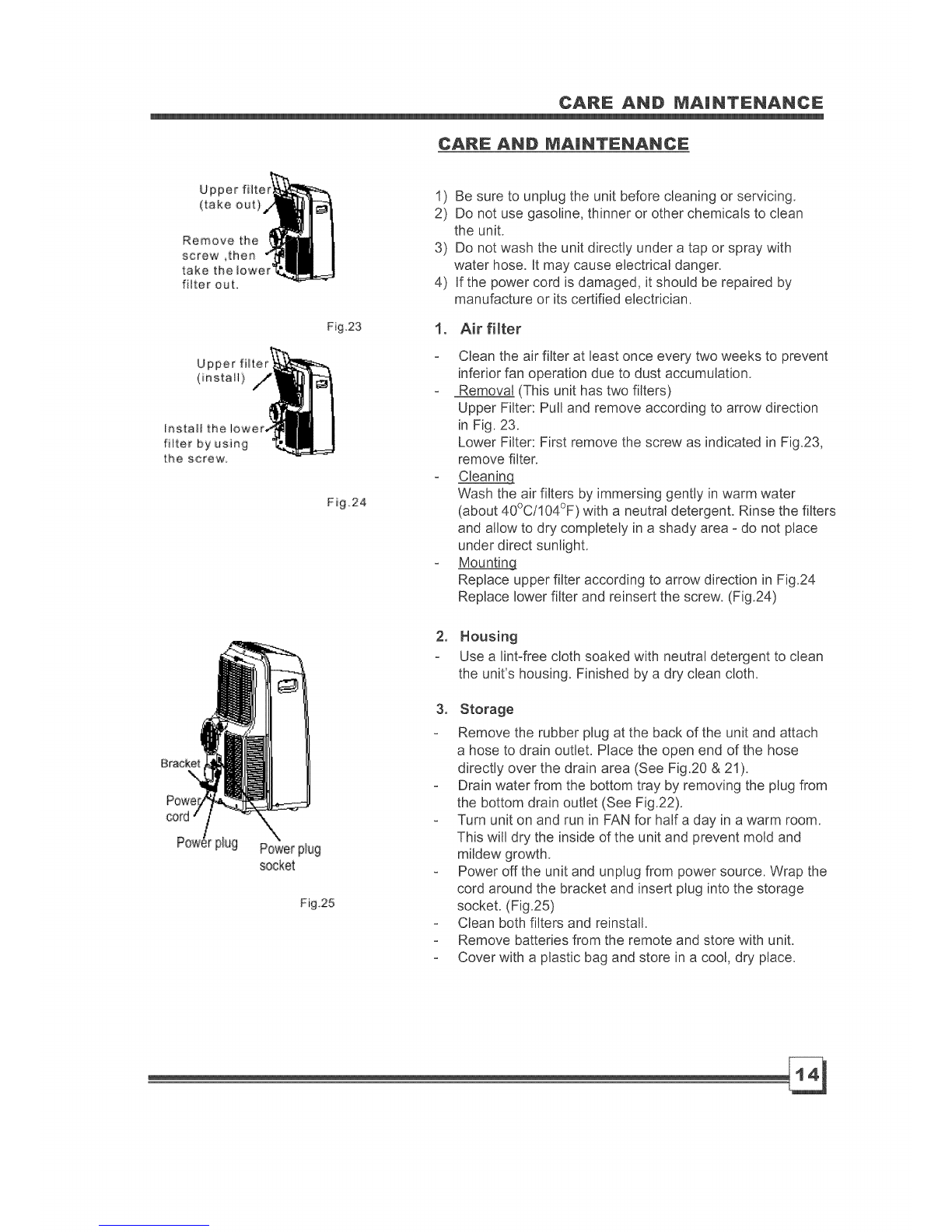

CARE AND MAINTENANCIE
Care and maintenance .................................................................................................................... 14
HANDLmNG THE R_=MOTE CONTROLLL=R
Replacing batteries ........................................................................................................................... 16
Function buttons ............................................................................................................................... 17
Indicators on LCD ............................................................................................................................ 18
Using the remote controller ............................................................................................................. 19
YOUR GUARANTm=I=
NOTE
The rating data indicated on the energy labem is based
on the testing condition of installing an un-extended
air exhaust duct without adaptor B (please refer to
the accessories chart on page 4.)
i
f

SOCIABLE REMARK
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of
such waste separately for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
A) The municipality has established collection systems, where electronic waste can be
disposed of at least free of charge to the user.
B) The manufacture will take back the old appliance for disposal at least free of charge
to the user.
C) As old products contain valuable resources, they can be sold to scrap metal dealers.
Wild disposal of waste in forests and landscapes endangers your health when
hazardous substances leak into the ground=water and find their way into the food chain.
CAUTION"
°This appliance is not intended for use by persons (including children) with reduced
physical sensory or mental capabilities, or lack of experience and knowledge, unless
they are being supervised or been given instruction concerning the use of the appliance
by a person responsible for their safety.
o Children should be supervised to ensure that they do not play with the appliance.
i
f

SAFETY PRECAUTIONS
Safety ru|es
To prevent injury to the user or other people and property damage, the following instructions must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
f- I@ Always do this} -_
°Your air conditioner should be used in such a way
that it is protected from moisture, e.g.
condensation, splashed water, etc. Do not place or
store your air conditioner where it can fall or be
pulled into water or any other liquid.
°Always transport your air conditioner in a vertical
position and stand on a stable, level surface_
°Turn off the product when not in use.
°Always contact a qualified person to carry out
repairs_ Ifthe power cord is damaged, it must be
repaired by a qualified electrician.
°Keep an clearance of at least 12 inches around the
unit for proper airflow (from wails, furniture and
curtains).
°If the unit is knocked over during use, turn off
power immediately and unplug from power source_
°Never leave the unit unsupervised when in
operation.
° When unit is not in good order, please use
common sense to prevent further damage to
, surroundings.
I_ Never do this
°Do not operate your air conditioner in a wet/damp
room such as a bathroom or laundry room.
°Do not touch the unit with wet or damp hands or
when barefoot.
°Do not press the buttons on the control panel with
anything other than your fingers.
°Do not remove any fixed covers. Never use this
appliance if it is not working properly, or if it has
been dropped or damaged.
°Never use the plug to start and stop the unit.
, Do not cover or obstruct the inlet or outlet grilles.
°Do not use hazardous chemicals to clean or allow
to come into contact with the unit.
°Do not use the unit in the presence of flammable
substances or vapor such as alcohol, insecticides,
petrol, etc.
Do not allow children to operate the unit
unsupervised.
Do not use this product for functions other than
those described in this instruction manual.
1 _ Energy Save 1
o Use the unit in the recommended room size.
o Locate the unit where furniture cannot obstruct the air flow.
o Keep blinds/curtains closed during the sunniest part of the day.
o Keep the filters clean.
o Keep doors and windows closed to keep cool air in and warm air out.
o If a very hot day is expected, turn on the unit early to keep the room cool and keep the heat out.
Operating condition
•The air conditioner must be operated within the temperature range indicated below:
MODE ROOM TEMPERATURE
COOL 62°F-95°F (17°C-35°C)
DRY 55°F_95°F (13°C_35°C)
HEAT (heating models only) 41°F_88°F (5°C_30°C)
Su_ested too|s for window kit insta||ation
1. Screwdriver(medium size Phillips)
2. Tape measure or ruler
3. Knife or scissors
4. Saw(In the event that the window kit needs to be cut down in size because
the window is too narrow for direct installation)
i
f

iDENTiFiCATiON OF PARTS
For your safety
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove
any prong from the power cord.
Etectrica! information
•Be sure the electrical service is adequate for the model you have chosen. This information can be found
on the serial plate, which is located on the side of the cabinet and behind the grille.
•Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper grounding is
important. The power cord is equipped with a three-prong grounding plug for protection against shock
hazards.
• Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle you intend
to use is not adequately grounded or protected by atime delay fuse or circuit breaker, have a qualified
electrician install the proper receptacle.
• Ensure the receptacle is accessible after the unit installation.
PARTS "
0 0
PARTS NAME "
Adaptor A (connects unit to hose)
Adaptor B (connects hose to slider kit)
Exhaust Hose
Window Slider Kit and bolt
Foam seal
Remote Controller
(Requires 2 AAA batteries, not included)
Drain hose and drain hose adaptor
Wall adaptor for through_the_wall installation
(not included, option to purchase)
Please refer to page 12 for installation instructions
QUANTITY "
1 set
3ipcs
1pc
1pc
* Check to ensure all accessories are included in the package. Please refer to the installation instructions for
their usage.
NOTE: All the illustrations in this manual are for explanation purpose only. Your air conditioner
may be slightly different. The actual shape shall prevail.

iDENTiFiCATiON OF PARTS

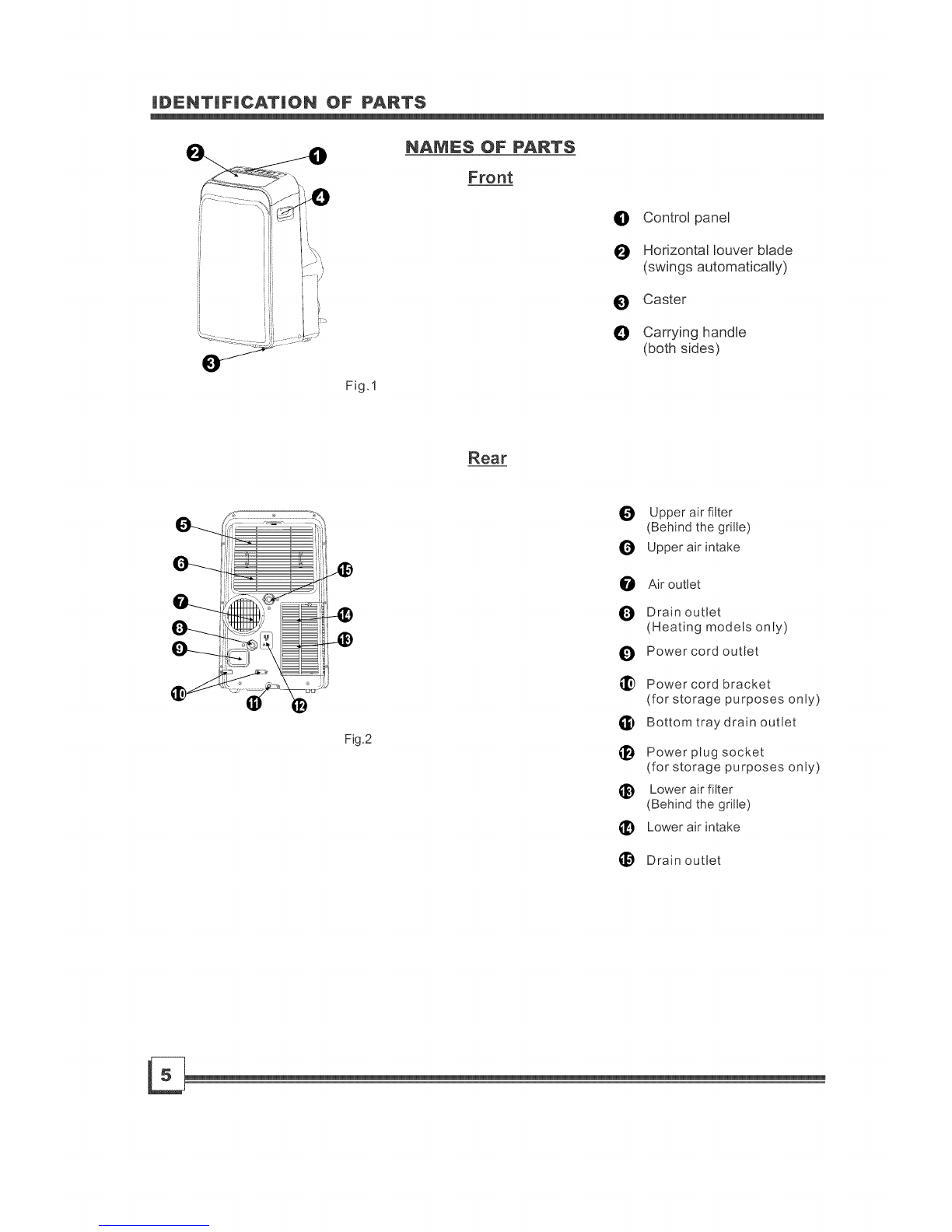

NAMES OF PARTS
Front
O Control panel
O Horizontal louver blade
(swings automatically)
Caster
Carrying handle
(both sides)
Fig.1
Rear
Fig.2
G
G
@
G
Q
®
®
®
Upper air filter
(Behind the grille)
Upper air intake
Air outlet
Drain outlet
(Heating models only)
Power cord outlet
Power cord bracket
(for storage purposes only)
Bottom tray drain outlet
Power plug socket
(for storage purposes only)
Lower air filter
(Behind the grille)
Lower air intake
Drain outlet

AiR CONDiTiONER FEATURES
ELECTRONIC CONTROL OPERATmNG mNSTRUCTIONS
Before you begin, thoroughly familiarize yourself with the functions of the control panel and
remote controller, then follow the symbol for the functions you desire.
The unit can be controlled by the unit control panel alone or with the remote controller.
OPERATION PANEL OF THE A_R COND_TIONER
®
@on _ t_0 ;:-
Fig.3
ID POWER button
Power switch, press to turn on/off.
SLEEP butten
Used to initiate the SLEEP operation.
FAN button
Controlsthefanspeed.Presstoselectthefan
speedinfoursteps:LOW,NED,HIandAUTO.
Thecorrespondingspeedindicatorlightwillilluminate,
exceptforAUTOspeed.WhenAUTOspeedisselected,
allfanindicatorsaredark.

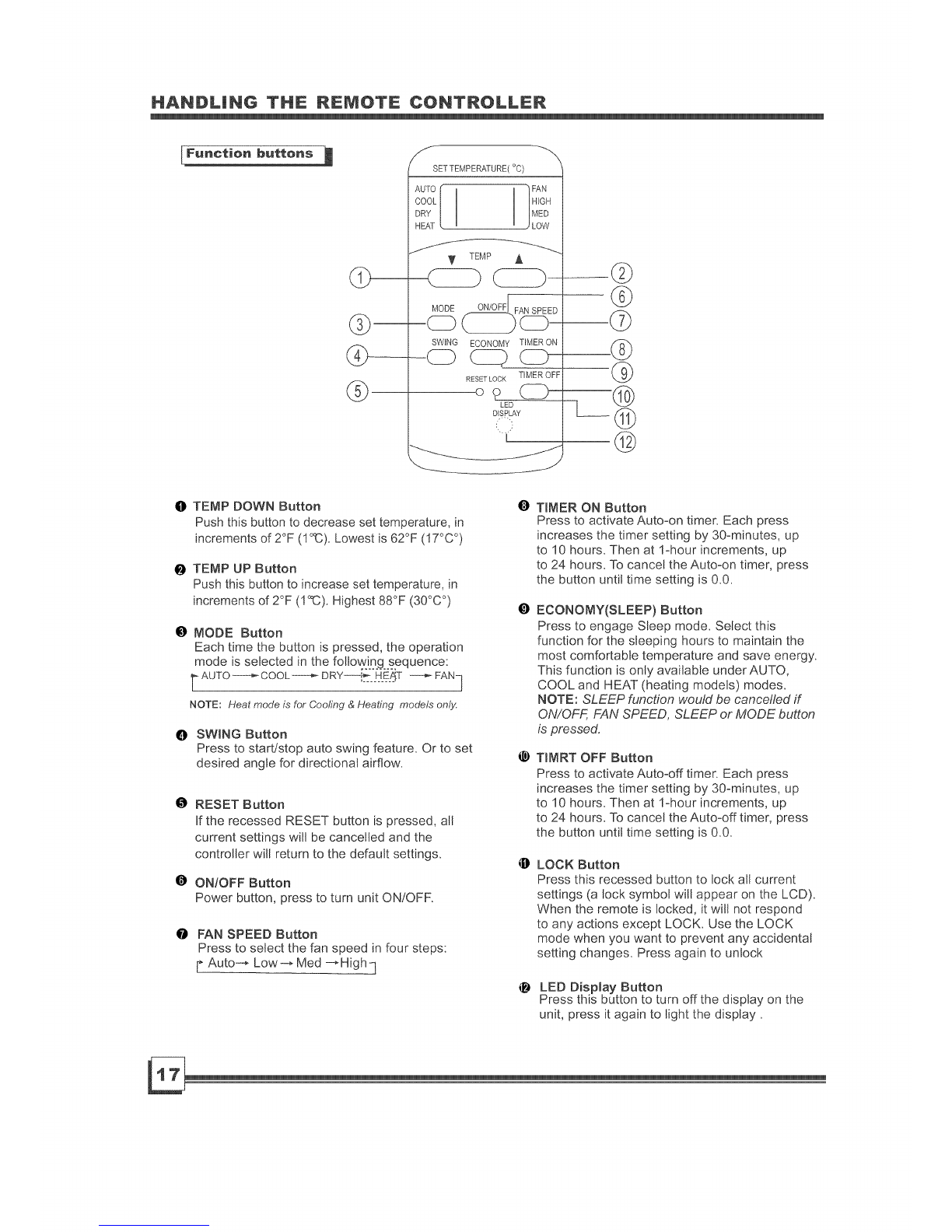

OUP{ 4- )and #OWN{ - ) button
Used to increase or decrease temperature
setting in 1°C or 2°F increments.
Adjustable range: 62°F-88°F (17°C-30°C)
Also used to set timer between 0-24 hours
Q
O
MODE seJect button
Selects the appropriate operating mode.
Each press of the button will select mode
in the following sequence: AUTO, COOL,
DRY, FAN and HEAT(heating models only).
The corresponding mode indicator light
will illuminate.
T_MER button
Used to initiate the AUTO ON (start time) and
AUTO OFF (stop time) programs. Used in
conjunction with the + and - buttons. The
corresponding timer indicator light will illuminate.
OSWING button
Used to initiate the Auto swing feature. If
auto-swing is in function, press the button
again to stop the louver at desired angle.
NOTE: The control is capable of displaying
temperature in Fahrenheit or Celsius. To
convert from one to the other, press and
hold the UP and DOWN buttons
simultaneously for 3 seconds.
(_t LED Display
Displays set temperature, in either °C or °F.
Displays autoqimer settings (if any)
When unit is in DRY or FAN modes, displays
current room temperature.
i
f

(OPERATING iNSTRUCTiONS
Error codes and protection code: AUTO operation
El- Room temperature sensor error-
Unplug the unit and plug it back in.
If error repeats, call for service.
E2- Evaporator temperature sensor error-
Unplug the unit and plug it back in.
If error repeats, call for service.
E3- Condenser temperature sensor error-
Unplug the unit and plug it back in. If error
repeats, call for service.
E4- Display panel communication error-
Unplug the unit and plug it back in.
If error repeats, call for service.
Pf- Bottom tray is full - Connect the drain
hose to drain and empty the bottom tray.
If protection repeats, call for service.
Operating Instructions
COOLoperation
Press the MODE button until the "COOL"
indicator light comes on.
Press the + or - buttons to set desired room
temperature. The temperature range is between
62°F_S8°F (17°C-30°C).
Press the FAN button to choose the
desired fan speed.
HEAT operation (heating models only)
Press the MODE button until the "HEAT"
indicator light comes on.
Press the + or - buttons to set desired room
temperature. The temperature range is between
62°F-88°F (17°C-30°C).
Press the FAN button to choose the desired
fan speed.
DRY (dehumidify) operation
Press the MODE button until the "DRY"
indicator light comes on.
Under this mode, you cannot select a fan
speed or adjust the temperature. The fan
motor operates at LOW speed.
Keep windows and doors closed for the
best dehumidifying effect.
Do not connect exhaust hose fixture to window.
When you set the air conditioner in AUTO
mode, it will automatically select cooling,
heating (for heating models only), or
fan mode, depending on set temperature
and ambient room temperature.
The air conditioner will operate in the
appropriate mode based on the set
temperatu re.
UnderAUTO mode, you can not
select the fan speed.
FANoperation
Press the MODE button until the "FAN "
indicator light comes on.
Press the FAN SPEED button to
select desired fan speed. The temperature
cannot be adjusted.
Do not connect exhaust hose fixture to window.
TIMER operation
When the unit is on, pressing the
TIMER button will initiate the auto-stop
program, the TIMER OFF indicator light
will illuminate. Press the + or- buttons to
set the time for unit to turn off.
Press the TIMER button again within 5
seconds will initiate the auto-start
program, the TIMER ON indicator light
will illuminate. Press the + or- buttons to
set the time for unit to turn on.
When the unit is off, pressing the
TIMER button will initiate the auto-start
program; press again within 5 seconds to
initiate auto-stop program.
Press or hold the +/- button to change time
in 0.5 hour increments, up to 10 hours;
then in 1 hour increments, up to 24 hours.
The control panel will count down the
remaining time until program begins.
The display will automatically revert
back to displaying the previous
temperature setting if there is no activity
within a 5 second period.
After timer has been programmed, if unit
is manually turned ON or OFF; or if the
timer setting is adjusted to 0.0, any timer
programmed will be cancelled.
When unit malfunctions and error codes
El, E2, E3 or E4 is displayed, timer
programs will also be cancelled.
i
f

OPERATING iNSTRUCTiONS

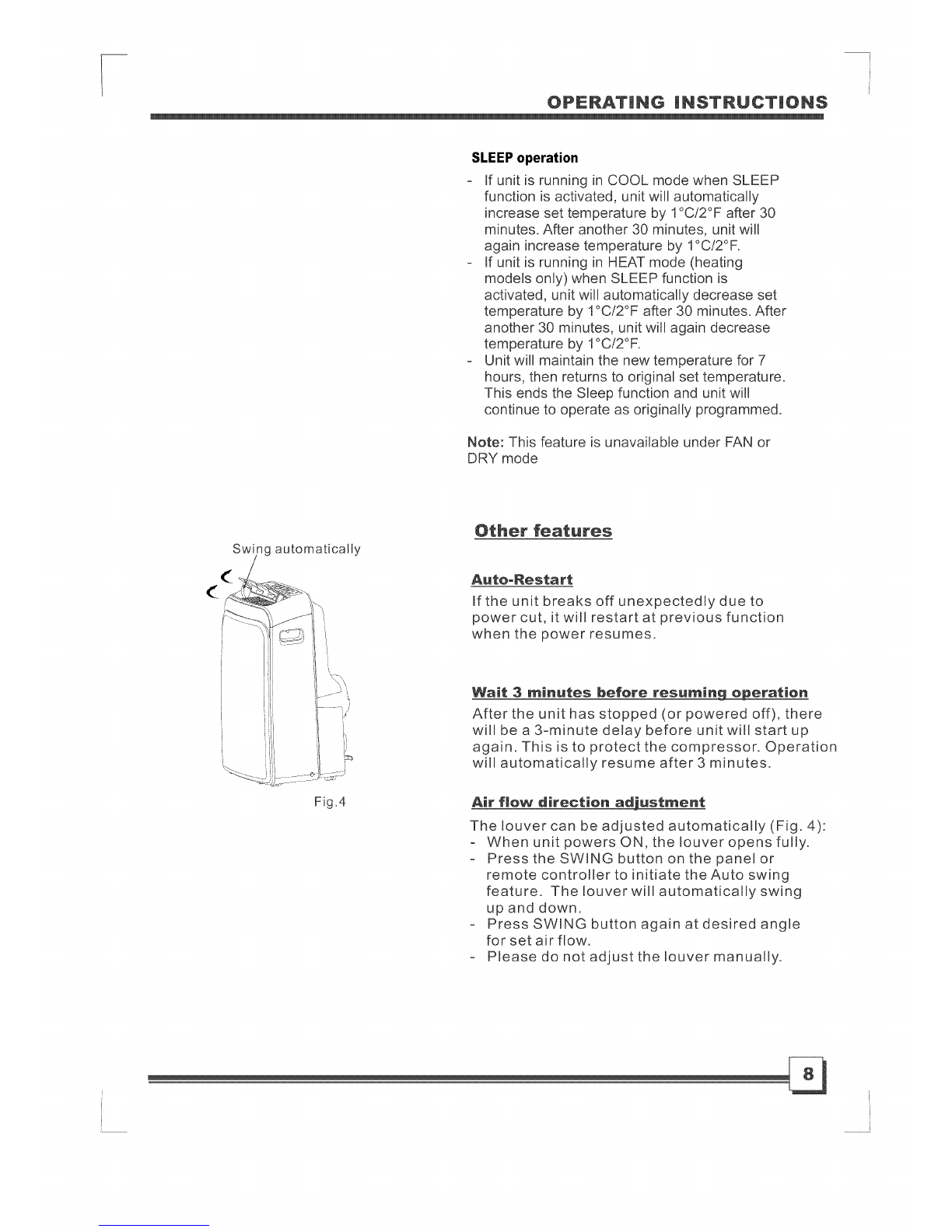

SLEEPoperation
If unit is running in COOL mode when SLEEP
function is activated, unit will automatically
increase set temperature by 1°C/2°F after 30
minutes. After another 30 minutes, unit will
again increase temperature by 1°C/2°F.
If unit is running in HEAT mode (heating
models only) when SLEEP function is
activated, unit will automatically decrease set
temperature by 1°C/2°F after 30 minutes. After
another 30 minutes, unit will again decrease
temperature by 1°C/2°F.
Unit will maintain the new temperature for 7
hours, then returns to original set temperature.
This ends the Sleep function and unit will
continue to operate as originally programmed.
Note: This feature is unavailable under FAN or
DRY mode
Swing automatically
!
Fig _4
Other features
Auto-Restart
If the unit breaks off unexpectedly due to
power cut, it will restart at previous function
when the power resumes.
Wait 3 minutes before resuming=O=peration
After the unit has stopped (or powered off), there
will be a 3-minute delay before unit will start up
again. This is to protect the compressor. Operation
will automatically resume after 3 minutes.
Air flew direction adjustment
The louver can be adjusted automatically (Fig. 4):
When unit powers ON, the louver opens fully.
Press the SWING button on the panel or
remote controller to initiate the Auto swing
feature. The louver will automatically swing
up and down.
Press SWING button again at desired angle
for set air flow.
Please do not adjust the louver manually.
i
f

iNSTALLATiON iNSTRUCTiONS
A: 12-40 inches. B: 12 inches Fig.5
Window Slider Kit
Minimum: 26.57"
Maxmum: 48,43"
Fig.6
Horizontal I
window
Window Slider Kit
Minimum: 26.57"
Maxmum: 48,43"
J
bolt
\
I
Window s_ider kit
Fig.7a
iNSTALLATiON iNSTRUCTiONS
Location
• The air conditioner should be placed on a firm
foundation to minimize noise and virbration. For
safe and secure positioning, place the unit on a
smooth, level floor strong enough to support the unit.
• The unit has casters to aid placement, but it should
only be rolled on smooth, flat surfaces. Use caution
when rolling on carpet. Do not attempt to roll the
unit over objects.
• The unit must be placed within reach of a properly
grounded socket.
• Never place any obstacles around the air inlet or
outlet of the unit.
• Allow 12 to 40 inches of space between the back
of the unit and the wall for efficient air=conditioning.
Window s|ider kit lnsta||atien
Your window slider kit has been designed to fit most
standard vertical and horizontal window applications.
However, it may be necessary for you to improvise or
modify some aspects of the installation procedures
for certain types of windows. Please refer to Fig. 6
and Fig.7 for minimum and maximum window
opening requirements.
Window slider kit can be fixed with a bolt (Fig.7a).
Note: If the window opening is less than the
minimum required length and the slider kit needs to
be cut down to size, cut the piece with the hole in it,
but cut the end without the hole.
Do Not cut out the hole in the slider kit.
Slider kit length: 26.5 to 48 inches.
Window opening requirements:
Minimum = 26.57 inches
Maximum = 48.43 inches

iNSTALLATiON iNSTRUCTiONS
I I Foam sealA
esive type)
Fig.8
Window stool
Fig.9
Window stool
|nstallatien for a double-hung sash windew
,
,
,
,
5.
Trim foam seal (with adhesive) to the proper length and
attach to window stool (Fig .8)
Adjust the length of the slider kit according to the width
of the window. Place slider kit to window stool, on top of
foam seal (Fig.9)
Trim another foam seal (with adhesive) to the proper
length and place on top of the slider kit (Fig.10).
Close the window sash securely against the kit.
Trim the last foam seal to the proper length to seal
the open gap between the top window sash and
outer window sash (Fig.11)
Fig.lO
Foam seal
Fig.11
i
f

iNSTALLATiON iNSTRUCTiONS
Window
panel
J Foam sealA
(adhesive type)
Fig.12
|nstaiiatien fer sliding sash window
1. Trim foam seal (with adhesive) to the proper length
and attach to window frame (Fig.12).
2. Adjust the length of the slider kit according to the height
of the window. Place window slider kit against foam
seal (Fig.13).
3. Trim another foam seal (with adhesive) to the proper length
and attach it to the open side of slider kit (Fig.14).
4. Slide window close against the slider kit.
5. Trim the last foam seal to the proper length to seal the
open gap between the two window sashes (Fig.15).
Fig.13
Fig.14
NOTE: All illustrations in this manual are for explanation
purposes only. Your unit may differ slightly. The
actual shape shall prevail.
Foam seat
Fig.15
i
f

iNSTALLATiON iNSTRUCTiONS
Fig,16
Exhaust hose instal|atien:
The exhaust hose and adaptor must be installed or removed
in accordance with the usage mode.
COOL, HEAT (heating models only) Install
or AUTO mode
FANor DEHUMIDIFYmode Remove
Hook
Fig.17
--I47 inches
I
12 inches
Fig.18
Fig.19
1. Attach both adaptors A and B to exhaust hose. Extend each
end of the hose by couple inches and turn the adaptors
as shown in Fig.16. Do not over=tighten. Refer to previous
pages for window kit installation.
2. Align the hooks on adaptor A to the openings of the air
outlet. Insert and slide downwards to install. (Fig. 17)
Through=the wall connection
NOTE: it is necessary to purchase the following parts for
through-the-wail installation:
Wall Adaptor
(sold separately, please contact
Sunpentown at 1=800=330=0388 or visit
www.sunpentown.com)
Screws & expansion plugs
_'.'._ (can be purchased at any hardware store)
1. Prepare a hole in the wall and install the Wall Adaptor to the
opening (from outside). Secure with 4 expansion plugs and
screws. (Fig. 18)
2. Attach exhaust hose to the Wall Adaptor.
Note: Cover the hale using the adaptor cap when not in use,
iMPORTANT:
DO NOT OVER BEND THE EXHAUST HOSE (SEE Fig.19)
The exhaust hose can be compressed or extended moderately
according to the installation requirement, but it is desirable to
keep the hose length to a minimum.
Make sure there are no obstacles blocking the air outlet of
the exhaust hose (in the range of 20 inches), for the exhaust
system to work properly.
i
f

ContinuousDrainage- COOL/DRYmodes
o Removetheupperdrainplugfrombackofunit.
o Attachdrainconnector(5/8"universalfemale
mender)toa3/4"hose(notincluded,purchase
fromanyhardwarestore).Connecttospout.
o Positiontheopenenddirectlyoverdrainarea.
(Fig.20a)
the hose
upper drain p_ug adaptor
Fi#.20a
Contiinuous
drain hose
Continuous Drainage - HEAT mode
(heating mode_s on_y)
o Remove the lower drain plug from back of the
unit.
o Attach drain connector (5/8" universal female
mender) to a 3/4" hose (not included, purchase
from any hardware store). Connect to spout.
o Position the open end directly over drain area.
(Fig.20b)
F_g.20b
NOTE: Make sure connections are secure to prevent
leakage. Direct the hose downwards, as water
drainage is gravity-pulled, make sure there are no
kinks that may stop the water flow. Never direct the
hose upwards as in Fig. 21a and 21b.
F ig 2 t a Fig 21 b
Emptying the Water Tank
oWhen the water in the bottom tray reaches its
maximum capacity, the unit will beep 8 times and
display will show "PI". At this time, the
compressor will immediately stop (AC, Dry or
Heat) but fan will continue to operate.
oPlace a collection pan underneath the drain spout
or carefully move the unit to a drain location.
oRemove the bottom drain plug and water will
begin to drain out. Fig.22
oReplace the drain plug and restart unit. P1
indication should disappear.
Note: Be sure to replace the drain plug before
restarting the unit.
Fig.22

CARE AND MAINTENANCE
CARE AND MAINTENANCE
Remove the
screw _thea
take the _ower'
filter out,
Upper
(install:)//
_nstaH
filter by using
the screw
Bracke[
s_ket
Fig23
Fi924
Fig25
1) Be sure to unplug the unit before cleaning or servicing.
2) Do not use gasoline, thinner or other chemicals to clean
the unit.
3) Do not wash the unit directly under a tap or spray with
water hose. It may cause electrical danger.
4) If the power cord is damaged, it should be repaired by
manufacture or its certified electrician.
1. Airfilter
Clean the air filter at least once every two weeks to prevent
inferior fan operation due to dust accumulation.
Removal (This unit has two filters)
Upper Filter: Pull and remove according to arrow direction
in Fig. 23.
Lower Filter: First remove the screw as indicated in Fig.23,
remove filter.
Cleaning
Wash the air filters by immersing gently in warm water
(about 40°C/104°F) with a neutrat detergent. Rinse the filters
and allow to dry completely in a shady area - do not place
under direct sunlight.
Mounting
Replace upper filter according to arrow direction in Fig.24
Replace lower filter and reinsert the screw. (Fig.24)
.
.
Housing
Use a linbfree cloth soaked with neutral detergent to clean
the unit's housing. Finished by a dry clean cloth.
Storage
Remove the rubber plug at the back of the unit and attach
a hose to drain outlet. Place the open end of the hose
directly over the drain area (See Fig.20 & 21).
Drain water from the bottom tray by removing the plug from
the bottom drain outlet (See Fig.22).
Turn unit on and run in FAN for half aday in a warm room.
This witl dry the inside of the unit and prevent mold and
mildew growth.
Power off the unit and unplug from power source. Wrap the
cord around the bracket and insert plug into the storage
socket. (Fig.25)
Clean both filters and reinstall.
Remove batteries from the remote and store with unit.
Cover with a plastic bag and store in a cool, dry place.

TROUBLESHOOTING TiPS
TROUBLE SHOOTmNG
2. Notcoolenough
4. Noisy or vibration
5. Gurgling sound
6. Power shuts off in
Heat mode
(heating models only)
POSSIBLE CAUSES
P1 appears in the display window
Room temperature is lower than
the set temperature.(Cooling mode)
The windows or doors in the room
are not closed.
There are heat sources inside the
room.
Exhaust air duct is not connected or
blocked.
Temperature setting is too high.
Air filters are dirty.
The ground is not level or not flat
enough.
This is the sound of refrigerant
flowing inside the unit.
- Overheat protection. When the
temperature at the air outlet
exceeds 70°C/158°F, the unit
will automatically shut off as a
protection feature.
SUGGEST REMEDIES
Drain the water in the bottom tray.
Adjust the set temperature.
Make sure all the windows and
doors are closed.
Remove the heat sources if possible.
Connect the duct and make
sure it can function properly.
Decrease the set temperature.
Clean the air filters.
Place the unit on a fiat, level
ground if possible.
This is normal.
Switch on again after the unit
has cooled down.
i
f

HANDLING THE REMOTE CONTROLLER
Lecation of the remote centromilero
+ Use the remote controller within a distance of 26 feet
from the appliance, pointing it towards the receiver=
Reception is confirmed by a beep=
¢
@
@
Q
_CAUTION$1
The air conditioner will not respond if curtains, doors or other barriers
block the signal from the remote controller to the unit.
Prevent any liquid from coming in contact with the remote controller=
Do not expose the remote controller to direct sunlight or heat.
If the infrared signal receiver on the unit is exposed to direct sunlight,
the air conditioner may not respond. Close curtains/blinds to block
sunlight from falling on the receiver.
If other electrical appliances react to the remote controller, move
those appliances if possible.
Replacing batteries
The remote controller is powered by two AAA batteries (not included).
The batteries are housed in the back of remote, protected by a cover=
(1) Remove the cover by pressing down and sliding off=
(2) Remove the old batteries and insert new batteries, placing the
(+) and (=) ends correctly.
(3) Replace cover by sliding it back into position=
NOTE: When the batteries are removed, any programming
will be erased. After inserting the new batteries, the remote controller
can be reprogrammed=
+ Do not mix old and new batteries or batteries of a different type.
® Do not leave the batteries in the remote controller if it is not going to be used for extended period
of time (2 months or more).
+ Dispose old batteries at recycling centers =contact your local government for disposal practices
in your area=
IPerfermance Feature_
1=Operating Mode: AUTO, COOL, DRY, HEAT (Heating models only) and FAN=
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range: 62°F to 88°F (17°C to 30°C)
4=Full function of LCD (Liquid Crystal Display)
(Operating temperature: =41°F to 140°F (-5°C to 60°C)
NOT E : All illustrations in this manual are for explanation purpose only. Your air conditioner
may be differ slightly. The actual shape shall prevail.

HANDLING THE REMOTE CONTROLLER
_-Funct_on buttons SET TEMPERATURE(°C)
AUTO F -_}FAN
COOL L | HIGH
DRY | MED
H FAT JLOW
A
MODE
=C2)
SWING ECONOMY TIMER ON
RESET LOCK TIMER OFF
t£D
DISPLAy
I@
O TEMP DOWN Button
Push this button to decrease set temperature, in
increments of 2°F (I °13).Lowest is 62°F (I 7°C°)
O TEMP UP Button
Push this button to increase set temperature, in
increments of 2°F (1°_C).Highest 88°F (30°C °)
O MODE Button
Each time the button is pressed, the operation
mode is selected in the follow'inogoosequence:
AUTO---_COOL _ DRY_. HE_T _ FANq
/
NOTE: Heal mode is for Coofing & Healing models only:
0 SWING Button
Press to starttstop auto swing feature_ Or to set
desired angle for directional airflow_
ORESET Button
If the recessed RESET button is pressed, all
current settings will be cancelled and the
controller will return to the default settings_
ON/OFF Button
Power button, press to turn unit ON/OFR
O FAN SPEED Button
Press to select the fan speed in four steps:
r Auto--* Low-_ Med ---High-]
OTIMER ON Button
Press to activate Auto=on timer. Each press
increases the timer setting by 30=minutes, up
to 10 hours. Then at 1=hour increments, up
to 24 hours. To cancel the Auto=on timer, press
the button until time setting is 0_0_
O
@
ECONOMY(SLEEP) Button
Press to engage Sleep mode. Select this
function for the sleeping hours to maintain the
most comfortable temperature and save energy_
This function is only available under AUTO,
COOL and HEAT (heating models) modes.
NOTE: SLEEP function would be cancelled if
ON/OFF, FAN SPEED, SLEEP or MODE button
is pressed.
TIMRT OFF Button
Press to activate Auto=off timer. Each press
increases the timer setting by 30=minutes, up
to 10 hours. Then at 1=hour increments, up
to 24 hours. To cancel the Auto=off timer, press
the button until time setting is 0_0_
OLOCK Button
Press this recessed button to lock all current
settings (a lock symbol will appear on the LCD)_
When the remote is locked, it will not respond
to any actions except LOCK. Use the LOCK
mode when you want to prevent any accidental
setting changes_ Press again to unlock
LED Display Button
Press this button to turn off the display on the
unit, press it again to light the display

HANDLING THE REMOTE CONTROLLER
MODE display
indicates the current selected mode: AUTO, COOL,
DRY or HEAT (heating models only).
SETTE ERATURE
=4 F l-/
=4 Ft F!
o
=,_& T,MERO.OFF
hp_,- m
Transmission indicator
This transmission indicator lights up whenever remote controller
is transmitting signals to the AC unit.
Temp./Timer display
Displays the set temperature (62°F to 88°F/! 7°C to 30°C) or
timer setting (0-24h).
if FAN mode is seIected, there wilI be no display.
ON/OFF d_splay
This indicator will be displayed when the unit isoperating.
MODE d_splay (FAN mode)
FAN SPEED display
indicates the selected fan speed: AUTO, HIGH, MED or LOW.
AUTO fan speed will have no indicator displayed.
When unit is operating in AUTO or DRY Mode, there will be no signals.
TIMER d_spmay
This display area indicates if Timer ON and/or Timer OFF has been set:
- TIMER ON: auto-on function is set
- TIMER OFF: auto-off function is set
- TIMER ON OFF: both auto-on and auto-off are set
LOCK Indicator
Indicates the remote is locked and will not respond to any changes
(except LOCK button).

HANDLING THE REMOTE CONTROLLER
SET TEMPERATURE(°C)
y TEMP
SWNG ECONOMY T_MERON
C2} CZZDC:}
TIMER OFF
C2}
0
©

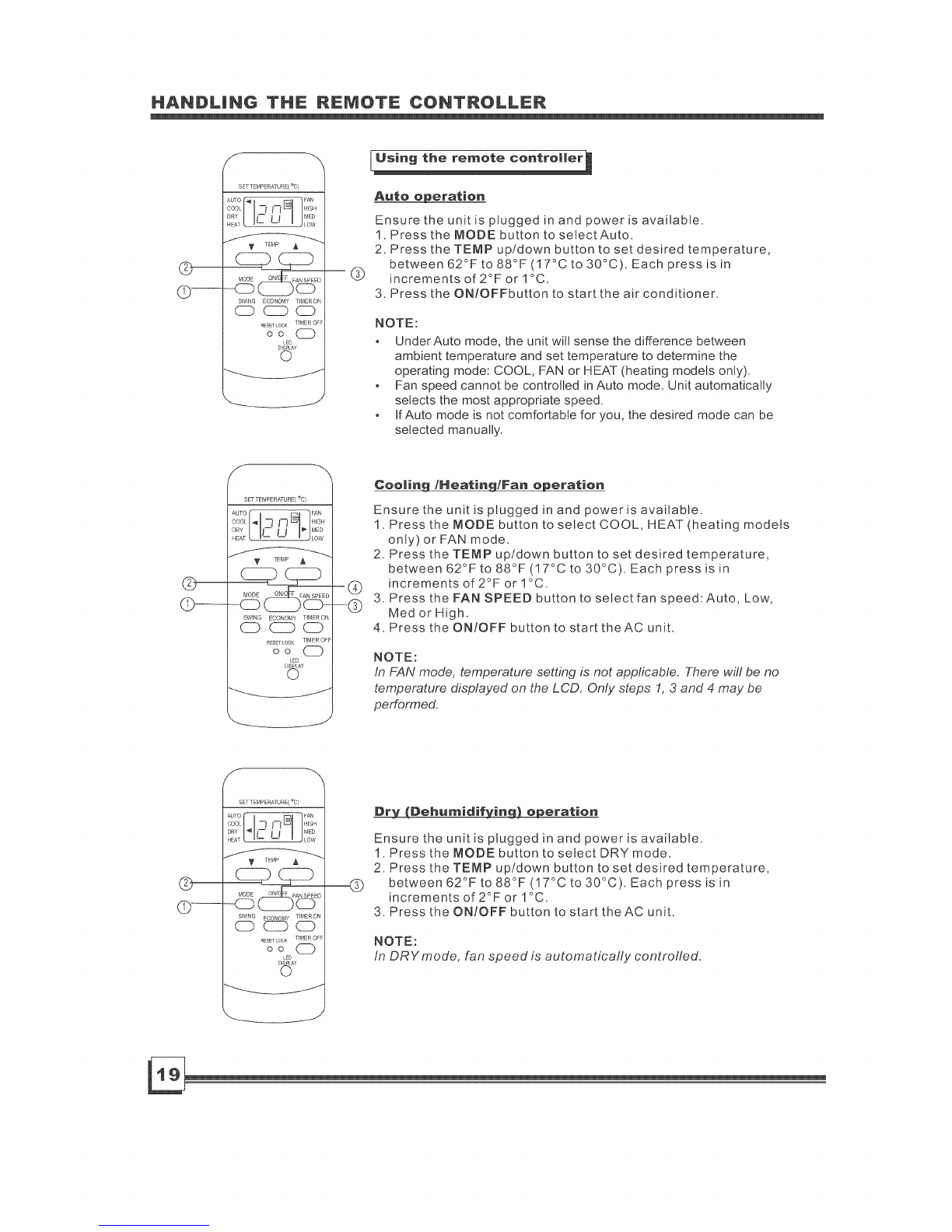

Us_e remete eentreHer-
Auto _eratien
Ensure the unit is plugged in and power is available.
1. Press the MODE button to selectAuto.
2_ Press the TEMP up/down button to set desired temperature,
between 62°F to 88°F (17°C to 30°C)_ Each press is in
increments of 2°F or 1°C.
3_ Press the ON/OFFbutton to start the air conditioner_
NOTE:
,UnderAuto mode, the unit will sense the difference between
ambient temperature and set temperature to determine the
operating mode: COOL, FAN or HEAT (heating models only).
°Fan speed cannot be controlled in Auto mode_ Unit automatically
selects the most appropriate speed_
°IfAuto mode is not comfortable for you, the desired mode can be
selected manually_
SET TEMPERATURE(_C)
TEMP
SWING ECONOMY TIMER ON
CD CZ) CD
RESE_LOCKTIMEROFF
LED
DfSpLa¥
o
_ j
Coolin 9/Heatin_eratien
Ensure the unit is plugged in and power is available.
1=Press the MODE button to select COOL, HEAT (heating models
only) or FAN mode.
2= Press the TEMP up/down button to set desired temperature,
between 62°F to 88°F (17°C to 30°C)= Each press is in
increments of 2°F or 1°C.
3. Press the FAN SPEED button to select fan speed:Auto, Low,
Med or High.
4_ Press the ON/OFF button to start theAC uniL
NOTE:
/n FAN mode, temperature setting is not applicable. There will be no
temperature displayed on the LCD. Only steps I, 3 and 4 may be
performed.
SETTEMPERATURE(°c)
TEMP
_SETL_X TIMER OFF
oo 0
#r_J[#ehumidifyirl_eratien
Ensure the unit is plugged in and power is available_
1. Press the MODE button to select DRY mode.
2_ Press the TEMP up/down button to set desired temperature,
between 62°F to 88°F (17°C to 30°C)_ Each press is in
increments of 2°F or 1°C
3. Press the ON/OFF button to start theAC uniL
NOTE:
In DRY mode, fan speed is automatically controlled.
