SPX Infinity PE45 Series User manual

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
1
Tech Services: [phone]
Fax: [phone]
Order Entry: [phone]
Fax: [phone]
SPX Hydrauic Technoogies
5885 11th Street
Rockford, IL 61109-3699 USA
spxbotingsystems.com
PE45 INFINITY TORQUE WRENCH SERIES
Operating instruction - Parts List for:
PE45PEE4MPRS
PE45PEE4PRS
PE45YEE4CMPRS
PE45YEE4CPRS
PE45YEE4MPRS
PE45YSS4PRS
PE45LEE4CMPRS
PE45LEE4CPRS
PE45LEE4MPRS
PE45LEE4PRS
PE45PEE4CMPRS
PE45PEE4CPRS

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
2

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
3
D escr i p ti on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
 InnitySeriesElectric/HydraulicTorque WrenchPumps. . . . . . . . . . . . . . . . . . 5
ControlValves .........................................................6
SafetySymbolsandDenitions............................................7
SafetyPrecautions .....................................................7
InitialSetup ..........................................................10
OperatingInstructions ..................................................12

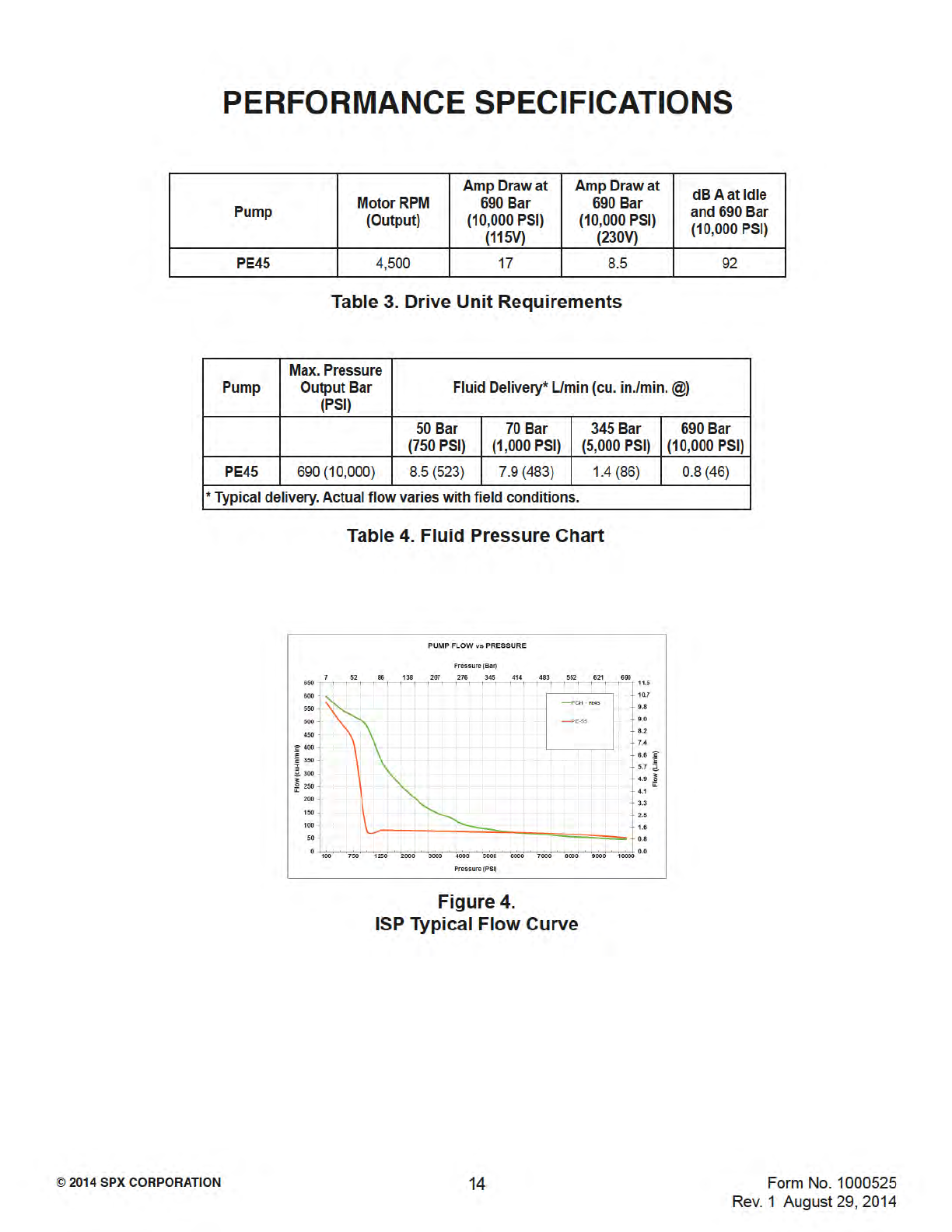

PerformanceSpecications..............................................14
GeneralMaintenance ..................................................15
TroubleshootingGuide .................................................18
RepairProcedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
 FuseReplacement ...............................................20
 MotorBrushReplacement .........................................20
 ElectricalCoverandSwitchRemovalandInstallation ....................21
 MotorHousingRemovalandInstallation ..............................21
 Cord,ElectricalSupply ............................................23
 ElectricalBracketAssembly ........................................24
 RollCageRemovalandInstallation ..................................25
 UniversalMotorRemovalandInstallation .............................26
 MotorMountRemovalandInstallation................................28
 ISPAirMotorAdapterRemovalandInstallation ........................28
 MotorShaftSquareKeyRemovalandInstallation.......................29
 PressureLimitingValveRemovalandInstallation .......................29
 SolenoidCoilRemovalandInstallation ...............................3 0
 2-WayCartridgeValveRemovalandInstallation ........................3 1
 2-Position/4-WayValveRemovalandInstallation .......................3 1
 ValveManifoldRemovalandInstallation ..............................3 2
 ReservoirGasketReplacement .....................................3 4
 ThermometerReplacement ........................................3 6
 InletSuctionFilterReplacement ....................................3 6
 ReturnHoseRemovalandInstallation................................3 6
 HighPressureTubeRemovalandInstallation ..........................3 7
TABLE OF CONTENTS

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
4
 ValveMountingBlockandGasketRemovalandInstallation ...............3 7
 InletSuctionFittingRemovalandInstallation ..........................3 9
 ConnectorValveRemovalandInstallation.............................3 9
 PumpFittingRemovalandInstallation................................40
 CartridgePumpAssemblyRemovalandInstallation .....................40
 ReservoirCoverRemovalandInstallation .............................41
PartsLists ...........................................................44
Schematics ..........................................................53
HydraulicTechnologiesFacilities..........................................54
DeclarationofConformity ...............................................55
TABLE OF CONTENTS

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
5
The Innity Series, Innite Stage Pump (ISP) hydraulic pumps are designed to have a maximum of
690 bar (10,000 psi) at a ow rate of 737 cc/min (45 cu. in/min). All pumps come fully assembled,
less uid, and ready for work.
Figure 1.
PE45 Series Pump
Universal Motor
Theuniversalmotorpump,showninFigure1,offersalightweight
andportablehydraulicpumpoption.Weightcanbeupto40kg(88
lbs).
Universalmotorpumpscomewitha5.7L(1.5Gal)capacity
hydraulicreservoir.
Themotorisa1.3kW(1.8HP)average,115/230VAC(nominal),
50/60Hzsingle-phase.Currentdrawcanbeupto17Ampsat
115Vand8.5Ampsat230Vandthesoundlevelisratedat87-92
dB.Operatingtemperaturesrangeis-25°Cto+50°C(-13°Fto
122°F).(Iftemperaturesareatextremesoftheoperatingrange,
itisrecommendedtousehydraulicuidsthatareratedforthose
temperatures.Itisrecommendedthatyouusethecoolingfan
optionforelevatedambienttemperatureorcontinuousduty.
DESCRIPTION
Innity Series Electric / Hydraulic Torque Wrench Pumps

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
6
Tabe 1. Pump Coniguration
Description Motor Contro
Switch
Pendant Use with Vave No.
Equippedwith
2-position/4-way
soenoidvave.
1.3kW(1.3HP)
average50/60Hz,
nomina115VAC,
singe-phase
Remote
motor
SeeFigure
3.SPX
PartNo.
3 000554
Hydrauic
TorqueWrench
2002108
2-position/4-way,
pumpmounted,
soenoidoperated
Vave Function Diagrams
2-position/
4-way
AdvancePosition:
(Soenoid"A")Pressureto"A"port,"B"port
totank
RetractPosition:
(De-energizedSoenoid"A")Pressureto"B"
port,"A"porttotank
NOTE:AportsOPENtotankduringtransi-
tionbetweenvavepositions.
R P
A B
S1
2-position/
2-way
(Ide Vave)
Advanceposition:
IdeVaveCLOSED(S2Energized)
Pressureto"A"port,"B"porttotank
RetractPosition:
IdeVaveCLOSED(S2Energized)
Pressureto"B"port,IdeVaveporttotank
IdePosition:
IdeVaveOPEN(S2De-energized)
"B"porttotank(throughidevave)
S2
S2
CONTROL VALVES
Max. Capacity: 690 Bar (10,000 psi)

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
7
Thesafetysignalworddesignatesthedegreeorlevelofhazardseriousness.
DANGER:Indicatesanimminentlyhazardoussituationwhich,ifnotavoided,willresultindeathor
seriousinjury.
WARNING:Indicatesapotentiallyhazardoussituationwhich,ifnotavoided,couldresultindeathor
seriousinjury.
CAUTION:Indicatesapotentiallyhazardoussituationwhich,ifnotavoided,mayresultinminoror
moderateinjury.
CAUTION: Used without the safety alert symbol indicates a potentially hazardous situation which, if not
avoided,mayresultinpropertydamage.
IMPORTANT:Importantisusedwhenactionorlackofactioncancauseequipmentfailure,eitherimmediate
oroveralongperiodoftime.
WARNING: To prevent personal injury,
• The following procedures must be performed by qualied, trained personnel who are familiar
with this equipment. Operators must read and understand all safety precautions and operating
instructions included with the pump. If the operator cannot read these instructions, operating
instructions and safety precautions must be read and discussed in the operator's native
language.
• These products are designed for general use in normal environments. These products are
not designed for lifting and moving people, agri-food machinery, certain types of mobile
machinery, or in special work environments such as: explosive, ammable, or corrosive.
Only the user can decide the suitability of this product in these conditions or extreme
environments. Hydraulic Technologies will supply information necessary to help make these
decisions. Consult your nearest Hydraulic Technologies facility.
• Safety glasses must be worn at all time by the operator and anyone within sight of the unit.
Additional personal protection equipment may include: face shield, goggles, gloves, apron,
hard hat, safety shoes, and hearing protection.
• The owner of this tool must ensure that safety-related decals are installed, maintained, and
replaced if they become hard to read.
• Shut OFF the motor before opening any connections in the system.
Pump
WARNING: To prevent personal injury,
• Do not exceed the hydraulic pressure rating noted on the pump nameplate or tamper with
the internal high pressure relief valve. Creating pressure beyond rated capacities can result
in personal injury.
• Retract the system before adding uid to prevent overlling the pump reservoir. An overll
can cause personal injury due to excess reservoir pressure created when tools are retracted.
SAFETY PRECAUTIONS
SAFETY SYMBOLS AND DEFINITIONS

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
8
Electric Motor
WARNING: To prevent personal injury,
• Electrical work must be performed and tested by a qualied electrician per local
directives and standards.
• Disconnect the pump from the power supply and relieve pressure before removing the
motor case cover or performing maintenance or repair.
• Check the total amperage draw for the electrical circuit you will be using. For example:
Do not connect a pump that may draw 25 amps to a 20 amp fused electrical circuit.
• Never use an ungrounded power supply with this unit.
• Changing the voltage is an involved and, if incorrectly performed, hazardous procedure.
Consult the manufacturer for specic information before attempting rewiring.
• Wire pump motors for counterclockwise rotation when viewed from the shaft end of
the motor.
• Do not attempt to increase the power line capacity by replacing a fuse with another
fuse of higher value. Overheating the power line may result in re.
• Exposing electric pumps to rain or water could result in an electrical hazard.
• Avoid conditions that can cause damage to the power cord, such as abrasion, crushing,
sharp cutting edges, or corrosive environment. Damage to the power cord can cause
an electrical hazard.
Hoses
WARNING: To prevent personal injury,
• Before operating the pump, tighten all hose connections using the correct tools. Do
not overtighten. Connections should be only secure and leak-free. Overtightening can
cause premature thread failure or high pressure ttings to split at pressures lower
than their rated capacities.
• Should a hydraulic hose rupture, burst, or need to be disconnected, immediately shut
off the pump and shift the control valve twice to release pressure. Never attempt to
grasp a leaking hose under pressure with your hands. The force of escaping hydraulic
uid could cause serious injury.
• Do not subject the hose to potential hazard, such as re, sharp surfaces, heavy impact,
or extreme heat or cold. Do not allow the hose to kink, twist, curl, or bend so tightly
that the uid ow within the hose is blocked or reduced. Periodically inspect the hose
for wear, because any of these conditions can damage the hose and possibly result in
personal injury.
• Do not use the hose to move attached equipment. Stress can damage the hose and
possibly cause personal injury.
• Hose material and coupler seals must be compatible with the hydraulic uid used.
Hoses also must not come in contact with corrosive material such as creosote-
impregnated objects and some paints. Consult the manufacturer before painting a
hose. Never paint the couplers. Hose deterioration due to corrosive materials may
result in personal injury.
SAFETY PRECAUTIONS CONTINUED

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
9
Tools
DANGER: To prevent serious personal injury or death,
• This pump is designed for torque wrench applications and should never be used for
lifting loads.
• Do not exceed rated capacities of the tools. Excess pressure may result in personal
injury.
• Read and understand all safety and warning decals and instructions for devices
attached.
• Inspect each tool and coupler before each shift or usage to prevent unsafe conditions
from developing.
• Do not use tools if they are damaged, altered or in poor condition.
• Do not use tools with bent or damaged couplers or damaged port threads.
• Avoid pinch points or crush points that can be created by the tool.
• Never use extreme heat to disassemble a hydraulic tools. Metal fatigue and/or seal
damage will result and can lead to unsafe operating conditions.
• The guide cannot cover every hazard or situation so always do the job with SAFETY
FIRST.
IMPORTANT
• Keep the tool clean at all times.
• Use an approved, high-grade pipe thread sealant to seal all hydraulic connections.
PTFE tape can be used if only one layer of tape is used and it is applied carefully (two
threads back) to prevent the tape from being pinched by the coupler and broken off
inside the pipe end. Any loose pieces of tape could travel through the system and
obstruct the ow of uid or cause jamming of precision-t parts.
• Always use protective covers on disconnected quick couplers.
SAFETY PRECAUTIONS CONTINUED

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
10
1. Removeallpackingmaterialsfromtheassembledunit.
2. Inspecttheunituponarrival.Thecarrier,notthemanufacturer,isresponsibleforanydamage
resultingfromshipment.
Filling the Pump Reservoir
Mostpumpsareshippedwithouthydraulicuidinthereservoir.Hydraulicuidmayhavebeenshipped
inaseparatecontainer,butifhydraulicuidisneeded,useonlyapprovedPowerTeamhydraulic
uidratedat47cSt@38°C(215SUS@100°F).Iflowtemperaturerequirementsareneeded,use
hydraulicuid5.1cSt@100°C(451cSt@-40°C).
1. Cleantheareaaroundthefillercaptoremovedebris.Debrisinthehydraulicfluidcandamagethe
polishedsurfacesandprecision-fitcomponentsofthispump.
2. Removethefillercapandinsertacleanfunnelwithafilter.
3 . Fillthereservoirwithhydraulicfluidto1.3–3.8cm(0.5–1.5in.)fromthecoverplateortofillline.
4. Replacethefillercap.Verifythebreather-holeisopen,ifapplicable.
Hydraulic Connections
1. Cleantheareasaroundthefluidportsofthepumpandtools.
2. Cleanallhoseends,couplersorunionends.
3 . Removetheprotectivecoversfromthehydraulicfluidoutlets.
4. Connectthehoseassemblytothehydraulicfluidoutlet,andcouplethehosetothetool.
Electric Motor Operation
1. RefertoTable2.MinimumRecommendedGaugeTable.Connectthemotortoapowersupply.
Neverrunthemotoronlong,lightgaugeextensioncords.
Caution: To prevent equipment damage,
• The correct voltage is required for the pump to operate. Verify the voltage rating on the pump
motor name plate matches the outlet or power source you are using. Low voltage may cause:
an overheated motor; a motor that fails to start under load; motor surging when trying to
start; or a stalled motor before maximum pressure is reached.
• Check the voltage at the motor with the pump running at full pressure.
2. Startthepumpandshiftasrequired.
3 . Turnoffthepumpwhennotinuse.
INITIAL SETUP

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
11
AMPS
at Maximum
Hyd. Pressure
Electrical Cord Size AWG (mm2) 3.2 Volt Drop
Length of Electrical Cord
mm2AWG
0-8 m 8-15 m 15-30 m 30-46 m 0-25 ft 25-50 ft 50-100 ft 100-150 ft
60.75 1 1.5 2.5 18 16 14 12
10 0.75 1.5 2.5 4 18 14 12 10
14 1 2.5 4 6 16 12 10 8
18 1.5 2.5 6 6 14 12 8 8
22 1.5 4 610 14 10 8 6
26 2.5 4 610 12 10 8 6
30 2.5 4 10 16 12 10 64
Table 2. Minimum Recommended Gauge Table
Bleeding Air from the System
Afterallconnectionsaremade,thehydraulicsystemmustbebledofanytrappedair.Withnoloadon
thesystemandthepumpventedandpositionedhigherthanthehydraulicdevice,cyclethesystem
severaltimes.CheckthereservoiruidlevelandlltocorrectlevelwithHydraulicTechnologies
hydraulicuidasnecessary.IfthereisaproblemcontactHydraulicTechnologiesTechnicalSupport.To
locateaHydraulicTechnologiesAuthorizedHydraulicServiceCenter,contactyournearestPowerTeam
facilityorwww.SPXBOLTINGSYSTEMS.com.
INITIAL SETUP CONTINUED

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
12
Figure 2.
Motor Control Switch
Item Description
1Start(Green)
2Lamp(White)
3Stop(Red)
Item Description
1OFFPosition
2ONPosition
3IdlePosition
4RetractPosition
5AdvancePosition
Figure 3.
Pendant Control
Motor Control Operation
1. Connect the power cord to an appropriate power
source.
2. RefertoFigure2.PresstheSTART(green)switch.
Lamp(white)willilluminate.
3 . Refer toFigure3. PresstheON/OFF rockerswitch
toON.
4. Press and hold the ADVANCE/RETRACT/IDLE
rocker switch to the ADVANCE position. Release
whentoolhasreachedtheendofitsstroke.
5. When the ADVANCE/RETRACT/IDLE is released,
theswitchdefaultstoRETRACT.Thepumpisfactory
presetto103bar(1,500psi)duringRETRACT.
6 . Pressing the ADVANCE/RETRACT/IDLE rocker
switchtoIDLEallows hydraulicuidtocyclethrough
thepumpbacktothetankandthemotorwillshutoff.
OPERATING INSTRUCTIONS

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
13
Adjusting The Pressure Regulating Valve
1. Thepumpmustbecompletelyconnected.PresstheSTART(green)rockerswitch.
2. Usingthependant,presstheON/OFFrockerswitchtoON.
3 . PressandholdtheADVANCE/RETRACT/IDLErockerswitchtotheADVANCEpositiontostartthe
motorandbuildpressure.
4. Rotatepressureregulatingvalvetothedesiredpressure.Clockwiseincreasespressure,
counterclockwisedecreasespressure.
5. Whenthedesiredpressureisachieved,cyclethesystemagaintoverifycorrectpressuresetting.
6 . UsingthependantpresstheON/OFFrockerswitchtoOFF.
7 . PresstheOFF(red)switchonthecontrolbox.
OPERATING INSTRUCTIONS CONTINUED

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
14
Pump Motor RPM
(Output)
Amp Draw at
690 Bar
(10,000 PSI)
(115V)
Amp Draw at
690 Bar
(10,000 PSI)
(230V)
dB A at Ide
and 690 Bar
(10,000 PSI)
PE45 4,500 17 8 .5 92
Pump
Max. Pressure
Output Bar
(PSI)
Fuid Deivery* L/min (cu. in./min. @)
50 Bar
(750 PSI)
70 Bar
(1,000 PSI)
345 Bar
(5,000 PSI)
690 Bar
(10,000 PSI)
PE45 690(10,000) 8.5(523) 7.9(483) 1.4(86) 0.8(46)
* Typica deivery. Actua ow varies with ied conditions.
Tabe 3. Drive Unit Requirements
Tabe 4. Fuid Pressure Chart
Figure 4.
ISP Typica Fow Curve
PE45
PERFORMANCE SPECIFICATIONS

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
15
System Evaluation
Thecomponentsofyourhydraulicsystem—pump,hoses,andcouplings—allmustbe:
• Ratedforthesamemaximumoperatingpressure.
• Correctlyconnected.
• Compatiblewiththehydraulicuidused.
Asystemthatdoesnotmeettheserequirementscanfail,possiblyresultinginseriousinjury.Ifyouare
indoubtaboutthecomponentsofyourhydraulicsystem,contactHydraulicTechnologiesTechnical
Support.
Inspection
Keepadatedandsignedinspectionrecordoftheequipment.Beforeeachuse,theoperatororother
designatedpersonnelshouldvisuallyinspectforthefollowingconditions:
• Excessivewear,bending,damage,orinsufcientthreadengagement.
• Leakinghydraulicuid.
• Loosebolts,capscrews,orpipeplugs.
• Bentordamagedcouplersorportthreads.
Periodic cleaning
WARNING: Contamination of the hydraulic uid could cause the valve to malfunction.
Establisharoutinetokeepthehydraulicsystemasfreefromdebrisaspossible.
• Sealunusedcouplerswithprotectivecovers.
• Keephoseconnectionsfreeofdebris.
• Keepthebreather-holeinthefillercapcleanandunobstructed.
• UseonlyPowerTeamhydraulicfluid.Replacehydraulicfluidasrecommended,orsoonerifthefluid
becomescontaminated.Neverexceed300hoursofusebetweenfluidchanges.
Hydraulic Fluid Level
1. Checkthefluidlevelinthereservoiraftereach10hoursofuse.Thefluidlevelshouldbe1.3–3.8cm
(0.5–1.5in.)fromthecoverplateortotheFILLLINEwhenallcylindersareretracted.
2. Drain,flush,andrefillthereservoirwithanapprovedPowerTeamhydraulicfluidafter300hoursof
use.Thefrequencyoffluidchangesdependsupongeneralworkingconditions,severityofuse,the
overallcleanlinessandcaregiventothepump.Fluidshouldbechangedmorefrequentlywhenthe
systemisnotoperatedregularlyindoors.
WARNING: To prevent personal injury,
• Disconnect the unit from the power supply before performing maintenance or repair
procedures.
• Repairs and maintenance are to be performed in a dust-free area by a qualied
technician.
GENERAL MAINTENANCE

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
16
Draining and Flushing the Reservoir
1. Cleanthepumpexterior.
2. Removethedrainpluganddrainthereservoir.Whendrainedinstallthedrainplug.
3 . Removethefillercapandinsertacleanfunnelwithafilter.
4. Fillthereservoirwithhydraulicfluidto1.3–3.8cm(0.5–1.5in.)fromthecoverplate.
5. Connectthehydraulichosestothefittings.
6 . Bleedtheairfromthesystem.RefertoBleedingAirfromtheSystem.
7 . Cyclethepumpfor1–2minutes.
8 . Disconnectthemotorandpumpassembly.
9. Removethedrainpluganddrainthereservoir.Whendrainedinstallthedrainplug.
10. Removethereservoirgasket.RefertotheReservoirGasketReplacementprocedure.
11. Cleantheinsideofthereservoir.
Figure 5.
Inlet Suction Filters
Figure 6.
Filler Cap
12. SeeFigure5.Replacetheinletsuctionfilters.
(4qty.)
13 . Placethepumpandmotorassembly(withnew
gasket)onthereservoir.Tightenthescrewsto
7–9Nm(60–80in/lb).
14. FillthereservoirwithPowerTeamhydraulic
fluid47cSt@38°C(215SUS@100°F).If
lowtemperaturerequirementsareneeded,use
hydraulicfluid5.1cSt@100°C(451cSt@
-40°C).
Adding Hydraulic Fluid to the Reservoir
1. Disconnectthepowersupply.
2. Cleantheentireareaaroundthefillercap.
3 . SeeFigure6.Removethefillercap,andinstalla
cleanfunnelwithafilter.
4. UseonlyPowerTeamhydraulicfluid47cSt@
38°C(215SUS@100°F).Iflowtemperature
requirementsareneeded,usehydraulicfluid5.1
cSt@100°C(451cSt@-40°C).
GENERAL MAINTENANCE CONTINUED

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
17
Hose Connections
CAUTION: To prevent persona injury from eaking hydrauic uid, sea a hydrauic
connections with a high-quaity, non-hardening, pipe thread seaant.
Pipethreadseaanttapecanbeusedtoseahydrauicconnectionsifonyoneayeroftapeis
used.Appytapecarefuy,twothreadsback,topreventitfrombeingpinched bythecouper
andbrokenoffinsidethesystem.Loosepiecesoftapecoudtravethroughthesystemand
obstructtheowofuidorcauseinterferenceofprecision-itparts.
Storage
Storetheunitinadry,we-protectedareawhereitwinotbeexposedtocorrosivevapors,debris,or
otherharmfueements.Ifaunithasbeenstoredforanextendedperiodoftime,itmustbethoroughy
inspectedbeforeitisused.
Checking Brushes on Universa Motors
Toheppreventprematurefaiureofthearmature,checkthebrushesperiodicay:
1. Removethemotorbrushes.RefertoMotorBrushRepacement.
2. SeeFigure7.Thebrushassembiesmustberepacediftheyare4.7mm(3/16")oress.
3 . Instabrushassembies,brushhodercaps,andmetabrushcoverpates.
22 mm (7/8")
(new)
Repace when
4.7 mm (3/16") or ess
Figure 7.
Brush Inspection
GENERAL MAINTENANCE CONTINUED

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
18
WARNING: To prevent personal injury,
• Repair work or troubleshooting must be performed by qualied personnel who are familiar
with this equipment.
• Disconnect the power supply before removing the electrical cover. Electrical work should be
performed by a qualied electrician.
• Check for system leaks by using a hand pump to apply pressure to the suspect area. Watch
for leaking uid and follow it back to its source. Never use your hand or other body parts to
check for a possible leak.
Notes:
• For a detailed parts list or to locate a Hydraulic Technologies Authorized Hydraulic Service Center, contact
your nearest Power Team facility.
• Plug the outlet ports of the pump when checking for leakage to determine if the leakage is in the pump, in
the cylinder, or in the tool.
Problem Cause Solution
Electric motor does not
run. 1.PumpnotturnedON.
1. Position switch to START position.
2.Unitisnotpluggedin. 2. Plug in unit.
3.Novoltagesupply. 3. Check line voltage. Check reset button
on power panel.
4.Wornbrushes. 4. Replace brushes.
5.Circuitbreakertrippedbecause
totalamperagedrawtoohighfor
existingcircuit.
5. Use an alternate circuit or have a
qualied electrician add an additional
circuit.
6.Overheatedmotor(single-
phasemotor).Magneticstarter
disengaged(three-phasemotor).
Thermalprotectoropen.
6. Wait for motor to cool before restarting.
Reset thermal protector. (Single-phase
motor will reset automatically.)
7.Faultythermalprotector(single-
phasemotor).Faultymagnetic
starter(three-phasemotor).
7. Replace defective parts.
Electric motor will not shut
off.
1.Defectivemotorcontrols. 1. Disconnect unit from power supply;
contact a Hydraulic Technologies Service
Center.
Electric motor stalls,
surges, overheats, or will
not start under load.
1.Lowvoltage 1. Refer to electric motor information in
Initial Setup section.
2.Electricalcordsizetoosmall. 2. Refer to electrical cord chart in Initial
Setup section.
Electrical overload
protector keeps tripping.
1.Wiredincorrectly. 1. Disconnect unit from power supply; have
qualied electrician review motor and circuit
wiring.
Pump delivers excess uid
pressure. 1.Faultypressuregauge.
1. Replace gauge.
2.Reliefvalvesetincorrectly. 2. Contact a Hydraulic Technologies
Service Center.
TROUBLESHOOTING GUIDE

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
19
Problem Cause Solution
Pump is not delivering
uid, or delivers only
enough uid to advance
connected components
partially or erratically or
operation to slow.
1.Fluidleveltoolow. 1. Add uid, refer to lling the pump
reservoir in Initial Setup section.
2.Loose-ttingcouplerto
component.
2. Verify quick-disconnect couplings are
completely coupled. Couplers may need to
be replaced because ball check does not stay
open due to wear.
3.Airinsystem. 3. Refer to Initial Setup in this manual to
bleed air from system.
4.Airleakinsuctionline. 4. Check and tighten suction line.
5.Debrisinpumporlterplugged. 5. Clean pump lter. If problem persists,
disconnect from power supply contact
authorized Hydraulic Technologies service
center.
6.Colduidoruidtooheavy.
(Hydraulicuidisofahigher
viscositythannecessary.)
6. Drain, ush, and rell reservoir using
a lighter weight uid. Refer to General
Maintenance section.
7.Vacuuminreservoir. 7. Clean plugged vent in ller cap.
Pump builds pressure but
cannot maintain pressure.
1.Fluidleakage. 1. Look for external leaks. If no uid
leakage is visible, the problem is internal.
Seal leaking pipe ttings with pipe sealant.
2.Leakingpressureswitchseal. 2. Replace pressure switch.
Pump does not build to full
pressure. 1.Faultypressuregauge.
1. Replace pressure gauge.
2.Checkforexternalleakage. 2. Seal faulty pipe ttings with pipe sealant.
3.Checkexternalpressure
regulator.Checkreliefvalve
setting.
3. Refer to Adjusting the Pressure
Regulating Valve.
Erratic action 1.Airinsystem. 1. Check for leaks. Refer to bleeding
procedure.
2.Internalleakageinattached
components.
2. Refer to manufacture's information for
attached component.
3.Attachedcomponentstickingor
binding.
3. Refer to manufacture's information for
attached component.
4.Malfunctioningvalve. 4. Verify connections. Contact authorized
Hydraulic Technologies Service Center.
TROUBLESHOOTING GUIDE CONTINUED

© 2014 SPX CORPORATION Form No. 1000525
Rev. 1 August 29, 2014
20
Figure 8.
External Fuse Holder
Fuse Replacement
1. Disconnectpowercordfrompowersource.
2. SeeFigure8.Removethefuseholder.
3 . Replacethefuse.
115VPumps:15ATIMEDELAY250VAC
5x20mmFuse
230VPumps:10ATIMEDELAY250VAC
5x20mmFuse
4. Toinstall,reversetheremovalprocedure.
Figure 10.
Brush Holder
Motor Brush Replacement
1. Disconnectpowercordfrompowersource.
2. SeeFigure9.Removethebrushassemblycap
seal.
Item Description
2007 8 8 6 BrushAssembly(2)Required
Figure 9.
Cap Seal
3 . SeeFigure10.Useascrewdrivertoremovethe
brushholdercap.
4. Removethebrush.
5. Toinstall,reversetheremovalprocedure.
NOTE:Applyasmallamountofgrease(Part
No.2001672)tothelipofthecapsealtoaidin
installation.
REPAIR PROCEDURES
