Parts & Operations Manual
Manuel de pièces et d’opérations
DOODLE SCRUB/DOODLE MOP
Surface Preparation Machines / Machines de préparation de surface
EBG-9 & EBG-9-BAT-PLUS / EBG-16 & EBG-16-BAT-PLUS
Date of Issue / Date d’émission : 2024-02
Serial Number / Numéro de série : Date of Purchase / Date d’achat :
Distributor Name / Nom du distributeur :

2Parts & Operations Manual Doodle Scrub / Doodle Mop
Contents
• Introduction
• Safety
• Maintenance Schedule
• Manual Conventions
• Important
• Machine Transport
• Operating Instructions
• Parts Breakdown
• Grip Face Care
• Warranty
• HEPA Dry Vac
• Maintenance & Troubleshooting.
Please provide machine serial number when ordering parts.
Introduction
About your Square Scrub Surface Preparation Machine
Doodle Scrub
The EBG-9 gets in those tight spaces the big machines can’t. Doodle Scrub deep cleans under urinals, behind toilets, and even
works great on stairs. With a new patent pending handle/base design, the Doodle Scrub handle can be attached on either the end
or the middle of the base, allowing a more mop like motion for absolute versatility. Scrub pads are available in SQP dry prep, tile
and grout, Xtreme sponge and more. The Doodle Scrub EBG-9 goes where you can’t.
Doodle Mop
The Doodle Mop EBG-16 is designed for everyday oor mopping and improved soil removal. The 4100-rpm motion drastically
improves cleaning vs hand mopping. The Doodle Mop is perfect for mopping luxury vinyl tile, VCT, tile and grout and more.
The Doodle Mop works best with 18” disposable microber mops. The disposable microber pads greatly reduce the risk of cross
contamination between rooms. Made of 304 series stainless steel, the Doodle Mop is durable, light weight, and easy to clean.
The Doodle Mop is mopping made easy.
Safety
Save these instructions. Please read all installation, operation, & safety instructions before using this machine.
You are now the proud owner of an EBG-Series machine. This machine is a product of Square Scrub. It is made of ne materials and
will give you many years of satisfactory service if maintained and used according to the guidelines in this owner’s manual.
WARNING OF POTENTIAL INJURY MOVING PARTS UNPLUG BEFORE SERVICING!
This product contains moving parts. To reduce the risk of injury, unplug before servicing.
***This product is for industrial/institutional/commercial use only***
• This oor-nishing machine shall be grounded while in use to protect the operator from electric shock. The machine is
For product videos
& literature visit
squarescrub.com

3Parts & Operations Manual Doodle Scrub / Doodle Mop
provided with a three-conductor cord and a three-contact grounding type attachment plug to t the proper grounding
type receptacle. The green (or green and yellow) conductor in the cord is the grounding wire. Never connect this wire to
anything other than the grounding pin of the attachment plug.
• This machine ls for use on a nominal 120-volt circuit and has a grounding plug that resembles the plug in the gure.
Make sure that the machine is connected to an outlet having the same conguration as the plug.
• NO ADAPTER SHOULD BE USED WITH THIS MACHINE.
The Following instructions are for the Battery-Operated unit
“WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock,
re and/or serious injury.”
“AVERTISSEMENT: Lire toutes les mises en garde et toutes les instructions. Le non-respect des mises en garde et des instructions
peut causer des chocs electriques, des lncendies etfou des blessures graves.”
• Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack
may create a risk of re when used with another battery pack. “Recharger uniquement avec le chargeur prescrit par le
fabricant. Un chargeur convenant a un type de batterie peut presenter un risque d’incendie lorsqu’il est utilise avec une
autre batterie.”
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, ush with
water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
“En condition d’usage abusif, du liquide peut s’echapper de la batterie ; eviter tout contact avec ce liquide. En cas de
contact accidentel, rincer abondamment avec de l’eau. En cas de contact avec les yeux, consulter egalement un medecin.
Le liquide projete peut causer des irritations ou des brulures.”
• Do not use a battery pack or appliance that is damaged or modied.
Damaged or modiied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.
• Do not expose a battery pack or appliance to re or excessive temperature. Exposure to re or temperature above 130°C
may cause explosion. The temperature of 130°C can be replaced by the temperature of 265° F.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range
specied in the instructions. Charging improperly or at temperatures outside of the specied range may damage
the battery and increase the risk of re. Respecter toutes les instructions de chargement et ne pas charger la batterie
ou l’appareil a des temperatures qui ne sont pas incluses dans la gamme de temperatures indiquees dans la notice
d’instructions. Un chargement mal ectue!’
Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use
and care. When the oor scrubber is provided with a rechargeable battery pack, it is intended to be used with Charger marked
with Square scrub model number 051145. Placed on the front of the charger.
The charger employs double insulation in lieu of grounding.
In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on
a double-insulated machine, nor should a means for grounding be added to the machine. Servicing a double-insulated machine
requires extreme care and knowledge of the system, and should be performed only by qualied service personnel.
Replacement parts for a double-insulated machine must be identical to the parts they replace. Always replace a damaged cord.
A double-insulated product is marked with the words “DOUBLE INSULATION”or “DOUBLE INSULATED.”
The symbol (square within a square) may also be marked on the charger body.

GROUNDING PIN
BRANCHE DE MISE À LA TERRE
GROUNDED OUTLET
PRISE DE COURANT
GROUNDING INSTRUCTIONS
DIRECTIVES DE MISE À LA TERRE
4Parts & Operations Manual Doodle Scrub / Doodle Mop
Maintenance Schedule
Prior to using (daily)
• Check AC power cord. Do NOT operate equipment if AC power
cord is cut, frayed, or if ground is missing.
• Check grip face and driver pad. Inspect for wear/debris.
After use (daily)
• Clean pad and base plate assembly. Remove or replace pad as needed.
• Inspect grip face for wear. Remove debris between grip face and base plate.
• Wipe entire unit with a damp microber cloth.
• Make certain a pad is placed on the grip face.
Weekly Preventative Maintenance
• Check grip face for wear.
• Use a vacuum to clean away debris build-up around base plate.
Annually
• Replace ALL isolators.
• Bearing assembly should be replaced as needed. *
*The bearing assembly is considered to be a wear item. We recommend that the bearing assembly be replaced as needed.
Unit will become noisy when bearing needs to be replaced.
**NOTE: Be sure to replace isolators when you replace the bearing.
Manual Conventions
Danger: Indicates an imminently hazardous situation which, if not avoided, may result in death or serious injury.
Caution: Indicates that the machine or property damage could result if instructions are instructions are not followed.
Note: Provides helpful information.
Severe bodily injury or death can occur to you or other personnel if warnings found on this machine or in this owner’s manual are
ignored. Read and observe all statements and instructions found on this machine and in the owner’s manual.

5Parts & Operations Manual Doodle Scrub / Doodle Mop
Liability Statement
This Square Scrub machine has been built to the highest industry standards. Please not and heed the WARNING and CAUTION
labels that have been placed on the machine and in this manual for your safety. PLEASE DO NOT ATTEMPT TO OPERATE OR
REPAIR THIS EQUIPMENT WITHOUT ADEQUATE TRAINING. ANY USE, OPERATION, OR REPAIR IN CONTRAVENTION OF THIS
DOCUMENT IS AT YOUR OWN RISK. BY ACCEPTANCE OF THIS SYSTEM YOU HEREBY ASSUME ALL LIABILITY CONSEQUENT
TO YOUR USE OR MlSUSE THIS EQUlPMENT. SQUARE SCRUB SHALL NOT BE LIABLE FOR ANY INCIDENTAL, INDIRECT,
SPECIAL, OR CONSEQUENTIAL DAMAGE OF ANY KIND.
Equipment specications, applications, and options are subject to change at the sole discretion of Square Scrub without notice.
Important
All Square Scrub machines are built to strict safety standards pertaining to operation and repair of Square Scrub equipment.
The following basic safety tips are given to ensure safe installation, operation, and maintenance of Square Scrub.
• Caution- This machine is intended for indoor use only.
• Caution- This machine is to be stored indoors only. Never leave the machine unattended while power cord is connected
• Do not operate this machine while under the inuence of alcohol or other drugs.
• Never allow children under age 18 to operate this machine.
• Unplug machine from power source before adjusting height of handle or changing pad.
• Always wear personal protective equipment (PPE) when operating this machine.
• Never inhale dust created by the use of this machine. Any modications to this machine may result in damage to
the machine or injury to the operator or others nearby. Alterations to the machine will also void any and all warranty
and liabilities.
• Sanding wood decks is not recommended by Square Scrub due to uneven surfaces which could lead to damage to
the machine. Some pressure treated wood found in decking contains arsenic that, when sanded, will create hazardous
dust. Square Scrub assumes no liability if the machine is used on decks, and damage caused from sanding pressure
treated wood will not be warranted.
• Do not operate this machine around fuels, solvents, ammable oor nishes, thinners, wood particulate or any ammable
materials. Cigarette lighters, pilot lights, electrical sparks and all other sources of ignition should be extinguished or
avoided. Work areas should be well ventilated.
• Keep the power cord clear of the pad. Always lift the cord over the machine. Do not pull on the power cord in an attempt
to move the machine. This could result in electrocution. Operating this machine with a damaged power cord could lead
to electrocution or re. Cord should remain clear of moving parts during operation. Never use the cord to navigate the
machine. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
• Servicing this machine while still connected to a power source could lead to electrocution or re. Before performing
machine service or maintenance, disconnect the machine from the power source.
• Do not use machine if it has been sprayed with water or left out in the rain. This could result in a shock injury
or electrocution.
• Keep feet, hands, and loose clothing away from any moving parts on the machine to avoid injury. Disconnect power cord
before changing the pad or when servicing. Damage can occur to the machine or to other property if instructions in the
owner’s manual are not followed.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.

6Parts & Operations Manual Doodle Scrub / Doodle Mop
Warning: This appliance is not suitable for picking up hazardous dust.
Transport
To transport this machine, the following procedure is advised:
• Unplug machine from power source.
• Always leave a pad on the machine to protect the grip face from damage in transport and storage.
• Secure machine when transporting in a vehicle to prevent movement.
• NEVER PICK THE DOODLE SCRUB OR DOODLE MOP UP BY THE HANDLE ALONE!
• Always pick the Doodle Scrub or Doodle Mop up with one hand on the handle and the other hand picking up the base.
Failure to do so could result in damage to the machine.
Operating Instructions
• Move machine to work location. Never operate, transport, or store the machine without a pad to protect the grip face.
• Ax the handle clip onto either of the base clips.
• Ensure that the motor plug and handle plug are fully seated before operating.
• Connect the battery for battery powered models, or plug machine into grounded power outlet.
• Hold the machine handle with one hand while gently pressing the switch on the top of the handle with the other hand.
• Begin moving the machine over the oor in either a mop-like motion or along edges.
• Continue moving the machine over the selected surface, checking your pad every 15 to 30 minutes (depending on pad
in use) to maintain optimum performance.
Airborne Noise and Vibration Emissions
Sound Power Level Vibration Total at Base
120 V:
Under 57dBA
120 V:
Avg. 6.5 mm /s2, max at 6.9 mm /s²
240 V:
Under 57dBA
240 V:
Avg. 5.8 mm /s2, max at 6.0 mm /s²
42Vdc:
Under 57dBA
42Vdc:
Avg. 6.5 mm /s2, max at 6.9 mm /s²

7Parts & Operations Manual Doodle Scrub / Doodle Mop

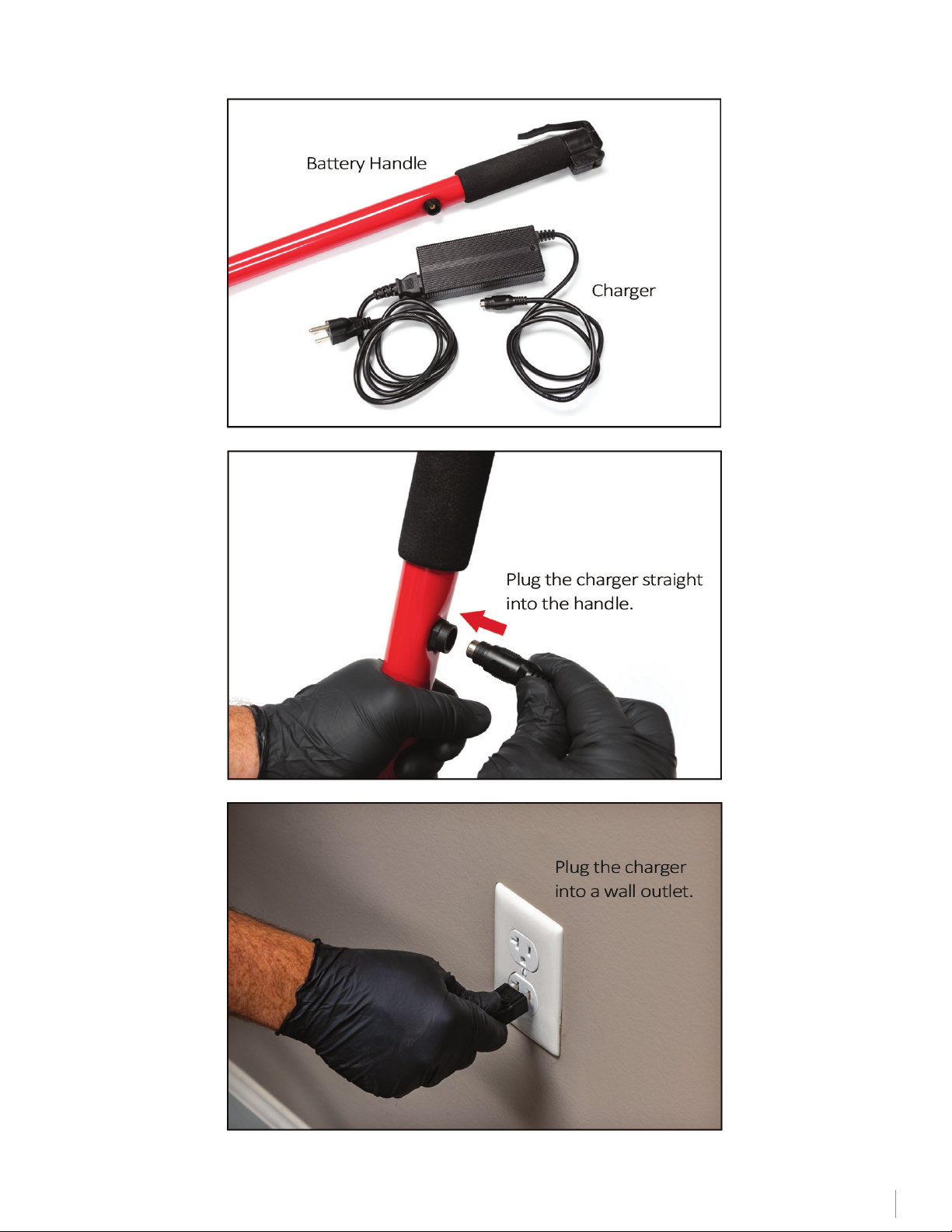

Plugging in the Charger

8Parts & Operations Manual Doodle Scrub / Doodle Mop
Grip Face Care
Be kind to your grip face
The grip face has a very tough life!
The Industrial Velcro one-piece grip face material on this Square Scrub machine is the very best we have ever tested! With proper
care and attention, it will do a great deal of work for you. Our machine drives a huge amount of energy into the grip face and then
the driver pad and then to the oor: Some pads are more durable and long lasting than others. All of the pads that we may use
will wear out. The driver pads must be checked on a regular basis. The amount time the driver will last varies greatly based on the
task being done. Some pads last longer than others in similar conditions. We encourage you to do some testing on pads to nd
the one that works best for your situation. Check the pad condition very often until you get a feel for about how long it is going to
hold up. Time is the factor in how long a driver pad can last. Square footage is not a good measurement.
Very aggressive wet stripping pads that are being used in wet high alkaline caustic conditions really destroy driver pads quickly!!!!
Some pads will break down in as little as ve minutes. Other pads may last 15 minutes while other might be even better and last
30 minutes. It is dicult to know how long the driver will hold up. There are numerous dierent pads and chemical strippers on
the market.
Diamond grinding with Trizac™ or other types of diamonds uses lots of energy. Diamonds are doing a great deal of work on the
oor surfaces. The result of the grinding is ne particles of the material being polished are contaminating the pad. These gritty
particles get to work quickly breaking down and destroying not only the driver pads but also the grip face itself If you are doing a
diamond grinding project please have some spare grip faces on hand. Even being super cautious and aware, grip faces will still
get destroyed.
Here are links to our website videos showing how to replace the grip face. The rst one shows the best way to do a replacement.
The second one shows a method that will work in the eld if you are in the middle of a project and need to get back to work fast.
www.squarescrub.com/assets/grip-face-replacement. mp4
www.squarescrub.com/assets/grip-face-replacement-fast.mp4
This is our Square Scrub driver pad that seems to perform well in most situations.
55 P0SllDRIVER I White Driver Pad for the Doodle Scrub I Sold 48/case
55 P0S16DMF I Disposable Microber Pad for the Doodle Mop I Sold 240/case
Thick white pads work and thick blue also work. Test each pad in your situation with your chemicals and your oors to determine
what is best for you.
Check the driver pad every 15 minutes to start:
After you have ran the machine and the pads you will establish a realistic pad life expectation. You must tilt the machine on its
back to inspect the pad. Many times, the outside edge of the pad will still look new but the underside of the pad where the work is
being done will be destroyed.
Rotate the driver pad and working pad each time you check it:
We see the rear right-hand corner get worn more quickly than the rest of the pad most of the time. Our machine rotates clockwise
which creates more pressure on that side. This is where you will see wear the soonest.
Wet chemical stripping:
Chemical strippers speed up how fast the pads break down. Wet stripping is normally done with very aggressive super abrasive
pads. This type of aggressive pad also works to destroy the driver pads fast. Watch your pads very closely until you get a feel for
how long they wil I last.

9Parts & Operations Manual Doodle Scrub / Doodle Mop
Test out dierent pads:
Test several dierent pads for yourself in your buildings with your oors and your chemicals. We have tested lots of pads from
everyone we know of that makes pads. Some pads are better than others. Please try some options if you are unhappy with how
well the pads you are using hold up.
Store your machine on its back if possible:
Never put your machine on the oor without a pad covering the grip face. The “teeth” on the grip face can be damaged if they
don’t have a pad on them
Be kind to your grip face. It has a very tough life!
55 051103V I Doodle Scrub grip face I Sold Individually
SS 051603V I Doodle Mop grip face I Sold Individually

10 Parts & Operations Manual Doodle Scrub / Doodle Mop
Problem Cause Action
Unit runs correctly but stops.
It works ne after
3-10 minutes.
Incorrect pad is being used. Only use pads
recommended by Square Scrub.
See page 17 for a complete list of
recommended pads.
Use correct pad. If problem continues contact
you nearest Square Scrub dealer.
Machine will not start Not connected to power source.
Voltage too low. Defective switch.
Check power source connection and lighted.
Have electrician check outlet. Contact Square
Scrub dealer
Runs erratically
Low voltage from excessive length or
undersized extension cord.
Defective start switch.
Defective motor low voltage.
Use 10 gauge extension cord, not more than
25’long.
Contact Square Scrub dealer. Contact Square
Scrub dealer.
Fuse/Circuit Breaker Trips Low voltage.
Low input volts.
Allow the motor to cool. Eliminate extension
cord. Locate power cord closer to work site.
Have voltage checked by electician.
Machine pulls hard to
one side
Note: The rubber isolators on
the EBG are considered wear
items. It is recommended to
replace the entire set of all
four isolators once per year (or
sooner under heavy use) to
prevent failure and damage to
the machine.
Worn Pad.
Rubber isolators are worn out.
Rotate pad 180 degrees. Flip pad over.
Replace pad.
Replace isolators.
Machine is noticeably louder
than it was when
originally purchased
Rubber isolators worn. Replace isolators
Troubleshooting Corded Units
Troubleshooting Battery Units
Warranty
Doodle Scrub & Doodle Mop 1 Year Limited Warranty on parts and 90 days Limited Warranty on Labor
General
This Square Scrub EBG-9 Doodle Scrub Floor Preparation Machine is warranted to be free from defects in materials and
workmanship under normal use and service for a period of one year on machine handle and base when operated and maintained
in accordance with Square Scrub Maintenance and Operating Instructions.
Problem Cause Action
Unit will not run Dead battery
Battery not connected
Charge battery
Connect battery to motor

11Parts & Operations Manual Doodle Scrub / Doodle Mop
The warranty will commence on the purchase date by the original end user from an authorized Square Scrub dealer and is subject
to proof of purchase. If proof of purchase cannot be provided, the warranty shall begin from the date of shipment to an authorized
Square Scrub dealer. Parts replaced or repaired under warranty are guaranteed for the remainder of the original warranty period.
The warranty period is subject to the conditions stated below.
The battery and charger are warranted for 1 year to the original purchaser to be free from defects in material and workmanship.
This guarantee does not cover damage due to abuse, normal wear, improper maintenance, neglect, unauthorized
repair/alteration.
Labor to repair the unit is also included for the rst 90 days from date of original purchase. Unit must be returned to Square Scrub
for all repairs other than the handle switch. End user must ship the unit to Square Scrub at their expense. Unit will be repaired
or replaced and returned to the end user or the authorized Square Scrub dealer by normal ground shipping method at Square
Scrub’s expense. Square Scrub is not responsible for lost time involved in the repair time.
Disqualications
This warranty shall not apply to repairs resulting from accidents or misuse, damage in transit, overloading the capacity of the
machine, or damage resulting from lack of proper maintenance or care as described in the Maintenance Schedule and General
Operating Instructions listed in the Owner’s Manual. Minor adjustments, not related to the replacement of parts, are not covered.
Repairs or alterations made by an organization other than the factory or an Authorized Service Center are not covered and will
void warranty as it relates to the parts or systems repaired or altered by the non-authorized organization.
Product Exceptions, Exclusions, & Wear Items
Machine cord
Blue Driver Pad (shipped
with machine)
Grip Face
Cushion Hand Grip
Rubber Isolators
Eccentric Assembly (includes bearing)
If a diculty develops with the product, contact your local Square Scrub dealer or call Square Scrub at 800.557.6822. Only Square
Scrub can authorize repairs under warranty. Square Scrub may elect to require the return of components to validate a claim.
Any defective part to be returned must be shipped freight prepaid to an authorized Square Scrub Dealer/Service Center or to the
Square Scrub factory. Travel time and mileage is not covered on any repairs.
Square Scrub’s liability under this warranty is limited to repair of the product and/or replacement of parts and is given to
purchaser in lieu of all other remedies, including INCIDENTAL AND CONSEQUENTIAL DAMAGES. THERE ARE NO EXPRESS
WARRANTIES OTHER THAN THOSE SPECIFIED HEREIN. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION OF
THE FACE HEREOF. NO WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY, SHALL BE IMPLIED.
Please register your machine on our website within thirty (30) days of purchase to assist Square Scrub in providing the
performance you expect from your new oor machine.
Repairs after the rst 90 days of the warranty period but still during the rst 12 months will be done for $69 to cover labor and
Square Scrub will prepay the shipping to return the Doodle Scrub if it is an under warranty repair.
Repairs after the rst 12 months will be done for $69 at fee plus the cost of parts and shipping.

{
@
 
5
i0

  0
 

®
A   
 
 
A
  

12 Parts & Operations Manual Doodle Scrub / Doodle Mop
Doodle Scrub 28529
Parts / Pièces
Item N. Part N. Description
1 SS 100090 CARRY STRAP
2N/A ZIP TIE
3 SS 051661 DOODLE COVER
4INCLUDED IN KIT MOTOR CORD
5INCLUDED IN KIT COVER SCREW (4) / WASHERS (4)
6INCLUDED IN KIT MOTOR
7INCLUDED IN KIT MOTOR BOLT (5)
8 SS 051170 PTC/VARISTOR HARNESS
9INCLUDED IN KIT HANDLE CORD
10 INCLUDED IN KIT MOTOR SHAFT BOLT
11 INCLUDED IN KIT ECCENTRIC ASSEMBLY
12 INCLUDED IN KIT TOP ISOLATOR BOLT
13 INCLUDED IN KIT ISOLATOR (4)
14 INCLUDED IN KIT ISOLATOR SPACER (4)
15 INCLUDED IN KIT BOTTOM ISOLATOR BOLT (4)
16 SS 051634 BASE PLATE
17 SS 051603V GRIP FACE
18 SS 051180 TRIGGER
19 SS 051104 EBG-9 SWITCH
20 SS 0101Z HANDLE GRIP
21 INCLUDED IN KIT POWER CORD
22 INCLUDED IN KIT HANDLE
23 INCLUDED IN KIT CRUSH WASHER
24 SS 051152 BASE CLIP
Item N. Part N. Description
3, 4, 5 SS 051666 EBG-16 COVER REPLACEMENT
KIT
6, 7, 8, 9, 10 SS 051106 MOTOR REPLACEMENT KIT
5, 10, 11, 12,
13, 14, 15, 16,
17, 23
SS 051615 BASE PLATE KIT
5, 10, 12, 13,
14, 15, 17 SS 051601 ISOLATOR REPAIR KIT

13Parts & Operations Manual Doodle Scrub / Doodle Mop
Doodle Mop 28054
Parts / Pièces
Item N. Part N. Description
1 SS 100090 CARRY STRAP
2N/A ZIP TIE
3 SS 051661 DOODLE COVER
4INCLUDED IN KIT MOTOR CORD
5INCLUDED IN KIT COVER SCREW (4) / WASHERS (4)
6INCLUDED IN KIT MOTOR
7INCLUDED IN KIT MOTOR BOLT (5)
8 SS 051170 PTC/VARISTOR HARNESS
9INCLUDED IN KIT HANDLE CORD
10 INCLUDED IN KIT MOTOR SHAFT BOLT
11 INCLUDED IN KIT ECCENTRIC ASSEMBLY
12 INCLUDED IN KIT TOP ISOLATOR BOLT
13 INCLUDED IN KIT ISOLATOR (4)
14 INCLUDED IN KIT ISOLATOR SPACER (4)
15 INCLUDED IN KIT BOTTOM ISOLATOR BOLT (4)
16 SS 051634 BASE PLATE
17 SS 051603V GRIP FACE
18 SS 051180 TRIGGER
19 SS 051104 EBG-9 SWITCH
20 SS 0101Z HANDLE GRIP
21 INCLUDED IN KIT POWER CORD
22 INCLUDED IN KIT HANDLE
23 INCLUDED IN KIT CRUSH WASHER
24 SS 051152 BASE CLIP
Item N. Part N. Description
3, 4, 5 SS 051666 EBG-16 COVER
REPLACEMENT KIT
6, 7, 8, 9, 10 SS 051106 MOTOR REPLACEMENT KIT
5, 10, 11, 12,
13, 14, 15, 16,
17, 23
SS 051615 BASE PLATE KIT
5, 10, 12, 13,
14, 15, 17 SS 051601 ISOLATOR REPAIR KIT

14 Parts & Operations Manual Doodle Scrub / Doodle Mop
Doodle Scrub 28054
Parts / Pièces
Item N. Part N. Description
1 SS 100090 CARRY STRAP
2N/A ZIP TIE
3 SS 051661 DOODLE COVER
4 SS 051168 BATTERY METER
5 SS 051153 3 WIRE CONNECTOR (2)
6INCLUDED IN KIT MOTOR CORD
7INCLUDED IN KIT COVER SCREW (4)/WASHERS (4)
8 SS 051170 MOTOR
9INCLUDED IN KIT MOTOR BOLT (5)
10 INCLUDED IN KIT ECCENTRIC ASSEMBLY
11 INCLUDED IN KIT CRUSH WASHER
12 INCLUDED IN KIT MOTOR SHAFT BOLT
13 INCLUDED IN KIT ISOLATOR (4)
14 INCLUDED IN KIT TOP ISOLATOR BOLT
15 INCLUDED IN KIT ISOLATOR SPACER (4)
16 INCLUDED IN KIT BOTTOM ISOLATOR BOLT (4)
17 SS 051134 BASE PLATE
18 SS 051103V GRIP FACE
19 SS 051180 TRIGGER
20 SS 051104 EBG-9 SWITCH
21 SS 0101Z HANDLE GRIP
22 N/A CHARGING PORT
23 SS 051140 BATTERY PACK/HANDLE
24 SS 051145 CHARGER
25 SS 051152 BASE CLIP
Item N. Part N. Description
1, 2, 3, 4, 5,
6, 7 SS 05166BAT BATTERY POWERED EBG-9 COVER REPLACEMENT KIT
8, 9, 12 SS 051106BAT MOTOR REPLACEMENT KIT
7, 10, 11, 12,
13, 14, 15, 16,
17, 18
SS 051115 BASE PLATE KIT
7, 12, 13, 14,
15, 16, 18 SS 051101 ISOLATOR REPAIR KIT


 





15Parts & Operations Manual Doodle Scrub / Doodle Mop
Doodle Mop 28054
Parts / Pièces
Item N. Part N. Description
1 SS 100090 CARRY STRAP
2N/A ZIP TIE
3 SS 051168 BATTERY METER
4 SS 051661 DOODLE COVER
5INCLUDED IN KIT COVER SCREW (4) / WASHERS (4)
6INCLUDED IN KIT MOTOR CORD
7INCLUDED IN KIT MOTOR BOLT (5)
8INCLUDED IN KIT MOTOR
9N/A BASE
10 INCLUDED IN KIT MOTOR SHAFT BOLT
11 INCLUDED IN KIT ECCENTRIC ASSEMBLY
12 INCLUDED IN KIT TOP ISOLATOR BOLT
13 INCLUDED IN KIT ISOLATOR (4)
14 INCLUDED IN KIT ISOLATOR SPACER (4)
15 INCLUDED IN KIT BOTTOM ISOLATOR BOLT (4)
16 INCLUDED IN KIT CRUSH WASHER
17 SS 051634 BASE PLATE
18 SS 051603V GRIP FACE
19 SS 051145 CHARGER
20 SS 051180 TRIGGER
21 SS 051104 EBG-9 SWITCH
22 SS 0101Z HANDLE GRIP
23 N/A CHARGING PORT
24 SS 051140 BATTERY PACK/HANDLE
25 SS 051152 BASE CLIP
26 N/A HANDLE CORD
27 SS 051153 3 WIRE CONNECTOR (2)

16 Parts & Operations Manual Doodle Scrub / Doodle Mop
Doodle Scrub Pad Information 28054
Parts / Pièces
Blue Tile & Grout Pad I SS P0SllTGBV I Sold Individually
Our Tile & Grout Pad is best used on grouted tile oors, but can be used very eectively on terrazo, poured non-slip, concrete and
other uneven oors. Use wet on several surfaces.
White Driver Pad I SS P0SllDRIVER I Sold -48/case
The White Driver Pad is primarily a spacer pad. Just 1/4” thick, use this pad with SQP, SHO, and diamonds. Always check spacer and
driver pads frequently for wear and replace as needed.
Blue Driver Pad I SS P0SllBLU I Sold -18/case
This medium to heavy duty blue pad can be used for heavier cleaning and bung situations, but primarily used as a spacer pad.
Always check spacer and driver pads frequently for wear and replace as needed. Use wet or dry on VCT and tile.
White Pad I SS P0SllWHT I Sold -16/case
The White Pad is used as a light duty polish pad. The 1” thick pad is used without a driver pad, and is great for spreading chemicals
while bung.
Xtreme Sponge I SS P0SllXTR I Sold -5/case
Use the Xtreme Sponge to remove scu marks on VCT or bathroom tile. A little water and this melamine pad deep cleans &
restores shine between renishing jobs. Use wet on VCT and tile.
SHO Pad I SS P0SllSHO I Sold - 20/case
The SHO Pad should be used only for the heaviest of chemical stripping jobs. Extremely abrasive and heavy with dense bers.
Best when dirt and buildup are severe. Use wet on VCT and tile.
SQP Pad I SS P0SllSQP I Sold -60/case
SQP is a thin pad designed to remove oor nish without chemicals. Remove several layers of acrylic nish to prep for recoating.
USE dry or wet on VCT and tile.

17Parts & Operations Manual Doodle Scrub / Doodle Mop
Doodle Mop Pad Information 28054
Parts / Pièces
Disposable Microber Pad I SS 0516DMF I Sold - 240/case
The Doodle Mop disposable microber pad helps increase soil removal and reduce cross contamination.
Xtreme Sponge I SS P0516XTR I Sold - 5/case
Use the Xtreme Sponge to remove scu marks on VCT or bathroom tile. A little water and this melamine pad

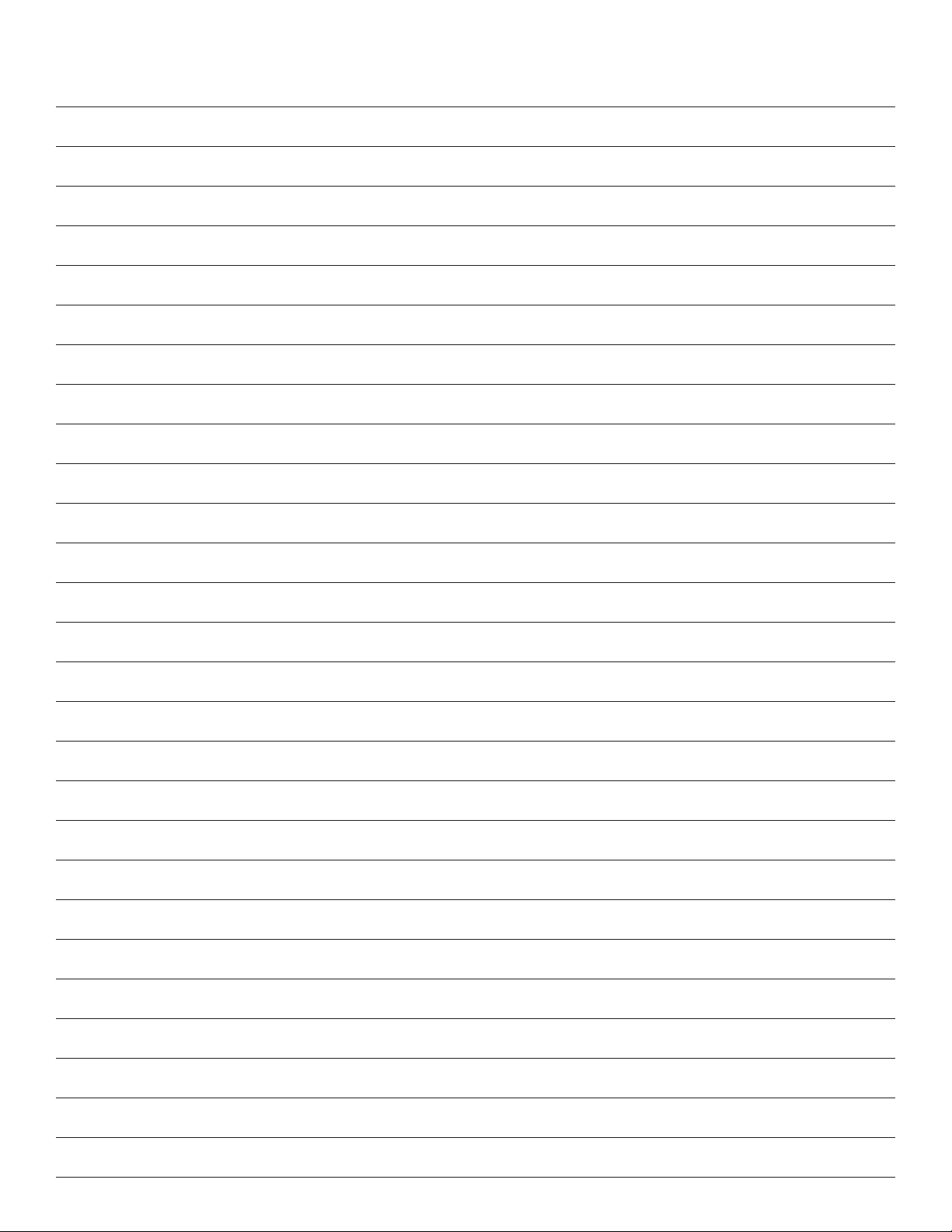

Notes

Notes
