SSI Fluid User manual

Limited Lifetime Faucet Warranty
Fluid™ warrants its faucets to be free from defects in material and workmanship for as long as the original consumer
purchaser owns his or her home.* This warranty applies only in original installation location. If a defect is found in normal
residential use, Fluid™ will, at its election, repair, provide a replacement part or product, or make an appropriate adjustment.
Fluid™ reserves the right to examine the product in question and its installation prior to replacement. This warranty is limited
to replacement of defective parts only. Damage to a product caused by accident, improper installation, misuse, or abuse is
not covered by this warranty. Improper care and cleaning will void the warranty.** Replacement parts can be obtained from
your local dealer or directly from the Fluid™ warehouse. Dated proof of purchase must accompany all warranty claims. This
warranty applies only to Fluid™ faucets installed in the United States of America, Canada or Mexico (North America).
Fluid™
charges, repair or replacement costs are expressly excluded. In no event shall the liability of Fluid™ exceed the purchase price
of the faucet. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages,
™ dealer or
sales representative.
Installation Instructions for
Pull Down Kitchen Faucet
Please Keep This Manual For Future Reference
Need Help?
For additional assistance or service call
Toll Free: 1 800 460 7019
Fax: [phone]
Pull Down Kitchen Faucet/2010/V0 | Ion Branding + Design
Sustainable Solutions International
Phone: [phone]
www.SustainableSolutions.com
TM
TM
This faucet meets or exceeds the following standards:
ASME A112.18.1 / CSA B125.1 / NSF61-9
* Two year warranty on commercial applications.
** Never use cleaners containing abrasive cleansers, ammonia, bleach, acids, waxes, alcohol, solvents or other products
IAPMO LISTED
AB1953 California Lead Plumbing Law Certified

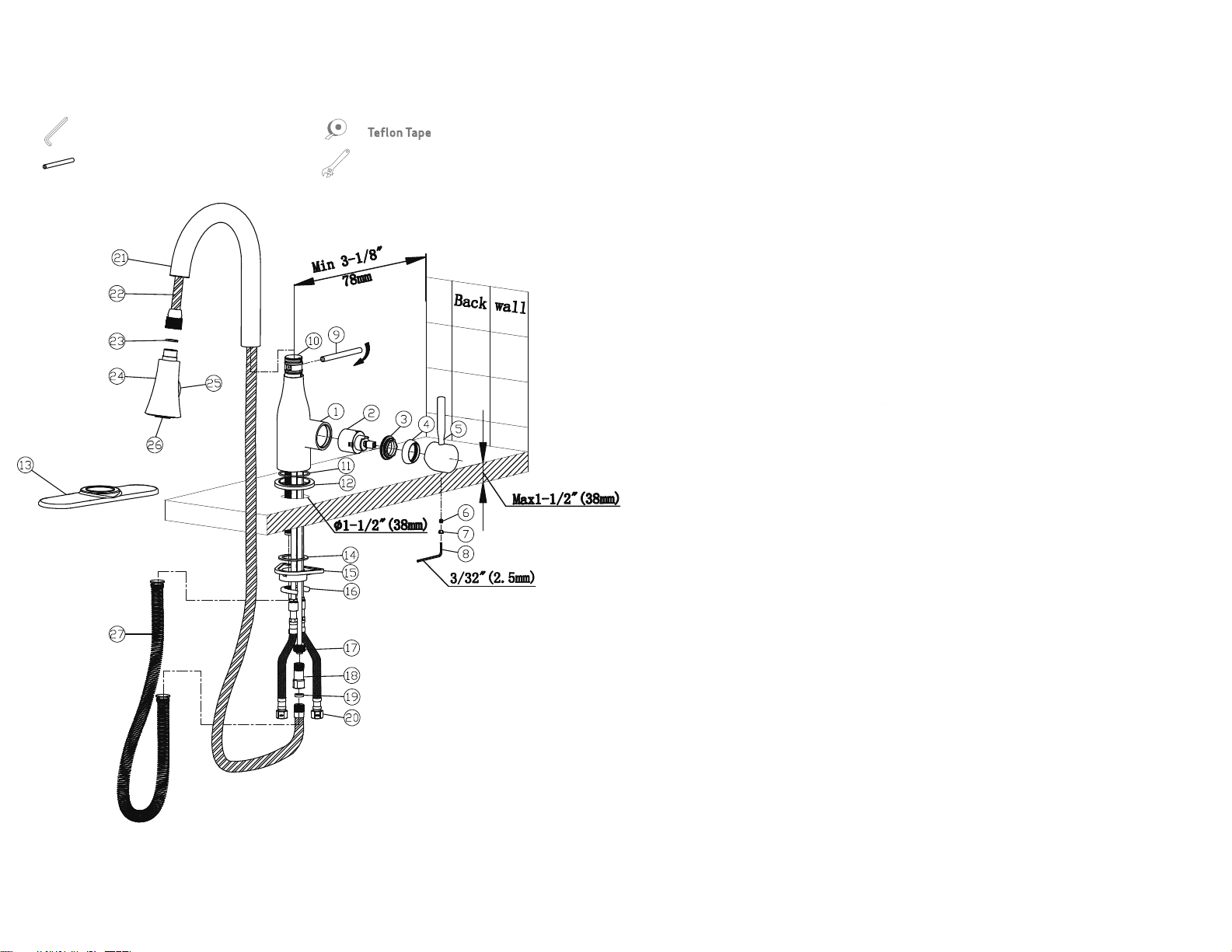

1.
Shut off cold and hot water supply.
3. For installation of faucet directly onto
place under faucet body (#1). For installation
5.
ing bracket (#16) with thread tube (#10). Insert
can be increased by 5/8”(16mm) to a total of
6. Feed spray hose (#22) through spout (#21).
7. Feed spray hose (#22) through the faucet
body (#1) from above. Then fit spout (#21) onto
8. With washer (#23) in place, screw spray
head (#24) into spray hose (#22).
10. With washer (#19) in place, screw connector
9. Slide spring (#27) onto spray hose (#22)
from below.
Installation Instructions
Care & Maintenance Instructions
Tools Required for Installation
Allen Wrench
Rod Tool Adjustable Wrench
SSI products are designed and engineered
under strict quality standards. Regular and
proper care of our products will ensure years
of trouble-free service.
For Cartridge:
1. Shut off cold and hot water supply.
2. Pull out the decorative cap (#7) and
with an Allen wrench (#8) loosen the set
screw (#6) but do not remove it.
3. Pull off handle (#5), unscrew cap (#4)
by hand and remove retaining nut (#3)
using an adjustable wrench.
4. Remove cartridge (#2).
5. Wash the cartridge (#2) with clean running
water and ensure that any trapped debris has
been removed. Dry and lightly grease the seals
(use only NSF approved silicone grease).
6. Replace cartridge (#2), retaining nut (#3)
and cap (#4) followed by handle (#5).
For Aerator:
Regularly remove and wash aerator (#26)
with clean running water and ensure that
any trapped debris has been removed.
For Surface Finish:
To clean, use a soft and damp cloth with warm
soapy water followed by rinsing with clean
water and drying with a soft cloth. Do not use
abrasive or harsh cleaners as they may result
surface by feeding flex hoses(#20) and brass
.
tubes through faucet hole.
Note: If spacer (#15) is omitted, deck thickness
faucet body (#1) so that it snaps into place (#10).
(#18) onto spray hose (#22) and tighten with
11. Push connector (#18) with spray hose (#22)
into brass tube and then tighten the nut (#17)
with escutcheon (#12) or deck plate (#13),
Spray Pattern: Turn on faucet, water will always come from the aerator (#26).
Push diverter button (#25) to switch to spray.
2. Ensure on the mounting surface, faucet
hole should be 1-1/2”(38mm) in diameter.
Fit washer (#14), spacer (#15) and mount-
4. Place faucet body (#1) on the mounting
rod (#9) through holes of thread tube (#10)
and turn clockwise to fasten faucet body (#1).
The center of hole should be at least 3-1/8”
(78mm) away from the back wall.
mounting surface, ensure O-ring (#11) is in
with an adjustable wrench.
2-1/8”(54mm).
in finish damage.
Max flow 1.5 gpm or 5.7 L/min
at 60 psi
Flow pressure 15-72.5 psi
Max pressure 120 psi
Max temperature 176 °F or 80 °C
Max deck thickness 2-1/8” (54mm)
Inlet connection 3/8” comp
Specifications:
remove O-ring (#11) before fitting escut-
cheon(#12) or deck plate(#13) under
faucet body (#1)
an adjustable wrench.
