ZURN ZEMS6140AV User manual

FV38-WCS • Page 1
AquaSense®AV ™
Closet ZEMS Series
Automatic Systems Sensor-Operated
AquaVantage Flushometer
Installation, Operation,
Maintenance, and Parts Manual
Patented and Patents Pending
Sensor-Operated Exposed Systems
ZEMS6000AV
ZEMS6000AV-2
ZEMS6000AV-3
Sensor-Operated Concealed Systems
ZEMS6140AV
ZEMS6142AV
ZEMS6152AV
ZEMS6000AV
ZEMS6142AV

ADA

ADA
LIMITED WARRANTY
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the date of purchase.
Decorative finishes warranted for one year. We will replace at no cost goods that prove defective provided we are notified in writing of such defect and
the goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly maintained and used in accordance with instructions.
We shall not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or consequential damages. The sole and
exclusive remedy shall be limited to the replacement of the defective goods. Before installation and use, the purchaser shall determine the suitability of
the product for his intended use and the purchaser assumes all risk and liability whatever in connection therewith. Where permitted by law, the implied
warranty of merchantability is expressly excluded. If the products sold hereunder are “consumer products,” the implied warranty of merchantability is
limited to a period of three years and shall be limited solely to the replacement of the defective goods. All weights stated in our catalogs and lists are
approximate and are not guaranteed.

FV38-WCS • Page 2

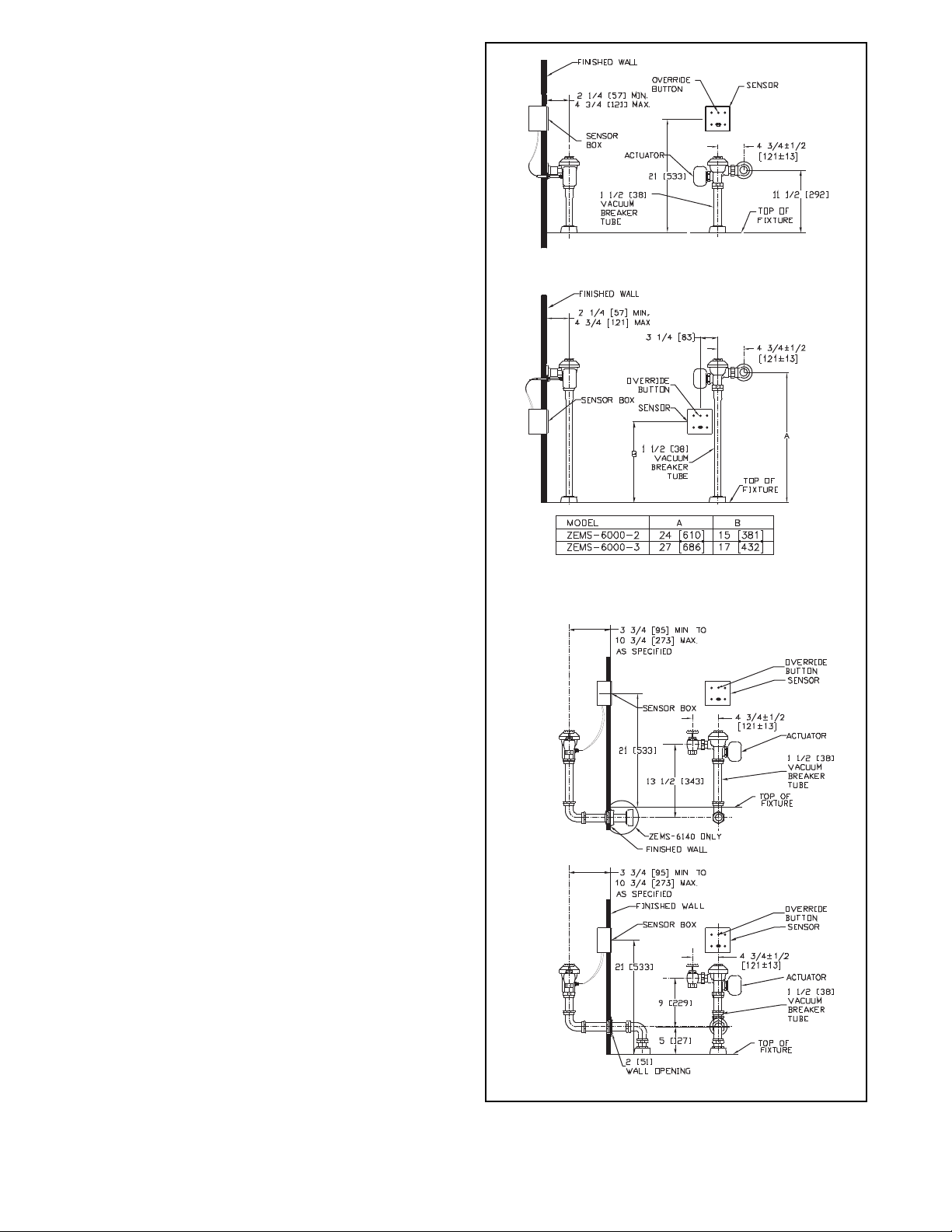

Figure 1
PRIOR TO INSTALLATION
Prior to installing the Zurn Automatic Sensor-equipped Flushometer,
install the items listed below as illustrated in Figures 1 through 4.
• 2-gang electrical box (4 x 4 x 21⁄8 use Steel City #52171-N
box and #52-C-18 device cover or equivalent for sensor); see
paragraph entitled “Sensor Location.”
• Single-gang electrical outlet for plug-in power converter.
• Electrical wiring to the power converter outlet (120 VAC,
35 watts service required for each power converter used).
• Closet fixture.
• Zurn carrier system, Z1200 series or equal.
• Single-gang box for Low Battery Indicator Light (optional).
IMPORTANT:
• All electrical wiring is to be installed in accordance with
National/Local codes and regulations.
• All plumbing is to be installed in accordance with applicable
codes and regulations.
• Water supply lines must be sized to provide an adequate volume
of water for each fixture.
• Flush all water lines prior to making connections.
• Sensor units should not be located across from each other or
in close proximity to highly reflective surfaces.
The Zurn AquaVantage is designed to operate over the entire
pressure range recommended by plumbing fixture manufacturers
and will produce a metered flush when activated.
Protect the chrome or special finish of this AquaVantage.
Do not use toothed tools to install or service the valve.
Also, see “Care and Cleaning” section of this manual.
SENSOR LOCATION (Figures 1 and 2)
Models ZEMS6000, ZEMS6140, ZEMS6142 and ZEMS6152
Locate the 2-gang electrical box on the centerline of the Flusho-
meter and 21" above the top of the closet fixture (use Steel City
#52171-N box and #52-C-18 device cover or equivalent).
Models ZEMS6000-2 and ZEMS6000-3
Locate the centerline of the 2-gang electrical box 3-1/4" to the left
of the centerline of the Flushometer and 15" (Model ZEMS6000-2)
or 17" (Model ZEMS6000-3) above the top of the closet fixture. (Use
Steel City #52171-N box and #52-C-18 device cover or equivalent).
All Models
NOTE: Install plaster ring so screw holes are on left and right side
of box. Trim tiles to allow screw holes in plaster ring to show.

FV38-WCS • Page 3
Electrical Box Installation
Figure 2
*MOUNT WITHIN 50 FEET
OF FLUSHOMETER
UL
®
Figure 4
Figure 3
*ZURN POWER CONVERTER
SINGLE GANG
ELECTRICAL BOX
INDICATOR LIGHT
SINGLE GANG ELECTRICAL BOX
(BY OTHERS)
ZURN “ZEMS” SENSOR
(INSTALL HORIZONTALLY AS SHOWN)
YOKE (OFFSET EXTENDS INTO
DEVICE COVER)
TOP SURFACE OF DEVICE COVER TO BE
FLUSH WITH FINISHED WALL SURFACE
4" SQ. x 3/4" DEEP
DEVICE COVER FOR
TWO DEVICES
(MOUNT FOR DEVICES
HORIZONTAL)
PUSHBUTTON OVERRIDE ASM.
(INSTALL INTO YOKE)
ELECTRICAL BOX INSTALLATION
*BOX AND DEVICE COVER BY CONTRACTOR
*4" SQ. x 2-1/8" DEEP BOX
(LOCATE CLAMPS AS
NECESSARY FOR CONVENIENCE)
CLAMP LOCATION
(OPTIONAL)
OVERRIDE
PUSHBUTTON
COVER PLATE
FINISHED WALL
4 x 4 BOX
DEVICE COVER
3-3/4"
[95mm]
3"
[76mm]
2-1/4"
[57mm]
2-1/8" 1/4"
3"
OPTIONAL BATTERY BACKUP and
LOW BATTERY INDICATOR LOCATION (Figure 3)
All Models
Install the single-gang electrical box in an area that is convenient
for visibility of the Low Battery Indicator Light. This can be located
either close to the fixture or in a remote area such as the mainte-
nance area or engineering room.
• The battery backup will supply power to a maximum of eight
flush valves for an approximate three-day period during a
power failure.
• The Low Battery indicator will come on when the batteries
have reached a “caution level.” The Flushometers will function
when the light is illuminated until the batteries are completely
discharged.
• The Low Battery light will illuminate even if the main power has
not failed but the batteries have dropped to the “caution level.”
INSTALLATION
STEP 1 – Install Receptacle (Figure 4)
Install Receptacle for the Zurn Power Converter in a convenient
location. An optional mini junction box (P6000-MJ) is recommended
to distribute power to each sensor location. It is also recommended
that brown wire be used for the positive (+) of the supply and blue
wire be used for the negative (-) of the supply. This matches the
sensor and actuator wire colors.
NOTE: One Zurn Power Converter can operate as many as eight
Automatic Sensor equipped Flushometers. The Power Converter
is supplied with a six-foot cord. If additional wire is needed from
the Power Converter to the Flushometer(s), use #18 AWG for this
(by others). Do not supply power to the Power Converter until
installation of actuator, sensor and Flushometer is completed and
checked. Proper polarity must be observed or damage to one
or all components will result.

FV38-WCS • Page 4
STEP 2 – Optional Battery Backup and Low Battery
Indicator Light Installation
• If the battery backup option is being utilized, it is necessary to
install the battery pack mounting plate and the battery pack
close to the power converter in a convenient location for battery
replacement when needed.
• Mount the battery pack mounting bracket.
• Clip the battery pack into location and secure the battery pack
to the bracket with the securing screw.
NOTE: Do not install the batteries until the Flushometers are
completely installed and operating. The batteries do not have
to be installed for the system to function.
STEP 3 – Control Stop Installation (Figure 6)
Install the Zurn control stop valve with “Siphon Gard” back check
protection (and wall escutcheon on exposed Flushometer installa-
tions) to the water supply line with the outlet positioned as required.
NOTE: For sweat solder applications, see recommended
instructions included in the Zurn sweat solder kit.
STEP 4 – Install Vacuum Breaker Flush Connection
Models ZEMS6000, ZEMS6000-2 and ZEMS6000-3 (Figure 7)
Slide the tube nut, slip washer, rubber gasket and spud escutcheon
over the vacuum breaker tube and insert tube into fixture spud.
Hand tighten spud coupling into fixture spud.
Models ZEMS6140, ZEMS6142 and ZEMS6152 (Figure 8)
NOTE: When cutting scoriated pipe, leave a minimum of 1-1/4"
of scoriation to ensure engagement with compression coupling.
Assemble pipe, elbows, couplings, slip washers, rubber gaskets
and flanges as illustrated in Figure 8. Hand tighten all couplings.
Once installation is completed, tighten all connections.
STEP 5 – Actuator Cable Installation (Figures 9 and 10)
1. Drill 1-3/4" diameter hole per Figure 9.
2. Run “fish tape” from electrical box to 1-3/4" hole.
3. Install actuator escutcheon to the actuator pipe with setscrew
toward actuator. Do not tighten setscrew at this time.
4. Pull actuator cable through hole with fish tape and back to
electrical box. Secure armored cable to box with box clamp.
5. With escutcheon loose and handle port washer installed, push
cable into wall. The actuator must be angled away from the
valve body at this time until the actuator push rod clears the
handle port flange. The actuator can now be mounted to the
flush valve and tightened.
6. Push escutcheon back to wall and tighten setscrew.
7. The actuator back cover has vent holes top and bottom. After
assembly, the top hole should be sealed with a small dab of
clear silicone sealant.
NOTE: See Figure 10 for typical installation including optional
mini junction box.

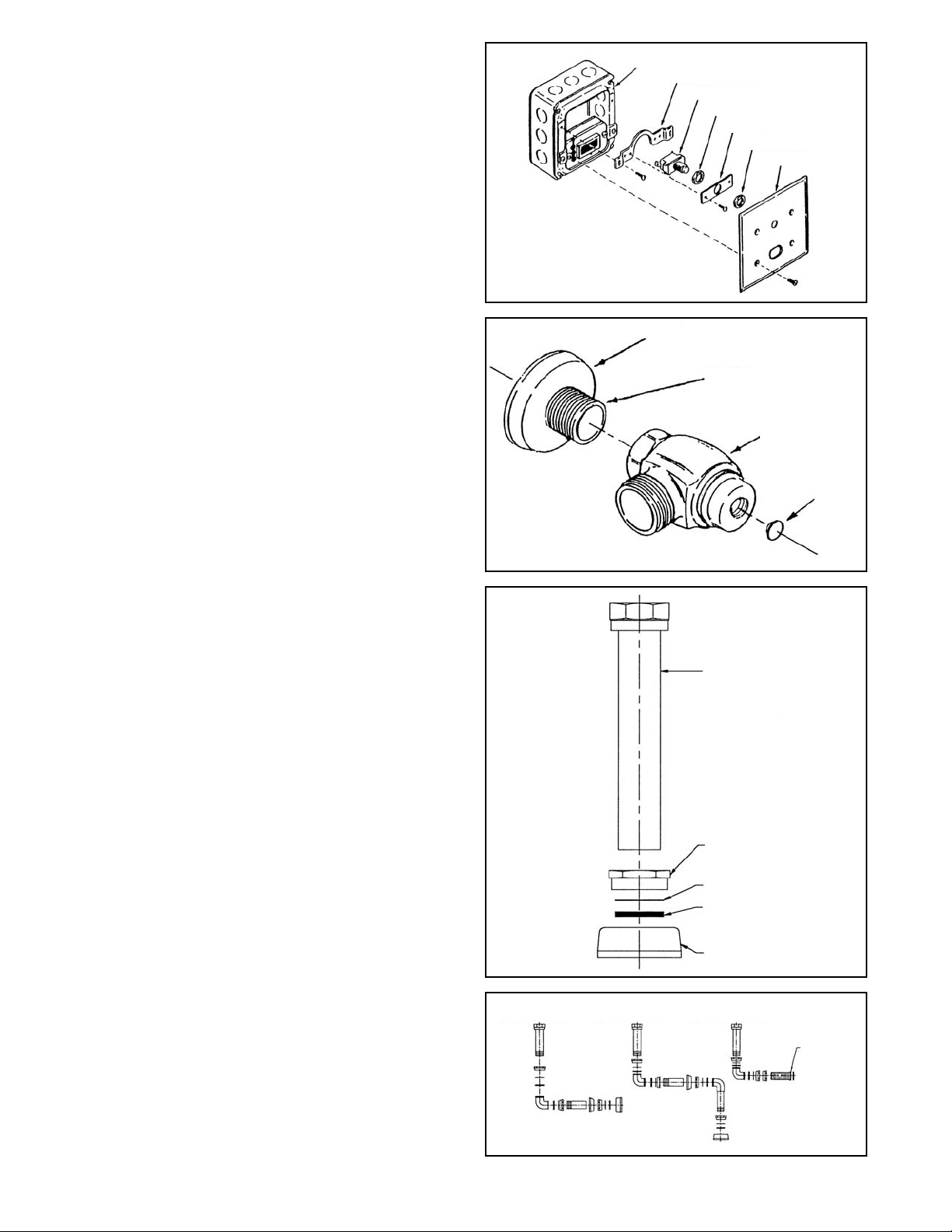

Figure 5
Figure 6
Figure 7
Figure 8
ZEMS6140 ZEMS6142 ZEMS6152
INSTALL
WITH
FLANGE
AGAINST
SPUD
SUPPLY FLANGE
IRON PIPE NIPPLE
“SIPHON GARD”
CONTROL STOP
STOP CAP
SCREW
COVER
VACUUM BREAKER TUBE
SPUD COUPLING
SLIP GASKET
RUBBER GASKET
SPUD FLANGE
ELECTRICAL BOX
YOKE
OVERRIDE BUTTON
INNER NUT
BRACKET
OUTER NUT
WALL PLATE

FV38-WCS • Page 5

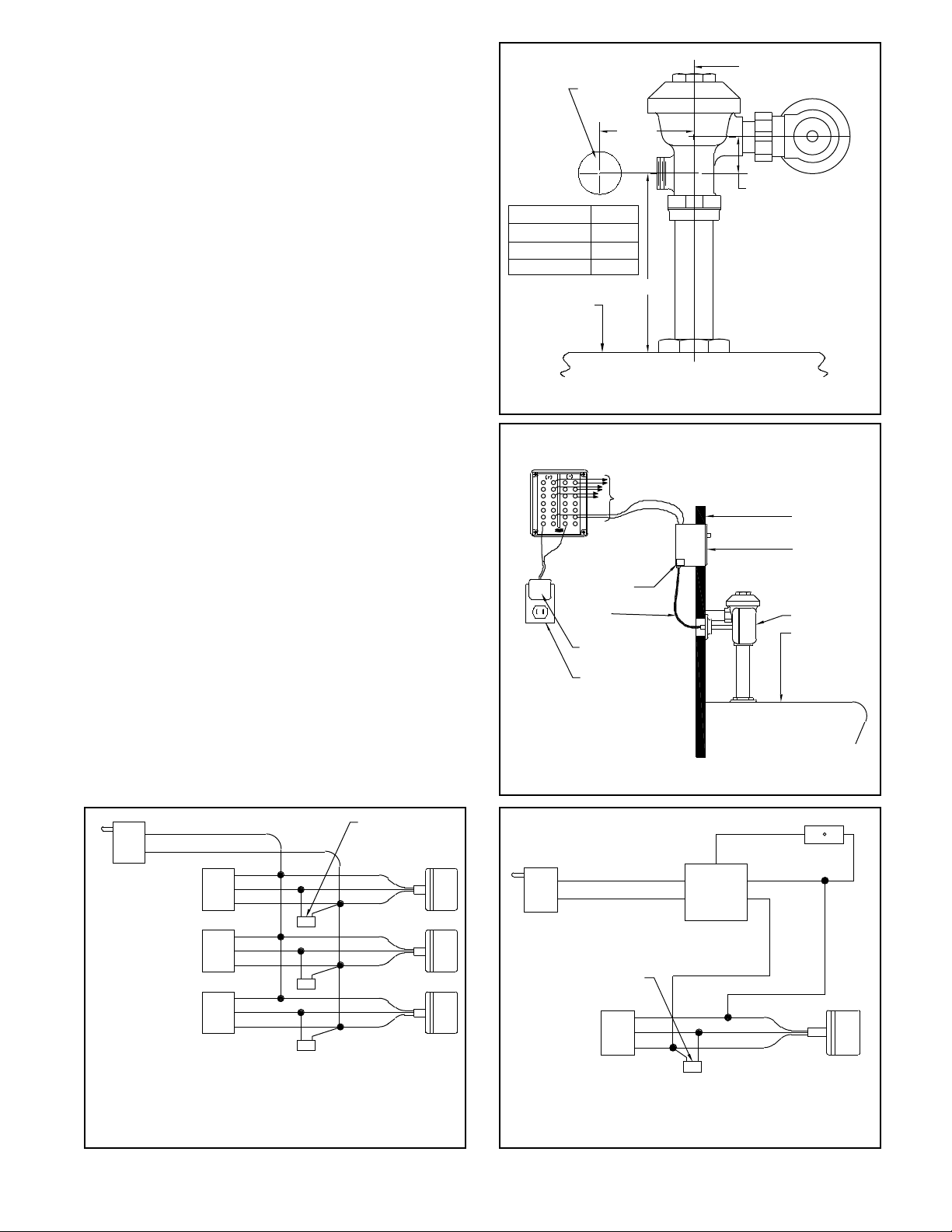

Figure 9 (Exposed Systems)
Figure 10
Figure 11A (Without Battery Backup) Figure 11B (With Battery Backup)
FLUSH VALVE C
L
ø 1-3/4 HOLE
THROUGH
WALL
*3 ± 1/8
1-3/8 REF
*THE 3" DIMENSION
SHOULD BE INCREASED
TO 3-1/4 IF FLUSH VALVE
DISTANCE TO WALL IS
LESS THAN 2-1/4".
NOTE: DRAWING DEPICTS A
TYPICAL INSTALLATION WITH
WATER SUPPLY ON RIGHT
HAND SIDE OF FLUSH VALVE.
TOP OF
FIXTURE
A
MODEL A-DIM.
ZEMS-6000 10-1/8
ZEMS-6000-2 22-5/8
ZEMS-6000-3 25-5/8
POWER DISTRIBUTION
OPTIONAL MINI
JUNCTION BOX MAXIMUM OF
8 ACTUATORS
ALLOWABLE
FINISHED WALL
SENSOR AND
4 x 4 BOX
ACTUATOR
FIXTURE
BOX CLAMP
CABLE
ARMOR
POWER
CONVERTER
110 VAC
RECEPTACLE
TYPICAL INSTALLATION
(ZEMS-6000 SHOWN)
(+) BLACK/WHITE STRIPE
(–) BLACK
PLUG-IN POWER
CONVERTER
120 VAC IN
6 VDC OUT SENSOR
SENSOR
SENSOR
ACTUATOR
ACTUATOR
ACTUATOR
MANUAL OVERRIDE
PUSHBUTTONS
BRN
GRN
BLU
BRN
GRN
BLU
BRN
GRN
BLU
BRN
GRN
BLU
BRN
GRN
BLU
BRN
GRN
BLU
PB
PB
PB
NOTES:
1. FAILURE TO OBSERVE PROPER POLARITY WILL RESULT IN FAILURE OF THE SENSOR
AND/OR POWER CONVERTER.
2. USE #18 AWG FOR INTERCONNECTIONS.
SEE FIGURE 11A FOR
WIRING OF MULTIPLE ACTUATORS
YELLOW
(+) BLACK/
WHITE
STRIPE
(–) BLACK
ORANGE
WHITE
BATTERY
BACKUP
LOW
BATTERY
LIGHT
RED
BLACK
PLUG-IN POWER CONVERTER
120 VAC IN
6 VDC OUT
MANUAL OVERRIDE
PUSHBUTTONS
SENSOR
BRN
GRN
BLU
BRN
GRN
BLU
ACTUATOR
PB
•
•
STEP 6 – Electrical Hook-up (Figures 11A and 11B)
Be certain power is off to prevent damage to electrical components.
Connect the sensor to the actuator and power converter exactly
as shown in Figure 11A, Figure 11B if battery backup is being used.
Also, the wiring diagram on the battery backup may be used.
Double check that power converter polarity is correct.
STEP 7 – Mount Automatic Sensor (Figure 2)
Install the Zurn Automatic Sensor into the 2-gang electrical box
using two (2) long screws provided. Ensure that wires from sensor
case point up. The rubber push caps will be on the left side of
the sensor. The sensor lens faces outward from the finished wall.
STEP 8 – Mount Yoke and Override Button (Figure 5)
Install inner nut, bracket and outer nut on threaded shaft of
override button. Mount bracket to yoke. Adjust the distance so
that the override button will protrude through the wall plate using
the nuts on each side of bracket. The threaded shaft end of the
override button should be flush with wall plate. Connect the
override button as per Figure 11A or 11B. Mount the assembled
yoke to the electrical box.
STEP 9 – Flush Out Supply Line (Figure 12)
Make sure the control stop is closed by activating the handle.
Remove valve body cover. Lift out the trip mechanism. Install the
internal plastic cover and valve body cover wrench tight and open
control stop. Turn on water supply to flush line of any debris or
sediment.
After completion, shut off control stop, remove covers and
reinstall the trip. Install internal plastic cover and valve body
cover, wrench tight.

FV38-WCS • Page 6
Figure 12
Figure 13
STEP 10 – Test and Adjustment (Figure 13)
(Also see “Sensor Features” on Page 7.)
Zurn Automatic Sensors are preset at the factory and provide
the user with selectable options as follows:
Switch 1 – Automatic Flush (Factory setting is on.)
Switch 2 – Red/Green LED (Factory setting is on.)
Switch 3 – Courtesy Flush (Factory setting is on.)
• Red/Green LED – With power applied the red light will
illuminate when an object is detected. The green light will
illuminate after the object has been detected for a minimum
of 8 seconds then leaves. The green light indicates the
flushing sequence.
• Range Adjustments – The Zurn Automatic Sensors are
factory set to operate at a range of 50". This range should
be satisfactory for most installations. If the range is too short
(i.e., not detecting the user) or too long, adjust the range.
• To Make A Range Adjustment – Remove the rubber push
caps. The range adjustment is shown in Figure 13. Using a
small screwdriver, turn the range adjustment clockwise to
increase range (maximum range is 60") or counterclockwise
to decrease range (minmum range is 12").
CAUTION: Range adjustment rotates only 1/2 turn total from
min. to max. Do not exceed this or sensor will be damaged.
Stand in front of the Zurn Automatic Sensor at the desired distance;
the red light will illuminate when you are within range.
Repeat adjustment procedure until the desired range is obtained.
• Switch Settings (Figure 13)
The three switches control the following options. They can be
activated or deactivated by means of the switches (down is
on, up is off).
Switch 1 – Automatic Flush – The unit will automatically
flush 24 hours after last user.
Switch 2 – Red/Green LED – When an object is detected
the Red LED illuminates. The Green LED illuminates while
flushing.
Switch 3 – Courtesy Flush – When an object has been
detected for two seconds, the unit flushes and goes into the
normal mode. This is repeatable after 90 seconds.
NOTE: After the options have been selected the reset button
must be pushed for sensor to accept selections. Make sure
rubber push caps are securely installed after making adjust-
ments to protect sensor from moisture.
STEP 11 – Adjust Control Stop (Figures 6 and 12)
Adjust the control stop to meet the flow rate required for proper
cleaning of the fixture. Open control stop counterclockwise one-
half turn from closed position. Activate Flushometer simulating a
user. Adjust the control stop after each flush until the rate of
flow delivered properly cleanses the fixture.
RUBBER
PUSH CAPS
RESET BUTTON
RANGE
ADJUSTMENT
SELECTION
SWITCHES
(SHOWN IN
FACTORY
POSITION)
SENSOR
COVER
GREEN
BLUE (–)
BROWN (+)
VALVE BODY COVER
INTERNAL PLASTIC
COVER
TRIP MECHANISM
CONTROL STOP
INTERNAL KIT

FV38-WCS • Page 7
IMPORTANT NOTE: Excessive water flow creates noise, while
too little flow will not satisfy the needs of the fixture. Proper
adjustment is made when:
1. The plumbing fixture is cleansed after each flush without
splashing water out from the lip.
2. A quiet flushing cycle is achieved.
After adjustment: Replace the Zurn stop cap screw cover.
CARE AND CLEANING INSTRUCTIONS
Do not use abrasive or chemical cleaners to clean Flushometers
and actuators as they may dull the luster and attack the chrome
or special decorative finishes. Use only mild soap and water, then
wipe dry with a clean cloth or towel.
While cleaning the bathroom tile, the Flushometer and actuator
should be protected from splattering of cleaner. Acids and
cleaning fluids can discolor or remove chrome plating.
SENSOR FEATURES (See Step 10 for instructions.)
Courtesy Flush: The Sensor will provide a courtesy flush two
seconds after a person is first detected. The courtesy flush removes
any residue from the fixture. The main flush will occur when the
user steps away from the fixture. The courtesy flush can be
manually activated/deactivated at any time.
Automatic 24-Hour Flush: The sensor will provide an automatic
flush 24 hours after the last user. The automatic flush can be
manually activated/deactivated at any time.
Indicator Lights: The sensor unit has two operation lights, red
and green. The red light is lit when an object is detected. The
green is lit when the unit is flushing. The indicator lights can be
manually activated/deactivated at any time.
Maintenance Override (For Maintenance Purposes):
The sensor may be disabled for 10 minutes by placing a magnet
on the sensor lens for 3 to 5 seconds. After 10 minutes the sensor
will automatically resume functioning. Placing a magnet on the
sensor for one second will restore normal operation and also provide
a flush. These features are often desired for cleaning purposes.
Adjustable Range: The viewing distance is adjustable from 12"
to 60".
Function Light: If an object is in the viewing range for more than
30 minutes the red LED will blink. Range readjustment may be
required.
TROUBLE SHOOTING
PROBLEM CAUSE SOLUTION
No water comes from The water supply line or Open the water supply
the flush valve. the angle stop is shut off. or the angle stop.
The electric wire(s) is not connected. Connect the wires.
The surface of the infrared Clean the surface of
cover is stained. the sensor cover.
There is a reflective surface Remove the reflective surface
in front of the sensor. from in front of the sensor.
The detection range is not Adjust the detection range.
adjusted properly.
The infrared sensor or the Contact distributor for replacement.
actuator is out of order.
Water does not stop flowing. The by-pass hole in the Clean the by-pass hole
diaphragm is clogged. in the diaphragm.
The sealing area of the Clean the sealing area
diaphragm is dirty. of the diaphragm.

FV38-WCS • Page 8
© 2011 Zurn Industries, LLC Printed in the U.S.A. Form No. FV38-WCS, Rev. 2/11
ZURN INDUSTRIES, LLC COMMERCIAL BRASS OPERATION, 5900 ELWIN BUCHANAN DRIVE, SANFORD, NC, U.S.A. 27330
PHONE: [phone] FAX: [phone] www.zurn.com
ZURN INDUSTRIES LIMITED 3544 NASHUA DRIVE, MISSISSAUGA, ONTARIO L4V 1L2 PHONE: [phone] FAX: [phone]

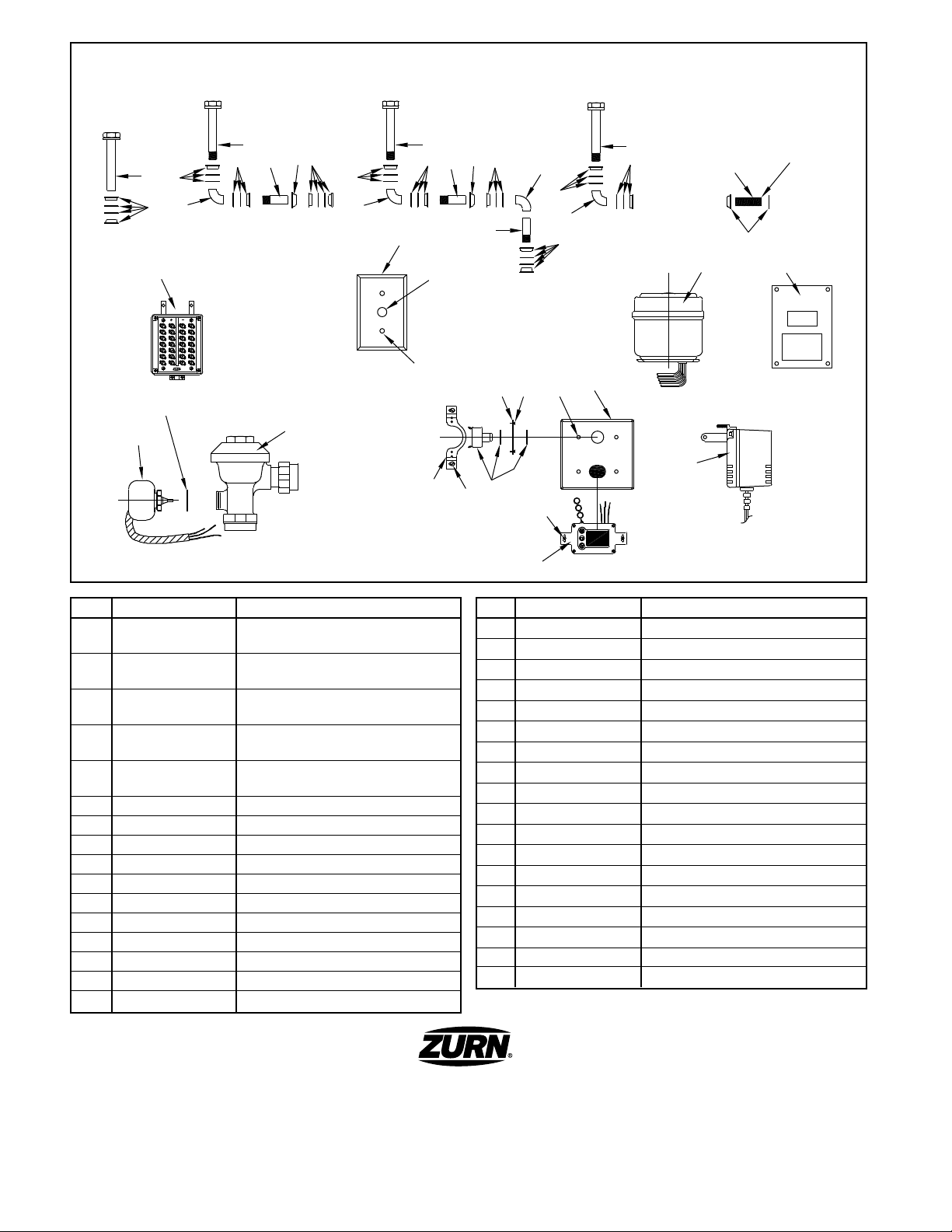

Item Part No. Description
1A P6000-A-AA-CP 11/2" x 9" Vacuum Breaker Assembly CP
(Model ZEMS-6000)
P6000-2-A-AA-CP 11/2" x 21" Vacuum Breaker Assembly CP
(Model ZEMS-6000-2)
P6000-3-A-AA-CP 11/2" x 24" Vacuum Breaker Assembly CP
(Model ZEMS-6000-3)
1B P6000-1-A-AA-RB 11/2" x 111/2" Vacuum Breaker Assembly RB
(Model ZEMS-6140 and ZEMS-6152)
1C P6000-A-AA-RB 11/2" x 6" Vacuum Breaker Assembly RB
(Model ZEMS-6142)
2 P6000-H 11/2" Spud Coupling Assembly CP
3 P6000-HN-RB 11/2" Slip Joint Coupling (set of two)
4 P6000-QE3-RB 11/2" Double Slip Elbow RB
4A P6000-QE3-CP 11/2" Double Slip Elbow CP
5 P6000-QE1-(“L”)-CP 11/2" Outlet Tube CP (specify ‘L’ dim.)
5A P6000-QT1-4-CP 11/2" x 4" Outlet Tube CP
6 P6000-G-TUBE Flange
7 P6000-HN-CP 11/2" Slip Joint Coupling CP
8 P6000-QT4 11/2" Coupling S-30 Gasket
9 P6000-QT3-(“L”)-RB 11/2" Outlet Tube RB (specify ‘L’ dim.)
10 Specify Series Valve Body CP (specify valve type)
Item Part No. Description
11 PESS6000-22 Sensor Cover Plate
12 PESS6000-23 Bracket
13 PESS6000-24 Push Button
14 PESS6000-25 Yoke
15 PEMS6000-26 Sensor
16 PESS6000-27 Bracket Screws (set of two)
17 PESS6000-28 Yoke Screws (set of two)
18 PESS6000-29 Battery Back-Up (optional)
19 PESS6000-30 Wall Bracket (optional)
20 PESS6000-31 Indicator Light Cover Plate (optional)
21 PESS6000-32 Indicator Light (optional)
22 PH6000-HY35 Screws (two required) (optional)
23 P6000-PC6 Power Converter
24 P6000-MJ Mini Junction Box (optional)
25 PEMS6000-HYM ZEMS Actuator
26 PH6000-HY35 Screws (four required)
27 PH6000-HY35 Screws (two required)
28 P6000-M10 Washer (supplied with Item 25)
ZEMS-6000
ZEMS-6000-2
ZEMS-6000-3 ZEMS-6140 ZEMS-6142 ZEMS-6152
(SHOWN WITH COVER
REMOVED)
(SUPPLIED WITH
ACTUATOR)
INSTALL WITH FLANGE
AGAINST SPUD
1A
2
3
4
1B 1C 1B
3562
3
4
35674A
3
4
5A
2
39
8
18 19
20
21
22
12 16 26 11
23
27
15
14 17 13
10
28
25
24
