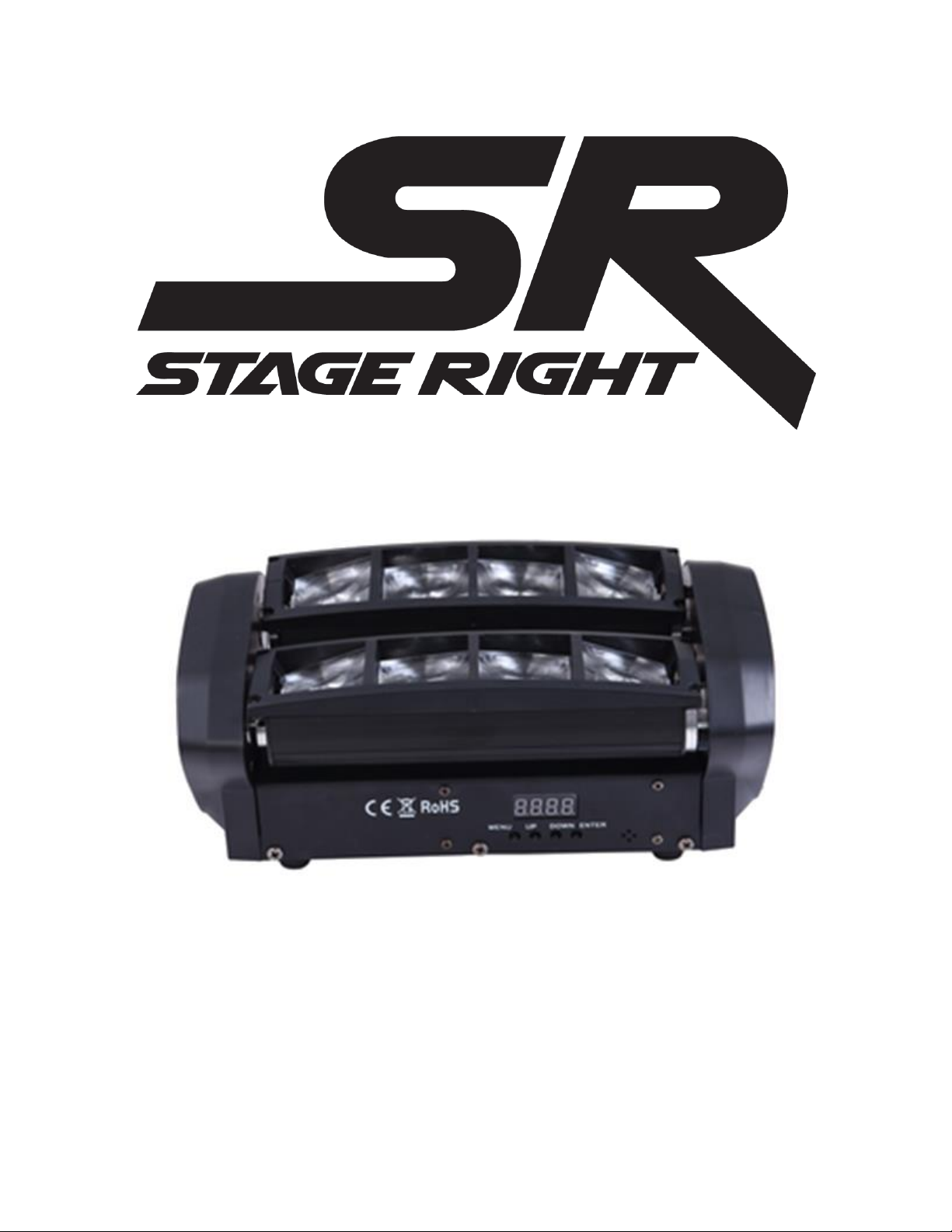

Stage Light 612980 User manual

Stage Right Party Mini-Spider 3W LED Light (RGBW)
P/N 612980
User's Manual

2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future reference.
This device is intended for indoor use only.
Do not expose this device to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the device. If moisture does get in or on
the device, immediately unplug it from the power outlet and allow it to fully dry
before reapplying power.
Do not touch the device, the power cord, or any other connected cables with wet
hands.
When installing this device, ensure that the mount is sufficiently robust to support
the weight of the unit and to prevent unwanted movement.
Do not subject the product to extreme force, shock, or fluctuations in temperature
or humidity.
Do not expose this device to excessively high temperatures. Do not place it in, on,
or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it in direct
sunlight.
Ensure that there are no flammable materials within about 3 feet of this device.
Ensure that there is at least 20 inches of ventilation space around this unit.
This device uses a grounded power cord and requires a ground connection for safe
operation. Ensure that the power source has a proper ground connection. Do not
modify the plug or use a "cheater" plug to bypass the ground connection.
Unplug this device from the power source when not in use.
Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become tangled with other cords. Ensure that the
power cord does not present a tripping hazard.
Never unplug the unit by pulling on the power cord. Always grasp the connector
head or adapter body.

3
Ensure that power is turned off and disconnected before making any electrical
connections.
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
Avoid direct eye exposure to the light from this device.
Do not connect this light to a dimmer pack.
INTRODUCTION
Thank you for purchasing this Stage Right Party Mini-Spider light! This light uses eight 3-
watt RGBW 4-in-1 LEDs. It features DMX512 control using 7 or 15 channels, as well as several
built in automated color changing and light motion programs, including a sound activated
mode.
FEATURES
Eight 3-watt RGBW 4-in-1 LEDs
DMX512 control using 7 or 15 channels
Reversible motor control for each bank
Built in automated color changing and light motion programs, including a sound
activated mode
Can be set to be the master or a slave fixture

4
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
6pm PT) or via email at [email protected]
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x Stage Right Party Mini-Spider Light
1x AC Power Cord (NEMA 5-15 to IEC 60320 C13)
1x User's Manual
CONTROLS AND MENU DISPLAY

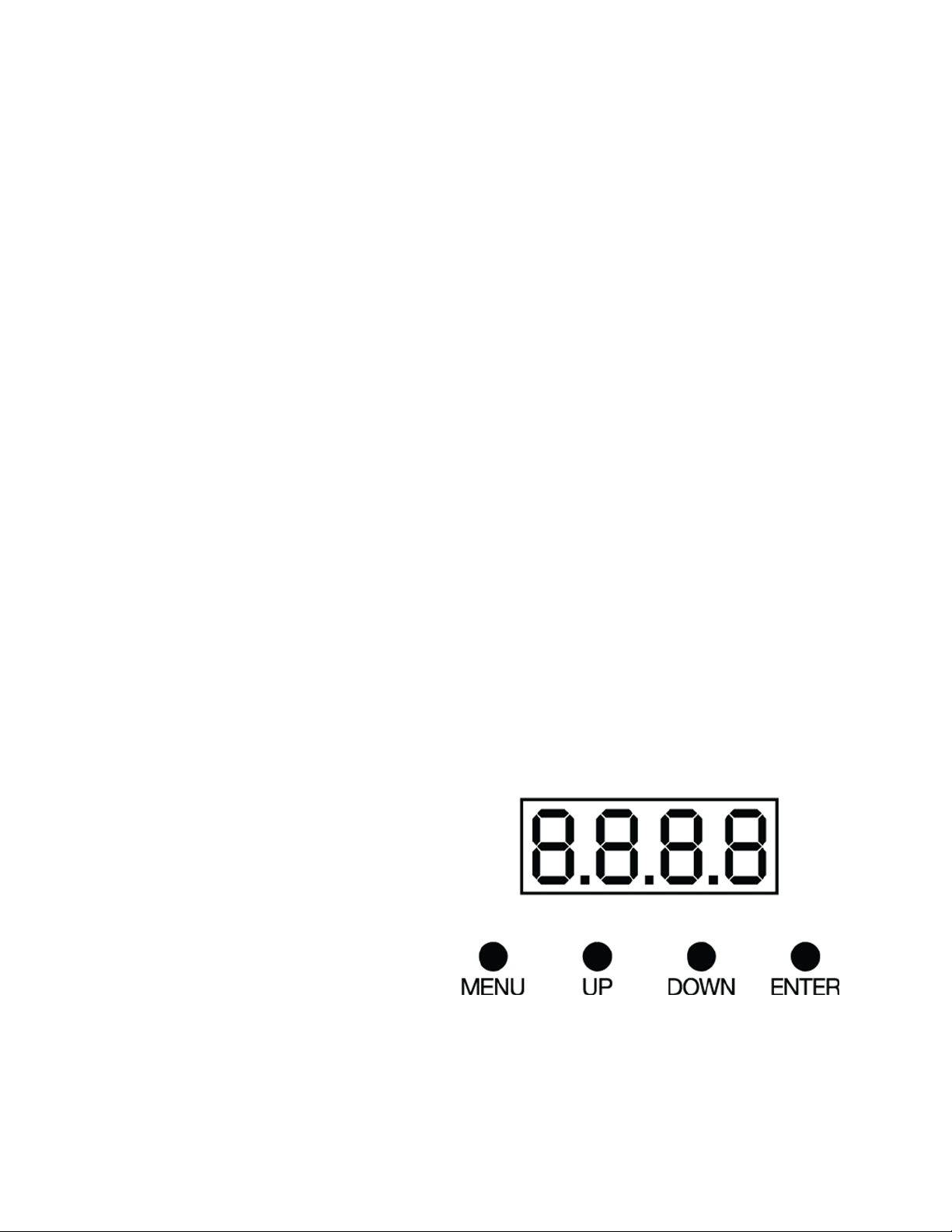

The 4-digit LED display indicates the mode and the value for the selected mode.
Press the MENU button to cycle
through the various modes and
functions.
Press the UP button to increase
the displayed value of the selected
mode.
Press and hold the UP button to rapidly increase the displayed value. The list will
cycle back to the beginning after the maximum value is reached.
Press the DOWN button the decrease the displayed value of the selected mode.

5
Press and hold the DOWN button to rapidly decrease the displayed value. The list
will cycle back to the end after the minimum value is reached.
When a mode name is displayed, press the ENTER button to edit the value.
Press the ENTER button to save any changes to the selected mode.
MENU MODES
Menu Display
Values
Function
Addr
A001-A512
DMX starting address
CHnd
CH7 or CH15
DMX channel selection
SLnd
nASt
Master mode
SLAu
Slave mode
SoUn
Sound activated mode
Shnd
Sh01-Sh24
Selects one of the 24 built-in effects*
SPed
Sh01-Sh08
Controls the speeds of the selected Shnd effect* (slow
to fast)
SoUd
On or OFF
Sound activated color change mode (on or off)
SoEn
001-100
Sound activated mode sensitivity (least to most)
teSt
yES
Test mode (press ENTER to activate, press MENU to
exit)
dISP
nO or yES
LED display inversion (off or on)
Led
On or OFF
LED display on or off when not actively editing
1tiL
nO or yES
Y1 motor reversal
2tiL
nO or yES
Y2 motor reversal
dEFt
nO or yES
Unit reset

6
* Perform the following steps to select a built-in effect (Shnd) and to set the speed at
which it executes.
1. Select the Shnd menu entry, then press the ENTER button.
2. Use the UP and DOWN buttons to select the desired effect from 01 to 24, then press
the ENTER button.
3. Select the Shnd menu entry again, then press the ENTER button.
4. Use the UP and DOWN buttons until the display shows SPed, then press the ENTER
button.
5. Use the UP and DOWN buttons to set the speed to a value between 01 and 08, then
press the ENTER button.
DMX CONTROL
7-Channel Mode
CH #
Value Range
Function
1
0-255
Motor 1 control (0° - 135°)
2
0-255
Motor 2 control (0° - 135°)
3
0-255
Master dimming (0 - 100%)
4
0-9
No strobe
10-255
Strobe speed (slow to fast)
5
0-7
No effect
8-17
Effect 1
18-27
Effect 2
28-37
Effect 3
38-47
Effect 4
48-57
Effect 5

7
5
58-67
Effect 6
68-77
Effect 7
78-87
Effect 8
88-97
Effect 9
98-107
Effect 10
108-117
Effect 11
118-127
Effect 12
128-136
Effect 13
137-146
Effect 14
147-156
Effect 15
157-166
Effect 16
167-176
Effect 17
177-186
Effect 18
187-196
Effect 19
197-206
Effect 20
207-216
Effect 21
217-226
Effect 22
227-236
Effect 23
237-246
Effect 24 (automatic multi-effects)
247-255
Effect 25 (sound activated effect change)
6
0-255
Effect speed (fast to slow)
7
0-240
No effect
241-255
Unit reset

8
15-Channel Mode
CH #
Value Range
Function
1
0-255
Motor 1 control (0° - 135°)
2
0-255
Motor 2 control (0° - 135°)
3
0-255
Master dimming (0 - 100%)
4
0-9
No strobe
10-255
Strobe speed (slow to fast)
5
0-255
LED 1 dimming (0 - 100%)
6
0-255
LED 2 dimming (0 - 100%)
7
0-255
LED 3 dimming (0 - 100%)
8
0-255
LED 4 dimming (0 - 100%)
9
0-255
LED 5 dimming (0 - 100%)
10
0-255
LED 6 dimming (0 - 100%)
11
0-255
LED 7 dimming (0 - 100%)
12
0-255
LED 8 dimming (0 - 100%)
13
0-7
No effect
8-17
Effect 1
18-27
Effect 2
28-37
Effect 3
38-47
Effect 4
48-57
Effect 5
58-67
Effect 6
68-77
Effect 7
78-87
Effect 8
88-97
Effect 9

9
13
98-107
Effect 10
108-117
Effect 11
118-127
Effect 12
128-136
Effect 13
137-146
Effect 14
147-156
Effect 15
157-166
Effect 16
167-176
Effect 17
177-186
Effect 18
187-196
Effect 19
197-206
Effect 20
207-216
Effect 21
217-226
Effect 22
227-236
Effect 23
237-246
Effect 24 (automatic multi-effects)
14
0-255
Effect speed (fast to slow)
15
0-240
No effect
241-255
Unit reset

10
