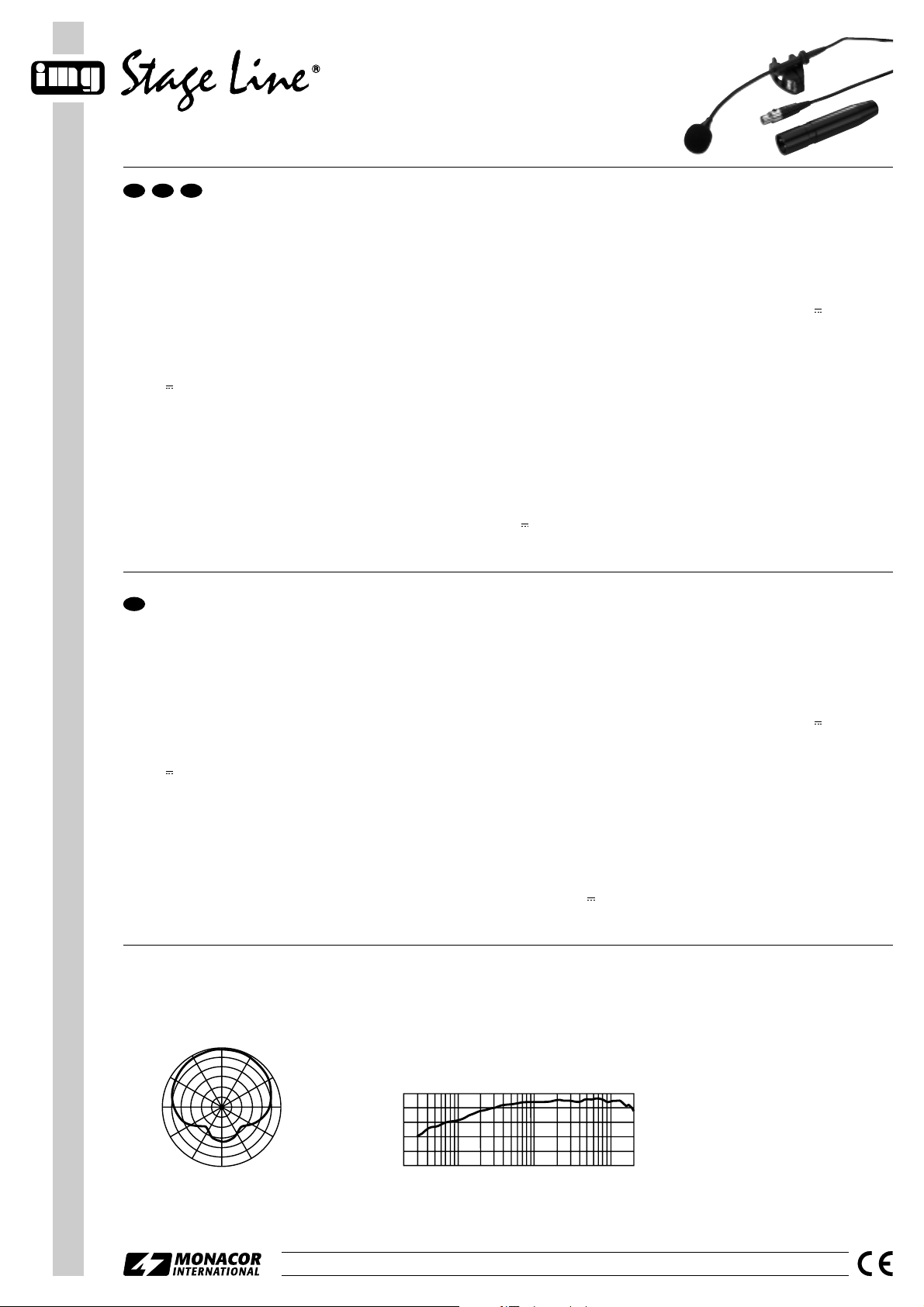

Stage Line electronic ECM-310W User manual

Copyright©by MONACOR INTERNATIONAL GmbH & Co. KG, Bremen, Germany. All rights reserved. A-0129.99.01.08.2003
®
Elektret-
Instrumentenmikrofon
Einsatzmöglichkeiten
Das Elektret-Instrumentenmikrofon ECM-310W ist
für den Einsatz auf der Bühne vorgesehen und eig-
net sich optimal für die Schallabnahme von Blas-
instrumenten. Über die Klemmhalterung lässt es
sich einfach am Schallaustrittskegel des Instru-
ments befestigen.
Das Mikrofon wird über das angeschlosseneAu-
diogerät gespeist, d.h. der Mikrofoneingang am
Audiogerät muss über eine Phantomspeisung
(9–48V ) verfügen. Ein Phantomspeisungsadap-
ter für den Anschluss liegt dem Mikrofon bei. Zum
Lieferumfang gehören außerdem eine Kunststoff-
Tragebox und ein Windschutz.
Hinweise für den sicheren Gebrauch
Das Mikrofon entspricht der EMV-Richtlinie für elek-
tromagnetische Verträglichkeit 89/336/EWG.
●Das Mikrofon ist nur zur Verwendung im Innen-
bereich geeignet. Schützen Sie es vor Feuchtig-
keit und Hitze (zulässiger Einsatztemperaturbe-
reich 0–40°C).
●Verwenden Sie für die Reinigung nur ein trocke-
nes, weiches Tuch, niemals Chemikalien oder
Wasser.
●WirddasMikrofon zweckentfremdet,falschange-
schlossen oder nicht fachgerecht repariert, kann
keine Haftung für daraus resultierende Sach-
oder Personenschäden und keine Garantie für
das Mikrofon übernommen werden.
●Soll das Mikrofon endgültig aus dem Betrieb ge-
nommen werden, übergeben Sie es zur umwelt-
freundlichen Entsorgung einem örtlichen Recyc-
lingbetrieb.
Montage
Die Mikrofonhalterung am Instrument festklemmen,
und den Schwanenhals des Mikrofons optimal aus-
richten. Bei Bedarf den beiliegenden Windschutz
aufstecken.
Anschluss
Das Mikrofonkabel an den Mini-XLR-Stecker des
beiliegenden Speiseadapters anschließen und den
XLR-Stecker des Adapters mit einem symmetri-
schen XLR-Mikrofoneingang amAudiogerät verbin-
den. Der Mikrofoneingang muss mit einer Phan-
tomspeisung von 9–48V ausgestattet sein,
anderenfalls ist kein Mikrofonbetrieb möglich.
Technische Daten
Richtcharakteristik: . . . . . Super-Niere
Frequenzbereich: . . . . . . 30–17000Hz
Empfindlichkeit: . . . . . . . 4,5mV/Pa bei 1kHz
Impedanz: . . . . . . . . . . . . 200Ω
Max. Schalldruck: . . . . . . 120dB
Einsatztemperatur: . . . . . 0–40°C
Stromversorgung: . . . . . . Phantomspeisung
9–48V
Mikrofonlänge: . . . . . . . . 140mm
Gewicht: . . . . . . . . . . . . . 150g
Anschluss
Mikrofon: . . . . . . . . . . Mini-XLR, asym.
Speiseadapter: . . . . . . Mini-XLR, asym./
XLR, sym.
Laut Angaben des Herstellers.
Änderungen vorbehalten.
Electret Instrument Microphone
Applications
The electret instrument microphone ECM-310W is
provided for stage applications and is ideally suited
forpickingup the soundofwind instruments. Viathe
clamp, the microphone can be easily fixed to the
mouth of the instrument where the sound is emitted.
Power is supplied to the microphone via the
audio unit connected, i.e. the microphone input on
theaudio unitmustbeprovidedwith phantompower
(9–48V ). A phantom power adapter for connec-
tion is supplied with the microphone. In addition, the
microphone is supplied with a plastic carrying case
and a windshield.
Safety Notes
The microphone corresponds to the directive for
electromagnetic compatibility 89/336/EEC.
●The microphone is only suitable for indoor use.
Protect it against humidity and heat (admissible
ambient temperature range 0–40°C).
●For cleaning only use a dry, soft cloth, by no
means chemicals or water.
●No guarantee claims for the microphone and no
liability for any resulting personal damage or
material damage will be accepted if the micro-
phone is used for other purposes than originally
intended, if it is not correctly connected or not
repaired in an expert way.
●If the microphone is to be put out of operation de-
finitively, take it to a local recycling plant for a dis-
posal which is not harmful to the environment.
Mounting
Clamp the microphone holder to the instrument and
align the gooseneck of the microphone in an opti-
mumway. Placethe suppliedwindshield, ifrequired.
Connection
Connect the microphone cable to the mini XLR plug
of the supplied adapter, then connect the XLR plug
of the adapter to a balanced XLR microphone input
on the audio unit. The microphone input must be
provided with a phantom power of 9–48V , other-
wise microphone operation will be impossible.
Specifications
Pick-up pattern: . . . . . . . supercardioid
Frequency range: . . . . . . 30–17000Hz
Sensitivity: . . . . . . . . . . . 4.5mV/Pa at 1kHz
Impedance: . . . . . . . . . . . 200Ω
Max. SPL: . . . . . . . . . . . . 120dB
Ambient temperature: . . . 0–40°C
Power supply: . . . . . . . . . phantom power
9–48V
Microphone length: . . . . . 140mm
Weight: . . . . . . . . . . . . . . 150g
Connection
microphone: . . . . . . . . mini XLR, unbal.
adapter: . . . . . . . . . . . mini XLR, unbal./
XLR, bal.
According to the manufacturer.
Subject to change.
GB
ECM-310W
Best.-Nr. 23.3360
wwwwww..iimmggssttaaggeelliinnee..ccoomm
D A CH
30°
330°
300°60°
90°
120°
270°
240°
210°180°150°
0°
Frequenzgang
Frequency response
Richtcharakteristik
Pick-up pattern
➀
-40
-50
-60
-70
-80
-90 50 100 200 500 1k 2k 5k 10k 20k(Hz)
➁

Microphone électret
pour instruments
Possibilités d’utilisation
Lemicrophone électretpour instrumentsECM-310W
est spécialement conçu pour une utilisation sur
scène et est idéal pour la prise de son d’instruments
àvent. Grâceà lafixationparpince,il peutêtre facile-
ment placé sur le cône de sortie d’air de l’instrument.
Le microphone est alimenté via l’appareil audio
relié : l’entrée micro sur l’appareil audio doit dispo-
ser d’une alimentation fantôme (9–48V ). Un
adaptateur d’alimentation fantôme pour le branche-
ment est livré avec le micro. Sont également livrés
un coffret de transport plastique et une bonnette de
protection anti-vent.
Conseils d’utilisation et de sécurité
Le microphone répond à la norme européenne
89/336/CEE relative à la compatibilité électroma-
gnétique.
●Le microphone n’est conçu que pour une utilisa-
tion en intérieur ; protégez-le de l’humidité et de
la chaleur (plage de température de fonctionne-
ment autorisée 0–40°C).
●Pour le nettoyer, utilisez un chiffon sec et doux,
en aucun cas de produits chimiques ou d’eau.
●Nous déclinons toute responsabilité en cas de
dommages matériels ou corporels si le micro est
utilisé dans un but autre que celui pour lequel il a
été conçu, s’il n’est pas correctement branché ou
s’il n’est pas réparé par une personne habilitée ;
en outre, la garantie deviendrait caduque.
●Lorsque le micro est définitivement retiré du cir-
cuit de distribution, vous devez le déposer dans
une usine de recyclage adaptée pour contribuer
à son élimination non polluante.
Montage
Fixez le support micro sur l’instrument, dirigez le col
de cygne du micro de manière optimale. Si besoin,
placez la bonnette de protection anti-vent livrée.
Branchement
Reliez le cordon micro à la mini fiche XLR mâle de
l’adaptateur d’alimentation livré et reliez la fiche
XLR mâle de l’adaptateur à une entrée micro XLR
symétrique sur l’appareil audio. L’entrée micro doit
être dotée d’une alimentation fantôme 9–48V
sinon le micro ne fonctionne pas.
Caractéristiques techniques
Type : . . . . . . . . . . . . . . . supercardioïde
Bande passante : . . . . . . 30–17000Hz
Sensibilité : . . . . . . . . . . . 4,5mV/Pa à 1kHz
Impédance : . . . . . . . . . . 200Ω
Pression sonore max. : . . 120dB
Température
de fonctionnement : . . . . 0–40°C
Alimentation : . . . . . . . . . alimentation fantôme
9–48V
Longueur micro : . . . . . . 140mm
Poids : . . . . . . . . . . . . . . 150g
Branchement
Micro : . . . . . . . . . . . . mini XLR, asymétrique
Adaptateur
alimentation : . . . . . . . mini XLR, asymétrique/
XLR, symétrique
D’après les données du constructeur.
Tout droit de modification réservé.
Microfono all’elettrete
per strumenti musicali
Possibilità d’impiego
Il microfono ECM-310W per strumenti musicali è
previsto per l’impiego professionale ed è particolar-
menteadattoper lariproduzionedi strumenti afiato.
Con il morsetto può essere fissato comodamente
sul padiglione dello strumento.
Il microfono viene alimentato attraverso l’appa-
recchio audio collegato; ciò significa che l’ingresso
microfono dell’apparecchio audio dev’essere equi-
paggiato con alimentazione phantom (9–48V ).
Per il collegamento, un adattatore di alimentazione
phantom si trova in dotazione, come anche una
custodia di plastica e una spugna antivento.
Avvertenze di sicurezza
Questo microfono è conforme alla direttiva CE
89/336/CEE sulla compatibilità elettromagnetica.
●Lo strumento è previsto solo per l’uso all’interno
di locali. Proteggerlo dall’umidità e dal calore
(temperatura d’impiego ammessa fra 0 e 40°C).
●Per la pulizia usare solo un panno morbido,
asciutto; non impiegare in nessun caso prodotti
chimici o acqua.
●Nel caso d’uso improprio, di collegamenti sba-
gliati o di riparazione scorretta non si assume
nessuna responsabilità per eventuali danni con-
sequenziale a persone o a cose e cessa ogni
diritto di garanzia per il microfono.
●Se si desidera eliminare il microfono definitiva-
mente, consegnarlo per lo smaltimento ad un’isti-
tuzione locale per il riciclaggio.
Montaggio
Fissare il supporto sullo strumento ed orientare il
collo di cigno del microfono in modo ottimale. Se è
necessario montare la spugna antivento, in dota-
zione.
Collegamento
Collegare il cavo del microfono con la presa mini-
XLR dell’adattatore di alimentazione in dotazione e
collegare la presa XLR dell’adattatore con un in-
gresso microfono XLR simmetrico sull’apparecchio
audio. L’ingresso microfono deve essere equipag-
giato con un’alimentazione phantom 9–48V ,
altrimenti il microfono non può funzionare.
Dati tecnici
Sistema: . . . . . . . . . . . . . super cardioide
Banda passante: . . . . . . 30–17000Hz
Sensibilità: . . . . . . . . . . . 4,5 mV/Pa a 1kHz
Impedenza: . . . . . . . . . . . 200Ω
Pressione sonora max.: . 120dB
Temperatura d’impiego: . 0–40°C
Alimentazione: . . . . . . . . alimentazione phantom
9–48V
Lunghezza microfono: . . 140mm
Peso: . . . . . . . . . . . . . . . 150g
Collegamento
Microfono: . . . . . . . . . mini-XLR, asimm.
Adattatore:
alimentatore: . . . . . . . mini-XLR, asimm./
XLR, simm.
Dati forniti dal produttore.
Con riserva di modifiche tecniche.
ECM-310W
Best.-Nr. 23.3360
wwwwww..iimmggssttaaggeelliinnee..ccoomm
30°
330°
300°60°
90°
120°
270°
240°
210°180°150°
0°
Réponse en fréquence
Risposta di frequenza
Caractéristique
Caratteristica direzionale
➀
-40
-50
-60
-70
-80
-90 50 100 200 500 1k 2k 5k 10k 20k(Hz)
➁
Copyright©by MONACOR INTERNATIONAL GmbH & Co. KG, Bremen, Germany. All rights reserved. A-0129.99.01.08.2003
®
I
F B CH

Micro electret para instrumentos
Posibilidades de utilización
El micro electret para instrumentos ECM-310W
está especialmente fabricado para una utilización
en escenario y es ideal para la toma de sonido de
instrumentosaviento. Mediante la fijaciónporpinza
puede colocarse fácilmente en el cono de salida de
sonido del instrumento.
Elmicroestá alimentado víaelaparato audio co-
nectado: la entrada micro del aparato audio debe
disponer de una alimentación phantom (9–48 V ).
Un adaptador de alimentación phantom para la
conexiónestá entregadacon elmicro.Tambiénestá
entregada una bolsa de transporte de plástico y una
espuma de protección anti-viento.
Consejos de utilización y seguridad
El micro cumple la normativa europea 89/336/CEE
relativa a la compatibilidad electromagnética.
●El micro está fabricado solamente para una uti-
lización en interior; protéjelo de la humedad y del
calor (temperatura de funcionamiento autorizada
0–40°C).
●Para limpiarlo, solo utilice un trapo seco y suave,
en ningún caso productos químicos o agua.
●Rechazamos toda responsabilidad en caso de
daños materiales o corporales si el micro se uti-
liza en otro fin para en cual ha sido fabricado, si
no está correctamente conectado o reparado por
una persona habilitada y por todos estos mismos
motivos el micro carecería de garantía.
●Cuando el micro está definitivamente sacado del
servicio, debe depositarlo en una fábrica de
reciclaje adaptada para contribuir a una elimina-
ción no contaminante.
Montaje
Fije el soporte micro sobre el instrumento, oriente el
cuello de cisne del micro de manera óptima. Si es
necesario, ponga la espuma de protección anti-
viento entregada.
Conexión
Conecte el cable del micro con la toma mini XLR
macho del adaptador de alimentación entregado y
conecte la toma XLR macho del adaptador con una
entradamicroXLR simétricaenel aparato audio.La
entrada micro debe disponer de una alimentación
phantom 9–48V si no el micro no funciona.
Características técnicas
Directividad: . . . . . . . . . . supercardioide
Gama de frecuencias: . . 30–17000Hz
Sensibilidad: . . . . . . . . . . 4,5mV/Pa a 1kHz
Impedancia: . . . . . . . . . . 200Ω
Presión sonora máxima: . 120dB
Temperatura de func.: . . 0–40°C
Alimentación: . . . . . . . . . alimentación phantom
9–48V
Longitud micro: . . . . . . . . 140mm
Peso: . . . . . . . . . . . . . . . 150g
Conexión
Micro: . . . . . . . . . . . . . mini XLR, asimétrica
Adaptador
alimentación: . . . . . . . mini XLR, asimétrica/
XLR, simétrica
Según datos del fabricante.
Nos reservamos el derecho de modificación.
Elektretowy Mikrofon
Instrumentowy
Zastosowanie
Elektretowy mikrofon instrumentowy ECM-310W jest
przeznaczony do przetwarzania dźwięk w na scenie
a w szczeg lności do przetwarzania dźwięk w instru-
ment w dętych. Klamra umożliwia zamocowanie mi-
krofonu do instrumentu w miejscu wydobywania się
dźwięku.
Mikrofon musi być zasilany poprzez dołączone
wsp łpracujące urządzenie audio tzn. gniazdo mi-
krofonowe tego urządzenia musi posiadać zasilanie
fantomowe (9 – 48 V ). Przejści wka z zasilaniem
fantomowym dołączona jest do mikrofonu. Dodat-
kowo mikrofon jest wyposażony w plastikowe opako-
wanie i wiatrochron.
Informacje dotyczące bezpieczeństwa
Urządzenie to spełnia wytyczne norm zgodności
elektromagnetycznej 89/336/EEC.
●
Urządzenie przeznaczone jest do użytku tylko
wewnątrz pomieszczeń. Należy chronić je przed
wilgocią i wysoką temperaturą (dopuszczalna tem-
peratura otoczenia pracy wynosi 0 –40 °C).
●
Do celu czyszczenia urządzenia używać tylko
suchej, delikatnej ścierki – nie używać wody anii
chemicznych środk w czystości.
●
Jeśli urządzenie jest wykorzystywane niezgodnie z
jego przeznaczeniem lub jeśli jest niewłaściwe
użytkowane lub podłączane lub gdy naprawy do-
konywane są przez osoby nieupoważnione pełną
odpowiedzialność za szkody ponosi użytkownik.
●
Jeżeli urządzenie nie będzie już nigdy używane
należy oddać je do miejsca utylizacji odpad w,
gdzie zostanie zniszczone bez wyrządzania szkody
dla środowiska.
Mocowanie mikrofonu
Należy zamocować uchwyt mikrofonu do instrumentu
muzycznego i ustawić gęsią szyję w optymalnej pozy-
cji. W razie potrzeby należy nałożyć wiatrochron.
Podłączanie
Przew d mikrofonu należy podłączyć do gniazda
mini XLR dołączonej przejści wki a następnie po-
łączyć gniazdo XLR przejści wki do symetrycznego
wejścia mikrofonowego XLR. Wejście mikrofonowe
musi być wyposażone w zasilanie fantomowe
9 – 48 V . W przeciwnym wypadku obsługa mikro-
fonu będzie niemożliwa.
Dane tec niczne
Charakterystyka: . . . . . . . superkierunkowa
Zakres częstotliwości: . . . 30 – 17 000Hz
Czułość: . . . . . . . . . . . . . . 4,5 mV/Pa przy 1 kHz
Impedancja: . . . . . . . . . . . 200 Ω
Maksymalny SPL: . . . . . . . 120 dB
Temperatura
otoczenia pracy: . . . . . . . . 0 – 40°C
Zasialnie: . . . . . . . . . . . . . zasilanie fantomowe
9–48V
Długość mikrofonu: . . . . . 140 mm
Waga: . . . . . . . . . . . . . . . . 150 g
Połączenia
mikrofon: . . . . . . . . . . . . . mini XLR,
niesymetryczne
przejści wka: . . . . . . . . . . mini XLR,
niesymetryczne/
XLR, symetryczne
Zgodnie z danymi producenta.
Może ulec zmianie.
ECM-310W
Best.-Nr. 23.3360
wwwwww..iimmggssttaaggeelliinnee..ccoomm
30°
330°
300°60°
90°
120°
270°
240°
210°180°150°
0°
Respuesta de frecuencia
Częstotliwość pracy
Directividad
Charakterystyka kołowa
➀
-40
-50
-60
-70
-80
-90 50 100 200 500 1k 2k 5k 10k 20k(Hz)
➁
Copyright©by MONACOR INTERNATIONAL GmbH & Co. KG, Bremen, Germany. All rights reserved. A-0129.99.01.08.2003
®
PL
E
This manual suits for next models
1
