Stage4 LEO BEAM 180 User manual

LEO BEAM 180
USER MANUAL
www.prolight-russia.ru

Technology Reference:
Thank you very much for choosing our product. For safety purpose, please read this manual carefully before your operaon. This
manual included installaon and using informaon. Please install and operate it according to this manual.
џPan::540° Tilt: 222°
џVoltage: 100-240V,50-60Hz
џLED: ultra bright 180W LED
џEffect wheel:8 facet prism and 16 facet prism, adjustable rotang speed and direcon, the two prism can overlap.
џBeam angle:6°
џFocus: Variable motorized focus
џDimmer/Strobe: Dimmer, 0-20Hz/s
џFixed gobo wheel: 8 fixed gobos+open, gobo flow effect
џColor wheel: 7 colors + white, split colors, rainbow effect
џRotated gobo wheel: 3 glass gobos + 3 metal gobos+open, gobo flow effect, gobo shake
џPower consumpon: 250W
џOther funcon: Pan/Tilt speed adjustable
џPower cable: 1PCS
џN.W.: 10.6KG
Accessories:
џWorking mode: Stand-alone mode, Controller mode, Master/Slave synchronizaon mode
џControl: DMX 512,13CH / 17 CH
џHousing: High temperature resistant engineering plasc + aluminum alloy.
The accessories below were packed with product, please check if they are once open the package.
џPer packing size: 415*350*350mm
E (ground) = yellow/green double color line
Important!!
This product is designed for Indoor use, the IP rate is IP20. Keep the product in dry environment. Avoid in damp, overheang,
or much dusty environment. Prevent fixture in contact with the water and other liquids.
Equipped with insurance rope connecng hole at the boom of the fixture, for security, please use safety cable to hang the
fixture.
Do not use the fixture is directly projected on combusble objects, the distance between the fixture and light objects please
keep over 1 meter.
џClamp (Oponal): 2PCS
Please do not install the fixture on the surface of combusble substances.
If you have any quesons or Suggesons, please contact with dealers or supplier.
Please check whether the light with damage by shipment once open the package before operaon. If product with damage by
shipment, please do not operate the light then contact the dealer or supplier.
Please do not open and fix the fixture by yourself.
Every fixture should be properly grounded and in accordance with the relevant standard for electrical installaon.
Keep the bulb clean, do not contact with the glass bulb by hand directly.
Don't look straight into the light source of the fixture (especially for epilepsy paents), so as not to cause damage to the eyes!
Don't dispatch the fixture connected to any other dimming device.
The fixture should be installed in a well venlated place, and the distance from the wall to keep above 10 cm, at the same
me, please check the fan and the vent is unimpeded.
џXLR cable: 1PCS
N =(middle line) blue line
Before installaon, please make sure the power supply voltage you used and the voltage of fixture is idenfied.
There is no any parts for repair inside the fixture. Before starng operaon of the fixture, please check whether all the cover
plate (or housing) has been installed well, whether the screw has been ghten .
For electrical parts connected person must have the corresponding qualificaons before operate.
Do not use insulang layer with damage for the power cord, and don't take the power cord overlap on the other wire. When
not use or to clean the fixture, please unplug the power cord. Don't unplug the plug rudely or drag the power cord directly.
The power cord connecon as follows:
Power supply connecon
Before any installaon, maintenance and clean the fixture, please confirm the power supply is cut off!
џUser manual: 1 PCS
L = (live wire) brown wire
Prohibit use the fixture when the cover plate or housing is opened.
Qualified professionals can install, operate and maintain the fixture, and to make sure strictly in accordance with the
procedures described in this operang instrucons.
Warning!!!

Connecng power supply, please pay aenon to the power supply voltage and frequency should be marked on the voltage
and frequency of fixture. When more than one moving head light used at the same me, it is recommended that the power
of the fixture, respecvely connecon, this can control the fixture ON/OFF separately.
Important: Connect to the power supply, the ground (yellow/green line) should be safety grounding, electrical installaon
shall comply with all relevant standards.

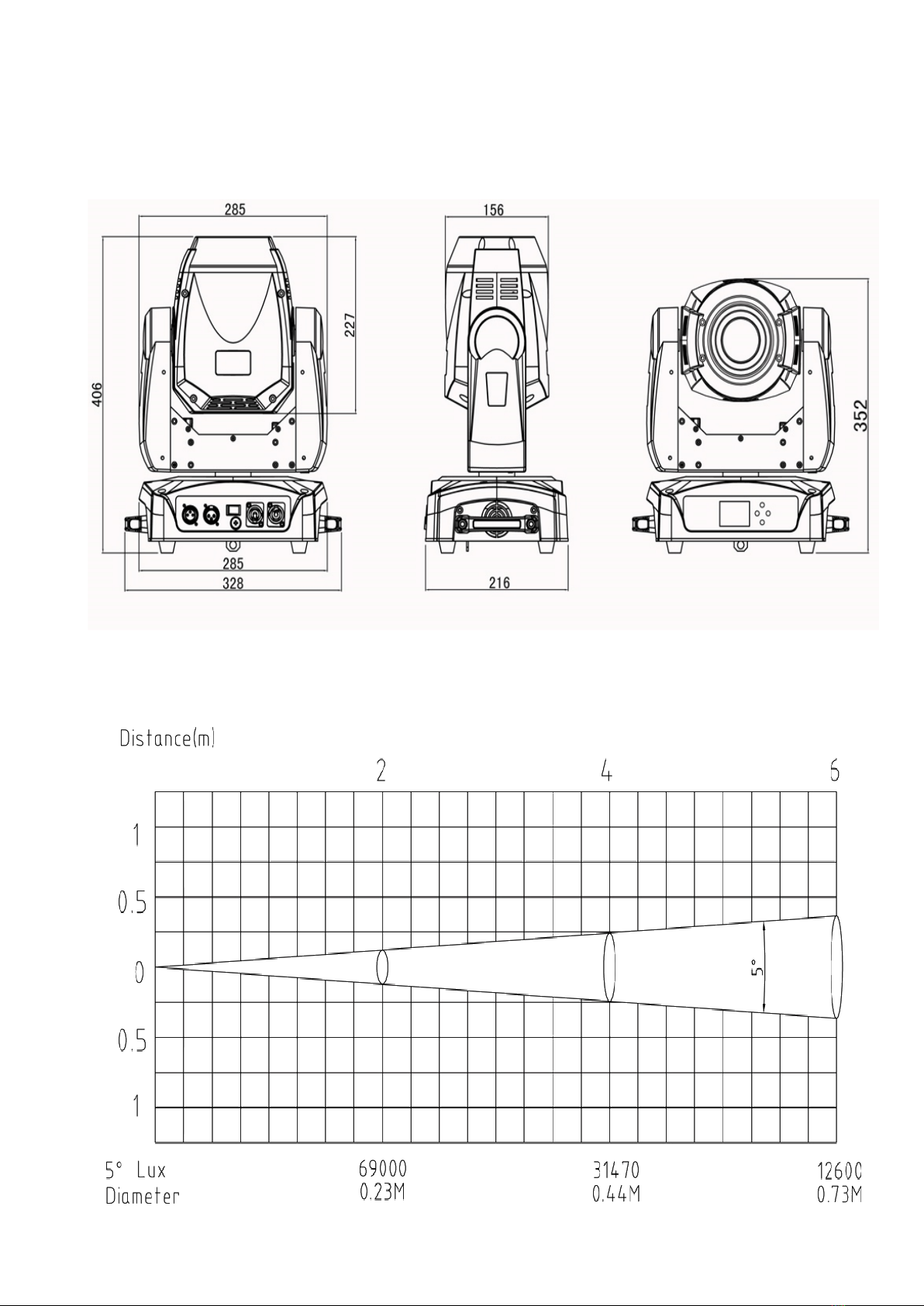

Product dimension
Photometric data

Mode 1: A001 is factory default seng. In this mode receive DMX512 signal control. Press ENTER to set ID address. Use UP or
DOWN to change the value of ID address, then press ENTER to save.
Funcon Seng (LED display instrucon)
WELCOME RUN MODE DMX 512 ADDRESS 001-511
UP/DOWN
ENTER
CHANNEL 17 CH
USER
13 CH
CHANNEL EDIT
AUTO 1
AUTO 2
SOUND
MANUAL PAN
PAN FINE
TILT
TILT FINE
SPEED
DIMMER
STROBE
COLOR
COLOR FINE
FOCUS
GOBO 1
GOBO 1 ROT
GOBO 1 SHAKE
GOBO 2
PRISM
PRISM ROT
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
SETINGS SOUND SENSOR
LCD REVERSE
LCD LIGHT
DMX ERROR
MOTOR INVERT
000-255
NO
YES
60S
ON
BLACK
SAVE
UP/DOWN
ENTER
PAN NO
YES
TILT NO
YES
SPECIAL UP/DOWN
ENTER MOTOR RESET PAN
TILT
COLOR
GOBO 1
GOBO 2
FOCUS
PRISM 1
PRISM 2
ERROR STATS PAN
TILT
COLOR
GOBO 1
GOBO 2
PRISM 1
PRISM 2
MOTOR ADJUST PAN
TILT
COLOR
GOBO 1
GOBO 2
FOCUS
PRISM 1
PRISM 2
P/T CORRECT
FAN MODE
YES
NO
AUTO
ON
System menu

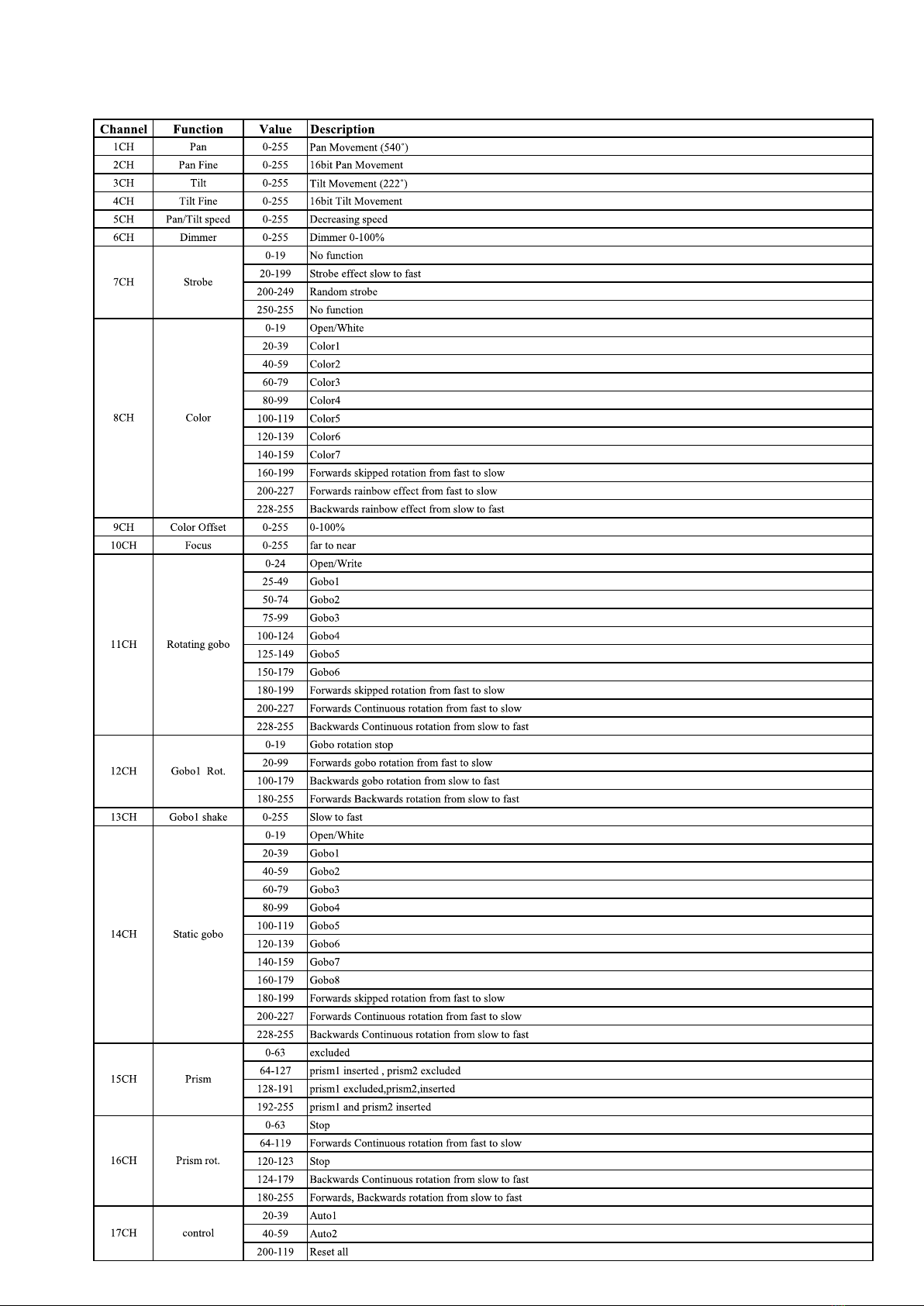

17-channel
There are two modes to get DMX 512 signal for this fixture, one is 17CH,and the other is 13CH. Please find the details as follow:
DMX CHANNEL CONTROL

13-channel

Colors and gobos
Maintenance
In order to ensure the fixture working well, maintain the cleanness of fixture is very necessary. It should be clean once every 30 days aer
cooling the fans. Internal and external opcal lens, reflector and coang color filter cleaning must be carried out periodically to opmize the
output light efficiency. Do not use any contains chemical solvent cleaning coang color filter
In order to maintain the gobo wheel smooth rotaon and smooth movement, it is suggested to add grease for the rotaon gobo wheel
every two months. Should use good quality grease.
When the lens have fracture and other damage, it should be replaced in me. when the fixture can't start to run, please check if the fuse of
power supply is burnout, if it is burnout please install the fied corresponding specificaon fuse with 5A / 250V. Note it must use the same
specificaons fuse. The is installed with overheang protecon device, when it is overheat, the overheang protecon device will
automacally cut off power supply. Please check whether the fan running, whether the fan and fan nets have dust jam, find troubleshoong
before working. But note that a qualified technicians can do the repair work.
Please do not use alcohol and other organic solvents to wipe housing, lest cause damage.
Cleaning the fixture depending on the operang frequency of fixture and the surrounding environment. Clean with a so cloth and cleaning
products for glass, suggest to clean the external opcal system at least once every 30 days , clean the internal opcal system at least once
every 30/60 days.
General troubleshooting
Phenomenon
Soluon
Fixture can not start to work
1. Check if the power fuse burnout
Fixture light normally, but no responding to
the DMX controller
2. Check if the XLR signal cable was damaged
1. Check if the DMX start address is correct
Fixture work intermiently
Check if the fan work well, Whether dust blocked fan and fan
nets
Dark light, brightness decreases obviously
1. Check whether the internal and external opcal system
clean
Beam is not pure (have a halo）
Clean the dust and oil of bulb, lens and other parts
The beam distoron serious
2. Clean the dust or oil of lens
1. Check whether the lens is broken
