Stagg BLAXX User manual

SPECIFICATIONS
DELAY
FEATURES
- Input impedance: 1M Ohms
- Output Impedance: 470K Ohms
- Working current: 40mA
- Power supply: needs 9V DC (negative polarity)
- Dimensions: 95mm(D) x 45mm(W) x 48mm(H)
- Weight: 240g (with box)
EMD Music - 01-2015
Pour obtenir ce mode d’emploi en français,
veuillez vous rendre sur www.staggmusic.com
Um die Gebrauchsanweisung in Deutsch zu erhalten,
gehen Sie bitte auf www.staggmusic.com
Deze handleiding is beschikbaar in het Nederlands op
www.staggmusic.com
Para obtener este modo de empleo en espanol
vayan sobre www.staggmusic.com
Per ottenere questo manuale in italiano,
consultare www.staggmusic.com
- Full aluminium-alloy housing, stable and durable.
- True bypass provides clear tone.
- LED indicator.

OPERATING INSTRUCTIONS
Thank you for purchasing our Delay Pedal.
Before operating this product, please
read the enclosed Operation Instructions
1
2
6
4
8
3
5
7

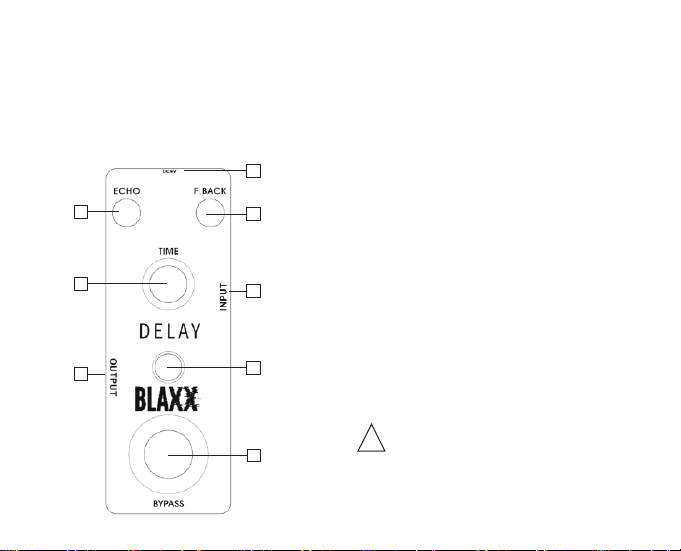

1. True BYPASS Footswitch
Push down on the footswitch to switch between effect
and bypass status.
2. LED Indicator
On: effect is active. Off: bypass mode is active.
3. TIME
Adjusts the delay time. Turn clockwise for shorter
delay, anti-clockwise for longer delay.
4. F.BACK
Adjusts the level of delay feedback.
5. ECHO
Adjusts the tone of the delay effect.
6. INPUT
Connect your guitar or other effect unit to the standard
Ø 6.3 mm INPUT jack of the pedal.
7. OUTPUT
Connect the output of your pedal to your amp
or other effect unit using the standard Ø 6.3 mm
OUTPUT jack.
8. 9V POWER ADAPTER INPUT
Connect your 9V DC regulated power supply adapter
plug here (negative polarity) (not included).
!
Use only the specified AC adaptor and connect
it to an AC outlet of the correct voltage.
Do not use any other AC adaptor, since this
may cause malfunction.
