KSR350 - Manual
Thank you for choosing a product from Standby.
Technical Data
Attribute Units
Dimensions Ø 109.25 mm x 68 mm
Weight Approx. 850g
Impedance 4Ω version (for 12V) 16Ω version (for 24V)
Power rating 60W (80WPeak)
Ambient temperature
- Operating
- Storage/transport
-25° C to +60° C
-40° C to +80° C
Enclosure rating IP 54
Approval
- Accoustic T 046 Lu (Approval valid with siren amplier MS350 and 2 speakers installed)
T 032 Lu (Approval valid with siren amplier S09 (12V) and 2 speakers installed)

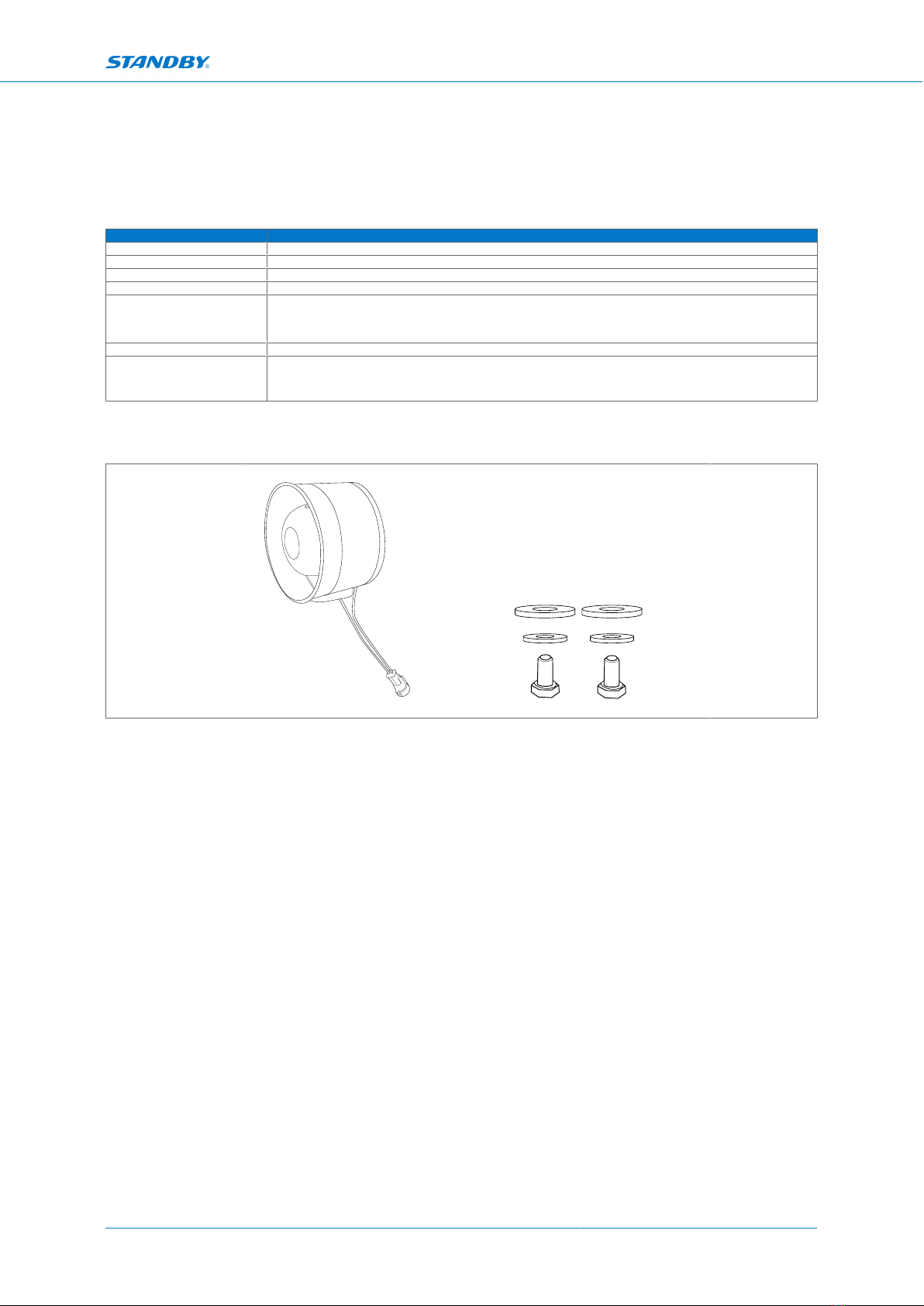

Included
22000400 (4Ω, 12V)
22001600 (16Ω, 24V)
2 x Spacer 20 mm
2 x Spacer 15 mm
2 x Hex bolt M5
Mating connector: AMP Superseal 1.5mm, 2-P Male housing, 282080-1 (not included)
Mating pin: AMP Superseal 1.5mm Female Pin, 183025-1 (not included)
Mating seal: Cable seal Yellow AMP Superseal 1.7-2.8, 281934-2 (not included)
KSR350 - Manual
AM220A www.standby.eu © Standby AB

KSR350 Installation
2 x Spacer 20 mm
Support surface
2 x Spacer 15 mm
2 x Hex bolt M5
(Torque Tightening 4 Nm)
10 10
14,8
23
68
3,4
Ø106,3 109,25
Install the speaker with clear space in front of it. If two speakers are used they should be assembled in the same direction.
KSR350 Connection
1 2
1
-
2
+
Compatible Products
For more information regarding connection to compatible products see:
www.standby.eu/support/manuals
Standby will not be held liable for improper installation or use of this product. Please follow all instructions provided. Professional advice and proper installation of the
Standby products by an authorized Standby Partner are recommended to provide maximum safety and function
