STATESMAN BIW0814 User manual

BIW0814
BUILT-IN 8KG 1400RPM WASHING MACHINE
Instruction Manual
Please read these instructions carefully before use and retain for future reference.
Before switching on your appliance – Always check for any damage that may have
been caused in transit.

2
CONTENTS
Important Safety Instructions ................................ 3-5
Product Overview ........................................................6
Technical Specication...............................................6
Product Fiche...............................................................7
Installation.............................................................. 8-12
- Unpacking the Washing Machine ..............................8
- Remove Transport Bolts ............................................8
- Leveling the Washing Machine ..................................8
- Connect the Water Supply Hose ...............................8
- Built-in Installation ............................................... 9-12
Operating Instructions ........................................ 13-23
- Calibration................................................................13
- Before Each Wash ...................................................14
- Detergent Dispenser ................................................15
- Detergent Recommendation....................................16
- Control Panel ...........................................................17
- Programs ........................................................... 18-21
- Functions ........................................................... 22-23
Cleaning & Maintenance..................................... 24-25
Troubleshooting Guide & Error Codes.....................26
Disposal Information.................................................27

3
SAFETY INSTRUCTIONS
Please read the following safety information thoroughly and follow it strictly to minimize the risk
of re or explosion, electric shock and to prevent property damage, personal injury or loss of life.
Failing to follow these instructions shall void any warranty.
Safety Indicator Key:
WARNING! = indicates a potentially dangerous situation which may result in death or serious
injury unless it’s avoided.
CAUTION = indicates a potentially dangerous situation which may result in slight or minor injury
or damage to property and the environment.
NOTE: = indicates a potentially dangerous situation which may result in slight or minor injury.
WARNING! Electric shock hazard
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or a
qualied technician in order to avoid a hazard.
• If the machine is damaged, it must not be operated unless repaired by the manufacturer, its
service agent or a qualied technician.
• The appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
• Children should be supervised so that they do not play with the appliance.
• Children 3 years and under shall be kept away from the appliance or be continuously supervised.
• Animals and children may climb into the machine. Check the machine before every operation.
• Do not climb or sit on the appliance.
INSTALLATION LOCATION
• Any washing powders, detergents, tablets or other such substances are to be kept in a safe
place out of the reach of children.
• Do not install the machine on a carpet oor to prevent any obstruction of openings which could
damage the machine.
• Keep the appliance clear from any heat source and direct sunlight to avoid plastic and rubber
parts corroding.
• Do not use the appliance in humid environments.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge
on the opposite side to that of the washing machine.
• Do not operate the machine in rooms with a temperature of below 5°C, as this could lead to
certain parts being damaged. If it is unavoidable, make sure to drain the water completely
from the appliance after every use (see ‘Maintenance - Cleaning of drain pump lter’) to avoid
damages caused by frost.
• Never use ammable sprays or substances in the immediate proximity of the appliance.

4
INSTALLATION
• Remove all packaging material and transport bolts before using the appliance. Otherwise this
could lead to serious damage to the appliance.
• This appliance is equipped with a single inlet valve and can be connected to the cold water
supply only.
• Mains plug must be accessible after installation.
• Before washing clothes for the rst time, the machine should be run on the cotton program at
90°C without any laundry or detergent inside.
• Before using the washing machine, the appliance shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like water containers or heating
devices.
• Ensure the new hose-sets supplied with the appliance are used and that any existing hose-sets
are replaced.
• Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.
ELECTRICAL CONNECTION
CAUTION! Make sure the power cord is not trapped by the machine, as this could lead to
damages.
• Connect the product to a grounded outlet protected by a fuse complying with the values in
the “ Technical specications“ table. The grounding installation has to be made by a qualied
electrician. Ensure that the machine is installed in accordance with the local regulations.
• Water and electrical connections must be carried out by a qualied technician in accordance
with the manufacturer‘s instructions and local safety regulations.
WARNING!
• Don’t use multiple plugs or extension cords.
• The appliance must not have an external switching device such as a timer or connected to
a circuit that is regularly switched on and o.
• Do not pull the plug out of the mains outlet if there is ammable gas around.
• Never pull out power plug with wet hands.
• Always pull at the plug, not at the cable.
• Always unplug the appliance if it is not being used.
WATER CONNECTIONS
• Check the connections of the water inlet tubes, the water tap and the outlet hose for possible
problems due to changes of water pressure. If the connections loosen or leak, close the water
tap and get it repaired. Do not use the appliance before the pipes and hoses are installed
properly by a qualied technician.
• The glass door may become very hot during the operation. Keep children and pets far away from
the machine while it is operating.
• The water inlet and outlet hoses have to be safely installed and remain undamaged. Otherwise,
water leakage can occur.
• Do not remove the drain pump lter while there is still water in the appliance. Big quantities of
water can leak out, and there is a risk of scalding due to hot water.

5
OPERATION AND MAINTENANCE
• Never use any ammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as
detergents. Only select detergents that are suitable for machine washing.
• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails,
screws, stones etc. may cause serious damage to this machine.
• Remove all objects from pockets such as lighters and matches before using the appliance.
• Thoroughly rinse items that have been washed by hand.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol,
kerosene, spot removers, turpentine, wax and wax removers should be washed in hot water with
an extra amount of detergent before being washed in the appliance.
• Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber backed
articles and clothes or pillows tted with foam rubber pads should not be washed in the machine
• Fabric softeners or similar products should be used as recommended in their instructions.
• Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.
• Please do not close the door with excessive force. If it is dicult to close the door, please check
if the clothes are properly inserted and distributed within the drum.
• Always unplug the appliance and close the water tap before cleaning and maintenance and after
each use.
• Never pour water over the appliance for cleaning purpose. Risk of electric shock!
• Repairs shall only be carried out by the manufacturer, its service agent or a qualied technician in
order to avoid a hazard. The manufacturer will not be held responsible for any damages caused
due to attempted repairs carried out by unqualied persons.
TRANSPORT
• Before Transport:
- Bolts shall be reinstalled to the machine by a qualied technician
- Accumulated water shall be drained out of the machine
CAUTION! This appliance is heavy. Transport with care. Never hold any protruding part of the
machine when lifting. The machine door cannot be used as a handle.
INTENDED USE
• The product is intended only for home use and for textiles in household amounts suitable for
machine washing. This appliance is for indoor use only. Only use according to these instructions.
The appliance is not intended for commercial use.
• Any other use is considered as improper use. The manufacturer is not responsible for any
damage or injuries that may be caused as a result.
• This appliance is intended to be used in household and similar applications such as:
- Sta kitchen areas in shops, oces and other working environments;
- Farm houses;
- Bed and breakfast type environments;
- Areas for communal use in blocks of ats or in launderettes.
PACKAGING/OLD APPLIANCE
This marking indicates that this product should not be disposed with other household
wastes throughout the EU and UK. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used device, please use the
collection systems or contact the retailer where the product was purchased. This will
help to ensure that the appliance is recycled in an environmentally safe manner.

6

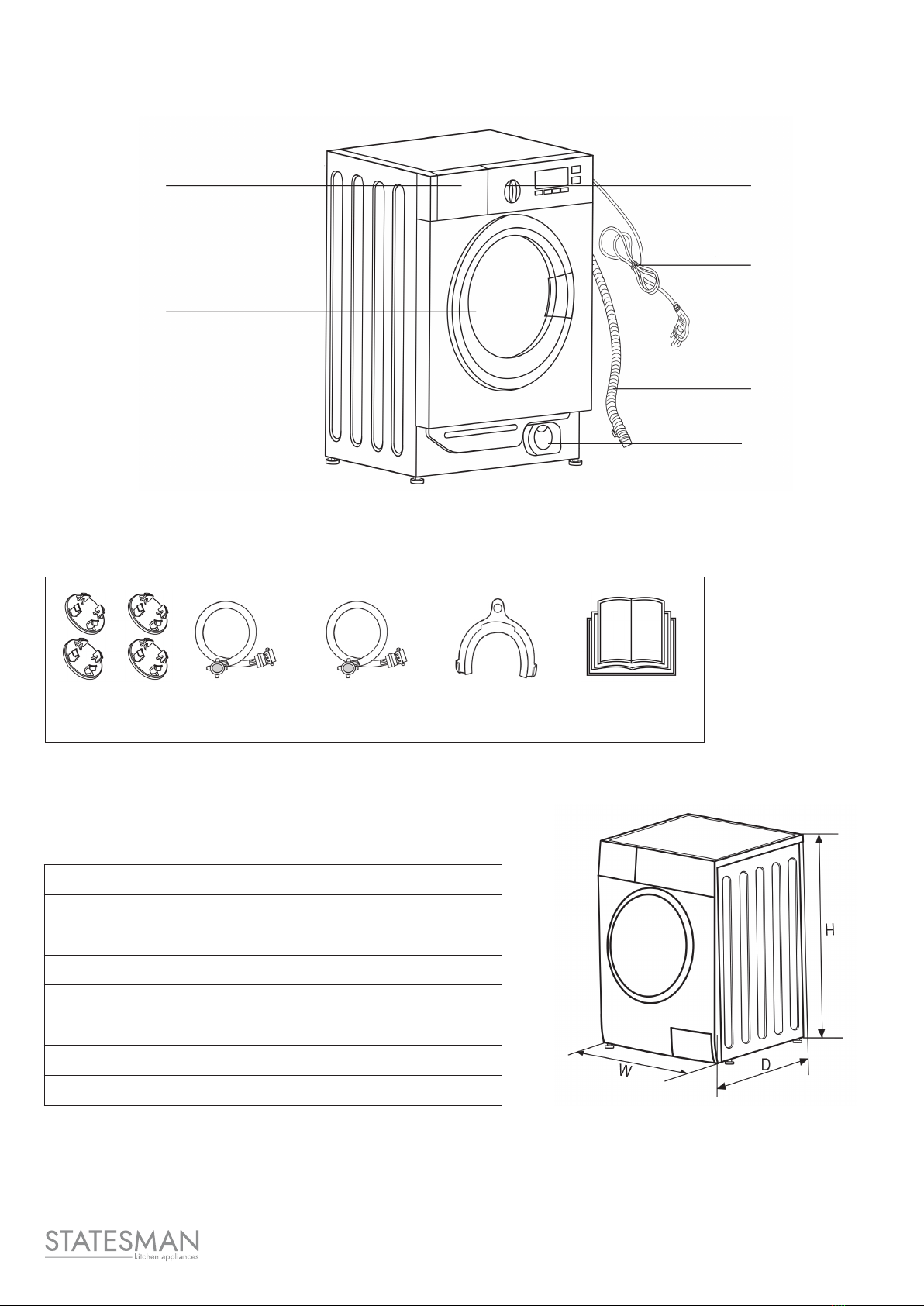

PRODUCT OVERVIEW
Detergent Drawer Control Panel
Door
Power Plug
Outlet Hose
Filter
Accessories
Transport
Hole Plug
Supply Hose
Cold Water
Drain Hose
Support
Supply Hose
Hot Water
Instruction
Manual
TECHNICAL SPECIFICATION
Model BIW0814
Power Supply 220-240V~,50Hz
MAX. Current 10A
Standard Water Pressure 0.05MPa~1MPa
Washing Capacity 8.0kg
Dimensions (mm) H:825 x W:595 x D:540
Net Weight 63kg
Rated Power 1950W

7
Supplier’s name or trade mark (a) (c): Statesman
Supplier’s address (a) (c): 38 Bluestem Road, Ransomes Industrial Estate, Ipswich, Suolk, IP3 9RR
Model Identier (a): BIW0814
General product parameters:
Parameter Value Parameter Value
Rated capacity (b) (kg) 8.0 Dimensions in cm (a) (c)
Height 83
Width 60
Depth 54
Energy eciency index (b) (EEIW)60.0 Energy eciency class (b)B (D)
Washing eciency index (b)1.031 Rinsing eectiveness (g/kg) (b)5.0
Energy consumption in kWh per kg per cycle,
based on the eco 40-60 program. Actual
energy consumption will depend on how the
appliance is used.
0.545
Water consumption in litre per cycle, for
the eco 40-60 program. Actual water
consumption will depend on how the
appliance is used and on the hardness of
the water
48
Maximum temperature inside the treated
textile (b) (°C)
Rated
capacity 37
Weighted remaining moisture
content (b) (%) 53.9
Half 33
Quarter 23
Spin Speed (b) (rpm)
Rated
capacity 1400
Spin-drying eciency class (b)B (d)
Half 1400
Quarter 1400
Program duration (b) (h:min)
Rated
capacity 3:38
Type Built-in
Half 2:48
Quarter 2:48
Airborne acoustical noise emissions during
the spinning phase (a) (dB(A) re 1 pW) 76 Airborne acoustical noise emission class (b) (spinning phase) B (d)
O-Mode (W) (if applicable) 0.50 Standby Mode (W) (if applicable) 1.00
Delay Start (W) (if applicable) 4.00 Networked standby (W) (if applicable) N/A
Minimum duration of the guarantee oered by the supplier (a) (c)
This product has been designed to release silver ions during the
washing cycle NO
Additional information:
Weblink to the supplier’s website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) is found:
(a) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369
(b) for the eco 40-60 programme
(c) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369
(d) if the product database automatically generates the denitive content of this cell the supplier shall not enter these data
PRODUCT FICHE
NOTE:
1. The actual energy consumption will depend on how the appliance is used.
2. The actual water consumption will depend on how the appliance is used and on the hardness of the water.
Product Data Sheet concerning (EU) 2019/2014
The product data sheet for your appliance can be found online.
Go to https://eprel.ec.europe.eu and enter the model identier for your appliance to download the data sheet.
The model identier for your appliance can be found in the technical specications section.

8
WARNING!

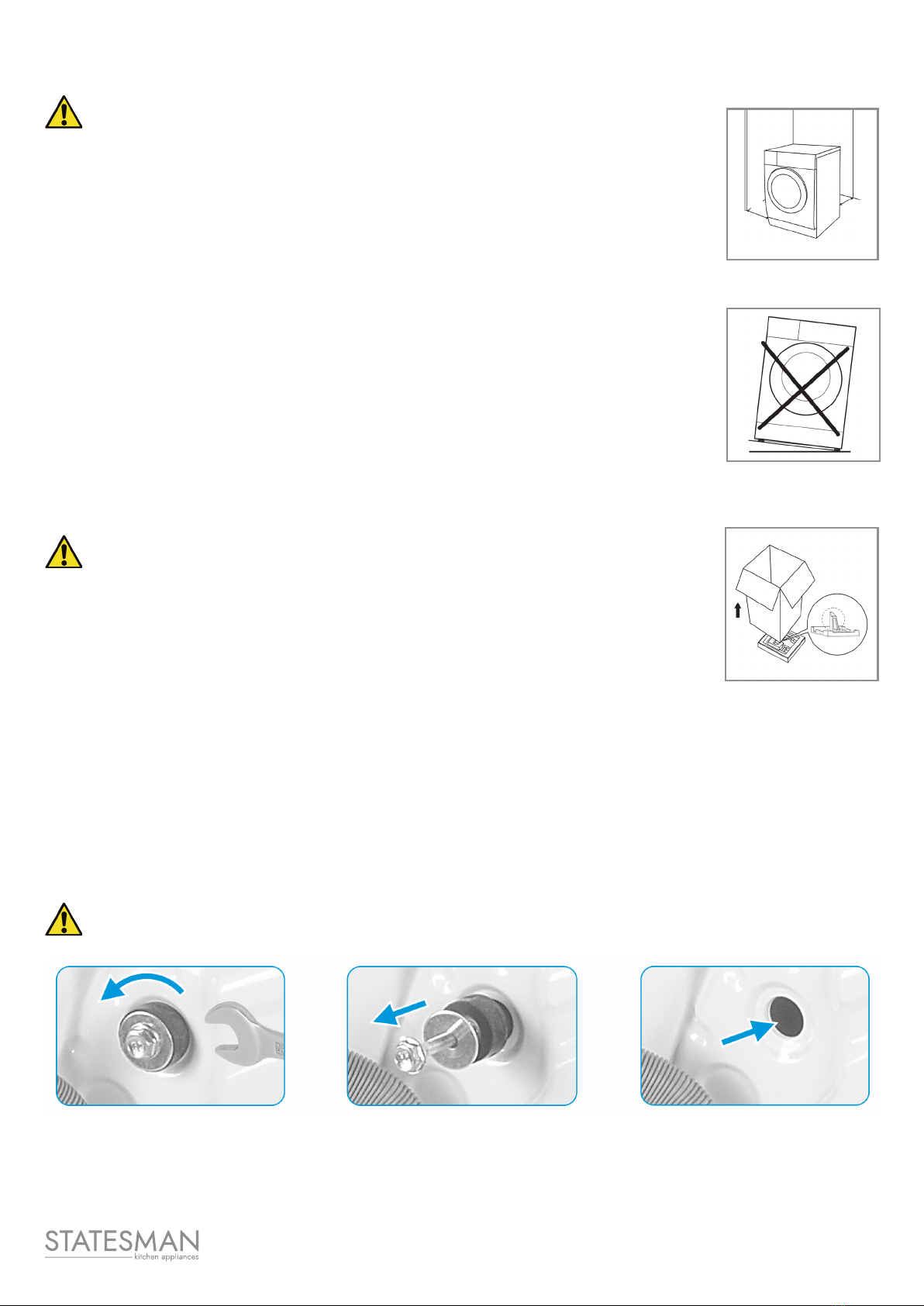

• Stability is important to prevent the product from moving. Make sure
the machine is level and stable.
• Make sure that the product does not stand on the power cord.
• Make sure to maintain the minimum distances from the walls as
shown in the picture.
Before installing the machine, the location characterised as follows shall be
selected:
1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sucient ventilation
4. Room temperature is above 0°C
5. Keep far away from any heat sources such as coal or gas burning
appliances.
UNPACKING THE WASHING MACHINE
WARNING!
• Packaging material (e.g. Films, Styrofoam) can be dangerous for
children.
• There is a risk of suocation! Keep all packaging well away from
children.
1. Remove the cardboard box and Styrofoam packing.
2. Lift the washing machine and remove the base packaging. Make sure the
small triangle foam (a) is removed with the bottom packaging together. If
not, lay the unit down on the side surface and remove it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
INSTALLATION
WW
W ≥ 20mm
a
REMOVE TRANSPORT BOLTS
WARNING! You must remove the transport bolts from the back of the machine before use.
Loosen the 4 transport
bolts with a spanner.
Remove the bolts including
the rubber parts and keep
them for future use.
Close the holes using
the cover caps.

9
LEVELLING THE WASHING MACHINE
WARNING! The lock nuts on all four feet must be screwed tightly against the housing.
1. Loosen the lock nut.
2. Turn the foot until it reaches the oor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the
machine is level and steady.
CONNECT THE WATER SUPPLY HOSE
WARNING! To prevent leakage or water damage, follow the instructions in this chapter.
Do not kink, crush or modify water inlet hose.
Connect the water supply
hose to the water inlet valve
and a water tap with cold
water as indicated.
NOTE: Connect manually, do not use tools. Check if the connections are tight.
DRAIN HOSE
WARNING! Do not kink or protract the drain hose. Position drain hose properly,
otherwise damage might be a result of water leakage.
Connect the end of the drain hose as per the diagram below:
Washing
Machine
Drain Hose
Indirect connection
Standpipe
Trap
(may not be
permitted
below oor)
45cm min
to
75cm max
(some areas)
15cm min
to
45cm max
Waste
Pipe

10
BUILT-IN INSTALLATION
Appendix
Self-tapping
screws (ST4*12)
Self-tapping
screws (M5*12) Hinges Counter magnet Spacer Fixed position paper

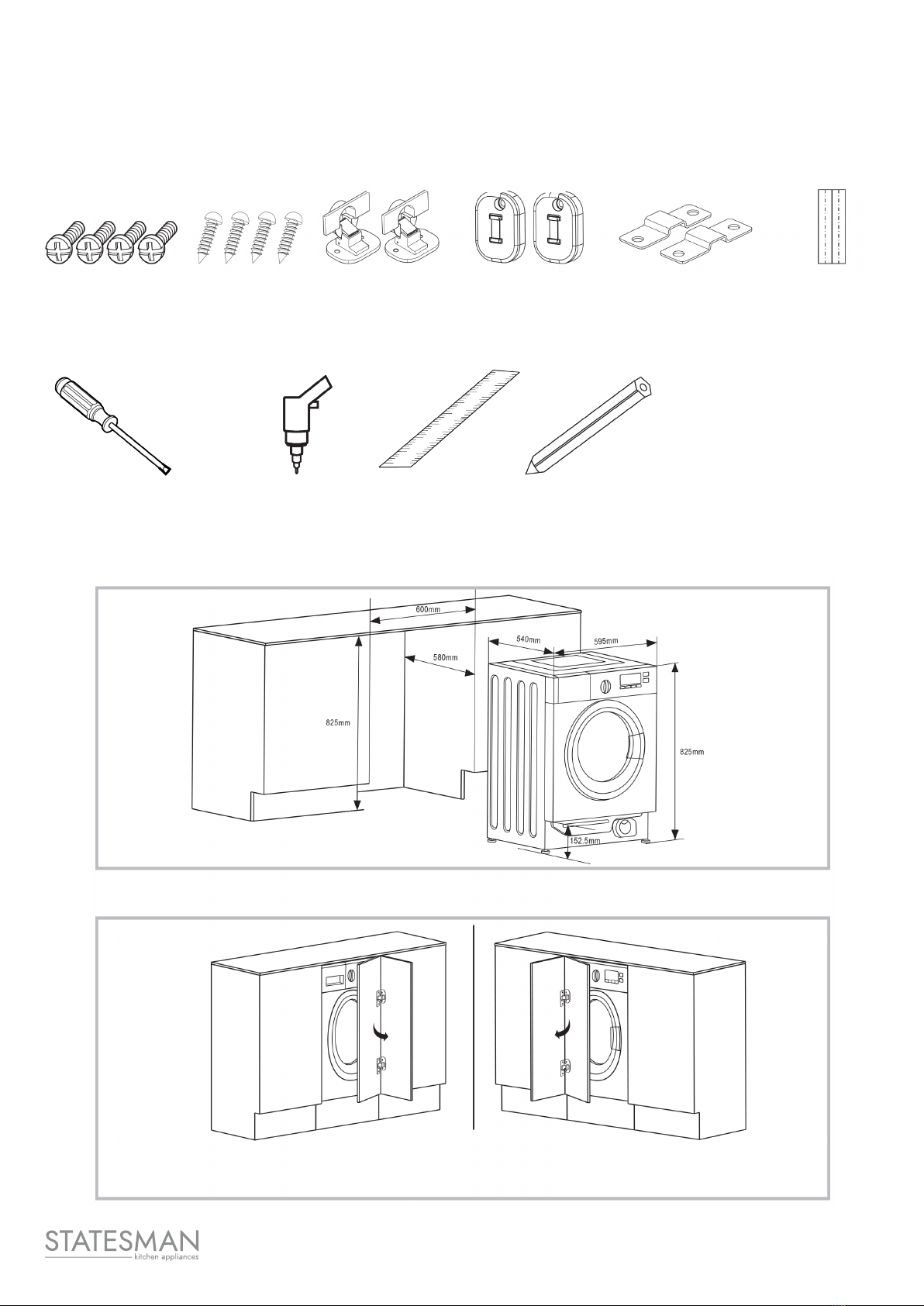

Tools Required (not supplied)
Screw driver Automatic driver Ruler Pencil
Install Steps
Overview:
Preparation and assembly of the door:
The door opens from left to right The door opens from right to left

11

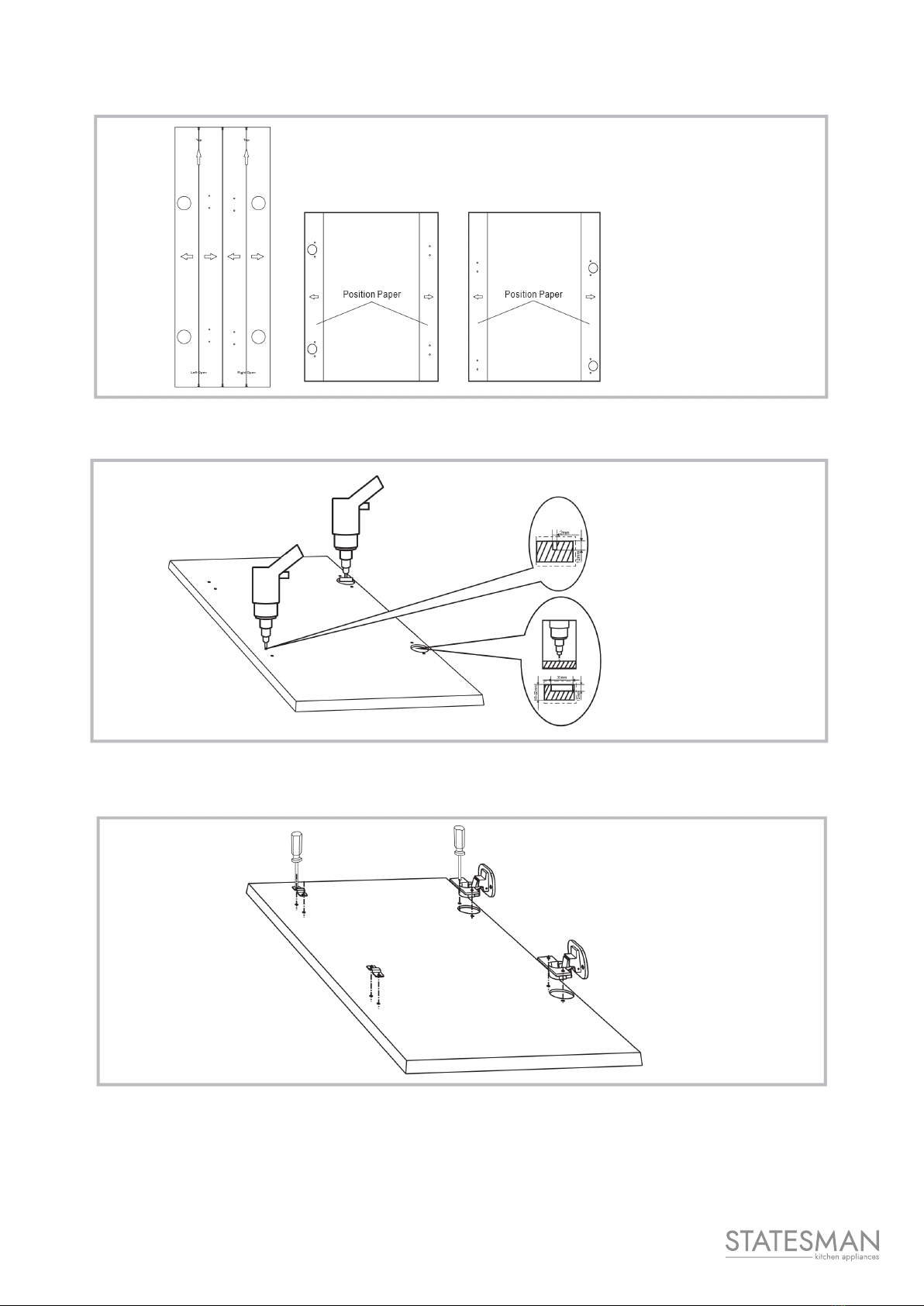

1. Once the opening direction of the door has been decided, x the corresponding position paper
accordingly
2. Drill holes in the door
3. Install the hinges and spacer to the door and then x the door to the machine

12

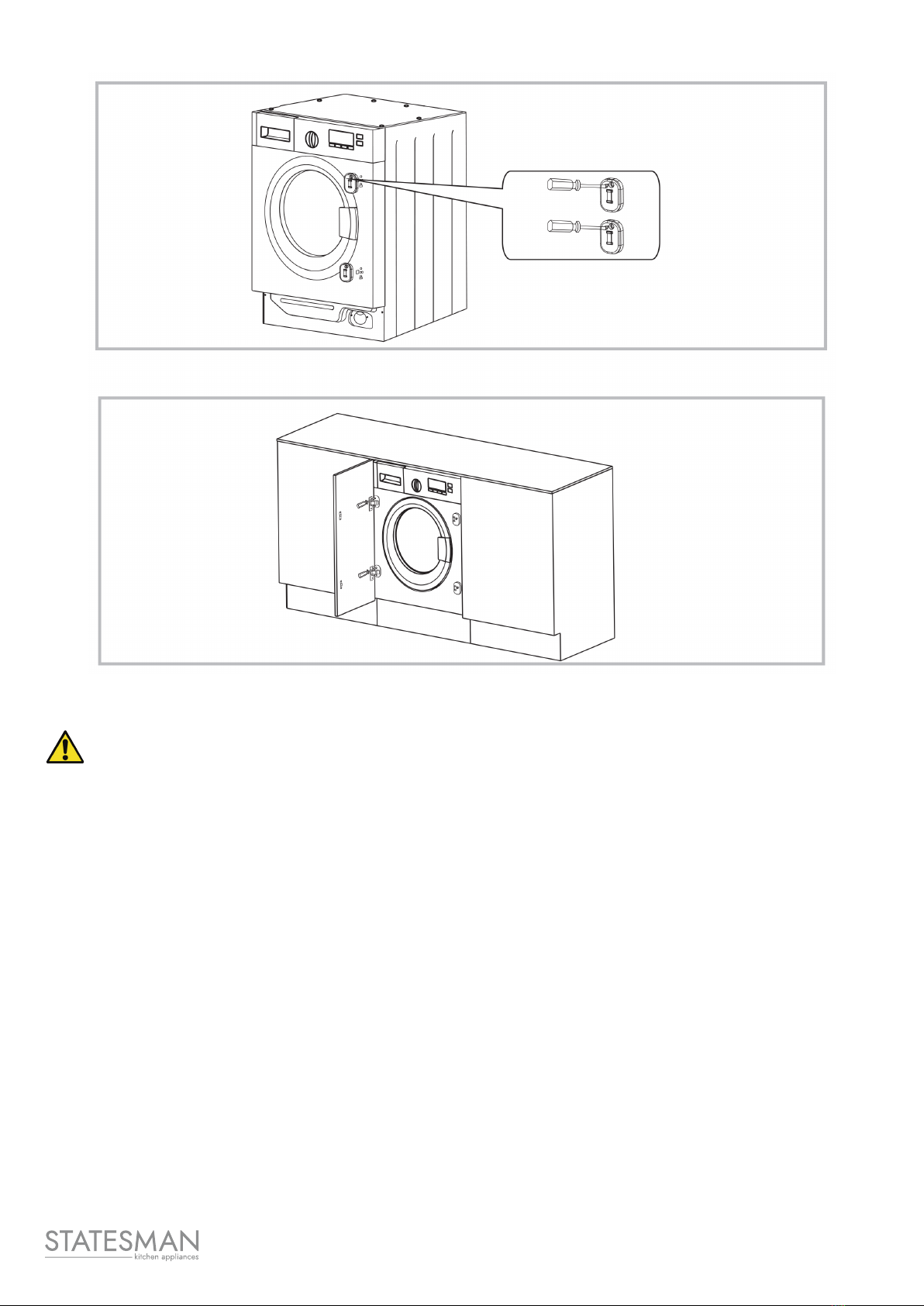

WARNING! When installing the appliance ensure that the hoses are placed in either of
the two recesses on the back of the machine. This will help to prevent the hoses from
becoming kinked or trapped.
4. Install the counter magnets
5. Check that the door opens and closes correctly before using the appliance for the rst time.

13
OPERATING INSTRUCTIONS
QUICK START
CAUTION!
• Before washing, please make sure the washing machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water and
to neutralise potential odours, it’s recommended to clean your appliance before rst use. For this
reason, start the Cotton program at 90°C without laundry and detergent.
CALIBRATION
It’s recommended to calibrate the washing machine, so that provide the best performance.
The appliance is able to detect the amount of laundry loaded. This function is optimizing the product
performance by minimizing energy and water consumption, saving you money and time. For this reason
it’s recommended to calibrate the appliance for best use.
1. Remove all accessories from the drum and close the door;
2. Insert the mains plug to the socket;
3. Switch on the washing machine and press “Speed” and “Delay” simultaneously for 10 seconds until
“t19” is displayed;
4. Press [ ] to start the appliance and wait till “ **** ” is displayed.
5. The machine MFG60-S1210/C20E-EU(NE) does not need calibrate, so step 1 to step 4 can be
skipped.

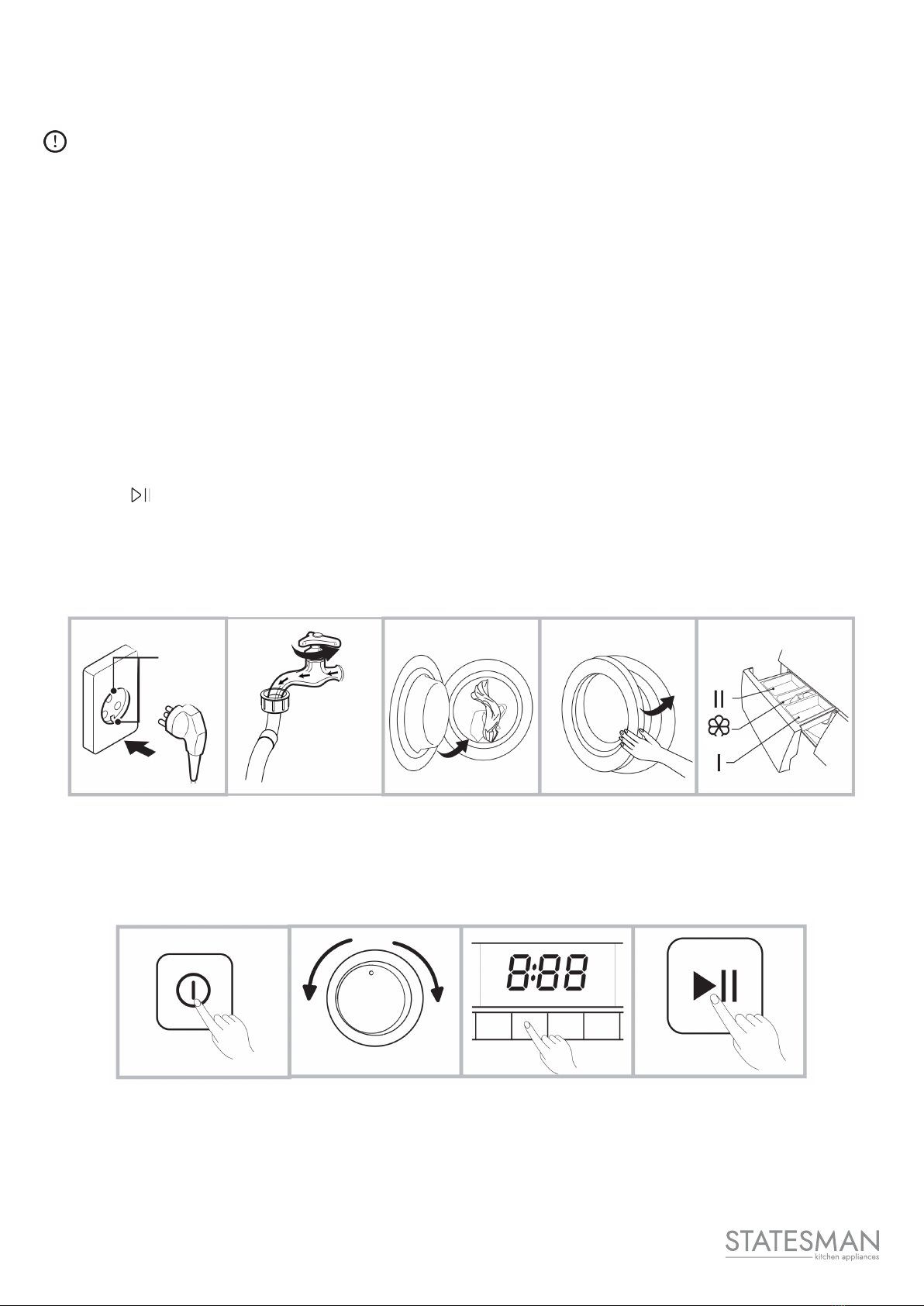

1. BEFORE WASHING
Plug in
earth
terminal Main
wash
Softener
Prewash
Open tap Load Close door Add detergent
NOTE: Detergent only needs to be added in compartment I if the pre-wash function is selected.
2. WASHING
Power On Select program Select function Press Start/Pause to
start the program
3. AFTER WASHING
An alert will sound and “End” will appear on the display

14
BEFORE EACH WASH
• The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the
inlet valve and draining system may be damaged. If the machine is installed in conditions below
freezing, it should be transferred to normal ambient temperature to ensure the water supply hose
and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before washing. Use
non-foaming or less-foaming detergent suitable for machine washing.
Check the care label Sort laundry according to
color and textile type
Take all items out of
pockets
Tie together long textile
strips and belts, close zips
and buttons
Put small items into a
laundry bag
Turn easy-piling and long-
pile fabric inside out
WARNING!
• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed
with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene,
and other ammable materials.
• Washing single clothes items may easily create create unbalance in the machine. Therefore
it is suggested to add one or two more laundry items to the wash so that the spin can be
done smoothly.

15
Pre wash
Main wash
Softener
Release button to
pull out the dispenser
to allow for cleaning
purposes

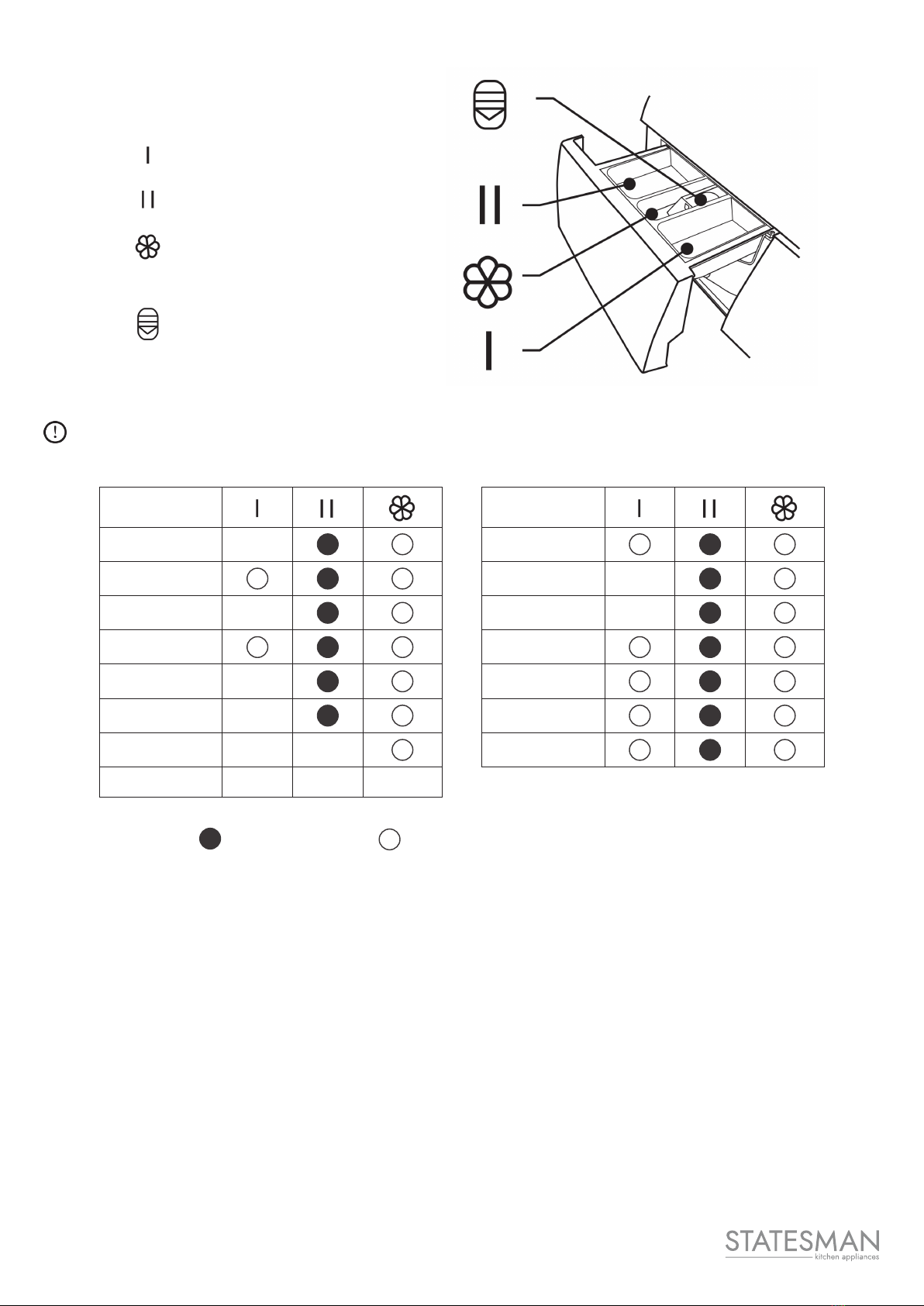

DETERGENT DISPENSER
CAUTION! Detergent only needs to be added in “compartment I “after selecting pre-wash function.
Program
Quick 15
Rapid 45
20°C
Jeans
Eco 40-60
Intensive
Rinse & Spin
Spin Only
Program
Baby Care
Wool
Delicate
Mixed
Synthetic
Sports
Cotton
: Required : Optional

16
DETERGENT RECOMMENDATION
Recommended washing
detergent
Wash cycles Washing
temp. (°C)
Type of laundry and
textile
Heavy-duty detergent with
bleaching agents and optical
brighteners
Cotton, ECO 40-60,
Intensive
40/60 White laundry made
from boil-proof cotton
or linen
Colour detergent without bleaching
agent and optical brighteners
Intensive, Cotton, ECO
40-60, Mixed, 20℃
20/30/
40/60
Coloured laundry made
from cotton or linen
Color or mild detergent without
optical brighteners 20℃, Synthetic
Cold/20/
30/40
Coloured laundry made
from easy care bres or
synthetic materials
Mild washing detergent Synthetic 20/30 Delicate textiles, silk,
viscose
Special wool detergent Wool 20/30/40 Wool
NOTE:
Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the
detergent dispenser, to avoid he inlet getting blocked and thus causing a water overow.
• Please choose a suitable type of detergent to ensure maximum washing performance and minimum
water and energy consumption
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not lled completely.
• Always adjust the amount of detergent according to the water hardness. If your tap water is soft, use
less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.
Following symptoms are a sign of detergent overdosing:
- heavy foam formation
- poor washing and rinsing result
Following symptoms are a sign of detergent under dosing:
- laundry turns grey
- build-up of limescale deposits on the drum, the heating element and/or the laundry

17
CONTROL PANEL
1 24 5 3
1. Power
Press this button to turn the machine on or o.
3. Setting Options
This allows you to select an additional
functions and will light when selected.
2. Start/Pause
Press this button to start or pause the washing
cycle.
4. Programs
Available according to the laundry type.
5. Display
The display shows the settings, estimated time remaining, options, and status messages for your
machine. The display will remain on through the cycle.
A. Wash Time Delay Time Speed Error End B. Door Lock
D. Pre Wash
C. Extra Rinse
E. Child Lock
A B D
CE

18
PROGRAMS
Program Washing/Drying Load (kg) Display Time (H)
8.0 8.0
1400
Quick 15 2.0 0:15
Rapid 45 2.0 0:45
20°C 4.0 1:01
Jeans 8.0 1:45
Eco 40-60 8.0 3:35
Intensive 8.0 3:48
Rinse & Spin 8.0 0:20
Spin Only 8.0 0:12
Baby Care 8.0 1:43
Wool 2.0 1:07
Delicate 2.5 0:50
Mixed 8.0 1:20
Synthetic 4.0 3:18
Sports 4.0 1:11
Cotton 8.0 3:49

19
Cycle
Nominal capacity (kg)
Temperature setting
Cycle duration (H:M)
Energy consumption
(kWh / operating cycle)
Water consumption
(L / operating cycle)
Highest temperature
(°C1)
Residual moisture
(% / spin speed2)
Quick 15 2.0 Cold 0:15 0.030 31.0 Cold 75%/800
20°C 4.0 20 1:01 0.183 44.0 20 65%/1000
Intensive 8.0 40 3:48 1.013 71.0 40 70%/800
Mixed 8.0 40 1:20 0.754 71.0 40 70%/800
Cotton 8.0 60 3:54 1.515 71.0 60 53%/1400
Eco 40-603
8.0 - 3:38 0.852 61.0 37 53%/1400
4.0 - 2:48 0.542 45.0 33 53%/1400
2.0 - 2:48 0.216 36.0 23 53%/1400
• The above data is for reference only, and the data may change due to dierent actual use
conditions.
• The values given for programs other than the ECO 40-60 program are indicative only.
• Concerning to EN 60456:2016 With (EU)No.1061/2010,
The EU energy eciency class is: A+++
Energy test program: Intensive; Speed:The highest speed; Temp.: 60℃/40℃;
Other as the default. Half load for 8.0kg machine:4.0kg.
• Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023, The EU energy
eciency class is: B
Energy test program: ECO 40-60. Other as the default.
Half load for 8.0Kg machine:4.0Kg.
Quarter load for 8.0Kg machine:2.0Kg.
1. The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.
2. Residual moisture after the wash cycle in water content percentage and the spin speed at which
this was achieved.
3. The ECO 40-60 program is able to clean normally soiled cotton laundry declared to be washable
at 40°C or 60°C, together in the same cycle. This program is used to assess the compliance with
the regulation (EU) 2019/2023.
The most ecient programs in terms of energy consumption are generally those that perform at
lower temperatures and longer duration.
Loading the household washing machine up to the capacity indicated for the respective programs
will contribute to energy and water savings.
Noise and remaining moisture content are inuenced by the spinning speed: the higher the spinning
speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

20
PROGRAMS
Programs are available according to the laundry type.
PROGRAMS DESCRIPTIONS
Cotton Use for washing hard-wearing textiles, heat-resistant textiles made of cotton or
linen.
Rapid 45’ Use for washing few and not very dirty clothes quickly.
Synthetic Use for washing synthetic articles, for example: shirts, coats, blending. While
washing knitted textiles, detergent quantity should be reduced due to its loose
string construction and easily forming bubbles.
Baby Care Use for washing baby’s clothes. Additional rinsing ensures excess detergent that
could be irritating to baby’s skin is removed from laundry.
Jeans Use for washing jeans.
Mixed Use for washing mixed loads
20℃ Use for washing brightly colored clothes as it can protect the colors better.
Sports Use for washing the active wear.
Quick 15’ Extra short program which is suitable for washing small amounts of lightly soiled
laundry
Delicate Use for washing delicate, washable textiles, e.g. made of silk, satin, synthetic
bres or blended fabrics.
Wool Use for washing hand or machine-washable wool or rich wool textiles. Especially
gentle wash program to prevent shrinkage, longer program pauses (textiles rest in
washing liquid).
Spin Only Extra spin with selectable spin speed.
Rinse & Spin Extra rinse with spin.
Eco 40-60 Use for washing brightly colored clothes as it can protect the colors better.
Default 40℃,not selectable,suitable for laundry washing at about 40℃-60℃.
Intensive To increase the washing eects, washing time is increased.
