Haier XPB60-287S User manual

Twin-tub Washing Machine User manual
This manual is for
XPB60-287S
Please read this manual
carefully before using.
Retain it for future reference.

Contents
14
Important safety instructions
Installation
Preparation before washing
Cautions
Usage of the detergent
Washing sequence
Additional spinning
Parts and features
Rinsing

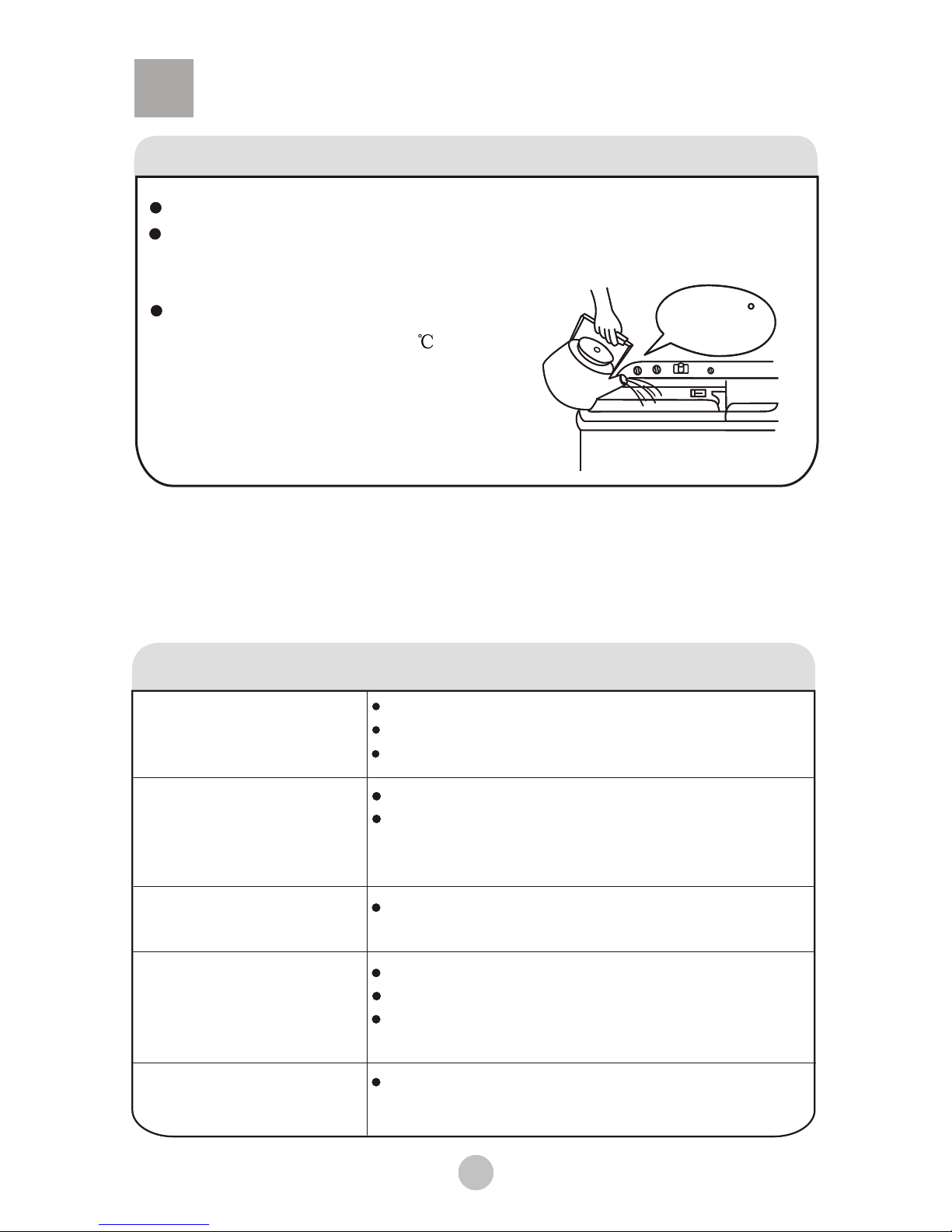

Trouble-Shooting
Spinning

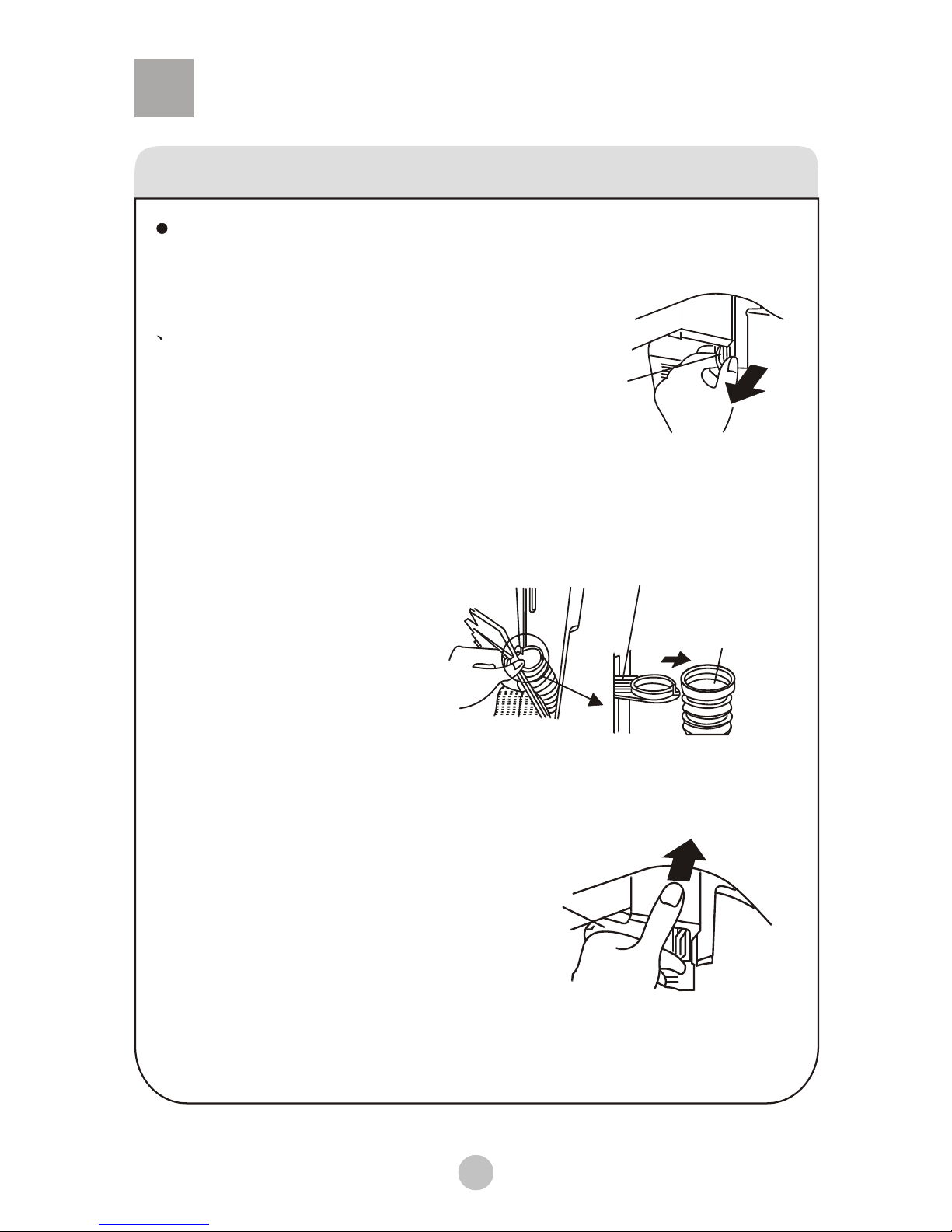

Care and cleaning

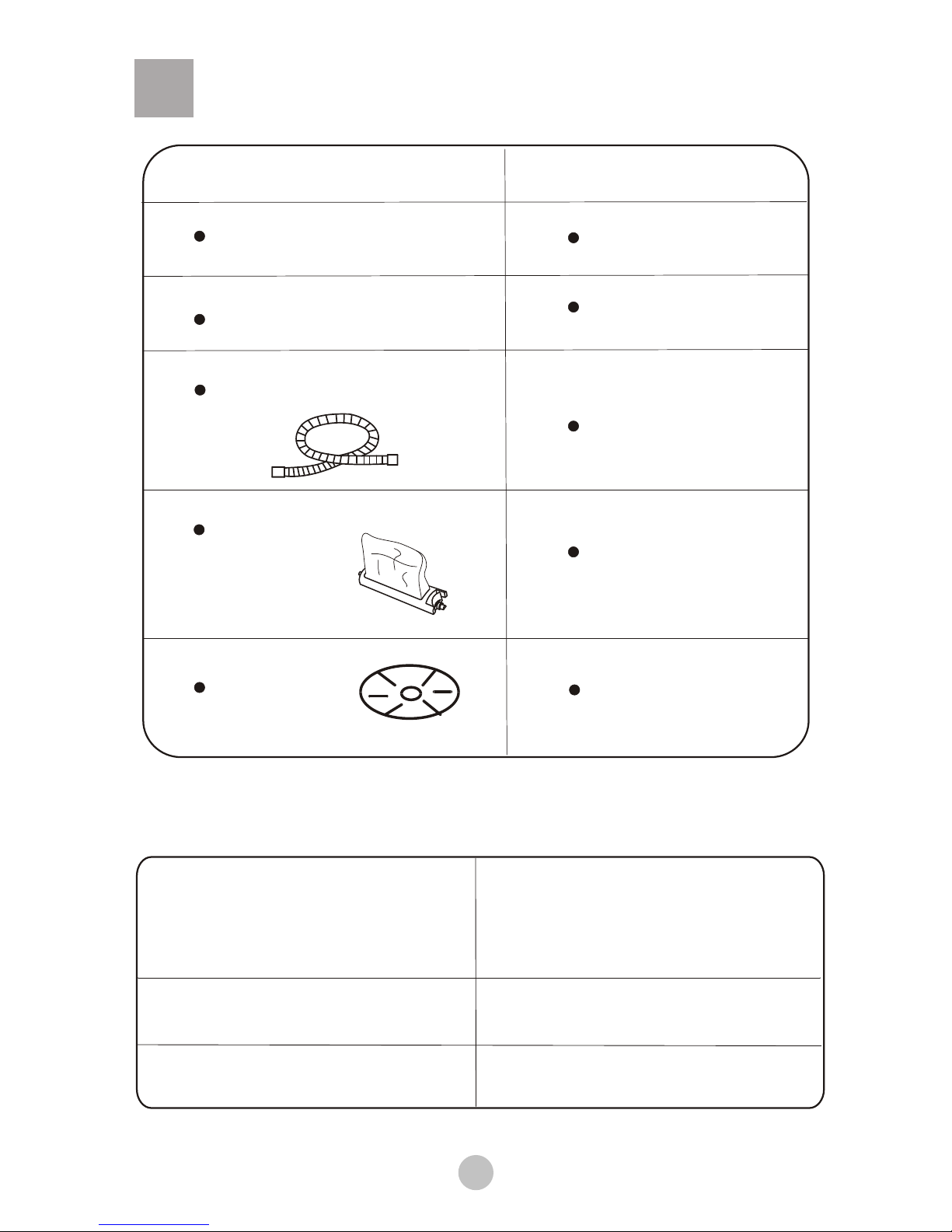

Accessories supplied
Specification
14

1
Meaning and description of the symbols
Warning
Forbidden
Contents marked with this symbol are related
to the safety of the product and the personal
safety of the users. Please operate in strict
conformity to the contents, otherwise it may
cause damage to the machine or injure the
personal safety of the user.
Contents marked with this symbol are actions
forbidden to perform. Performing of those
actions may result in damage to the machine
or injure the personal safety of the user.
Please check that the power supply has good earthing connection
condition before using to guarantee your safety.
Parts and features
Lint filter
(Installed by user)
Drain hose hook
Power cord
Water filling switch
Water inlet

2
Important safety instructions
Important!
Warning - to reduce the risk of fire, electric shock, or injury when using your
appliance, follow basic precautions, including the following:
Read all instructions before using the appliance.
This appliance isnot intended foruse by persons(including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of theappliance by a person responsible fortheir safety.
Children should be supervised to ensure that they do not play with the
appliance.
If the supplycord is damaged, it must bereplaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
This appliance must be properly installed in accordance with the installation
instructions before it is used.
Never unplug your appliance by pulling on the power cord. Always grasp the
plug firmly andpull straight out from the outlet.
Replace worn power cords, loose plugs/power outlets immediately. The power
cord must be replaced by an Authorised repairer.
Unplug your appliancebefore cleaning or before making anyrepairs.
Do not operateyour appliance in the presence ofexplosive fumes.
Do not use hot water that exceeds 65 C.
Do not use this appliance to wash clothes soaked, spotted or washed in petrol,
dry cleaning solvents, or any other explosive or flammable substances that
could ignite and explode.
Clothes or rags used to clean flammable or explosive materials should not be
washed in this appliance until all traces of this material has been removed.
Do not add or mix any flammable or explosive substances to the wash.
Do not try to remove clotheswhile the tubis moving. Let it come toa
complete stop.
The lid must be closed when the bowl is spinning.
Do not operate your appliance when parts are missing or parts are broken.
Do not use this appliance for commercial clothes washing.
Do not operate this appliance unless all enclosure panels are properly in place.
Do not tamperwith the controls.
Toreduce risk ofinjury do notallow children to play with theappliance. Close
supervision of children is necessary when the appliance is used near children.
This appliance mustbe connected to a proper electricaloutlet socket with the
correct electrical supply.
Do not repair or replace any part of the appliance or attempt any servicing
unless specifically recommended in the user-repair instructions that you
understand and haveskills to carry out.
To reduce the risk of electric shock or fire, do not use extension cords or
adapters to connect the unit to an electrical power source.
SAVE THESE INSTRUCTIONS

Overflow filter
Lint filter
3

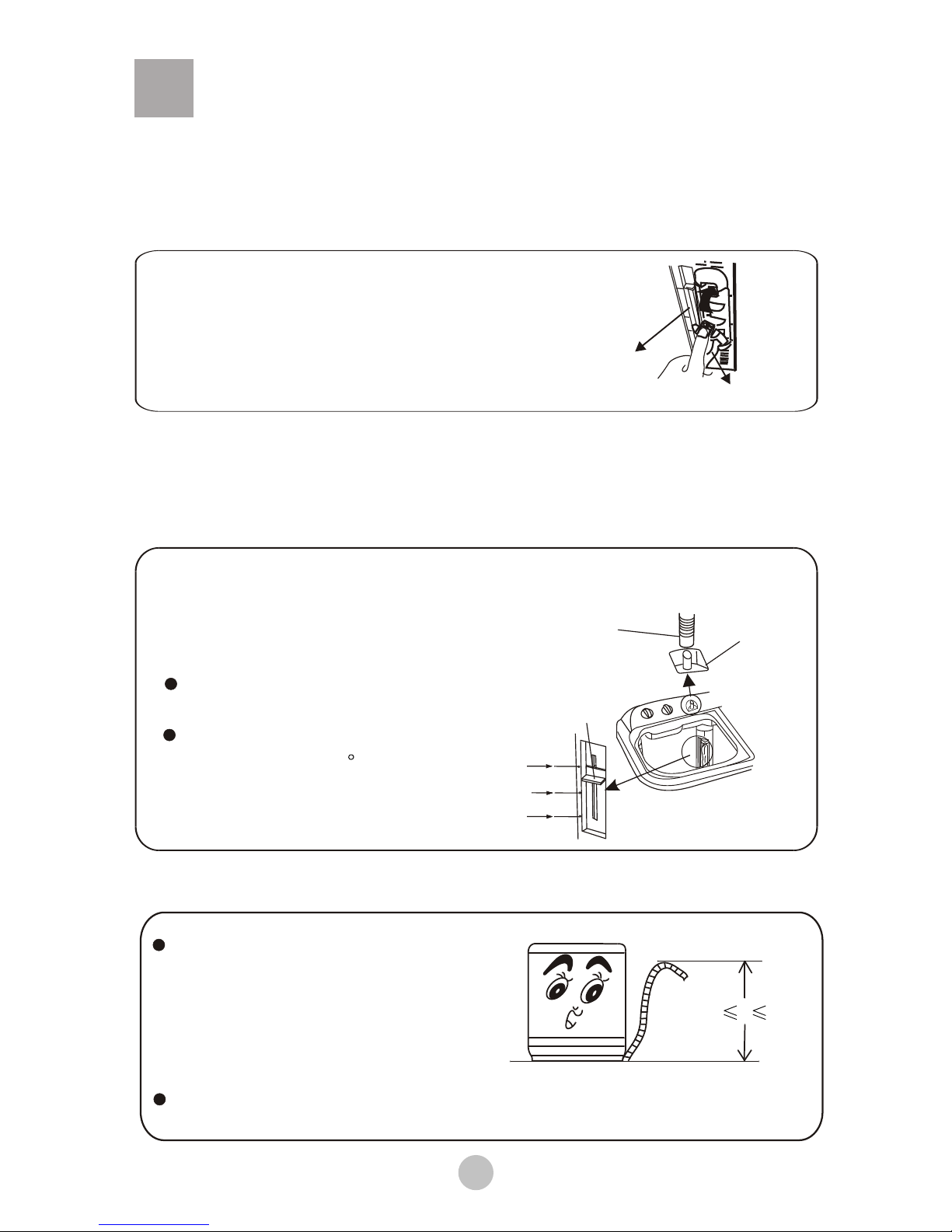

Installation
Please install and adjust the machine in accordance with this manual. It
is very important for your safety and for the correct operating of your
machine.
Install the lint filter
After opening the package , please take out the lint
filter from the bag , install it to the overflow
filter of the wash tub. See the figure.
Connecting the hoses & Selecting the water level
Select water level suitable to
the quantity of the laundry.
Set the water level indicator
to a suitable level.
The temperature of water
must be under 60 C.
Connect the water inlet hose into the water inlet on the
control panel.
Water inlet hose
Water inlet
Maximum Max
Minimum Min
Medium Med
Water level
indicator
Use the new hose-sets supplied with the appliance. Do not use
old hose sets from your previous appliances.
Set up the drain hose
Before using, hang the drain hose
in a suitable location.
0.8 H 1.2m
The height of the drain hose should be between
0.8-1.2m .

Installation
4
How to change the direction of the drain hose
Figure 1 indicates the ex factory
installation position of the drain hose.
Put a soft cloth on the ground. Lean
the machine down gently with the
front surface facing the ground.
Unhook the drain hose from the
cabinet. Take the hose out of the
fixing groove.(See to Figure 2).
Place the drain hose into the groove
along the side of the spin tub in the
direction of (1)~(3), towards the side
of the spin tub. (See to Figure 3).
Place the drain hose into the
groove by hand. Take care not
to damage the drain hose in
fastening the fixing clamp.
Figure 2
Figure 3
Figure 4
Embed into the
groove in turn
Soft cloth
Extend to the
spin tub side
Take out the drain hose from the fixing groove. Extend it from the
rear as per the direction of the arrow. (When the drain hose
is extended from the rear, it can
be hung on either side of the
cabinet.)(See to Figure 4).
Figure 1
Soft cloth Back
Front
Extend the drain hose from the side of the spin tub
Extend the drain hose from the rear

Ï´Ç°×¼±¸
Preparation before washing
Check if the
laundry has
any special
washing
instructions.
Clear the
pockets.
Take out loose
items such
as coins, sand,
hairpins etc.
Tie any
long strips,
fasten
buttons
and close
zippers.
When the machine
is running buttons
may cause noise.
To reduce the noise
turn clothes inside
out or place them
in a laundry bag.
The weight of
the laundry
shall not
exceed the
rated capacity.
Loosen the
laundry before
placing it
evenly in the
tub.
a. Check if the laundry is suitable for machine washing.
b. Divide the laundry into colour fast and non-colour fast items.
c. Place items that do not absorb water easily into the water by hand.
d. For heavily soiled items, please first remove loose dirt, then apply
detergent directly to the stain before washing.
e. For those items that may get lint or are furry or fluffy, please turn
them inside out before washing
f . Do not put laundry polluted by chemicals into the washing machine.
Positioning your washer
1.Connect the water inlet hose.
2.Select a suitable location for the washer on a hard,
even surface away from direct sunlight or heat
sources, e.g radiators, cooking appliances etc.
3.The washer must not be placed in an area where
the temperature is below freezing point.
4.Any floor unevenness may result in unstable
working or abnormal noise. Please ensure
the machine is level.
0.8m H 1.2m
Check the following before washing
5

Dissolve in the machine:
1.Fill small quantity of water.
2.Add the powder. Run for 30
seconds to dissolve it completely.
3.Put in the laundry. Select a
suitable water level.
Instant dissolving of the washing
powder:
1.Prepare warm water of 30 C in a
container.
2.Add the powder while stirring to fully
dissolve it.
Powder is more likely to contaminate
the laundry with residue than a liquid
detergent. Therefore please use the
correct quantity.
Please refer to the washing powder
instructions for the correct use and
dosage.
Avoid using whitener on
laundry with color or
pattern as they are prone
to lose color.
Fill water to desired level.
Dilute the whitener in a
container. Pour it slowly
into the washing tub.
Ï´µÓ¼ÁµÄʹÓÃ
The whitener shall not
touch the laundry
directly.
Refer to the whitener
instructions for the
usage and quantity.
For powder whitener,
please dissolve it before
using.
Ï´µÓÎïµÄ²Î¿¼ÖØÁ¿
The rated washing/spinning capacity
refers to the largest dry weight of a load
that can be washed/spun.
The thickness, size and type of clothes
will influence the actual capacity. Be
careful to only load a reasonable amount
of laundry.
Do not select "Maximum" water level for
clothes less than 2.4kg, to avoid splashing
of water.
Ï´µÓÐëÖª
Cautions
It is suggested not to use high sudsing
detergent.
Choose a low suds or high
efficiency detergent.
How to use whitener
Adding the washing powder
Usage of the detergent
6

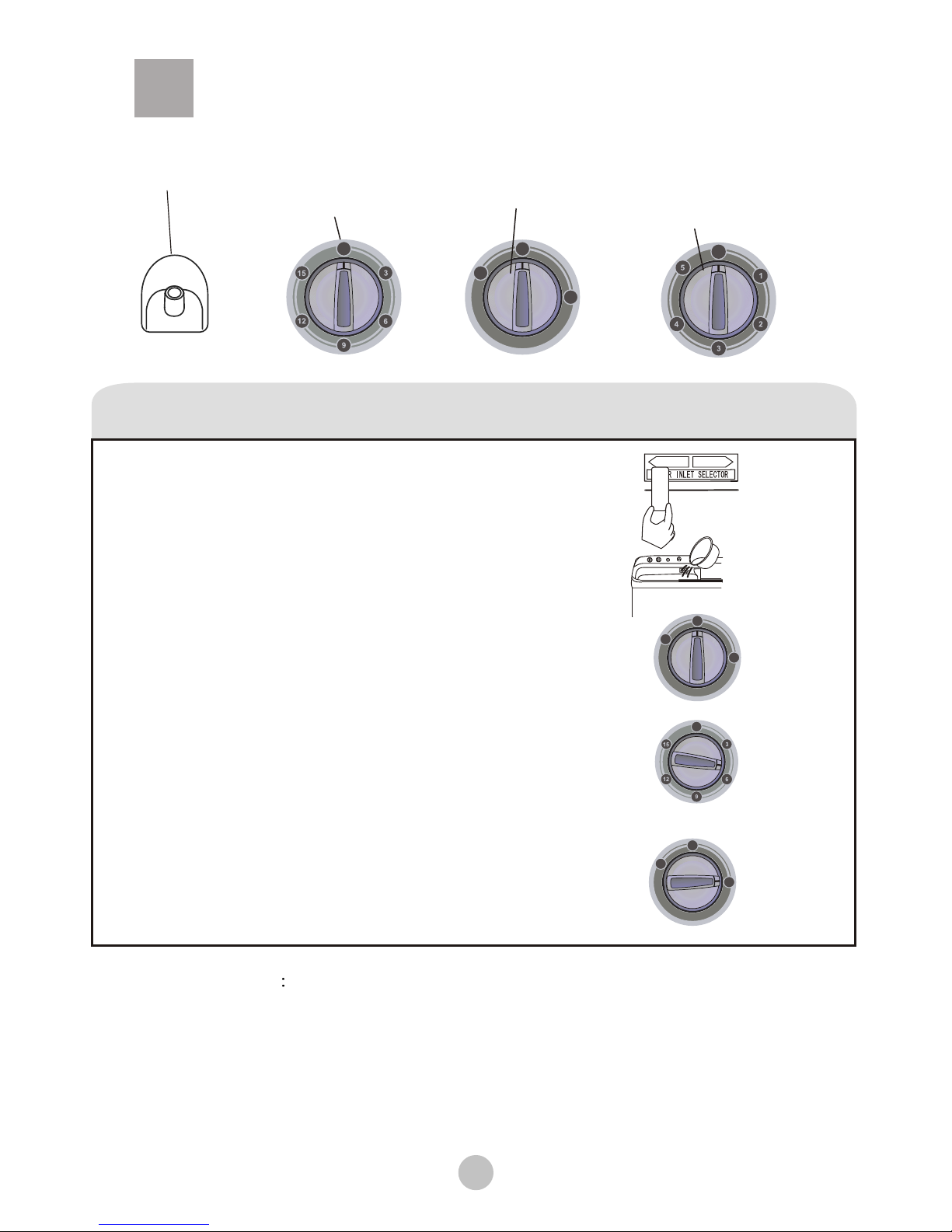

Washing sequence
7
Spin timer
Wash timer
(To set to below 2 minutes,
first set to 6 minutes then
turn it back. This can increase
the service life of the timer.)
(to set to below 1 minute,
first set to 2 minutes then
turn it back. This can increase
the service life of the timer.)
Water inlet
Wash selector
(Delicate, normal,
Drain)
SPIN TIMER
WASH TIMER WASH SELECTOR
OFF
Ç¿Ï´
±ê×¼
ÅÅË®
DRAIN
DELICATE
NORMAL
OFF
Figure 4
WASH TIMER
Wash
1.Water-filling selector
Set the water inlet selector to the "WASH" side.
(Figure 1)
Figure 2
SPIN
WASH
Figure 3
WASH SELECTOR
Figure 5
WASH SELECTOR
Ç¿Ï´
±ê×¼
ÅÅË®
DRAIN
DELICATE
NORMAL
OFF
Ç¿Ï´
±ê×¼
ÅÅË®
DRAIN
DELICATE
NORMAL
Energy test program 18 min Normal Warm Wash (35'C), 9 min Rinse, 5 min spin (1/2 load).
Add the clothes load. Fill the wash tub to the maximum water level. Water at 35'C.
While it is filling (half) add the detergent/PBIS mixed with 1 litre of Min.35'C water.
Wash on "normal" for 3 minutes. Then fill the wash tub again to the maximum water level. Water at 35'C.
Wash on "normal" for 15 minutes. Drain for 5 minutes. Divide load into two halves.
Spin each half load for 5 minutes. Place the clothes in the wash tub and then fill with cold
(20'C) water to the maximum level.
Wash/rinse for 9 minutes. Drain for 5 minutes.
Divide load into two halves. Spin each half load for 5 minutes. Program end.
Detergent : drum type .
For best results , we recommend mixing detergent with warm water ,and using max anti-foam .
2.Fill with water to the set level and add the
dissolved washing powder. (Figure 2)
3.Place the clothes into the water.
4.Select the wash mode, either "delicate"
or "normal". (Figure 3)
5.Select the washing time
Select the washing time according to the load
size and how dirty the clothes are. (Figure 4)
Note: For a full load on the normal cycle first
wash for 3 minutes, the clothes will absorb
the water. At the end of 3 minutes add extra
water up to the maximum water level mark.
Then wash for a further 15 minutes using
the wash timer.
6.After washing, set the "WASH
SELECTOR" at "DRAIN". (Figure 5).

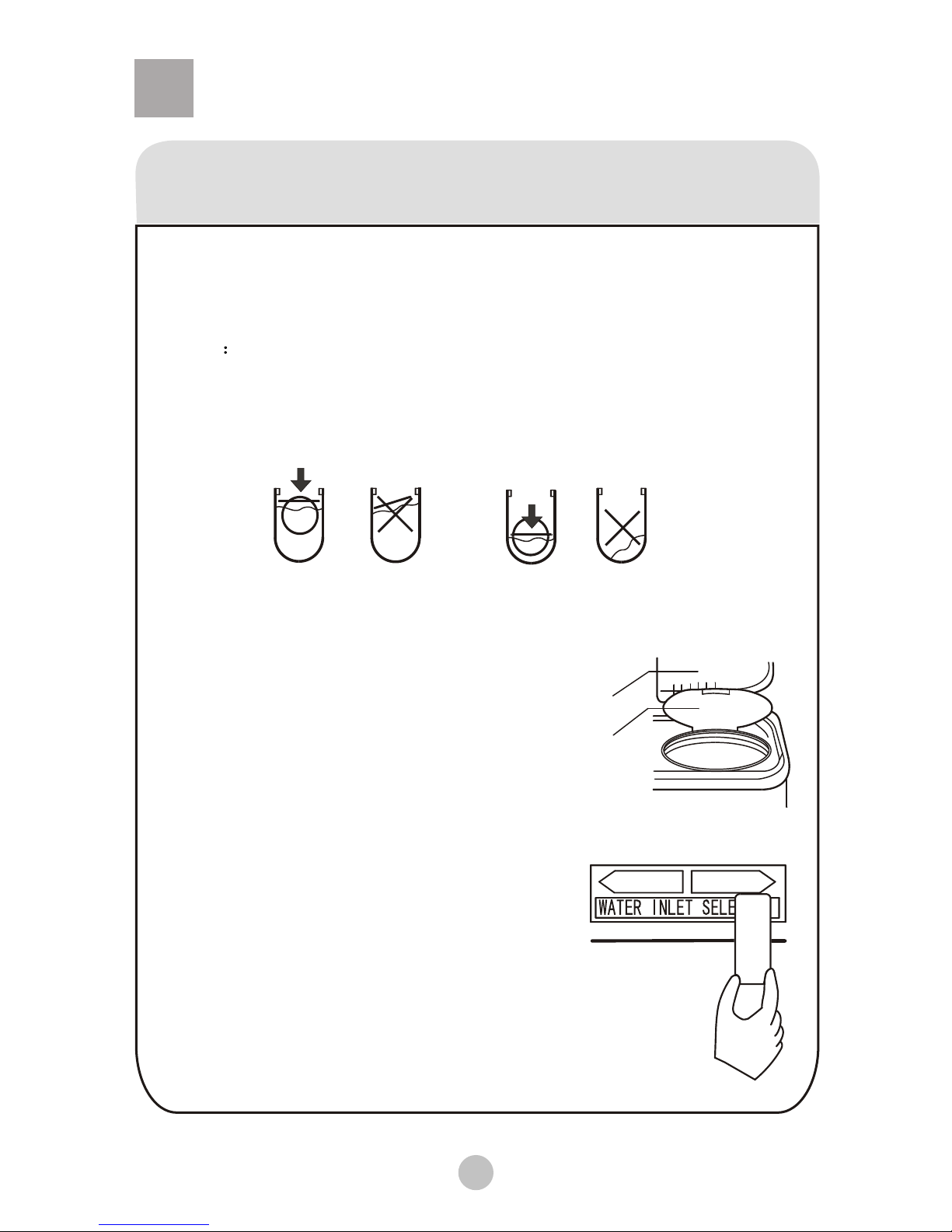

Additional spinning
Additional spinning
Push retainer down
Push
Correct
Outer cover of
The spin tub
Inner cover of
The spin tub
The laundry
is slanting
No retainer
(1) Open the outer cover of the spin tub.
(2) Set the water-filling selector control
rod to the "SPIN" side. Fill water for
about 1 minute.
If the water flow is too fast, the water
may flow out from the wash tub side.
You may turn the water tap down to
limit the flow of water.
(3) Close the outer cover of the spin tub.
Spin for 1-2 minutes.
SPIN
WASH
1.Put the clothes into the spin tub evenly.
2.Spin (1) Put the retainer in properly.
Please use the retainer even if the
clothes quantity is small.
(2) Close the inner and outer cover of the spin tub.
(3) Spin for 1-2 minutes.
3.To remove foam during spinning.
8
If you want to remove more foam, you can use this function.
Correct
