STEINWAY LYNGDORF CDP-1 User manual

INSTALLATION MANUAL
CDP-1
V 1.4

2

TABLE OF CONTENTS
WARNINGS ...................................................................................................................................................3
FRONT PANEL ................................................................................................................................................. 4
REAR PANEL..................................................................................................................................................... 5
SETUP.......................................................................................................................................................6
MENU SYSTEM ........................................................................................................................................7
NOTES OF IMPORTANCE ......................................................................................................................... 9
TECHNICAL SPECIFICATIONS................................................................................................................. 10


3

WARNINGS

CAUTION: RISK OF ELECTRICAL SHOCK. DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER. NO
USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Exclamation symbol
Lightning symbol
Light bulb symbol
Important safety instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produces heat.
9. Do not defeat the safety purpose of the grounding-type plug. A grounding-type plug has two pins and a third grounding
prong. The third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point
where it exits from the apparatus. Do not use this unit with a damaged cord or plug.
11. Use only attachments and accessories specified by the manufacturer.
12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, or when the apparatus has been exposed to rain or moisture, does not operate normally or has been
15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are
placed on the apparatus.
16. To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from the AC
receptacle.
17. The mains plug of the power supply cord shall remain readily operable.
18. Do not expose batteries to excessive heat such as sunshine, fire or the like.
19. Do not connect any output from this compact disc player to any other compact disc player’s output or any other volt-
age source.
20. Caution – Use of controls or adjustments of performance of procedures other than those specified herein may result in
hazardous radiation exposure.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the product.
The lightning with arrowhead symbol within an equilateral triangle is intended to alert the user to the
pressence of uninsulated “Dangerous Voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electrical shock to a person.
The light bulb is intended to alert the user of important information or a detailed explanation.

4

FRONT PANEL
1 2 3
1. Standby button
Standby mode.
2. Play/Select
The Play/Select button is a skip-wheel which allows you to skip left |<< and skip right >>| by turning
the wheel in either direction.
• The button in the center works in exactly the same way as the Play/Pause button. During play mode,
it toggles between Play and Pause. In the menu mode, the button is used as the select-function.
• Holding down the button will access the main menu.
•
3. Eject
The CD loader tray can be opened and closed using the eject button.

5


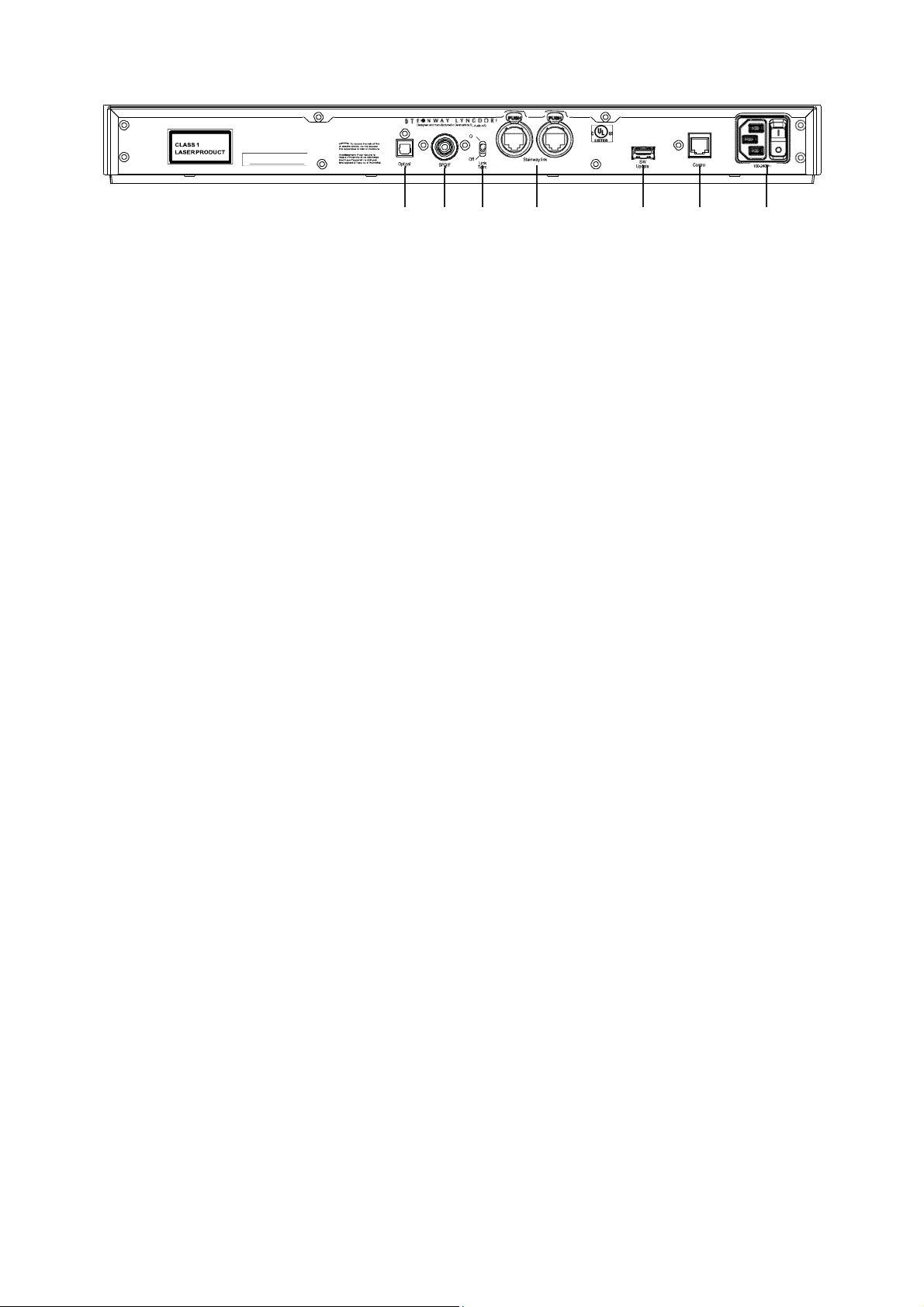

REAR PANEL
1 2 3 4 5 6 7
1. Optical output
Toslink Connector for digital output.
2. SPDIF
SPDIF input.
3. Link termination
Switch on if the CDP-1 is the last Steinway Lyngdorf product in the daisy-chain.
4. Steinway Lyngdorf Digital Link
5. USB software update connector
For software update.
6. Control connector
The RS232 communication connectors are for communication to a PC or remote control from Steinway
Lyngdorf equipment with broadcast commands or linked control between other components.
7. Mains Input
IEC320 type connector.
THIS PRODUCT COMPLIES W ITH FDA RULE S 21 CFR
CHAPTER 1 SUBCHAPTER J PART 1040.10 AND 1040.11
AT DATE OF MANUFACTURE
Steinway & Sons Model CDP-1
Serial no:
Audio Equipment
3YZ9
50/60 Hz 15W

6

SETUP
Connecting the CDP-1
• Connect a digital audio output from the CDP-1 to the SP-1 Stereo Processor.
• Connect the CDP-1´s Steinway Lyngdorf Digtial Link.
Switch “Link termination“ to on if the CDP-1 is the last Steinway Lyngdorf product in the chain.
If inserting the CDP-1 at the end of a chain of amplifiers, make sure to switch off the amplifier´s dipp
switch link termination. To do this, toggle the number 8 switch from on to off.
• In the CDP-1 menu system, select Yes in “Link Control.”
• In the SP-1 menu system “Setup” -> “Link CD” select the input the CDP-1 is connected to.

7

MENU SYSTEM
The functionality of each of the menu items is:
CD Play Mode
• Normal Play
• Repeat Entire Disc
• Repeat One Track
• Random Play
CD-Text Display
Shows additional CD information (e.g. album name, song name, and artist) if available.
When turned on, track information will be reduced in height.
Time Display
Show Remaining Time:
• Yes
• No
Link Control
Enable Link Control:
• Yes
• No
Dig. Out Sample Rate
Chooses the sample rate of the digital outputs.
• 48 kHz / 24 bit
• 96 kHz / 24 bit (default)
• 192 kHz / 24 bit
Display Timeout
The timeout can be set to on or off. On is a 10 second display timeout.
Auto Off
Auto off will automatically turn off the CDP-1 after it has been idle for 5 minutes.

8

Advanced
• Software Info
Displays the firmware version.
• Factory Reset
Resets the CDP-1 to the factory default settings.
• Software Update
To update the CDP-1 with new firmware, do the following:
1. Download the new firmware
2. Upload it to the root of a FAT32 formatted USB stick.
3. Go to Software Update in the Advanced menu of the CDP-1 and click Yes.
4. The display should show “Updating: Name of firmware file.”
5. When fully updated, the CDP-1 will go to standby mode.
Exit Menu
Exits the menu.

9

NOTES OF IMPORTANCE
Unpacking the CDP-1
Carefully remove the unit and accessory kit from the carton, and visually check for shipping damage.
Contact both the shipper and your Steinway Lyngdorf representative immediately if the unit bears any
sign of damage from mishandling. All Steinway Lyngdorf equipment is carefully inspected before leaving
our factory.
Operating Voltage
Cleaning and Maintenance
This unit does not require any regular maintenance except to keep its exterior clean. Simply wipe its
exterior with a clean soft cloth. A small amount of non-abrasive cleaner may be used on the cloth to
remove any excessive dirt or fingerprints. Do not use abrasive cleaners or cleaners containing liquid
solvents.
Keep shipping carton and packing material for future use or in the event that the unit
needs servicing. If this unit is shipped without the original packing, damage could occur
and void the warranty.
Connect the power input only to the AC source printed on the label. The warranty will
not cover any damage caused by connecting to the wrong type of AC mains.
Always unplug the unit from the electrical outlet before cleaning.

10

TECHNICAL SPECIFICATIONS
All audio measurements, except frequency response, are measured with a 20KHz low-pass filter in
accordance with AES-17. Measured on unbalanced outputs - RCA (phono).
Digital audio outputs
Parameter Value Note
SPDIF, Toslink Galvanically isolated transformer
coupled SPDIF
Selectable
outputs:
sample rates on digital 48 / 96 / 192 kHz – 24bits 
Protection
Parameter Value Note
Grounding Mains earth, chassis and
audio ground are connected
internally.

Mains
Parameter Value Note
Mains input connector IEC 320 cold type Mains lead supplied
Mains voltage range 100-240 AC, 50–60Hz 
Internal mains fuse T630mAh / 250VAC 
Power consumption 300mW STANDBY mode
Power consumption 11W OPERATE mode, Playing CD
Mains Connector
Mains voltage to the CDP-1 is applied via an IEC320 type connector. The supplied cable with safety
ground should be used to connect the CDP-1 to a mains outlet.
Technical Assistance
If you have any problems with or questions regarding your Steinway Lyngdorf product, please contact
your nearest Steinway Lyngdorf representative.
Connect the power input only to the AC source printed on the label and the setting
shown on the voltage selector switch. The warranty will not cover any damage caused
by connecting to the wrong type of AC mains.
Always disconnect the CDP-1 from the mains before changing any connections to its
inputs or outputs.
