stellar labs 33-12506 User manual

1
Splitter
1 input 2 outputs
3D Support
4K Support
Model: 33-12506 INTRODUCTION
Thank you for your purchase of the Stellar Labs Model 33-12506 HDMI Splitter. This splitter is designed
to simplify the use of multiple high definition A/V devices in a home theater system.
The 33-12506 allows one HD source device to support up to two HDTV displays, providing both
displays the same image quality as the source. As this supports HDMI 4K resolution and HDMI 3D
video format, it is compatible with all equipment currently manufactured.
The amplifier and equalizer functions offer solutions for Home Theater, AV installation data center,
information distribution, conference room presentation, school and corporate training environment.
FEATURES AND CONTENTS
For the best performance of this HDMI splitter box, please read this manual carefully and keep it for
further information.
Features:
HDMI®3D video format supported
Fully support 4K×2K (2048p) HDTV
Pixel Clock Rate: 25 ~ 340 MHz
Dual detection mode selection (A/B Switch)
Compliant with DTS-HD®, Dolby®TrueHD lossless compressed digital audio
Support HDCP compliant devices
Gold plated connectors
Maintain the same image quality as source, up to 4K×2K (2048P)
Amplifier and Equalizer functions enable longer HDMI cable
Expand 2 HDMI outputs of your High-definition source
Fashionable metal housing design, free of interference
Content of Package
DC 5V power adaptor
HDMI Splitter main unit
User’s manual

2

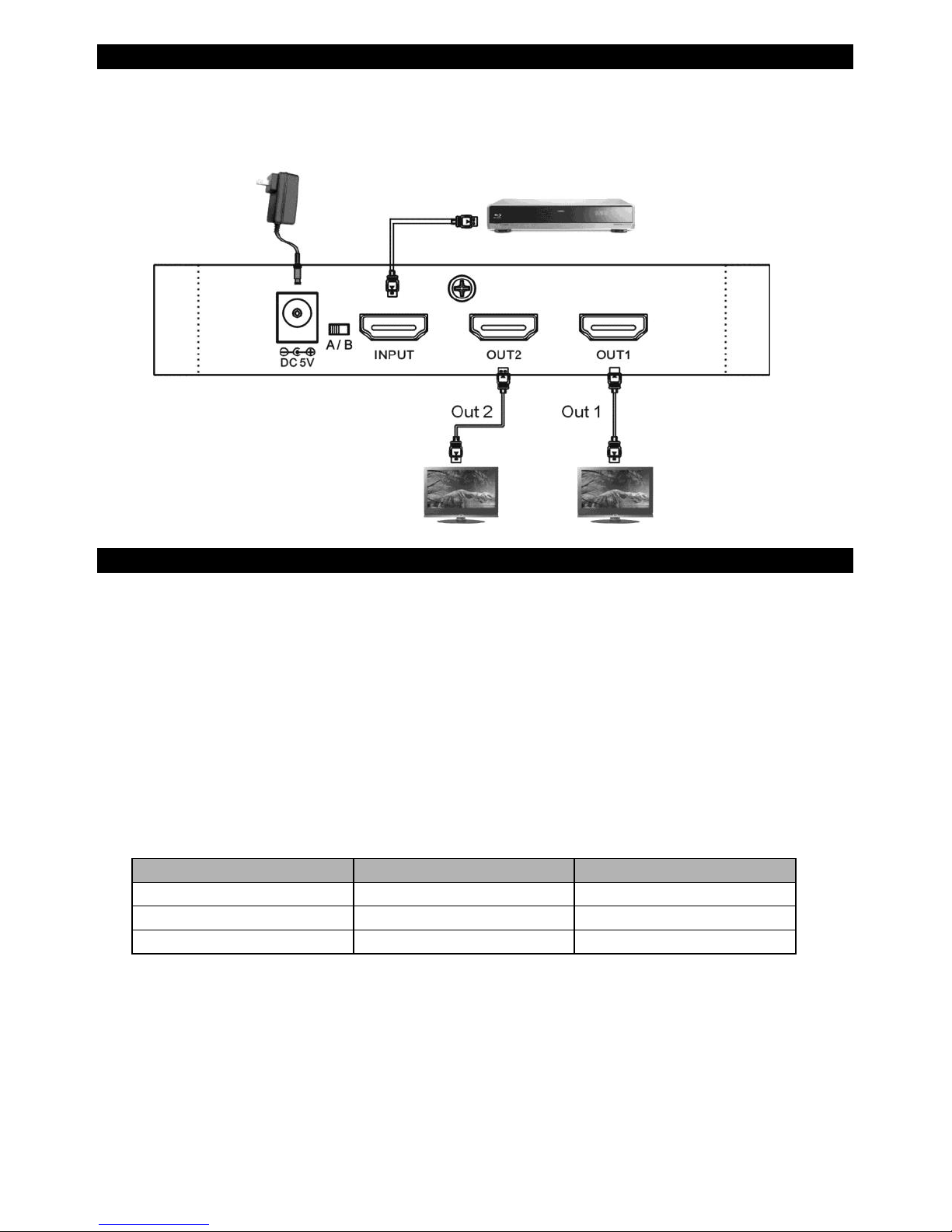

CONNECTION ILLUSTRATION
※If you want to distribute 3D source to both of the displays, please make sure all of the sink
devices support the same HDMI 3D video format as the source. The 3D image cannot be
delivered to TVs which do not support 3D video format.
CONNECTION AND OPERATION
Connect the HDMI Splitter to your devices
1. Connect the HDMI cable from the HD source to the input port of HDMI Splitter.
2. Connect the HDMI cables from your displays (monitor or projector) to the outputs of the HDMI
Splitter.
3. Select one of the detection modes. Please refer to QUICK DETECTION MODE SELECTION below.
4. Plug the 5VDC power supply into the HDMI Splitter.
5. When connections are completed, the HD signal will be distributed to each HDTV display, and the
LED at front panel will be lighted up to indicate each connected port.
※For the best performance, you should re-start the power of HDMI splitter to make sure the Splitter
is working well in HDCP between HD player and Display devices, when the HDMI cable was
disconnected after the last time it was used.
※HDMI 3D video format:
Frame packing
Side-by-Side (Half)
Top-and-Bottom
1920x1080p@23.98/24Hz
1920x[email protected]/60Hz
1920x1080p@23.98/24Hz
1280x[email protected]/60Hz
1920x1080i@50Hz
1280x[email protected]/60Hz
1280x720p@50Hz
1280x720p@50Hz
(3D) Blue-ray DVD player
Power Adaptor
HDTV 1
(3D, 4K×2K)
HDTV 2
(3D, 4K×2K)

3
QUICK DETECTION MODE SELECTION
HDMI Splitter
Source Device
Detection Mode
Mode Action
Suggested
Application
Auto Detection & Auto Adjustment
Supported
Not Supported
A
(Highest
Common Factor
Mode)
Auto detection,
Lower Standard
First
TV wall application,
sports bar application,
or other application
that different standard
(Resolution, Color
Deep) HDTVs are
connected together.
The HDMI Splitter will compare
the EDID information of each sink
device (HDTV). A lower standard
sink device will be set as the
primary sink device to
communicate with the source
device.
The output
resolution and
color deep of the
source device
need to be set first.
B
(Priority Mode)
Port 1~2 detection
sequence, First
Detect First Out
Home Theater
Application, or user
assigns a primary sink
device by connect it to
port 1.
Detection Sequence starts from
port 1. When connect a sink
device to port 1, the device will be
detected. The source device will
set the output signal based on
port 1 (primary sink device).
The output
resolution and
color deep of the
source device
need to be set first.
HDMI connections require the EDID and HDCP information of source and sink devices for
successful communications.
Please check if the source devices (ex. Blue-ray DVD Player) support auto detection and auto
adjustment of resolution, color deep and audio format.
The mode selection switch is located at the rear panel of the Splitter box.
The original mode setting is modeA.
ATTENTIONS
HDMI®splitter will distribute one resolution only at one time. Please set the output resolution of the
source device first, and make sure the resolution can be displayed on all connected display
devices.
The resolution mode will depend on the first plug-in or first of the sequent display devices that can
successfully communicate with source device. Make sure your display devices can support the
highest resolution as source device can support, and your display devices are HDCP compliant
and fully support HDCP.
If the HDMI Splitter is connected to multiple HDTVs which support different highest resolution
(720p, 1080i, 1080p, 2048p), it is recommend to adjust the output resolution of source device to
match the resolution of HDTV that has lower resolution.
To reset the HDMI Splitter, please unplug the power adaptor, or unplug the power cord from DC
jack; and then plug it back.
TROUBLE SHOOTING
1. When there is no picture presented, please:
Make sure the direct connection from the source device to the display device without the HDMI
Splitter is working.
Check all the connection is correct and all connectors are connected well.
Check the quality of connected cable, and make sure the cable does not damage.
Change the connection sequence of display devices.
Make sure the output resolution setting of source device can be displayed on all connected display
devices.
Reset the HDMI Splitter.

4
2. How to make sure your input and output devices are suitable with the HDMI Splitter?
Whether all devices are HDCP compliant?
Whether all HDMI cables stay in good quality as well as connectors?
Make sure all HD displays support the same resolution (720p, 1080i, or 1080p).
3. Some of the connected HDTVs show “mode not support”, some HDTVs are working well.
Make sure all HD displays support the same resolution (720p, 1080i, or 1080p) and color deep
(8-bit, 10-bit, and 12-bit).
The HDTVs which show “mode not support”may support low color deep.
Try to change the detection mode to Mode A,
Or set to Mode B and then connect one of the non-working HDTV to output port 1.
4. When there is only picture displayed and without sound:
Check all the connection is correct and all connectors connect well.
Check if you connect any DVI interface display device to the splitter, the splitter may use the
EDID information of the DVI interface display device as communication standard. DVI supports
only video transmission. Please change the connecting sequence, and reset the HDMI Splitter.
Make sure the connection is in the HDMI standard.
Check your cable to see if it supports video transmission only or it is damaged.
HDCP may not match very well at first connection. Please reset your HDMI Splitter by press
the reset key.
Do you connect any recorder that does not support HDCP to the output port of HDMI Splitter?
HDCP may lock up audio part.
5. HDTV and Blue-ray DVD player can support up to 1080p/12-bit, but when I set the Blue-ray DVD
player to auto detection, it always deliver 1080p/8-bit video signal.
Disable the auto detection function of the Blue-ray DVD player, and set the output resolution
and color deep to 1080p/12-bit. (If other connected sink devices can not support 1080p/12-bit
video signal, the sink devices will not show image.)
6. Snowing noise or image interruption occur when use 1080p/12-bit output setting.
Make sure the HDMI cable is capable of transmitting 1080p/12-bit video signal.A High Speed
Rated HDMI cable is recommended.
7. When resolution could not show in 1080p?
Make sure your sources (HD Player) and displays are fully supporting 1080p.
8. A HDTV and Home Theater Receiver are connected to the HDMI Splitter, but the receiver delivers
stereo audio to the audio amplifier instead of HD audio (Dolby TrueHD, DTS HD).
The primary sink device may set to the HDTV which may only support stereo audio. Please set
the detection to Mode B. Connect the Home Theater Receiver to port 1, and connect the HDTV
to port 2 or other ports. The Home Theater Receiver will be set as the primary sink device.
9. When 3D content could not be shown on your display.
Please make sure your source and displays are 3D supported devices and also support the
same 3D format.
Please check the playmode of Blue-ray player has been set 3D mode orAUTO mode for video
output.
Please make sure the video content is 3D content.
10. If the presented picture is not a proper 3D image, please check whether the 3D format of 3D
Blue-ray player and TV (projector) are correct setting.
11. If the presented picture is symmetric, which showed with up and down or right and left symmetric
image, please check whether the TV or projector supports 3D display function and make sure
the function is enabled. If the TV or projector does not support 3D video format, please turn off
the 3D play mode of 3D Blue-ray player.

5
NOTICE
Manufacturer reserves the right to make changes in the hardware, packaging and any accompanying
documentation without prior written notice.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks
or registered trademarks of HDMI Licensing LLC in the United States and other countries.
33-12506 incorporates HDMI®technology.
Trademarks and brand names are the properties of their respective owners.
Dolby is a registered trademark of Dolby Laboratories.
DTS is a registered trademark & the DTS logos and Symbol are trademarks of DTS, Inc.

6
WARRANTY
This Stellar Labs device is warranted, by MCM Electronics against defects for a period of 365 days from
the date of purchase. This warranty includes manufacture defects and failure due to normal use and
operation. Failure due to misuse, excessive wear or damage, improper installation or other external
factors is not covered under this warranty. MCM Electronics is not responsible for any consequential on
inconsequential damage to any other unit or component incorporated with this device. There are no
other warranties, express or implied, which extend beyond this unit, and there are no warranties of
fitness for any particular purpose. The warranty does not cover consequential damage due to
defective or improper use of products.
