Stelpro EL-NINO Assembly instructions

INSELN0418
Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future
reference. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this
product.
This product must be installed by a qualied person and connected by a certied electrician, according to the electrical and building codes effective
in your region.
The following instructions must be adhered to in order to avoid personal injuries or property damages, serious injuries and potentially fatal electric shocks.
Protect the heating unit with the appropriate circuit breaker or fuse, in accordance with the nameplate.
Make sure the line voltage (volt) is consistent with that indicated on the unit’s nameplate.
This unit must be grounded.
Switch off the power at the circuit breaker/fuse before installing, repairing and cleaning the unit.
Make sure the unit is appropriate for the intended use (if needed, refer to the product catalog or a representative).
Do not install the unit where objects or pieces of furniture could be damaged by heat.
Respect distances and positions indicated in the installation section.
If the installer or user modies the unit, they will be held responsible for any damage resulting from this modication, and the UL certication could be void.
This unit must not come into contact with a water source and must be protected from splashes (e.g. a wet mop). Do not use it if any part has been immersed.
When cutting or drilling into a wall, do not damage electrical wiring and other hidden utilities.
Because this unit is hot when in use, it may pose risks even in normal operation. Therefore, be careful and responsible when using it.
This unit
complies with
UL standards
INSTALLER’S GUIDE
EL-NIÑO
HAND DRYER
REPLACEMENT COMPONENT LIST INCLUDED
S
Y
S
T
È
M
E
Q
U
A
L
I
T
É
C
E
R
T
I
F
I
É
-
R
E
G
I
S
T
E
R
E
D
Q
U
A
L
I
T
Y
S
Y
S
T
E
M
WARNING
For further information or to consult this guide online, please visit our website at www.stelpro.com

2INSELN0418
SIDE
6 3/16"
157mm
12 1/4"
311mm
FLOOR OR COUNTER
FRONT
10 1/2"
266mm
15"
381mm
REAR
O3/16"
5mm
7 3/8"
187mm
7"
178mm 3/16" 5mm
O7/8"
22mm
8 1/16"
205mm
2 1/4"
58mm
RECESSED
3 13/16"
97mm
Never block air vents. This obstruction could lead to overheating, which could result in a re.
Do not insert or allow foreign objects to enter any air vent as this may cause electric shocks, a re, or damages to the unit.
This unit has hot and arcing or sparking parts inside. It is not designed to be used or stored in wet areas or areas containing ammable liquids, combustible
materials or corrosive, abrasive, chemical, explosive and ammable substances such as, but not limited to, gasoline, paint, chlorine, sawdust and cleaning
products.
Some areas are dustier than others. Thus, it is the user’s responsibility to evaluate if the unit must be cleaned based on the amount of dirt accumulated
on and inside air vents. Accumulated dirt can lead to a component malfunction or give a yellowish colour to unit. Failure to install and maintain unit in
accordance with these instructions poses a re hasard.
Thermal protection activation indicates that the unit has been subjected to abnormal operating conditions. If the thermal protection remains activated or
activates and deactivates repeatedly, it is recommended that a qualied electrician or a certied repair centre examine the unit in order to make sure it is
not damaged. (Refer to the limited warranty)
If the unit is damaged or defective, cut off power supply at circuit breaker and call a certied repair centre. (Refer to the limited warranty)
INSTALLATION
Suggested mounting height from bottom of dryer
MEN 45” (115 cm)
WOMEN 43” (110 cm)
TEENAGERS 41” (105 cm)
SMALL CHILDREN 35” (90 cm)
HANDICAPPED 37” (95 cm)
MINIMUM HEIGHT 15” (40 cm)
RECOMMENDED FASTENERS
Masonry walls: 1/2” expansion sleeve with 1/4” lag bolt
Hollow walls: 1/4” wing type through bolt
Wood walls: 1/4” lag screw with washer
WARNING

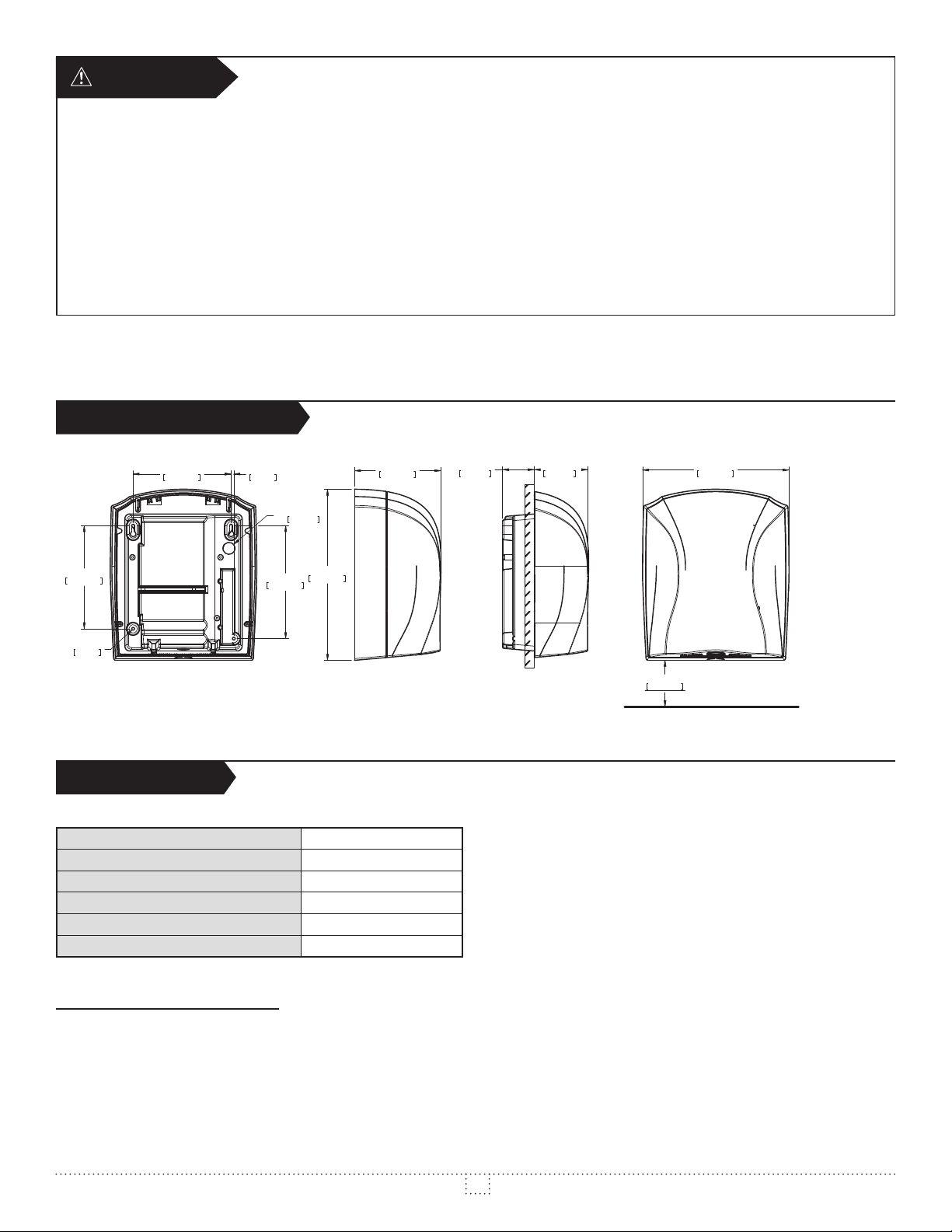

TECHNICAL DRAWINGS
Note: When a part of the product specication must be changed to improve operability or other functions, priority is given to the product specication itself. In such
instances, the instruction manual may not entirely match all the functions of the actual product. Therefore, the actual product and packaging, as well as the name
and illustration, may differ from the manual.

3INSELN0418
ELECTRICITY:
TURN OFF THE POWER BEFORE CONNECTING THE UNIT
Check if the power supply corresponds to that indicated on the nameplate.
Connect the dryer to a bypass circuit according to electrical and building codes in your area.
Connect the power cable to the terminals of the hand dryers, as shown in the wiring diagram inside the cover of the dryer.
Do not forget to connect the ground wire to the ground cover on the terminal available at the motor base.
If the hand dryer is located in a shower or in other wet locations, it shall be protected by a ground fault circuit breaker.
Note: : When installing on a gypsum wall, ensure that at least two anchor bolts are set in a beam of wood or steel. Where possible, it is
recommended to install a wooden beam behind the gypsum (see # 3). If the other 2 screws must be xed in a hollow wall, use ¼” wing type
through bolts.
HOW TO REMOVE THE COVER OF THE HAND DRYER: (1-2-3)
Screw the two screws of the cover using the key supplied with each unit, slide the cover up, then tilt it backward to remove it.
FIG. 1 FIG. 2 FIG. 3
HOW TO REPLACE THE COVER OF THE HAND-DRYER: EXECUTE STEPS IN REVERSE (3-2-1)
Fully insert the cover of the air outlet by tilting it, replace the cover on the housing and slide it down so that it clings to its support, then secure it
by removing the 2 screws.
Check the serial number inside the hand-dryer before replacing the cover to ensure it matches the serial number at the bottom of the cover. DO
NOT SWITCH COVERS OF THE UNITS.
FIG. 1 FIG. 2
Determine the location of the hand dryer and cut out a wall opening to the suggested dimensions.
Bring the power cable into the installation hole.
RECESSED INSTALLATION
FLOOR
minimum 15 " (see table)
8 7/16
214mm
9 7/8
251mm

4INSELN0418
After reinforcing the side of the installation hole (for drywall), remove the surface sleeve and insert the wall plate assembly in order to mark the
mounting holes. Then secure the unit to the wall supports (joist and building block). Replace cover, do not forget to connect the ground wire.
SURFACE INSTALLATION
FLOOR
minimum 15 " (see table)
7"
178mm
REINFORCEMENT
STUD
FIG. 3 FIG. 4 FIG. 5
FIG. 3
FIG. 1
FIG. 4
FIG. 2
FIG. 5
Determine the location you want the hand dryer and screw the two top anchor screws as per the above dimensions and leave the screws out
about 1/2 inch (13mm).
Suspend the hand dryer on the two top anchor screws, locate the bottom holes and secure the unit to the wall with the two bottom anchor screws.
Connect power cable to the hand dryer. Replace cover, do not forget to connect the ground wire.

5INSELN0418
TABLE DE RÉVISION
REV. DATE DESCRIPTION MODIFIÉ PAR | MODIFIED BY
2014-10-24 / tdinh
2014-10-23
3rd ANGLE PROJECTION 1 / 1
M-XXXXX
xxxxx
X:\03_R&D\DEVELOPPEMENT\04-CV_CVAC\2013\CV-003 Refonte El-Nino V2\Dessin pour manuel d'installation\ELN - vue de la carte
3e ANGLE DE PROJECTION
XXXXX
TOLÉRANCES SI NON-SPÉCIFIÉES | TOLERANCES IF NOT SPECIFIED
LINÉAIRE | LINEAR: ANGULAIRE | ANGULAR:
EMPLACEMENT:
MIS À JOUR | UPDATED:
CONSENT OF STELPRO DESIGN.
CRÉÉ LE | CREATED ON:
CRÉÉ PAR | CREATED BY:
DESCRIPTION:
# PIÈCE | PART #:
.XX = ±.03" [ ±.76mm]
.XXX = ±.015" [ ±.38mm]
XX° = ±1°
XX.X° = ±0.5° FEUILLE | SHEET:
FORMAT | SIZE: A
L'INFORMATION CONTENUE DANS CE DOCUMENT EST
LA PROPRIÉTÉ DE STELPRO DESIGN. EN AUCUN CAS,
L'INFORMATION NE PEUT ÊTRE UTILISÉE, SAUF SOUS
AUTORISATION ÉCRITE DE STELPRO DESIGN.
THE INFORMATION IN THIS DOCUMENT IS THE
PROPERTY OF STELPRO DESIGN. IN ANY CASE, THE
INFORMATION CAN'T BE USED, EXCEPT THE WRITTEN
MATÉRIEL | MATERIAL:

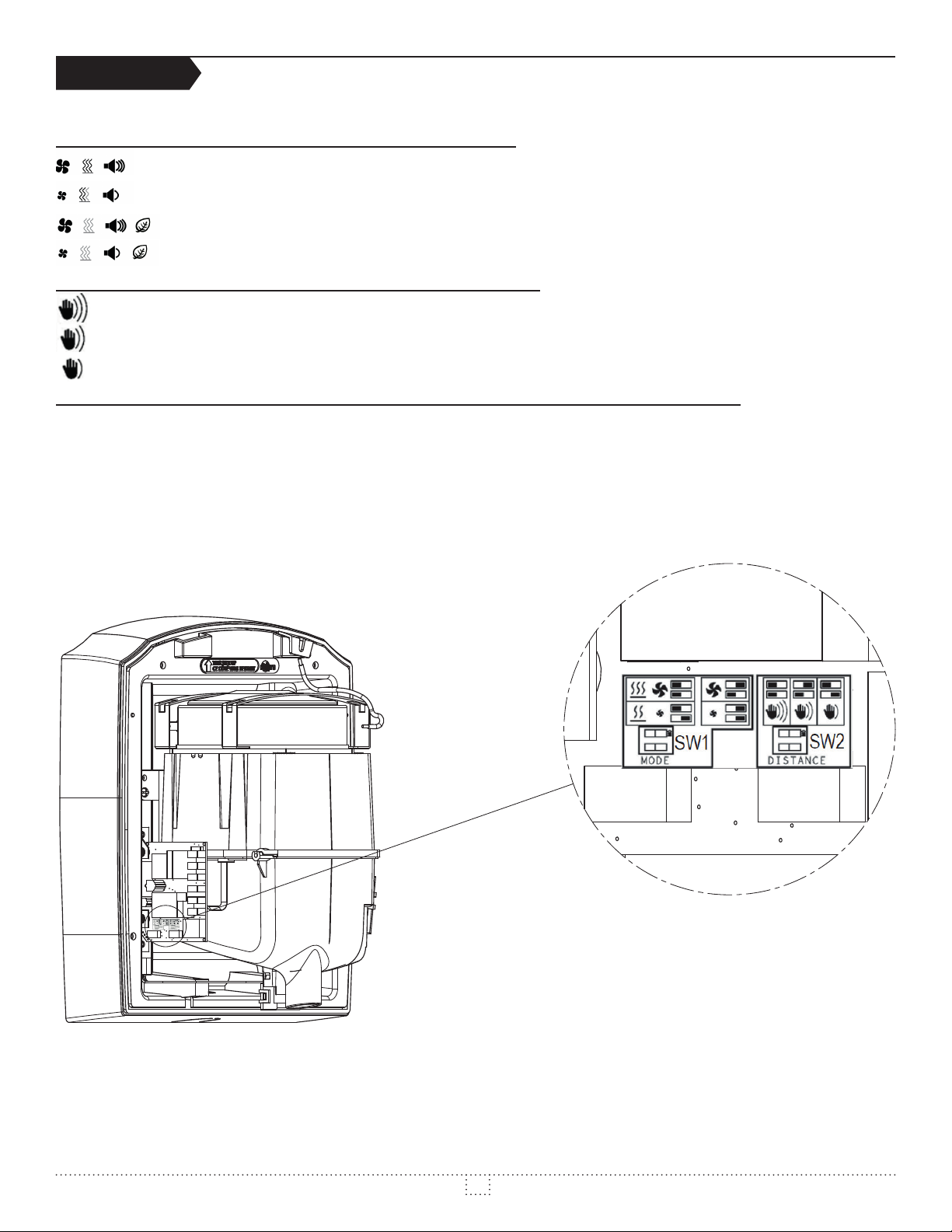

CONTROLS
Your EL-NIÑO hand dryer is equipped with electronic controls to customize the unit to meet your needs.
FOUR OPERATIONAL MODES - DESCRIPTION AND SYMBOLS
ULTIMATE – High air speed and full heating power for quick drying
COMFORT – Reduced air speed and moderate heating power for a comfortable noise level and heat range
ECONOMICAL – High air speed without heat for quick drying with energy and cost savings
HARMONY – Reduced air speed without heat for energy savings and a moderate noise level
THREE SENSITIVITY DETECTIONS - DESCRIPTION AND SYMBOL
Maximal detection – standard (4’’)
Medium detection - decreased
Minimal detection - minimum
FOR OPERATIONAL ADJUSTMENTS BY A QUALIFIED TECHNICIAN, FOLLOW THESE STEPS
1. Disconnect electricity to unit at breaker.
2. Remove cover by executing steps from Fig. 1 to 3 on the page 3.
3. Determine the operation mode and desired sensitivity by choosing the desired conguration of dip switches SW1 and SW2 as shown on the
diagram here.
4. Replace cover and restore electricity.
NB : Never leave a powered unit (without its cover) unattended.

6INSELN0418
The hand dryer will start automatically once hands are placed 4 inches (10cm) below the opening of the air output. The unit will shut off once the
hands are no longer below the opening.
MAXIMUM DURATION OF OPERATION
As long as the sensor detects the presence of the hands, the unit will function continuously for 60 seconds. After this delay, the user must withdraw
his hands and put them back under in order for the unit to start up again
The hand dryer will stop 1 second after no hand movement is detected
OPERATION
MAINTENANCE
TROUBLESHOOTING
N.B. In order for the warranty to be valid, the unit must be cleaned regularly.
SWITCH OFF THE MAIN BREAKER IN THE ELECTRICAL PANEL OR REMOVE THE FUSE BEFORE CLEANING THE UNIT.
OUTSIDE
Gently wash cover (including air Inlet holes) using a soft cloth or sponge and a mild soap or detergent with luke warm water to loosen dirt
and grime.
INSIDE
CLEANING SHOULD BE PERFORMED BY QUALIFIED SERVICE PERSONNEL
In normal use, dryer will require cleaning once a year. Heavier usage requires more frequent cleaning. Lint on the air inlet or other internal parts
of dryer will reduce efciency and shorten the life of the working parts. To clean, remove cover by screwing the tamper-proof bolts from cover with
the special wrench provided with each dryer. Use a small, soft brush to gently clean all parts.
PROBLEM DEFECTIVE PART OR PART TO CHECK
The hand dryer does not turn on • Verify that the dryer is receiving power by checking electrical service, circuit breaker or fuse
• Obstructed or defective infrared sensor
• Check for loose wires on dryer control and for foreign material on dryer sensor next to air outlet
• Check motor
• Defective control board
The hand dryer runs continuously • Obstructed or defective infrared sensor
• Defective control board
The hand dryer does not turn on, or turns on by
itself
• Obstructed or defective infrared sensor
• Check for foreign material on optical sensor next to air outlet
• Check for loose wires on dryer control
The hand dryer blows only cool air • Check if Economical or Harmony mode is selected
• Check for loose connections to heating element
• Replace heating element
N.B. If you do not solve the problem after checking these points, cut off the power supply at the main electrical panel and contact our
customer service (see the “Limited warranty” section to obtain the phone numbers).

7INSELN0418
1
2
3
4
5
6
7
8
910
REPLACEMENT COMPONENT LIST
REF. # PART # DESCRIPTION
1ELN-002W COVER (MOUNTING BRACKETS INCLUDED) WHITE
ELN-002BC COVER (MOUNTING BRACKETS INCLUDED) BRUSHED CHROME
2ELN-004W SURFACE ADAPTER WHITE
ELN-004BC SURFACE ADAPTER BRUSHED CHROME
3 MO-79 120V 50/60HZ 130CFM
MO-80 208V 50/60HZ 130CFM
MO-81 240V 50/60HZ 130CFM
4ELF-ELN0901 HEATING ELEMENT ASSEMBLY 120 V/900 W
5 CIR-033 ELECTRONIC CIRCUIT BOARD ELNINO HAND DRYER NEW GENERATION
6 CIR-008 INFRARED SENSOR
7ELN-001 5VA PLASTIC ENCLOSURE
8ELN-013 TAMPER-PROOF WRENCH
9 PROT-111 THERMAL PROTECTION L140-20°F
10 ELN-007 RUBBER INSULATOR

8INSELN0418
LIMITED WARRANTY
This limited warranty is offered by Stelpro Design Inc. (“Stelpro”) and applies to the following product made by Stelpro: ELN models. Please
read this limited warranty carefully. Subject to the terms of this warranty, Stelpro warrants its products and their components
against defects in workmanship and/or materials for the following period from the date of purchase: 5 years (3 years on electronic
components). This warranty applies only to the original purchaser; it is non-transferable and cannot be extended.
CLAIM PROCEDURE
If at any time during the warranty period the unit becomes defective, you must cut off the power supply at the main electrical panel and
contact 1) your installer or distributor, 2) your service center or 3) Stelpro’s customer service department. In all cases, you must have a copy
of the invoice and provide the information written on the product nameplate. Stelpro reserves the right to examine or to ask one of
its representatives to examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire
unit, refund its purchase price or repair a defective part. Please note that repairs made within the warranty period must be authorized in
advance in writing by Stelpro and carried out by persons authorized by Stelpro.
Before returning a product to Stelpro, you must have a Stelpro authorization number (RMA). To obtain it, call the customer service department
at:1-800-363-3414 (electricians and distributors - French), 1-800-343-1022 (electricians and distributors - English), or 1-866-766-6020
(consumers). The authorization number must be clearly written on the parcel or it will be refused.
CONDITIONS, EXCLUSIONS AND DISCLAIMER OF LIABILITY
This warranty is exclusive and in lieu of all other representations and warranties (except of title), expressed or implied, and Stelpro expressly
disclaims and excludes any implied warranty of merchantability or implied warranty of tness for a particular purpose.
Stelpro’s liability with respect to products is limited as provided above. Stelpro shall not be subject to any other obligations or liabilities
whatsoever, whether based on contract, tort or other theories of law, with respect to goods or services furnished by it, or any undertakings,
acts or omissions relating thereto. Without limiting the generality of the foregoing, Stelpro expressly disclaims any liability for property or
personal injury damages, penalties, special or punitive damages, damages for lost prots, loss of use of equipment, cost of capital, cost of
substitute products, facilities or services, shutdowns, slowdowns, or for other types of economic loss or for claims of a dealer’s customers
or any third party for such damages.
Stelpro specically disclaims all consequential, incidental and contingent damages whatsoever.
This warranty does not cover any damages or failures resulting from: 1) a faulty installation or improper storage; 2) an abusive or abnormal
use, lack of maintenance, improper maintenance (other than that prescribed by Stelpro) or a use other than that for which the unit was
designed; 3) a natural disaster or an event out of Stelpro’s control, including, but not limited to, hurricanes, tornadoes, earthquakes, terrorist
attacks, wars, overvoltage, ooding, water damages, etc. This warranty does not cover any accidental or intentional losses or damages,
nor does it cover damages caused by negligence of the user or owner of the product. Moreover, it does not cover the cost of disconnection,
transport, and installation.
The warranty is limited to the repair or the replacement of the unit or the refund of its purchase price, at the discretion of Stelpro. Any parts
replaced or repaired within the warranty period with the written authorization of Stelpro will be warranted for the remainder of the original
warranty period. This warranty will be considered null and void and Stelpro will have the right to refuse any claims if products have been
altered without the written authorization of Stelpro and if the nameplate numbers have been removed or modied. This warranty does not
cover scratches, dents,corrosion or discoloration caused by excessive heat, chemical cleaning products and abrasive agents. It does not
cover any damage that occurred during the shipping.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages and some of them do not allow
limitations on how long an implied warranty lasts, so these exclusions or limitations may not apply to you. This warranty gives you specic
legal rights and you may have other rights which vary from state to state or from province to province.
LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY
LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY
LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WA
LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WA
STELPRO DESIGN INC. | Saint-Bruno-de-Montarville | Québec | J3V 6L7
