Stem Ceiling1 User manual

100 Microphones

Distributed Throughout

Seven Rings

Unscrew the ceiling bracket from the metal ceiling cap

and connect the bracket to a weight-bearing structure.

Using an Ethernet cable, connect the device to a network

that supports PoE+.

Note: If your network doesn’t support PoE+, you should

purchase a separate PoE+ injector or PoE+ enabled switch.

This connection provides the device

Mount the device in a desired location in the room.

with power, data, and other IoT and SIP capabilities.

If you need video conferencing capabilities, use the USB

type B cable provided and connect the device to your PC.

Lastly, we recommend you complete setting up your

room via the Stem ecosystem platform.For more

information on setting up your room, you can visit

stemaudio.com/manuals or stemaudio.com/videos

Note: The ecosystem platform is available on the Stem

Control or in iOS, Windows, and Android apps. You can

also access the platform through your web browser by

typing in the product’s IP address.

That’s it! Your Ceiling is all set up to work as a standalone

device.

All Stem endpoints can be used as solo standalone devices or

in unison with other devices within the Stem ecosystem. If

you plan on using this device as an individual unit, then follow

the standalone setup instructions. If you plan on using

multiple Stem devices in your room, then skip ahead to the

multiple device setup instructions.

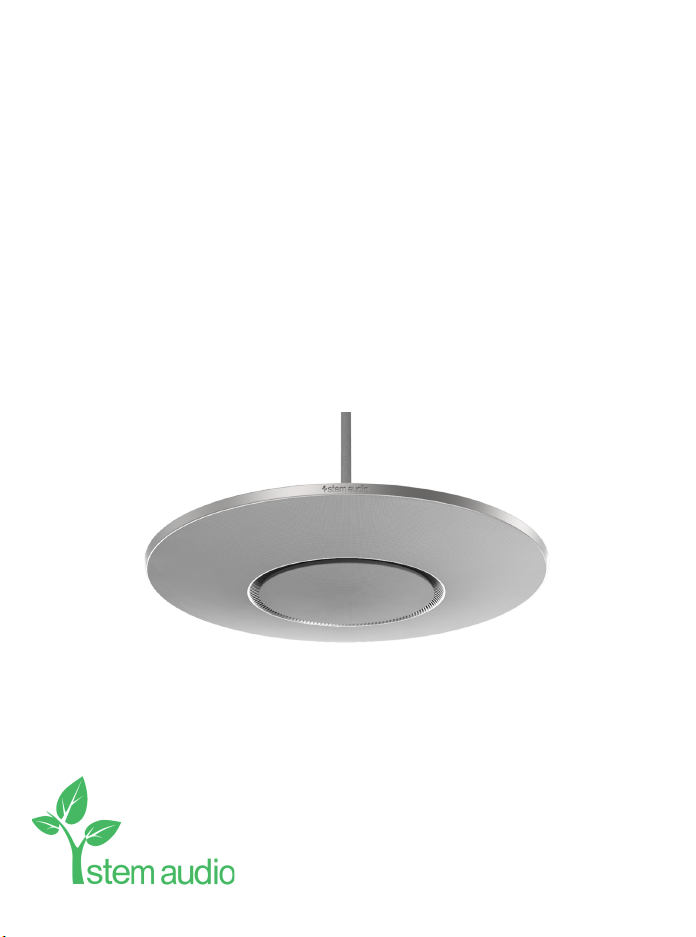

Stem Ceiling is a microphone array designed to be mounted

above a conferencing space. Whether low profile mounted on

a drop ceiling or suspended like a chandelier, Ceiling gives you

the aesthetics you need with uncompromising performance.

Ceiling's 100 built-in microphones and three array options

(wide, medium, and narrow), focus on who’s speaking so you

can focus on your meeting.

User Manual

Ceiling

Overview Standalone Setup (option 1) Multi-Device Setup (option 2)Setting Up

EthernetUSB

Suspended "Chandelier" Mounting

Connect the necessary Ethernet and optional USB

cable to the device.

model: ceiling1

You must complete setting up your room via the Stem

ecosystem platform.For more information on setting up

your room, you can visit stemaudio.com/manuals or

stemaudio.com/videos

Note: The ecosystem platform is available on the Stem

Control or in iOS, Windows, and Android apps. You can

also access the platform through your web browser by

typing in the product’s IP address.

Using an Ethernet cable, connect the device to a network

that supports PoE+.

Note: If your network doesn’t support PoE+, you should

purchase a separate PoE+ injector or PoE+ enabled switch.

This connection provides the device

Mount the device in a desired location in the room.

with power, data, and other IoT and SIP capabilities.

That’s it! Your Ceiling is all set up to work within the

Stem ecosystem.

Using the screw at the bottom of the suspension

wire, screw in the wire to the device.

Note: Since Ceiling does not have speakers, standalone set up

should only be used for audio capturing. If you plan on using this

device for conferencing, please refer to multi-device set up so

that you can utilize either another Stem device with speakers or

install it alongside a Hub which will allow you to connect to

external speakers.

LED Light Ring

Slide the connector cover and the cover cap over the

suspension wire.

Align the plastic connector cover with the indents and

gently click it into place followed by the cover cap.

Feed all of the cables through the cable hole on the

metal ceiling cap and connect the suspension cable by

pressing up on the spring stopper and feeding the

wire through.

Now you can determine your desired suspension

length for the cable.

Lastly, screw in the metal ceiling cap into the ceiling

bracket to complete the installation.

Since Ceiling does not have speakers, make sure you're

also utilizing either a Stem Wall or Stem Table in the

room (both have speakers). Otherwise, you can connect

external speakers to your Hub for sound.

When setting up multiple Stem devices in a room, make

sure you have a Hub. All communications between the

device and the far-end will be done through the Hub, so

no USB connection is needed.

Suspension Wire

Cover Cap

Connector Cover

Connector

Panel

Metal Ceiling Cap

Ceiling Bracket

Spring Stopper

Connector Panel

Metal Ceiling Cap
