Step2Gold Ta-Da 13820 User manual

,
LY
IMPORTANT RETAIN FOR FUTURE REFERENCE
: READ CAREFUL
www.step2gold.com
®
2015 Step2Gold Co., LTD.
Ta-Da®CHAIR Model #13820 / #13850 / #13880

r, offers rest for
2015 Step2Gold Co., LTD.
1
． Ta-Da®Chair is a versatile mobility aid that simultaneously provides the user with a
walking stick for support and a seat for resting. The walking stick is for assisting
users to obtain stable movement; it is not a medical product. The seat is designed
for temporary sitting; it is not a regular seat.
． This design, which instantly converts a walking stick into a chai
tired legs and knees at a moment’s notice.
． With its unique design, the seat can adjust itself according to the angle of the
user’s body to maximize sitting comfort.
． Once converted into a stick, the bulk weight of the collapsed portable chair is up
near the stick’s handle, thereby reduceing the users’ effort to swing and carry the
stick.
．Several groundbreaking patented designs make the product safe and easy to use.
Users will be able to experience its extraordinary functionality and practicality.
Ta-Da®CHAIR Character
Ta-Da®CHAIR Suggested Use
． People, with ages 16 or above, are able to walk independently and have good
sitting balance when sitting.

2015 Step2Gold Co., LTD.
2
Ta-Da®CHAIR Features
51cm
A : Plastic Handle
F : Collapsible Seat
I：Auto Leg-lock Device
J : Foldable Legs
H : Shaft
K L
K R
B : Wrist Strap
D : Rotary Switch Safety Lock
E : Rotary Switch
C : Groove
G : Center Piece
K S : Non-slip Rubber Feet
L：Drainage hole

Suggestions for selection of
walking stick length
2015 Step2Gold Co., LTD.
3
20°-30°
15 cm
．To Choose a suitable stick length, stand with your shoulders drooping naturally
and your arm bent at about a 20° to 30°angle while holding onto the handle. The
rubber foot should be placed about 15 centimeters from the front of your foot on
the side where you hold the stick. The chart on the right is approximate and is to
be used as reference only. Please choose the suitable length according to what is
most comfortable for you.

Product Specifications
Material : Aluminum alloy, PP, Nylon, Rubber, Stainless
＊Weight Capacity: 80kgs
2015 Step2Gold Co., LTD.
4

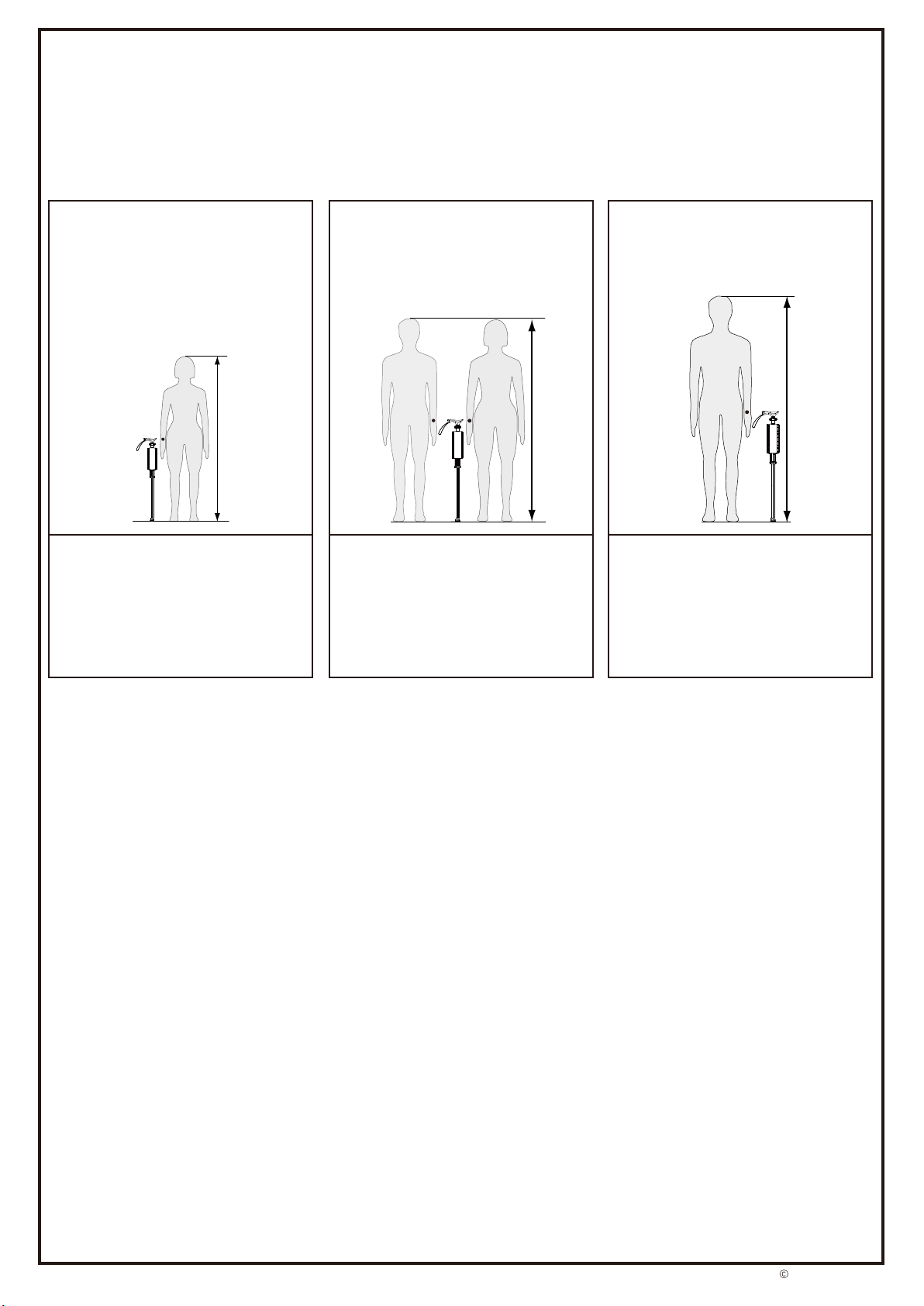

Model : #13820
5'~5'6'' (152cm~169cm)
User Height
User Height User Height
Model : #13850 Model : #13880
5'7''~5'9'' (170cm~176cm)
5'10''~6'1'' (177cm~185cm)
Walking stick length : 32¼'' (82cm)
Weight : 1.96lbs (0.89kgs)
Seat Height : 20" (51cm)
Walking stick length : 33½'' (85cm)
Weight :
1.98lbs (0.90kgs)
Seat Height : 20" (51cm)
Walking stick length : 34½'' (88cm)
Weight :
2.00lbs(0.91kgs)
Seat Height : 20" (51cm)

5
2015 Step2Gold Co., LTD.
pinch point
pinch point
(Fig. 3)(Fig. 1) (Fig. 2)

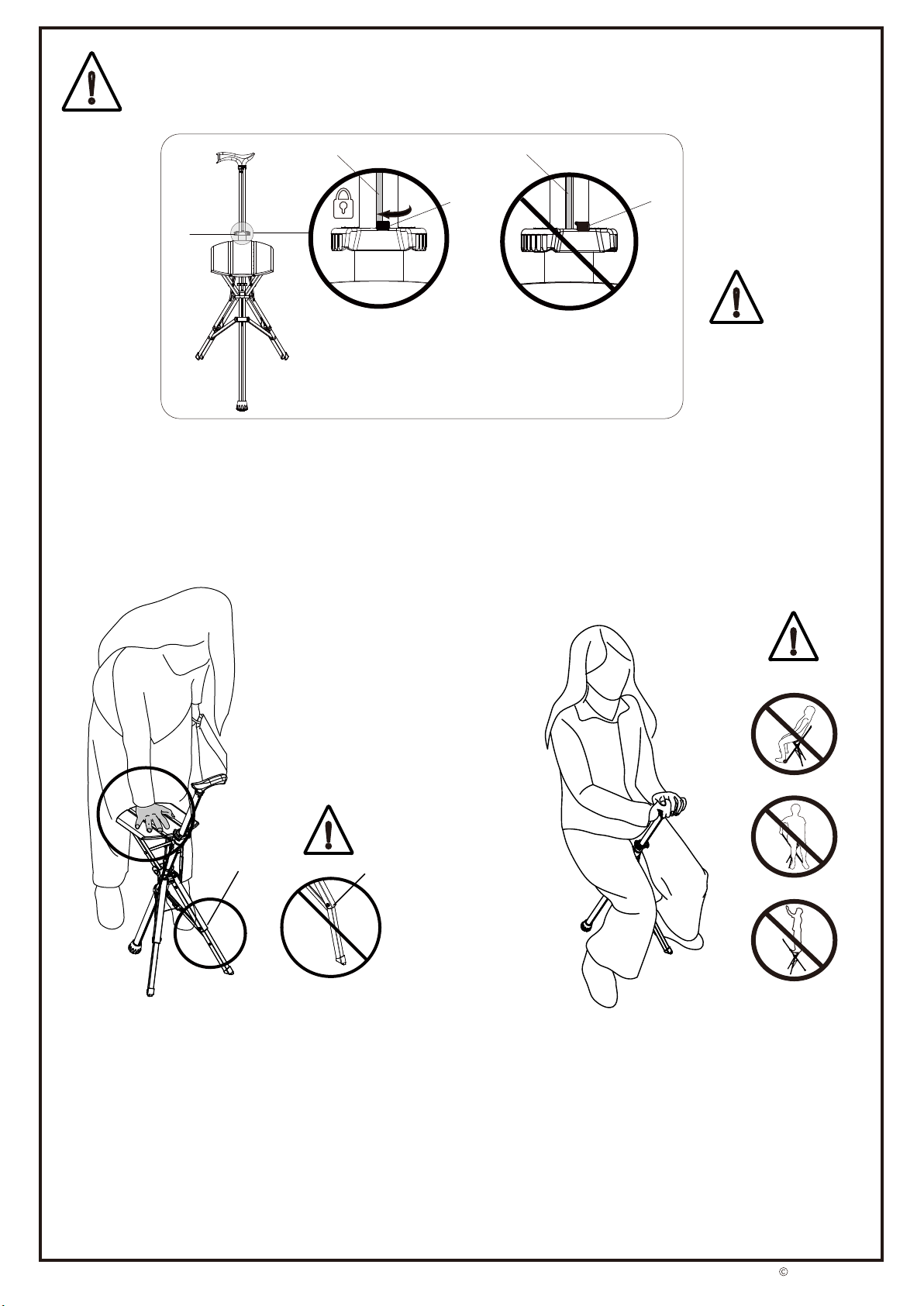

SAFETY WARNINGS
For your safety, please use the product by following the below instructions.
!
．This product offers the functions of a walking stick and a seat; please do not use it for other purposes.
．Because this product also functions as a chair, its weight is slightly higher than that of a standard walking
stick. Choose a suitable walking stick model according to the user’s physical conditions, considering the
length, weight, and handling comfort.
．
The seat area is small; people without good sitting balance should not use it.
．Before using, inspect to make sure all the parts are tight, undamaged, and properly in place. If there is any
concern, please stop using it.
．Use this product on firm and flat surfaces. Avoid use on the floor with gaps, height differences, or surfaces
made slippery by ice, oil, moss, etc. Do not use in bathrooms or moving vehicles.
．Make sure to keep it at a safe distance from yourself or others when opening.
．To prevent accidents caused by the seat tilting forward due to an excess of force on the handle, do not use
the handle as support when standing up or sitting down. (Fig. 1)
．This product is for single person who weighs 80kgs or less.
．For straddling only: do not sit sideways, settle back, or stand on the chair. (Fig. 2)
．When using this product, please sit on the center of the seat. Do not sit on the handle or the edge of seat.
．Before sitting, make sure the legs and the seat of the product are fully opened and secured.
．When sitting down, make sure all three legs of the chair are touching the ground simultaneously.
．Sit on the chair steadily, and, as seated in particular, do not rock or drag the chair or only use two legs of the
chair as support.
．When getting up from the seat, please be careful not to snag the hem of your shirt or dress on the chair to
avoid stumbling.
．Be careful of the risk of pinching hands when folding and unfolding. (Fig. 3)
．When using as a walking stick, be careful not to accidentally press the rotary switch, which would cause the
chair to open suddenly.
．Use with caution when walking on uneven or grooved surfaces-- the walking stick might sink into a groove or
indentation.
．In wet areas the non-slip capacity of the non-slip rubber feet will be reduced. Please use it carefully.
．Rubbers on the Ta-Da®
Chair feet are classified as consumables. In case worn, damaged, slip-proof
deteriorated or detached to expose sharp metal, please stop using immediately.
．The product is a mobility aid device, not a medical product.
．For ages 16 and up, keep away from children to prevent accidents such as falling over from climbling,
pinching of the hands, accidental conversion, or injuries caused by conversion.
．To prevent the danger caused by loss of functions, please do not dismantle or modify the product.
．When not using, please store the product indoors in a cool and ventilated place, and keep it away from
intense light or heat.
．Use in inclement weather conditions is forbidden: Including snow fall and area below zero Celsius degree.
．As Ta-Da® Chair cannot be folded or deployed, the product may reach the end of service life and please stop
using the product.
．The designed service life is limited to x years indoor or x years outdoor. Durability would be impaired by
intensive solar radiation, dust, high temperature and continually drenched by rain, In case any doubt raised
during usage, please stop using the product.

OPEN
Video

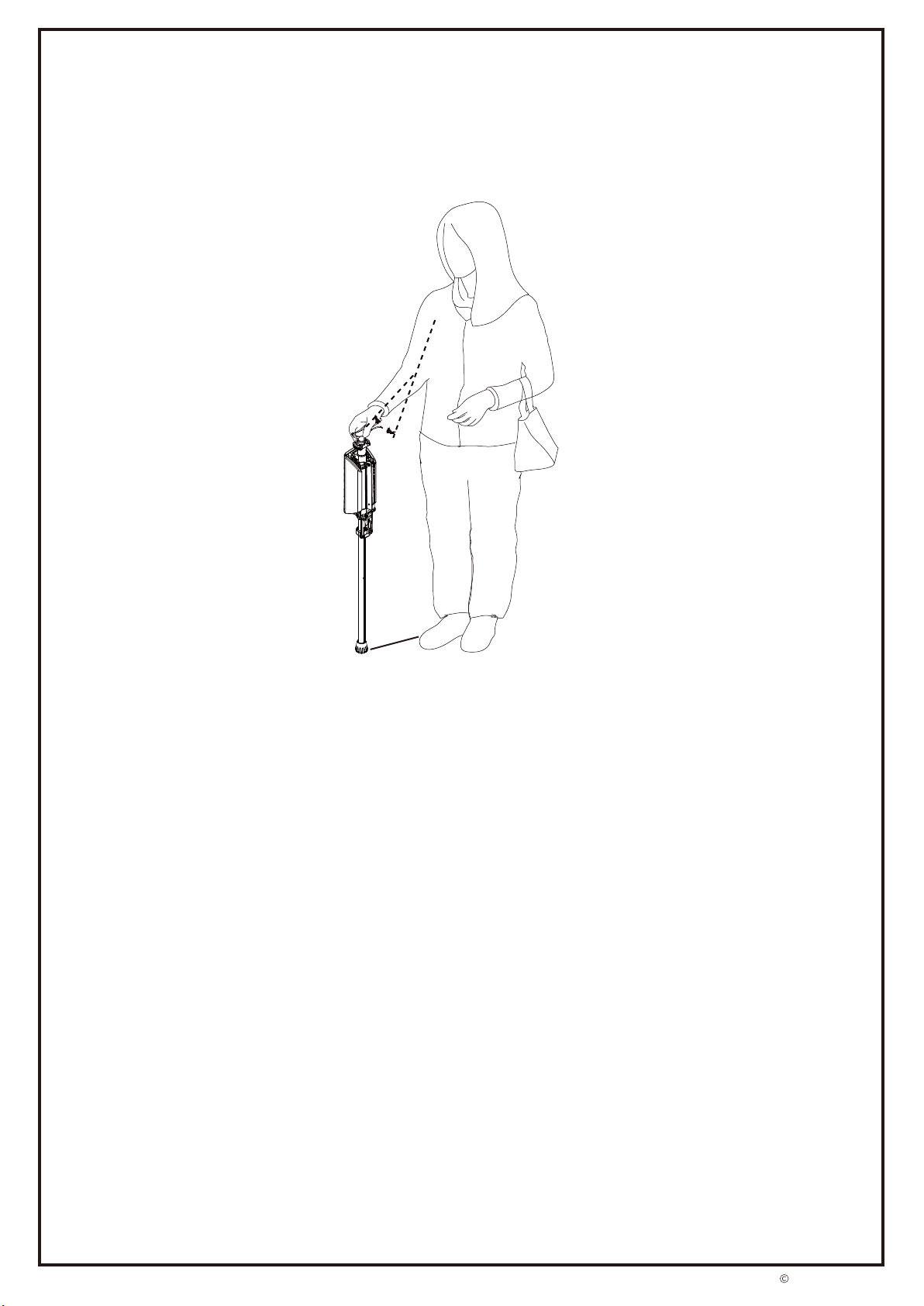

．Find a firm and flat surface and place the walking stick vertical to the floor. Turn
the Rotary Switch (E) counter-clockwise all the way to the unlocked position, and
then the seat and the legs will slide down and convert automatically into a three-
legged chair.
2015 Step2Gold Co., LTD.
6
E
E
20°-30°
15 cm

SAFETY WARNING
!
．Inspect to be sure the seat and the legs are fully open and that all the parts are
intact. Press the seat with your hand to ensure stability. For user
safety, sit facing
the handle with the shaft between your legs and your hands
on the handle for
balance.
2015 Step2Gold Co., LTD.
7
． Make sure the Rotary Switch Safety Lock (D) is fixed right on top of the Groove
(C) when locked.
E
D
C
D
C
!
J
J
!
!

FOLD
Video
E
2015 Step2Gold Co., LTD.
8

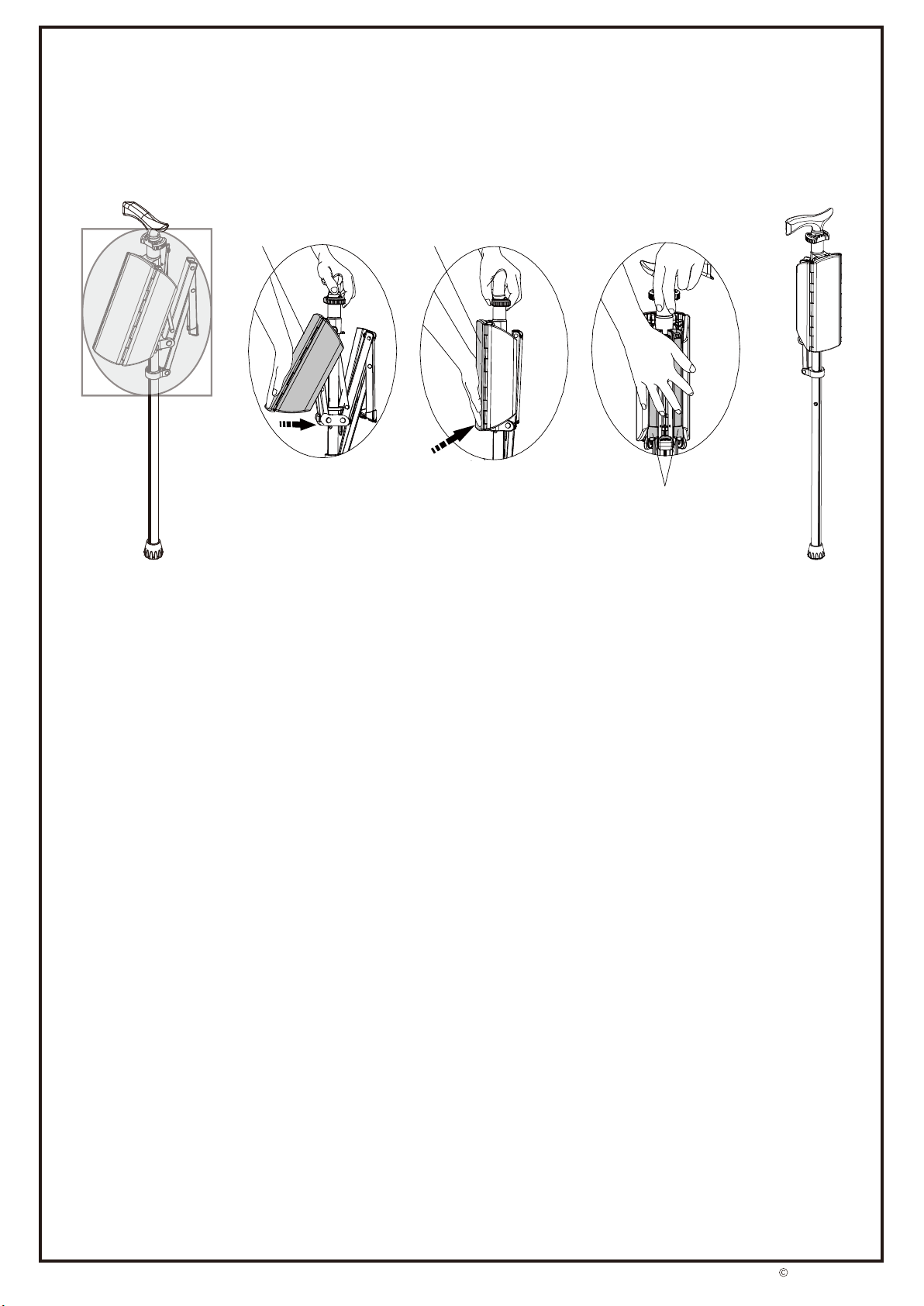

．Pull up the Rotary Switch (E) until it reaches top of the shaft and then turn the
Rotary Switch (E) clockwise all the way to the locked position.
．
Hold the handle with one hand and turn the Rotary Switch (E) counter- clockwise
all the way to the unlocked position with the other hand.
E
E
EEE

2015 Step2Gold Co., LTD.
9
J
G
Click
G
． Press the lower Center Piece (G) until hearing the clicking sound of the inner hook.
Ta-Da®Chair can be used as a walking stick after the legs (J) are folded into
the
inner side of the seat and firmly secured.

2015 Step2Gold Co., LTD.
10
．Use a cloth and water to remove dust, and then wipe dry.
．If the product is not opening and folding smoothly after use due to blockage by dirt,
rinse with water while it is in the open position. Lightly tap the walking stick
vertically on the floor to ensure the water is fully drained out of the shaft through
the hole on the bottom of the rubber feet, and then wipe dry and place in a shady
area till it is fully dry.
．Keep dry and clean. Avoid collisions if possible.
Clean & Maintenance
．Before using, please make sure the water is fully drained out from the
bottom of the rubber feet to prevent the danger caused by reduced traction
due to wet rubber feet.
．When not using, please store this product indoors in a cool and ventilated
place and keep it away from intense sunlight or heat to prevent
discoloration, deformities, or material degradation.
!
Strap
A
B
*
A
．When not in use, the strap (A) can be folded into the handle (B).
*Hooks not included.
．The strap offers alternative to hang the stick onto object.

11

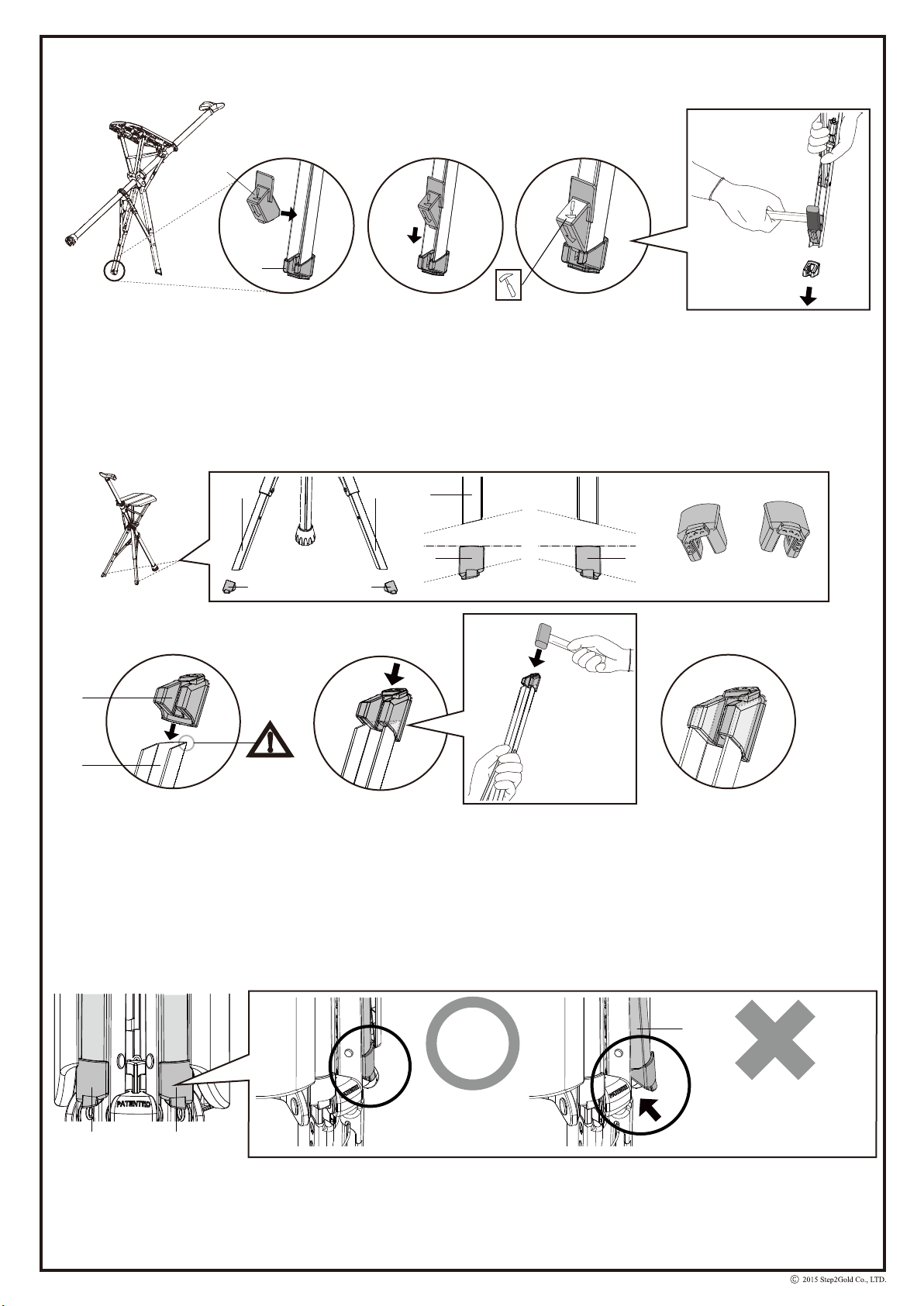

Parts Replacement
K
Consumables
R
KL
KS
KS
K
About 60°Hot Water
Non-Slip Rubber feet:
Ks
Non-Slip Rubber feet:KL/KR
KL: For Left LegKR: For Right Leg
M: Non-Slip Rubber feet Disassembly Die
※One set of replacement kit contains 1pc of rubber feet left (KL), 1pc of rubber feet right (KR) and 1pc of Disassembly Die (M).
Non-slip rubber feet: KS/KR/KLare consumables. In case worn or damaged, users can obtain
the replacement from the same store or website where purchasing Ta-Da®Chair.
Remove the Non-Slip rubber feet (KS)
10 sec.
Immerse in the 60° water for 10 seconds. Shake Ks to apart from seat leg.
(Always be cautious to the water with temperature as high as 60°)
Mount the Non-Slip rubber feet (KS)
Shaft
Groove
Tongue (projecting groove) inside the
Non-Slip rubber feet (Ks)
Non-Slip rubber feet (KS) contains a tongue (projecting groove) inside. Aluminum shaft
contains two grooves outside. Make tongue and groove joint and tight the rubber feet to the
aluminum shaft.

KRKL
J
12
１ ２ ３
１ ２ ３
KR
KRKL
KR
KL
KR
KL
KL
KR
KLKL
KL
J
J
J
M
!
①
②
B
A
Remove the Non-Slip rubber feet（KL/KR）
Refer to step 1 and step 2, place the Disassembly Die onto the seat leg. Hammer the face
with icon on (Users need to wear glove during operation and keep people beside from
harmful)
Mount the Non-Slip rubber feet （KL/KR）
Danger
For Right Leg For Left Leg
※As the seat leg is not folded completely, as drawing ②, the rubber feet could be either
mounted incompletely or left-right reversed. Check if rubber feet mounted correctly and
completely.
Normal:
Legs are storaged properly.
IncorrectL
A gap between legs and seat
Tap, strike lightly,
on the new rubber
feet to fit together.
Don’t apply heavy
strike that can
cause new rubber
feet broken.
Cap the rubber feet on the metal leg first, as drawing 2, and then tap, strike lightly, on the
new rubber feet to fit together. Wear protect equipment, such as glove, to protect from injury
caused by sharp metal as mounting rubber feet.

2015 Step2Gold Co., LTD.
13
Patented
Patent Pending
USA
13/962920
14/289120
14/583468
14/645341
Japan
2014-214377
2015-920
EU
EP13178552.9
EP14189631.6
EP15150269.7
Taiwan
TW102112330
TW103101267
TW103110140
China
中国发明专利专利申请号：201310334095.6
中国发明专利专利申请号：201410375192.4
中国发明专利专利申请号：201410782842.7
PCT
CN2012/001584
CN2014/084497
CN2014/079572
Taiwan
Taiwan Patent No. I 480038
Taiwan Patent No. I 483694
Taiwan Patent No. M497463
Japan
Japanese Patent No. 5811366
China
中国发明专利专利号：1708368
中国发明专利专利号：1879521
中国实用新型专利专利号：4415649

Thank you for purchasing the Step2Gold products
Manufacture:Step2gold Co. Ltd.
Add:4F,No.118,Chengdu Rd., Xitun Dist,
Taichung City 40751, Taiwan
Tel:[phone]
Fax:[phone]
Web:www.step2gold.com

