Sterling EUROPA 390 User manual

Sterling Owner's
Service Handbook

Caravan Details
IMPORTANT Enter all your caravan details on this page (see specification in rear of this handbook).
Supplied and Pre-delivery Inspection by:
Model
Model Year
Chassis Number
Key Number
Hitch/Steady Lock Key Number
Internal Length
Overall Length
Overall Width
Maximum External Height
Mass in Running Order
User Payload
Maximum Technical Permissible Laden Mass
Nose Weight
Awning Size
Tyre Pressures/Size
Service History
Signed/Dealer Date

CONTENTS
Annual Service/Inspection Record ...................................2
Warranty............................................................................5
Specifications....................................................................6

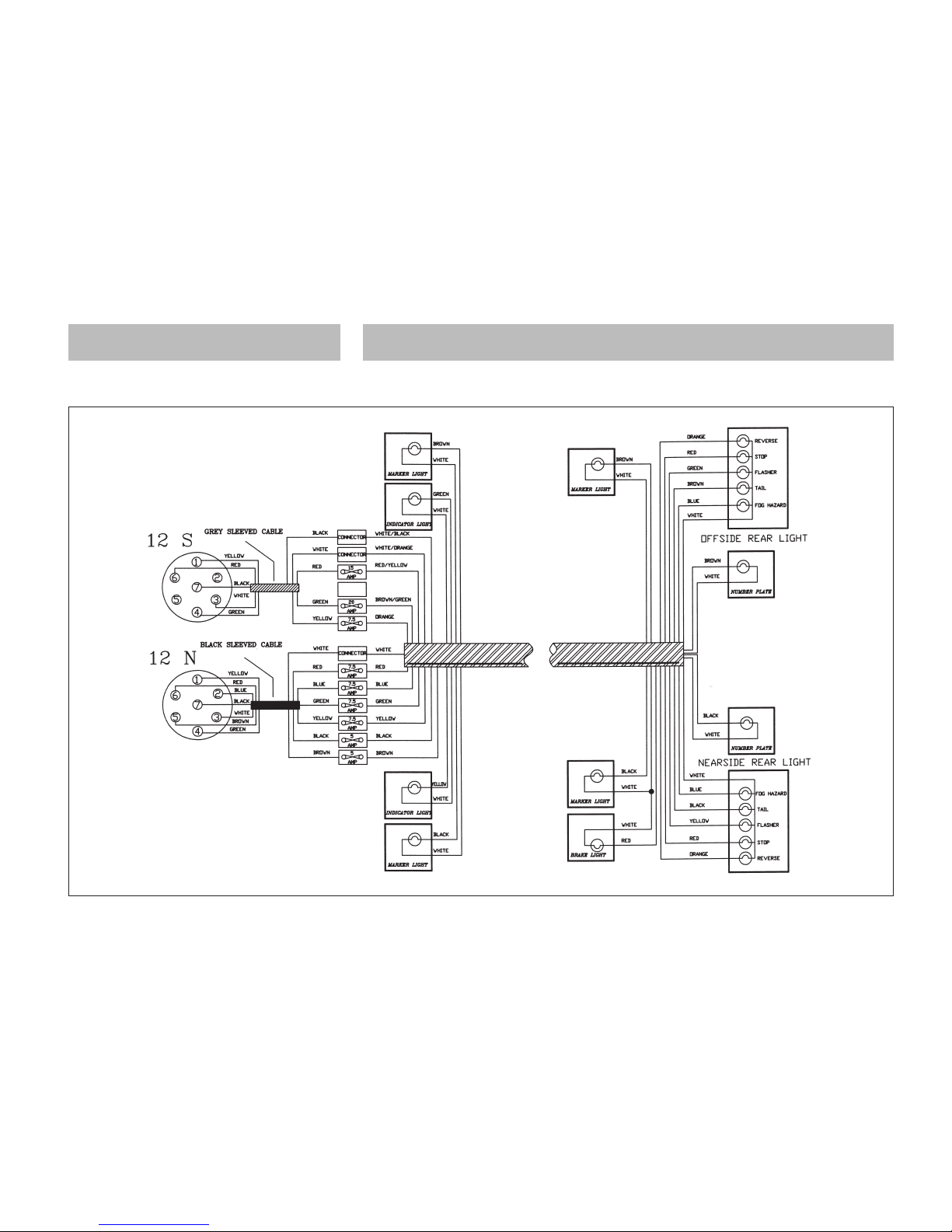

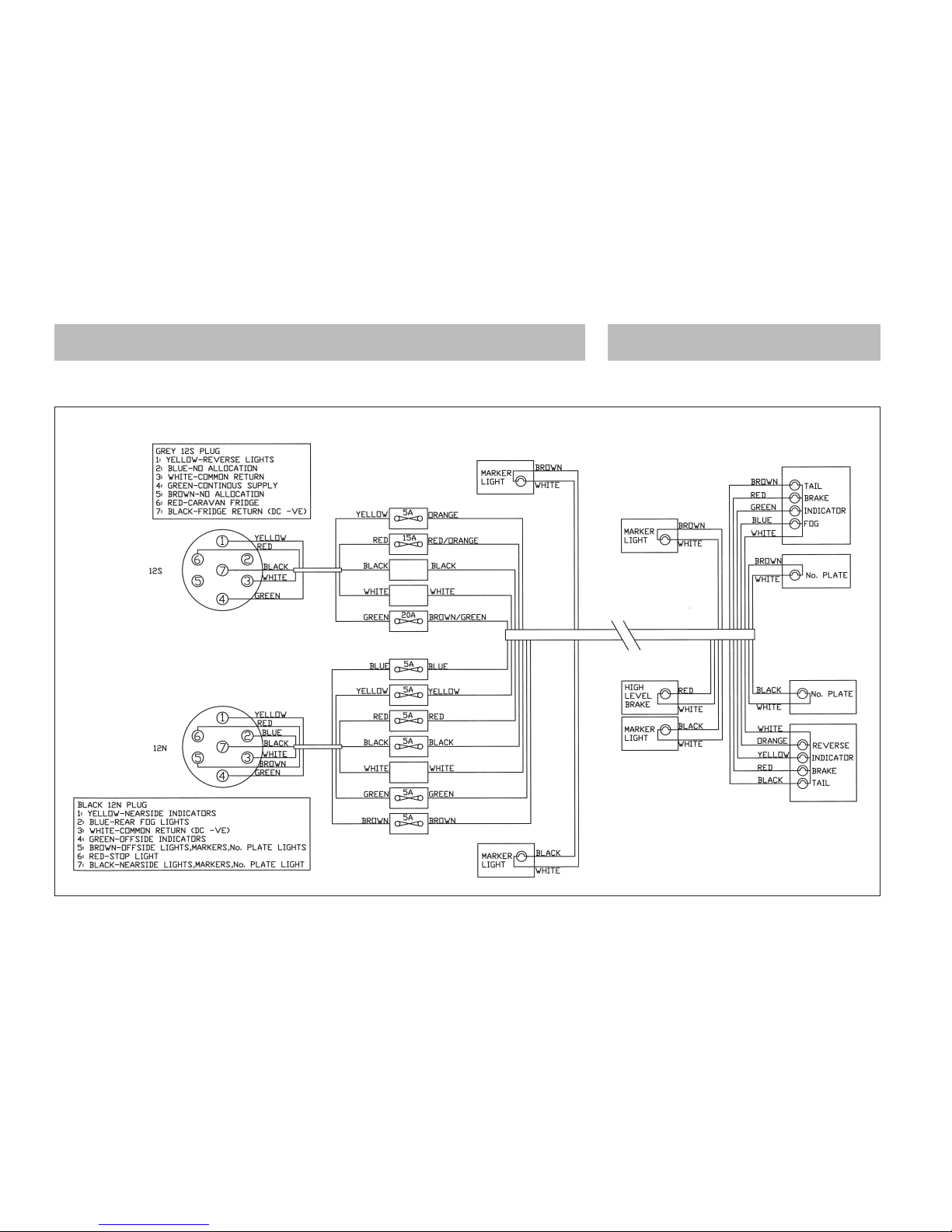

Wiring Diagrams – Road Lights ........................................9

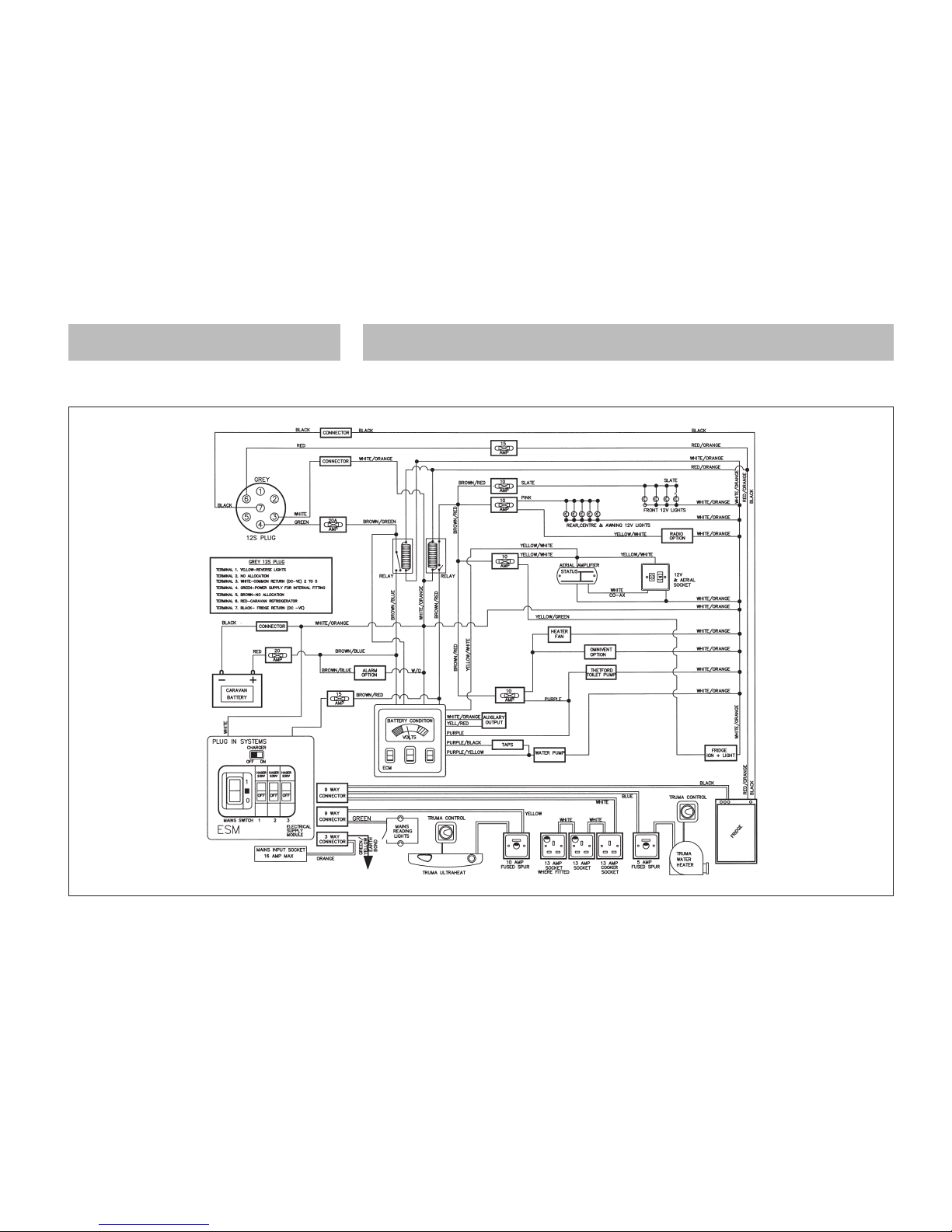

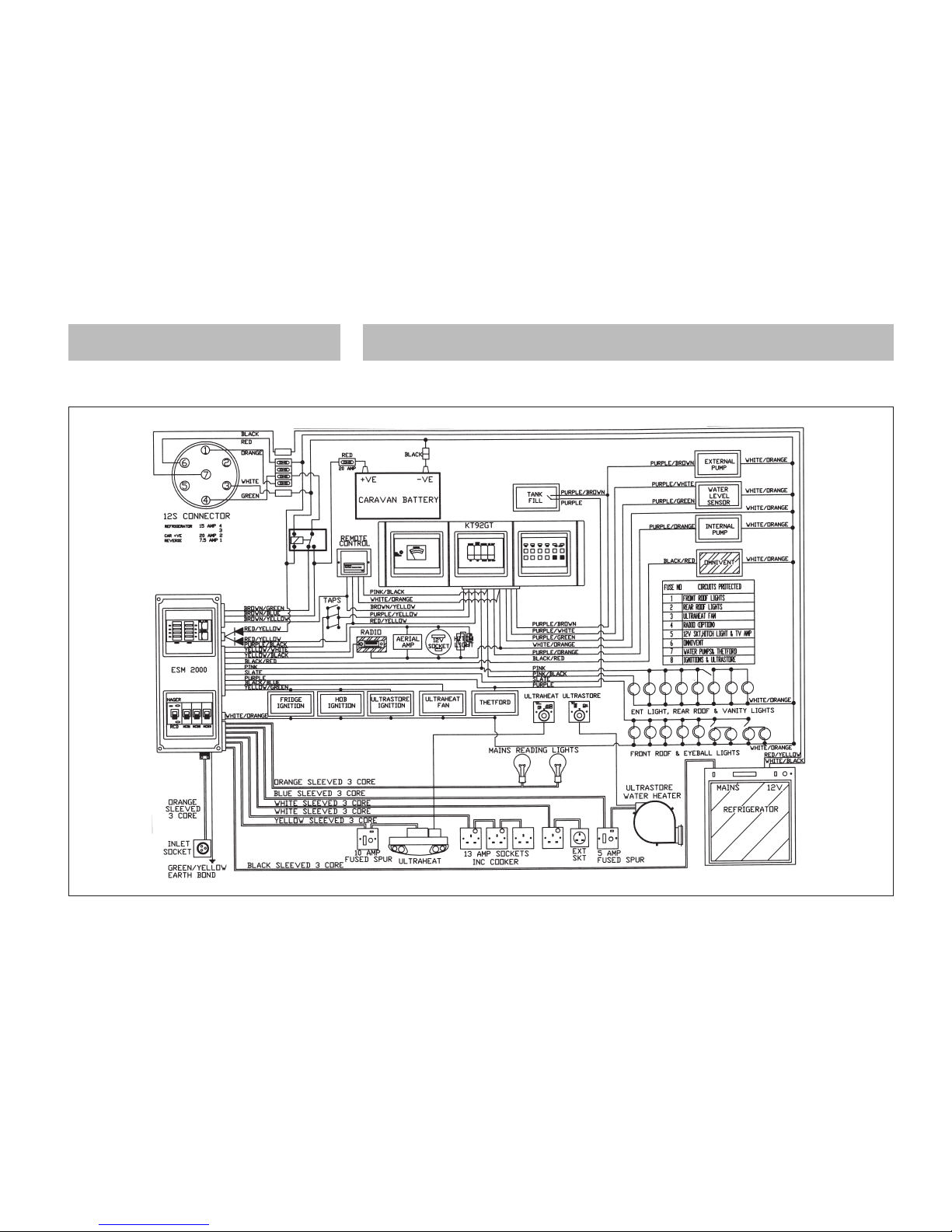

Wiring Diagrams – Internal Wiring ..................................12
Bulb Replacement ..........................................................15
Change of Ownership

Service/Inspection
2
TOURING CARAVANS - ANNUAL SERVICE/INSPECTION RECORD
In order to comply with the warranty, you must have your caravan inspected and serviced
by an authorised Swift Group Service Centre at least once per year.
It is important that the Owner’s Handbook is stamped on the appropriate page by the
authorised Swift Group Service Centre. Failure to do this will invalidate the warranty and the
transfer of the warranty on the change of ownership.
The inspection should take approximately two to four hours and will cover the areas dealt
with in the annual service check list. Any areas requiring service and/or maintenance will be
highlighted by your dealer and we recommend that you authorise any necessary work to be
carried out.
NB. It is essential, to validate the warranty, that an annual inspection be carried out by an
authorised Swift Group Service Centre covering the items listed.
1. Damp and lamination test.
2. Coupling head and breakaway cable.
3. Jockey wheel.
4. Chassis and chassis to body security.
5. Corner steadies.
6. Folding step (if fitted).
7. Tyres and tyre pressures.
8. Torque wheel nuts.
9. Brake rods and linkages.
10. Hub bearings, brakes and brake shoes.
11. Handbrake operation and
performance.
12. Suspension and shock absorbers
(if fitted).
13. 12N and 12S 7-pin plugs and cables.
14. Road lights, wiring and reflectors.
15. Internal lights and 12V DC system.
16. Water heater - gas and 230V AC
(if fitted).
17. Hob, grill and oven (if fitted).
18. Refrigerator 230V AC, 12V DC
and gas.
19. Gas system.
20. Water pump, taps and water system.
21. Mains 230V AC system.
22. Windows and fittings.
23. Smoke alarm and battery.
24. Roof lights.
25. Furniture hinges/stays etc.
26. Exterior locks and hinges.
27. Grab handle security.
28. All internal vents.
29. Oil seals.
30. Blinds and fly screens (if fitted).

Service/Inspection
3
ANNUAL SERVICE/INSPECTION RECORD
CARAVAN MODEL YEAR
CHASSIS NUMBER
1st SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
2nd SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
3rd SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
4th SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.

4
5th SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
6th SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
7th SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
8th SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
9th SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.
10th SERVICE
DATE:
DEALER’S STAMP
We certify that an annual service has been carried out in
accordance with the handbook.

Warranty
5
All the illustrations and descriptive matter in
this handbook are intended to give a
general idea of the caravan. Changing
market and supply situations and our policy
of continuous product development may
prevent us from maintaining the exact
specifications detailed in this handbook.
We therefore reserve the right to alter
specifications as materials and conditions
demand.
Dealers are not agents of Swift Group
Limited, the manufacturer of Swift Group
caravans, and have absolutely no authority
to bind the manufacturer by any express or
implied undertaking or representation.
All caravans have a 3 year SuperSure
warranty from the date of purchase (or hire
purchase), which is subject to a chargeable
annual service and inspection being carried
out at an authorised Swift Group Service
Centre.
In the first 12 months this covers faults
arising from a manufacturing defect but not
those which are a result of normal wear and
tear. The manufacturer will honour the
warranty until 36 months from the date of
sale, and providing that the caravan has
been serviced annually within 90 days
before or 30 days after the anniversary of
the original sale. The third service must,
however, be carried out before the expiry of
the 36 month period from the original date
of sale.
In years two and three the warranty will
cover:
i) All original components of the caravan
including permanently fitted equipment
forming part of the manufacturer’s original
specification.
ii) Water ingress and body delamination.
Specific exclusions to SuperSure
warranty:
Tyres, glass, paint, brightwork and all
similar trim and finish. Soft furnishings,
carpets, floor coverings, work surfaces and
all other décor. Window catches, stays and
associated fittings. Adjustments of brakes,
blinds, hinges, catches, stays and doors.
Replacement of bulbs, fluorescent tubes,
fuses and electrical connections. Natural
movement of internal doors and furniture.
Audio equipment. Fair wear and tear.
The warranty will be invalidated if the
caravan has been neglected, misused or
modified. The warranty on all internal
components will be invalidated if the
caravan has been used for hire or reward.
The caravan will be deemed to have been
neglected if it has not been serviced and
maintained as stated in this handbook.
The warranty only applies to caravans
purchased and used within the UK, and for
continuous journeys abroad of no longer than
90 days per journey.
The cost of transporting, towing or moving the
caravan by any means to or from the place of
repair is the responsibility of the owner.
The benefit of this warranty may be transferred
to a new owner if the caravan is sold, provided
that the caravan has been serviced by an
authorised service centre in accordance with
the requirements of this handbook, and details
of the change of ownership have been
supplied to Swift using the change of
ownership form set out in this handbook.
Failure to notify Swift of a change of ownership
within 14 days of such change will invalidate
the warranty.
This warranty only applies to caravans
purchased in the UK.
The above conditions in no way affect your
statutory rights in respect of the caravan.

Specifications
6
Please note that double bed sizes are quoted with wrap round seating
EUROPA
Berths
Internal Length (bed box height)
Overall Width
Overall Height (inc. TV Aerial)
Overall Length
Mass in Running Order (inc. tolerance)
Essential Habitation Equipment Payload
Personal Effects Payload
Optional Equipment Payload
Maximum Technical Permissible Laden Mass
(DECLARED)
Maximum Technical Permissible Laden Mass
(POSSIBLE)
Awning A/A dimension
Tyre Size
Tyre pressure at DECLARED MTPLM
Tyre pressure at POSSIBLE MTPLM
Static Load on Coupling Head
Thermal Insulation & Heating Grade
Bed Sizes
Front Double*
or One Single
and One Single
Rear Double
Rear Bunk
Side Single
Side Bunk
390
2
3.94m/12'11"
2.16m/7'1"
2.76m/9'1"
5.53m/18'2"
907kg/17.8cwt
90kg/1.8cwt
96kg/1.9cwt
23kg/0.5cwt
1116kg/22.0cwt
1230kg/24.2cwt
8.15m/26'9"
195/70 r14 91
33psi
36psi
100kg
TWO
204cm x 190cm
6'8" x 6'3"
190cm x 67cm
6'3" x 2'2"
190cm x 67cm
6'3" x 2'2"
460
2
4.61m/15'2"
2.16m/7'1"
2.76m/9'1"
6.21m/20'4"
985kg/19.4cwt
82kg/1.6cwt
103kg/2.0cwt
23kg/0.5cwt
1193kg/23.5cwt
1230kg/24.2cwt
8.82m/28'11"
195/70 r14 91
36psi
36psi
100kg
TWO
204cm x 190cm
6'8" x 6'3"
190cm x 67cm
6'3" x 2'2"
190cm x 67cm
6'3" x 2'2"
480
2
4.61m/15'2"
2.16m/7'1"
2.76m/9'1"
6.21m/20'4"
987kg/19.4cwt
82kg/1.6cwt
103kg/2.0cwt
23kg/0.5cwt
1195kg/23.5cwt
1230kg/24.2cwt
8.82m/28'11"
195/70 r14 91
36psi
36psi
100kg
TWO
204cm x 139cm
6'8" x 4'7"
190cm x 67cm
6'3" x 2'2"
190cm x 71cm
6'3" x 2'4"
490
4
5.39m/17'8"
2.23m/7'4"
2.76m/9'1"
6.99m/22'11"
1172kg/23.1cwt
82kg/1.6cwt
131kg/2.6cwt
23kg/0.5cwt
1408kg/27.7cwt
1500kg/29.5cwt
9.60m/31'6"
175r14 99
59psi
65psi
100kg
TWO
208cm x 167cm
6'10" x 5'6"
190cm x 71cm
6'3" x 2'4"
167cm x 71cm
5'6" x 2'4"
198cm x 138cm
6'6" x 4'6"
500L
5
5.03m/16'6"
2.16m/7'1"
2.76m/9'1"
6.62m/21'9"
1063kg/20.9cwt
90kg/1.8cwt
137kg/2.7cwt
23kg/0.5cwt
1313kg/25.8cwt
1350kg/26.6cwt
9.24m/30'4"
195/70r14 95
42psi
42psi
100kg
TWO
204cm x 190cm
6'8" x 6'3"
190cm x 67cm
6'3" x 2'2"
190cm x 67cm
6'3" x 2'2"
204cm x 119cm
6'8" x 3'11"
198cm x 56cm
6'6" x 1'10"
510
5
5.03m/16'6"
2.16m/7'1"
2.76m/9'1"
6.62m/21'9"
1061kg/20.9cwt
90kg/1.8cwt
137kg/2.7cwt
23kg/0.5cwt
1311kg/25.8cwt
1350kg/26.6cwt
9.24m/30'4"
195/70r14 95
42psi
42psi
100kg
TWO
204cm x 190cm
6'8" x 6'3"
190cm x 67cm
6'3" x 2'2"
190cm x 67cm
6'3" x 2'2"
204cm x 119cm
6'8" x 3'11"
198cm x 56cm
6'6" x 1'10"
520
4
5.23m/17'2"
2.16m/7'1"
2.76m/9'1"
6.83m/22'5"
1100kg/21.6cwt
82kg/1.6cwt
129kg/2.5cwt
23kg/0.5cwt
1334kg/26.3cwt
1500kg/29.5cwt
9.44m/31'0"
175r14 99
55psi
65psi
100kg
TWO
204cm x 180cm
6'8" x 5'11"
190cm x 67cm
6'3" x 2'2"
180cm x 67cm
5'11" x 2'2"
180cm x 66cm
5'11" x 2'2"
178cm x 56cm
5'10" x 1'10"
525
4
5.23m/17'2"
2.16m/7'1"
2.76m/9'1"
6.83m/22'5"
1106kg/21.8cwt
82kg/1.6cwt
129kg/2.5cwt
23kg/0.5cwt
1340kg/26.4cwt
1500kg/29.5cwt
9.44m/31'0"
175r14 99
55psi
65psi
100kg
TWO
204cm x 139cm
6'8" x 4'7"
190cm x 67cm
6'3" x 2'2"
190cm x 71cm
6'3" x 2'4"
180cm x 66cm
5'11" x 2'2"
178cm x 56cm
5'10" x 1'10"

Specifications
7
Please note that double bed sizes are quoted with wrap round seating
ECCLES
Berths
Internal Length (bed box height)
Overall Width
Overall Height (inc. TV Aerial)
Overall Length
Mass in Running Order (inc. tolerance)
Essential Habitation Equipment Payload
Personal Effects Payload
Optional Equipment Payload
Maximum Technical Permissible Laden Mass
(DECLARED)
Maximum Technical Permissible Laden Mass
(POSSIBLE)
Awning A/A dimension
Tyre Size
Tyre pressure at DECLARED MTPLM
Tyre pressure at POSSIBLE MTPLM
Static Load on Coupling Head
Thermal Insulation & Heating Grade
Bed Sizes
Front Double*
or One Single
and One Single
Rear Double
Rear Bunk
Side Single
Side Bunk
JADE
2
3.94m/12'11"
2.16m/7'1"
2.76m/9'1"
5.52m/18'1"
981kg/19.3cwt
90kg/1.8cwt
96kg/1.9cwt
23kg/0.5cwt
1190kg/23.4cwt
1230kg/24.2cwt
8.15m/26'9"
195/70r14 91
36psi
36psi
100kg
TWO
204cm x 190cm
6'8" x 6'3"
190cm x 67cm
6'3" x 2'2"
190cm x 67cm
6'3" x 2'2"
AMBER
2
4.61m/15'2"
2.16m/7'1"
2.76m/9'1"
6.20m/20'4"
1075kg/21.2cwt
82kg/1.6cwt
103kg/2.0cwt
23kg/0.5cwt
1283kg/25.3cwt
1350kg/26.6cwt
8.82m/28'11"
195/70r14 95
39psi
42psi
100kg
TWO
204cm x 139cm
6'8" x 4'7"
190cm x 67cm
6'3" x 2'2"
190cm x 71cm
6'3" x 2'4"
TOPAZ
2
4.61m/15'2"
2.16m/7'1"
2.76m/9'1"
6.20m/20'4"
1092kg/21.5cwt
82kg/1.6cwt
103kg/2.0cwt
23kg/0.5cwt
1300kg/25.6cwt
1350kg/26.6cwt
8.82m/28'11"
195/70r14 95
39psi
42psi
100kg
TWO
204cm x 190cm
6'8" x 6'3"
190cm x 67cm
6'3" x 2'2"
190cm x 67cm
6'3" x 2'2"
ONYX
4
5.39m/17'8"
2.23m/7'4"
2.76m/9'1"
6.98m/22'11"
1234kg/24.3cwt
82kg/1.6cwt
131kg/2.6cwt
23kg/0.5cwt
1470kg/28.9cwt
1500kg/29.5cwt
9.60m/31'6"
175r14 99
61psi
65psi
100kg
TWO
208cm x 167cm
6'10" x 5'6"
190cm x 71cm
6'3" x 2'4"
167cm x 71cm
5'6" x 2'4"
198cm x 138cm
6'6" x 4'6"
MOONSTONE
4
5.23m/17'2"
2.16m/7'1"
2.76m/9'1"
6.81m/22'4"
1205kg/23.7cwt
82kg/1.6cwt
129kg/2.5cwt
23kg/0.5cwt
1439kg/28.3cwt
1500kg/29.5cwt
9.44m/31'0"
175r14 99
61psi
65psi
100kg
TWO
204cm x 180cm
6'8" x 5'11"
190cm x 67cm
6'3" x 2'2"
180cm x 67cm
5'11" x 2'2"
180cm x 66cm
5'11" x 2'2"
178cm x 56cm
5'10" x 1'10"
EMERALD
4
5.23m/17'2"
2.16m/7'1"
2.76m/9'1"
6.81m/22'4"
1181kg/23.3cwt
82kg/1.6cwt
129kg/2.5cwt
23kg/0.5cwt
1415kg/27.9cwt
1500kg/29.5cwt
9.44m/31'0"
175r14 99
59psi
65psi
100kg
TWO
204cm x 139cm
6'8" x 4'7"
190cm x 67cm
6'3" x 2'2"
190cm x 71cm
6'3" x 2'4"
180cm x 66cm
5'11" x 2'2"
178cm x 56cm
5'10" x 1'10"
AMETHYST
5
5.23m/17'2"
2.16m/7'1"
2.76m/9'1"
6.81m/22'4"
1186kg/23.4cwt
90kg/1.8cwt
139kg/2.7cwt
23kg/0.5cwt
1438kg/28.3cwt
1500kg/29.5cwt
9.44m/31'0"
175r14 99
61psi
65psi
100kg
TWO
204cm x 137cm
6'8" x 4'6"
204cm x 132cm
6'8" x 4'4"
204cm x 58cm
6'8" x 1'11"
SAPPHIRE
5
5.23m/17'2"
2.16m/7'1"
2.76m/9'1"
6.81m/22'4"
1198kg/23.6cwt
90kg/1.8cwt
139kg/2.7cwt
23kg/0.5cwt
1450kg/28.5cwt
1500kg/29.5cwt
9.44m/31'0"
175r14 99
61psi
65psi
100kg
TWO
204cm x 190cm
6'8" x 6'3"
190cm x 67cm
6'3" x 2'2"
190cm x 67cm
6'3" x 2'2"
188cm x 132cm
6'2" x 4'4"
188cm x 58cm
6'2" x 1'11"
JEWEL
4
5.50m/18'1"
2.23m/7'4"
2.76m/9'1"
7.09m/23'3"
1263kg/24.9cwt
82kg/1.6cwt
132kg/2.6cwt
23kg/0.5cwt
1500kg/29.5cwt
1500kg/29.5cwt
9.71m/31'10"
175r14 99
65psi
65psi
100kg
TWO
208cm x 158cm
6'10" x 5'2"
197cm x 137cm
6'6" x 4'6"

Specifications
8
Please note that double bed sizes are quoted with wrap round seating
ECCLES ELITE
Berths
Internal Length (bed box height)
Overall Width
Overall Height (inc. TV Aerial)
Overall Length
Mass in Running Order (inc. tolerance)
Essential Habitation Equipment Payload
Personal Effects Payload
Optional Equipment Payload
Maximum Technical Permissible Laden Mass (DECLARED)
Maximum Technical Permissible Laden Mass (POSSIBLE)
Awning A/A dimension
Tyre Size
Tyre pressure at DECLARED MTPLM
Tyre pressure at POSSIBLE MTPLM
Static Load on Coupling Head
Thermal Insulation & Heating Grade
Bed Sizes
Front Double*
or One Single
and One Single
Rear Double
Rear Bunk
Side Single (o/s)
Side Single (n/s)
Side Bunk
Optional Bunk
WAYFARER
5
6.35m/20'10"
2.23m/7'4"
2.75m/9'0"
7.95m/26'1"
1428kg/28.1cwt
115kg/2.3cwt
150kg/3.0cwt
29kg/0.6cwt
1722kg/33.9cwt
1800kg/35.4cwt
10.48m/34'5"
165r13 82
33psi
33psi
100kg
TWO
208cm x 190cm/6'8" x 6'3"
190cm x 71cm/6'3" x 2'4"
190cm x 71cm/6'3" x 2'4"
192cm x 138cm/6'4" x 4'6"
192cm x 58cm/6'4" x 1'11"
SEARCHER
4
6.35m/20'10"
2.23m/7'4"
2.75m/9'0"
7.95m/26'1"
1489kg/29.3cwt
115kg/2.3cwt
140kg/2.8cwt
30kg/0.6cwt
1774kg/34.9cwt
1800kg/35.4cwt
10.48m/34'5"
165r13 82
33psi
33psi
100kg
TWO
208cm x 182cm/6'8" x 5'11"
190cm x 71cm/6'3" x 2'4"
182cm x 71cm/6'0" x 2'4"
192cm x 138cm/6'4" x 4'6"
TREKKER
5 Opt 6
6.35m/20'10"
2.23m/7'4"
2.75m/9'0"
7.95m/26'1"
1467kg/28.9cwt
123kg/2.4cwt
160kg/3.2cwt
50kg/1.0cwt
1800kg/35.4cwt
1800kg/35.4cwt
10.48m/34'5"
165r13 82
33psi
33psi
100kg
TWO
208cm x 190cm/6'8" x 6'3"
190cm x 71cm/6'3" x 2'4"
190cm x 71cm/6'3" x 2'4"
205cm x 137cm/6'9" x 4'6"
177cm x 68cm/5'10" x 2'3"
177cm x 68cm/5'10" x 2'3"
172cm x 56cm/5'8" x 1'10"
172cm x 56cm/5'8" x 1'10"
EXPLORER
4
6.35m/20'10"
2.23m/7'4"
2.75m/9'0"
7.95m/26'1"
1446kg/28.5cwt
115kg/2.3cwt
140kg/2.8cwt
30kg/0.6cwt
1731kg/34.1cwt
1800kg/35.4cwt
10.48m/34'5"
165r13 82
33psi
33psi
100kg
TWO
208cm x 180cm/6'8" x 5'11"
180cm x 71cm/5'11" x 2'4"
190cm x 71cm/6'3" x 2'4"
202cm x 145cm/6'6" x 4'9"

Wiring Diagrams
9
EUROPA RANGE 2003 - ROAD LIGHTS

Wiring Diagrams
10
ECCLES RANGE 2003 - ROAD LIGHTS

Wiring Diagrams
11
ECCLES ELITE RANGE 2003 - ROAD LIGHTS

Wiring Diagrams
12
EUROPA RANGE 2003 - 12V AND 230V

Wiring Diagrams
13
ECCLES RANGE 2003 - 12V AND 230V

Wiring Diagrams
14
ECCLES ELITE RANGE 2003 - 12V AND 230V

Bulb Replacement
15
TYPE POWER EUROPA ECCLES ECCLES ELITE
ROAD LIGHTS
Front marker lights W501W 12v 3w ✓✓✓
Side marker F239 12v 5w ✓✓✓
Reversing light L382 12v 21w ✓✓✓
Rear indicator light L382 12v 21w ✓✓✓
Brake / tail light L380 12v 21w / 5w ✓ ✓ ✓
Fog light L382 12v 21w ✓✓✓
Number plate light F239 12v 5w ✓✓✓
High level brake light Capless 12v 2.3w ✓✓✓
Hitch cover light F239 12v 5w ✓✓
INTERIOR/OTHER
Awning (Internal switch) P21W 12v 20w ✓ ✓
Awning (External switch) L245 12v 10w ✓
Spot / reading lights Halogen capsule G4 12v 10w ✓✓
Spot / reading lights L245 12v 10w ✓
Round ceiling lights Halogen capsule G4 20w ✓✓✓
Kitchen strip light Flourescent tube 300mm 12v 8w ✓
Mains lights Small screw (candle shape) 240v 40w ✓ ✓ ✓
Note: Not all lights and bulbs feature on all models within a range

DETAILS OF CARAVAN: Model:
Chassis No:
CURRENT OWNER: Name:
Address:
NEW OWNER: Name:
Address:
Ownership
NOTIFICATION OF CHANGE OF OWNERSHIP
If you sell your caravan, please notify the change of ownership by completing this page, detaching it and sending it to:
Swift Group Ltd., Dunswell Road, Cottingham, East Yorkshire, HU16 4JX.
Please note that the benefit of any unexpired warranty cannot be transferred to the new owner until the change of
ownership details above have been received.

The Hallmark
of Excellence
Sterling Caravans, Dunswell Road,
Cottingham, East Yorkshire HU16 4JX.
Tel: [phone] Fax: [phone]
e-mail: [email protected]
website: www.sterlingcaravans.co.uk
A MEMBER OF THE SWIFT GROUP
Issued September 2002 1048551
