DOES NOT TURN ON/GREEN LED DOES NOT LIGHT UP:
* The Power cables are not properly connected (terminals +Batt, GND & REM).
* Power cables with bad contact. Check connections.
* REM without signal. Check whether the REM connection is getting tension of approximately + 12V
* Bad contact in ground connection
* Burned out internal fuses. Be aware, the right fuse must be of 0,5 A.
NO SOUND:
• Level control must be in minimum position. Turn it up.
• On/off channel switch is turned off. Turn it on.
UNWELCOMED NOISE:
• All RCA and Power cables must be checked in advance to prevent them from any trouble.
• Use suppressor cables for ignition candles
• Keep In and Out RCA cables far from any other cable, because they are more sensitive to
interference.
• Have a separated Power connection (+12V) for the sound system. For safety use an 1A fuse placed
30cm far from the battery.
• Have a good grounding of the Crossover: first remove the paint from the vehicle chassis at the
desired spot; then screw in the cable using a ground terminal; finally, to prevent from rust, coat it with
paint.
• Have the Crossover grounding spot the closest as possible to the other audio equipments used
together.
• Do not loop the ground wire. Avoid using many of it. Prefer a star connection, with all the wires
coming from a single spot.
4 WAYS
STX 64
High Way: High Pass - 400Hz to 10KHz (12 dB/8ª)
Mid High Way: High Pass - 150Hz to 5KHz (12 dB/8ª)
Low Pass - 700Hz to 12,5KHz (12 dB/8ª)
Mid Low Way: High Pass - 25Hz to 3KHz (12 dB/8ª)
Low Pass - 300Hz to 10KHz (12 dB/8ª)
Low Way: Low Pass - 50Hz to 250Hz (12 dB/8ª)
Bass Boost - (25Hz to 110Hz) (0 to +12dB; 60Hz)
Maximum Output Voltage: 9V RMS
Maximum Input Voltage: 4V RMS
Signal/Noise Ratio: >90dB
Input Impedance: 10K OHMS
Total Harmonic Distortion: < 0,02% THD
Channels Separation: > 80dB
Frequency Response: 20Hz to 200 KHz
Power: 10V to 16V DC
Current consumption: 200mA
Output Impedance: 50 OHMS
Dimension: 33 x 225 x 160 mm
Weight: 660g
PROCEDURES IN CASE OF TROUBLESPROCEDURES IN CASE OF TROUBLESPROCEDURES IN CASE OF TROUBLES
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS
Dez/2010 R1
USER’S GUIDE
Phone: [phone] - www.stetsom.com - [email protected]

61
The electronic STX 64 Crossover was developed to provide a great performance
associated to the sound fidelity.
Being extremely reliable, with such low levels of noise and harmonic distortion, it’s
perfect for professional sound installation.
The electronic STX 64 Crossover has 4 Input channels (2 Stereo & 2 Mono) and 4
Output ways (LOW, MID LOW, MID HIGH, HIGH) providing a plain frequency
response throughout its work.
Please read this manual before installing the electronic STX 64 crossover. The
assembly instructions and connections must be precisely followed. If necessary, consult us.
All battery connections (Power supply), input & output signals may be easily and safely
done through screwable terminals and RCA connectors.
1) Do not place the cables through metallic sharp and cutting edges so that you won't
have them damaged.
2) Distribute all the cables the farthest you can from the ignition cables, electronic
injection modules and starting key, as it may interfere in sound.
3) The RCA cables should be kept the shortest .Long power cables are preferable so
the RCA ones can be shorten.
For installing, select a place
which can be easily reached. The
installation must be carefully and
accurately done so the good
performance of the equipment can be
assured.
Before installing the equipment
arrange a tray to place it. Put it in the
selected place, check and drill, and
finally tighten the screws firmly.
- Four RCA input channels (2 Mono & 2 Stereo)
- Four RCA output ways: LOW (MONO), MID LOW (MONO), MID HIGH (STEREO)
and HIGH (STEREO).
- Level Control: Independent Level Control of all ways.
- On/Off switch: On/Off switch for all ways.
- Filters: LOW PASS, MID LOW, MID HIGH and HIGH PASS, 12dB/octave filters with
variable frequency.
- Power: Developed with a DC/DC converter supply assuring a better performance and
getting free from unwelcomed noise.
- Protection Fuse: a 0,5A Internal Fuse.
- Protection: Protection against Power polarity inversion.
+BATT 12V
(GND) REM
BATTERY
12V
REMOTE CD-PLAYER
Fuse 1A
CD / DVD / MP3-Player
INTRODUCTIONINTRODUCTIONINTRODUCTION POWER CONNECTIONS – BATTERYPOWER CONNECTIONS – BATTERYPOWER CONNECTIONS – BATTERY
FEATURES:FEATURES:FEATURES:
BEFORE INSTALLINGBEFORE INSTALLINGBEFORE INSTALLING
ASSEMBLY:ASSEMBLY:ASSEMBLY:

5 2
The STX 64 has filters with variable frequencies, which allow its use with many
different kinds of loud-speakers.
The STX 64 Crossover is meant to lead the frequency bands of the audio spectrum
to amplifiers, which will amplify and lead the signals to the particular acoustic transducers
( loud-speakers), providing a much
more efficient sound system,
excellent performance and a wide
range for projects.
CD / DVD / MP3-Player
FILTERSFILTERSFILTERS
AUDIO CONNECTIONS – INPUT & OUTPUT:AUDIO CONNECTIONS – INPUT & OUTPUT:AUDIO CONNECTIONS – INPUT & OUTPUT:
FRONT PANELFRONT PANELFRONT PANEL
FREQUENCY RESPONSE
*fc = Cut Freq. LOW and HIGH
*fc1 = Cut 1 (LOW)
*fc2 = Cut 2 (HIGH)
FREQUENCY RESPONSE
OBS: Frequency
of fc1 to fc2
will not play.
OBS: Frequency
of fc1 to fc2
will not play.

4 - MID HIGH WAY:
4.1
4.2
4.3
4.4
4.5
34

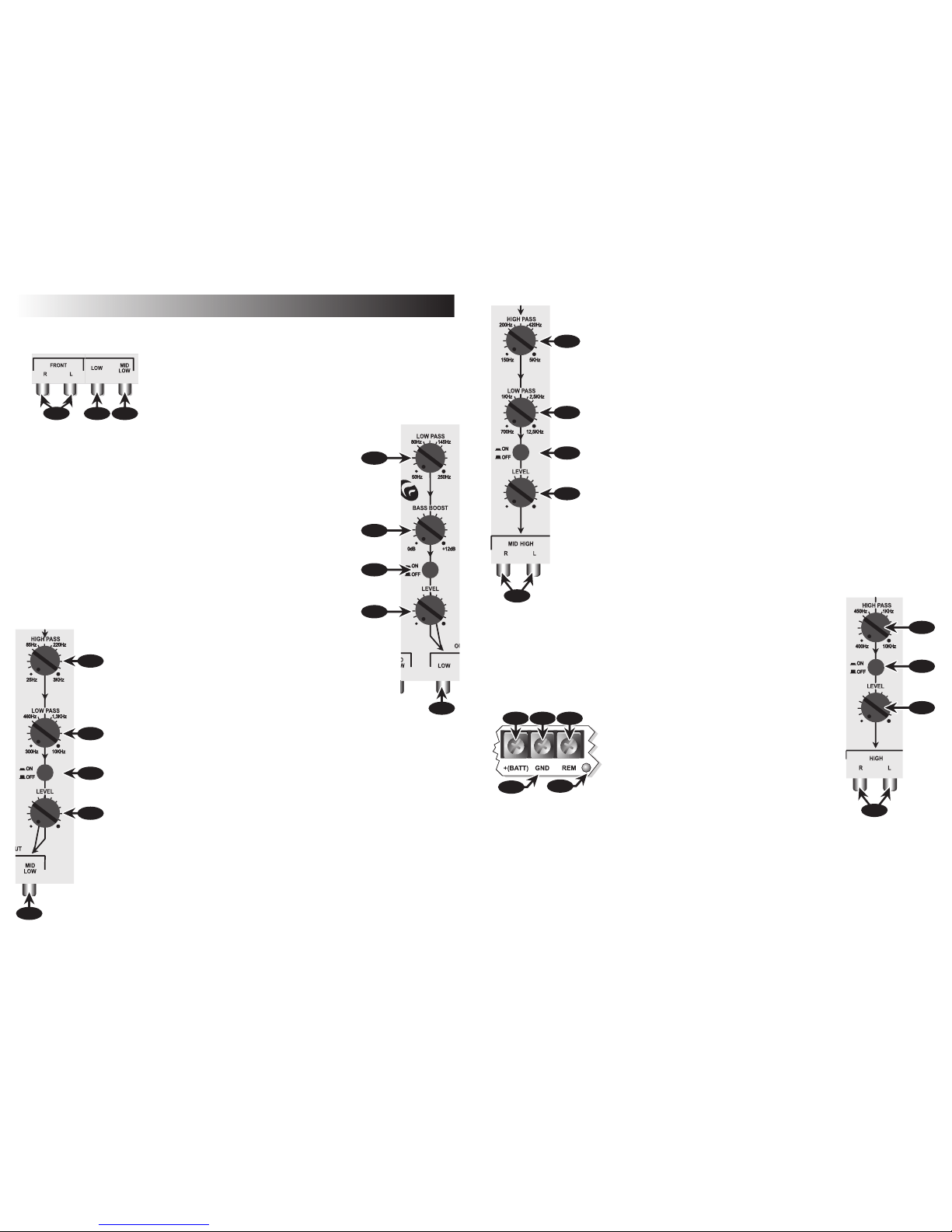

1.1 FRONT RCA: RCA input for Front Channels.
1.2 LOW RCA: RCA input for the LOW Way.
1.3 MID LOW RCA: RCA input for the MID LOW Way.
2.1 LOW PASS: 12dB/octave LOW PASS FILTER, variable: 50Hz to 250Hz.
2.2 BASS BOST: Reinforces the bass level at low frequencies 25Hz to
110Hz. From 0 to 12dB centered at 45Hz.
2.3 ON/OFF: ON & OFF LOW way switch.
2.4 LEVEL: LOW way level adjustment.
2.5 SUB/REAR RCA: LOW way RCA output (LOW PASS).
5.1 HI PASS: 12dB / octave HIGH PASS FILTER,
variable: 400Hz to 10KHz.
5.2 ON/OFF: HIGH way ON & OFF switch
5.3 LEVEL: HIGH way level adjustment.
5.4 HIGH RCA: HIGH way (HIGH PASS) RCA outputs.
1 - INPUT:
2 - LOW WAY:
3 - MID LOW WAY:
5 - HIGH WAY:
6 - POWER:
6.1 3 POLES CONNECTOR:
+ BATT: Positive Power of the
equipment:
Connect the terminal to the Battery
(+12V) POSITIVE POLE; use a cable
of at least 2,5mm² (AWG 13).
A (1A) FUSE is recommended for
extra safety
GND: Negative (Ground): It must
be connected to the vehicle chassis
through a cable of at least 2,5mm²
(AWG 13).
REM: Automatic Start: It may be connected to the CD-
Player/MP3-Player electric antenna output; it must be done
through a cable of at least 0,5mm² (AWG 20). The equipment
has a SOFT START circuit which protects it from any
instability in the system when started.
6.2 INDICATOR LED (GREEN):
It will light up when the equipment is started through the remote
signal coming from the CD-Player/MP3-Player.
2.1
2.2
2.3
2.4
5.1
5.2
5.3
5.4
+BATT GND REM
6.2
6.1
4.1 HI PASS: 12dB / octave HIGH PASS FILTER, variable: 150Hz to 5KHz.
4.2 LOW PASS: 12dB / octave LOW PASS FILTER, variable: 700Hz to
12,5KHz
4.3 ON/OFF: MID HIGH way ON & OFF switch.
4.4 LEVEL: MID HIGH way level adjustment.
4.5 MID HIGH RCA: MID HIGH way RCA outputs.
3.1 HI PASS: 12dB/octave HIGH PASS FILTER,
variable: 25Hz to 3KHz.
3.2 LOW PASS: 12dB/octave LOW PASS
FILTER, variable: 300Hz to 10KHz.
3.3 ON/OFF: MID LOW way ON & OFF switch.
3.4 LEVEL: MID LOW way level adjustment.
3.5 MID LOW RCA: MID LOW way RCA output.
1.1 1.2 1.3
2.5
3.1
3.2
3.3
3.4
3.5
OVERVIEW:OVERVIEW:OVERVIEW:
