Mounting instructions for swing „patis 3“ robinia
Item-No. 51 2013 601
State: 10.09.2020 p. 1
Diagram 1: Overall view of the play equipment
swing bar
post

© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. [phone] • All rights and product modications reserved.
Mounting instructions for swing „patis 3“ robinia
Item-No. 51 2013 601
State: 10.09.2020 p. 2
Play level
1. Select the location of the play equipment taking into account the required
minimum space (see diagram 3, 7800 x 5940mm).
2. The impact area of a playground equipment with an enforced movement is
not allowed to overlap the impact area of other equipment.
According to DIN EN 1176-1, 4.2.8.5.2 shock-absorbing oors must be made
on the entire impact area of every equipment that cause forced movement.
3. Carry out excavation work for the foundations as shown in diagram 2. After
excavation compress the foundation oor.
Note: The swing is installed at play level.
Pay attention to items marked „play level“ at play equipment!
4. Set up the concrete foundations according to diagram 2 with central, horizon-
tal reinforcement.
5. After a setting period of 10-14 days, depending on weather conditions and
foundation size, ll up and compress the holes between the foundation and
the foundation hole with excavation.
6. Clean the foundation surface. Screw the swing bar with the included clamps
at the posts as shown in diagram 4.
Reinforcement plan: Concrete foundation with reinforcement
Main foundation: BSt 500S
Stirrups Ø 8 mm lengthwise and cross
Concrete cover h´= 3 cm
Concrete quality class C 25/30
1000
6391
500
ca. 400
1083
450
7248
2675
1000
1000
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
1
patis 3 Robinie
Benennung
Gepr.
Blatt
Datum
Projekt
Gez.
Zeichnungsnummer
1:35
A3
Name
Name
Fundament
0512-00-00
Maßstab
Mattheis
14.03.17
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland
Beton
concrete
gewachsenes Erdreich
natural ground
Legende
stoßdämpfender Boden
shock-absorbing floor
ES 18.05.20 stoßdämpfender Boden A
DatumÄnderungRev

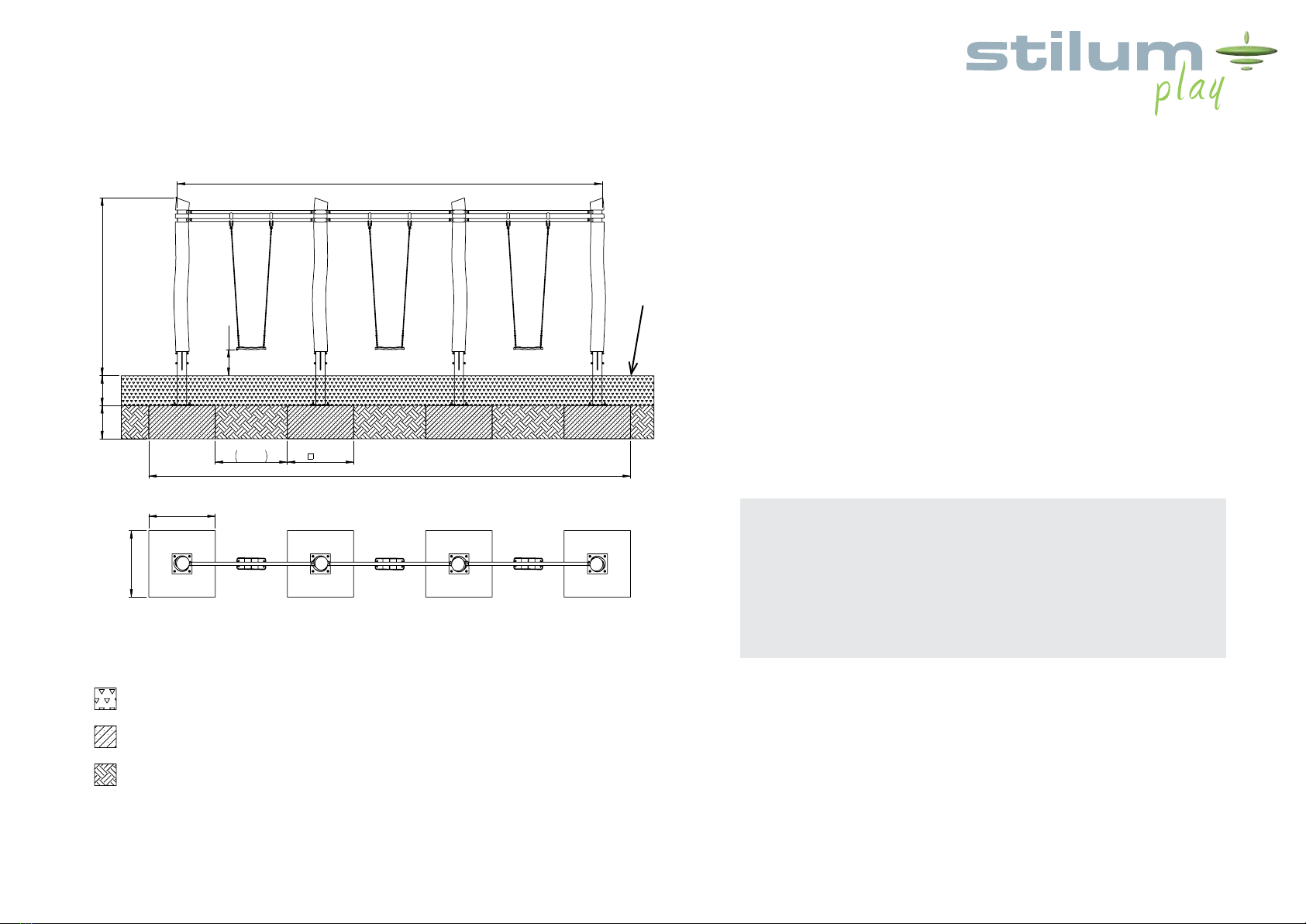

Diagram 2: Foundation plan

© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. [phone] • All rights and product modications reserved.
Mounting instructions for swing „patis 3“ robinia
Item-No. 51 2013 601
State: 10.09.2020 p. 3
7. Align the play equipment on the foundation and screw it by using the included
heavy-duty dowels.
8. Cover the entire impact area with fall protection according to the required
drop height in accordance with EN 1176-1.
Critical drop height: 1400 mm
Recommended surface material: sand, wood chips, gravel,
synth. impact protection.
With a smaller installation depth (special edition) we recommend synthetic
impact protection. In this case, make sure that protruding parts (e.g. screws,
gusset plates) are covered with appropriate fall protection.
9. Screw the chains with the swing seats onto the swing suspension.
10. Do not allow children to use the equipment before the installation has been
nished.
Attention: If the play equipment has been incompletely installed or partly dis-
mantled when carrying out maintenance and repair work, this may lead to par-
ticular risks of injury for the user. For this reason, make clearly visible that the
equipment shall not be used in such cases.
STAINLESS STEEL
NOTE: Play equipment, which contain components made of stainless steel
should not come with „normal“ steel parts in contact. Those steel parts may rub
o󰀨 and leave small steel particles in combination with moisture brown rust stains.
MAINTENANCE: If such corrosion occur on stainless steel parts, they are ne to
remove with an abrasive (240 grit).
Please take care when transporting and setting up the fact that the components
are made of stainless steel with no „normal“ steel parts in contact.
Diagram 3: Top view
Area of the minimum space =
Impact surface when using natural oors with a
shock-absorbing e󰀨ect.
When using synthetic impact protection the impact area
shortens in the direction of the swing by 500 mm each.
The minimum space remains preserved in its entirety.
7800
5940
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
1
patis 3 Robinie
Benennung
Gepr.
Blatt
Datum
Projekt
Gez.
Zeichnungsnummer
Rev Änderung Datum
1:30
A3
Name
Name
Draufsicht
0512-00-00
Maßstab
Mattheis 14.03.17
a Mindestraum angepasst 24.05.17 DB
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland
2
8
10
7
1
3
15
6
4
16
12
13
14
12
11
9
5
Pos. Stck Typ Benennung Abmessung Werkstoff ZeichnNr Bemerkung Gewicht
1 2 HT Schaukelpfosten Ø200x2613 Robinie 0510-01-01 46.93
2 1 BG Schaukelaufhängung 1930x232x48,3 0510-02-00 19.66
3 4 KT Gewindestange M16x170 4.6 S-0609-05-01 0.27
4 4 BG
Schelle SBG obere Lasche 213x140x60 S-05002-02-00 0.5
5 4 BG Schelle Schweißbaugruppe untere Lasche 213x140x60 S-05002-03-00 0.5
6 2 BG Pfostenschuh 450 250x140x808 S-05006-00-00 18.67
7 2 KT Schaukelgelenk 35x40x83 S-07005-01-00 0.32
8 1 BG Schaukel 1800 1800 S-09003-03 rot 3.24
9 8 KT Linsenkopfschraube M10x60 A2 ISO 7380
10 2 KT Senkkopfschraube M10x70 A2 DIN 7991
11 10 KT Hutmutter selbstsichernd M10 A2 DIN 986
12 18 KT Unterlegscheibe Ø10,5 A2 DIN 125
13 4 KT Sechskant Holzschraube 12x70 A2 DIN 571
14 4 KT Unterlegscheibe Ø13 A2 DIN 125
15 8 KT Hutmutter selbstsichernd M16 A2 DIN 986
16 8 KT Fixanker, Scheibe, Mutter M16x170 verzinkt 0.28
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
Oberflächen nach
DIN ISO 1302
Reihe 2
Zul. Abweichung
DIN 2768 - mH
2
patis 1 Robinie
Benennung
Gepr.
Werkstoff
Blatt
Datum
Projekt
Gez.
Zuschnitt
Zeichnungsnummer
Rev Änderung Datum
1:20
A3
Gewicht
Name
Name
Explosion
0510-00-00
162.3 Maßstab
Mattheis
28.02.17
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland
Diagram 4: Assembly

© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. [phone] • All rights and product modications reserved.
Mounting instructions for swing „patis 3“ robinia
Item-No. 51 2013 601
State: 10.09.2020 p. 4
In order to preserve a good visual appearance of your stilum playground equipment
over a long period one should take care of maintenance of the stainless surface
even despite of their corrosion resistance.
Especially areas, which can not be reached by rainfall should be frequently cleaned
from dirt and deposits due to air pollution and dirt caused by the atmosphere.
Light soiling can easily be romoved by using a high pressure cleaner.
For persistent deposits use a clean cloth moistened with a special liquid cleaner
(e.g. on phosphoric acid) and rinse o󰀨 with clear water after a short application time.
During cleaning with mild abrasive components, only wipe over stainless steel sur-
face in polishing direction.
For heavily soiled surfaces, polishes can be used (e.g. for cleaning chrome on cars)
or for greasy and oily dirt alcoholic cleaning agents and solvents (e.g. ethyl alcohol,
isopropyl alcohol or acetone).
However, it should be noted that the dissolved soiling is not spread over the surface
again.
Do not use any chlorid or hydrochloric containing cleaning products nor scouring
powder, bleaching - or silver polish cleaner. Cleaning intervals depend on type and
degree of soiling as well as on demands made on optical characteristics. Therefore
cleaning is advisable at intervals of six to twelve months – whereby in the case of
strong soiling it is appropriate to clean the playground equipment at intervals of three
to six months.
WOOD
NOTE: For all play equipment with wooden elements, it cannot be ruled out that dry
cracks may develop. These natural changes of wood are dependent on climate con-
ditions as well as on the age and usage of the play equipment. Longer dry periods
may lead to more dry cracks.
This development, however, does not represent a quality defect. Static properties of
the equipment are not impaired.
See EN 1176 Bbl 1:2019-01 4.2.7.6: Dry cracks in wood elements as a conse-
quence of weather conditions are not to be considered as dangerous openings in
terms of the standard due to the fact that the shape of the cracks (tapering towards
the inside) makes it almost impossible for ngers to get trapped in them.
MAINTENANCE: To ensure a long life of stilum playground equipment, wooden
surfaces should be regularly re-glazed. This provides the wooden surfaces with the
necessary protection and preserves the look. Areas which are not exposed to rain
should be regularly freed from deposits.
The cleaning intervals depend on the degree and type of soiling as well as on the
exigencies on cleanliness. It is recommended to clean and / or glaze at every 6
to 12 months, or to shorten the cleaning interval to 3 to 6 months if the wheather
conditions are bad.
LASUR: Use a soft and at brush or / and a glaze application roll to paint.
The wood should be cleaned a few hours before glazing. That can be done with
mild javel water, which should in any case be rubbed o󰀨 afterwards. For resistant
dirt use a wood cleaner. Eventually a light abrasion is necessary. If water-based de-
tergents are used for cleaning, please ensure that the wood elements are thorough-
ly dried before the glazing is done.
Always brush in one direction, so that the glaze can spread evenly. Apply very
thinly!
Remove glaze with a soft cotton cloth.
Then let the freshly glazed wood dry for at least one day and prohibit the use of the
equipment for this duration.
