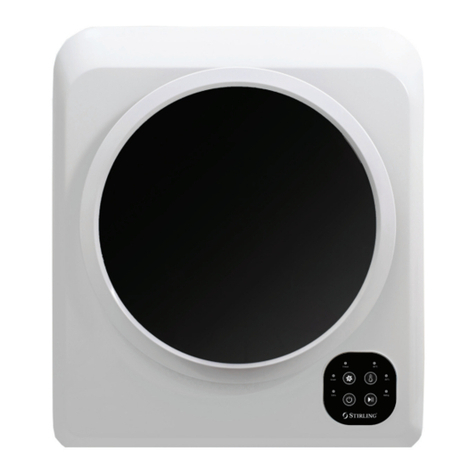

Stirling STR-CD50 User manual

Installing the machine
Let’s get your new clothes dryer
ready to use!
Quick Start Guide
Model: STR-CD50
Preparation
Clothes Drying
1
2
3
4a
B
C
Plug in the machine.
Load your washing into the dryer
- page 16 in the instruction manual has
useful hints to help you with this.
Close the door.
For the Smart program, simply press the POWER
button, then the START/PAUSE button.
For the Extra program, press the POWER button,
then the PROGRAM button until the Extra indicator
lights up, then press START/PAUSE.
For the 1 Hour program, press the POWER button,
then the PROGRAM button until the 1 Hour
indicator lights up, then press the TEMPERATURE
button and select an appropriate temperature, then
press START/PAUSE.
CAUTION! This clothes dryer is heavy – ensure you have a helper to move and install it. Move cautiously
when moving the dryer. Do not attempt to lift it by grasping the door. A team lift or mechanical aid is
required when moving it.
WHERE TO INSTALL? This clothes dryer is designed with the control panel low on the front panel so it is
in easy reach when wall-mounted. If you want to wall-mount it upside down, use the extra control panel
(supplied) so the printing is the right way up. The dryer is equally suitable for installation on the floor level,
or mounted on a rack (not included). Comprehensive instructions for all installation options are included in
the instruction manual.
CAUTION! Your wall must be structurally sound and sturdy enough to support the weight of the heater with
a full load (40kg). If in doubt, consult a builder.
NOTE: Before you use the dryer for the first time, place some clean rags into the drum and run a complete
cycle on the 1 Hour program following the instructions on page 18 in the manual.
A
The programs are explained on the
other side of this page ...
4b
4c
6
or:
6
or:
2
4b
34a
4c
1

Give us a call
What? You mean this Quick Start Guide didn’t have ALL the answers? The manual has more
comprehensive instructions, or speak to us. Call our After Sales Support on 1300 886 649.
Well done, you made it! Now sit back and relax ... your new clothes dryer
is automatically covered by a 3 year warranty. V1.0
6
7
8
5
Control panel
E
At the end of the drying program, when
the drum has stopped rotating, unplug the
machine from the power supply.
Open the door and take out your washing.
When the drum has cooled, take out the
lint filter assembly, disassemble it and
clean each part.
Reinstall the lint filter assembly,
first the exhaust filter and then
the lint filter attached to the
exhaust vent shroud.
Afterwards D
5
6
Exhaust Lint Exhaust
vent shroud filter filter
8
The program indicators
show which program is
selected.
Press the POWER button to
turn on the dryer or to set it
to standby.
Use the TEMPERATURE
button to select the desired
drying temperature.
Press the START/PAUSE
button to start or pause
the dryer.
The temperature
indicators show which
temperature is selected.
Use the PROGRAM
button to select the
drying program.
Extra: A temperature-sensing program suitable for fast drying of textiles that can withstand high heat (60°C).
Maximum drying time: 150 minutes. Temperature cannot be adjusted.
Smart: A temperature-sensing program suitable for drying textiles at a slightly lower temperature (55°C).
Maximum drying time: 150 minutes. Temperature cannot be adjusted.
1 Hour: This one hour program is suitable for smaller loads of clothing. The drying temperature can be set to
60°C, 40°C or Airing, which simply refreshes clothes without heat.
Programs
F
7
