STM SIMPLY 55 User manual

2
4
Optional PUSH OPEN
Optional PUSH OPEN
SIMPLY
EASY-LIFT
LIFT
6
1-5
1-5
3

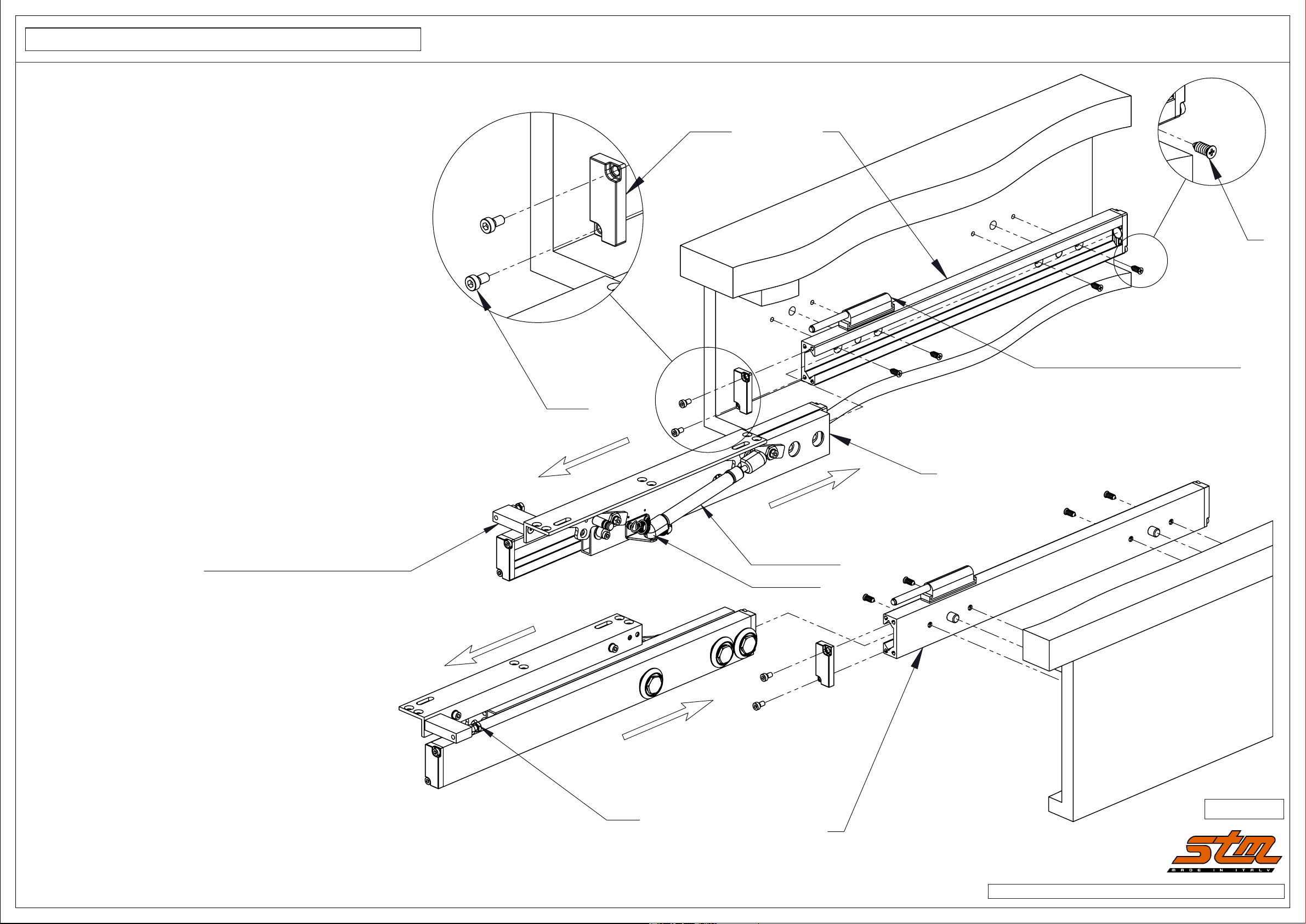

ASSEMBLY SEQUENCE
1) Unscrew the 2 screws from the cap
of the left-side fixed element and
remove the remaining profiles
2) Posizion the left-side fixed profile
inserting the pins in their respective
holes
3) Fasten the left-side profile using 4
EURO screws 6,2xO (see pag.3)
4) Reinsert the other elements in the
fixed one
5) Position the cap on the profiles
and fasten it using the two screws
6) Repeat operation from 1 to 5 on
the right side
ITEMS INCLUDED IN THE
PACKAGE
1 Slides left-side pack
1 Slides right-side pack
1 Cross bar for rods connection
2 TSEI M5x14 screws
4 M6 special washer
8 Euroscrews 6,2xO (see pag.3)
countersunk head
4 Euroscrews Cil. Head 6,3x18
STM srl, Sede di Pesaro tel. [phone] Sede di Crevalcore (BO) Tel [phone] Fax [phone] www.stmitaly.it [email protected]
ASSEMBLY INSTRUCTION
PAG.1
TYPE - SIMPLY 55-EASY 55-LIFT 55-SIMPLY 40
04/12/2018
180-01-01-02 H9 STANDARD ISTRUZIONI DI MONTAGGIO ENG

7
8
9
8
9-12
10
ASSEMBLY SEQUENCE
7) Extend the slides completely and
lift the angular elements
8) Insert the cross bar between the
two rods and fasten using 2 TSEI
M5x14 screws
9) Lean the top on the angular
elements and fasten almost
completely using 4 Euroscrew Cil.
Head 6,3x18 using a washer for
every screw
10) Adjust the height using the
eccentric pin
11) Verify that the worktop aligns
with the furniture top
12) Fasten completely the 4
Euroscrew Cil Head 6,3x18
STM srl, Sede di Pesaro tel. [phone] Sede di Crevalcore (BO) Tel [phone] Fax [phone] www.stmitaly.it [email protected]
ASSEMBLY INSTRUCTION
PAG.2
180-01-01-02 H9 STANDARD ISTRUZIONI DI MONTAGGIO ENG
04/12/2018
TYPE - SIMPLY 55-EASY 55-LIFT 55-SIMPLY 40

=
C
=
A
E D
5
14 Holes for EURO screw (x4)
B
F
M
Suggested
H I
32 32 32 32
Z
G
X
L
A
STRIP
W
S
VIEV FROM A
10,1 (x4)
5 Holes for EURO screw (x8)
14
N
IMPORTANT:
"W" and "S" sizes must
be known in order to
assemble the device
WITH
WOODEN
STRIP
WITHOUT
WOODEN
STRIP
WITH
WOODEN
STRIP
WITHOUT
WOODEN
STRIP
MAXIMUM
WOODEN
STRIP SIZE
WITH
WOODEN
STRIP
WITHOUT
WOODEN
STRIP
A MAX B C D E E G G H I L M M N O
DEPTH 55
W-(2xS)-6
505+38-Z
W-(2xS)-170
284 152.5-Z 137-Z
73+X+F 58+X+F
122 320 20 135 120
15(S≥18)
13(S<18)
18(S≥18)
16(S<18)
DEPTH 40
380+38-Z 192 144.5-Z 129.5-Z 106.5 192
STM srl, Sede di Pesaro tel. [phone] Sede di Crevalcore (BO) Tel [phone] Fax [phone] www.stmitaly.it [email protected]
BORING SCHEME
PAG.3
04/12/2018
TYPE - SIMPLY 55-EASY 55-LIFT 55-SIMPLY 40
180-01-01-02 H9 STANDARD ISTRUZIONI DI MONTAGGIO ENG

Q
P
F
X
75
WITH
WOODEN
STRIP
WITHOUT
WOODEN
STRIP
P P Q
DEPTH 55
98+X+F 83+X+F
535
DEPTH 40 386
STM srl, Sede di Pesaro tel. [phone] Sede di Crevalcore (BO) Tel [phone] Fax [phone] www.stmitaly.it [email protected]
SIZE
PAG.4
04/12/2018
TYPE - SIMPLY 55-EASY 55-LIFT 55-SIMPLY 40
180-01-01-02 H9 STANDARD ISTRUZIONI DI MONTAGGIO ENG

WARNING:
This instructions are valid for different solutions
and product codes of some components shown
in the drawing may not be included in the
product package.
During the assembling, please follow the
“ASSEMBLY INSTRUCTIONS” and
"ITEMS INCLUDED IN THE PACKAGE” information
STM srl
