STODDART AIREX AXR.MECT.1 User manual

Model:
AXR.MECT.1 / AXR.MECT.1P
Countertop Refrigerated Merchandiser
1 Door & Pass Through
SPECIFICATION, INSTALLATION
AND OPERATION MANUAL
READ ALL INSTRUCTIONS BEFORE USE
Revision: 01 - 8/07/2020 - A

Page Intentionally Left Blank
Page 1
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz

Page 2
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Introduction
Your New Airex Product. . . . . . . . . . . . . . . . . . . . . 3
Australia and New Zealand Warranty . . . . . . . . . . . . . . 4
Warranty Period
Warranty Registration
General Precautions . . . . . . . . . . . . . . . . . . . . . . 4
Installation
Product Overview. . . . . . . . . . . . . . . . . . . . . . . . 5
Setting Up . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Handling
Unpacking
Positioning
Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . 7
Information
Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjustable Shelves . . . . . . . . . . . . . . . . . . . . . . . 8
Shelf Installation
Specification

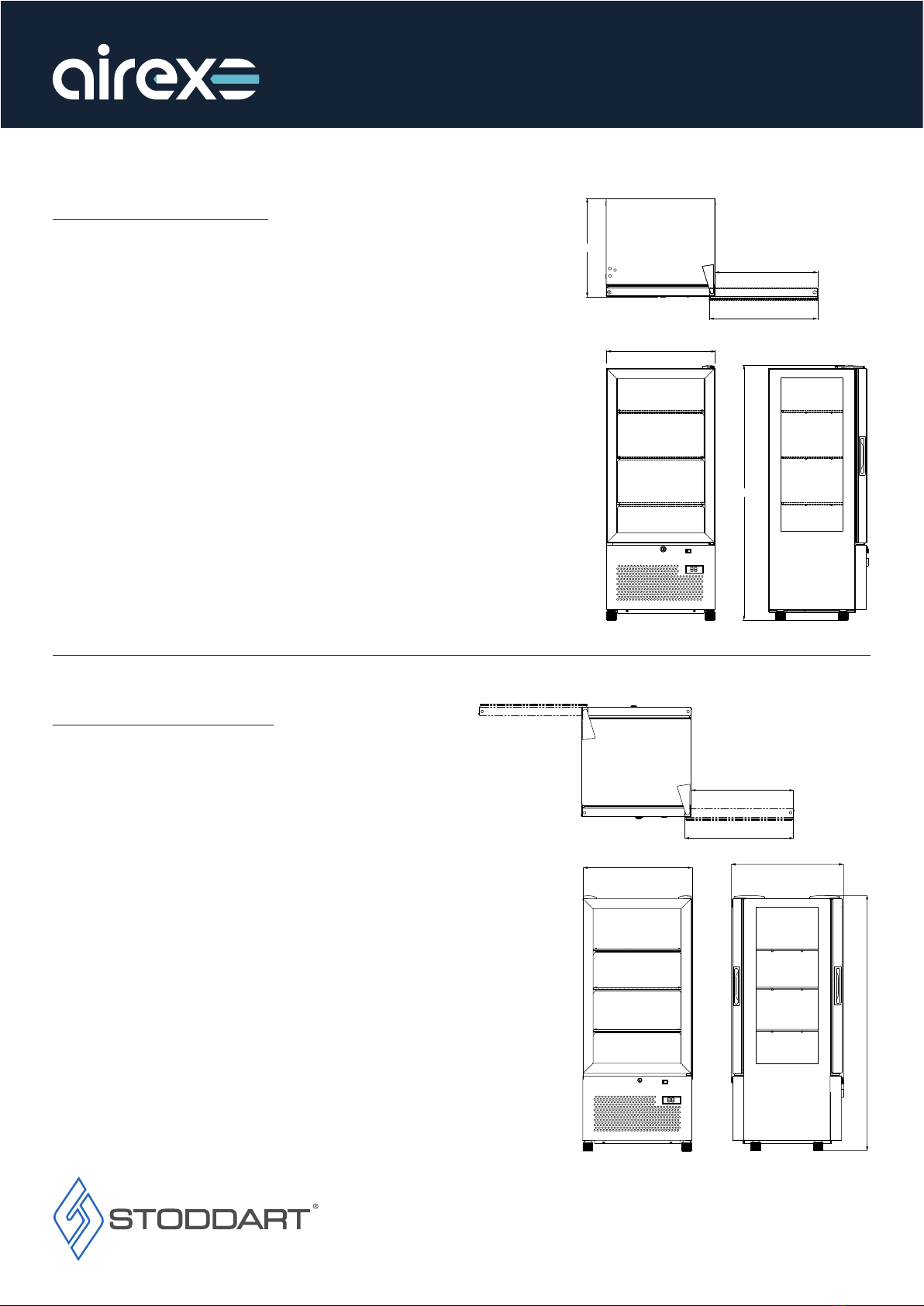

General Drawing . . . . . . . . . . . . . . . . . . . . . . . . 9
AXR.MEUR.SL
AXR.MEUR.SL
Operation
Initial Start-up & Operation . . . . . . . . . . . . . . . . . . 10

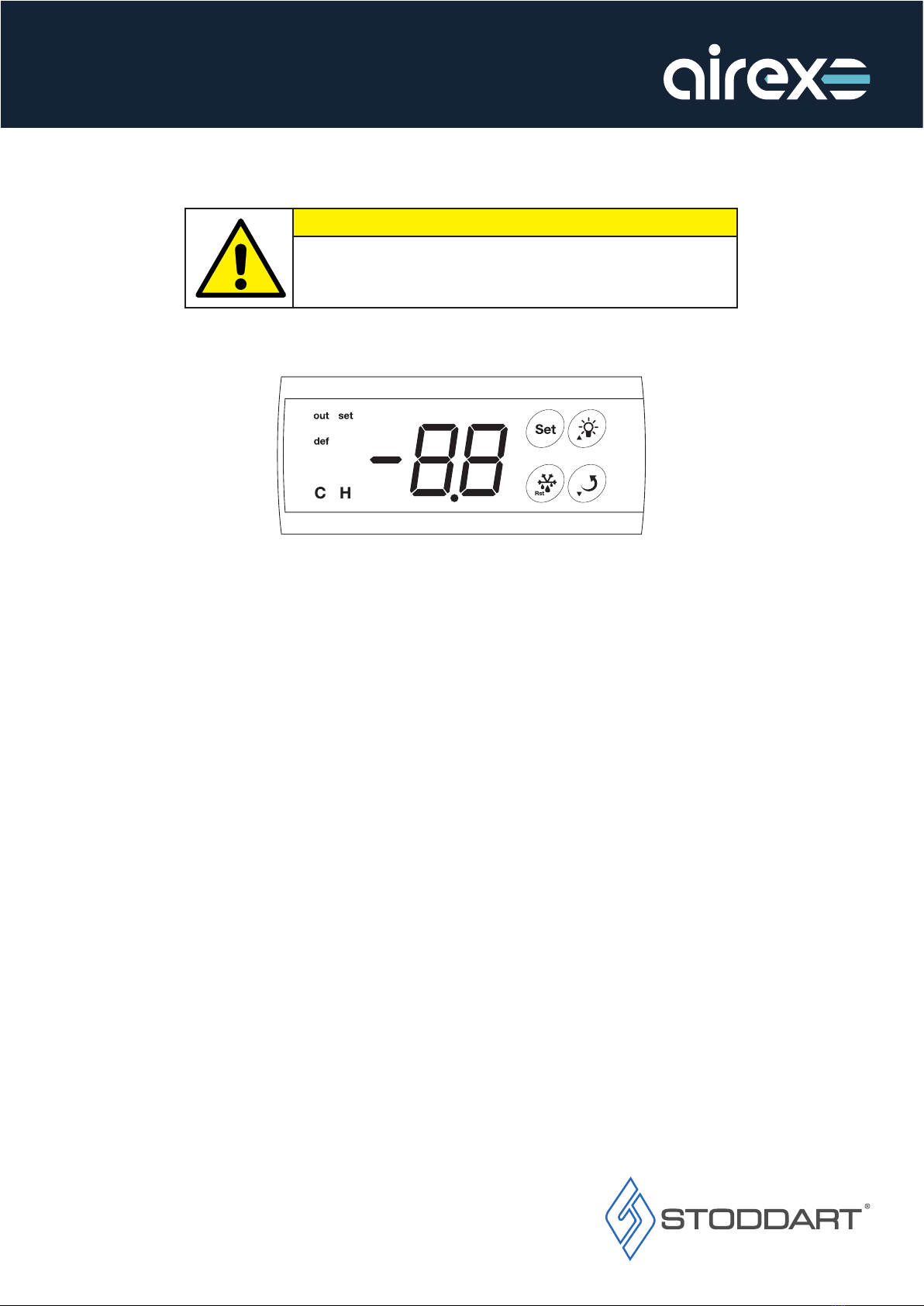

Controller
Initial Start Up
Food Temperature
Loading Restrictions
After Service - Information
After Service - Storage
Temperature Adjustment . . . . . . . . . . . . . . . . . . . 11
Cleaning and Maintenance
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
General Information
Corrosion Protection
Surface Finish
Cleaning Schedule
Materials Required
Refrigerator
Door Seal
Display Glass
External Surfaces
Ventilation Panels / Filter
Condenser
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 14
Troubleshooting Procedures
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Page 3
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Introduction
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance.
Keep this booklet on hand in a safe place for future reference by other operators or users.
Stoddart design, manufacture & distribute Food Service Equipment (appliances) exclusively for the commercial market.
This appliance is not designed nor intended for household or domestic use & must not be used for this purpose.
This product is intended for commercial use, and in line with Australian electrical safety standards the following warnings are provided:
• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person
responsible for their safety. Children should be supervised to ensure that they do not play with the product
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard
The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons,
units or others, due to abuse and misuse of this unit in regards to installation, removal, operation, servicing or maintenance, or lack of
conformity with the instructions indicated in this documentation.
Disclaimer
All units made by the manufacturer are delivered assembled, where possible, and ready to install. Any installation, removal, servicing,
maintenance and access or removal of any parts, panels or safety barriers that is not permitted, does not comply in accordance to this
documentation, or not performed by a TRAINED AND AUTHORISED SPECIALIST will result in the
IMMEDIATE LOSS OF THE WARRANTY.
The manufacturer cannot be held responsible or liable for any unauthorized modifications or repairs. All modifications or repairs must
be approved by the manufacturer in writing before initiating. All modifications or repairs performed to this unit must be performed at all
times by a TRAINED AND AUTHORISED SPECIALIST.
Thank you for choosing this quality Airex product.
All Airex products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining your new
Airex product in accordance with these instructions, will provide many years of reliable service.
Stoddart is a wholly Australian owned company, which manufactures and/or distributes a comprehensive range of food service equipment for
kitchens, food preparation and presentation. Stoddart products are manufactured and/or engineered in Australia to provide excellent results
whilst offering value-for-money, ease-of-use and reliability.
Your New Airex Product

Page 4
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Introduction
• All units MUST be installed according to the procedures stated in the installation section of this manual
• In the case of new personnel, training is to be provided before operating the equipment
• DO NOT use this unit for any other purpose than its intended use
• DO NOT store explosive substances such as aerosol cans with a flammable propellant in or near this unit
• Keep fingers out of “pinch point” areas
• Unit is not waterproof DO NOT use jet sprays, hoses or pour water over/on the exterior of the unit
• Only use this unit with voltage specified on the rating label
• Do NOT remove any cover panels that may be on the unit
• DO NOT use sharp objects to activate controls
• DO NOT use sharp objects to remove ice from the unit
• If any fault is detected, refer to troubleshooting
• The manufacturer declines any liability for damages to persons and/or things due to an improper/wrong and/or unreasonable use of the
machine
• Only specifically trained/qualified Technicians (Stoddart, one of our service agents, or a similarly qualified persons) should carry out any
and all repairs, maintenance and services
When using any electrical unit, safety precautions must always be observed.
Our units have been designed for high performance. Therefore, the unit must be used exclusively for the purpose for which it has been designed.
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance.
Keep this booklet on hand in a safe place for future reference by other operators or users.
Stoddart design, manufacture & distribute Food Service Equipment (appliances) exclusively for the commercial market.
This appliance is not designed nor intended for household or domestic use & must not be used for this purpose.
This product is intended for commercial use, and in line with Australian electrical safety standards the following warnings are provided:
• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person
responsible for their safety. Children should be supervised to ensure that they do not play with the product
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard
The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons,
units or others, due to abuse and misuse of this unit in regards to installation, removal, operation, servicing or maintenance, or lack of
conformity with the instructions indicated in this documentation.
Disclaimer
All units made by the manufacturer are delivered assembled, where possible, and ready to install. Any installation, removal, servicing,
maintenance and access or removal of any parts, panels or safety barriers that is not permitted, does not comply in accordance to this
documentation, or not performed by a TRAINED AND AUTHORISED SPECIALIST will result in the
IMMEDIATE LOSS OF THE WARRANTY.
The manufacturer cannot be held responsible or liable for any unauthorized modifications or repairs. All modifications or repairs must
be approved by the manufacturer in writing before initiating. All modifications or repairs performed to this unit must be performed at all
times by a TRAINED AND AUTHORISED SPECIALIST.
Thank you for choosing this quality Airex product.
All Airex products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining your new
Airex product in accordance with these instructions, will provide many years of reliable service.
Stoddart is a wholly Australian owned company, which manufactures and/or distributes a comprehensive range of food service equipment for
kitchens, food preparation and presentation. Stoddart products are manufactured and/or engineered in Australia to provide excellent results
whilst offering value-for-money, ease-of-use and reliability.
General Precautions
Warranty Registration
Warranty Period
Australia and New Zealand Warranty
To register your new product, go to the Stoddart warranty page: http://www.stoddart.com.au/warranty-registration
Stoddart 24 month on-site parts and labour warranty (terms and conditions apply), from the time of purchase.
To view or download the warranty terms and conditions visit: http://www.stoddart.com.au/warranty-information
Warranty & Registration

Page 5
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Installation

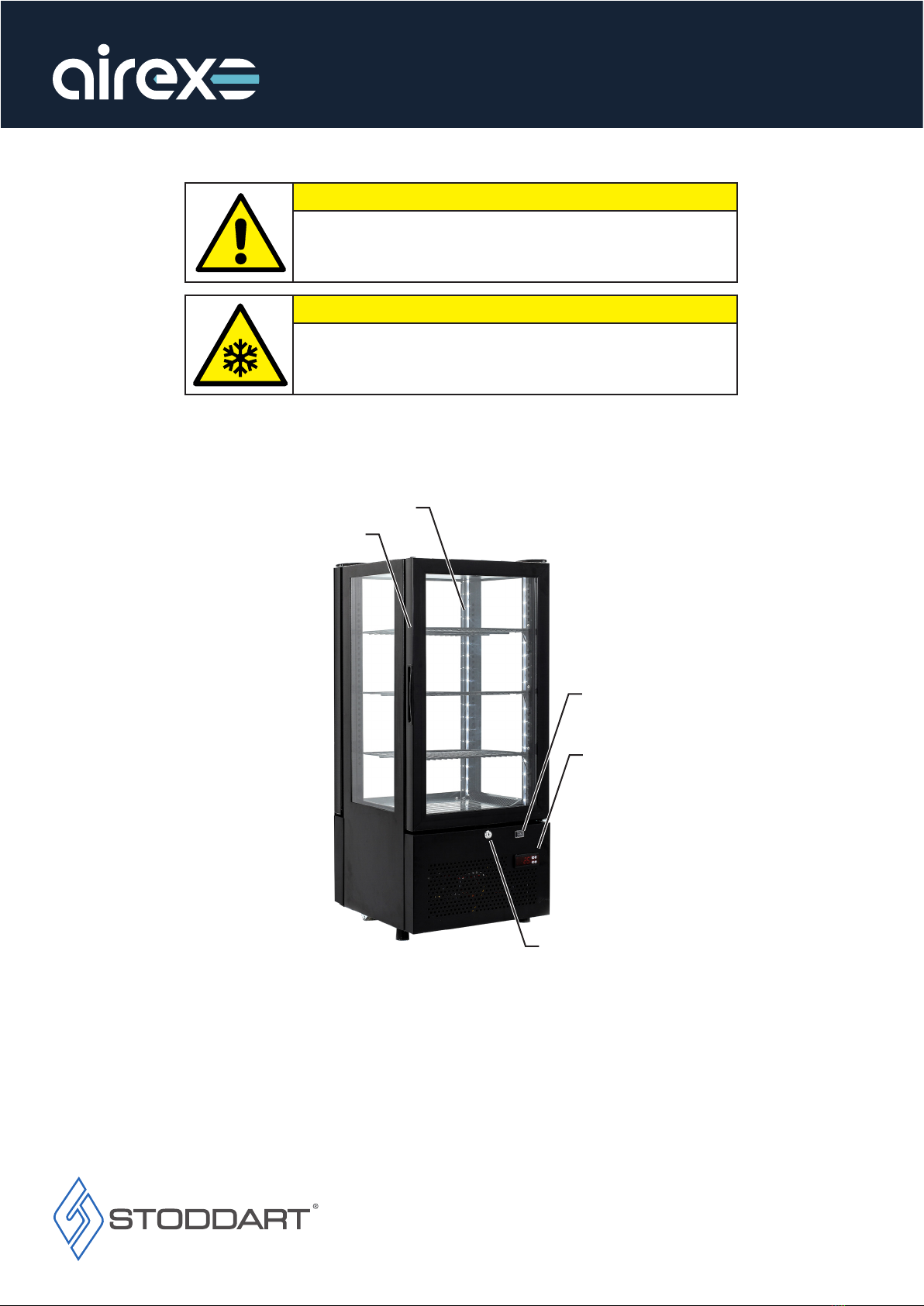

Product Overview
Digital Control
ON/OFF
Door Lock
Glass Door
LED lights
CAUTION
This unit includes refrigeration components.
Cold surfaces can burn DO NOT touch these surfaces
IMPORTANT
This unit is not designed to cool down hot/warm
product. It only maintains the product at the
controlled 2°C - 12°C

Page 6
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Installation
Setting Up
Handling
Unpacking
Positioning
• Use suitable means to move the unit;
- For smaller items use two people
- For large items a fork lift, pallet trolley or similar (the forks should reach completely beneath the pallet)
• Check the unit for damage before and after unpacking. If unit is damaged, contact the distributor and manufacturer
• Should any item have physical damage, report the details to the freight company and to the agent responsible for the dispatch within
seven (7) days of receipt. No claims will be accepted or processed after this period
• The unit is supplied fully assembled
• Remove all protective plastic film, tapes, ties and packers before installing and operating
• Clean off any remaining residue from the interior/exterior of the unit using a clean cloth dampened with warm soapy water
• When moving the unit, ensure the cabinet is upright at all times
• When positioning the unit, avoid direct sunlight, warm drafts and heated areas for the unit to maintain the normal operating
temperature
• Do not position the unit in:
- Wet areas
- Near heat and/or steam sources
- Near flammable substances
• Ensure the unit is positioned on a level surface to allow all the condensation to properly burn off and prevent the burn off tray
overflowing

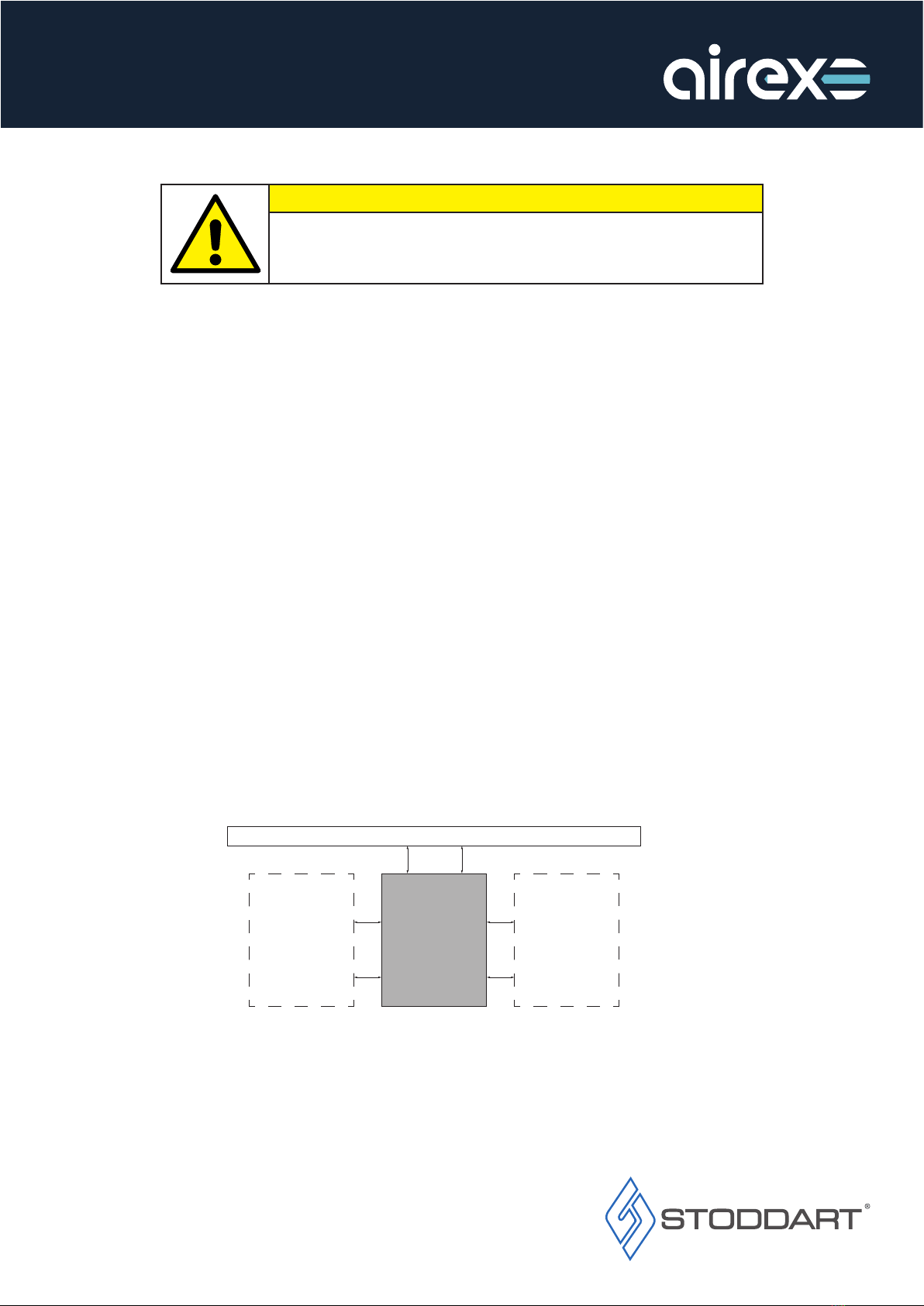

• Allow an air gap between the unit and other objects or surfaces. A minimum gap of 100mm from all sides is recommend for normal
operational use (if the unit is near any heat sensitive material we suggest you allow additional space), example below
• After positioning the unit, allow the refrigeration gas to settle for at least 2 hours before switching ON
• Please consult national and local standards to ensure that your unit is positioned in accordance with any existing requirement
WARNING
Improper installation, adjustments, alterations, service or
maintenance can cause property damage, injury or death.
100mm
APPLIANCE
100mm 100mm
Front

Page 7
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Installation
The system is fully operational as soon as it leaves the factory. No addition setup is required.
Refrigeration
Single Phase Units:
• Supplied and fitted with an appropriately rated plug and lead, indicated as:
- 10A plug & lead fitted
This unit must be installed in accordance with AS/NZS 60335.1
Some procedures in this manual require the power to the equipment to be turned off and
isolated. Turn the power OFF at the power point and unplug the power supply lead by the plug
body. If the power point is not readily accessible turn the equipment off at the isolation switch
or the circuit breaker in the switchboard. Attach a yellow “CAUTION-DO NOT OPERATE” tag.
This must be performed where relevant unless the procedures specify otherwise.
FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK.
WARNING
Notes:
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a
hazard. Please contact Stoddart for parts and we will advise how to do this in order to avoid any electrical hazard
• The power cable should be dry and/or isolated from moisture or water
Electrical Connection
Information
Warning
SYSTEM CHARGED WITH FLAMMABLE REFRIGERANT
R600a
This unit must be serviced in accordance
with AS/NZS 1677:1998

Page 8
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Installation

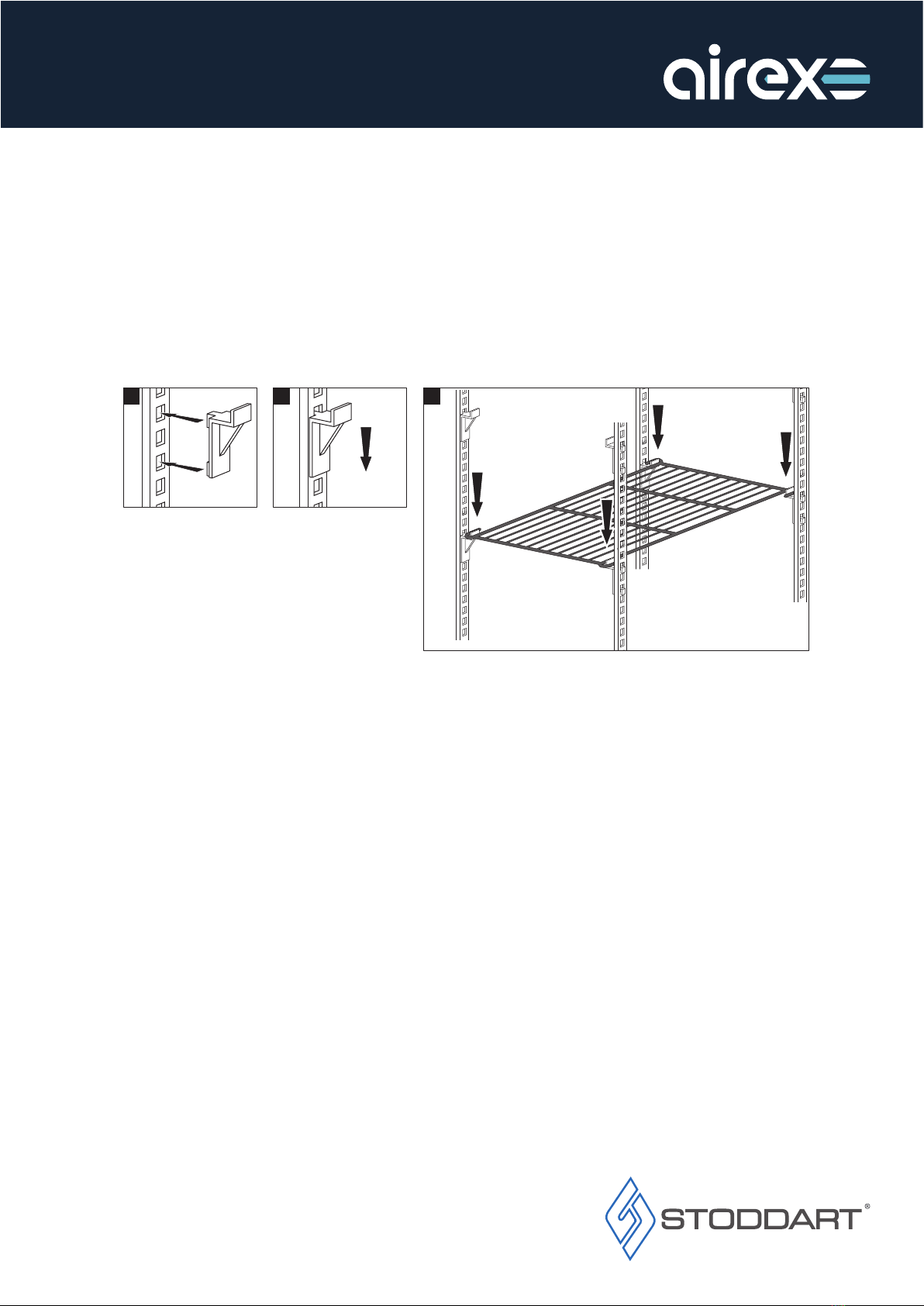

Adjustable Shelves
Shelf Installation
1. The shelf support clip needs to be facing up, insert the for shelf clips into the vertical rails
2. Push the shelf clips down (ensure all four shelf clips (four clips per shelf) are positioned at the same height)
3. Lower the shelf over the shelf clips
Note: Do not use pliers when installing shelf clips
The unit is supplied with a condensate burn-off tray. No additional drainage or plumbing is required.
Plumbing
1 2 3

Page 9
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Specification
General Drawing
AXR.MEUR.SL
AXR.MEUR.SL
Specifications
Model AXR.MECT.1.0994
W x D x H (mm) 424 x 390 x 994
Weight 44kg
Capacity 78 Litres
Operation 2°C - 12°C
Refrigerant R600a
Max Ambient 28°C
Power 220 - 240V
10A plug & lead
Specifications
Model AXR.MECT.1P.0994
W x D x H (mm) 424 x 440 x 994
Weight 48kg
Capacity 83 Litres
Operation 2°C - 12°C
Refrigerant R600a
Max Ambient 28°C
Power 220 - 240V
10A plug & lead
FRONT VIEW SIDE VIEW
TOP VIEW
390
401
422
424
994
FRONT VIEW SIDE VIEW
TOP VIEW
400
424
424 440
994

Page 10
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Operation
Initial Start-up & Operation
Initial Start Up
• Before switching ON the unit, ensure the unit is installed correctly
• Once switched ON, check that the air is flowing within the unit. Check the lights and the door surround heaters are working
• After 45 minutes check the cabinet temperature has reached 2°C - 12°C
• Leave the unit to operate for 1-2 hours to remove any fumes or odours
• Clean the whole unit, including the shelves, before placing in product
Food Temperature
• Ensure the unit is maintaining temperature is between 2°C - 12°C
• Ensure the doors are CLOSED when not loading to maintain temperature
• Do NOT place warm/hot items in the unit to chill, placing warm/hot items in the unit can lead to food spoilage and possibly food
poisoning
Loading Restrictions
• Air vents must NOT be covered
• There should NOT be any overhang of products on the shelves
• Shelves are only designed to hold one layer of product. Overloading can break/damage the shelves
• Remove some products if the shelves are flexing or bending
• Shelves should be adjusted to allow air space around all the product for even refrigeration and efficient operation of the Refrigerator.
Leave an air space of at least 50mm above the product for air circulation
Controller
IMPORTANT
This unit is not designed to cool down hot/warm
product. It only maintains the product at the
controlled 2°C - 12°C
After Service - Information
• The unit must be turned OFF after service
After Service - Storage
• Products should not be stored in the unit after service

Page 11
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Operation
• The temperature range of this unit is 2°C - 12°C. The recommended temperature setting is 2°C - 4°C
• Different modes require different temperatures
• The temperature probe only measures the temperature of the water/air, NOT the food temperature
Temperature Adjustment
KEY FUNCTIONS:
Enter the status of parameter setting
Switch between menu and parameter
Adjust menu and parameters
Adjust menu and parameters;
Press 10s to execute parameter one-key recovery
Exit from parameter setting status
Exit from one-key recovery status
Force to start defrost
User parameter setting
In the status of temperature measuring and controlling, press and hold the Set key for three seconds to enter user parameter setting
state, it displays menu St in the digital tube. At this time, press the Set key to display the corresponding parameter value and press
or to adjust the set temperature, press the Set key to return to menu item St.
Enter to the administrator menu setting
In the user menu setting, when it displays menu item St in the digital tube, press to switch to the menu item Po, press Set key to
display 00, and press and to adjust it to 55, then press Set key again to return to menu item Po. At this time, press key to
display rd, indicating that it has entered to the administrator parameter setting status. If it doesn't adjust to 55, press Set key to return
to menu time Po, then press the key ,it will exit from user parameter setting status and return to the temperature measuring and
control status.
Administrator parameter setting
After enter to the administrator parameter setting, press and to select menu items (St, Po, rd ......) ;
After select the item, press Set key to enter to the current parameter setting, press and to adjust parameters and then press
Set key to return to the menu item.
Exit from parameter setting
Under the status of parameter setting, press key or no key operation within 30s, or if Po is not set as 55, press key when it
displays menu item Po (i.e. password input error), it will save the current parameter value and exit from parameter setting.
Manual defrost
In the status of temperature measuring and controlling, press for three seconds to force the open or close of
defrost (d1 is not 0, i.e. defrost is not forbidden).
Code Reason Control Output Remark
E1 Sensor failure Run/Stop control output in a proportional time /
dF Defrost
Without defrost relay: off cycle defrost
With defrost relay: output defrost /
dr Parameter recovery The original parameters will be overwritten by
the selected parameters
Factory operation mode

Page 12
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Cleaning and Maintenance
• Cleaning is recommended for health and safety purposes and to prolong the life of the unit
• Do NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit
• Do NOT use industrial chemical cleaners, caustic based cleaners or bleaches and bleaching agents, as many will damage the metals
and plastics used on this unit
• Do NOT remove any screws and/or panels for cleaning (unless directed)
• This unit is NOT waterproof, do NOT hose, do NOT pour water directly onto the unit, do NOT immerse in water
• Stainless steel exhibits good resistance to corrosion however, if not properly maintained stainless steel can rust and/or corrode
• Any sign of mild rust and/or corrosion should be thoroughly cleaned with warm soapy water and dried as soon as possible
• NEVER use abrasive pads or cleaners for cleaning
• All metal surfaces should be checked while cleaning for damage, scuffs or scrapes as these can lead to rust and further damage to the
product
• Mild rust and/or corrosion can be treated with a commercial cleaning agent that contains citric/oxalic/nitric/phosphoric acid.
Do NOT use cleaning agents with chlorides or other harsh chemicals as this can cause corrosion.
After treatment, wash with warm (not hot) soapy water and dry thoroughly
• Thoroughly wipe the surfaces dry after cleaning and do NOT let water pool on the unit. Check crevices and folds for pooling
• When using, ensure all liquids and moisture is cleaned up straight away.
Food liquids such as juices from vegetables and fruits should NOT be left on preparation surfaces
• Do NOT leave items on the stainless steel such as cutting boards, rubber mats and bottles
• To protect the polish, stainless steel should be dried by wiping a dry soft cloth in the same direction as grained polished finish
• For NON-food contact surfaces, a light oil can be wiped on the surfaces with a cloth to enhance the stainless steel surface.
Wipe in the direction of the grain
• Some commercial stainless steel cleaners can leave residue or film on the metal; this may trap fine particles of food on the surface,
thus deeming the surfaces not food safe
IMPORTANT
Threaded fasteners can loosen in service.
Regular inspection and adjustment
should be carried out as required
WARNING
This unit is NOT waterproof, do NOT
hose. DO NOT pour water directly onto
the unit. DO NOT immerse in water
IMPORTANT
Some commercial stainless steel
cleaners leave residue or film on the
metal that may entrap fine particles of
food, deeming the surface not
FOOD SAFE
WARNING
This unit includes refrigeration
components.
Cold surfaces can burn DO NOT touch
these surfaces
Cleaning
General Information
Corrosion Protection
Surface Finish

Page 13
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Cleaning and Maintenance
Cleaning Schedule
• Regular cleaning is recommenced for the unit. This will help to maintain and prolong the efficiency of the unit
Refrigerator
1. Isolate the unit from the power supply
2. Remove shelves and wash separately in a dishwasher or kitchen sink, thoroughly wipe dry after cleaning
3. Using a good quality nylon brush remove crumbs and small food items
4. Clean using a clean cloth dampened (not wet) with clean warm soapy water until all soil has been removed
5. Thoroughly wipe dry with a soft cloth after cleaning, do NOT allow to air dry. Do NOT let water pool, check crevices and folds
1. Clean the glass with a glass cleaner or warm (not hot) soapy water, and a sponge
2. Using a squeegee, remove all water from the glass
Display Glass
1. Clean the door seal using a clean cloth dampened (not wet) with warm water
Door Seal
1. Use a vacuum and/or brush to remove dust and debris from the filter and all ventilation panels
2. Do NOT use water or a hose to remove dust or debris
Ventilation Panels / Filter
Periodic cleaning of the condenser can extend the life of the unit. This must be done by a qualified service technician.
Contact the Stoddart service department
Condenser
Materials Required
• Stainless Cleaner
• Non Abrasive Cleaning pad
• Clean Sanitised Cloth
• Paper Towel
• Warm Soapy Water
• Appropriate PPE (Personal Protective Equipment)
External Surfaces
1. Using a clean cloth dampened (not wet) with clean warm soapy water until any grime has been removed
2. Using a clean sanitised cloth, thoroughly wipe the stainless steel and metal parts dry. Do NOT let water pool on the unit. Check crevices
and folds

Page 14
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Cleaning and Maintenance
Troubleshooting
(O) = Operator (T) = Technician Task
WARNING
Technician tasks are only to be completed by qualied service
people. Check faults before calling service technician.
Troubleshooting Procedures
• If any faults/issues occur with the unit, follow the below troubleshooting procedures
• If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department
Problem Possible Causes Task Possible Corrective Action
Unit does not operate/start
The mains isolating switch on the wall,
circuit breaker or fuses are OFF at the power
board
OTurn isolating switch, circuit breaker or
fuses ON
Power switch is in the “Off” position O Change the power switch to the “ON” position
Power Point is faulty T Arrange a qualified Technician to repair the power point
Refrigeration circuit board(s) is hot T Replace / Fix circuit board(s)
Unit is too warm
Ambient air entering the units O Move away from air flow
Exhaust fan above the unit O Move unit / exhaust fan
Warm items in unit O Remove items / Pre-chill
Air not circulating O Remove some items / Clear air vents/Grills
Too many items in the unit (overloaded) O Remove some items
Evaporator coil fins blocked O Clean fins / Defrost unit
Evaporator coil iced up O Defrost Unit / Remove warm items / Fix or
replace door seals
Temperature probe broken / disabled T Replace / Enable probe
Faulty electronic controller T Replace controller
Direct sunlight O Block sunlight, window tinting/shades
Unit is too cold Temperature probe broken/disabled T Replace / Enable probe
Faulty electronic controller T Replace controller

Page 15
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Cleaning and Maintenance
If the appliance is no longer of use, please dispose in an environmentally correct way.
Contact a qualified service technician:
• To recover all refrigerant
• To remove the compressor or remove the oil from the compressor
The distributor / retailer can contact their local metal recycling centre to collect the remaining cabinet, shelves, etc.
There may be special requirements or conditions. Information on the disposal of refrigeration appliances can be obtained from:
• Your supplier
• Government authorities (The local council, Ministry of the Environment, etc.)
Discarded electric appliances are recyclable and should not be discarded in the domestic waste! Please actively support us in
conserving resources and protecting the environment by returning this appliance to the collection centres (if available).
Dispose of packaging in accordance to applicable legal regulations.
Disposal

Page Intentionally Left Blank
Page 16
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz

Page 17
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz

Page 18
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz

www.stoddart.com.au
International
Sales
Tel: [phone]
Email: [email protected]
Service / Spare Parts
Tel: [phone]
Email: [email protected]
Email: [email protected]
www.stoddart.co.nz
New Zealand Business Number: 6837694
New Zealand
Sales
Tel: [phone]
Email: [email protected]
Service / Spare Parts
Tel: [phone]
Email: [email protected]
Email: [email protected]
www.stoddart.com.au
Australian Business Number: 16009690251
Australia
Sales
Tel: [phone]
Email: [email protected]
Service / Spare Parts
Tel: [phone]
Email: [email protected]
Email: [email protected]
Revision Date: 8/07/2020
