STODDART GIORIK 700 Series Instruction manual

Revision: A - 07/04/2022 - 03
FRYER
(Gas / Electric)
Gas: FG7207TT / FG7417PT / FG7817PT
Gas: FG9207TT / FG9421PT / FG9821PT
Electric: FE7110TT / FE7117T / FE7207T / FE7210TT / FE7217T
Electric: FE9121T / FE9207T / FE9221T
700 Series:
900 Series:
Models:
700/900
INSTALLATION / OPERATION / MAINTENANCE
MANUAL
(READ ALL INSTRUCTIONS BEFORE USE)

Page Intentionally Left Blank
Page 1
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz

Page 2
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
1.0 Introduction
1.1 Your New Giorik Product . . . . . . . . . . . . . . . . . .3
1.2 Australia and New Zealand Warranty . . . . . . . . . . . .4
1.2.1 Warranty Period
1.2.2 Warranty Registration
1.3 General Precautions . . . . . . . . . . . . . . . . . . . .5
1.3.1 General Warnings
1.4 Setting Up Information . . . . . . . . . . . . . . . . . . .6
1.4.1 Handling
1.4.2 Unpacking
1.4.3 Disposal
2.0 Specification
2.1 Specification . . . . . . . . . . . . . . . . . . . . . . . .7
2.1.1 700 Series
2.1.2 900 Series
2.1.3 Main Burner Nozzle
2.1.4 Rating Plate

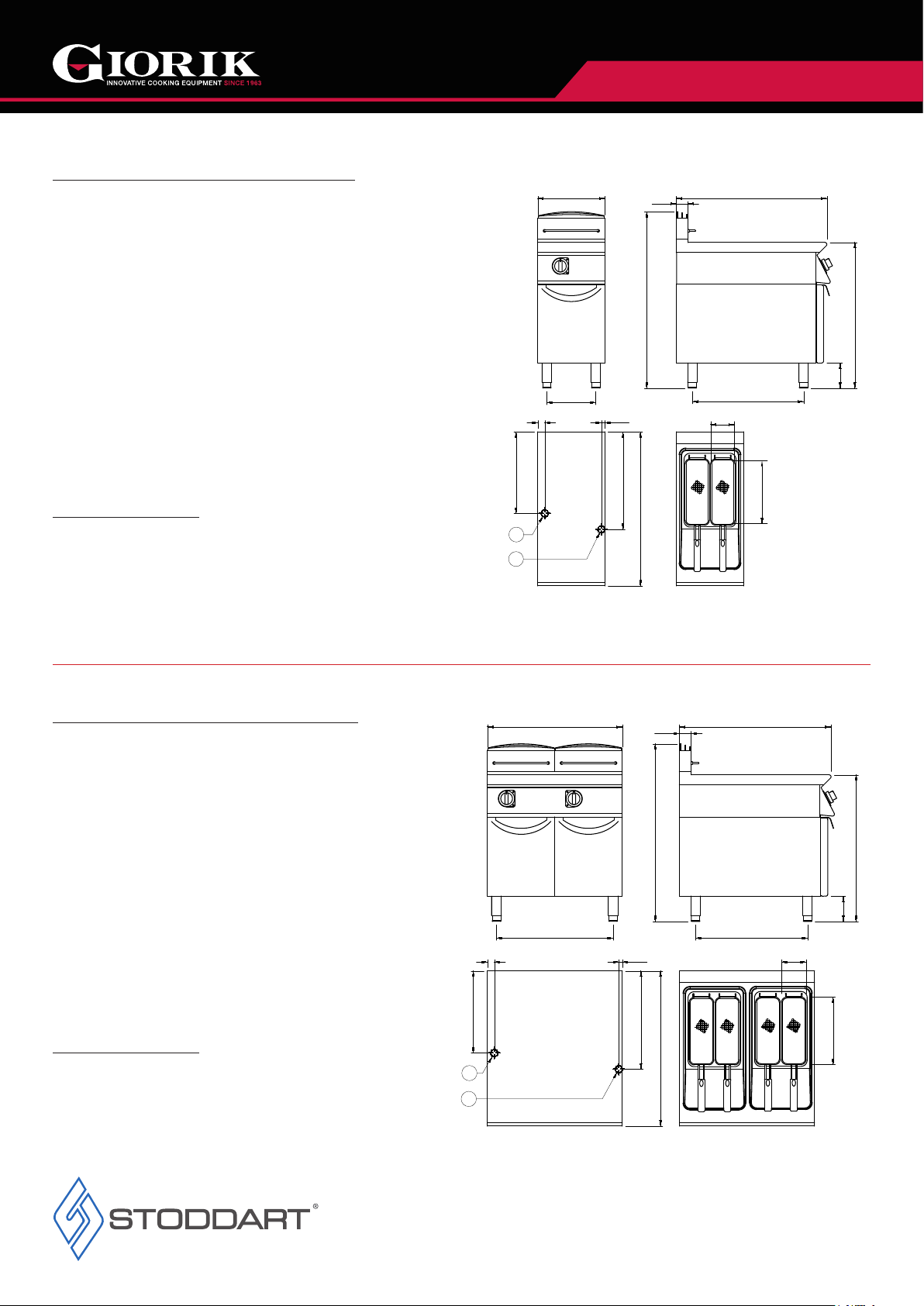

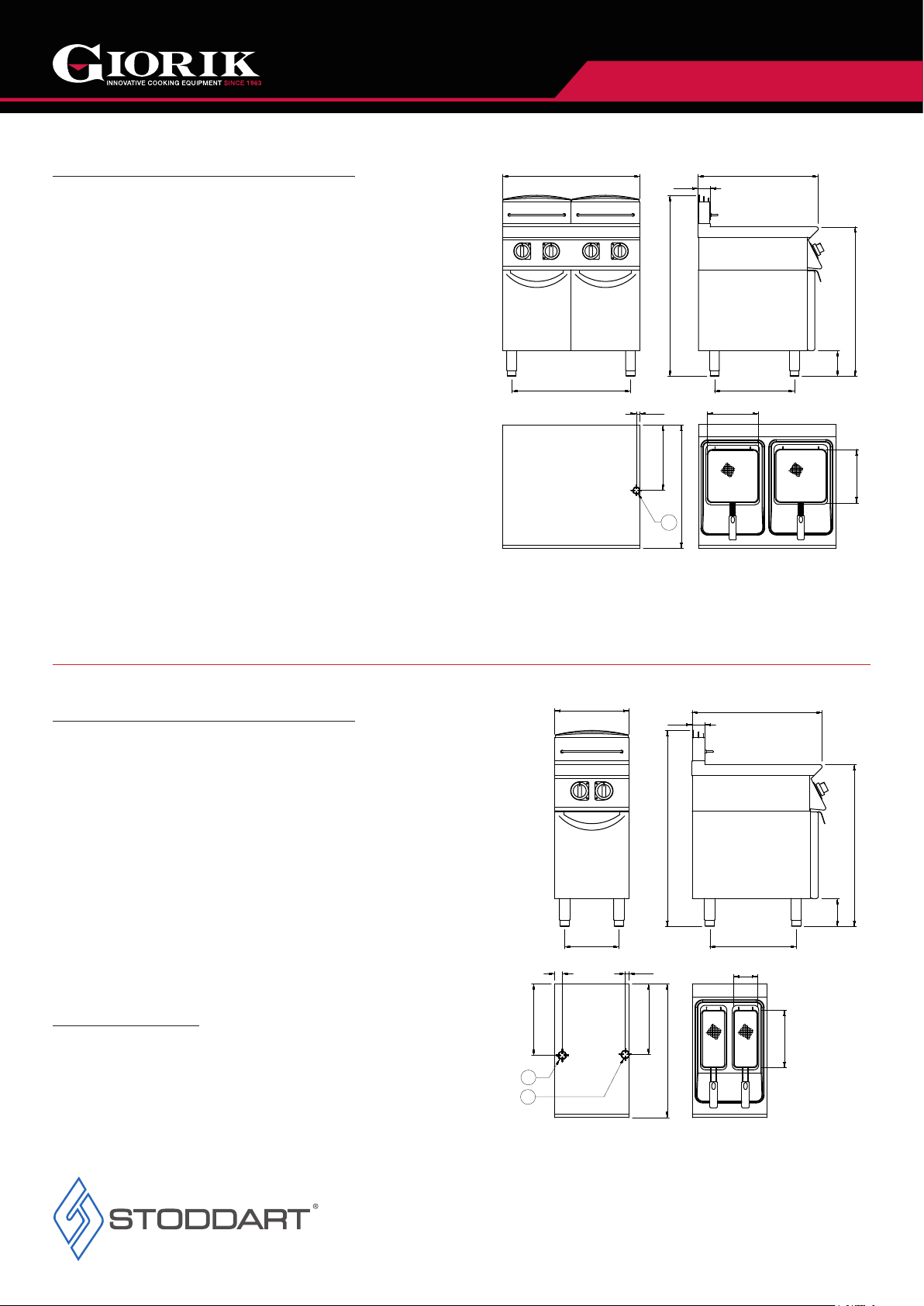

2.2 Technical Drawing - Gas . . . . . . . . . . . . . . . . . .9
2.2.1 FE7110TT
2.2.2 FE7210TT
2.2.3 FE7207T
2.2.4 FE7117T
2.2.5 FE7217T
2.2.6 FG7207TT
2.2.7 FG7417PT
2.2.8 FG7817PT
2.2.9 FE9207T
2.2.10 FE9121T
2.2.11 FE92021T
2.2.12 FG9207TT
2.2.13 FG9421PT
2.2.14 FG9821PT
3.1 Positioning . . . . . . . . . . . . . . . . . . . . . . . . 16
3.1.1 General Information
3.1.2 Spacing
3.1.3 Ventilation/Extraction

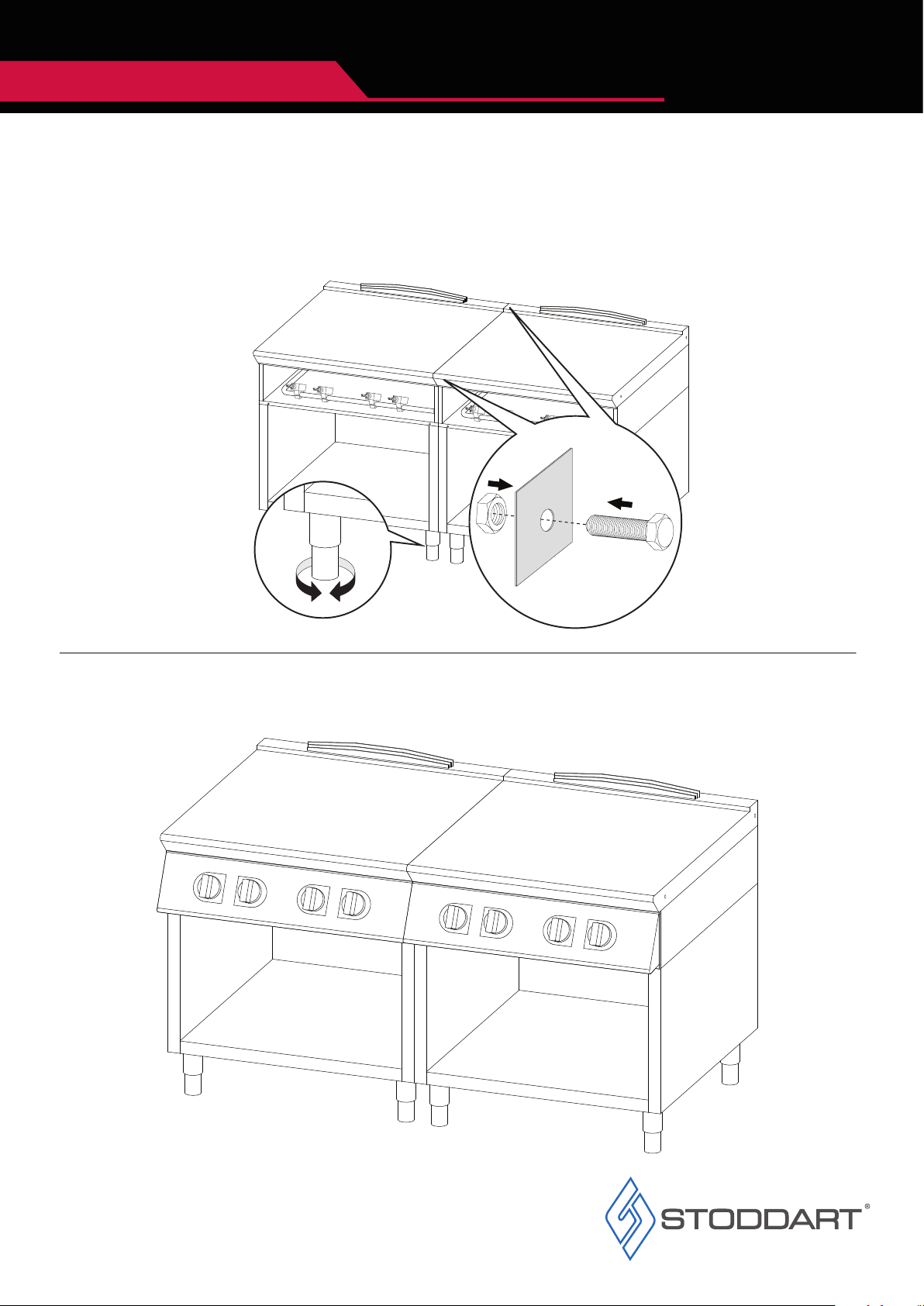

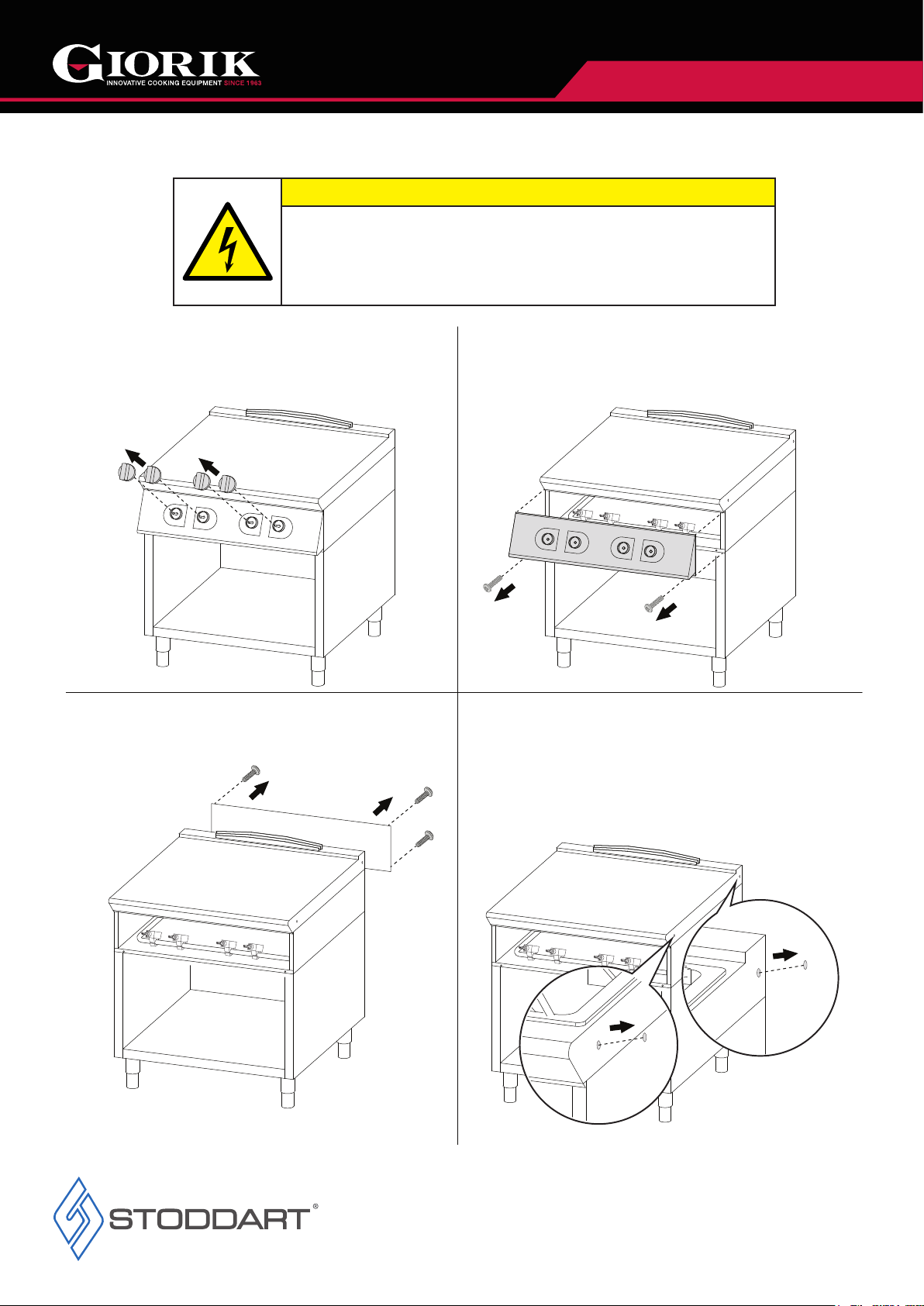

3.2 Line-up Connection. . . . . . . . . . . . . . . . . . . . 17
3.3 Gas Connection - Gas Models . . . . . . . . . . . . . . 19
3.3.1 Connecting the gas
3.3.2 Gas Pressure Regulator
3.3.3 Gas Pressure Check
3.4 Gas Conversion (Internal Burners) . . . . . . . . . . . . 21
FG7207TT / FG9207TT
3.4.1 Replacing the Main Burner Nozzle
3.4.2 Fixed Primary Air Regulation
3.4.3 Pilot Nozzle Replacement
3.4.4 Final Check - Main Burner
3.5 Gas Conversion -(External Burners)
FG7417PT / FG7817PT / FG9421PT / FG9421PT
3.5.1 Replacing the Main Burner Nozzle
3.5.2 Fixed Primary Air Regulation
3.5.3 Pilot Nozzle Replacement
3.5.4 Final Check - Main Burner
3.6 Electrical Connection - Electric Models . . . . . . . . . . 25
3.6.1 Information
3.6.2 Wiring
4.0 Operation
4.1 Gas Fryer Operation . . . . . . . . . . . . . . . . . . . 26
4.1.1 Gas Controls
4.1.2 Gas Operation
4.2 Electric Fryer Operation. . . . . . . . . . . . . . . . . . 27
4.2.1 Electric Controls
4.2.2 Electric Operation
5.0 Cleaning and Maintenance
5.1 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.1.1 Cleaning Schedule
5.1.2 Materials Required
5.1.3 General Information
5.1.4 Corrosion Protection
5.1.5 Surface Finish
5.1.6 Cleaning Procedure (Daily)
5.1.7 External Surfaces (Daily)
5.2 Maintenance . . . . . . . . . . . . . . . . . . . . . . . 30
5.2.1 Periodic Maintenance
5.2.3 Troubleshooting

Page 3
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
1.0 Introduction
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance. Keep this
booklet on hand in a safe place for future reference by other operators or users.
Stoddart design, manufacture & distribute Food Service Equipment (appliances) exclusively for the commercial market.
This appliance is not designed nor intended for household or domestic use and must not be used for this purpose.
This product is intended for commercial use, and in line with Australian electrical safety standards the following warnings are provided:
• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person
responsible for their safety. Children should be supervised to ensure that they do not play with the product
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard
The manufacturer/distributor cannot be held responsible or liable for any injuries or damages of any kind that occur to persons, units or
others, due to abuse and misuse of this unit in regards to installation, removal, operation, servicing or maintenance, or lack of conformity
with the instructions indicated in this documentation.
Disclaimer
All units made by the manufacturer/distributor are delivered assembled, where possible, and ready to install. Any installation, removal,
servicing, maintenance and access or removal of any parts, panels or safety barriers that is not permitted, does not comply in
accordance to this documentation, or not performed by a TRAINED AND AUTHORISED SPECIALIST will result in the
IMMEDIATE LOSS OF THE WARRANTY.
The manufacturer/distributor cannot be held responsible or liable for any unauthorised modifications or repairs. All modifications or
repairs must be approved by the manufacturer/distributor in writing before initiating. All modifications or repairs performed to this unit
must be performed at all times by a TRAINED AND AUTHORISED SPECIALIST.
Thank you for choosing this quality Giorik product.
All Giorik products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining this new
Giorik product in accordance with these instructions, will provide many years of reliable service.
Stoddart is a wholly Australian owned company, which manufactures and/or distributes a comprehensive range of food service equipment for
kitchens, food preparation and presentation. Stoddart products are manufactured and engineered to provide excellent results whilst offering
value-for-money, ease-of-use and reliability.
1.1 Your New Giorik Product
To register your new product, Follow the below Link/QR code.
www.stoddart.com.au/warranty-information
All Stoddart manufactured and distributed products are covered by Stoddart’s standard Australia and New Zealand Product Warranty (minimum
12 month on-site parts and labour, terms and conditions apply). Further to this standard warranty, certain products have access to an extended
warranty. Full terms, conditions and exclusions can be found using the below Link/QR code.
Warranty & Registration

Page 4
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
1.0 Introduction
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance. Keep this
booklet on hand in a safe place for future reference by other operators or users.
Stoddart design, manufacture & distribute Food Service Equipment (appliances) exclusively for the commercial market.
This appliance is not designed nor intended for household or domestic use and must not be used for this purpose.
This product is intended for commercial use, and in line with Australian electrical safety standards the following warnings are provided:
• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person
responsible for their safety. Children should be supervised to ensure that they do not play with the product
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard
The manufacturer/distributor cannot be held responsible or liable for any injuries or damages of any kind that occur to persons, units or
others, due to abuse and misuse of this unit in regards to installation, removal, operation, servicing or maintenance, or lack of conformity
with the instructions indicated in this documentation.
Disclaimer
All units made by the manufacturer/distributor are delivered assembled, where possible, and ready to install. Any installation, removal,
servicing, maintenance and access or removal of any parts, panels or safety barriers that is not permitted, does not comply in
accordance to this documentation, or not performed by a TRAINED AND AUTHORISED SPECIALIST will result in the
IMMEDIATE LOSS OF THE WARRANTY.
The manufacturer/distributor cannot be held responsible or liable for any unauthorised modifications or repairs. All modifications or
repairs must be approved by the manufacturer/distributor in writing before initiating. All modifications or repairs performed to this unit
must be performed at all times by a TRAINED AND AUTHORISED SPECIALIST.
Thank you for choosing this quality Giorik product.
All Giorik products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining this new
Giorik product in accordance with these instructions, will provide many years of reliable service.
Stoddart is a wholly Australian owned company, which manufactures and/or distributes a comprehensive range of food service equipment for
kitchens, food preparation and presentation. Stoddart products are manufactured and engineered to provide excellent results whilst offering
value-for-money, ease-of-use and reliability.
To register your new product, Follow the below Link/QR code.
www.stoddart.com.au/warranty-information
All Stoddart manufactured and distributed products are covered by Stoddart’s standard Australia and New Zealand Product Warranty (minimum
12 month on-site parts and labour, terms and conditions apply). Further to this standard warranty, certain products have access to an extended
warranty. Full terms, conditions and exclusions can be found using the below Link/QR code.
Warranty & Registration
1.2.2 Warranty Registration
1.2.1 Warranty Period
1.2 Australia and New Zealand Warranty

Page 5
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
1.0 Introduction
• All units MUST be installed according to the procedures stated in the installation section of this manual
• In the case of new personnel, training is to be provided before operating the equipment
• DO NOT use this unit for any other purpose than its intended use
• DO NOT store explosive substances such as aerosol cans with a flammable propellant in or near this unit
• Keep fingers out of “pinch point” areas
• Unit is not waterproof DO NOT use jet sprays, hoses or pour water over/on the exterior of the unit
• Only use this unit with voltage specified on the rating label
• DO NOT remove any cover panels that may be on the unit
• DO NOT use sharp objects to activate controls
• If any fault is detected, refer to troubleshooting
• The manufacturer declines any liability for damages to persons and/or things due to an improper/wrong and/or unreasonable use of the
machine
• Only specifically trained/qualified Technicians (Stoddart, one of our service agents, or a similarly qualified persons) should carry out any
and all repairs, maintenance and services
When using any electrical unit, safety precautions must always be observed.
1.3 General Precautions
1.3.1 General Warnings
• DO NOT USE OR STORE FLAMMABLE MATERIALS IN OR NEAR THIS APPLIANCE
• DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION
• DO NOT MODIFY THIS APPLIANCE
• DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
The equipment complies with the essential requirements of the Low Voltage Directive 2006/95/EC and Electromagnetic Compatibility Directive
2004/108/EC
It meets the provisions of the following electrical and Gas standards:
• AS/NZS 60335.1
• AS/NZS 4563, AS/NZS 5601
• AS/NZS 1869

Page 6
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
1.0 Introduction
• All units MUST be installed according to the procedures stated in the installation section of this manual
• In the case of new personnel, training is to be provided before operating the equipment
• DO NOT use this unit for any other purpose than its intended use
• DO NOT store explosive substances such as aerosol cans with a flammable propellant in or near this unit
• Keep fingers out of “pinch point” areas
• Unit is not waterproof DO NOT use jet sprays, hoses or pour water over/on the exterior of the unit
• Only use this unit with voltage specified on the rating label
• DO NOT remove any cover panels that may be on the unit
• DO NOT use sharp objects to activate controls
• If any fault is detected, refer to troubleshooting
• The manufacturer declines any liability for damages to persons and/or things due to an improper/wrong and/or unreasonable use of the
machine
• Only specifically trained/qualified Technicians (Stoddart, one of our service agents, or a similarly qualified persons) should carry out any
and all repairs, maintenance and services
When using any electrical unit, safety precautions must always be observed.
1.4.3 Disposal
• At the end of the appliance’s working life, make sure it is scrapped & components recycled properly
• Current environmental protection laws in the state/country of use must be observed
• Doors must be removed before disposal
• Power supply cable must be removed before disposal
• For further information on the recycling of this product, contact the local dealer/agent or the local body responsible for waste disposal
1.4 Setting Up Information
1.4.1 Handling
1.4.2 Unpacking
• Use suitable means to move the unit;
- For smaller items use two people
- For large items a fork lift, pallet trolley or similar (the forks should reach completely beneath the pallet)
• Check the unit for damage before and after unpacking. If unit is damaged, contact the distributor and manufacturer
• Should any item have physical damage, report the details to the freight company and to the agent responsible for the dispatch within
seven (7) days of receipt. No claims will be accepted or processed after this period
• Remove all protective plastic film, ties and packers before installing and operating
• Clean off any remaining residue from the interior/exterior of the unit using a clean cloth dampened with warm soapy water
WARNING
Improper installation, adjustments, alterations, service or
maintenance can cause property damage, injury or death
IMPORTANT
To be installed only by an authorised service person

Page 7
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
2.1.1 700 Series
2.1.2 900 Series
2.1 Specification
2.0 Specification
700 Series - Electric
Model FE7110TT FE7210TT FE7207T FE7117T FE7217T
Description Electric Fryer, Single Pan
10Ltr, Counter Top
Electric Fryer, Double Pan
10+10Ltr, Counter Top
Electric Fryer, Split Pan
8+8Ltr, On Base
Electric Fryer, Single Pan
17Ltr, On Base
Electric Fryer, Double Pan
21+21Ltr, On Base
Weight 30kg 55kg 62kg 70kg 90kg
Overall Height 358mm 358mm 1054mm 1054mm 1054mm
Overall Depth 720mm 720mm 720mm 720mm 720mm
Overall Width 400mm 800mm 400mm 400mm 800mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz / 10.8kW
3Ø + N + E
415VAC / 50Hz / 21.6kW
3Ø + N + E
415VAC / 50Hz / 15kW
3Ø + N + E
415VAC / 50Hz / 10.8kW
3Ø + N + E
415VAC / 50Hz / 35.6kW
700 Series - Gas
Model FG7207TT FG7417PT FG7817PT
Description Gas Fryer Tube, Split Pan
8+8Ltr, On Base
Gas Fryer, Single Pan 17Ltr,
On Base
Gas Fryer, Double Pan
17+17Ltr, On Base
Weight 73kg 68kg 121kg
Overall Height 1054mm 1054mm 1054mm
Overall Depth 720mm 720mm 720mm
Overall Width 400mm 400mm 800mm
Electrical Connection
1Ø + N + E
240VAC / 50Hz / 0.2kW
10A plug & lead
1Ø + N + E
240VAC / 50Hz / 0.2kW
10A plug & lead
1Ø + N + E
240VAC / 50Hz / 0.2kW
10A plug & lead
Natural Universal LPG Natural Universal LPG Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 43.2 MJ/h 43.2 MJ/h 57.6 MJ/h 57.6 MJ/h 115.2 MJ/h 115.2 MJ/h
900 Series - Gas
Model FG9207TT FG9421PT FG9821PT
Description Gas Fryer Tube, Split Pan
8+8Ltr, On Base
Gas Fryer, Single Pan 21Ltr,
On Base
Gas Fryer, Double Pan
21+21Ltr, On Base
Weight 88kg 78kg 145kg
Overall Height 1054mm 1054mm 1054mm
Overall Depth 920mm 920mm 920mm
Overall Width 400mm 400mm 800mm
Electrical Connection
1Ø + N + E
240VAC / 50Hz / 0.2kW
10A Plug & Lead
1Ø + N + E
240VAC / 50Hz / 0.2kW
10A Plug & Lead
1Ø + N + E
240VAC / 50Hz / 0.2kW
10A Plug & Lead
Natural Universal LPG Natural Universal LPG Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 43.2 MJ/h 43.2 MJ/h 68.4 MJ/h 68.4 MJ/h 136.8 MJ/h 136.8 MJ/h
900 Series - Electric
Model FE9207T FE9121T FE9221T
Description Electric Fryer, Split Pan
8+8Ltr, On Base
Electric Fryer, Single Pan
21Ltr, On Base
Electric Fryer, Double Pan
21+21Ltr, On Base
Weight 88kg 78kg 145kg
Overall Height 1054mm 1054mm 1054mm
Overall Depth 920mm 920mm 920mm
Overall Width 400mm 400mm 800mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz / 15kW
3Ø + N + E
415VAC / 50Hz / 21kW
3Ø + N + E
415VAC / 50Hz / 42kW

Page 8
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
2.1.3 Main Burner Nozzle
Main Injector
(100th of a mm)
Bypass Screw (mm) Nominal Gas
Consumption (MJ/h)
Fixed Aeration
Shutter Setting ‘A’
Natural Gas
Main Burner - 700 - FG7207TT 220 --- 43.2 MJ/h 20mm
Main Burner - 700 - FG7417PT 255 --- 57.6 MJ/h Fully Open
Main Burner - 700 - FG7817PT 255 --- 115.2 MJ/h Fully Open
Main Burner - 900 - FG9207TT 220 --- 43.2 MJ/h 20mm
Main Burner - 900 - FG9421PT 295 --- 68.4 MJ/h Fully Open
Main Burner - 900 - FG9821PT 295 --- 136.8 MJ/h Fully Open
Pilot Burner - 700/900 REG. --- --- Fully Open
Main Injector
(100th of a mm)
Bypass Screw (mm) Nominal Gas
Consumption (MJ/h)
Fixed Aeration
Shutter Setting ‘A’
Universal LPG Gas
Main Burner - 700 - FG7207TT 135 --- 43.2 MJ/h 10mm
Main Burner - 700 - FG7417PT 155 --- 57.6 MJ/h Fully Open
Main Burner - 700 - FG7817PT 155 --- 115.2 MJ/h Fully Open
Main Burner - 900 - FG9207TT 135 --- 43.2 MJ/h 10mm
Main Burner - 900 - FG9421PT 175 --- 68.4 MJ/h Fully Open
Main Burner - 900 - FG9821PT 175 --- 136.8 MJ/h Fully Open
Pilot Burner - 700/900 REG. --- --- Fully Open
2.0 Specification
Fig.1. Fig.2.
V
kW
HZ
Ph
415
14.6
50
3Ø + N + E
Electric Rating
Imported by: STODDART
www.stoddart.com.au
Model No:
FE7207T
Serial No:
009999/06/21
Description: Giorik;700 Fryer; Elec; Single Pan; 21 Ltr
Main burner gas injector
(100th of a mm)
255 Natural Gas
155 Universal LPG
Imported by: STODDART
www.stoddart.com.au
Model No:
FG7417PT
Serial No:
009998/06/21
Total gas consumption
57.6 MJ/h
Test Point Pressure
1.00 kPa Natural Gas
2.65 kPa Universal LPG
Factory set gas type
Natural Gas
Universal LPG
Gas Approval No.
SAI - 400414
Description: Giorik;700 Fryer; Gas; Single Pan; 17 Ltr
V
kW
HZ
Ph
415
14.6
50
3Ø + N + E
Electric Rating
Imported by: STODDART
www.stoddart.com.au
Model No:
FE7207T
Serial No:
009999/06/21
Description: Giorik;700 Fryer; Elec; Single Pan; 21 Ltr
Main burner gas injector
(100th of a mm)
255 Natural Gas
155 Universal LPG
Imported by: STODDART
www.stoddart.com.au
Model No:
FG7417PT
Serial No:
009998/06/21
Total gas consumption
57.6 MJ/h
Test Point Pressure
1.00 kPa Natural Gas
2.65 kPa Universal LPG
Factory set gas type
Natural Gas
Universal LPG
Gas Approval No.
SAI - 400414
Description: Giorik;700 Fryer; Gas; Single Pan; 17 Ltr
2.1.4 Rating Plate
Gas Rating Plate Electric Rating Plate
The rating plate contains identification and technical data. See example below.
Confirm that this unit has been tested and approved for the type of gas used at the installation location.
Note: This user manual contains gas and electric units. Only gas fryers are certified under the SAI approval number (see unit rating plate).
The rating plate contains identification and technical data. See example below.
Confirm that this unit has been tested and approved for the type of gas used at the installation location.

Page 9
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
2.2 Technical Drawing - Gas
2.2.1 FE7110TT
2.2.2 FE7210TT
2.0 Specification
Legend
AElectrical Connection
Legend
AElectrical Connection
MAX
185
170
160
140
°C
570346
400
20
380
228
280
70
358
700
25057
A
720
MAX
185
170
160
140
°C
MAX
185
170
160
140
°C
570746
800
A
358
70
700
25057
22820
380
720
280
700 Series - Electric
Model FE7110TT
Description Electric Fryer, Single Pan
10Ltr, Counter Top
Weight 30kg
Overall Height 358mm
Overall Depth 720mm
Overall Width 400mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz / 10.8kW
700 Series - Electric
Model FE7210TT
Description Electric Fryer, Double Pan
10+10Ltr, Counter Top
Weight 55kg
Overall Height 358mm
Overall Depth 720mm
Overall Width 800mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz / 21.6kW

Page 10
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
2.2.3 FE7207T
2.2.4 FE7117T
2.0 Specification
Legend
AElectrical Connection
Legend
AElectrical Connection
MAX
185
170
160
140
°C
1
70 700
870
150
465292
400
20
380
300
A
1054
310
(855 - 900)
(1039 - 1084)
720
MAX
185
170
160
140
°C
MAX
185
170
160
140
°C
70
1054
465
700
870
150
292
400
20
380
130
310
A
(855 - 900)
(1039 - 1084)
720
700 Series - Electric
Model FE7207T
Description Electric Fryer, Split Pan
8+8Ltr, On Base
Weight 62kg
Overall Height 1054mm
Overall Depth 720mm
Overall Width 400mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz / 15kW
700 Series - Electric
Model FE7117T
Description Electric Fryer, Single Pan
17Ltr, On Base
Weight 70kg
Overall Height 1054mm
Overall Depth 720mm
Overall Width 400mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz / 10.8kW

Page 11
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
MAX
185
170
160
140
°C
1
MAX
185
170
160
140
°C
1
700
870
1054
800
692
20
380
300
310
465
150
A
70
(855 - 900)
(1039 - 1084)
720
MAX
185
170
160
140
°C
MAX
185
170
160
140
°C
700
870
150
(855 - 900)
1054
465292
400
(1039 - 1084)
385
41
380
20
720
130
310
70
A
B
Legend
AGas inlet (1/2” BSP)
BElectrical Connection
Legend
AElectrical Connection
2.2.5 FE7217T
2.2.6 FG7207TT
2.0 Specification
700 Series - Electric
Model FE7217T
Description Electric Fryer, Double Pan
21+21Ltr, On Base
Weight 90kg
Overall Height 1054mm
Overall Depth 720mm
Overall Width 800mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz / 35.6kW
700 Series - Gas
Model FG7207TT
Description Gas Fryer Tube, Split Pan
8+8Ltr, On Base
Weight 73kg
Overall Height 1054mm
Overall Depth 720mm
Overall Width 400mm
Electrical Connection
1Ø + N + E
240VAC / 50Hz / 0.2kW
10A plug & lead
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 43.2 MJ/h 43.2 MJ/h

Page 12
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
MAX
185
170
160
140
°C
870
150
(855 - 900)
465
1054
(1039 - 1084)
700
70
400
292
41
385
380
20
720
300
310
A
B
MAX
185
170
160
140
°C
MAX
185
170
160
140
°C
70 700
870
150
(855 - 900)
1054
(1039 - 1084)
465692
800
385
41
380
20
720
300
310
A
B
Legend
AGas inlet (1/2” BSP)
BElectrical Connection
Legend
AGas inlet (1/2” BSP)
BElectrical Connection
2.2.7 FG7417PT
2.2.8 FG7817PT
2.0 Specification
700 Series - Gas
Model FG7417PT
Description Gas Fryer, Single Pan 17Ltr,
On Base
Weight 68kg
Overall Height 1054mm
Overall Depth 720mm
Overall Width 400mm
Electrical Connection
1Ø + N + E
240VAC / 50Hz / 0.2kW
10A plug & lead
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 57.6 MJ/h 57.6 MJ/h
700 Series - Gas
Model FG7817PT
Description Gas Fryer, Double Pan
17+17Ltr, On Base
Weight 121kg
Overall Height 1054mm
Overall Depth 720mm
Overall Width 800mm
Electrical Connection
1Ø + N + E
240VAC / 50Hz / 0.2kW
10A plug & lead
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 115.2 MJ/h 115.2 MJ/h

Page 13
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
2.0 Specification
MAX
185
170
160
140
°C
1
70
1054
900
870
150
665292
400
20
582
A
(855 - 900)
(1039 - 1084)
920
400
146
MAX
185
170
160
140
°C
MAX
185
170
160
140
°C
70
1054
665
870
150
900
292
400
20
582
310
130
A
(855 - 900)
(1039 - 1084)
920
Legend
AElectrical Connection
Legend
AElectrical Connection
2.2.9 FE9207T
2.2.10 FE9121T
900 Series - Electric
Model FE9207T
Description Electric Fryer, Split Pan
8+8Ltr, On Base
Weight 88kg
Overall Height 1054mm
Overall Depth 920mm
Overall Width 400mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz / 15kW
900 Series - Electric
Model FE9121T
Description Electric Fryer, Single Pan
21Ltr, On Base
Weight 78kg
Overall Height 1054mm
Overall Depth 920mm
Overall Width 400mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz / 21kW

Page 14
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
2.0 Specification
MAX
185
170
160
140
°C
1
MAX
185
170
160
140
°C
1
70
900
1054
665
870
150
692
800
582
20 146
400
A
(855 - 900)
(1039 - 1084)
920
MAX
185
170
160
140
°C
MAX
185
170
160
140
°C
70
900
870
150
(855 - 900)
1054
(1039 - 1084)
665292
400
486
41
582
20
920
130
310
A
B
Legend
AGas inlet (1/2” BSP)
BElectrical Connection
Legend
AElectrical Connection
2.2.11 FE9221T
2.2.12 FG9207TT
900 Series - Gas
Model FG9207TT
Description Gas Fryer Tube, Split Pan
8+8Ltr, On Base
Weight 88kg
Overall Height 1054mm
Overall Depth 920mm
Overall Width 400mm
Electrical Connection
1Ø + N + E
240VAC / 50Hz / 0.2kW
10A Plug & Lead
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 43.2 MJ/h 43.2 MJ/h
900 Series - Electric
Model FE9221T
Description Electric Fryer, Double Pan
21+21Ltr, On Base
Weight 145kg
Overall Height 1054mm
Overall Depth 920mm
Overall Width 800mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz / 42kW

Page 15
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
MAX
185
170
160
140
°C
70 900
1054
(1039 - 1084)
665
150
870
(855 - 900)
41
486
292
582
920
20
400
A
B
400
146
MAX
185
170
160
140
°C
MAX
185
170
160
140
°C
70 900
1054
(1039 - 1084)
665
150
870
(855 - 900)
800
692
486
41
582
20
920
146
400
A
B
Legend
AGas inlet (1/2” BSP)
BElectrical Connection
Legend
AGas inlet (1/2” BSP)
BElectrical Connection
2.2.13 FG9421PT
2.2.14 FG9821PT
2.0 Specification
900 Series - Gas
Model FG9421PT
Description Gas Fryer, Single Pan 21Ltr,
On Base
Weight 78kg
Overall Height 1054mm
Overall Depth 920mm
Overall Width 400mm
Electrical Connection
1Ø + N + E
240VAC / 50Hz / 0.2kW
10A Plug & Lead
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 68.4 MJ/h 68.4 MJ/h
900 Series - Gas
Model FG9821PT
Description Gas Fryer, Double Pan
21+21Ltr, On Base
Weight 145kg
Overall Height 1054mm
Overall Depth 920mm
Overall Width 800mm
Electrical Connection
1Ø + N + E
240VAC / 50Hz / 0.2kW
10A Plug & Lead
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 136.8 MJ/h 136.8 MJ/h

Page 16
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
3.1 Positioning
• The unit must be installed under an extraction canopy
• Have a smooth, level floor which can bear the weight of the unit at full load
• Have a room temperature above +4°C with a maximum humidity of 70%;
• Comply with the regulations in force in terms of safety in the workplace and the systems;
• Not contain potentially explosive materials or substances;
• Be dedicated to food preparation. In addition, a gas-fired appliance requires, by law, rooms with a surface area and ventilation that are
suitable for the power of the unit and that have a means of externally evacuating flue gases
• Please consult national and local standards to ensure that your unit is positioned and ventilated in accordance with any existing
requirements
• Do not allow cables or other items to rest/hang over the exhaust vents
3.1.1 General Information
3.1.2 Spacing
200mm
200mm
Combustible Walls Non-Combustible Walls
UNIT
Front
UNIT
Front
0mm
0mm
0mm 0mm
• Choose an area that is well ventilated and provides access for future maintenance
• Place the unit on a level stable work surface capable of supporting its weight
• Unit must be installed on a non combustible floor
• Unit must be installed on a fire proof base
• Do not position the unit in: wet areas, near heat and/or steam sources, near flammable substances
• The appliances are not designed for built-in installation
• Spacing - Combustible Walls:
For installation next to combustible walls a minimum distance of 200mm from all sides is required
• Spacing - Non-Combustible Walls:
For installation next to non-combustible walls a minimum distance of 0mm from all sides
• Please consult national and local standards to ensure that your unit is positioned in accordance with any existing requirement
WARNING
Improper installation, adjustments, alterations, service or
maintenance can cause property damage, injury or death.
Fig.3.
3.0 Installation
3.1.3 Ventilation/Extraction
In compliance with the installation regulations, the units must be used in premises suitable for the evacuation of combustion products.
The unit must be installed under an extraction canopy that meets AS 1668.2-2012 and in accordance with all local council regulations.
Note: Combustible materials must not be used overhead/above the unit.

Page 17
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
3.0 Installation
1 2
3 4
• Remove the unit control dials • Using a Phillips head screwdriver, remove the two front
fascia retaining screws, then remove the front fascia by
lifting the fascia up and out
• Using a Phillips head screwdriver, remove the rear cover
plate and retaining screws
• On the side of the units to be connected, using long nose
pliers remove the fill caps
3.2 Line-up Connection
WARNING
Must be installed only by an authorised service person
If the unit is already installed and connected to power, the power
to the equipment must be turned o󰀨 and isolated.
FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK.

Page 18
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
3.0 Installation
5
6
• Place the units to be connected next to each other, adjust the legs ensuring the top of the two units sit flush
• Using the provided bolts and nuts connect the units at the front and rear
•Re-install the back cover plate, the front fascia and the control dials

Page 19
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
3.0 Installation
3.3 Gas Connection - Gas Models
Fig.4.
3.3.2 Gas Pressure Regulator
The pressure regulator should be fitted horizontally (if possible), to ensure the correct outlet
pressure (see Fig.4): Note: The arrow on the regulator indicates the gas flow direction.
1. Connection side gas from mains
2. Pressure regulator
3. Connection side gas towards the appliance
3.3.1 Connecting the gas
WARNING
This unit must be installed by an authorised person/installer in
accordance with this instruction manual,
AS/NZS 5601 – Gas installations (installation and pipe sizing),
local gas tting regulations, local electrical regulations, local
water regulations, local health regulations, Building Code of
Australia and any other government authority.
If the unit has Stoddart approved factory fitted castors, then the unit must be connected with a flexible gas hose and restraining kit (not
supplied by Stoddart). Flexible gas hose connection and Hose assemblies for use with cooking appliances shall be certified as conforming to
AS/NZS 1869 and be Class B or Class D. Quick connect devices if provided, shall be certified to AG 212 (to be AS 4627) No Flexible Gas Hose
is supplied with the appliance. A restraining chain or wire of adequate strength shall be fixed to the appliance and be suitable to be fixed to
the wall within 50 mm of each connection point. The length of the chain or wire shall not exceed 80% of the length of the hose assembly
The appliance shall be installed by an ‘Authorised Person/Installer’ and in accordance with the manufactures instructions, Australian and New
Zealand Gas installation standards and local building codes.
Gas type must be confirmed prior to Gas connection as per the rating plate on the appliance. The unit installation and commissioning must be
performed by authorised personal in accordance with gas installation codes.
Note: The appliance must be tested by the ‘Authorised Person/Installer’ upon completion of installation. Air necessary for combustion
of the burners is 2 m³/h per kW of power installed. This appliance is suitable for connection with rigid pipe or flexible hose. The isolating
manual shut-off valve connection point must be accessible when the appliance is installed.
Natural Gas: Supply gas pressure must be no lower than 1.3 kPa, tested at the inlet gas regulator with all gas appliances operational.
Appliance burner gas pressure shall be adjusted to 1.0kPa with all burners operating at maximum.
Universal LPG: Supply gas pressure must be no lower than 2.75 kPa, tested at the inlet gas regulator with all gas appliances operational.
Appliance burner gas pressure shall be adjusted to 2.65kPa with all burners operating at maximum.
IMPORTANT
The appliance MUST BE tested by the
‘Authorised Person/Installer’
upon completion of installation
