STOVES S600DW User manual

S600DW

Witheachwashcycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).
Check the rinse aid level
(On models with water softener system only.)
Electric indicator on control panel (if provided).
If there is no salt warning light in the control panel
(for some models), you can estimate when to fill the salt into
the softener by the number of cycles the dishwasher has run.
Check the regeneration
salt level
Load the baskets
Select a programme
Close the door, turn on the water tap. The machine will start working after about 10 seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes(about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will alsodry better.Unload the appliance, starting from the lower basket.
Changing the programme
Add forgotten dishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Press the Programme button until the selected programme lights up.
( See the section entitled Operation instruction )“”
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the ON/OFF button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteammay escape
when thedooris opened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance Press the On/Off button to switch on the appliance, Open the door.
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door, the dishwasher will start running again after 10 seconds.
For detailed operating method read the corresponding content onthe instruction manual.
1. Arunning cycle can only be modified ifit has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Open the door a little to stop the washing, then press the Program button for more than 3 seconds to
cancel the running programme.
3. Select a new programme, then close the door. The machine will restart after about 10 seconds.

Dishwasher Features.................................... ...3
A Water Softener..................... ....................4、..
Attention before or after loading the Dishwasher
Baskets..........................................................9
Filtering System.............................................15
Caring for the Dishwasher..................... .........16.
B Loading theSalt into the Softener.................5、
C Fill the RinseAidDispenser.........................5、
D FunctionofDetergent.................................6 、
Loadingthe upper ...............................10Basket
Loading theLower ...............................10Basket
Cutlery Basket........................................... ...12

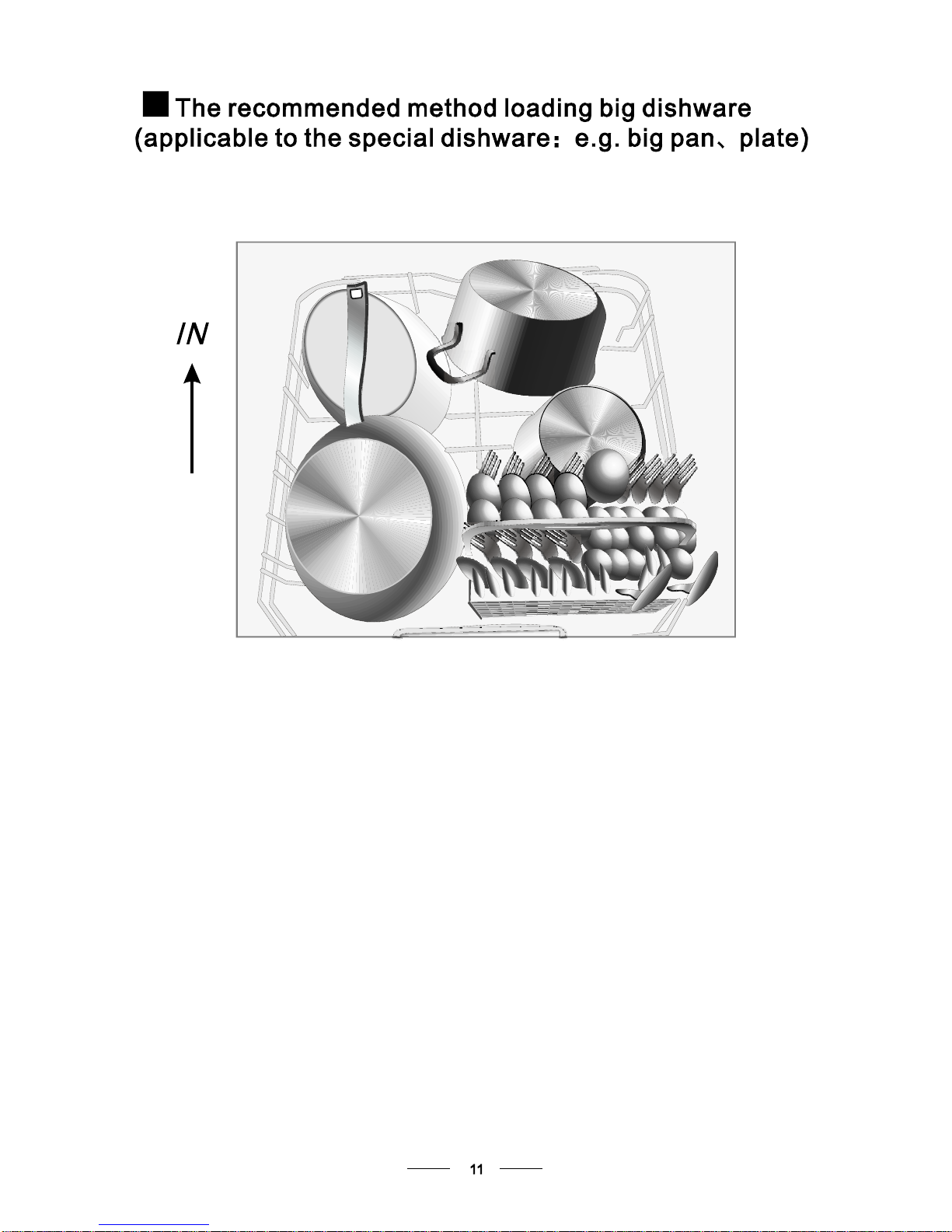

Therecommended method loading big
dishware.................................................... ...11
WashCycleTable...........................................13
Turning on theAppliance................................14
Change the Programme.............. ................14....
At the End of the Wash Cycle...........................14
Before calling for service........................... .....24.
Errorcodes.................................... ..............25.
Technical information.............................. .....26..
ControlPanel...................................................3
.................................. 17Installation preparation ...18Aesthetic panel's dimensions and installation
..............20Tension adjustment of thedoor spring
.............................. 20Connection of drain hoses ......................... 21Dishwasher installation steps
About Electricity Connecting...........................22
Cold Water Connection.................................. 23
To review the section on troubleshooting Tips
will help you to solve some common problems
by yourself .
Dear Customer,
Please carefully read this manual before using the
dishwasher, it will help you to use and maintain the
dishwasher properly.
Pass it on to anysubsequentowner of the appliance.
This manual contains sections on safety Instructions,
OperatingInstructions,InstallationInstructionsand
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
developmentandupdating of the product, may
make modifications without giving prior notice.
Keep it torefer to it ata later date.
If you can not solvethe problems by yourself ,
please ask for the help of professional technicians.
This appliance is intended to be used in household
and similar applications such as:
-staffkitchen areas in shops, officesandother
working environments;
-farm houses;
-by clients in hotels, motels and other residential
type environments;
-bed and breakfast type environments.

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Useonly detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the powersupply mustnot
be excessivelyordangerouslybentorflattened.
Do not tamper with controls.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1) Locatesharp itemssothat theyarenot likely
todamagethedoorseal;
2 Warning: Knives and other utensils with
sharp points must be loaded in the basket
with their pointsdown or placedin a
horizontalposition.
)
When using your dishwasher, you should
preventplastic items fromcomingintocontact
withthe heating element.(This instruction is only
applicable to machines with avisual heating
element.)
Ifthe supply cord is damaged, it must be replaced
by themanufacturer or itsservice agent or a
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door tothe washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyesand keep children away
from the dishwasher when the door is open.
Check that the detergent comparment isempty
after completion of thewash cycle.
The appliance is to be connected to the water
mains using new hosesets and that old hose-sets
should not be reused.
The maximumnumber of place settings tobe
washed is 12.
The maximumpermissibleinlet water pressureis
1Mpa.
The minimum permissibleinlet water pressureis
0.04Mpa.
Children should besupervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
The door should not be left open,
since this could increase the risk of tripping.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.

Dispose of the dishwasher packaging material correctly.
All packaging materialscanbe recycled.
Plastic parts aremarked with thestandard international abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene,e.g.padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g.Control Panel .
Packaging material couldbedangerous for children!
Fordisposing ofpackage and theappliance please goto a recycling centre. Therefore cut
off the powersupplycable and makethe door closingdevice unusable.
Cardboard packaging is manufactured from recycled paper and shouldbe disposedin the
waste paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriatewaste handling of this product.
Formoredetailed informationabout recyclingof this product, please contact your local
city office and your household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.






11 12
Back View
1
2
3
4
5
6
7
8
9
10
on
Of f
Front view
MainFilter
Detergent Dispenser
CupShelf
CutleryBasket
CoarseFilter
RinseAidDispenser
Inlet pipe connector
Drain pipe connector
Lower Basket
SprayArms
UpperBasket
1
Salt Container
beforeusingit for the firsttime.
To get the best performance fromyour dishwasher, read all operating instructions
5
6
7
8
9
10
12
11
3
24
2345
5
Program button: To select one of the six
programs.
2
3
4
Display window: Program remaining time, delay time,
running indicator, Program indicator, Salt and rinse
aid indicator, Error codes, etc.
Power switch: To turn on/off the power supply.
DelayedStartButton:Topresetthewashtimeranddelay
thestartingtimeupto24hours.Every pressof thisbutton
increases the time by one hour.
for example: one press for an hour, two for two
hours... ...
（
）
3in1 and half load function button: To select and show 3in1
and Half load functions. (Half load function means that the
lower spray arm does not run, so you should loadthe upper
basket only ).
S600DW

Before using your dishwasher for the first time:
The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from the water, which would have
a detrimental or adverse effect on the operation of the appliance. The higher the
content of these minerals and salts, the harder your water is. The softener should be
adjusted according to the hardness of the water in your area. Your local Water Authority
can advise you on the hardness of the water in your area.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of
the water used. This is intended to optimise and customise the level o f salt consumption.
1. Unscrew the cap from the salt container.
2. There is a ring on the container with an arrow on it (see figure
on the side), if necessary, rotate the ring in the anticlockwise
direction from the "-" Setting toward the "+" sign, based on the
hardness of the water being used.
It is recommended that adjustments should be made in
accordance with the following scheme:
WATER SOFTENER
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will
form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate
lime and minerals from the water.
Contact your local water board for information on the hardness of your water supply.
Please follow the steps below for adjustment in salt consumption.
"/"
"-"
"+"
"Mid"
Note:2
Setting toward the"+" sign
Setting toward the"-" sign
Setting toward between
the "-" sign and "+" sign
No salt need added
dH mmol/l
0~140~8 0~1.4 /0
14~398~22 1.4~3.9 -20
39~8022~45 3.9~8 Mid 40
+60
fH
0~10
10~28
28~56
Clarke
WATER HARDNESS
Selector Position Salt consumption
(gram/cycle)
45~60 80~107 56~75 8~11
If your model does not have any water softener, you may skip this section.
A. Set the water softener
B.
Add 1.5Kg dishwasher salt and then full fill the salt containerwith water
C. Fill the rinse aid dispenser
D. Fill in detergent
°Clark: British degree
°fH: French degree
°DH: German degree
Note:1
dH=1.25 Clarke=1.78 fH=0.178mmol/l
°° °
1

1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how well thesalt dissolves, thesalt warninglight maystill be on even though the
salt container is filled.
If there is no salt warning light in the control panel (forsome Models),you can estimate when to fill
the salt into the softener by the cycles that the dishwasherhas run.
2. If thereare spills ofthe salt,a soakor a rapid program should be runto removethe excessive salt.
Always use the salt intended for use with dishwasher.
The salt container is located beneath the lower basket and should be filled as explained
inthe following:
Attention!
Only use salt specifically designed for the use indishwashers! Every other type of
salt not specifically designed for the use in adishwasher, especially table salt, will
damage thewater softener. In case of damages caused by the use of unsuitable
salt the manufacturerdoes not give anywarranty nor is liable for any damagescaused.
Only fill withsalt justbefore starting one of thecomplete washingprograms.
This will prevent any grains of salt or salty water, which may have been spilled,
remaining on the bottomofthe machinefor any periodof time, which may cause
corrosion.
The rinse aid isreleased duringthe final rinse to prevent waterfrom forming droplets onyourdishes, which can
leave spots and streaks. It also improvesdrying by allowing water toroll offthe dishes. Your dishwasher is
designed touse liquid rinseaids.The rinseaid dispenser islocated inside thedoor next to the detergentdispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume ofthe rinseaidcontainer is about 110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically added during thelastrinse, ensuring thorough rinsing, and spotandstreakfree drying.
Attention!
Only use branded rinse aid for dishwasher. Neverfill therinseaid dispenser withanyother substances
(e.g. Dishwasher cleaning agent, liquid detergent).This would damage the appliance.
ARemove the lower basket and then unscrewandremovethecap from the salt container.
BPlace the end ofthefunnel(supplied) into the holeandintroduce about 1.5kg of dishwasher salt.
CFullfill thesalt containerwithwater.It isnormal for asmallamount ofwater to come out of thesalt container.
DAfter filling the container , screw the cap tightly back clockwise.
EUsually, the salt warning light will stop being illuminated within 2-6 days after the salt container hasbeen filled with
salt.
FImmediately afterfilling the salt into the salt container, a washing program should be started
program Otherwise the filter system, pump or other important parts of the machine may be damaged
bysalty water.This isoutof warranty.
(Wesuggest to use the
soak orrapid ).

To open the dispenser,turn the cap to the "open" (left) arrow and lift it out.
Pourthe rinse aid intothe dispenser, being careful not tooverfill.
Replace the cap by inserting italigned with "open" arrow and turning it tothe closed (right) arrow.
Adjusting RinseAid Dispenser
The rinse aid dispenser has six or four settings.Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aid dispensedby removing the dispenser lidand rotating the dial to "5". If the
dishes still are not drying properly or are show spots, adjustthe dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory valueis "4".)
Increasethedose if thereare drops of waterorlimespots on the dishes after washing.
Reduce itif there are sticky whitish stains on your dishes ora bluish film on glassware or
knife blades.
1
2
3
As the rinse aid diminishes, the size of the black dot
ontherinse aidlevel indicator changes,as illustratedbelow.
Full
3/4full
1/2full
1/4 full - Should refillto eliminate spotting
Empty
When to Refill the RinseAid Dispenser
Ifthereis no rinse-aid warning lightin thecontrolpanel, you can estimate the amount from thecolour
of the optical level indicator C located next to the cap. When the rinse-aidcontainer is full, the whole
indicator will be dark .As the rinse-aid diminishes, thesize of the dark dot decreases. You should never let
the rinse aid level fall 1 / 4 full.
during the nextwash. Don'tforget toreplacethe cap before you closedishwasherdoor.
Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming
""
Detergents
There are 3 sorts of detergents
1.Withphosphate and withchlorine
2.With phosphate andwithout chlorine
3.Withoutphosphate and without chlorine
Detergentswith its chemical ingredients are necessary to removedirt, crush dirt and transport it out of the dishwasher.
anddry.
Don't put powder detergent into the dispenser until you're ready to wash dishes.
Use only detergent specifically madefor use in dishwashers. Keep your detergent fresh
Proper Use of Detergent

Amount of Detergent to Use
Dishwasher detergent is corrosive! Take care to keepit out of reach of children.
Based on their chemical composition, detergentscanbe split in two basic types:
Detergent tabletsofdifferent brandsdissolve at different speeds. For this reasonsome
detergenttablets cannot dissolve and develop theirfull cleaning power during short
programs. Therefore please use long programs when usingdetergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser mustberefilled before the start of each washcycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinseaid than
Conventional dishwasher.Generally, only one tablespoon of detergent is neededfor
anormal wash load. Moreheavily soileditems need more detergent.Alwaysaddthe
detergentjust before starting the dishwasher, otherwise it couldget damp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
DetergentDispenser
Always add the detergent just before starting each wash cycle.
Only use branded detergentaidfor dishwasher.
If the lid isclosed: press release button. The lid will spring open.
conventional, alkaline detergents with caustic components
low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate.Thus the watersoftener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. Inthis case please choosea program with a higher temperature.
°
Push latch to open
Detergenttablet
Detergent powder

Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
Theplace of main wash cycle detergent placed.
Theplace of pre-wash cycle detergent placed.
Please observe the manufacturers dosing and storage
Recommendations asstatedonthedetergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place anadditional
detergent dose in the pre-wash detergent chamber.Thisdetergent will take effectduring the pre-washphase.
A
B
Fill in Detergent
You find information about the amount ofdetergent for thesingle programme on the last page.
Pleaseaware, that accordingtothe levelsoiling andthe specific hardnessof water differencesarepossible.
Pleaseobservethemanufacturer's recommendationson the detergent packaging.

Cutlery with wooden,horn china or
mother-of-pearl handles
Plasticitems that arenotheat resistant
Older cutlerywith glued partsthatarenot
temperatureresistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made fromsynthetic fibres
Some types of glassescan become
dull aftera large number of washes
Silver and aluminum parts have a
tendencyto discolourduring washing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are oflimited suitability
Dishes and itemsof cutlery mustnot lie insideoneanother, orcover each other.
To avoiddamage to glasses, theymust not touch.
Load large itemswhich are most difficult to clean intothe lower basket.
The upper basket is designed to hold moredelicate and lighterdishware such as glasses, coffee
andteacups
Long bladed knives stored in an uprightposition are a potential hazard!
Long and/or sharp itemsof cutlery such as carving knives must be positioned
horizontallyin the upperbasket.
Please do not overload your dishwasher. This is important for goodresultsandfor
reasonable consumption of energy.
Load hollow items such as cups,glasses, pans etc. With the opening facing downwards so that
water cannot collect in the container or a deep base.
Usea mild detergent that isdescribedas 'kind to dishes'.If necessary, seek further
information from the detergent manufacturers.
Forparticular items,select a programwithaslow atemperature aspossible.
Consider buying utensilswhich are identifiedas dishwasher-proof.
To prevent damage, do not take glassandcutlery out of the dishwasher immediately
after the programmehas ended.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlerybasketsmay vary from your model.)
Scrape off any largeamounts ofleftover food. Soften remnants of burnt food in pans.
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tipover.
4.All utensils are placed in the way thatthe spray arms can rotate freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.

The upperbasket isdesigned tohold more delicate andlighter dishware such asglasses,coffee
and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as theyare
not toodirty).
Position the dishes and cookware so that they will not get moved by the spray of water.
Wesuggest that you place largeitems and the most difficult to clean items are tobe placedinto thelower basket:
such as pots, pans,lids, serving dishesandbowls, as shownin the figure below.
It is preferableto place serving dishes and lids on theside of theracks inorder toavoid blocking the rotation ofthe
topspray arm.
Pots, servingbowls, etc, must always be placed top down.
Deep pots should be slantedto allow water to flowout.
Please be reminded that:
The Bottom Basket features folding spikesso that larger or more pots and pans can be loaded.
1
Cups
2
Small serving bowl
3
Large serving bowl
4
Glasses
Saucers
5
6
Dish
Dessert dishes
7
1
1
4
1
7
2
3
5
6
1
4
1
4
1
8
Oval platter
10
Soup plates
Dessert dishes
7
9
Dinner plates
11
Silverware basket
1010
8
99
77
7

Cutlery should be placed in the cutlery basket withthe handles at the bottom. If therack has side baskets,the
spoons should be loaded separately into the appropriate slots,especially long utensils should beplaced in the
horizontal position at the front ofthe upperbasket as shownin the picture.
Folding Spikes of Lower Basket
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Do not let any item extend through the bottom.
Always loadsharp utensils with the sharp point down!
Adjusting the Upper Basket
The height of the upper basketcanbe adjusted in order to create more space for large utensils
both for the upper/lower basket. The height of theupperbasket can be adjusted by placing the
wheels on different height of the rails. Long items, serving cutlery, salad servers and knives
should be placed on the shelfso that they do not obstruct therotationof the sprayarms.
The shelf can be folded back or be removed when not required for use.
Forpersonal safetyand a top qualitycleaning,place thesilverware inthe basket
making sure that:
Theydonotnesttogether.
Silverware is placed with the handles-down.
But place knives and other potentially dangerous utensils are placed handles-up.
2
452
5
32
3
2
1
1
1
1
1
5554
555
4
632367 3
2
3
4555
1
1
1
1
1
5
4
2
2
3
33
332
2
3
2
2
1
4
4
4
4
8
4
4
4
1
Teaspoons
4
Soup spoons
2
Forks
1
Serving forks
8
Serving spoons
6
Knives
5
3
Dessert spoons
7
Gravy ladles

5/25g
Pre-wash(50 )
Wash (65 )
Rinse
Rinse
Rinse (55 )
Drying
℃
℃
℃
Pre-wash(50 )
Wash (55 )
Rinse
Rinse(65 )
Drying
℃
℃
℃
pre-wash
Wash (50 )
Rinse (65 )
Drying
℃
℃
Wash (40 )
Rinse
Rinse (40 )
℃
℃20 g.
Rinse
Rinse (50 )
Drying
Wash(60 )℃
℃
160
125
30
60
1.30
1.36
0.50
0.95
19.5
16.0
12.0
11.0
5/25g
Pre-wash
Wash (40 )
Rinse
Rinse (60 )
Drying
℃
℃
20 g. 95 0.90 16.0
30g
5/25g 165 1.02 12.0
*EN50242 :This programmeis the test cycle. The information forcomparability test
in accordance withEN 50242, as follows:
Capacity: 12 setting
Position Upper basket: upper wheels on rails
Rinse aid setting: 6
The power consumption of off-mode is 0w
left-on mode is 1.4w
Means:need to fill rinse into the Rinse-Aid Dispenser.
()
(*EN50242)
For normally soiled loads,
such as pots plates
glasses and lightly
soiled pans.
、、
Standard daily cycle for
normally soiled loads,
such as pots plates
glasses. 、、
For heaviest soiled crockery,
and normally soiled pots
pans dishes etc with dried
on soiling.
、
、
Ashorter wash for lightly
soiled loads and quick wash.
For lightly soiled crockery
and glass.
For lightly soiled loads that
do not need excellent drying
efficiency.

It is dangerousto open the door when washing, because the hot water may scald you.
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, thenstop.Turn off
the appliance using the ON/OFF button, shut off the watersupply and openthe doorof the dishwasher.
Wait for a few minutesbefore unloading thedishwasher to avoid handling the dishes and utensils while they
are still hotand more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turnoffthewatertap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should thereforebe allowedto cool down around 15 minutes
before removing from the appliance.
Open thedishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler andthe drying will be improved.
Unloadingthe dishwasher
It is normal that the dishwasher is wet inside.
Empty thelower basket first and then the upper one.This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
the machine will working after 10 seconds.continue
Ifyou open the door , the machine will pause. When you close the door ,during a wash cycle
1 Draw out the lower and upper basket, load the dishes and push them back.
It iscommendedtoloadthelowerbasketfirst,thentheupperone(seethe sectionentitled
Loading the Dishwasher ).
2 Pour in the detergent (see the section entitled Salt, Detergent and RinseAid ).
3 Insert the plug into the socket. The power supplyis220-240 VAC /50 Hz, the specification of the
socketis 10A 250VAC. Make sure thatthe watersupply is turnedon to full pressure.
4 Press the ON/OFF button, and the ON/OFF light will turn on. Press the programbutton to select
a desired washcycle. fter 10seconds, the machinewillwork.
“”
“”
Close the door,a
1 Acycle that is underway can only be modified if it has only been running for a short
time. Otherwise, the detergent may have already been released, and theappliance may
have alreadydrained the wash water. If this is the case,the detergentdispenser must
be refilled (see the section entitled " Loading the Detergent " ).
2 Open the door alittle tostopthe washing.Pressthe programme buttonmorethan 3 seconds
to cancel the running programme.Then you can select otherprogrammes (see the section entitled "
Startingawashcycle...").
When you select Intensive/Normal/Eco.Programmes, you can select the 3in1 function.
Aforgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working,you can open the door
completely.
2
3
Open the door a little to stop the washing.
14
5
The dishwasher will run after 10 seconds.
Premise

The filter preventslarger remnantsof food or other objects from getting insidethepum.
Theresidues may blockthefilter, in this case they mustbe removed.
The filter system consists of a coarse filter,a flat (Mainfilter)
And a microfilter(Fine filter).
Food and soil particles trapped in thisfilter arepulverizedby a
special jet on the lower spray arm andwashed down to drain.
Larger items, such as pieces of bones or glass, that couldblock
the drainaretrappedin the coarse filter. To remove theitems
caught by the filter, gently squeeze the tap onthetop of this
filterandliftout.
Thisfilter holds soil and food residuesin the sumpareaand
prevents itfrom being redepositon the dishes during wash cycle.
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1
Filterassembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. this reason, it isa goodidea to
remove thelarger food particles trappedin the filteraftereach washcycleby rinsing the semicircular filter and
cup under running water. To remove the filter device,pull the cup handle in the upwarddirection.
removes food particles fromthewash water, allowing it to be recycledduring the cycle.
For
The dishwasher must never be used without the filters.
Improper replacementof the filter may reduce the performancelevel ofthe appliance
and damage dishesand utensils.
1
2
Step 1 Turn the filter in anti-clockwisedirection,
then lift it up.
：
Step 2 lift the Main filterup：
3
Step 3 lifttheFinefilter up：
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.

The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use agood appliance polish wax.
Never usesharp objects, scouring pads orharsh cleaners onany part of the dishwasher.
ProtectAgainst Freezing
1.Cut off the electrical power to thedishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain thewater from the inletpipe andwatervalve. (Use apan to catch thewater)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottomof the tub and use a spongeto soak up water in the sump.
please take frost protection measuresonthe dishwasher in winter.Every fter washingcycles,
please operate as follows time a
：
- Inspect the filtersfor blocking after every timethe dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Removeanyfoodremnants and
cleanthefilters underrunningwater.
Remarks:
Cleaning the Filter
CleaningThe Door
To clean the coarsefilter and the fine filter, use a cleaning brush. Reassemble thefilter parts as shown in the figures
on thelast page and reinsert the entire assembly in the dishwasher, positioning it in itsseat and pressing downwards.
The entire filter assembly shouldbe cleaned once a week.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted andtheperformance ofthe dishwashercouldbe decreased.
To clean theedge around the door,you should use only a soft warm, damp cloth.
To avoid penetrationof waterinto the door lock and electrical components,do not
use a spray cleaner of any kind.
Never use a spray cleaner toclean the door panel as it may damage the door lock
and electrical components.
Abrasive agentsor some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
Cleaning the SprayArms
If your dishwasher cannot work because of the ice,
please contact professional service persons.
Cleaning the SprayArms
It is necessary to clean thespray arms regularly for hard water
chemicalswillclogthesprayarm jetsand bearings.
To remove theupper sprayarm, screw off the nut clockwise then
remove thearm.
To remove the lower spray arm, pull out .thespray armupward
Washthearmsin soapyandwarmwater andusea softbrushtoclean
the jets. Replace them after rinsing them thoroughly.

Itisrecommend thatyourun awashcycle with the
dishwasher empty andthen remove the plugfrom the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
sealstolastlonger andprevent odoursfromforming
withinthe appliance.
If the appliance must be moved, tryto keep it in the
verticalposition. Ifabsolutelynecessary,itcanbe
positioned on its back.
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is food that remainstrapped in the seals.
Periodic cleaning with adamp sponge will preventthis
from occurring.
After every wash, turn off the water supply to the
appliance and leave the doorslightly open so that
moisture and odours arenot trapped inside.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberparts ofthedishwasher,
donot use solventsor abrasivecleaning products.
Only use acloth with warm soapy water.
To remove spots or stains from the surface of the
interior, usea cloth dampened withwater ana little
vinegar, ora cleaning product madespecificallyfor
dishwashers.
After EveryWash
Remove the Plug
No Solvents orAbrasive Cleaning Moving theAppliance
Seals
When not in Use for aLongTime
Theinstallation of the pipes
and electrical equipments
should be done by professionals.
Electrical Shock Hazard
Disconnect electrical power
before
installingdishwasher.
Failureto do so can result in
death or electrical shock.
The installation position of dishwasher should be near the existing inlet and drainhoses and
powercord.
One side of thecabinetsinkshould be chosen tofacilitate theconnectionof drainhoses of
the dishwasher.
Installation preparation
Note: please checkthe accompanying installation accessories(hook for aesthetic panel,screw)
●
