STOVES ST CHIM 600 User manual

Stoves Cooker Hood
User Manual

2
Contents
Introduction....................................................................................................... 4
Safety Precaution........................................................................................... 5
Installation Instructions. .................................................................................6
Using the Hood.............................................................................................. 10
Care and Cleaning ......................................................................................... 12
Technical Data............................................................................................... 13
Stoves Customer Care....................................................................................14

3
Introduction
Thank you for buying this high quality hood from Stoves.
Our policy is one of constant development and improvement. Strict accuracy of illustrations and
specifications is not guaranteed. Modification to design and materials may be necessary subse-
quent to publication.
Before using the appliance for the first time, remove all packaging and protective polythene film.
This appliance has been designed for use as an exhausting (air evacuation to the outside) or
filtering (indoor air re-cycling) hood.
Note: This appliance does not come supplied with a ducting kit or carbon filters. Details for orde-
ring these parts are at the back of the handbook.
Because of the complexity and weight of the appliance, it is recommended that the installation be
carried out by specialist personnel.
The manufacturer declines all responsibility for damage caused by improper or installation.
Please read this handbook carefully and keep it for future reference.
Your first year Guarantee
To fulfil the conditions of your guarantee, this appliance must be correctly installed and operated
in accordance with these instructions and only be used for normal domestic purposes.
Please refer to your guarantee card for further details.
Please note that the guarantee and Service availability only apply to the UK and Republic of Ire-
land.

4
SAFETY PRECAUTION
1. Take care when the cooker hood is operating simultaneously with an open fireplace or burner
that depends on the air in the environment. The cooker hood removes the air from the environ-
ment which a burner or fireplace needs for combustion.
The negative pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate
ventilation in the environment for a safe operation of the cooker hood. Follow the local laws appli-
cable for external air evacuation.
Before connecting the model to the electricity network review the data plate (positioned inside
the appliance) to confirm that the voltage and power correspond to the network and the socket is
suitable. If in doubt ask a qualified electrician.
If the power supply cable is damaged it must be replaced. This can be obtained direct from the
manufacturer.
This device must be connected to the supply network through either a plug fused 6A or hardwired
to a 2 phase spur protected by 6A fuse.
2. Warning!
In certain circumstances electrical appliances may be a danger hazard.
A) Do not check the status of the filters while the cooker hood is operating.
B) Do not touch bulbs or adjacent areas during or straight after prolonged use of the lighting
installation.
C) Flambè cooking is prohibited underneath the cooker hood.
D) Avoid free flame as it is damaging for the filters and a fire hazard.
E) Do not leave food frying unattended as the overheated oil may become a fire hazard.
F) Disconnect the electrical connection prior to any maintenance.
G) This appliance is not intended for use by young children or infirm persons without supervision.
H) Young children should be supervised to ensure they do not play with the appliance.
I) There shall be adequate ventilation of the room when the hood is used at the same time as
appliances burning gas or other fuels other than electric.
L) There is a risk of fire if cleaning is not carried out in accordance with the instructions.
This appliance conforms to the European Directive 2012/19/EU, Waste Electrical and Electronic
Equipment (WEEE).
The symbol on the product or on the accompanying paperwork indicates that the appliance should
not be treated as domestic waste, but should be delivered to a suitable electric and electronic
appliance recycling collection point.
Follow local guidelines when disposing of waste.
For more information on the treatment, re-use and recycling of this product, please contact your
local authority, domestic waste collection service or the retailor where the appliance was purcha-
sed.

5
INSTALLATION INSTRUCTIONS
• Assembly and electrical connections must be carried out by specialised personnel.
• Wear protective gloves before proceeding with the installation.
• Electric Connection:
- The appliance has been manufactured as a class II, therefore no earth cable is necessary. The
power point must be easily accessible after the installation of the appliance. If the appliance is
equipped with power cord without plug, a suitably dimensioned omnipolar switch with 3 mm mini-
mum opening between contacts must be fitted between the appliance and the electricity supply in
compliance with the load and current regulations.
- The connection to the mains is carried out as follows:
BROWN = L line
BLUE = N neutral.
•If the hob is electric, gas, or induction, the minimum distance between the same and the lower
part of the hood must be at least 65 cm. If a connection tube composed of two parts is used, the
upper part must be placed outside the lower part (Fig.3).
Do not connect the cooker hood exhaust to the same conductor used to circulate hot air or for
evacuating fumes from other appliances generated by other than an electrical source.
Before proceeding with the assembly operations, remove the anti-grease filter(s) (Fig.1) so that
the unit is easier to handle.
-In the case of assembly of the appliance in the suction version prepare the hole for evacuation
of the air.
• We recommend the use of an air exhaust
tube which has the same diameter as the air
exhaust outlet hole. If a pipe with a smaller
diameter is used, the efficiency of the product
may be reduced and its operation may become
noisier.
FIG.1
• If your appliance has been designed for
use in habitations supplied with a centralised
suction device perform the following opera-
tions:
-The switch controls opening and closure of
a valve using a thermo electrical device. By
placing the switch in the ON position, after a
minute, the valve opens rotating 90° allowing
suction of the stale air. By placing the switch
in the OFF position, the valve closes after 100
seconds.

• Fixing to the wall:
Drill 3 holes to accommodate the bracket (Fig.2). Screw and tighten the bracket onto the wall
with the screws & screw plugs provided. Lift the cooker hood up and hang it onto the wall bracket
hook (Fig.2).
Fix the appliance to the wall and align it in horizontal position to the wall units. When the
appliance has been adjusted, definitely fix the hood using the screws B (Fig.3). For the various
installations use screws and screw anchors suited to the type of wall (e.g. reinforced concrete,
plasterboard, etc.).
If the screws and screw anchors are provided with the product, check that they are suitable for
the type of wall on which the hood is to be fixed.
6
FIG.2
FIG.3
A
B

7
•Fixing the decorative telescopic flue:
Arrange the electrical power supply within the dimensions of the decorative flue. If your applian-
ce is to be installed in the ducting version or in the version with external motor, prepare the air
exhaust opening. Adjust the width of the support bracket of the upper flue (Fig.5). Then fix it to
the wall using the screws A (Fig.5) in such a way that it is in line with your hood and respecting
the distance from the ceiling.
Connect the flange C to the air exhaust hole using a connection pipe (Fig.6). Insert the upper flue
into the lower flue and rest above the frame. Extract the upper flue up to the bracket and fix it
with the screws or hang the flue by matching both side blocks (Fig.7). To transform the hood from
a ducting version into a filtering version, ask your dealer for the charcoal filters and follow the
installation instructions.
FIG.5 FIG.6
FIG.7
C

8
• Filtering version:
Install the hood and the two flues as described in the previous paragraph “ Fixing the decorati-
ve telescopic flue”. To assemble the filtering flue refer to the instructions contained in the kit. If
the kit is not provided, order it from your dealer as accessory. The filters must be applied to the
suction unit positioned inside the hood. They must be centred by turning them 90 degrees until
the stop catch is tripped (Fig.8).
FIG.8

9

10
USING THE HOOD
LCD Display
1. Fan Symbol: Rotates when the fan is working. When the speed is increased, the fan rotates
faster. When the symbol “TURBO” is shown the fan speed is in intensive mode for 5 minutes.
2. Time Display
3. Timer Symbol: Will illuminate when timer function is set.
4. Light: Illuminates when the lights are switched on.
5. Fan Speed: Increases illumination when speed increases.
6. Alarm symbol: Illuminates once timed function has ended.
7. Filter Clean Symbol: Illuminates when aluminium filters need cleaning (every 14 hours
operated).
Touch Control
When the hood is initially switched on the “Filter Clean” symbol will illuminate. To clear press the
light symbol twice.
Light Button
Used to switch the lights on and off.
With the lights switched on press and hold the light symbol to view the current
filter time elapsed of the 14 hours before the filters need cleaning.
Timer Button
To set the current time press the “Timer” symbol once and the hour will flash,
use the + and –to set the correct hour. Press the “Timer”symbol again and the
minute will flash, set the minute using + & to set the minute.
Once the minute has been set leave until the minute stops flashing, this will set
the time.

11
Operation of Hood
Speed plus button: To increase the speed of the fan (Level 1,2, 3 & Turbo).
Speed decrease button: To decrease the speed of the fan. A short press of the +
or –symbols will either increase or decrease the fan speed by one setting.
A long press of the + symbol will operate the “Turbo” function, a long press of the - symbol will
switch the fan off.
Timed Operation
When the hood is operational you can set a timed duration to automatically switch the hood off.
To set the timer tap the “Timer” symbol to scroll through each pre-set time delay.
Each tap of the “Timer” symbol will add 15 minutes delay up to a max of 60 mins.
At any point whilst setting the timed operation (whilst the timer symbol is flashing) you can use
the + & - symbols to set any time between 1 and 99 minutes. Once the timer symbol stops fla-
shing the timed operation will begin.
Once the timed operation is set the clock will then count down and switch off the fan/lights once
the time has elapsed. An alarm symbol will illuminate and an audible alarm will sound for a few
seconds.
To cancel the timed operation press and hold the “-“symbol at any point.
The fan speed can be adjusted in timed operation with taps of the + & - symbols.
Quick Timer function
When the hood is operational you can set a quick countdown automatically switch the hood off
after 5 minutes.
To operate this function press and hold + & –symbols together for 1 second. The digital display
will flash and go into a 5 minutes countdown. After 5 minutes the fan/lights will turn off automatic
and an audible alarm will sound.
To cancel the quick timer press and hold the “-“symbol at any point.

12
CARE & CLEANING
Before cleaning or maintenance switch off the electricity supply.
Replacing the LED Lights
If the appliance version is with LED lamps, the intervention of a specialised technician is neces-
sary to replace them
Outer Casing
All external parts of the outer casing can be safely cleaned with a clean cloth wrung out in hot
soapy water.
Do not use caustic pastes, abrasive cleaning powders, wire wool, hard implements or any pro-
ducts containing chlorides as they will damage the surfaces.
Stubborn marks can be removed using a stainless steel cleaner. We recommend that you clean
the whole of the stainless steel area to maintain a uniform finish.
Sharp objects can mark the surface of stainless steel, but marks will become less noticeable with
time.
To maintain the finish of the stainless steel, or to remove any greasy marks, wipe the stainless
steel surface sparingly with a minimum amount of Baby Oil and kitchen paper.
Do not use cooking oils, as these may contain salt, which can damage the stainless steel surface.
Before cleaning or maintenance switch off the electricity supply.
To avoid any fire risk, the following cleaning instructions must be followed:
Grease Filters
The grease filters absorb grease and dust from cooking fumes, which would otherwise damage
the inside of the hood.
The grease filters should be removed and cleaned regularly - with normal use, this should be
every 2 months.
To clean use warm soapy water, or wash in a dishwasher. The grease filters may slightly change
colour following washing, however this does not affect their performance.
Important: Frequent washing is essential to prevent a build-up of grease in the filters which could
become a fire hazard.

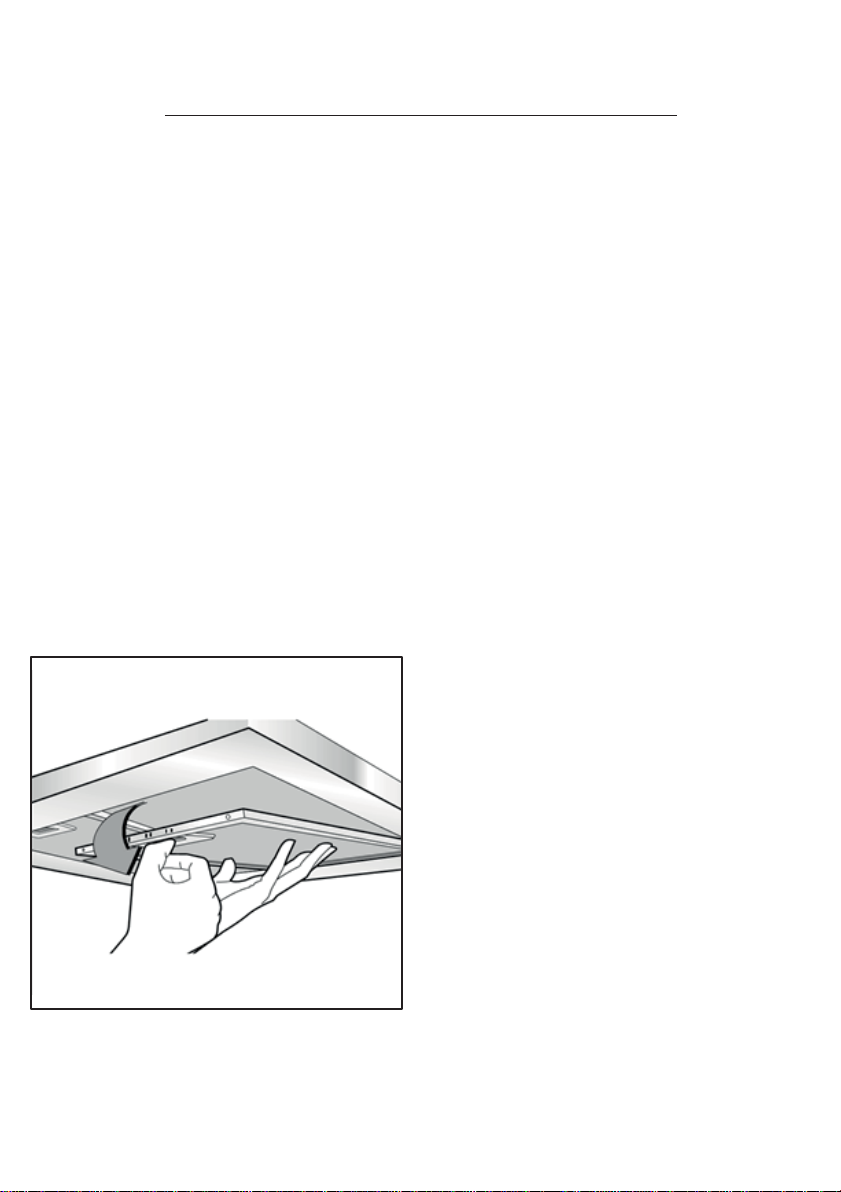

1. Remove the filters from the hood.
2. Carefully wash the grease filters in hot soapy water and dry with a clean towel.
3. Refit the clean filters.
Carbon Filters (models installed for use with the re-circulation method only)
The carbon filters absorb cooking odours and need renewing after about 6 months of normal use.
Replacement carbon filters can be obtained from our Customer Care (details at the rear of the
handbook).
Saturation of the activated charcoal in the filter will depend on how often the hood is used, the
type of kitchen and the regularity of cleaning the grease filter.
The carbon filters cannot be washed - renew every 6 months.

13
TECHNICAL DATA
Electricity Supply
230 - 240V ~ 50Hz
Classification
class II
Noise Level (External Venting)
Booster 70 dBA
Position 3 70 dBA
Position 1 49 dB
Light Bulbs
2 x 1.5W LED
Motor Rating
203W
Grease Filters
2 Off - Aluminium panel
Note: After cleaning, grease filters may lose their colour slightly - this does not affect their perfor-
mance.
Carbon Filters
2 Off - Available as Spares
Extraction Rate (External)
Booster 582.6 m3/H
Position 3 582.6 m3/H
Position 1 411.3 m3/H

14
Stoves Customer Care
Please keep this handbook in a safe place.
Please fill in the model number
and serial number in the spaces provided below as they will assist us should you
need to call.
0344 815 3740
When you dial this number you will hear a recorded message and be given a
number of options. This indicates that your call has been accepted and is being
held in a queue. Calls are answered in strict rotation as our Customer Care
Representatives become available.
Enter appliance numbers here for future reference:
These numbers can be found on your appliances.
Outside the UK and Northern Ireland, refer to your local supplier.
Stoney Lane, Prescot, Merseyside, L35 2XW
Model No
Serial No
