Product Characteristics:
The Oxford dryer is fitted with a fully automatic infrared sensor ensuring a hygienic
no-touch hand drying experience. The Oxford dryer will start when it senses your
hands underneath and will stop when you take your hands away.
Please install the Oxford dryer with the fixings provided once you have taken off
the cover. Also please disconnect the plug before installing.
The Oxford dryer is suitable for high traffic washroom environments such as
hotels, offices, schools, leisure centres, restaurants and bars.
Do not install the Oxford dryer in wet areas or areas with heavy surface water
vapour to avoid an electric shock.
You must be a qualified electrician to install the Oxford dryer.
You must disconnect the power before installing.
It is advised to install a fused spur with the Oxford dryer.
Do not disconnect, repair or make any alterations of the Oxford dryer without
authorisation otherwise there is a risk of electric shock, fire and other hazards.
The Oxford dryer is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
the use of the dryer by a person responsible for their safety.
Please ensure that there are no obstructions to the air outlet within 400 mm.
Do not install the Oxford dryer above stainless steel or artificial marble or
similar surfaces with a shiny surface otherwise it may be prone to malfunction.
The Oxford dryer should be firmly fixed to a smooth wall to avoid injuries or
product damage.
Do not install the Oxford dryer in places with corrosive or flammable gases or
objects as it may cause fire or malfunction to the product.
Do not install the Oxford dryer in areas with heavy dust in the air or in very high
temperatures as it may cause product damage.
Note Prior to Installation:
Attention:
1

Technical Parameters:
1 no. Installation instruction manual
1 no. Warranty card
1 no. Installation template
4 no. Fixing screws
4 no. Wall plugs
1 no. Allen key
Cover:
Contents:
Rated Voltage AC220-240V Waterproof Grade IPX1
Rated Frequency 50-60HZ Sensing Distance 12 ± 3cms
Rated Power 2300W Air speed 30m/s
Temperature Controller
Cut-out temperature
115oC Drying Time 10-15S
Thermal Fuse 121oC Overall Size 267 x 235 x 142

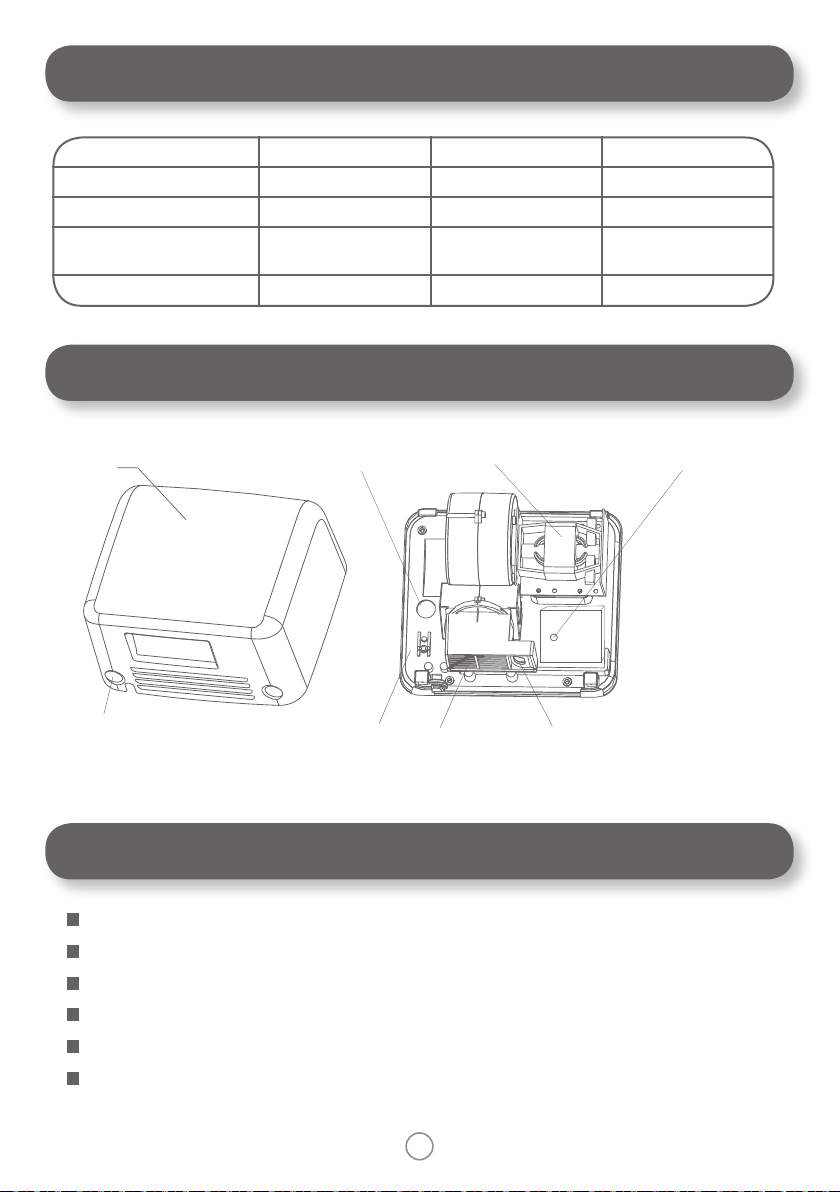

Cover Hole for concealed wiring Motor Sensor adjustment
Induction head
Air outlet
Base
Allen bolt
(PICTURE 1)
2

Installation Instructions:
1Drill four holes on the wall as shown on the installation template included in the
contents, then insert the wall plugs into the holes.
2Take off the cover by unscrewing the two allen bolts on the underside of the dryer
using the allen key provided.
3Using the fixings provided, screw the dryer to the wall into the four fixing holes (if
you are using concealed cable, please take the cable into the dryer through the
hole for concealed wiring (picture 2).
4Put the cover back on and screw in the two allen bolts using the allen key provided
(picture 3). Installation is complete.
Hole for buried wiring
Floor
Wall
at least
100mm
1100mm
(PICTURE 3)
(PICTURE 2)
3

Test Operation:
After installing the Oxford dryer, please test the operation as follows:
1After connecting to the mains power, the machine is in standby mode.
2Put your hands underneath the air outlet to start the motor.
3Take your hands away to check that the dryer stops automatically.
4Leave your hands underneath the air outlet for 60 seconds to check that the safety
cut-out feature works and that the dryer stops working after 60 seconds of continual
use.
1After washing your hands, place your hands under the air outlet at a distance of
about 10 cm. The hand dryer will be automatically activated and you will feel the
warm air starting to dry your hands. Remove your hands from under the dryer when
your hands are dry and the dryer will automatically stop working 2 seconds after
you take your hands away. If you use it for 60 seconds continuously, the dryer will
automatically stop so if you need to use it for longer than 60 seconds, please remove
your hands, wait for 2 seconds then put your hands back under the air flow and the
dryer will re-activate.
2Before drying your hands you should remove as much excess moisture as possible
and when drying your hands you should rub your hands together which will reduce
the dry time even further.
3The Oxford dryer is for drying human hands and is not intended for drying clothes.
4Young children or mentally-handicapped people should be supervised when using
the dryer.
5Do not pull the power cable or cover the air intake with tissue or clothes as this will
cause the dryer to malfunction and may be dangerous.
Usage Instructions:
1If the dryer isn’t working or starts without you putting your hands under the air
outlet, please adjust the sensor length by turning the sensor adjustment as shown
in picture 1.
2The closer you hold your hands to the air outlet, the quicker you will dry your hands.
3If the dryer is used continuously for a long period of time, the surface of the air outlet
may become very hot.
Tips:
4

Maintenance:
1To clean the cover, we recommend that you use a damp cloth and a neutral detergent
to clean it. Do not use abrasive or acidic detergents or nylon brushes to avoid
scratching the cover.
2During cleaning use only a damp cloth and ensure that you prevent any water getting
into the machine to avoid electric shocks.
3If the machine breaks down or runs continuously, please switch off the power at the
fused spur and contact Stream Hygiene Ltd on [phone].
1The warranty for the Oxford dryer is 12 months from the date of invoice. Your invoice
is proof of purchase.
2If your Oxford dryer malfunctions within 12 months of buying it, please send it back
to Stream Hygiene Ltd, Pelham Court, London Road, Wiltshire, SN8 2AG. Once
received, your dryer will be tested and if found to be faulty and covered by our
warranty you will be sent a brand new dryer free of charge.
3The warranty does not cover vandalism or costs involved with taking the old dryer
off the wall, sending it back to Stream Hygiene Ltd or re-installing the new dryer.
4Other criteria not covered by the warranty include improper use, maintenance
or repair by un-qualified persons, fires, earthquakes and other natural disasters or
damage caused by connecting the wrong power to the dryer.
Warranty:
