Street Guardian SGGPSAD2 User manual

Auxiliary display
Sggpsad2
Quick start guide

2
Product safety & precautions
Thank you for purchasing the Street Guardian SGGPSAD2
Auxiliary Display
The Auxiliary Display is designed to operate best at
temperatures of between -20c to +70c, operating outside
of these temperatures may produce unpredictable results
and should be avoided.
Clean only with a soft dry cloth, being careful not to use
excessive pressure, the use of liquids or cleaning fluids may
damage the product and could void your warranty.
The Auxiliary Display is suitable for 12-volt systems only
and must only be used with the included connection
cables.
Do not attempt to use the cables to connect to other
devices as it could cause damage, do not attempt to use
other cables to power the Auxiliary Display.

3
Introduction
The Street Guardian SGGPSAD2 Auxiliary Display is
designed to be used as an additional easy to read speed
display and can support a number of extra convenience
and safety features.
SGGPSAD2 features
Multi speed alert
Audible and visible speed alert options
GPS time
Voltage alert
Auto brightness
Manual brightness control
Selectable display colours
Auto power off
The SGGPSAD is compatible with all 12-volt vehicles

4
Installation & configuration
Choose a suitable mounting location where the unit is easy
to see and cables can be routed without causing any
interference with the operation of the vehicle. Use the
appropriate mounting option to suit your vehicle, suction
mount or adhesive, ensure that the cables have enough
clearance to avoid damage and any excess cable is cable
tied or routed so as not to interfere with the driving
position.
The basic features are pre-configured with logical default
settings and are supplied ready to use once installed with a
minimum of adjustment needed to personalise to your
needs.
If using in a vehicle with an ignition switched power source
it is only necessary to set the time offset, all other defaults
are preset. If the vehicle only has a permanent power
source it will be necessary to configure the power off time
and sleep voltage menu settings so that it will power off
when not in use. It is important to make sure the device
has access to GPS signal to work correctly.

5
Settings & KEY functions

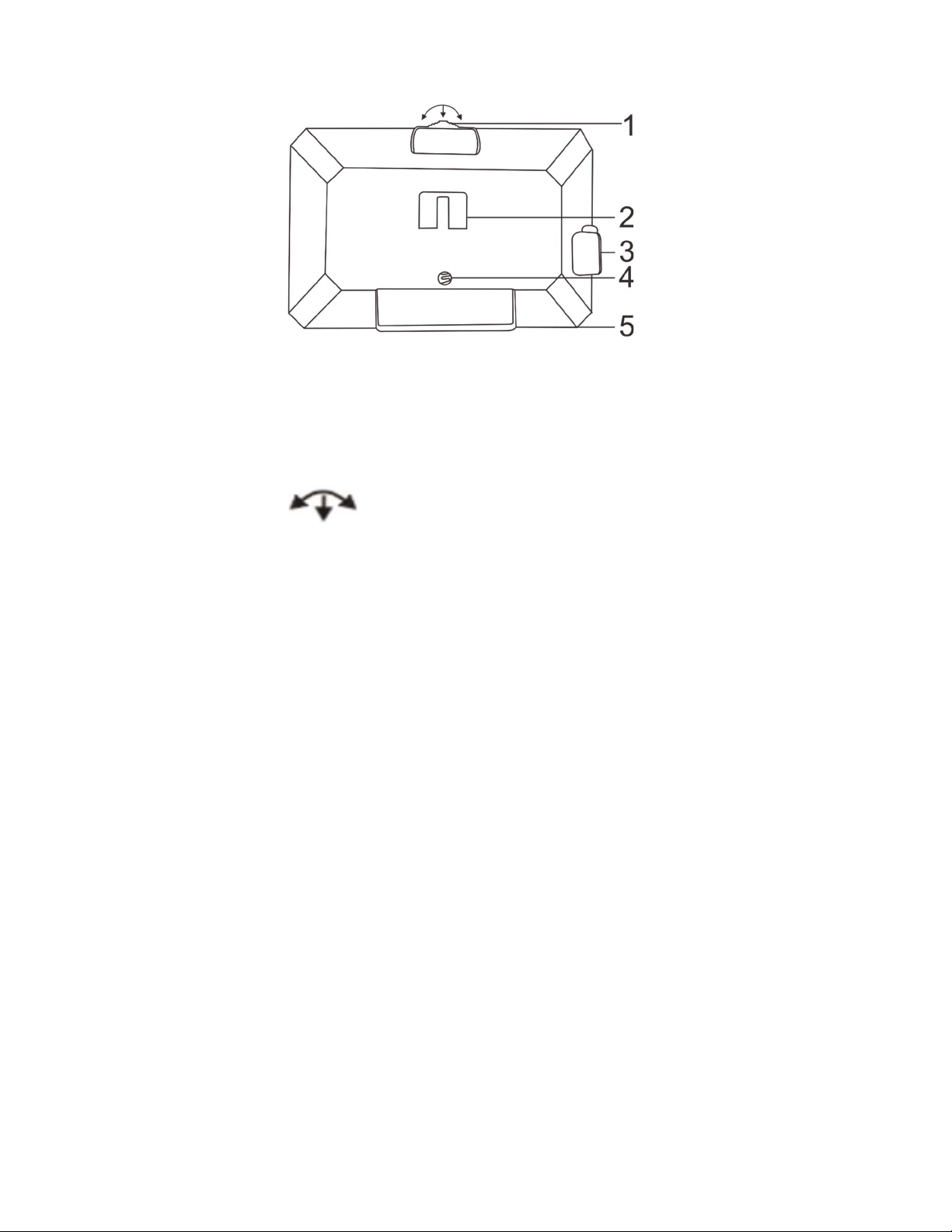

1. Menu multi setting button
2. Mount bracket tab
3. Power input
4. Light sensor
5. Mount base
The menu multi setting button operates by
moving left or right, or by short or long press depending on
the function required.

6
Short press in display mode will cycle through the various
display options, short press in menu mode to enter any
submenu or select and confirm a setting.
Push left in display mode will change the display item on
the left side, continue to push left to cycle through the
various display options. Push left in menu mode to
navigate the submenus.
Push right in display mode will change the display item on
the right side, continue to push right to cycle through the
various display options. Push right in menu mode to
navigate the submenus.
Long press in display mode to enter the settings menu,
after confirming any settings long press for 5 seconds to
save and exit the settings menu.
[Note] No menu adjustments should ever be made while
the vehicle is in motion, any required settings such as speed
offset should be noted and only adjusted while stationary.

7
Menu options
Language set – Allows you to choose the default display
language (English)
Sound Switch – Allows you to enable or disable the
warning sounds (On)
Speed Alarm 1 – Selectable over speed warning (102 km/h)
Speed Alarm 2 – Selectable over speed warning (112 km/h)
Speed Yellow – Selectable visible speed warning (98 km/h)
Speed Red – Selectable visible speed warning (108 km/h)
Bat Alarm – Selectable low voltage warning (Off)
Speed Adjust – Selectable offset adjustment to allow speed
calibration (100%)
Speed Offset – Selectable speed at which the display starts
to register (3 km/h)
Bat Adjust – Selectable voltage display offset (100%)
Change Colour 1 – Selectable option for the main display
(White)

8
Change Colour 2 – Selectable option for the left side menu
display (Red)
Change Colour 3 – Selectable option for the right side
menu display (Green)
Brightness – Selectable setting to control the LCD
brightness (Auto)
Speed Unit – Selectable MPH, km/h, Knots display (km/h)
Power off time – Selectable power off time for vehicles
without a switched power source (180sec)
Sleep Voltage – Selectable voltage for power off for
vehicles without a switched power source (Off)
Time Adjust – Time offset adjustment for GPS (+10)
Factory set – Will return all settings to defaults as shown in
brackets above

9
Australian Consumer Electronics
Product Warranty
Congratulations on Your Purchase, this product is
warranted against faults in material and manufacture for a
period of one year.
If Warranty is required please contact your place of
purchase to arrange a Return Merchandise Authorisation,
(RMA). The repairs/replacement will be carried out at no
charge to the owner, subject to the conditions specified
herein.
This warranty does not extend to defects or injuries caused
by or resulting from causes not attributable to faulty parts
or the manufacture of the product, including but not
limited to, defect or injury caused by or resulting from
misuse, abuse, neglect, lack of maintenance, accidental
damage, improper voltage, liquid spillage, liquid ingress,
software, or any alterations made to the product which are
not explicitly authorised by Street Guardian.
Please retain your sales documentation, as this should be
produced to validate a warranty claim. This warranty is in
addition to and in no way limits, varies or excludes any
implied rights and remedies under any relevant legislation
in the country of sale.

10
This warranty does not cover transportation to or from the
Street Guardian Service Centre. Goods presented for repair
may be replaced by goods of equal type rather than being
repaired.
Australian customers: Our goods come with guarantees
that cannot be excluded under Australian Consumer Law.
You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have
the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a
major failure. The criteria of a major failure is defined in
the Australian Consumer Law. Should you require any
assistance with a major failure please contact Street
Guardian.
Conformity Declaration
The SGGPSAD complies with the requirements of
EN 55032:2015 + EN 55035:2017 according to directive
2014/30/EU and the associated standards and technical
specifications and is therefore entitled to bear the CE
symbol.

11
Abbreviations & specification
GPS - display number of satellites
RTC – display current time
DIS – display distance since power on
VLT – display vehicle voltage
TIM – display time since power on
ASL – display altitude
DIR – display current direction
Operating temperature: -40c- + 80c
Atmospheric pressure 86-106KPa
Relative Humidity: 10% -95%
Alarm sound level: 》=30dB (A)
Working voltage: 9V ~ 16Vdc (12Vdc / 400mA)
Product size: 83 x 60 x 15mm
Product Weight: 50 g

12
Further information
All attempts are made to ensure that the information
contained in this quick start guide is correct at time of
publication.
The specifications and details within this guide are based
on the Australian market version of the product and are
subject to change.
The pictures used are for illustration purposes only.
Information about the latest specification, amendments,
the availability of replacement parts and accessories,
warranty information, detail of other sales region product
specifications and their respective user manuals are
available on our website.
www.streetguardian.info
© Street Guardian 2019
