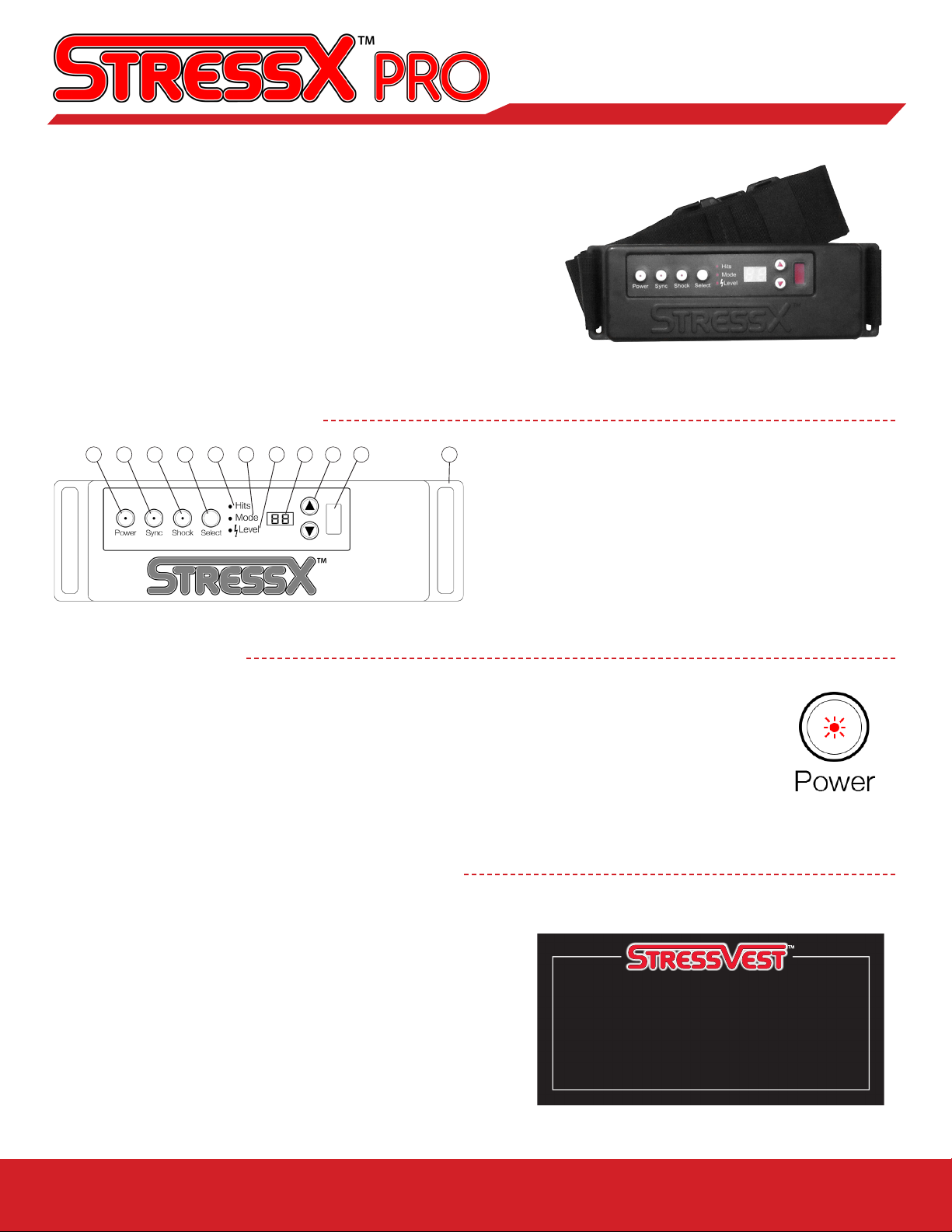

StressVest StressX PRO User manual

page 1
STRESSVEST INC.
1080 Kingsbury Avenue • Winnipeg, Manitoba, Canada R2P 1W5
Toll Free: 1-866-353-5055 • Ph: [phone] • Fax: [phone] • [e-mail]
Operating Instruction:
QUICK SETUP GUIDE
The StressX™ PRO Belt is the brains of the entire StressVest®
system. It allows the Instructor to set the system to deliver a
vibration or shock. The shock adjustment allows the instructor to
adjust the pain penalty based on the students’ level of performance
from 1(Lowest) to 5 (Highest). Twelve Advanced Training Instruction
Modes have been programmed into the StressX™ PRO Belt to
optimize the level of training for the students. Finally, it registers
the number of hits to the StressVest®. The StressX™ PRO Belt has
a USB port that is used for charging and also for remote upgrading
of the software if required.
STRESSX™ PRO BELT PARTS
OVERVIEW
SETTING TRAINING MODES & SHOCK LEVEL
BASIC OPERATION
StressX™ PRO Belt
1. Power On/Off Button
2. Sync Button
3. Shock Button
4. Select Button
5. Hits LED Indicator
6. Mode LED Indicator
7. Shock Level Indicator
8. LED Display
9. Up & Down Arrows
10. Sync Window
11. Belt Strap Holders
1 2 3 4 5 6 7 8 9 10 11
1. Press the Select Button (4) on the StressX™ PRO until the
Mode LED Indicator is illuminated. Press the Up & Down
Arrows (9) to move to the desired Mode. The mode number
is displayed in the LED Display (8).
2. Press the Select Button (4) on the StressX™ PRO until the
Level LED Indicator is illuminated. Press the Up & Down
Arrows (9) to move to the desired Shock Level. The Shock
Level is displayed in the LED Display (8).
Turning On the StressX™ PRO Belt
Press the Power On/Off Button (1) once. The Power On/Off Button (1) should illuminate red.
Turning Off StressX™ PRO Belt
Press and hold the Power On/Off Button (1) for two seconds. The Power On/Off Button (1)
should turn off.
There are 12 Advanced Training Modes and 5 Shock Levels (1-Low to 5-High) that the StressX™ PRO can be set to.
StressX™ PRO - Advanced Training Modes
ROLE PLAYER MODES
(Ensure Controller Switch is Set to Vibrate)
1 - Vibrates every hit.
2 - Vibrates after two hits
3 - Vibrates after three hits
MOVE TO COVER MODES
(Pain Penalty Increases with Each
Subsequent Hit)
6 - Vibrates 1st hit, 2nd begins shock
7 - Shocks 1st at Low then increases
8 - Shocks 1st at Med then increases
STRESS EXPOSURE MODES
(Set Appropriate Shock Level for Student)
4 - Shocks every hit.
5 - Vibrates 1st hit, then shocks
INJURED OFFICER MODES
(Shock Continues to Fire Randomly for Set
Time Period After First Hit)
9 - Shocks randomly - 10 seconds
10 - Shocks randomly - 20 seconds
11 - Shocks randomly - 30 seconds
12 - Vibrates randomly - 30 seconds

page 2
STRESSVEST INC.
1080 Kingsbury Avenue • Winnipeg, Manitoba, Canada R2P 1W5
Toll Free: 1-866-353-5055 • Ph: [phone] • Fax: [phone] • [e-mail]
WARNING
CONTACT MAY CAUSE
ELECTRICAL SHOCK
OR BURN.
THIS UNIT TO BE
SERVICED BY TRAINED
PERSONNEL ONLY.
HIGH VOLTAGE
ELECTRIC
SHOCK RISK
When in shock mode, the StressVest® will deliver a safe, localized shock, with the following specifications:
CLEANING AND MAINTENANCE
ELECTRICAL SPECIFICATIONS
Power Source :
Shock/vibration Location :
Maximum Voltage :
Maximum Amperage :
Maximum Joules :
Duration :
Safety Monitor Certication :
Instructor Training:
3.7 Volt Rechargeable Battery
Belt Worn Externally on Stomach
4,500 Volts
Less than 1mA over 150msec Activation
0.092 Joules (92mJ)
Individual Discharge Pulse < 0.1msec
Available Online
StressVest® Reality Based Training
Instructor Certication
Electrical Safety Specications
International Electro Technical Commission - Electrical Safety Standard
The effects of electrical current passing through the human body are covered at the length
in the international Electro Technical Commission document IEC 479-2:1987. The Document
states that a transient or capacitive discharge, as is the case with static electricity, requires
energy in excess of 5 Joules (5000mJ) to produce a direct serious risk of health.
THE ENERGY LEVEL OF THE STRESSVEST® DISCHARGES LESS THAN 2% OF THE
ENERGY LEVELS CONSIDERED SAFE.
StressX PRO
TECHNOLOGY
BELT PLACEMENT
IMPORTANT!
• The StressX™ PRO Belt should be placed directly on the abdomen above the belt.
• The belt MUST be tightened securely to ensure proper contact with the electrodes.
• It is designed to go through one layer of clothing.
• Wearing an under armour type shirt will dramatically reduce the energy delivered
by the StressX™ PRO Belt.
Cleaning
Ensure the StressX™ PRO Belt is turned off. Power On/Off Button (1) should
not be illuminated. Use a cleaning wipe that has no more than 70% alcohol
by volume to wipe clean the back of the StressX™ PRO Belt including the
six Electrodes. Allow to sit and dry for approximately 5 minutes to ensure
all alcohol has evaporated.
Power Supply & Battery Charging
The StressVest® Transmitter and StressX™ PRO Belt are powered by a 3.7
volt rechargeable battery that should last for approximately eight hours
before needing recharging. Battery life may very depending on usage.
StressVest® Support Website for Software Updates
StressVest® releases important periodic software upgrades for the StressX™ Belt that are free, easily
downloaded, and installed remotely. Software upgrades located at www.stressvest.com under Support.
Detailed instructions are included, along with a direct contact at StressVest Inc. for additional support if
needed.
Username: support_cmr
Password: svcustomer1
Electrodes
